◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CVR ▶ 10860 - CVR LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-47 - MUD GUARD AND INSULATOR ▶
6-47 — MUD GUARD AND INSULATOR (#8887) — 146 parça

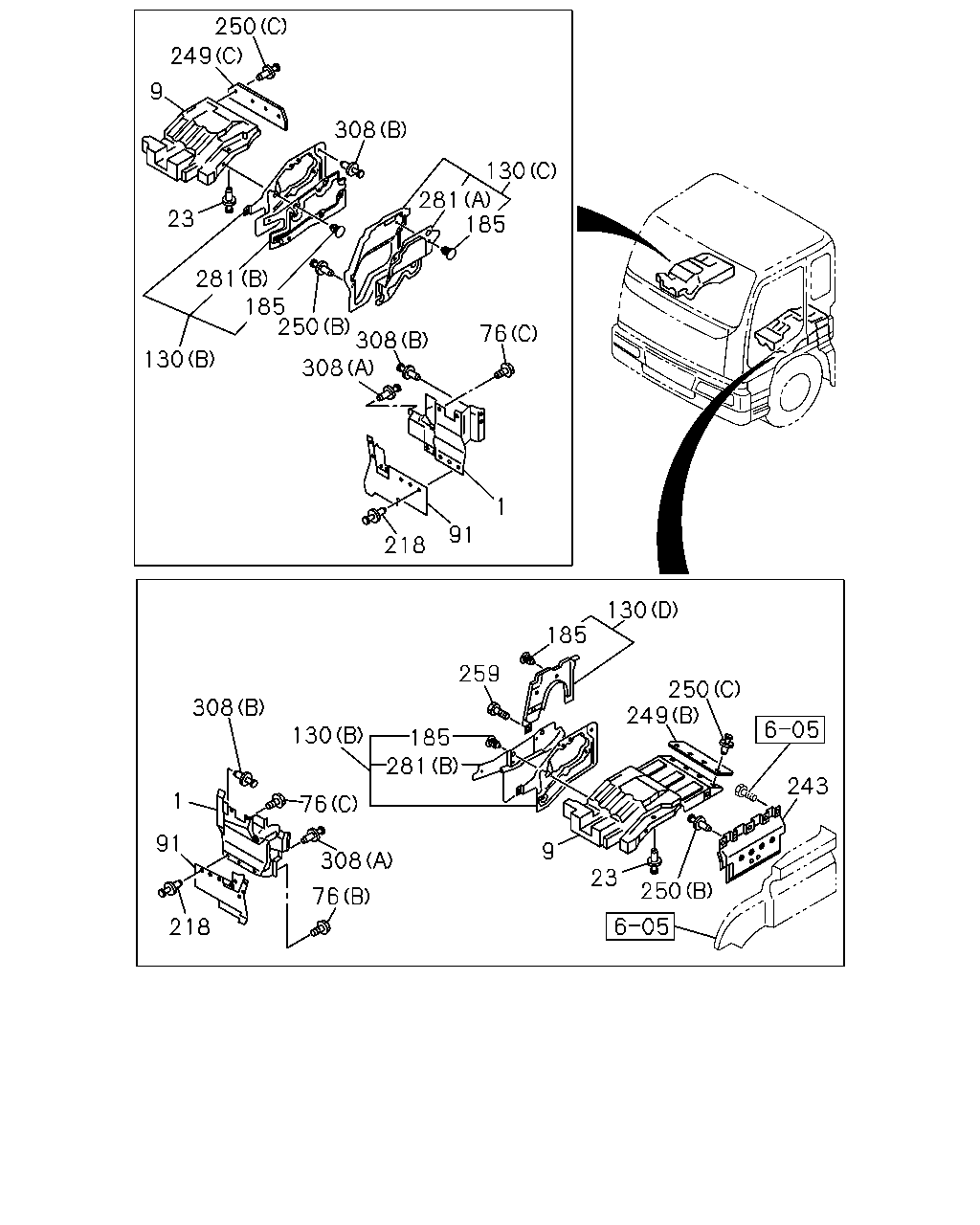

çizim 18726
250 249 9 308 130 281 185 23 281 185 250 308 308 76 130 1 91 218 130 185 259 250 249 308 130 185 281 243 1 76 91 9 308 23 250 76 218
BalonParca AdiParca NoAdetTipApplied Date
1 GUARD; MUD,FRT 1-79937-895-5 01 1 0105-
1 GUARD; MUD,FRT 1-79937-894-6 01 1 0105-
9 GUARD; SPLASH,WHEEL HOUSE 1-79937-893-4 01 1 0105-
9 GUARD; SPLASH,WHEEL HOUSE 1-79937-892-4 01 1 0105-
23 FASTENER; MUD COVER
D8X13.5 		1-09987-248-1 21 1 0105-
76 BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER 		1-09030-074-0 08 1 0105-
76 BOLT; MUD GUARD
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 04 1 0105-
76 BOLT; MUD GUARD
(C) M8X30 W/LK&PL WASHER 		8-94279-210-0 06 1 0105-
91 COVER; MUD,FRT 1-79931-200-1 01 1 0105-
91 COVER; MUD,FRT 1-79931-199-1 01 1 0105-
130 PANEL; SHUTTER NOISE
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (D) 		1-79937-891-1 01 1 0304-0402
130 PANEL; SHUTTER NOISE
(D) 		1-79937-891-1 01 1 0403-
130 PANEL; SHUTTER NOISE
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (C) 		1-79937-946-2 01 1 0304-0402
130 PANEL; SHUTTER NOISE
(C) 		1-79937-946-2 01 1 0403-
130 PANEL; SHUTTER NOISE
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (E) 		1-53193-196-2 01 1 0303-
130 PANEL; SHUTTER NOISE
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (E) 		1-53193-211-0 01 1 0303-
130 PANEL; SHUTTER NOISE
(A) 		1-53193-203-2 01 1 0105-0302
130 PANEL; SHUTTER NOISE
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (A) 		1-53193-203-2 01 1 0303-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-916-4 01 1 0105-
130 PANEL; SHUTTER NOISE
(D) 		1-79937-920-2 01 1 0105-0303
130 PANEL; SHUTTER NOISE
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (D) 		1-79937-920-2 01 1 0304-0402
130 PANEL; SHUTTER NOISE
(A) 		1-53193-210-1 01 1 0105-0302
130 PANEL; SHUTTER NOISE
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (A) 		1-53193-210-1 01 1 0303-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-952-3 01 1 0105-
130 PANEL; SHUTTER NOISE
(C) 		1-79937-971-2 01 1 0105-0303
130 PANEL; SHUTTER NOISE
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (C) 		1-79937-971-2 01 1 0304-0402
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 12 1 0203-0312
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 11 1 0401-0402
185 CLIP; HEAT INSULATOR
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) ID=6.2 L=11.4 		8-97808-623-0 11 1 0401-0402
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 11 1 0403-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 11 1 0105-0202
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 11 1 0105-0202
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 11 1 0203-0303
185 CLIP; HEAT INSULATOR
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) ID=6.2 L=11.4 		8-97808-623-0 11 1 0304-0312
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 0105-
218 FASTENER; RUBBER
ID=6X6 OD=8 		1-09987-194-0 08 1 0105-0511
218 FASTENER; RUBBER
D8X13.5 		1-09987-248-1 08 1 0512-
243 PROTECTOR; NOISE SHUT PANEL 1-79937-906-2 01 1 0105-
249 RUBBER; SHUTTER
(B) 		1-79937-902-3 01 1 0105-
249 RUBBER; SHUTTER
(A) 		1-79937-924-2 01 1 0105-
249 RUBBER; SHUTTER
(C) 		1-79937-975-1 01 1 0105-
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 0105-
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 0105-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 05 1 0105-
250 FASTENER; SHUTTER
(C) D6X20 		8-94361-318-0 04 1 0105-
259 BOLT; NOISE PANEL
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 10 1 0105-
281 INSULATOR; NOISE
(B) 		1-71907-171-2 01 1 0105-
281 INSULATOR; NOISE
(A) 		1-71907-420-0 01 1 0105-0303
281 INSULATOR; NOISE
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (A) 		1-71907-420-0 01 1 0304-0402
281 INSULATOR; NOISE
(B) 		1-79937-956-1 01 1 0105-
281 INSULATOR; NOISE
MATTRESS SLEEPER CAB<E40> (C) 		1-73237-445-4 01 1 0105-
308 FASTENER; MUD GUARD
(A) 		1-09470-007-0 08 1 0105-
308 FASTENER; MUD GUARD
(B) ID=6X6 OD=8 		1-09987-194-0 02 1 0105-
çizim 19257
130 130 251 130 251 130
BalonParca AdiParca NoAdetTipApplied Date
130 PANEL; SHUTTER NOISE
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (D) 		1-79937-891-1 01 1 0304-0402
130 PANEL; SHUTTER NOISE
(D) 		1-79937-891-1 01 1 0403-
130 PANEL; SHUTTER NOISE
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (C) 		1-79937-946-2 01 1 0304-0402
130 PANEL; SHUTTER NOISE
(C) 		1-79937-946-2 01 1 0403-
130 PANEL; SHUTTER NOISE
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (E) 		1-53193-196-2 01 1 0303-
130 PANEL; SHUTTER NOISE
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (E) 		1-53193-211-0 01 1 0303-
130 PANEL; SHUTTER NOISE
(A) 		1-53193-203-2 01 1 0105-0302
130 PANEL; SHUTTER NOISE
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (A) 		1-53193-203-2 01 1 0303-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-916-4 01 1 0105-
130 PANEL; SHUTTER NOISE
(D) 		1-79937-920-2 01 1 0105-0303
130 PANEL; SHUTTER NOISE
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (D) 		1-79937-920-2 01 1 0304-0402
130 PANEL; SHUTTER NOISE
(A) 		1-53193-210-1 01 1 0105-0302
130 PANEL; SHUTTER NOISE
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (A) 		1-53193-210-1 01 1 0303-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-952-3 01 1 0105-
130 PANEL; SHUTTER NOISE
(C) 		1-79937-971-2 01 1 0105-0303
130 PANEL; SHUTTER NOISE
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (C) 		1-79937-971-2 01 1 0304-0402
251 CLIP; NOISE INSULATOR 8-94279-048-0 10 1 0105-0302
251 CLIP; NOISE INSULATOR
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) 		8-94279-048-0 10 1 0303-

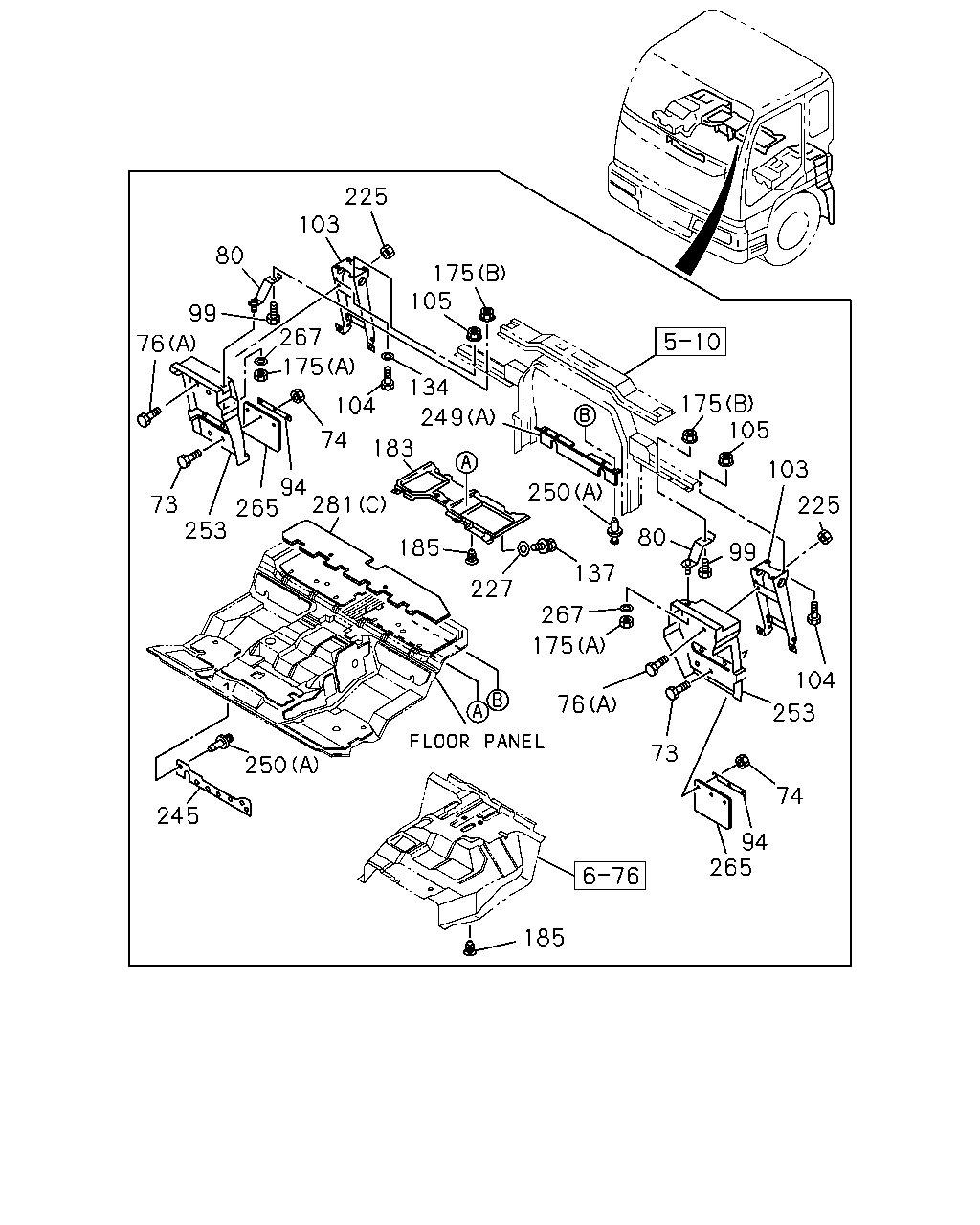

çizim 20468
225 103 80 175 105 99 267 76 175 134 175 105 104 249 74 183 103 94 73 265 281 253 250 225 80 185 99 137 227 267 175 104 76 253 73 250 74 245 94 265 185
BalonParca AdiParca NoAdetTipApplied Date
73 BOLT; MUD COVER BRKT
M8X25 W/LK&PL WASHER 		1-09030-074-0 06 1 0105-
74 NUT
M8 FLANGE 		0-91150-108-0 06 1 0105-0602
74 NUT
M8 FLANGE 		0-91180-108-0 06 1 0603-
76 BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER 		1-09030-074-0 08 1 0105-
76 BOLT; MUD GUARD
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 04 1 0105-
76 BOLT; MUD GUARD
(C) M8X30 W/LK&PL WASHER 		8-94279-210-0 06 1 0105-
80 BRACKET; MUD GUARD STAY 1-79931-159-1 02 1 0105-
94 RETAINER; FLAP RUBBER 1-79931-091-2 02 1 0105-
99 BOLT; STAY TO MUD GUARD
M10X25 FLANGE 		0-28681-025-0 02 1 0105-0512
99 BOLT; STAY TO MUD GUARD
M10X25 FLANGE 		0-28651-025-0 02 1 0601-
103 BRACKET ASM; RR MUD FLAP 1-79931-088-4 02 1 0105-
104 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 07 1 0105-0512
104 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 07 1 0601-
105 NUT; BRKT
M10 FLANGE 		0-91150-210-0 07 1 0105-0602
105 NUT; BRKT
M10 FLANGE 		0-91180-210-0 07 1 0603-
134 WASHER; PL
ID=10.5 OD=26 		9-09160-710-0 02 1 0105-
137 BOLT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0105-
175 NUT; STAY FIX
(A) M8 FLANGE 		0-91150-108-0 02 1 0105-0602
175 NUT; STAY FIX
(A) M8 FLANGE 		0-91180-108-0 02 1 0603-
175 NUT; STAY FIX
(B) M10 FLANGE 		0-91150-210-0 02 1 0105-0602
175 NUT; STAY FIX
(B) M10 FLANGE 		0-91180-210-0 02 1 0603-
183 INSULATOR; HEAT,BED PAN 1-71907-539-4 01 1 0105-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 12 1 0203-0312
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 11 1 0401-0402
185 CLIP; HEAT INSULATOR
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) ID=6.2 L=11.4 		8-97808-623-0 11 1 0401-0402
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 11 1 0403-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 11 1 0105-0202
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 11 1 0105-0202
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 11 1 0203-0303
185 CLIP; HEAT INSULATOR
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) ID=6.2 L=11.4 		8-97808-623-0 11 1 0304-0312
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 0105-
225 NUT; MUD GUARD
M8 FLANGE 		0-91150-108-0 08 1 0105-0602
225 NUT; MUD GUARD
M8 FLANGE 		0-91180-108-0 08 1 0603-
227 SEAL; MUD GUARD
T=2.0 		8-94279-641-0 01 1 0105-
245 RUBBER; SHUTTER,RAD 1-79937-949-1 01 1 0105-
249 RUBBER; SHUTTER
(B) 		1-79937-902-3 01 1 0105-
249 RUBBER; SHUTTER
(A) 		1-79937-924-2 01 1 0105-
249 RUBBER; SHUTTER
(C) 		1-79937-975-1 01 1 0105-
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 0105-
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 0105-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 05 1 0105-
250 FASTENER; SHUTTER
(C) D6X20 		8-94361-318-0 04 1 0105-
253 GUARD; MUD 1-79931-066-7 01 1 0105-
253 GUARD; MUD 1-79931-064-7 01 1 0105-
265 RUBBER; FLAP,REAR 1-79930-978-0 02 1 0105-
267 WASHER; PL,STAY
ID=8.4 OD=26 		9-09164-808-0 02 1 0105-0605
267 WASHER; PL,STAY
ID=8.4 OD=26 		0-91614-808-0 02 1 0606-
281 INSULATOR; NOISE
(B) 		1-71907-171-2 01 1 0105-
281 INSULATOR; NOISE
(A) 		1-71907-420-0 01 1 0105-0303
281 INSULATOR; NOISE
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (A) 		1-71907-420-0 01 1 0304-0402
281 INSULATOR; NOISE
(B) 		1-79937-956-1 01 1 0105-
281 INSULATOR; NOISE
MATTRESS SLEEPER CAB<E40> (C) 		1-73237-445-4 01 1 0105-

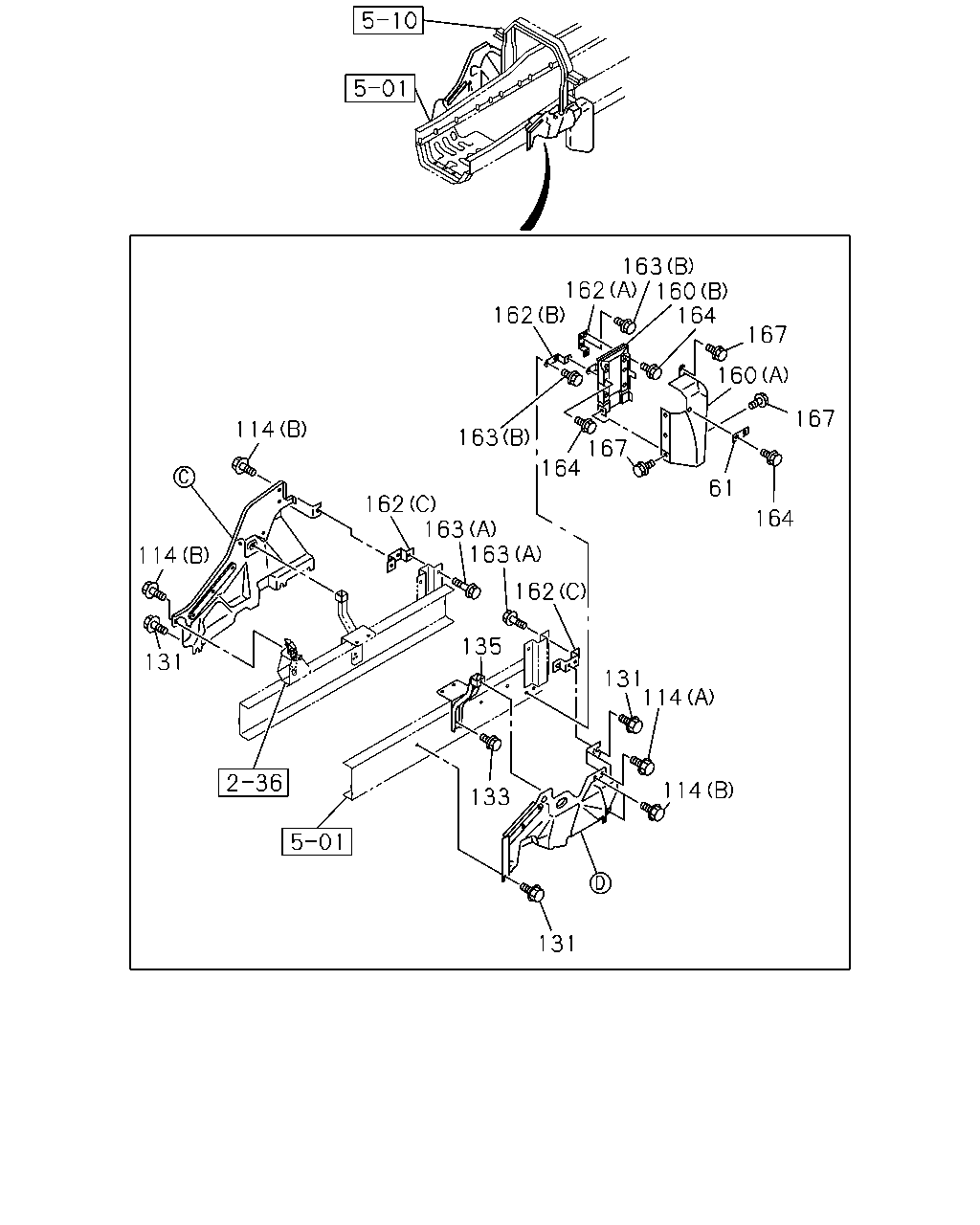

çizim 74970
163 162 160 162 164 167 160 167 114 167 164 163 61 162 163 163 164 114 162 131 135 131 114 114 133 131
BalonParca AdiParca NoAdetTipApplied Date
61 BRACKET; COVER 1-53441-536-1 02 1 0105-
114 BOLT
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0105-0512
114 BOLT
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0601-
114 BOLT
(B) M8X22 W/LK&PL WASHER 		1-09030-042-0 06 1 0105-
131 BOLT; PANEL
M8X25 W/LK&PL WASHER 		1-09030-074-0 08 1 0105-
133 BOLT; FRAME
M8X25 FLANGE 		0-28680-825-0 02 1 0105-0512
133 BOLT; FRAME
M8X25 FLANGE 		0-28650-825-0 02 1 0601-
135 BRACKET; SIDE PANEL 1-53441-508-1 01 1 0105-
160 COVER ASM; EXH
(A) 		1-79931-063-1 01 1 0105-
160 COVER ASM; EXH
(B) 		1-79931-111-0 01 1 0105-
160 COVER ASM; EXH
(A) 		1-79931-061-1 01 1 0105-
160 COVER ASM; EXH
(B) 		1-79931-256-1 01 1 0105-
162 BRACKET
(C) 		1-53441-520-0 02 1 0105-
162 BRACKET
(B) 		1-53441-521-2 02 1 0105-
162 BRACKET
(A) 		1-53441-522-0 02 1 0105-
163 BOLT; BRKT
(A) M8X20 FLANGE 		0-28680-820-0 04 1 0105-0512
163 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 04 1 0601-
163 BOLT; BRKT
(B) M8X25 FLANGE 		0-28680-825-0 06 1 0105-0512
163 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 06 1 0601-
164 BOLT; FLEX COVER
M8X20 FLANGE 		0-28680-820-0 10 1 0105-0512
164 BOLT; FLEX COVER
M8X20 FLANGE 		0-28650-820-0 10 1 0601-
167 BOLT; EXH COVER
M8X20 FLANGE 		0-28680-820-0 12 1 0105-0512
167 BOLT; EXH COVER
M8X20 FLANGE 		0-28650-820-0 12 1 0601-
