◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CVR ▶ 10860 - CVR LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-20 - SIDE PANEL AND STEP ▶
6-20 — SIDE PANEL AND STEP (#8880) — 74 parça

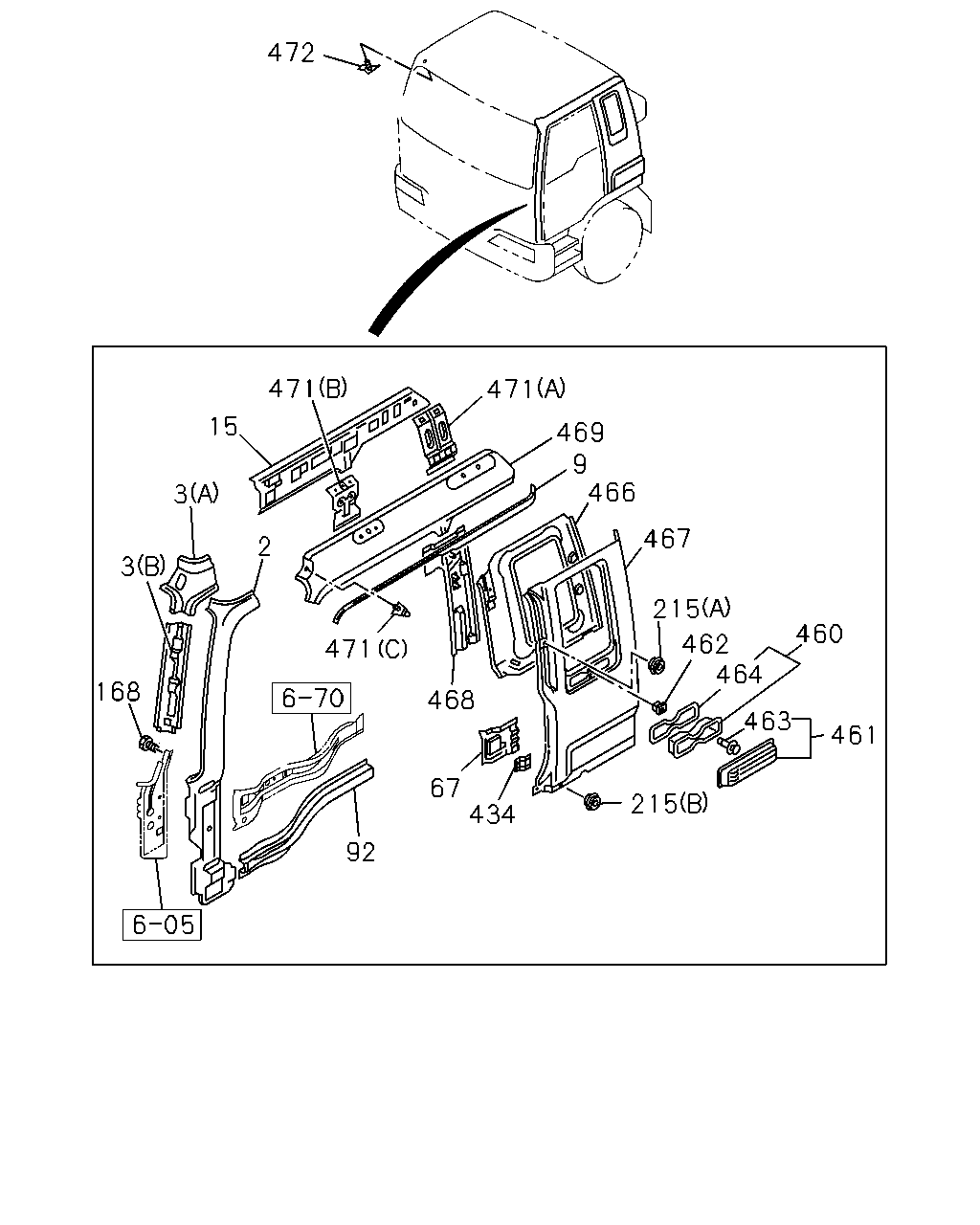

çizim 74844
472 471 471 15 469 9 466 3 467 2 3 215 460 462 464 471 168 468 463 461 67 434 215 92
BalonParca AdiParca NoAdetTipApplied Date
2 PILLAR; FRT 1-61281-410-2 01 1 0105-
2 PILLAR; FRT 1-61281-409-2 01 1 0105-
3 PANEL; CLOSING,FRT PILLAR
(A) 		1-61281-170-5 01 1 0105-
3 PANEL; CLOSING,FRT PILLAR
(B) 		1-61281-344-5 01 1 0105-
3 PANEL; CLOSING,FRT PILLAR
(A) 		1-61281-169-5 01 1 0105-
3 PANEL; CLOSING,FRT PILLAR
(B) 		1-61281-343-5 01 1 0105-
9 MOLDING; DRIP,CAB SIDE
HIGH ROOF<S2F> 		1-61270-792-4 01 1 0105-
9 MOLDING; DRIP,CAB SIDE
HIGH ROOF<S2F> 		1-61270-791-4 01 1 0105-
9 MOLDING; DRIP,CAB SIDE
EXC. HIGH ROOF<S2F> 		1-61281-281-5 01 1 0105-
9 MOLDING; DRIP,CAB SIDE
EXC. HIGH ROOF<S2F> 		1-61281-280-5 01 1 0105-
15 PANEL; CANT RAIL SIDE 1-61281-178-8 01 1 0105-
15 PANEL; CANT RAIL SIDE 1-61281-177-8 01 1 0105-
67 PANEL; INNER,RR PILLAR LWR 1-61281-195-5 01 1 0105-
67 PANEL; INNER,RR PILLAR LWR 1-61281-194-5 01 1 0105-
92 PANEL; SIDE SILL,CAB 1-61281-212-8 01 1 0105-
92 PANEL; SIDE SILL,CAB 1-61281-211-9 01 1 0105-
168 BOLT; BODY SIDE PANEL
M6X10 FLANGE 		0-28080-610-0 04 1 0105-0512
168 BOLT; BODY SIDE PANEL
M6X10 FLANGE 		0-28050-610-0 04 1 0601-
215 GROMMET; RR PILLAR
(A) OD=23.5 		1-09983-101-0 02 1 0105-
215 GROMMET; RR PILLAR
(B) OD=28.5 		8-94279-711-0 02 1 0105-
434 PATCH; ASSIST GRIP 1-61270-763-1 01 1 0105-
460 VENTILATOR; BODY SIDE 1-76378-292-4 02 1 0105-
461 ORNAMENT; VENTILATOR 1-76378-303-6 01 1 0105-
461 ORNAMENT; VENTILATOR 1-76378-302-6 01 1 0105-
462 GROMMET; VENTILATOR
OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 08 1 0105-
463 PIN; ORNAMENT
D4.2X13 		1-09983-161-0 08 1 0105-
464 SEAL; VENTILATOR 1-76378-299-0 02 1 0105-
466 PANEL; INNER,BACK CORNER 1-61281-416-1 01 1 0105-
466 PANEL; INNER,BACK CORNER 1-61281-415-1 01 1 0105-
467 PANEL; OUTER,BACK CORNER 1-61281-203-3 01 1 0105-
467 PANEL; OUTER,BACK CORNER
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) 		1-61281-476-2 01 1 0105-
467 PANEL; OUTER,BACK CORNER
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) 		1-61281-204-3 01 1 0105-
468 REINFORCEMENT; SEAT BELT ANCHOR 1-61281-418-2 01 1 0105-
468 REINFORCEMENT; SEAT BELT ANCHOR 1-61281-417-2 01 1 0105-
469 ROOF; SIDE 1-61281-199-8 01 1 0105-
469 ROOF; SIDE 1-61281-198-8 01 1 0105-
471 PATCH; AIR DEFLECTOR
(A) 		1-61281-202-3 01 1 0105-
471 PATCH; AIR DEFLECTOR
(B) 		1-61281-201-3 01 1 0105-
471 PATCH; AIR DEFLECTOR
(C) 		1-61281-233-4 01 1 0105-
471 PATCH; AIR DEFLECTOR
(B) 		1-61281-200-3 01 1 0105-
472 PATCH; STAY,ROOF 1-61270-943-1 01 1 0105-
çizim 75260
446 444 30 110 517 304 103 455 339 289 494 149 291 447 103 289 285 404 430
BalonParca AdiParca NoAdetTipApplied Date
30 CLOSING; SIDE STEP 1-71907-465-0 01 1 0105-
30 CLOSING; SIDE STEP 1-71907-464-0 01 1 0105-
103 PLATE; STEP
(A) 		1-53414-181-0 01 1 0105-
103 PLATE; STEP
(B) 		1-71907-249-1 01 1 0105-
103 PLATE; STEP
(A) 		1-53414-180-0 01 1 0105-
103 PLATE; STEP
(B) 		1-71907-174-1 01 1 0105-
110 BOLT; 1ST STEP PLATE
M8X20 W/LK&PL WASHER 		8-94279-216-0 08 1 0105-0204
110 BOLT; 1ST STEP PLATE
M8X29.5 W/LK+PL WASHER 		8-94279-218-0 08 1 0205-
149 NUT; STEP BRKT
M12 FLANGE 		0-91150-212-0 08 1 0105-0602
149 NUT; STEP BRKT
M12 FLANGE 		0-91180-212-0 08 1 0603-
285 PLATE; STEP,1ST STEP 1-53414-183-0 01 1 0105-
285 PLATE; STEP,1ST STEP 1-53414-100-2 01 1 0105-
289 WASHER; PL,STEP
(A) ID=6.4 OD=18 		9-09160-706-0 08 1 0105-0605
289 WASHER; PL,STEP
(A) ID=6.4 OD=18 		0-91610-706-0 08 1 0606-
289 WASHER; PL,STEP
(B) ID=15 		9-09651-069-0 04 1 0105-
291 BOLT; STEP PLATE
M8X30 FLANGE 		0-28680-830-0 08 1 0105-0112
291 BOLT; STEP PLATE
M8X35 FLANGE 		0-28080-835-0 08 1 0201-0512
291 BOLT; STEP PLATE
M8X35 FLANGE 		0-28050-835-0 08 1 0601-
304 NUT; SPIRE
M6 		1-09984-182-0 04 1 0105-
339 FASTENER; SIDE
ID=6X6 OD=8 		1-09987-194-0 12 1 0105-
404 BRACKET 1-53414-151-3 01 1 0105-
404 BRACKET 1-53414-150-3 01 1 0105-
430 NUT; PANEL
M8 FLANGE 		0-91150-108-0 08 1 0105-0602
430 NUT; PANEL
M8 FLANGE 		0-91180-108-0 08 1 0603-
444 BOLT; CLOSING
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 06 1 0105-
446 FINISHER; STEP
ID=18 L=80 		1-71996-051-0 02 1 0105-
447 BOLT; PANEL
M6X12 FLANGE 		0-28080-612-0 08 1 0105-0512
447 BOLT; PANEL
M6X12 FLANGE 		0-28050-612-0 08 1 0601-
455 PROTECTOR; STEP 1-71907-179-1 01 1 0105-
455 PROTECTOR; STEP 1-71907-178-1 01 1 0105-
494 STUD; BRKT
M12X35,M14X45 L=100 		1-09029-075-0 04 1 0105-
517 SCREW; TAP
M5X10 TAPPING W/PL WASHER 		0-74100-510-0 04 1 0105-0604
517 SCREW; TAP
M5X10 TAPPING W/PL WASHER 		0-74160-510-0 04 1 0605-
