◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10627 - FTR-LHD ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-01 - ACCELERATOR PEDAL AND CONTROL ▶
1-01 — ACCELERATOR PEDAL AND CONTROL (#888) — 71 parça

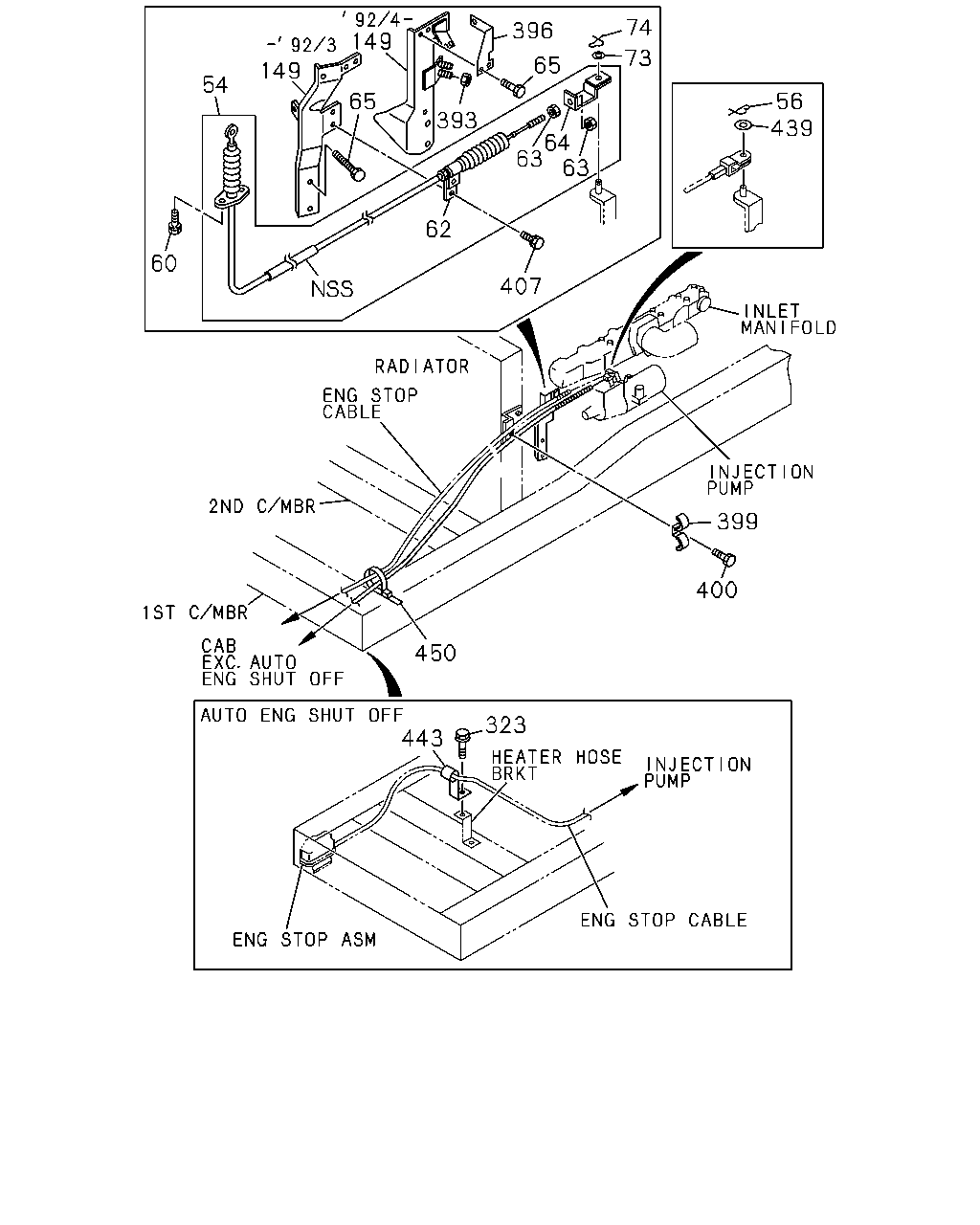

çizim 92750
149 74 396 149 73 65 54 56 439 65 393 64 63 63 62 60 407 399 400 450 443 323
BalonParca AdiParca NoAdetTipApplied Date A B
54 CABLE; ENG CONT
L=1540 		1-23210-979-1 01 1 9202-9203 ● ●
54 CABLE; ENG CONT
L=1570 		1-23230-032-0 01 1 9204- ● ●
56 PIN; SNAP,JAW JOINT
L=17.9 		1-09747-015-0 01 1 9202- ● ●
60 BOLT; CABLE
M6X16 W/LK&PL WASHER 		1-09980-586-0 02 1 9202- ● ●
62 CLIP; ENG CONT CABLE 1-23219-097-0 01 1 9202- ● ●
63 NUT; LOCK,BRKT
M8 		9-09111-408-0 02 1 9202- ● ●
64 BRACKET; ENG CONT CABLE 1-09768-018-1 01 1 9202- ● ●
65 BOLT
M10X60 		0-16811-060-0 01 1 9202- ● ●
65 BOLT
M10X20 FLANGE 		0-28181-020-0 01 1 9202- ● ●
65 BOLT
M8X10 FLANGE 		0-28080-810-0 02 1 9204-9206 ● ●
73 WASHER; PL,ACCEL CONT CABLE
ID=8.4 		9-09160-508-0 01 1 9202- ● ●
74 PIN; SNAP,CABLE END
L=27.7 		8-94157-841-0 01 1 9202- ● ●
149 BRACKET; ENG CONT 8-94393-339-0 01 1 9202-9203 ● ●
149 BRACKET; ENG CONT 8-94394-516-5 01 1 9204- ● ●
323 BOLT; CLIP
AUTO ENG SHUTOFF(KB6) M8X14 FLANGE 		0-28010-814-0 01 1 9202-9204 ● ●
323 BOLT; CLIP
AUTO ENG SHUTOFF(KB6) M8X14 FLANGE 		0-28080-814-0 01 1 9205- ● ●
393 NUT; CLIP TO FRAME
M6 FLANGE 		0-91150-106-0 02 1 9411- ● ●
396 BRACKET; CLIP 8-94394-173-1 01 1 9204-9206 ● ●
399 CLIP; CABLE,RAD SIDE
ID=9 & 7 L=15 & 15 		1-09700-653-0 01 1 9202-9205 ● ●
399 CLIP; CABLE,RAD SIDE
ID=9X2 L=16 		9-09534-825-0 01 1 9206- ● ●
400 BOLT; CLIP,RAD SIDE
M8X12 		0-28010-812-0 01 1 9202-9204 ● ●
400 BOLT; CLIP,RAD SIDE
M8X12 FLANGE 		0-28080-812-0 01 1 9205- ● ●
407 BOLT; CLIP TO ENG
M6X18 		0-28010-618-0 02 1 9202-9204 ● ●
407 BOLT; CLIP TO ENG
M6X18 FLANGE 		0-28080-618-0 02 1 9205-9207 ● ●
407 BOLT; CLIP TO ENG
M6X20 FLANGE 		0-28080-620-0 02 1 9208-9404 ● ●
407 BOLT; CLIP TO ENG
M6X14 FLANGE 		0-28080-614-0 02 1 9405-9410 ● ●
439 WASHER; PL,PIN,JAW JOINT
ID=5.3 		9-09160-505-0 01 1 9202- ● ●
443 CLIP; CABLE
AUTO ENG SHUTOFF(KB6) ID=9 L=25 H=45 		1-09700-867-0 01 1 9202- ● ●
450 CLIP; BAND
AUTO ENG SHUTOFF(KB6) L=140 		5-09707-031-0 01 1 9202-9205 ● ●
450 CLIP; BAND
L=140 		5-09707-031-0 01 1 9206-9211 ● ●
450 CLIP; BAND
EXC. AUTO ENG SHUTOFF(KB6) L=140 		5-09707-031-0 01 1 9206-9211 ● ●
450 CLIP; BAND
L=250 		5-09707-030-0 01 1 9212- ● ●
450 CLIP; BAND
EXC. AUTO ENG SHUTOFF(KB6) L=250 		5-09707-030-0 01 1 9212- ● ●
450 CLIP; BAND
EXC. AUTO ENG SHUTOFF(KB6) L=140 		5-09707-031-0 02 1 9202-9205 ● ●

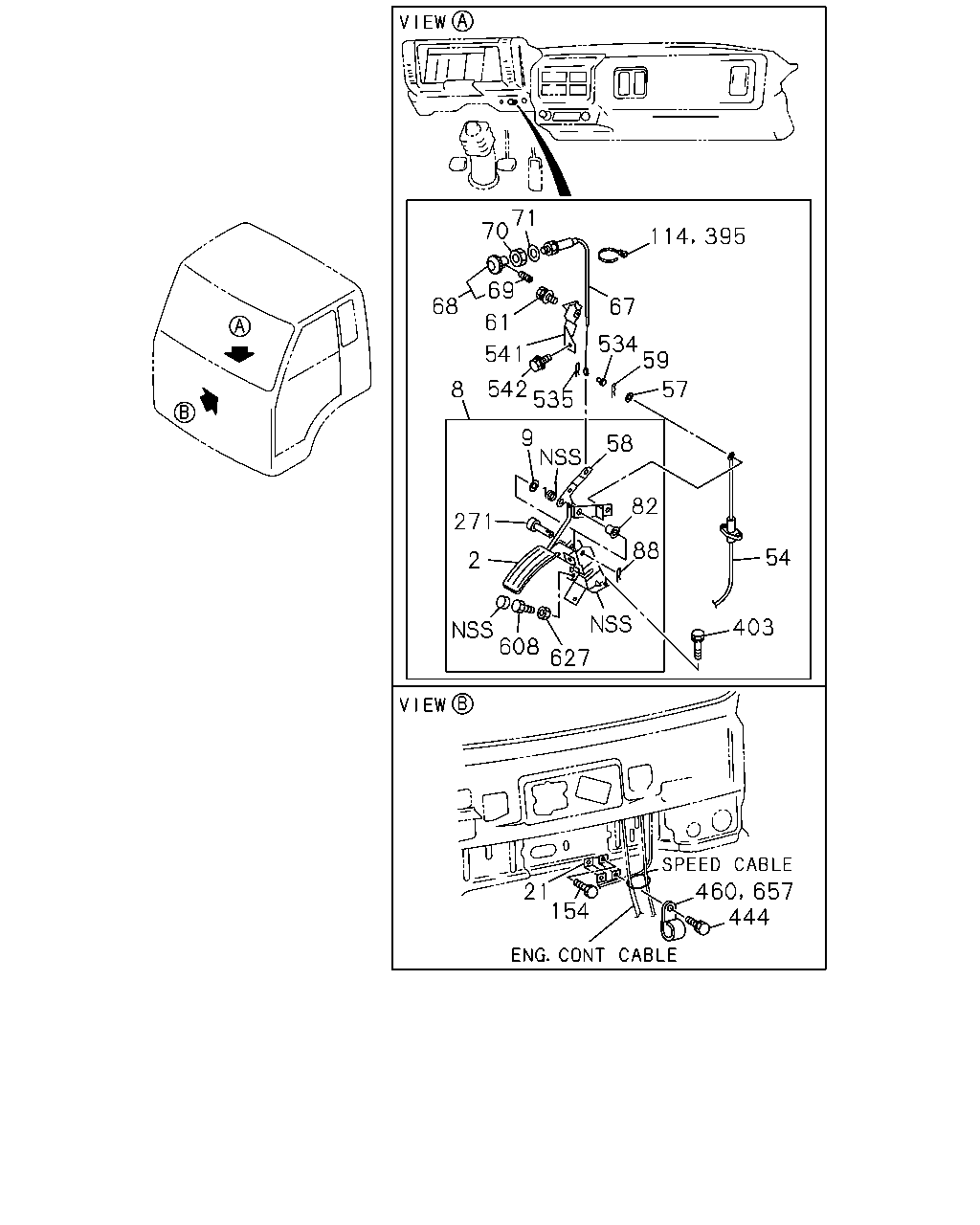

çizim 92791
71 70 114 69 68 67 61 534 59 541 542 535 8 57 9 58 82 271 88 54 2 403 608 627 21 154 460 444 395 657
BalonParca AdiParca NoAdetTipApplied Date A B
2 LEVER; ENG CONT 1-73998-716-1 01 1 9202- ● ●
8 LINK ASM; ENG CONT 1-23240-075-1 01 1 9202- ● ●
9 WASHER; PL,CONT LINK
ID=10.5 OD=16 		9-09855-178-0 01 1 9202- ● ●
21 BRACKET ASM; ENG CONT CABLE 1-79738-102-1 01 1 9202-9204 ● ●
54 CABLE; ENG CONT
L=1540 		1-23210-979-1 01 1 9202-9203 ● ●
54 CABLE; ENG CONT
L=1570 		1-23230-032-0 01 1 9204- ● ●
57 WASHER; ENG CONT CABLE
ID=8.4 		9-09160-508-0 01 1 9202- ● ●
58 LEVER; IDLING CONT 1-73997-781-2 01 1 9202- ● ●
59 PIN; SNAP,ENG CONT CABLE
L=27.7 		1-09747-005-0 01 1 9202- ● ●
61 BOLT; BRKT TO FRAME ENG CONT CABLE
M5X14 W/LK WASHER 		1-09980-023-0 01 1 9202- ● ●
67 CABLE ASM; IDLE CONT
L=252 		1-73998-543-1 01 1 9202- ● ●
68 KNOB; IDLE CONT
W/SCREW 		8-94134-716-0 01 1 9202- ● ●
69 SCREW; KNOB,IDLE CONT 5-09120-004-0 01 1 9202- ● ●
70 NUT; CONT CABLE
M18 RING NUT 		5-09409-004-1 01 1 9202- ● ●
71 WASHER; WAVE,CONT CABLE
ID=18.5 		5-09550-005-0 01 1 9202- ● ●
82 BUSHING; ENG CONT LVR 8-94206-569-0 02 1 9202- ● ●
88 PIN; SNAP,ENG CONT LEVER
L=27.7 		8-94202-777-0 01 1 9202- ● ●
114 CLIP; HARNESS CONNECTOR
L=100 		5-09707-036-0 01 1 9202- ● ●
154 BOLT; CABLE BRKT
M6X20 W/LK&PL WASHER 		1-09980-493-0 01 1 9202-9204 ● ●
271 SHAFT; ENG CONT 1-09987-081-0 01 1 9202- ● ●
395 CLIP; BAND,ACCEL CONT CABLE
L=140 		5-09707-031-0 01 1 9202-9204 ● ●
403 BOLT; BRKT,ACCEL PEDAL
M6X16 W/LK&PL WASHER 		1-09980-586-0 03 1 9202- ● ●
444 BOLT; CABLE CLIP
M6X20 W/LK&PL WASHER 		1-09980-493-0 01 1 9202- ● ●
460 CLIP; CONT CABLE
MBG5C M/T(X4R) ID=11 L=20 		9-09525-032-0 01 1 9202-9204 ● ●
460 CLIP; CONT CABLE
MLD7R M/T(X5L),MLD6A M/T(X5N) ID=11X2 L=16 		9-09535-022-0 01 1 9202-9204 ● ●
534 PIN; JAW JOINT,IDLING CONT CABLE 1-09987-034-1 01 1 9202- ● ●
535 PIN; SNAP,IDLING CONT CABLE
L=17.9 		1-09747-002-0 01 1 9202- ● ●
541 BRACKET; IDLING CONT CABLE 1-73998-527-1 01 1 9202- ● ●
542 BOLT; BRKT,IDLING CONT CABLE
M6X16 W/LK&PL WASHER 		9-01960-616-0 01 1 9202-9204 ● ●
542 BOLT; BRKT,IDLING CONT CABLE
M6X16 W/LK&PL WASHER 		0-50140-616-0 01 1 9205- ● ●
608 BOLT; LEVER TO SHAFT
M6X25 		9-02040-625-0 01 1 9202-9204 ● ●
608 BOLT; LEVER TO SHAFT
M6X25 		0-20800-625-0 01 1 9205- ● ●
627 NUT; ACCEL SHAFT
M6 		9-09111-406-0 01 1 9202- ● ●
657 CLIP; ENG CONT CABLE
AUTO ENG SHUTOFF(KB6) ID=7 L=20 		9-09524-632-0 01 1 9205-9205 ● ●
657 CLIP; ENG CONT CABLE
AUTO ENG SHUTOFF(KB6) ID=7 L=16 		9-09524-622-0 01 1 9206- ● ●
657 CLIP; ENG CONT CABLE
EXC. AUTO ENG SHUTOFF(KB6) ID=11X2 L=16 		9-09535-022-0 01 1 9205-9205 ● ●
657 CLIP; ENG CONT CABLE
EXC. AUTO ENG SHUTOFF(KB6) ID=7X2 L=16 		9-09534-622-0 01 1 9206- ● ●
