Sayfa 6-05 - Isuzu EPC

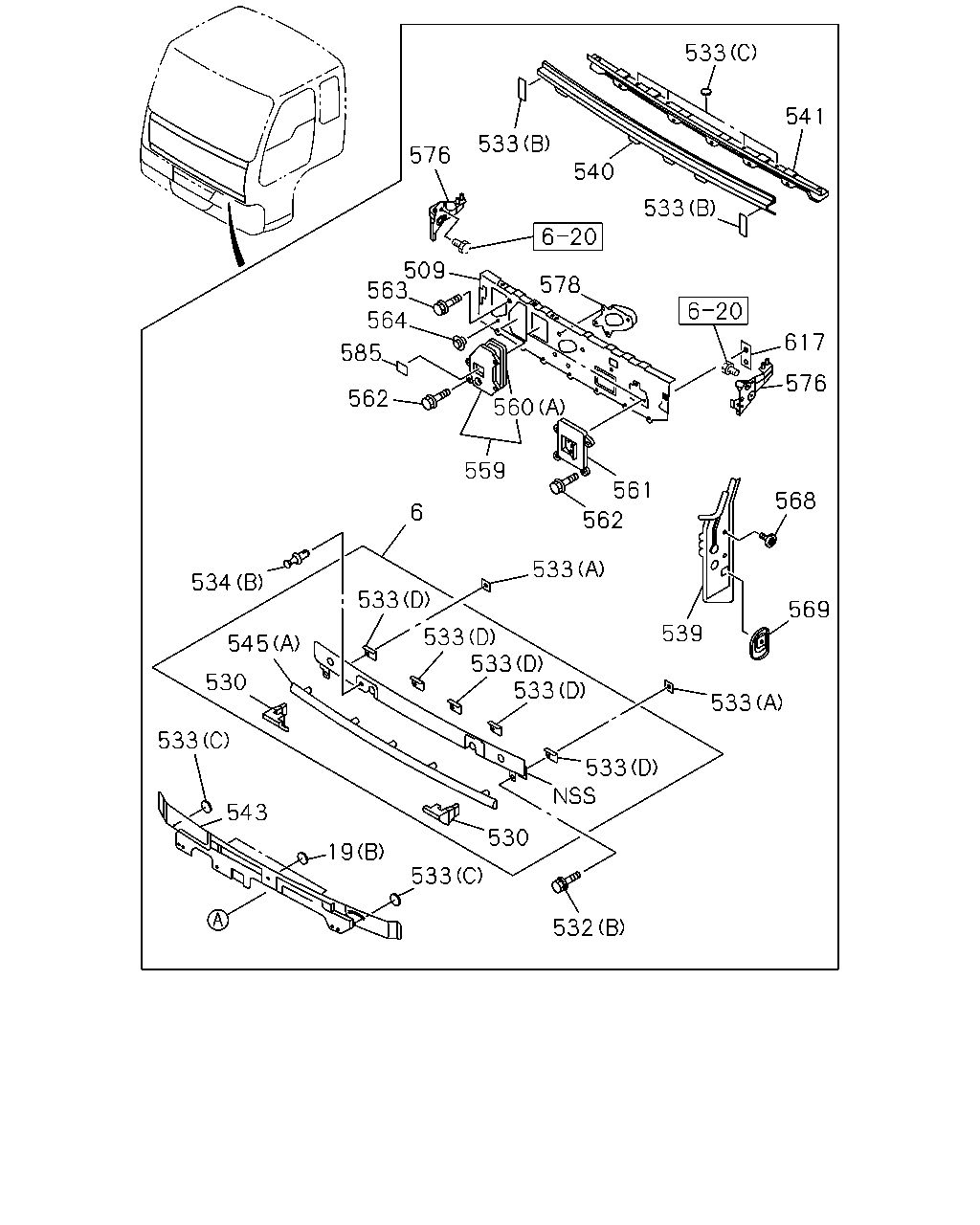

6-05 — FRONT PANEL (#8878) — 264 parça

533 541 533 576 540 533 509 563 578 564 617 585 560 576 562 559 561 568 6 562 533 534 533 569 533 533 533 539 545 530 533 533 533 543 530 19 533 532

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	PANEL; FRONT	1-65472-551-3	01	1	0105-
19	SEAL; FRT SIDE PANEL (B) OD=45 BLACK	1-76798-017-0	03	1	0105-
19	SEAL; FRT SIDE PANEL (C)	1-71907-411-0	01	1	0105-
19	SEAL; FRT SIDE PANEL (C)	1-71907-410-0	01	1	0105-
19	SEAL; FRT SIDE PANEL BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911),BODY COLOR FIRE RED(915) EXC. BUMPER W/HEADLAMPS<SLB> (A)	1-71907-160-5	01	1	0105-
19	SEAL; FRT SIDE PANEL BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911),BODY COLOR FIRE RED(915) EXC. BUMPER W/HEADLAMPS<SLB> (A)	1-71907-159-5	01	1	0105-
19	SEAL; FRT SIDE PANEL BODY COLOR MARINE BLUE(890) EXC. BUMPER W/HEADLAMPS<SLB> (A)	1-71907-165-5	01	1	0105-
19	SEAL; FRT SIDE PANEL BODY COLOR MARINE BLUE(890) EXC. BUMPER W/HEADLAMPS<SLB> (A)	1-71907-164-5	01	1	0105-
19	SEAL; FRT SIDE PANEL BUMPER W/HEADLAMPS<SLB> (A)	1-71907-580-1	01	1	0105-
19	SEAL; FRT SIDE PANEL BUMPER W/HEADLAMPS<SLB> (A)	1-71907-579-1	01	1	0105-
509	PANEL; DASH HEATER VENTILATION AIR CONDITIONING DELETE(TFA)	1-62270-493-2	01	1	0105-0604
509	PANEL; DASH EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA)	1-62270-482-3	01	1	0105-0604
530	STOPPER; FRT PANEL,SIDE	1-71907-487-0	01	1	0105-
530	STOPPER; FRT PANEL,SIDE	1-71907-482-1	01	1	0105-
532	BOLT; FRT PANEL (B) M8X20	1-79198-002-0	02	1	0105-
532	BOLT; FRT PANEL (A) M8X29.5 W/LK+PL WASHER	8-94279-209-0	08	1	0105-
532	BOLT; FRT PANEL BUMPER W/HEADLAMPS<SLB> (C) M6X12 W/LK&PL WASHER	8-94279-200-0	02	1	0105-0411
532	BOLT; FRT PANEL BUMPER W/HEADLAMPS<SLB> (C) M6X12 W/LK&PL WASHER	8-94279-200-0	02	1	0412-0504
532	BOLT; FRT PANEL BUMPER W/HEADLAMPS<SLB> (C) M6X12 W/LK&PL WASHER	8-94279-200-0	02	1	0505-
533	SEAL; FRT PANEL (D) L=30	1-71996-079-2	07	1	0105-
533	SEAL; FRT PANEL (B) 20X65	1-76778-046-2	02	1	0105-
533	SEAL; FRT PANEL (C) OD=36 T=0.05 BLACK	5-76777-035-0	12	1	0105-
533	SEAL; FRT PANEL (A) 25X25	8-94272-533-0	02	1	0105-
534	FASTENER (A) ID=5.4 OD=6.8	1-09989-021-0	08	1	0105-
534	FASTENER (B) D6X12.5	8-94146-425-0	02	1	0105-
539	CLOSING; PILLAR	1-61480-763-1	01	1	0105-
539	CLOSING; PILLAR	1-61480-762-1	01	1	0105-
540	PANEL; FRONT,OUTER	1-61470-699-2	01	1	0105-
541	PANEL; FRONT,INNER	1-61470-700-1	01	1	0105-
543	CLOSING; FRT MTG RAIL	1-61470-703-3	01	1	0105-0505
543	CLOSING; FRT MTG RAIL	1-61470-726-0	01	1	0506-
545	SEAL; FRT LID (C)	1-71907-472-0	02	1	0105-0411
545	SEAL; FRT LID BUMPER W/HEADLAMPS<SLB> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (C)	1-71907-472-0	02	1	0412-0504
545	SEAL; FRT LID EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (C)	1-71907-472-0	02	1	0412-0504
545	SEAL; FRT LID EXC. BUMPER W/HEADLAMPS<SLB>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (C)	1-71907-472-0	02	1	0505-
545	SEAL; FRT LID BUMPER W/HEADLAMPS<SLB> (C)	1-71907-472-0	02	1	0505-
545	SEAL; FRT LID (A) L=2038	1-71907-481-1	01	1	0105-
545	SEAL; FRT LID (B) OD=25 BLACK	1-76798-019-0	01	1	0105-
545	SEAL; FRT LID BUMPER W/HEADLAMPS<SLB> (D)	1-71907-578-0	02	1	0105-0411
545	SEAL; FRT LID BUMPER W/HEADLAMPS<SLB> (D)	1-71907-578-0	02	1	0412-0504
545	SEAL; FRT LID BUMPER W/HEADLAMPS<SLB> (D)	1-71907-578-0	02	1	0505-
545	SEAL; FRT LID EXC. BUMPER W/HEADLAMPS<SLB> (D) L=63	1-71998-963-2	01	1	0105-0411
545	SEAL; FRT LID EXC. BUMPER W/HEADLAMPS<SLB>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (D) L=63	1-71998-963-2	01	1	0412-
559	COVER; EVAPOLATOR	1-71996-193-1	01	1	0105-
560	SEAL; COVER (A)	1-71998-827-1	01	1	0105-
560	SEAL; COVER (B) OD=36 T=0.05 BLACK	5-76777-035-0	02	1	0105-0411
560	SEAL; COVER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (B) OD=36 T=0.05 BLACK	5-76777-035-0	02	1	0105-0411
560	SEAL; COVER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (B) OD=36 T=0.05 BLACK	5-76777-035-0	02	1	0412-0504
560	SEAL; COVER BUMPER W/HEADLAMPS<SLB> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) OD=36 T=0.05 BLACK	5-76777-035-0	02	1	0412-0504
560	SEAL; COVER EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B) OD=36 T=0.05 BLACK	5-76777-035-0	02	1	0412-0504
560	SEAL; COVER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (B) OD=36 T=0.05 BLACK	5-76777-035-0	02	1	0505-
560	SEAL; COVER EXC. BUMPER W/HEADLAMPS<SLB>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) OD=36 T=0.05 BLACK	5-76777-035-0	02	1	0505-
560	SEAL; COVER BUMPER W/HEADLAMPS<SLB> (B) OD=36 T=0.05 BLACK	5-76777-035-0	02	1	0505-
560	SEAL; COVER (B) OD=20 T=0.05 BLACK	5-76777-036-0	02	1	0105-0411
560	SEAL; COVER BUMPER W/HEADLAMPS<SLB> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) OD=20 T=0.05 BLACK	5-76777-036-0	02	1	0412-0504
560	SEAL; COVER EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B) OD=20 T=0.05 BLACK	5-76777-036-0	02	1	0412-0504
560	SEAL; COVER EXC. BUMPER W/HEADLAMPS<SLB>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) OD=20 T=0.05 BLACK	5-76777-036-0	02	1	0505-
560	SEAL; COVER BUMPER W/HEADLAMPS<SLB> (B) OD=20 T=0.05 BLACK	5-76777-036-0	02	1	0505-
560	SEAL; COVER EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) OD=36 T=0.05 BLACK	5-76777-035-0	01	1	0105-
561	COVER; HEATER CORE	1-71998-993-2	01	1	0105-
562	BOLT; COVER M6X19.5 W/LK&PL WASHER	8-94279-201-0	08	1	0105-
563	BOLT; DASH PANEL M8X29.5 W/LK+PL WASHER	8-94279-209-0	02	1	0203-
563	BOLT; DASH PANEL M8X20	1-79198-002-0	18	1	0105-0202
563	BOLT; DASH PANEL M8X20	1-79198-002-0	16	1	0203-
564	GROMMET; DASH PANEL OD=23.5	1-09983-101-0	02	1	0105-
568	PATCH; INST REINF	1-61480-675-2	02	1	0105-
569	PATCH; LWR GRIP	1-61480-736-2	01	1	0105-
569	PATCH; LWR GRIP	1-61480-772-0	01	1	0105-
576	FRAME; INST SIDE	1-62280-201-2	01	1	0105-0604
576	FRAME; INST SIDE	1-62280-200-2	01	1	0105-0604
578	COVER; WIPER MOTOR	1-62280-254-1	01	1	0105-0604
585	PLATE; EVAPOLATOR HEATER VENTILATION AIR CONDITIONING DELETE(TFA)	1-71996-084-1	01	1	0105-
617	SEAL; DASH	1-61281-497-0	02	1	0105-0604

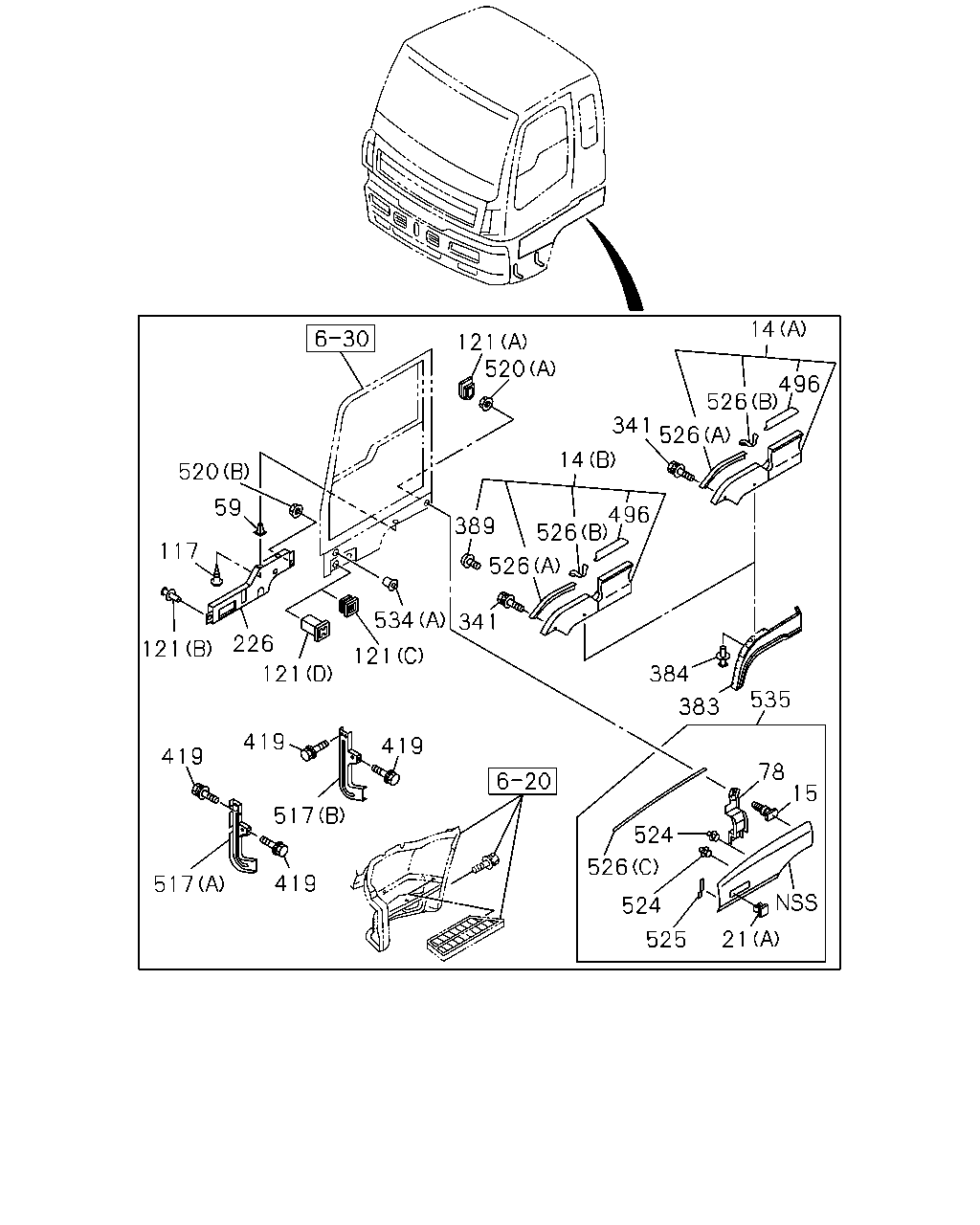

14 121 520 496 526 341 526 14 520 59 496 526 389 117 526 534 341 226 121 121 384 121 535 383 419 419 419 78 15 517 524 526 419 517 524 21 525

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	FENDER; FRT (A) WHITE	1-65472-453-0	01	1	0105-0503
14	FENDER; FRT (A) WHITE	1-65472-452-0	01	1	0105-0503
14	FENDER; FRT (B)	1-65472-875-6	01	1	0504-
14	FENDER; FRT (B)	1-65472-874-6	01	1	0504-
15	BOLT; FENDER M6X7	1-71268-294-0	04	1	0105-
21	GROMMET; SCREW,FRT SIDE PANEL (A) D=8X8 L=7.5 M5	8-94279-078-0	02	1	0105-
21	GROMMET; SCREW,FRT SIDE PANEL BUMPER W/HEADLAMPS<SLB> (B) D=10.5X7 L=10.5 M5	1-09983-160-3	14	1	0105-
21	GROMMET; SCREW,FRT SIDE PANEL EXC. BUMPER W/HEADLAMPS<SLB> (B) D=10.5X7 L=10.5 M5	1-09983-160-3	12	1	0105-
59	GROMMET; SCREW D=7.8X7.8 L=18 NATURAL	8-94279-043-0	10	1	0105-
78	BRACKET; FENDER	1-71267-215-0	01	1	0105-
78	BRACKET; FENDER	1-71267-214-0	01	1	0105-
117	SCREW; COVER M5X16 W/PL WASHER TAPPING	8-94279-123-0	10	1	0105-
121	GROMMET; FENDER (A)	1-09983-162-0	02	1	0105-
121	GROMMET; FENDER (B) D8X13.5	1-09987-248-1	08	1	0105-
121	GROMMET; FENDER (C) 14.5X14.5 BLACK	8-94279-714-0	02	1	0105-0304
121	GROMMET; FENDER (D) D=7.8X7.8 L=18 NATURAL	8-94279-043-0	02	1	0305-
226	PROTECTOR; FRT	1-71267-269-1	01	1	0105-
226	PROTECTOR; FRT	1-71267-268-1	01	1	0105-
341	BOLT; FENDER TO COWL M6X20 W/LK&PL WASHER	1-09980-495-0	01	1	0204-
341	BOLT; FENDER TO COWL M6X16 W/LK&PL WASHER	1-09980-492-0	18	1	0105-0203
341	BOLT; FENDER TO COWL M6X16 W/LK&PL WASHER	1-09980-492-0	17	1	0204-0503
341	BOLT; FENDER TO COWL M6X16 W/LK&PL WASHER	1-09980-492-0	15	1	0504-
383	GUARD; MUD,FENDER LWR	1-71907-443-2	01	1	0105-
383	GUARD; MUD,FENDER LWR	1-71907-442-2	01	1	0105-
384	CLIP; FENDER LWR D8X13.5	1-09987-248-1	11	1	0105-
389	SCREW; STAND,FENDER M6X22	1-65481-386-0	06	1	0504-
419	BOLT; STEP M8X24.5 W/LK&PL WASHER	8-94279-208-0	10	1	0105-
496	RUBBER; STEP	1-71998-862-2	01	1	0105-
496	RUBBER; STEP	1-71998-861-2	01	1	0105-
517	SUPPORT; STEP PANEL (B)	1-65671-531-1	01	1	0105-
517	SUPPORT; STEP PANEL (A)	1-65671-747-4	01	1	0105-0208
517	SUPPORT; STEP PANEL (A)	1-65671-778-0	01	1	0209-
517	SUPPORT; STEP PANEL (B)	1-65671-530-1	01	1	0105-
517	SUPPORT; STEP PANEL (A)	1-65671-766-1	01	1	0105-
520	NUT; FENDER (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0105-
520	NUT; FENDER (B) M6	8-94343-366-1	02	1	0105-
524	CLIP; FENDER COVER D5.4X8	1-09983-154-0	08	1	0105-
525	SEAL; FENDER 10X145	1-71268-281-1	02	1	0105-0409
525	SEAL; FENDER 10X145	1-71267-342-0	02	1	0410-
526	FINISHER; FENDER (B)	1-71998-900-3	02	1	0105-0211
526	FINISHER; FENDER (B)	1-71907-641-0	02	1	0212-
526	FINISHER; FENDER (A)	1-71907-181-4	01	1	0105-0211
526	FINISHER; FENDER (A)	1-71907-643-0	01	1	0212-
526	FINISHER; FENDER (C)	1-71268-275-1	02	1	0105-
526	FINISHER; FENDER (A)	1-71907-180-4	01	1	0105-0211
526	FINISHER; FENDER (A)	1-71907-642-0	01	1	0212-
534	FASTENER (A) ID=5.4 OD=6.8	1-09989-021-0	08	1	0105-
534	FASTENER (B) D6X12.5	8-94146-425-0	02	1	0105-
535	FENDER; BLISTER	1-71267-186-2	01	1	0105-0210
535	FENDER; BLISTER	1-71267-185-2	01	1	0105-0210
535	FENDER; BLISTER	1-71267-294-1	01	1	0211-
535	FENDER; BLISTER	1-71267-293-1	01	1	0211-

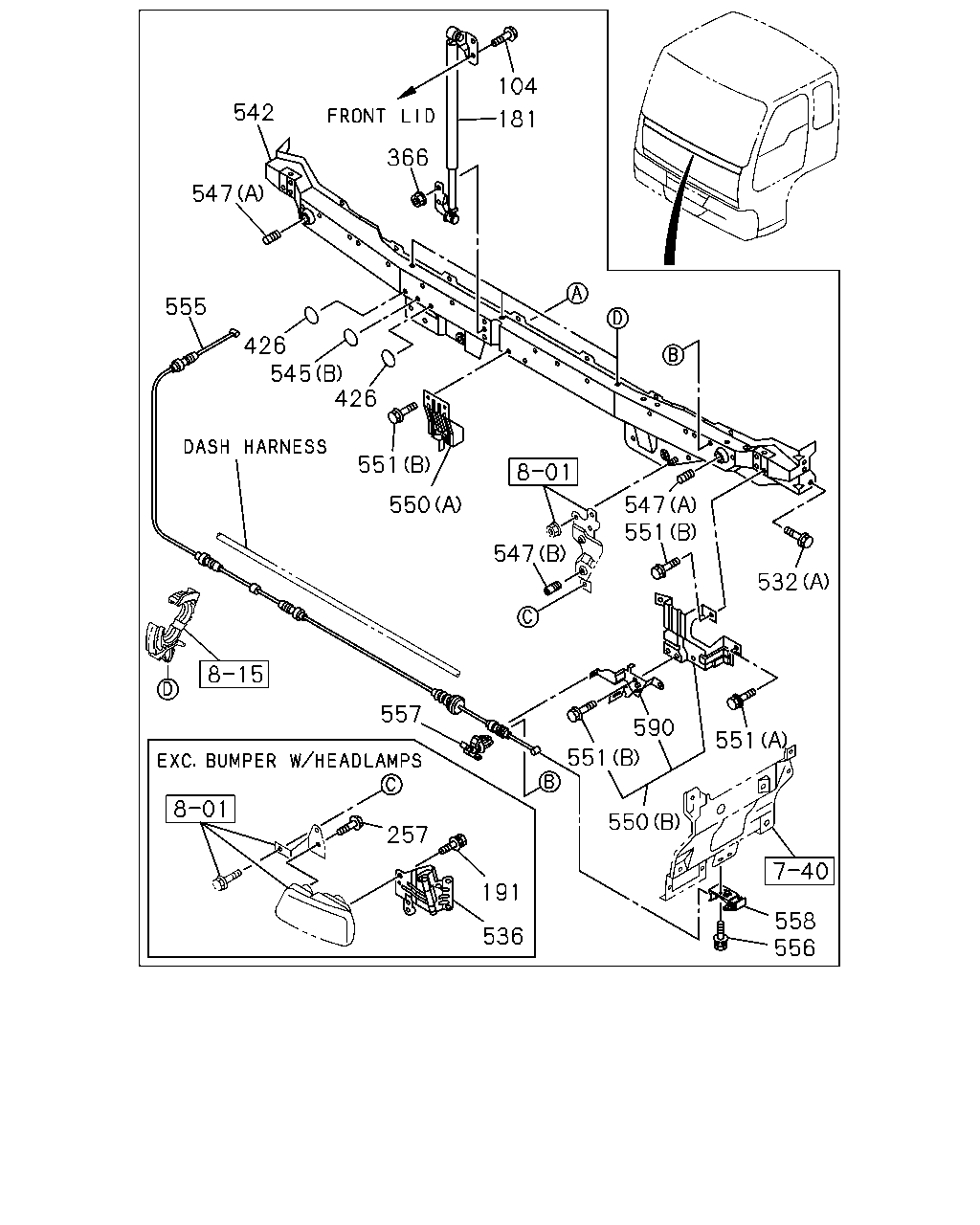

104 542 181 366 547 555 426 545 426 551 550 547 551 547 532 557 590 551 551 550 257 191 558 556 536

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
104	BOLT; SUPPORT BAR M6X20 W/LK&PL WASHER	8-94279-203-0	02	1	0105-0411
104	BOLT; SUPPORT BAR BUMPER W/HEADLAMPS<SLB> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) M6X20 W/LK&PL WASHER	8-94279-203-0	02	1	0412-0504
104	BOLT; SUPPORT BAR EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) M6X20 W/LK&PL WASHER	8-94279-203-0	02	1	0412-0504
104	BOLT; SUPPORT BAR EXC. BUMPER W/HEADLAMPS<SLB>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) M6X20 W/LK&PL WASHER	8-94279-203-0	02	1	0505-
104	BOLT; SUPPORT BAR BUMPER W/HEADLAMPS<SLB> M6X20 W/LK&PL WASHER	8-94279-203-0	02	1	0505-
181	SUPPORT ASM; DOOR CHECK,FRT	1-71107-261-0	01	1	0105-0411
181	SUPPORT ASM; DOOR CHECK,FRT BUMPER W/HEADLAMPS<SLB> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-71107-261-0	01	1	0412-0412
181	SUPPORT ASM; DOOR CHECK,FRT EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	1-71107-261-0	01	1	0412-0412
181	SUPPORT ASM; DOOR CHECK,FRT BUMPER W/HEADLAMPS<SLB> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-71107-864-0	01	1	0501-0504
181	SUPPORT ASM; DOOR CHECK,FRT EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	1-71107-864-0	01	1	0501-0504
181	SUPPORT ASM; DOOR CHECK,FRT EXC. BUMPER W/HEADLAMPS<SLB>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-71107-864-0	01	1	0505-
181	SUPPORT ASM; DOOR CHECK,FRT BUMPER W/HEADLAMPS<SLB>	1-71107-864-0	01	1	0505-
191	BOLT; HINGE EXC. BUMPER W/HEADLAMPS<SLB> M6X19.5 W/LK&PL WASHER	8-94279-201-0	04	1	0105-
257	BOLT; BRKT EXC. BUMPER W/HEADLAMPS<SLB> M6X12 W/LK&PL WASHER	8-94279-200-0	04	1	0105-0308
257	BOLT; BRKT EXC. BUMPER W/HEADLAMPS<SLB> M6X19.5 W/LK&PL WASHER	8-94279-201-0	04	1	0309-
366	NUT; SUPPORT M8 CUTTING NUT W/FLANGE	1-09985-340-0	02	1	0105-
426	GASKET OD=25 BLACK	1-76798-019-0	11	1	0105-
426	GASKET OD=20 T=0.05 BLACK	5-76777-036-0	01	1	0105-
426	GASKET EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK	1-76798-019-0	01	1	0105-
426	GASKET EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK	1-76798-019-0	01	1	0105-
532	BOLT; FRT PANEL (B) M8X20	1-79198-002-0	02	1	0105-
532	BOLT; FRT PANEL (A) M8X29.5 W/LK+PL WASHER	8-94279-209-0	08	1	0105-
532	BOLT; FRT PANEL BUMPER W/HEADLAMPS<SLB> (C) M6X12 W/LK&PL WASHER	8-94279-200-0	02	1	0105-0411
532	BOLT; FRT PANEL BUMPER W/HEADLAMPS<SLB> (C) M6X12 W/LK&PL WASHER	8-94279-200-0	02	1	0412-0504
532	BOLT; FRT PANEL BUMPER W/HEADLAMPS<SLB> (C) M6X12 W/LK&PL WASHER	8-94279-200-0	02	1	0505-
536	HINGE EXC. BUMPER W/HEADLAMPS<SLB>	1-86830-032-5	01	1	0105-
536	HINGE EXC. BUMPER W/HEADLAMPS<SLB>	1-86830-031-5	01	1	0105-
542	RAIL; FRT MOUNTING	1-61470-701-4	01	1	0105-0505
542	RAIL; FRT MOUNTING	1-61470-722-0	01	1	0506-
545	SEAL; FRT LID (C)	1-71907-472-0	02	1	0105-0411
545	SEAL; FRT LID BUMPER W/HEADLAMPS<SLB> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (C)	1-71907-472-0	02	1	0412-0504
545	SEAL; FRT LID EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (C)	1-71907-472-0	02	1	0412-0504
545	SEAL; FRT LID EXC. BUMPER W/HEADLAMPS<SLB>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (C)	1-71907-472-0	02	1	0505-
545	SEAL; FRT LID BUMPER W/HEADLAMPS<SLB> (C)	1-71907-472-0	02	1	0505-
545	SEAL; FRT LID (A) L=2038	1-71907-481-1	01	1	0105-
545	SEAL; FRT LID (B) OD=25 BLACK	1-76798-019-0	01	1	0105-
545	SEAL; FRT LID BUMPER W/HEADLAMPS<SLB> (D)	1-71907-578-0	02	1	0105-0411
545	SEAL; FRT LID BUMPER W/HEADLAMPS<SLB> (D)	1-71907-578-0	02	1	0412-0504
545	SEAL; FRT LID BUMPER W/HEADLAMPS<SLB> (D)	1-71907-578-0	02	1	0505-
545	SEAL; FRT LID EXC. BUMPER W/HEADLAMPS<SLB> (D) L=63	1-71998-963-2	01	1	0105-0411
545	SEAL; FRT LID EXC. BUMPER W/HEADLAMPS<SLB>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (D) L=63	1-71998-963-2	01	1	0412-
547	RUBBER; CUSHION (B) OD=22 L=39	1-71907-419-0	02	1	0105-
547	RUBBER; CUSHION (A) OD=22 L=29	8-94324-556-2	02	1	0105-
550	LOCK ASM; FRT LID BUMPER W/HEADLAMPS<SLB> (A)	1-79317-013-0	01	1	0105-
550	LOCK ASM; FRT LID BUMPER W/HEADLAMPS<SLB> (B)	1-79317-017-0	01	1	0105-
550	LOCK ASM; FRT LID BUMPER W/HEADLAMPS<SLB> (B)	1-79317-016-0	01	1	0105-
550	LOCK ASM; FRT LID EXC. BUMPER W/HEADLAMPS<SLB> (A)	1-79317-006-1	01	1	0105-
550	LOCK ASM; FRT LID EXC. BUMPER W/HEADLAMPS<SLB> (B)	1-79317-015-0	01	1	0105-
550	LOCK ASM; FRT LID EXC. BUMPER W/HEADLAMPS<SLB> (B)	1-79317-014-0	01	1	0105-
551	BOLT; LOCK (B) M8X20.5 W/LK&PL WASHER	8-94279-207-0	04	1	0105-
551	BOLT; LOCK (B) M8X20.5 W/LK&PL WASHER	8-94279-207-0	06	1	0105-
551	BOLT; LOCK EXC. BUMPER W/HEADLAMPS<SLB> (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0105-
555	CABLE; FRT LID BUMPER W/HEADLAMPS<SLB> L=2612	1-79347-008-1	01	1	0105-
555	CABLE; FRT LID EXC. BUMPER W/HEADLAMPS<SLB> L=2782	1-79347-006-2	01	1	0105-
556	BOLT; CABLE M6X12 W/LK&PL WASHER	8-94279-200-0	01	1	0105-
557	CLIP; CABLE ID=4.8	8-94128-483-0	04	1	0105-
558	LEVER; FRT LID	8-97865-110-0	01	1	0105-
590	LOCK; FRT LID	1-79318-007-4	01	1	0105-
590	LOCK; FRT LID	1-79318-006-2	01	1	0105-

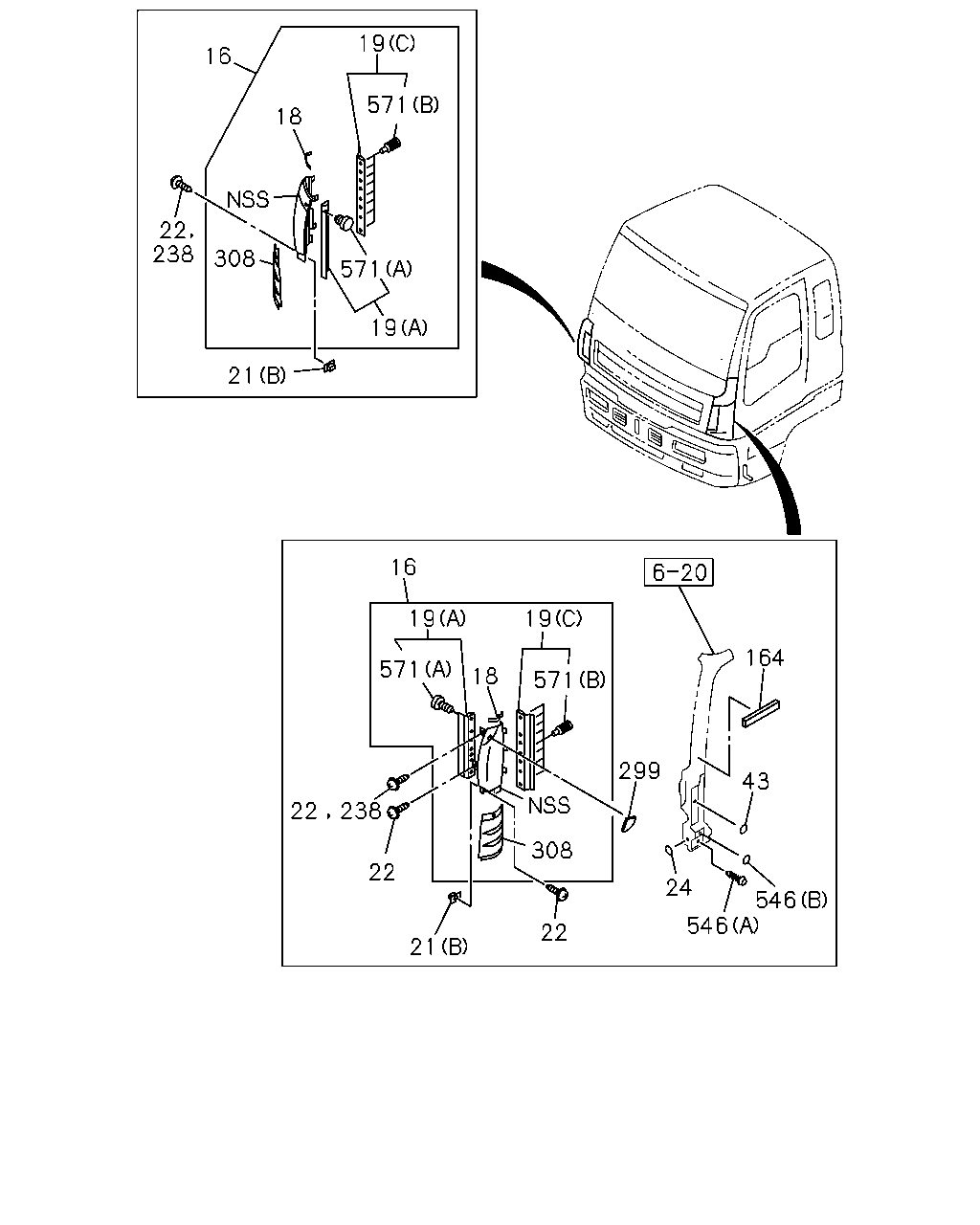

19 16 571 18 22 238 308 571 19 21 16 19 19 164 571 18 571 299 43 22 238 308 22 546 24 546 22 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	PANEL; FRONT,SIDE BUMPER W/HEADLAMPS<SLB> WHITE	1-65472-649-2	01	1	0105-
16	PANEL; FRONT,SIDE BUMPER W/HEADLAMPS<SLB> WHITE	1-65472-648-2	01	1	0105-
16	PANEL; FRONT,SIDE EXC. BUMPER W/HEADLAMPS<SLB>	1-65471-897-0	01	1	0105-
16	PANEL; FRONT,SIDE EXC. BUMPER W/HEADLAMPS<SLB>	1-65471-896-0	01	1	0105-
18	SEAL; A-POST UPR,FRT SIDE PANEL	1-71998-899-2	01	1	0105-
18	SEAL; A-POST UPR,FRT SIDE PANEL	1-71998-898-2	01	1	0105-
19	SEAL; FRT SIDE PANEL (B) OD=45 BLACK	1-76798-017-0	03	1	0105-
19	SEAL; FRT SIDE PANEL (C)	1-71907-411-0	01	1	0105-
19	SEAL; FRT SIDE PANEL (C)	1-71907-410-0	01	1	0105-
19	SEAL; FRT SIDE PANEL BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911),BODY COLOR FIRE RED(915) EXC. BUMPER W/HEADLAMPS<SLB> (A)	1-71907-160-5	01	1	0105-
19	SEAL; FRT SIDE PANEL BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911),BODY COLOR FIRE RED(915) EXC. BUMPER W/HEADLAMPS<SLB> (A)	1-71907-159-5	01	1	0105-
19	SEAL; FRT SIDE PANEL BODY COLOR MARINE BLUE(890) EXC. BUMPER W/HEADLAMPS<SLB> (A)	1-71907-165-5	01	1	0105-
19	SEAL; FRT SIDE PANEL BODY COLOR MARINE BLUE(890) EXC. BUMPER W/HEADLAMPS<SLB> (A)	1-71907-164-5	01	1	0105-
19	SEAL; FRT SIDE PANEL BUMPER W/HEADLAMPS<SLB> (A)	1-71907-580-1	01	1	0105-
19	SEAL; FRT SIDE PANEL BUMPER W/HEADLAMPS<SLB> (A)	1-71907-579-1	01	1	0105-
21	GROMMET; SCREW,FRT SIDE PANEL (A) D=8X8 L=7.5 M5	8-94279-078-0	02	1	0105-
21	GROMMET; SCREW,FRT SIDE PANEL BUMPER W/HEADLAMPS<SLB> (B) D=10.5X7 L=10.5 M5	1-09983-160-3	14	1	0105-
21	GROMMET; SCREW,FRT SIDE PANEL EXC. BUMPER W/HEADLAMPS<SLB> (B) D=10.5X7 L=10.5 M5	1-09983-160-3	12	1	0105-
22	SCREW; FRT PANEL SIDE BUMPER W/HEADLAMPS<SLB> M5X20 W/PL WASHER TAPPING	8-97893-344-0	14	1	0105-
22	SCREW; FRT PANEL SIDE EXC. BUMPER W/HEADLAMPS<SLB> M5X20 W/PL WASHER TAPPING	8-97893-344-0	12	1	0105-
24	SEAL; FRT PANEL LWR OD=25 BLACK	1-76798-019-0	10	1	0105-
43	GROMMET; LOCATION HOLE,A-POST OD=45 BLACK	1-76798-017-0	02	1	0105-
164	SEAL; FRT PILLAR	1-71907-414-0	02	1	0105-
238	SCREW BUMPER W/HEADLAMPS<SLB> M5X16 W/PL WASHER TAPPING	8-94279-123-0	06	1	0105-
299	COVER; FRT PANEL SIDE	1-71998-996-1	01	1	0105-
308	PLATE; FRT PANEL BUMPER W/HEADLAMPS<SLB>	1-65472-569-1	01	1	0105-
308	PLATE; FRT PANEL BUMPER W/HEADLAMPS<SLB>	1-65472-568-1	01	1	0105-
546	PLUG; DUMMY HOLE (A) OD=16 L=11	1-76378-155-0	02	1	0105-
546	PLUG; DUMMY HOLE (B) OD=25 BLACK	1-76798-019-0	04	1	0105-
571	CLIP; SEAL (B) PINK	1-09987-256-0	08	1	0105-
571	CLIP; SEAL (B) NATURAL	1-09987-257-0	08	1	0105-
571	CLIP; SEAL BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911),BODY COLOR FIRE RED(915) EXC. BUMPER W/HEADLAMPS<SLB> (A)	1-09987-228-0	14	1	0105-
571	CLIP; SEAL BODY COLOR MARINE BLUE(890) (A)	1-09987-228-0	16	1	0105-
571	CLIP; SEAL BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911),BODY COLOR FIRE RED(915) BUMPER W/HEADLAMPS<SLB> (A)	1-09987-228-0	16	1	0105-

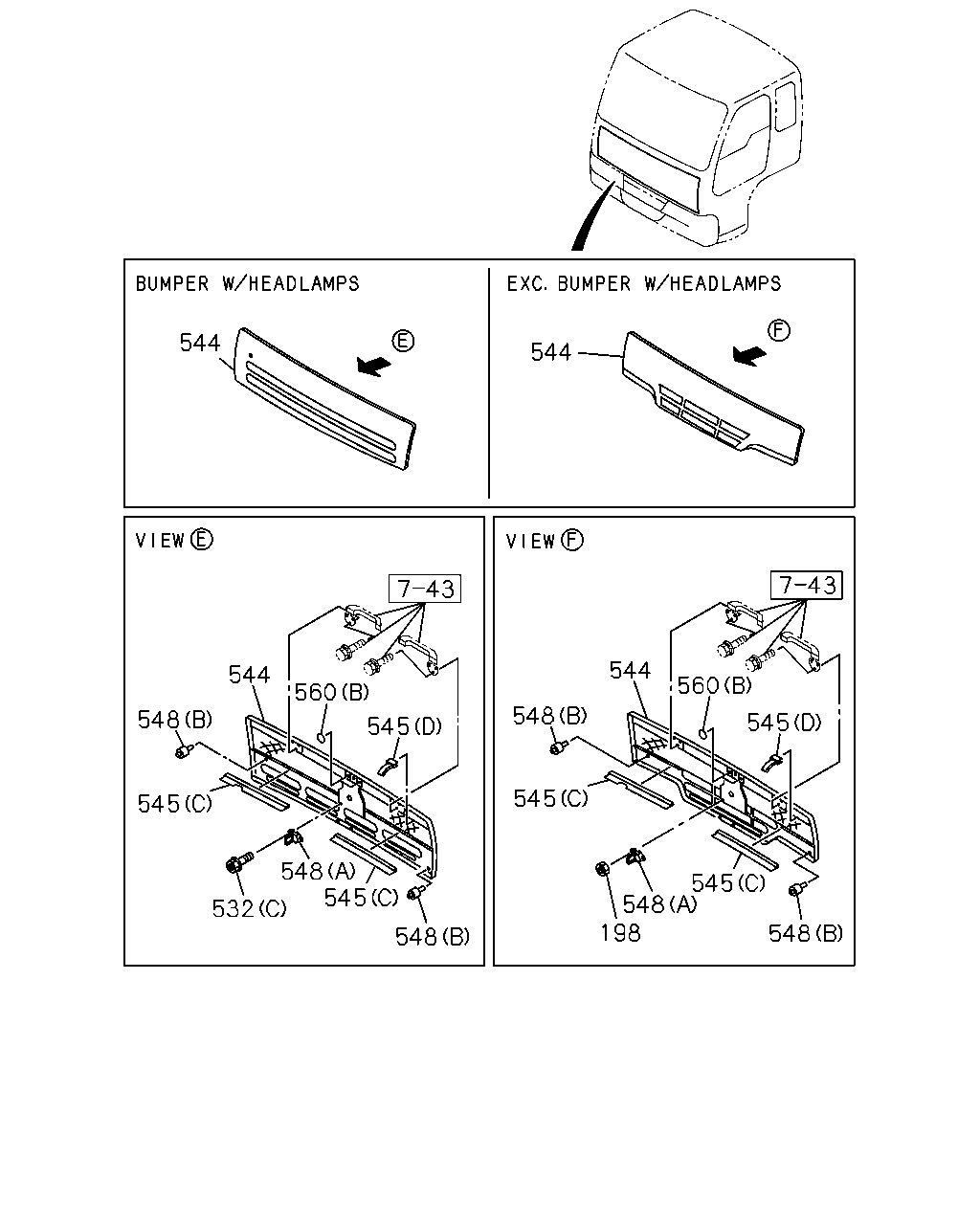

544 544 544 544 560 560 548 548 545 545 545 545 548 545 545 548 198 532 548 548

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
198	NUT; PANEL EXC. BUMPER W/HEADLAMPS<SLB> M6 FLANGE	8-94197-199-0	02	1	0105-0411
198	NUT; PANEL EXC. BUMPER W/HEADLAMPS<SLB>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) M6 FLANGE	8-94197-199-0	02	1	0412-
532	BOLT; FRT PANEL (B) M8X20	1-79198-002-0	02	1	0105-
532	BOLT; FRT PANEL (A) M8X29.5 W/LK+PL WASHER	8-94279-209-0	08	1	0105-
532	BOLT; FRT PANEL BUMPER W/HEADLAMPS<SLB> (C) M6X12 W/LK&PL WASHER	8-94279-200-0	02	1	0105-0411
532	BOLT; FRT PANEL BUMPER W/HEADLAMPS<SLB> (C) M6X12 W/LK&PL WASHER	8-94279-200-0	02	1	0412-0504
532	BOLT; FRT PANEL BUMPER W/HEADLAMPS<SLB> (C) M6X12 W/LK&PL WASHER	8-94279-200-0	02	1	0505-
544	LID; FRT BUMPER W/HEADLAMPS<SLB>	1-71107-403-0	01	1	0105-
544	LID; FRT EXC. BUMPER W/HEADLAMPS<SLB>	1-71107-293-0	01	1	0105-
545	SEAL; FRT LID (C)	1-71907-472-0	02	1	0105-0411
545	SEAL; FRT LID BUMPER W/HEADLAMPS<SLB> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (C)	1-71907-472-0	02	1	0412-0504
545	SEAL; FRT LID EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (C)	1-71907-472-0	02	1	0412-0504
545	SEAL; FRT LID EXC. BUMPER W/HEADLAMPS<SLB>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (C)	1-71907-472-0	02	1	0505-
545	SEAL; FRT LID BUMPER W/HEADLAMPS<SLB> (C)	1-71907-472-0	02	1	0505-
545	SEAL; FRT LID (A) L=2038	1-71907-481-1	01	1	0105-
545	SEAL; FRT LID (B) OD=25 BLACK	1-76798-019-0	01	1	0105-
545	SEAL; FRT LID BUMPER W/HEADLAMPS<SLB> (D)	1-71907-578-0	02	1	0105-0411
545	SEAL; FRT LID BUMPER W/HEADLAMPS<SLB> (D)	1-71907-578-0	02	1	0412-0504
545	SEAL; FRT LID BUMPER W/HEADLAMPS<SLB> (D)	1-71907-578-0	02	1	0505-
545	SEAL; FRT LID EXC. BUMPER W/HEADLAMPS<SLB> (D) L=63	1-71998-963-2	01	1	0105-0411
545	SEAL; FRT LID EXC. BUMPER W/HEADLAMPS<SLB>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (D) L=63	1-71998-963-2	01	1	0412-
548	STRIKER; FRT LID PANEL (A)	1-79317-003-0	01	1	0105-0411
548	STRIKER; FRT LID PANEL BUMPER W/HEADLAMPS<SLB> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A)	1-79317-003-0	01	1	0412-0504
548	STRIKER; FRT LID PANEL EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (A)	1-79317-003-0	01	1	0412-0504
548	STRIKER; FRT LID PANEL EXC. BUMPER W/HEADLAMPS<SLB>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A)	1-79317-003-0	01	1	0505-
548	STRIKER; FRT LID PANEL BUMPER W/HEADLAMPS<SLB> (A)	1-79317-003-0	01	1	0505-
548	STRIKER; FRT LID PANEL (B)	1-79318-008-0	02	1	0105-0411
548	STRIKER; FRT LID PANEL BUMPER W/HEADLAMPS<SLB> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B)	1-79318-008-0	02	1	0412-0504
548	STRIKER; FRT LID PANEL EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B)	1-79318-008-0	02	1	0412-0504
548	STRIKER; FRT LID PANEL EXC. BUMPER W/HEADLAMPS<SLB>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B)	1-79318-008-0	02	1	0505-
548	STRIKER; FRT LID PANEL BUMPER W/HEADLAMPS<SLB> (B)	1-79318-008-0	02	1	0505-
560	SEAL; COVER (A)	1-71998-827-1	01	1	0105-
560	SEAL; COVER (B) OD=36 T=0.05 BLACK	5-76777-035-0	02	1	0105-0411
560	SEAL; COVER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (B) OD=36 T=0.05 BLACK	5-76777-035-0	02	1	0105-0411
560	SEAL; COVER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (B) OD=36 T=0.05 BLACK	5-76777-035-0	02	1	0412-0504
560	SEAL; COVER BUMPER W/HEADLAMPS<SLB> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) OD=36 T=0.05 BLACK	5-76777-035-0	02	1	0412-0504
560	SEAL; COVER EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B) OD=36 T=0.05 BLACK	5-76777-035-0	02	1	0412-0504
560	SEAL; COVER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (B) OD=36 T=0.05 BLACK	5-76777-035-0	02	1	0505-
560	SEAL; COVER EXC. BUMPER W/HEADLAMPS<SLB>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) OD=36 T=0.05 BLACK	5-76777-035-0	02	1	0505-
560	SEAL; COVER BUMPER W/HEADLAMPS<SLB> (B) OD=36 T=0.05 BLACK	5-76777-035-0	02	1	0505-
560	SEAL; COVER (B) OD=20 T=0.05 BLACK	5-76777-036-0	02	1	0105-0411
560	SEAL; COVER BUMPER W/HEADLAMPS<SLB> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) OD=20 T=0.05 BLACK	5-76777-036-0	02	1	0412-0504
560	SEAL; COVER EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B) OD=20 T=0.05 BLACK	5-76777-036-0	02	1	0412-0504
560	SEAL; COVER EXC. BUMPER W/HEADLAMPS<SLB>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) OD=20 T=0.05 BLACK	5-76777-036-0	02	1	0505-
560	SEAL; COVER BUMPER W/HEADLAMPS<SLB> (B) OD=20 T=0.05 BLACK	5-76777-036-0	02	1	0505-
560	SEAL; COVER EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) OD=36 T=0.05 BLACK	5-76777-035-0	01	1	0105-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
