6-01 — FRONT BUMPER (#8876) — 129 parça

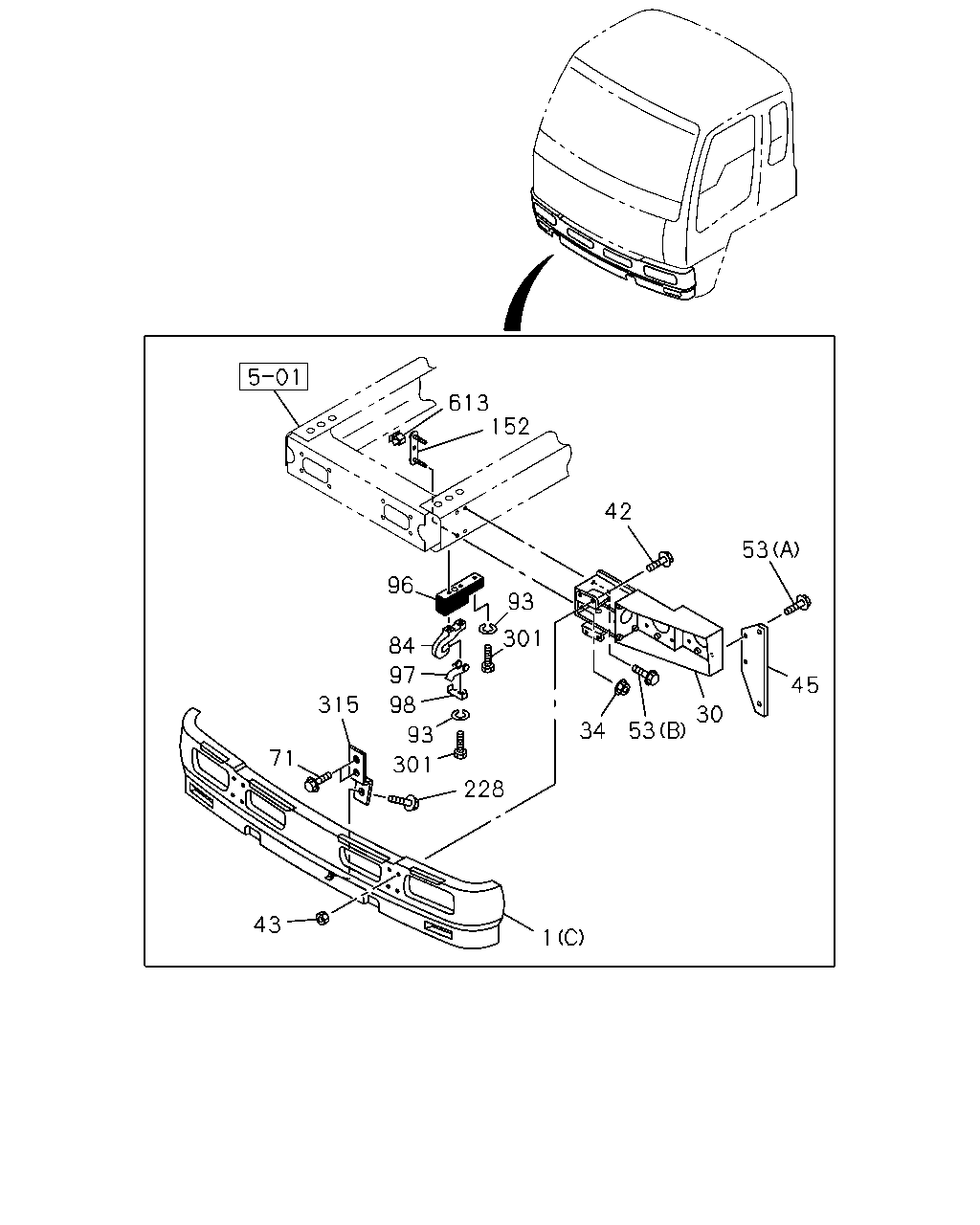

613 152 42 53 96 93 84 97 45 315 98 30 53 34 93 71 301 228 43 1 301

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BUMPER ASM; FRT BUMPER W/HEADLAMPS<SLB> (C)	1-71210-949-0	01	1	0105-
1	BUMPER ASM; FRT EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (A)	1-71210-806-0	01	1	0105-
1	BUMPER ASM; FRT REINFORCEMENT BUMPER<VG7> (B)	1-71210-817-0	01	1	0105-
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB>	1-71230-438-1	01	1	0105-
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB>	1-71230-439-1	01	1	0105-
30	BRACKET; FRT BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7>	1-71230-283-1	01	1	0105-
30	BRACKET; FRT BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7>	1-71230-282-1	01	1	0105-
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7>	1-71230-421-0	01	1	0105-
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7>	1-71230-420-0	01	1	0105-
34	NUT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> M14 FLANGE	0-91150-114-0	04	1	0105-
34	NUT; BRKT,BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M8 FLANGE	0-91150-108-0	15	1	0105-0602
34	NUT; BRKT,BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M8 FLANGE	0-91180-108-0	15	1	0603-
42	BOLT; BUMPER BUMPER W/HEADLAMPS<SLB> M10X20 FLANGE	0-28081-020-0	06	1	0105-0512
42	BOLT; BUMPER BUMPER W/HEADLAMPS<SLB> M10X20 FLANGE	0-28051-020-0	06	1	0601-
42	BOLT; BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M10X25 FLANGE	0-28081-025-0	08	1	0105-0512
42	BOLT; BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M10X25 FLANGE	0-28051-025-0	08	1	0601-
42	BOLT; BUMPER REINFORCEMENT BUMPER<VG7> M10X25 FLANGE	0-28081-025-0	04	1	0105-0512
42	BOLT; BUMPER REINFORCEMENT BUMPER<VG7> M10X25 FLANGE	0-28051-025-0	04	1	0601-
42	BOLT; BUMPER REINFORCEMENT BUMPER<VG7> M10X30 FLANGE	0-28081-030-0	04	1	0105-0512
42	BOLT; BUMPER REINFORCEMENT BUMPER<VG7> M10X30 FLANGE	0-28051-030-0	04	1	0601-
43	NUT; BRKT TO BUMPER BUMPER W/HEADLAMPS<SLB> M10 CAP NUT	1-09650-480-0	08	1	0105-
43	NUT; BRKT TO BUMPER EXC. BUMPER W/HEADLAMPS<SLB> M10 FLANGE	5-09440-006-0	08	1	0105-
45	BRACKET; BRKT TO BUMPER BUMPER W/HEADLAMPS<SLB>	1-71230-366-0	02	1	0105-
53	BOLT; BRKT TO FRAME BUMPER W/HEADLAMPS<SLB> (B) M14X35	0-28081-435-0	04	1	0105-
53	BOLT; BRKT TO FRAME BUMPER W/HEADLAMPS<SLB> (A) M10X20 FLANGE	0-28681-020-0	08	1	0105-0512
53	BOLT; BRKT TO FRAME BUMPER W/HEADLAMPS<SLB> (A) M10X20 FLANGE	0-28651-020-0	08	1	0601-
71	BOLT; BRKT TO FRAME BUMPER W/HEADLAMPS<SLB> M10X20 FLANGE	0-28081-020-0	02	1	0105-0512
71	BOLT; BRKT TO FRAME BUMPER W/HEADLAMPS<SLB> M10X20 FLANGE	0-28051-020-0	02	1	0601-
84	HOOK	1-57181-027-1	01	1	0105-
93	WASHER; LK,HOOK ID=16.2	9-09150-516-0	02	1	0105-0603
93	WASHER; LK,HOOK ID=16.2	0-91510-516-0	02	1	0604-
93	WASHER; LK,HOOK BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> ID=16.2	9-09150-516-0	01	1	0105-0603
93	WASHER; LK,HOOK BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> ID=16.2	0-91510-516-0	01	1	0604-
96	PLATE; DIST,HOOK BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7>	1-57189-203-1	01	1	0105-
97	SPRING; FRT HOOK BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7>	9-53519-003-0	01	1	0105-
98	STOPPER; SPR,FRT HOOK BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7>	9-53519-006-0	01	1	0105-
152	PLATE; FRT BUMPER BUMPER W/HEADLAMPS<SLB>	1-53497-546-1	02	1	0105-
228	BOLT; BRKT BUMPER W/HEADLAMPS<SLB> M10X20 FLANGE	0-28081-020-0	01	1	0105-0512
228	BOLT; BRKT BUMPER W/HEADLAMPS<SLB> M10X20 FLANGE	0-28051-020-0	01	1	0601-
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M16X158	1-09040-077-0	01	1	0105-
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M16X147	5-51361-003-3	01	1	0105-
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M16X80	9-91061-680-0	01	1	0105-0512
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M16X80	0-10961-680-0	01	1	0601-
301	BOLT; HOOK TO FRAME EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M16X60	0-10811-660-0	01	1	0105-0512
301	BOLT; HOOK TO FRAME EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M16X60	0-10861-660-0	01	1	0601-
301	BOLT; HOOK TO FRAME EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M16X70	0-10811-670-0	01	1	0105-0512
301	BOLT; HOOK TO FRAME EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M16X70	0-10861-670-0	01	1	0601-
315	STAY; BUMPER BUMPER W/HEADLAMPS<SLB>	1-71230-390-0	01	1	0105-
613	CLIP BUMPER W/HEADLAMPS<SLB> OD=9 H=17.5	1-09709-181-0	02	1	0105-

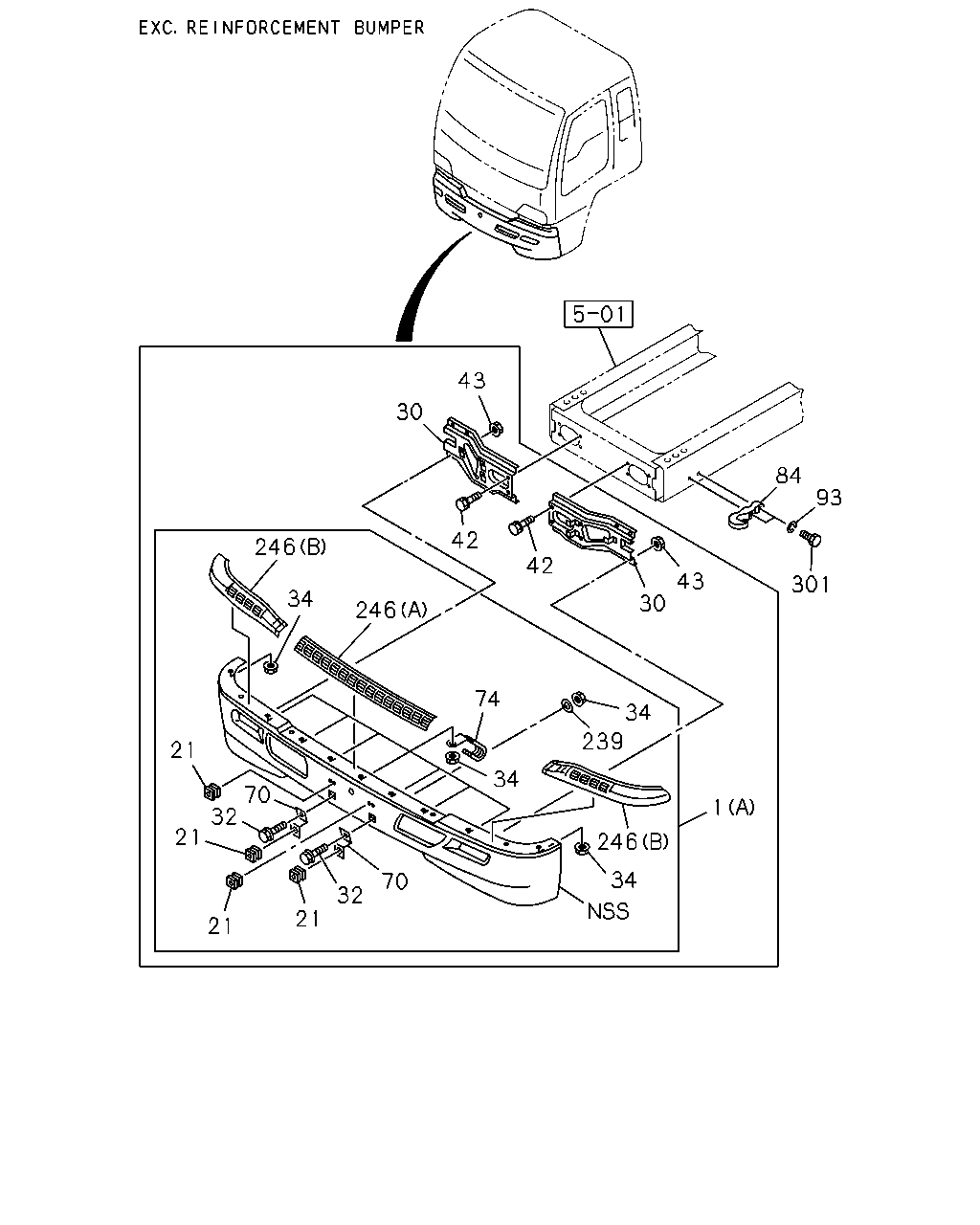

43 30 84 93 42 246 42 43 301 34 30 246 74 34 239 21 34 70 32 1 21 246 34 70 32 21 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BUMPER ASM; FRT BUMPER W/HEADLAMPS<SLB> (C)	1-71210-949-0	01	1	0105-
1	BUMPER ASM; FRT EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (A)	1-71210-806-0	01	1	0105-
1	BUMPER ASM; FRT REINFORCEMENT BUMPER<VG7> (B)	1-71210-817-0	01	1	0105-
21	GROMMET; SCREW,BUMPER PROTECTOR EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> D=9X9 L=8 M6	8-94222-314-0	04	1	0105-
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB>	1-71230-438-1	01	1	0105-
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB>	1-71230-439-1	01	1	0105-
30	BRACKET; FRT BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7>	1-71230-283-1	01	1	0105-
30	BRACKET; FRT BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7>	1-71230-282-1	01	1	0105-
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7>	1-71230-421-0	01	1	0105-
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7>	1-71230-420-0	01	1	0105-
32	BOLT; BRKT,BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	0105-0512
32	BOLT; BRKT,BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M8X20 W/LK&PL WASHER	0-50640-820-0	02	1	0601-
34	NUT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> M14 FLANGE	0-91150-114-0	04	1	0105-
34	NUT; BRKT,BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M8 FLANGE	0-91150-108-0	15	1	0105-0602
34	NUT; BRKT,BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M8 FLANGE	0-91180-108-0	15	1	0603-
42	BOLT; BUMPER BUMPER W/HEADLAMPS<SLB> M10X20 FLANGE	0-28081-020-0	06	1	0105-0512
42	BOLT; BUMPER BUMPER W/HEADLAMPS<SLB> M10X20 FLANGE	0-28051-020-0	06	1	0601-
42	BOLT; BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M10X25 FLANGE	0-28081-025-0	08	1	0105-0512
42	BOLT; BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M10X25 FLANGE	0-28051-025-0	08	1	0601-
42	BOLT; BUMPER REINFORCEMENT BUMPER<VG7> M10X25 FLANGE	0-28081-025-0	04	1	0105-0512
42	BOLT; BUMPER REINFORCEMENT BUMPER<VG7> M10X25 FLANGE	0-28051-025-0	04	1	0601-
42	BOLT; BUMPER REINFORCEMENT BUMPER<VG7> M10X30 FLANGE	0-28081-030-0	04	1	0105-0512
42	BOLT; BUMPER REINFORCEMENT BUMPER<VG7> M10X30 FLANGE	0-28051-030-0	04	1	0601-
43	NUT; BRKT TO BUMPER BUMPER W/HEADLAMPS<SLB> M10 CAP NUT	1-09650-480-0	08	1	0105-
43	NUT; BRKT TO BUMPER EXC. BUMPER W/HEADLAMPS<SLB> M10 FLANGE	5-09440-006-0	08	1	0105-
70	BRACKET; LICENSE PLATE,FRT EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7>	1-71260-150-0	02	1	0105-
74	CLIP; FOG LAMP HARNESS EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7>	1-09701-203-0	07	1	0105-
84	HOOK	1-57181-027-1	01	1	0105-
93	WASHER; LK,HOOK ID=16.2	9-09150-516-0	02	1	0105-0603
93	WASHER; LK,HOOK ID=16.2	0-91510-516-0	02	1	0604-
93	WASHER; LK,HOOK BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> ID=16.2	9-09150-516-0	01	1	0105-0603
93	WASHER; LK,HOOK BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> ID=16.2	0-91510-516-0	01	1	0604-
239	WASHER; PL,BRKT EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> ID=8.4 OD=22	9-09160-708-0	02	1	0105-0605
239	WASHER; PL,BRKT EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> ID=8.4 OD=22	0-91610-708-0	02	1	0606-
246	PROTECTOR; BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (A) CENTER	1-71260-155-0	01	1	0105-
246	PROTECTOR; BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (B)	1-71260-094-1	01	1	0105-
246	PROTECTOR; BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (B)	1-71260-095-1	01	1	0105-
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M16X158	1-09040-077-0	01	1	0105-
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M16X147	5-51361-003-3	01	1	0105-
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M16X80	9-91061-680-0	01	1	0105-0512
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M16X80	0-10961-680-0	01	1	0601-
301	BOLT; HOOK TO FRAME EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M16X60	0-10811-660-0	01	1	0105-0512
301	BOLT; HOOK TO FRAME EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M16X60	0-10861-660-0	01	1	0601-
301	BOLT; HOOK TO FRAME EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M16X70	0-10811-670-0	01	1	0105-0512
301	BOLT; HOOK TO FRAME EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M16X70	0-10861-670-0	01	1	0601-

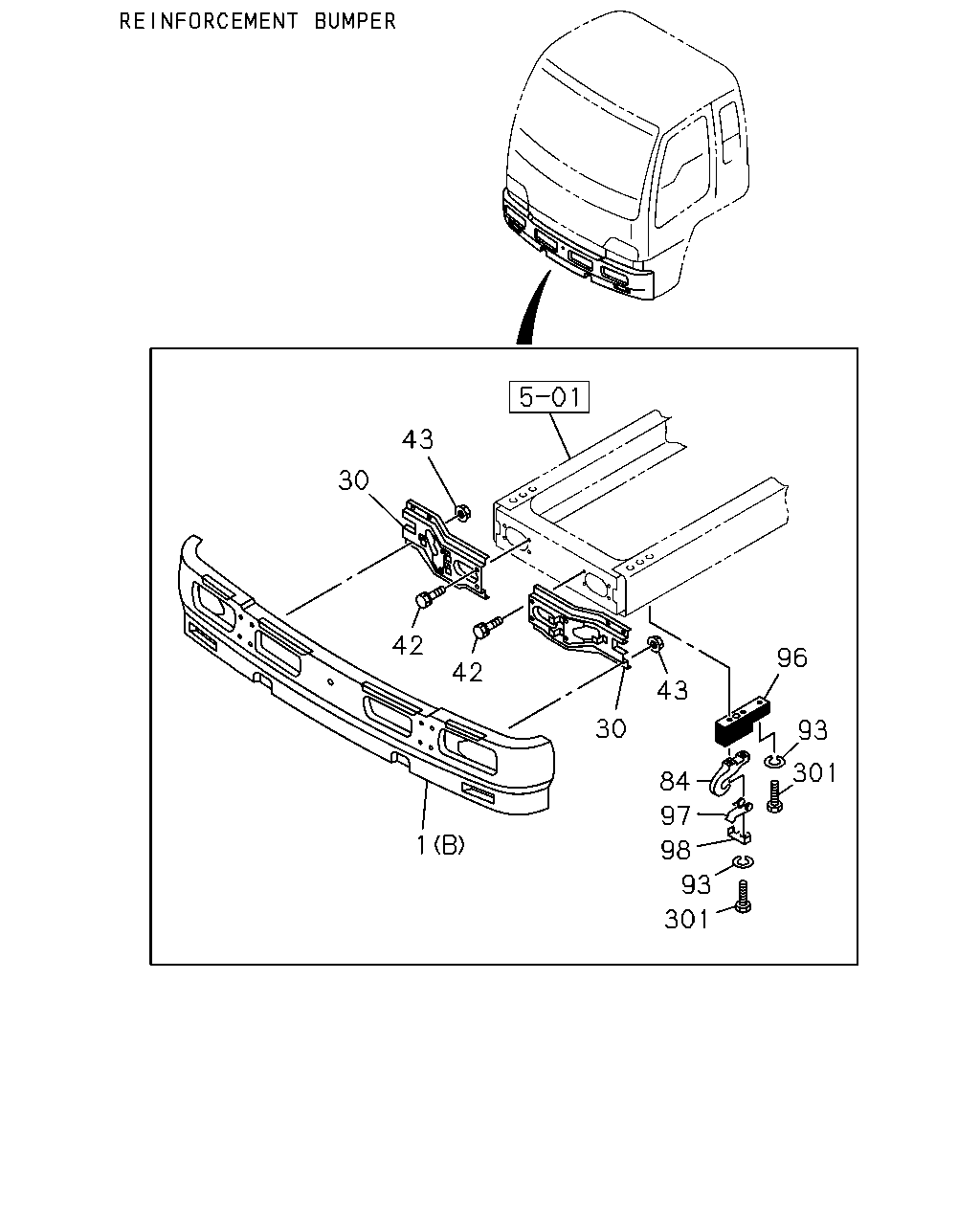

43 30 42 96 42 43 30 93 301 84 97 1 98 93 301

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BUMPER ASM; FRT BUMPER W/HEADLAMPS<SLB> (C)	1-71210-949-0	01	1	0105-
1	BUMPER ASM; FRT EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (A)	1-71210-806-0	01	1	0105-
1	BUMPER ASM; FRT REINFORCEMENT BUMPER<VG7> (B)	1-71210-817-0	01	1	0105-
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB>	1-71230-438-1	01	1	0105-
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB>	1-71230-439-1	01	1	0105-
30	BRACKET; FRT BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7>	1-71230-283-1	01	1	0105-
30	BRACKET; FRT BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7>	1-71230-282-1	01	1	0105-
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7>	1-71230-421-0	01	1	0105-
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7>	1-71230-420-0	01	1	0105-
42	BOLT; BUMPER BUMPER W/HEADLAMPS<SLB> M10X20 FLANGE	0-28081-020-0	06	1	0105-0512
42	BOLT; BUMPER BUMPER W/HEADLAMPS<SLB> M10X20 FLANGE	0-28051-020-0	06	1	0601-
42	BOLT; BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M10X25 FLANGE	0-28081-025-0	08	1	0105-0512
42	BOLT; BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M10X25 FLANGE	0-28051-025-0	08	1	0601-
42	BOLT; BUMPER REINFORCEMENT BUMPER<VG7> M10X25 FLANGE	0-28081-025-0	04	1	0105-0512
42	BOLT; BUMPER REINFORCEMENT BUMPER<VG7> M10X25 FLANGE	0-28051-025-0	04	1	0601-
42	BOLT; BUMPER REINFORCEMENT BUMPER<VG7> M10X30 FLANGE	0-28081-030-0	04	1	0105-0512
42	BOLT; BUMPER REINFORCEMENT BUMPER<VG7> M10X30 FLANGE	0-28051-030-0	04	1	0601-
43	NUT; BRKT TO BUMPER BUMPER W/HEADLAMPS<SLB> M10 CAP NUT	1-09650-480-0	08	1	0105-
43	NUT; BRKT TO BUMPER EXC. BUMPER W/HEADLAMPS<SLB> M10 FLANGE	5-09440-006-0	08	1	0105-
84	HOOK	1-57181-027-1	01	1	0105-
93	WASHER; LK,HOOK ID=16.2	9-09150-516-0	02	1	0105-0603
93	WASHER; LK,HOOK ID=16.2	0-91510-516-0	02	1	0604-
93	WASHER; LK,HOOK BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> ID=16.2	9-09150-516-0	01	1	0105-0603
93	WASHER; LK,HOOK BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> ID=16.2	0-91510-516-0	01	1	0604-
96	PLATE; DIST,HOOK BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7>	1-57189-203-1	01	1	0105-
97	SPRING; FRT HOOK BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7>	9-53519-003-0	01	1	0105-
98	STOPPER; SPR,FRT HOOK BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7>	9-53519-006-0	01	1	0105-
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M16X158	1-09040-077-0	01	1	0105-
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M16X147	5-51361-003-3	01	1	0105-
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M16X80	9-91061-680-0	01	1	0105-0512
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M16X80	0-10961-680-0	01	1	0601-
301	BOLT; HOOK TO FRAME EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M16X60	0-10811-660-0	01	1	0105-0512
301	BOLT; HOOK TO FRAME EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M16X60	0-10861-660-0	01	1	0601-
301	BOLT; HOOK TO FRAME EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M16X70	0-10811-670-0	01	1	0105-0512
301	BOLT; HOOK TO FRAME EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M16X70	0-10861-670-0	01	1	0601-
