◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CVR ▶ 10860 - CVR LHD ▶ 5 - Frame, Cab Mounting ▶ 5-10 - CAB MOUNTING; FRAME SIDE ▶
5-10 — CAB MOUNTING; FRAME SIDE (#8870) — 147 parça

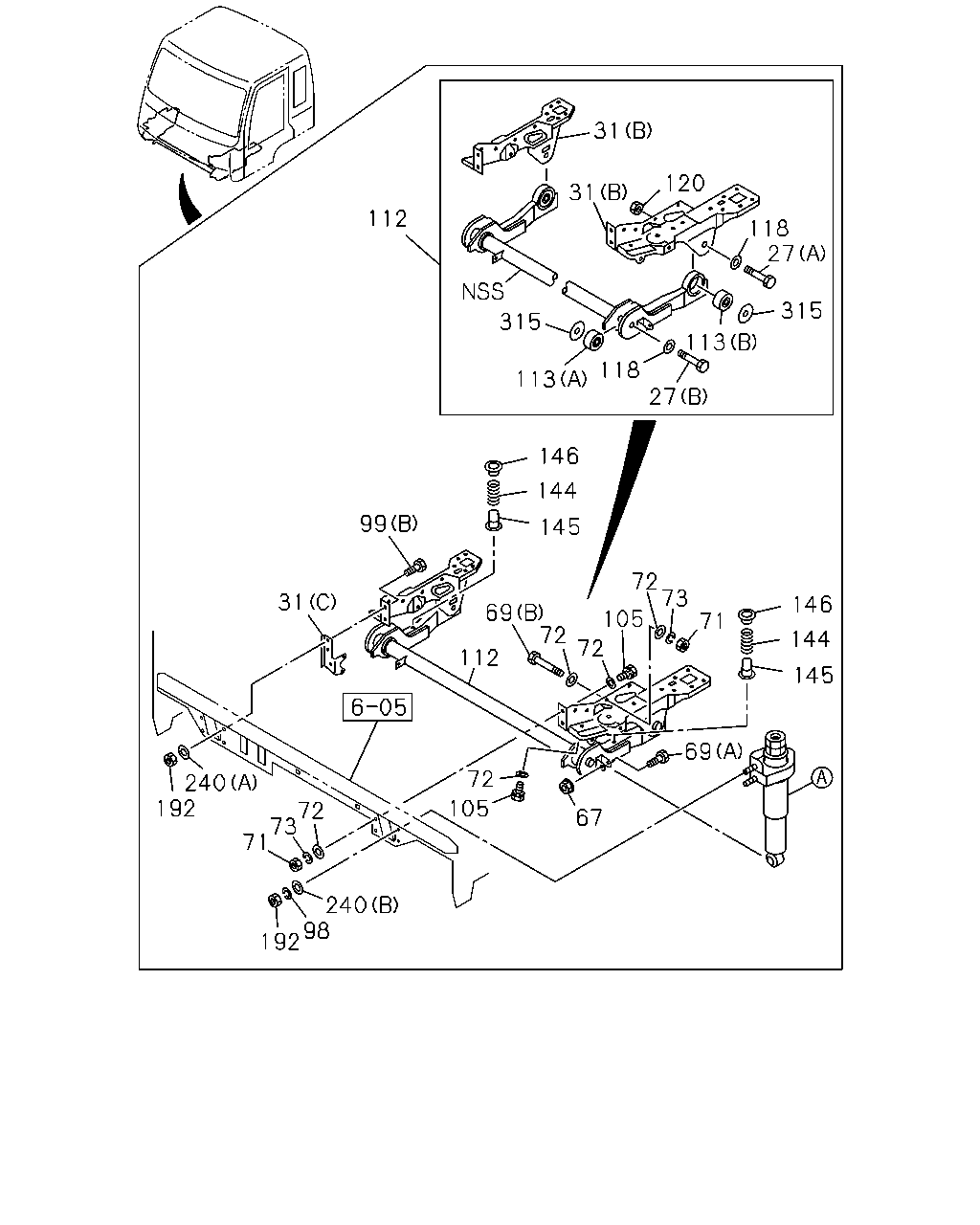

çizim 20796
31 31 120 112 118 27 315 315 113 118 27 113 146 144 99 145 72 73 31 146 69 72 105 71 144 72 112 145 69 72 240 192 105 72 73 71 67 240 98 192
BalonParca AdiParca NoAdetTipApplied Date
27 BOLT; BUSHING
(B) M18X120 		1-09000-442-1 02 1 0105-
27 BOLT; BUSHING
(A) M18X100 		9-91066-800-0 02 1 0105-0105
27 BOLT; BUSHING
(A) M18X90 		9-91066-890-0 02 1 0105-
31 BRACKET; CAB
(C) 		1-81549-102-0 01 1 0208-
31 BRACKET; CAB
(A) 		1-44226-150-0 01 1 0105-
31 BRACKET; CAB
(B) 		1-53453-274-1 01 1 0105-
31 BRACKET; CAB
(B) 		1-53453-280-1 01 1 0105-
67 NUT; S/ABS,CAB FRT SUSPENSION
M12 FLANGE 		0-91150-212-0 02 1 0105-0602
67 NUT; S/ABS,CAB FRT SUSPENSION
M12 FLANGE 		0-91180-212-0 02 1 0603-
69 BOLT; S/ABS,CAB FRT SUSPENSION
(A) M12X60 		0-20801-260-0 02 1 0105-
69 BOLT; S/ABS,CAB FRT SUSPENSION
(B) M10X100 		1-09980-547-0 08 1 0105-0301
69 BOLT; S/ABS,CAB FRT SUSPENSION
(B) M10X105 		1-79198-008-1 08 1 0302-
71 NUT; BRKT TO CAB FRAME
M10 		1-09984-142-0 06 1 0105-
72 WASHER; PL,BRKT TO FRAME
ID=10.5 OD=26 T=2.6 		1-09985-184-0 28 1 0105-
73 WASHER; LK,BRKT TO CAB FRAME
ID=10 		1-09985-185-0 12 1 0105-
98 WASHER; LK,BRKT
ID=10 		1-09985-185-0 04 1 0105-
99 BOLT; BRKT
(A) M8X20 FLANGE 		0-28680-820-0 04 1 0105-0512
99 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 04 1 0601-
99 BOLT; BRKT
(B) M10X30 FLANGE 		0-28681-030-0 02 1 0105-0512
99 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 02 1 0601-
105 BOLT; BRKT TO CAB FRAME
M10X30 		1-09980-546-0 15 1 0105-
112 ARM ASM; LINK,CAB FRT SUSP 1-53450-567-6 01 1 0105-
113 BUSHING; RUBBER,FLOATING LINK ARM,W/PI
(A) 		1-53458-333-3 02 1 0105-0111
113 BUSHING; RUBBER,FLOATING LINK ARM,W/PI
(B) 		1-53458-714-0 02 1 0105-0111
113 BUSHING; RUBBER,FLOATING LINK ARM,W/PI
(A),(B) 		1-53458-714-0 04 1 0112-
118 WASHER; PL,STOPPER RUBBER,LINK ARM
ID=19 OD=30 		1-09503-279-0 04 1 0105-
120 NUT; STOPPER RUBBER,LINK ARM
M18 		9-99110-518-0 02 1 0105-0512
120 NUT; STOPPER RUBBER,LINK ARM
M18 		0-91110-518-0 02 1 0601-
144 SPRING; COIL,CAB FRT SUSPENSION 1-09580-537-0 02 1 0105-
145 RUBBER; CUSHION,CAB FRT SUSPENSION 1-53366-139-0 02 1 0105-
146 SEAT; SPRING,CAB FRT SUSPENSION 1-53366-138-0 02 1 0105-
192 NUT; BRKT FIX
M10 		1-09984-142-0 04 1 0105-
240 WASHER; PL,BRKT
(A) ID=10.5 OD=18 		1-09985-173-0 01 1 0105-
240 WASHER; PL,BRKT
(B) ID=10.5 OD=26 T=2.6 		1-09985-184-0 04 1 0105-
240 WASHER; PL,BRKT
(C) ID=12.5 		9-09160-512-0 02 1 0105-0605
240 WASHER; PL,BRKT
(C) ID=12.5 OD=22 		0-91610-512-0 02 1 0606-
315 WASHER; CAB MTG
ID=34.5 		1-53458-281-1 04 1 0105-
çizim 72842
202 202 203 69 72 204 205 65 204 70 203
BalonParca AdiParca NoAdetTipApplied Date
65 ABSORBER; SHOCK,CAB FRT SUSPENSION 1-51630-603-0 02 1 0105-
69 BOLT; S/ABS,CAB FRT SUSPENSION
(A) M12X60 		0-20801-260-0 02 1 0105-
69 BOLT; S/ABS,CAB FRT SUSPENSION
(B) M10X100 		1-09980-547-0 08 1 0105-0301
69 BOLT; S/ABS,CAB FRT SUSPENSION
(B) M10X105 		1-79198-008-1 08 1 0302-
70 BRACKET; S/ABS,CAB FRT SUSP 1-53458-493-1 01 1 0105-
70 BRACKET; S/ABS,CAB FRT SUSP 1-53458-492-1 01 1 0105-
72 WASHER; PL,BRKT TO FRAME
ID=10.5 OD=26 T=2.6 		1-09985-184-0 28 1 0105-
202 NUT; S/ABS
(A) M10 FLANGE 		0-91150-110-0 02 1 0105-
202 NUT; S/ABS
(B) M10 		9-09110-410-0 04 1 0105-
202 NUT; S/ABS
(C) M10 		9-09111-410-0 06 1 0105-
203 WASHER; RUBBER,SHOCK
(B) 		1-51631-005-0 10 1 0105-
203 WASHER; RUBBER,SHOCK
(A) 		1-51631-104-0 02 1 0105-
204 RUBBER; CUSHION,SHOCK 1-51631-004-0 12 1 0105-
205 WASHER; RUBBER,SHOCK 1-51631-079-0 08 1 0105-

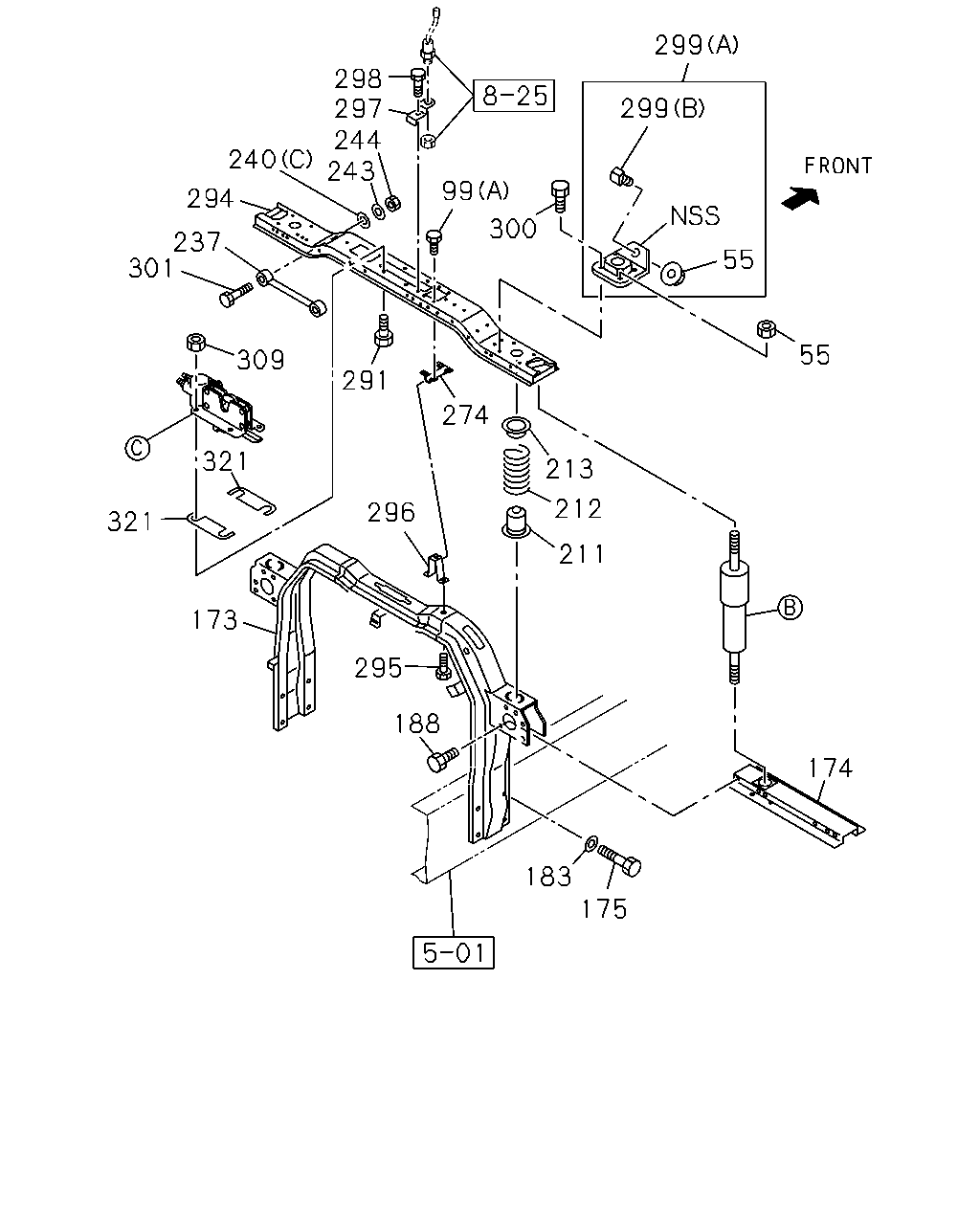

çizim 74619
299 298 297 244 243 299 240 99 294 300 237 301 55 55 309 291 274 321 213 212 296 321 211 173 295 188 174 183 175
BalonParca AdiParca NoAdetTipApplied Date
55 NUT; RUBBER
M8 FLANGE 		0-91150-108-0 06 1 0105-0602
55 NUT; RUBBER
M8 FLANGE 		0-91180-108-0 06 1 0603-
99 BOLT; BRKT
(A) M8X20 FLANGE 		0-28680-820-0 04 1 0105-0512
99 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 04 1 0601-
99 BOLT; BRKT
(B) M10X30 FLANGE 		0-28681-030-0 02 1 0105-0512
99 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 02 1 0601-
173 MEMBER; CAB MTG RR 1-53450-638-2 01 1 0105-
174 OUTRIGGER 1-53456-277-3 01 1 0105-
174 OUTRIGGER 1-53456-278-3 01 1 0105-
175 BOLT; MEMBER TO FRAME
M14X35 		9-92061-435-0 08 1 0105-0512
175 BOLT; MEMBER TO FRAME
M14X35 		0-20951-435-0 08 1 0601-
183 WASHER; PL,MEMBER
ID=15 		9-09651-069-0 08 1 0105-
188 BOLT; OUTRIGGER
M10X25 FLANGE 		0-28681-025-0 08 1 0105-0512
188 BOLT; OUTRIGGER
M10X25 FLANGE 		0-28651-025-0 08 1 0601-
211 RUBBER; CUSHION,S/ABS 1-53366-128-0 02 1 0105-
212 SPRING; COIL 1-09580-515-0 02 1 0105-
213 SEAT; SPR,S/ABS 1-53366-132-1 02 1 0105-
237 ROD ASM; LATERAL 1-53458-343-0 01 1 0105-
240 WASHER; PL,BRKT
(A) ID=10.5 OD=18 		1-09985-173-0 01 1 0105-
240 WASHER; PL,BRKT
(B) ID=10.5 OD=26 T=2.6 		1-09985-184-0 04 1 0105-
240 WASHER; PL,BRKT
(C) ID=12.5 		9-09160-512-0 02 1 0105-0605
240 WASHER; PL,BRKT
(C) ID=12.5 OD=22 		0-91610-512-0 02 1 0606-
243 WASHER; LK,LATERAL ROD
ID=12.2 		9-09150-512-0 02 1 0105-0603
243 WASHER; LK,LATERAL ROD
ID=12.2 		0-91510-512-0 02 1 0604-
244 NUT; LATERAL ROD
M12 		9-99110-512-0 02 1 0105-0512
244 NUT; LATERAL ROD
M12 		0-91110-512-0 02 1 0601-
274 PIN 1-53458-996-0 01 1 0105-
291 BOLT; RATCH
M10X25 FLANGE 		0-28681-025-0 04 1 0105-0512
291 BOLT; RATCH
M10X25 FLANGE 		0-28651-025-0 04 1 0601-
294 MEMBER; FLOATING 1-53454-831-2 01 1 0105-0311
294 MEMBER; FLOATING 1-53454-950-2 01 1 0312-
295 BOLT; STOPPER,UPR
M10X20 FLANGE 		0-28681-020-0 02 1 0105-0512
295 BOLT; STOPPER,UPR
M10X20 FLANGE 		0-28651-020-0 02 1 0601-
296 STOPPER; UPR 1-53458-973-0 01 1 0105-
297 BRACKET; LIMIT SW 1-53458-782-0 01 1 0105-
298 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 01 1 0105-0512
298 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 01 1 0601-
299 RUBBER; MTG
(B) 		1-53366-155-0 02 1 0105-
299 RUBBER; MTG
(A) 		1-53366-156-0 02 1 0105-
300 BOLT; MTG RUBBER
M8X25 W/LK&PL WASHER 		1-09030-027-0 08 1 0105-
301 PIN; LATERAL ROD
M12X57.5 		1-53459-498-1 02 1 0105-
309 NUT
M10 FLANGE 		0-91150-210-0 04 1 0105-0602
309 NUT
M10 FLANGE 		0-91180-210-0 04 1 0603-
321 SHIM; FRT CAB MTG 1-53458-629-1 04 1 0105-

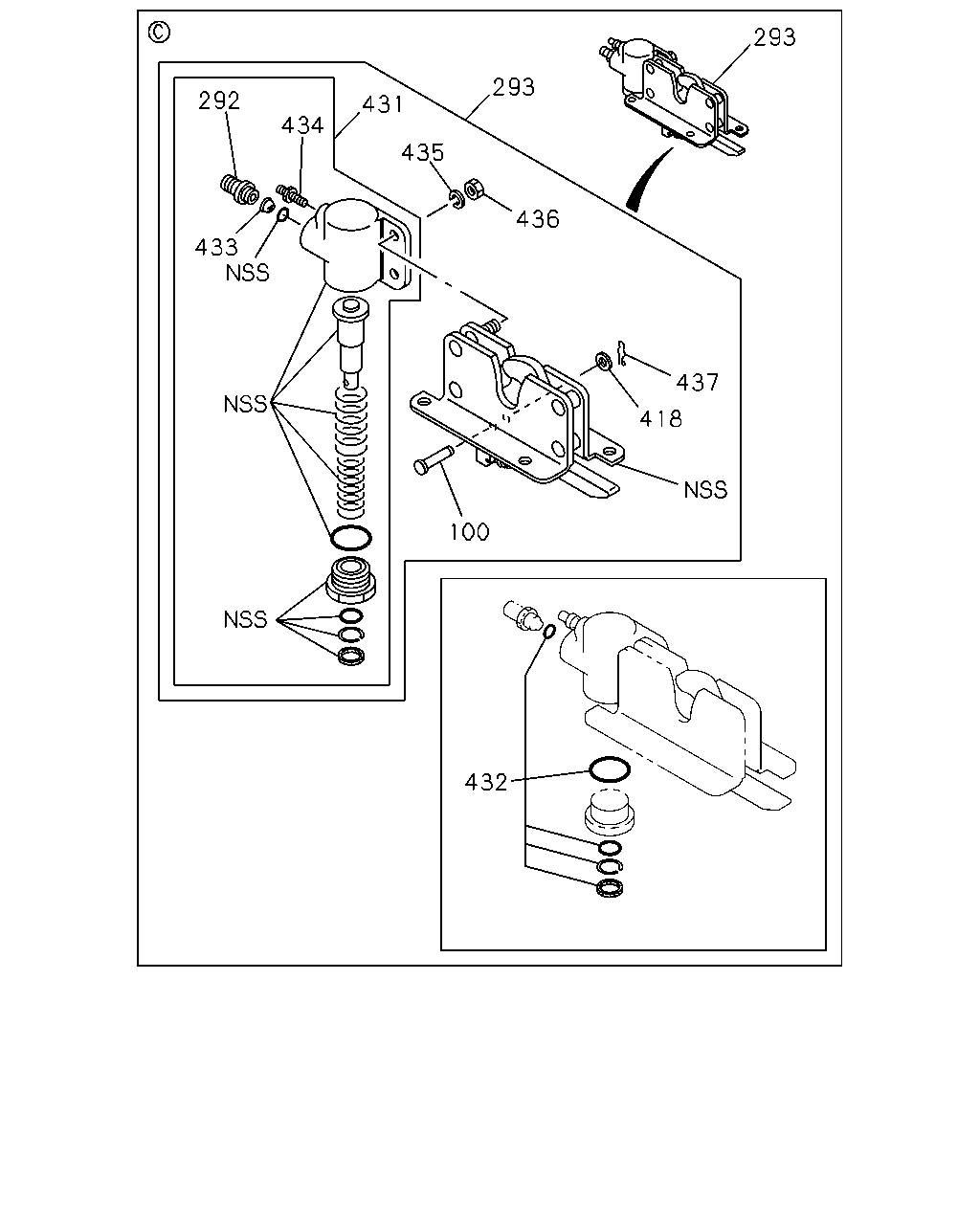

çizim 76626
293 293 292 431 434 435 436 433 437 418 100 432
BalonParca AdiParca NoAdetTipApplied Date
100 PIN; JOINT 1-53458-831-0 01 1 0105-
292 CONNECTOR; CAB SUSPENSION
M12 		1-53458-941-0 01 1 0105-
293 RATCH; CAB SUSP,RR 1-53458-918-0 01 1 0105-
418 WASHER; PL,PIN 1-53458-059-0 01 1 0105-
431 CYLINDER; AIR,RATCH 1-53457-013-0 01 1 0105-
432 REPAIR KIT; AIR CYL 1-85579-052-0 01 1 0105-
433 FILTER; AIR CYL 1-53458-048-0 01 1 0105-
434 SCREW; AIR BLEEDER 1-53458-529-0 01 1 0105-
435 WASHER; LK,AIR CYL
ID=10.2 		9-09150-510-0 02 1 0105-
436 NUT; AIR CYL 1-53458-528-0 02 1 0105-
437 PIN; SNAP 1-53458-526-0 01 1 0105-
çizim 77106
202 202 294 203 204 205 204 203 201 173 203 204 205 205 204 174 203 202 202
BalonParca AdiParca NoAdetTipApplied Date
173 MEMBER; CAB MTG RR 1-53450-638-2 01 1 0105-
174 OUTRIGGER 1-53456-277-3 01 1 0105-
174 OUTRIGGER 1-53456-278-3 01 1 0105-
201 ABSORBER ASM; SHOCK,RR MTG 1-51630-607-0 02 1 0105-
202 NUT; S/ABS
(A) M10 FLANGE 		0-91150-110-0 02 1 0105-
202 NUT; S/ABS
(B) M10 		9-09110-410-0 04 1 0105-
202 NUT; S/ABS
(C) M10 		9-09111-410-0 06 1 0105-
203 WASHER; RUBBER,SHOCK
(B) 		1-51631-005-0 10 1 0105-
203 WASHER; RUBBER,SHOCK
(A) 		1-51631-104-0 02 1 0105-
204 RUBBER; CUSHION,SHOCK 1-51631-004-0 12 1 0105-
205 WASHER; RUBBER,SHOCK 1-51631-079-0 08 1 0105-
294 MEMBER; FLOATING 1-53454-831-2 01 1 0105-0311
294 MEMBER; FLOATING 1-53454-950-2 01 1 0312-

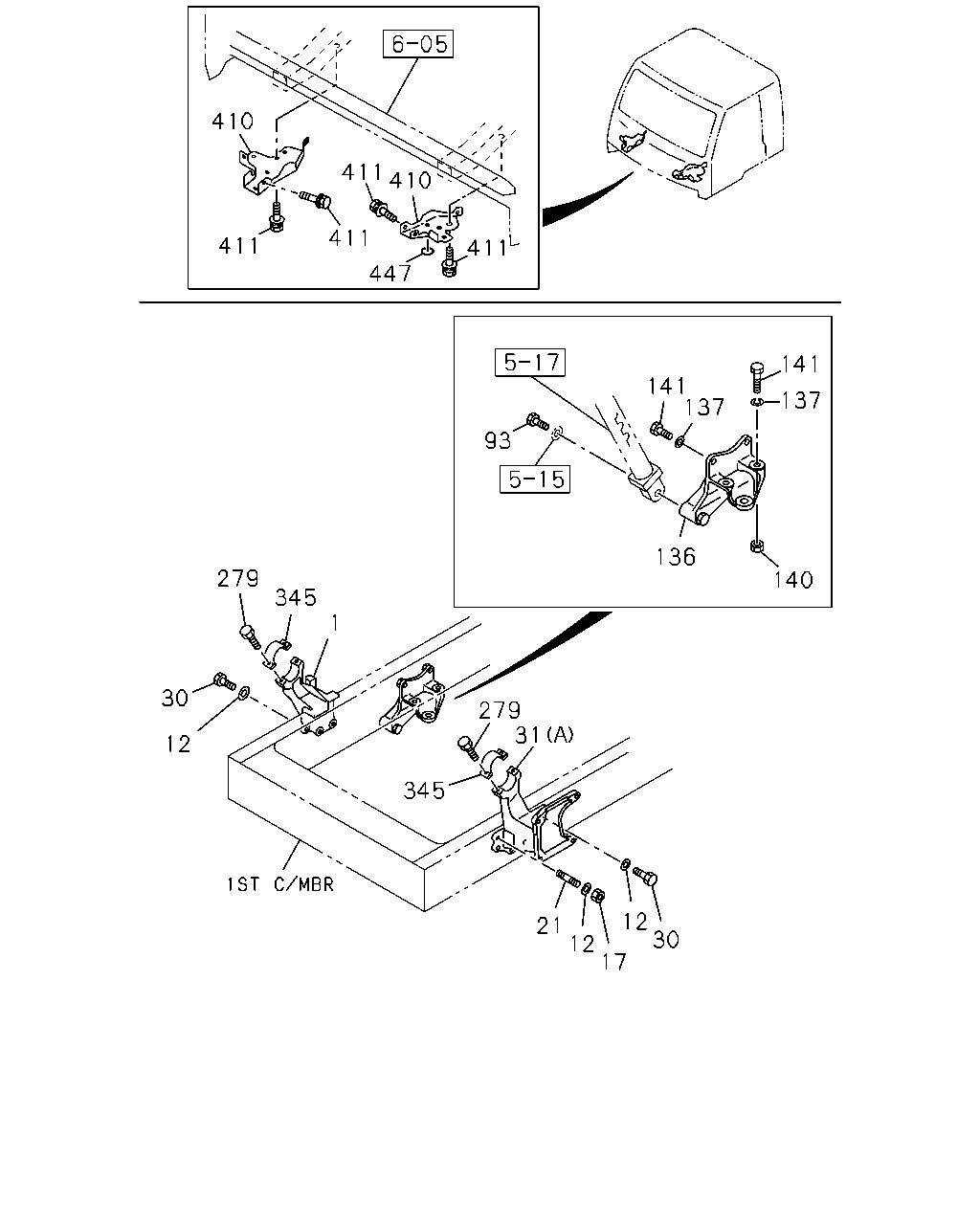

çizim 77196
410 411 410 411 411 411 447 141 141 137 137 93 136 279 140 345 1 30 279 31 12 345 12 30 21 12 17
BalonParca AdiParca NoAdetTipApplied Date
1 BRACKET; CAB MTG 1-53453-275-1 01 1 0105-
12 WASHER; LK,BRKT
ID=15 		9-09651-069-0 11 1 0105-
17 NUT; BRKT,CAB TILT
M14 		9-99110-514-0 01 1 0105-0512
17 NUT; BRKT,CAB TILT
M14 		0-91110-514-0 01 1 0601-
21 STUD; BRKT,CAB TILT
M14X48 L=75 		1-09300-094-0 01 1 0105-
30 BOLT; CAB FRT FOOT
M14X45 		9-92061-445-0 10 1 0105-
31 BRACKET; CAB
(C) 		1-81549-102-0 01 1 0208-
31 BRACKET; CAB
(A) 		1-44226-150-0 01 1 0105-
31 BRACKET; CAB
(B) 		1-53453-274-1 01 1 0105-
31 BRACKET; CAB
(B) 		1-53453-280-1 01 1 0105-
93 BOLT; PIN
M10X20 FLANGE 		0-28681-020-0 01 1 0105-0512
93 BOLT; PIN
M10X20 FLANGE 		0-28651-020-0 01 1 0601-
136 BRACKET; OIL CYL 1-53458-653-0 01 1 0105-
137 WASHER; PL,BRKT
ID=15 		9-09651-069-0 04 1 0105-
140 NUT; BRKT
M14 		9-99110-514-0 01 1 0105-0512
140 NUT; BRKT
M14 		0-91110-514-0 01 1 0601-
141 BOLT; BRKT
M14X50 		9-92061-450-0 04 1 0105-0512
141 BOLT; BRKT
M14X50 		0-20951-450-0 04 1 0601-
279 BOLT
M12X40 FLANGE 		0-28091-240-0 04 1 0105-0512
279 BOLT
M12X40 FLANGE 		0-28061-240-0 04 1 0601-
345 CAP; CAB 1-53458-336-3 02 1 0105-
410 REINFORCEMENT; CAB TILT 1-62570-864-0 01 1 0105-
410 REINFORCEMENT; CAB TILT 1-62570-939-0 01 1 0105-
411 BOLT; REINFORCEMENT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 06 1 0105-
411 BOLT; REINFORCEMENT
M10X20 W/LK&PL WASHER 		8-94279-211-0 02 1 0105-0312
411 BOLT; REINFORCEMENT
M10X20 W/LK&PL WASHER 		8-94279-211-0 01 1 0401-
447 SEAL
OD=25 BLACK 		1-76798-019-0 02 1 0105-0312
447 SEAL
OD=25 BLACK 		1-76798-019-0 03 1 0401-
