Isuzu WW
▶
TRUCKS
▶
CVR
▶
10860 - CVR LHD
▶
5 - Frame, Cab Mounting
▶
5-01 - FRAME AND OTHER PARTS
▶
5-01 — FRAME AND OTHER PARTS
(#8869) — 86 parça
Tümü
A - WHEEL BASE 4600MM
B - WHEEL BASE 5400MM
◀

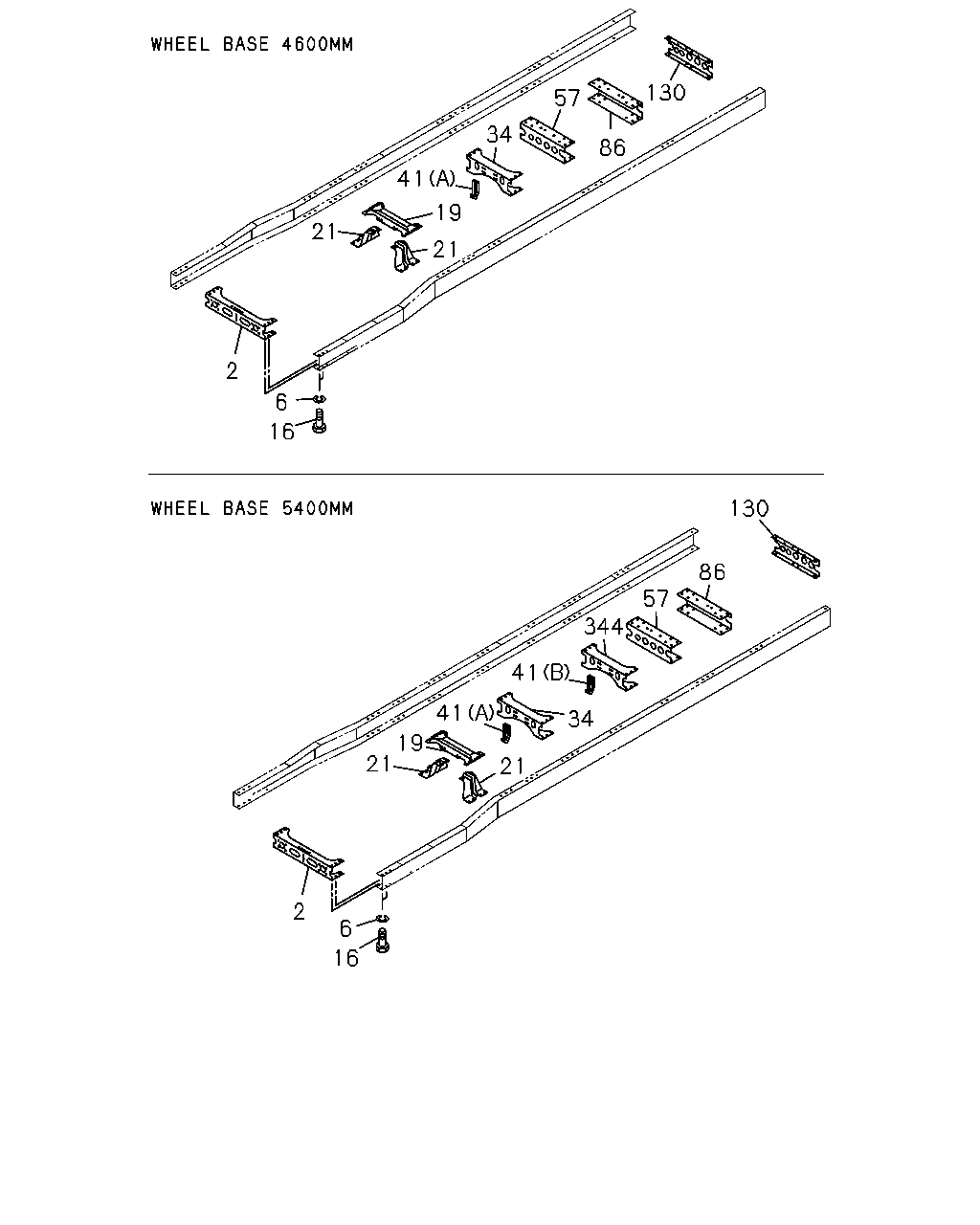

[501A] CROSS MEMBER (18 parça)

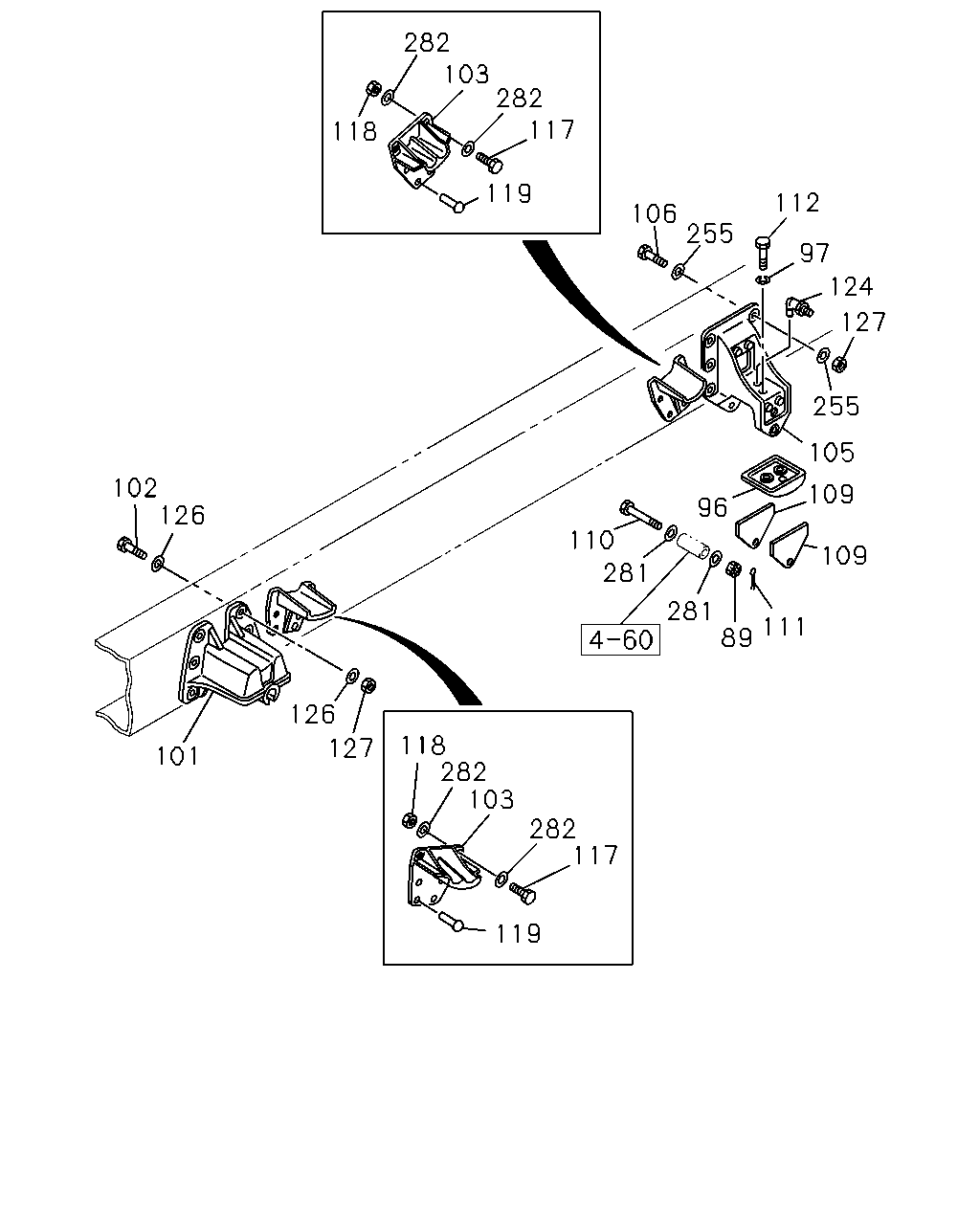

[501A] BRACKET;REAR (35 parça)

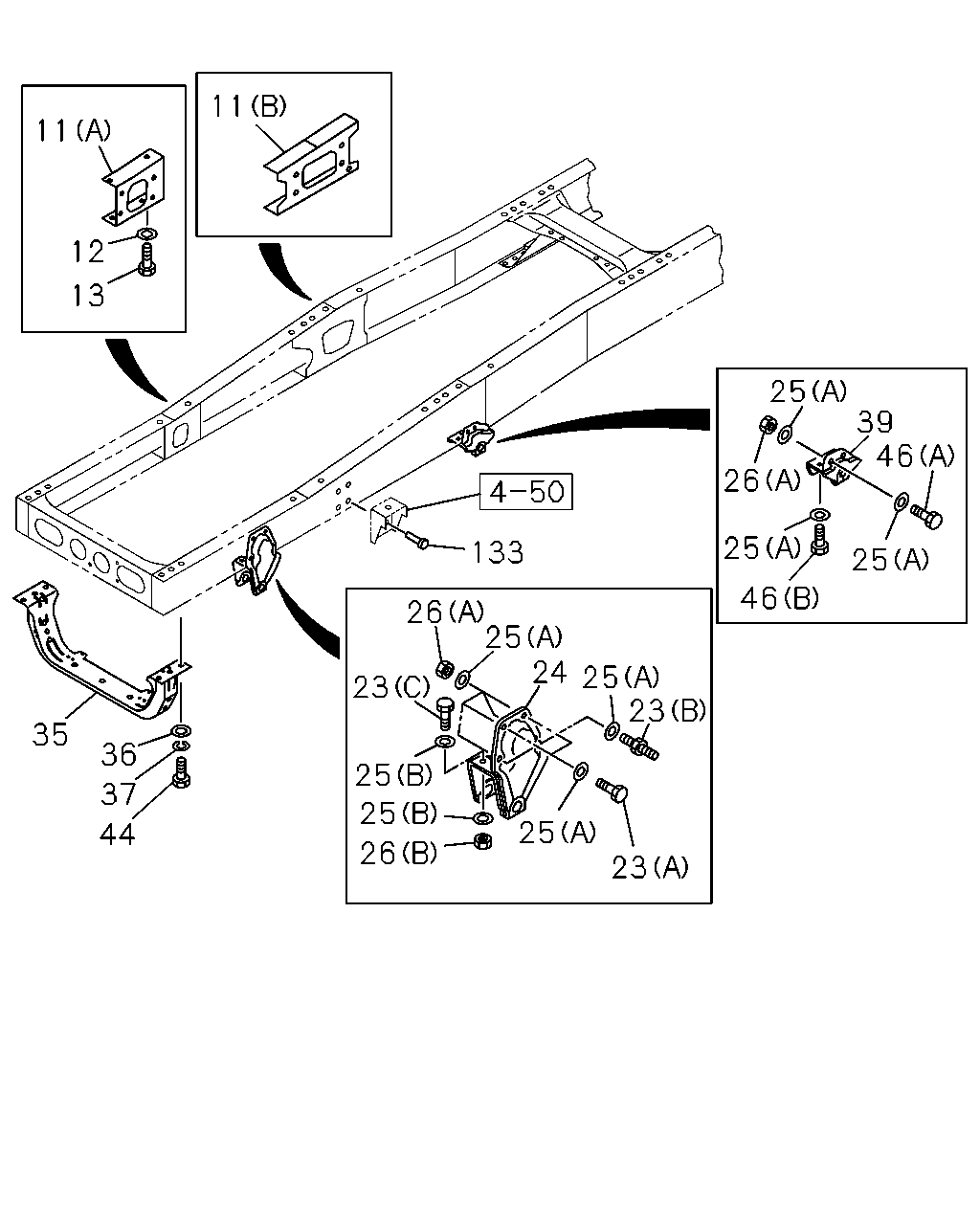

[501A] BRACKET;FRONT AND UNDER MEMBER (33 parça)
▶
130
57
34
86
41
19
21
21
2
6
16
130
86
57
344
41
41
34
19
21
21
2
6
16
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
MEMBER; CROSS,1ST
1-53181-710-1
01
1
0105-
●
●
6
WASHER; LK,1ST C/MBR
EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> ID=16.2
9-09150-616-0
AR
1
0105-0112
●
●
6
WASHER; LK,1ST C/MBR
EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> ID=16.2
9-09150-516-0
AR
1
0201-0603
●
●
6
WASHER; LK,1ST C/MBR
EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> ID=16.2
0-91510-516-0
AR
1
0604-
●
●
16
BOLT; 1ST C/MBR TO S/MBR
EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M16X40
0-20801-640-0
AR
1
0105-0512
●
●
16
BOLT; 1ST C/MBR TO S/MBR
EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M16X40
0-20851-640-0
AR
1
0601-
●
●
19
MEMBER; CROSS,2ND
1-53174-221-0
01
1
0105-
●
●
21
GUSSET; 2ND CROSS
1-53164-207-0
02
1
0105-
●
●
34
MEMBER; CROSS,3RD
1-53181-640-1
01
1
0105-0208
●
●
34
MEMBER; CROSS,3RD
1-53181-640-1
02
1
0209-
●
●
41
BRACKET; CENTER BRG,FRAME SIDE
(A)
1-53271-299-1
02
1
0105-
●
41
BRACKET; CENTER BRG,FRAME SIDE
(A) L=305
1-53271-262-2
02
1
0105-
●
41
BRACKET; CENTER BRG,FRAME SIDE
(B) L=365
1-53271-284-1
02
1
0105-
●
57
MEMBER; CROSS,RR SUSP FRT
1-53171-788-4
01
1
0105-
●
●
86
MEMBER; CROSS,RR SUSP RR
1-53171-788-4
01
1
0105-
●
●
130
MEMBER; CROSS,END
1-53181-537-1
01
1
0105-
●
●
344
MEMBER; CROSS,4TH
1-53181-640-1
01
1
0105-0208
●
344
MEMBER; CROSS,4TH
1-53181-640-1
02
1
0209-
●
282
103
282
117
118
119
112
106
255
97
124
127
255
105
102
126
109
96
110
109
281
281
111
89
126
118
282
103
127
101
282
117
119
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
89
NUT; LEAF SPR STOPPER
M14 SLOTTED
0-91116-514-0
02
1
0605-
●
●
89
NUT; LEAF SPR STOPPER
M14
9-99116-414-0
AR
1
0105-0603
●
●
89
NUT; LEAF SPR STOPPER
M14 SLOTTED
0-91116-514-0
AR
1
0604-
●
●
96
PAD; RR SPR
1-53359-047-0
02
1
0105-
●
●
97
WASHER; LK,PAD
ID=14.2
9-09150-514-0
AR
1
0105-0603
●
●
97
WASHER; LK,PAD
ID=14.2
0-91510-514-0
AR
1
0604-
●
●
101
BRACKET; RR SPR,FRT
1-53353-078-1
02
1
0105-
●
●
102
BOLT; BRKT,RR SPR
M14X50
9-92061-450-0
AR
1
0105-0512
●
●
102
BOLT; BRKT,RR SPR
M14X50
0-20951-450-0
AR
1
0601-
●
●
103
STOPPER; SUB SPR
1-53356-044-0
04
1
0105-
●
●
105
BRACKET; RR SPR,RR
1-53354-064-1
02
1
0105-
●
●
106
BOLT; BRKT
M14X50
9-92061-450-0
AR
1
0105-0512
●
●
106
BOLT; BRKT
M14X50
0-20951-450-0
AR
1
0601-
●
●
109
SHIM; RR SPR
T=4.5
1-53359-061-1
02
1
0105-
●
●
109
SHIM; RR SPR
T=3.2
1-53359-062-1
02
1
0105-
●
●
110
BOLT; LEAF SPR STOPPER
1-09000-007-0
AR
1
0105-
●
●
111
PIN; SPLIT,LEAF SPR STOPPER
OD=2.8 L=28
9-08113-028-0
02
1
0105-0606
●
●
111
PIN; SPLIT,LEAF SPR STOPPER
OD=2.8 L=28
0-81123-028-0
02
1
0607-
●
●
112
BOLT; PAD
M14X35
9-92061-435-0
AR
1
0105-0512
●
●
112
BOLT; PAD
M14X35
0-20951-435-0
AR
1
0601-
●
●
117
BOLT; STOPPER
M14X50
9-92061-450-0
AR
1
0105-
●
●
117
BOLT; STOPPER
M14X50
0-20951-450-0
08
1
0601-
●
●
118
NUT; STOPPER
M14
9-99110-514-0
AR
1
0105-
●
●
118
NUT; STOPPER
M14
0-91110-514-0
08
1
0601-
●
●
119
RIVET; STOPPER
9-06771-352-0
16
1
0105-0607
●
●
119
RIVET; STOPPER
0-67901-352-0
16
1
0608-
●
●
124
NIPPLE; GREASE
PT1/8 ELBOW
9-09031-210-0
02
1
0105-0105
●
●
124
NIPPLE; GREASE
PT1/8 ELBOW 67.5?
9-09031-110-0
02
1
0105-0512
●
●
124
NIPPLE; GREASE
PT1/8 ELBOW 67.5?
0-90301-510-0
02
1
0601-
●
●
126
WASHER; PL,BRKT
ID=15
9-09651-069-0
AR
1
0105-
●
●
127
NUT; BRKT
M14
9-99110-514-0
AR
1
0105-0512
●
●
127
NUT; BRKT
M14
0-91110-514-0
AR
1
0601-
●
●
255
WASHER; PL,BRKT
ID=15
9-09651-069-0
AR
1
0105-
●
●
281
WASHER; LEAF SPR STOPPER
ID=15 OD=30
9-09160-614-0
AR
1
0105-
●
●
282
WASHER; PL,STOPPER
ID=15
9-09651-069-0
AR
1
0105-
●
●
11
11
12
13
25
39
46
26
25
133
25
46
26
25
24
25
23
23
35
36
25
37
25
25
44
26
23
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
11
BRACKET; ENG MTG
(A)
1-53219-583-0
01
1
0105-
●
●
11
BRACKET; ENG MTG
(B)
1-53219-597-2
01
1
0105-
●
●
11
BRACKET; ENG MTG
(A)
1-53219-582-0
01
1
0105-
●
●
11
BRACKET; ENG MTG
(B)
1-53219-596-1
01
1
0105-
●
●
12
WASHER; PL,BRKT,ENG MTG
ID=15
9-09651-069-0
AR
1
0105-
●
●
13
BOLT; BRKT,ENG MTG
M14X40
9-92061-440-0
AR
1
0105-0512
●
●
13
BOLT; BRKT,ENG MTG
M14X40
0-20951-440-0
AR
1
0601-
●
●
23
BOLT; BRKT,SPR
(B) M12X35,M14X45 L=100
1-09029-075-0
AR
1
0105-
●
●
23
BOLT; BRKT,SPR
(A) M14X40
9-92061-440-0
AR
1
0105-0512
●
●
23
BOLT; BRKT,SPR
(C) M16X50
9-92061-650-0
AR
1
0105-0512
●
●
23
BOLT; BRKT,SPR
(A) M14X40
0-20951-440-0
AR
1
0601-
●
●
23
BOLT; BRKT,SPR
(C) M16X50
0-20951-650-0
AR
1
0601-
●
●
24
BRACKET; FRT SPR,FRT
1-53351-220-0
01
1
0105-
●
●
24
BRACKET; FRT SPR,FRT
1-53351-219-0
01
1
0105-
●
●
25
WASHER; PL,BRKT
(B) ID=16.2
1-09503-223-0
AR
1
0105-
●
●
25
WASHER; PL,BRKT
(A) ID=15
9-09651-069-0
AR
1
0105-
●
●
26
NUT; BRKT,SPR
(B) M16
9-99110-516-0
AR
1
0105-0512
●
●
26
NUT; BRKT,SPR
(B) M16
0-91110-516-0
AR
1
0601-
●
●
26
NUT; BRKT,SPR
(A) M14
9-99110-514-0
AR
1
0105-0512
●
●
26
NUT; BRKT,SPR
(A) M14
0-91110-514-0
AR
1
0601-
●
●
35
MEMBER; UNDER
1-53174-214-2
01
1
0105-
●
●
36
WASHER; PL,UNDER MBR
ID=17
9-09164-516-0
AR
1
0105-
●
●
37
WASHER; LK,UNDER MBR
ID=16.2
9-09150-816-0
AR
1
0105-0603
●
●
37
WASHER; LK,UNDER MBR
ID=16.2
0-91510-816-0
AR
1
0604-
●
●
39
BRACKET; FRT SPR,RR
1-53352-153-0
01
1
0105-
●
●
39
BRACKET; FRT SPR,RR
1-53352-152-0
01
1
0105-
●
●
44
BOLT; UNDER MBR
M16X45
9-92061-645-0
AR
1
0105-
●
●
46
BOLT; BRKT FIX
(A) M14X40
9-92061-440-0
AR
1
0105-0512
●
●
46
BOLT; BRKT FIX
(B) M14X50
9-92061-450-0
AR
1
0105-0512
●
●
46
BOLT; BRKT FIX
(A) M14X40
0-20951-440-0
AR
1
0601-
●
●
46
BOLT; BRKT FIX
(B) M14X50
0-20951-450-0
AR
1
0601-
●
●
133
RIVET; BRKT
D13X36 PLATED TAPER END
9-06771-336-0
08
1
0105-0607
●
●
133
RIVET; BRKT
D13X36 PLATED TAPER END
0-67901-336-0
08
1
0608-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
