Isuzu WW
▶
TRUCKS
▶
CVR
▶
10860 - CVR LHD
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-60 - REAR SUSPENSION
▶

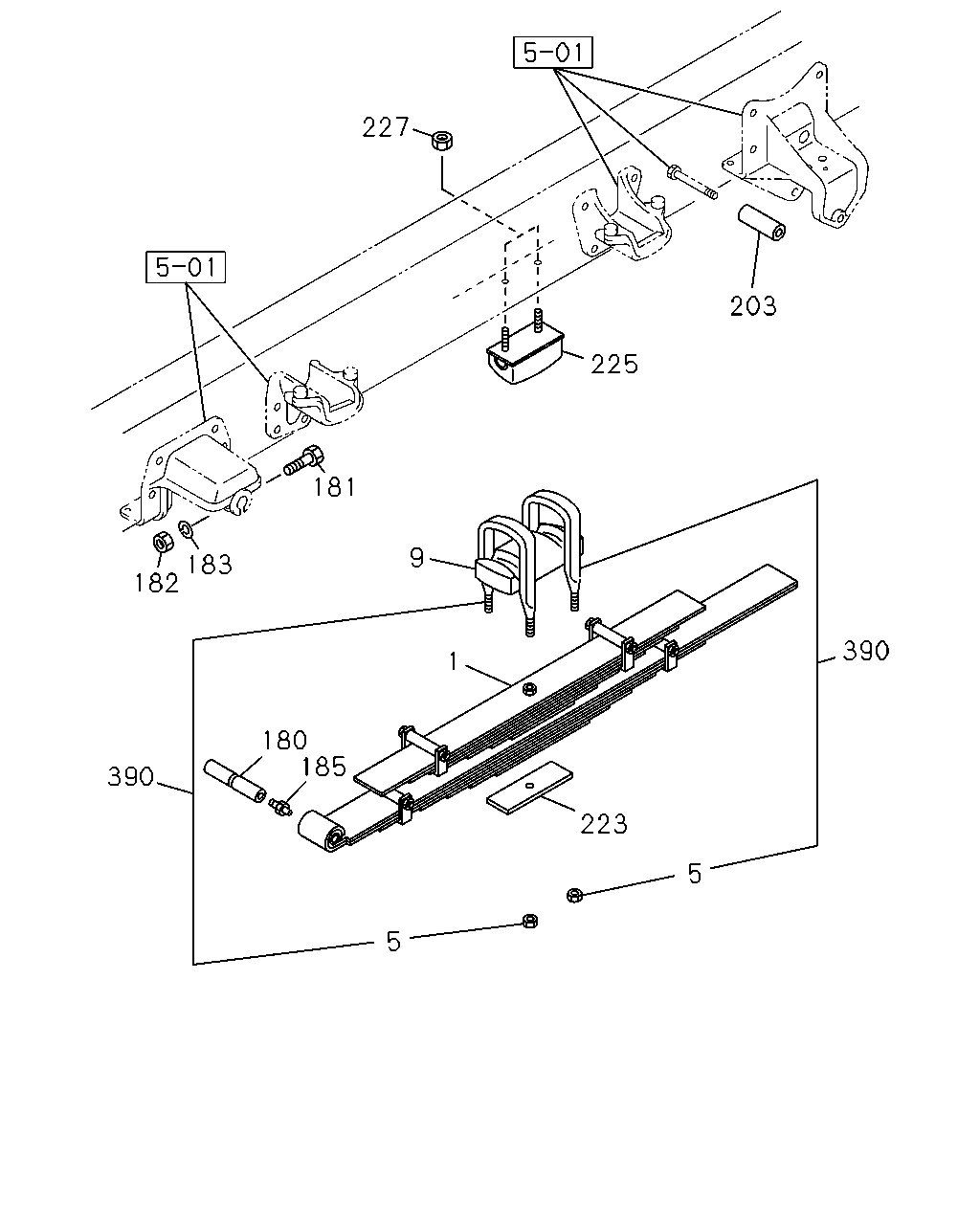

4-60 — REAR SUSPENSION
(#8866) — 23 parça
227
203
225
181
9
183
182
390
1
180
185
390
223
5
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) 14-LEAF
1-51300-623-1
02
1
0105-
1
SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) 14-LEAF
1-51300-621-1
02
1
0105-
5
NUT; U-BOLT,RR SPR
M24
9-99112-824-0
08
1
0105-0512
5
NUT; U-BOLT,RR SPR
M24
0-91112-824-0
08
1
0601-
9
PAD; U BOLT,RR SPR
1-51372-030-0
02
1
0105-
180
PIN; RR SPR
1-51361-020-0
02
1
0105-
181
BOLT; SPR & SHACKLE
M14X80
0-10806-480-0
02
1
0105-0512
181
BOLT; SPR & SHACKLE
M14X80
0-10856-480-0
02
1
0601-
182
NUT; PIN,RR SPR
M14
9-99110-414-0
02
1
0105-0512
182
NUT; PIN,RR SPR
M14
0-91110-514-0
02
1
0601-
183
WASHER; LK,PIN,RR SPR
ID=14.2
9-09150-514-0
02
1
0105-0603
183
WASHER; LK,PIN,RR SPR
ID=14.2
0-91510-514-0
02
1
0604-
185
NIPPLE; GREASE,PIN,RR SPR
PT1/8 STRAIGHT
9-09031-010-0
02
1
0105-0512
185
NIPPLE; GREASE,PIN,RR SPR
PT1/8 STRAIGHT
0-90301-410-0
02
1
0601-
203
COLLAR; LEAF SPR STOPPER
EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40)
1-53359-004-0
02
1
0105-
223
SPACER; U BOLT,RR SPR
WHEEL BASE 4600MM(46W)
1-51377-369-1
02
1
0105-
223
SPACER; U BOLT,RR SPR
WHEEL BASE 5400MM(54W)
1-51377-367-1
02
1
0105-
225
RUBBER; CUSHION,RR SPR
FRT & RR SUSPENSION HEAVY DUTY VAR1(F40)
1-53366-029-1
02
1
0105-
225
RUBBER; CUSHION,RR SPR
EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40)
1-53366-028-1
02
1
0105-
227
NUT; CUSHION RUBBER
M12 FLANGE
0-91150-212-0
04
1
0105-0602
227
NUT; CUSHION RUBBER
M12 FLANGE
0-91180-212-0
04
1
0603-
390
U-BOLT SET; RR SPRING
FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) L=490
1-87870-036-4
04
1
0105-
390
U-BOLT SET; RR SPRING
EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) L=490
1-87870-299-1
04
1
0105-
