4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#8860) — 122 parça

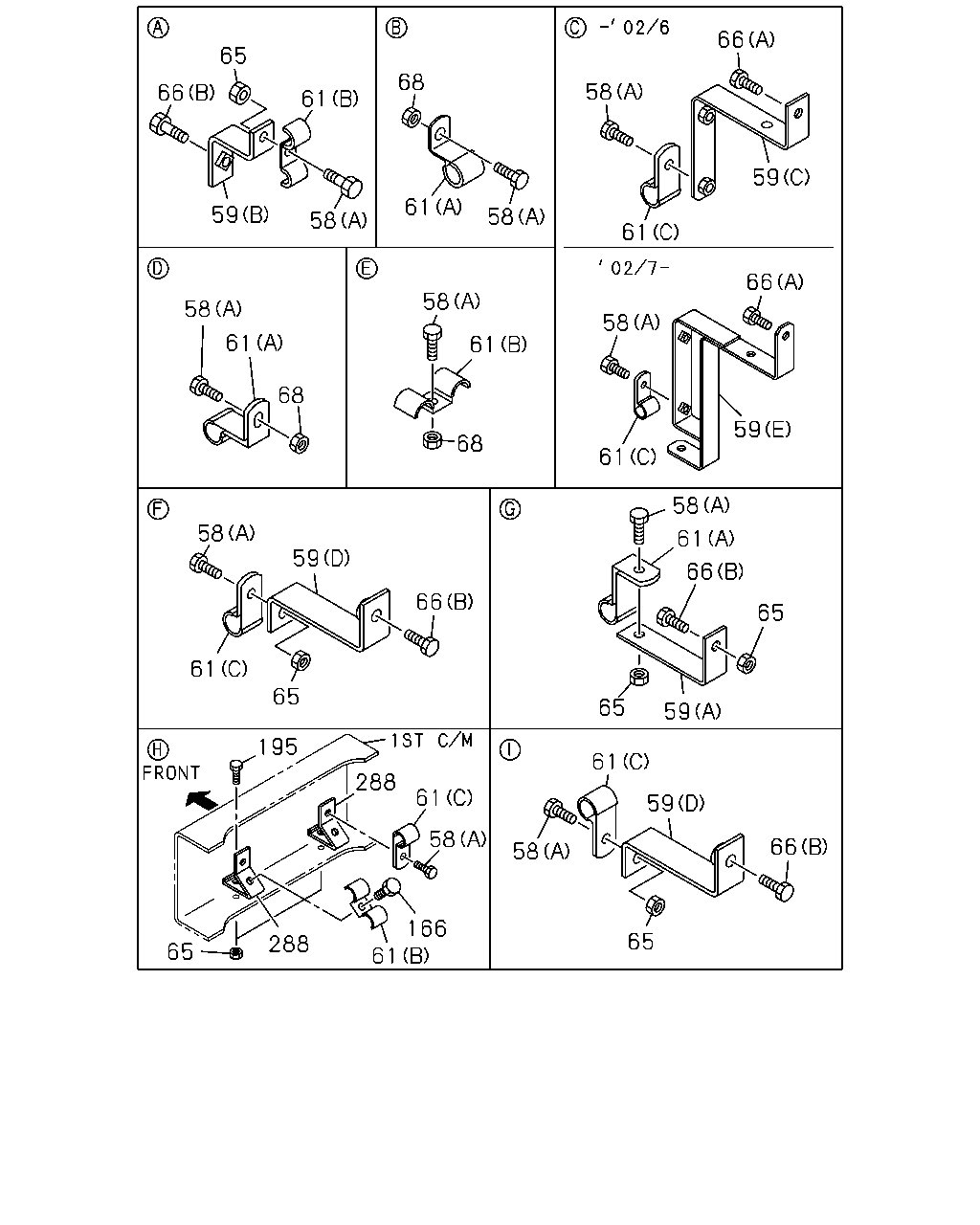

66 65 68 58 66 61 59 61 59 58 58 61 66 58 58 58 61 61 68 59 68 61 58 58 61 59 66 66 65 61 65 65 59 195 61 288 61 59 58 66 58 166 61 65 65 288

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
58	BOLT; CLIP (A) M8X20 FLANGE	0-28680-820-0	03	1	0105-0512
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	03	1	0601-
58	BOLT; CLIP (A) M8X20 FLANGE	0-28680-820-0	05	1	0105-0512
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	05	1	0601-
58	BOLT; CLIP (A) M8X25 FLANGE	0-28680-825-0	04	1	0105-0512
58	BOLT; CLIP (A) M8X25 FLANGE	0-28650-825-0	04	1	0601-
58	BOLT; CLIP (B) M10X25 FLANGE	0-28681-025-0	02	1	0105-0512
58	BOLT; CLIP (B) M10X25 FLANGE	0-28651-025-0	02	1	0601-
59	BRACKET; CLIP,OIL PIPE (A)	1-34656-009-0	01	1	0105-
59	BRACKET; CLIP,OIL PIPE (B)	1-47475-881-0	01	1	0105-
59	BRACKET; CLIP,OIL PIPE (C)	1-47477-434-0	01	1	0105-0206
59	BRACKET; CLIP,OIL PIPE (E)	1-47477-180-1	01	1	0207-
59	BRACKET; CLIP,OIL PIPE (D) L=90	1-82699-856-0	02	1	0105-
61	CLIP; OIL PIPE (A) ID=15 H=24 L=20	1-09700-606-0	01	1	0105-
61	CLIP; OIL PIPE (A) ID=15 H=24 L=20	1-09700-606-0	03	1	0105-
61	CLIP; OIL PIPE (B) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	0105-
61	CLIP; OIL PIPE (B) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	0105-
61	CLIP; OIL PIPE (B) ID=16 & 9 L=21 & 18	1-09700-676-0	02	1	0105-
61	CLIP; OIL PIPE (C) ID=16 L=20	9-09525-535-0	03	1	0105-0606
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-535-0	03	1	0607-
61	CLIP; OIL PIPE (C) ID=16 L=20	9-09525-535-0	01	1	0105-0606
61	CLIP; OIL PIPE (C) ID=16 L=20	9-09525-535-0	01	1	0105-0606
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-535-0	01	1	0607-
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-535-0	01	1	0607-
65	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0105-0602
65	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-
65	NUT; BRKT M8 FLANGE	0-91150-108-0	06	1	0105-0602
65	NUT; BRKT M8 FLANGE	0-91180-108-0	06	1	0603-
66	BOLT; BRKT,OIL PIPE (B) M8X30 FLANGE	0-28680-830-0	04	1	0105-0512
66	BOLT; BRKT,OIL PIPE (B) M8X30 FLANGE	0-28650-830-0	04	1	0601-
66	BOLT; BRKT,OIL PIPE (A) M8X35 FLANGE	0-28680-835-0	02	1	0105-0512
66	BOLT; BRKT,OIL PIPE (A) M8X35 FLANGE	0-28650-835-0	02	1	0601-
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	01	1	0105-0602
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	01	1	0603-
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	03	1	0105-0602
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	03	1	0603-
68	NUT; CLIP,OIL PIPE M10 FLANGE	0-91150-210-0	01	1	0105-0602
68	NUT; CLIP,OIL PIPE M10 FLANGE	0-91180-210-0	01	1	0603-
166	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	02	1	0105-0512
166	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	0601-
195	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	0105-0512
195	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0601-
288	BRACKET; CLIP,P/S	1-47477-621-1	02	1	0105-

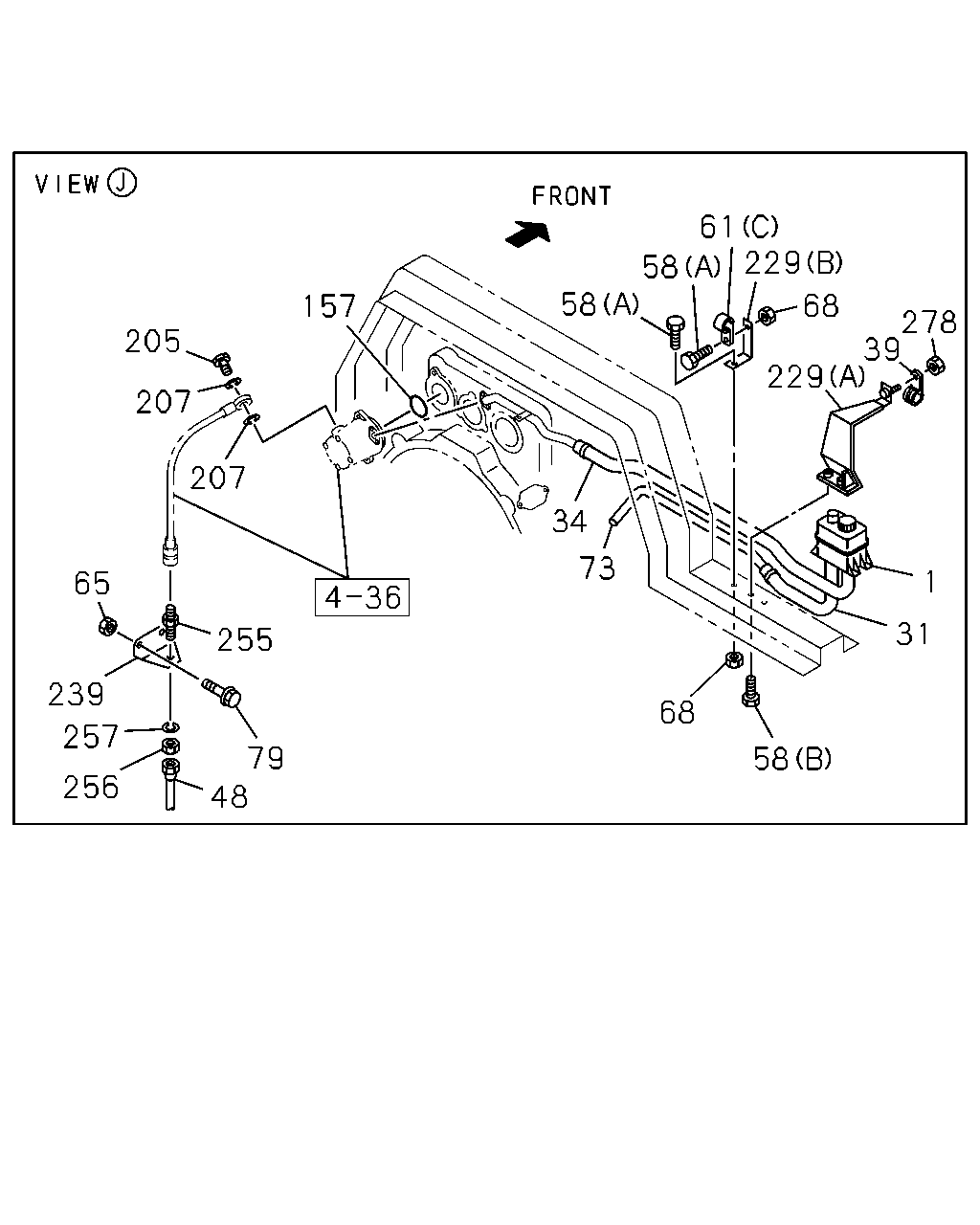

61 229 58 58 68 157 278 39 205 229 207 207 34 73 1 65 31 255 239 68 257 79 48 58 256

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	1-21210-195-2	01	1	0105-0508
1	TANK ASM; OIL,P/S	1-21210-235-1	01	1	0509-
31	HOSE; P/S OIL TANK,INL	1-21114-262-0	01	1	0105-
34	HOSE; P/S OIL TANK,OUTLET	1-21114-254-1	01	1	0105-
39	CLIP; FLEX HOSE ID=31 L=35	1-09700-329-1	01	1	0105-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT	1-21116-349-0	01	1	0105-
58	BOLT; CLIP (A) M8X20 FLANGE	0-28680-820-0	03	1	0105-0512
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	03	1	0601-
58	BOLT; CLIP (A) M8X20 FLANGE	0-28680-820-0	05	1	0105-0512
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	05	1	0601-
58	BOLT; CLIP (A) M8X25 FLANGE	0-28680-825-0	04	1	0105-0512
58	BOLT; CLIP (A) M8X25 FLANGE	0-28650-825-0	04	1	0601-
58	BOLT; CLIP (B) M10X25 FLANGE	0-28681-025-0	02	1	0105-0512
58	BOLT; CLIP (B) M10X25 FLANGE	0-28651-025-0	02	1	0601-
61	CLIP; OIL PIPE (A) ID=15 H=24 L=20	1-09700-606-0	01	1	0105-
61	CLIP; OIL PIPE (A) ID=15 H=24 L=20	1-09700-606-0	03	1	0105-
61	CLIP; OIL PIPE (B) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	0105-
61	CLIP; OIL PIPE (B) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	0105-
61	CLIP; OIL PIPE (B) ID=16 & 9 L=21 & 18	1-09700-676-0	02	1	0105-
61	CLIP; OIL PIPE (C) ID=16 L=20	9-09525-535-0	03	1	0105-0606
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-535-0	03	1	0607-
61	CLIP; OIL PIPE (C) ID=16 L=20	9-09525-535-0	01	1	0105-0606
61	CLIP; OIL PIPE (C) ID=16 L=20	9-09525-535-0	01	1	0105-0606
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-535-0	01	1	0607-
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-535-0	01	1	0607-
65	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0105-0602
65	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-
65	NUT; BRKT M8 FLANGE	0-91150-108-0	06	1	0105-0602
65	NUT; BRKT M8 FLANGE	0-91180-108-0	06	1	0603-
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	01	1	0105-0602
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	01	1	0603-
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	03	1	0105-0602
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	03	1	0603-
68	NUT; CLIP,OIL PIPE M10 FLANGE	0-91150-210-0	01	1	0105-0602
68	NUT; CLIP,OIL PIPE M10 FLANGE	0-91180-210-0	01	1	0603-
73	PIPE; OIL,FLEX HOSE TO RUBBER HOSE	1-21115-014-1	01	1	0105-
79	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	0105-0512
79	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0601-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=79.6	1-09623-421-0	01	1	0105-
205	BOLT; EYE,FLEX HOSE,P/S M18X40	1-09675-153-0	01	1	0105-
207	GASKET; FLEX HOSE,P/S PUMP ID=18.2 OD=24.4	1-09630-087-0	02	1	0105-
229	BRACKET; HOSE,POWER STRG (A)	1-21464-480-0	01	1	0105-
229	BRACKET; HOSE,POWER STRG (B)	1-21464-481-0	01	1	0105-
239	BRACKET; FLEX HOSE	1-47478-471-0	01	1	0105-
255	UNION; FLEX HOSE M22 & M22 STRAIGHT	1-09654-204-1	01	1	0105-
256	NUT; UNION M22	9-09111-422-0	01	1	0105-0512
256	NUT; UNION M22	0-91111-522-0	01	1	0601-
257	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	0105-0603
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	0604-
278	NUT; HOSE CLIP M8 FLANGE	0-91150-108-0	01	1	0105-0602
278	NUT; HOSE CLIP M8 FLANGE	0-91180-108-0	01	1	0603-

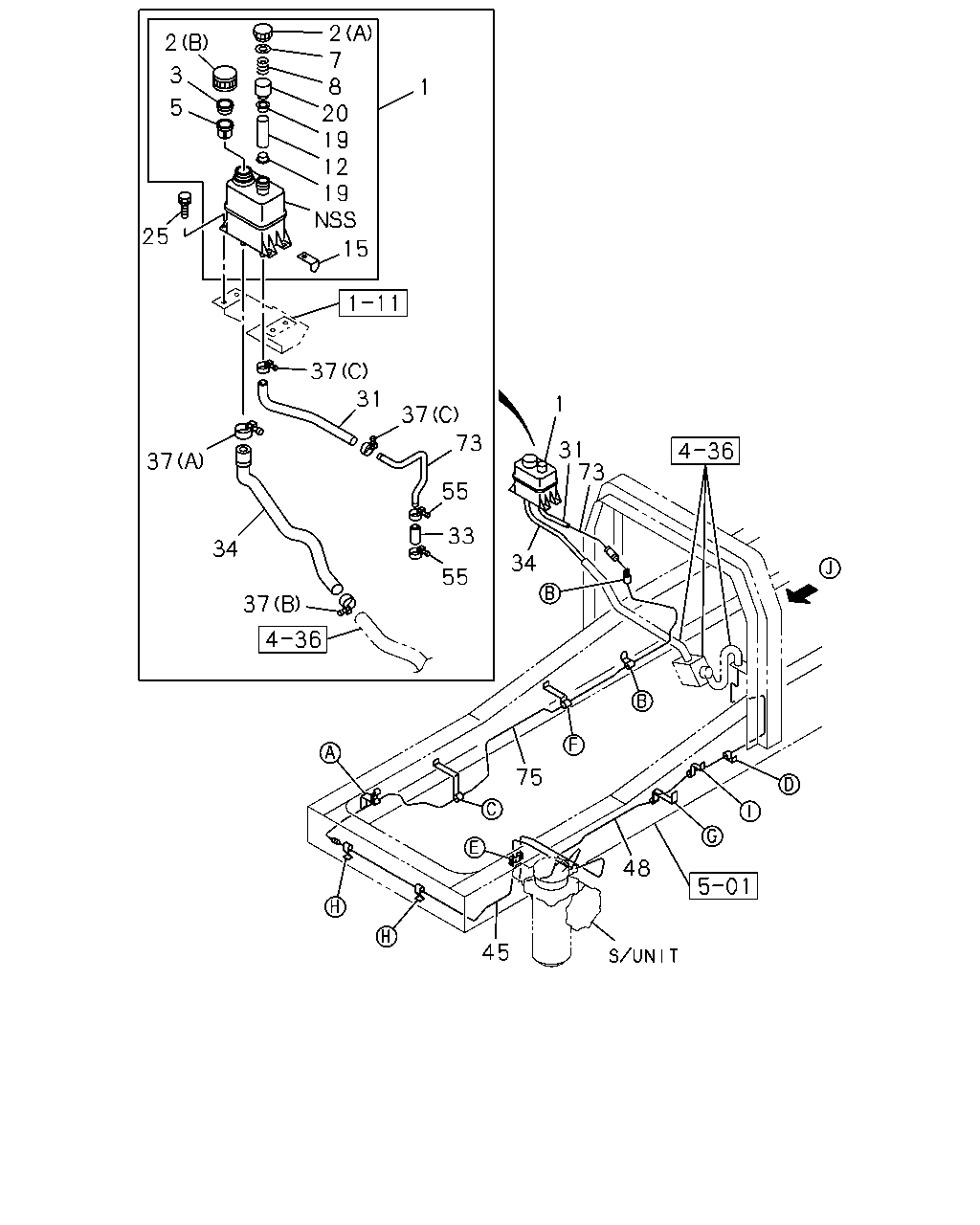

2 7 8 20 19 12 19 2 3 1 5 25 15 37 31 1 37 73 31 73 37 55 33 34 34 55 37 75 48 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	1-21210-195-2	01	1	0105-0508
1	TANK ASM; OIL,P/S	1-21210-235-1	01	1	0509-
2	CAP; OIL TANK,P/S (A) WO/GAUGE	1-21241-003-6	01	1	0105-
2	CAP; OIL TANK,P/S (B) W/GAUGE	1-21241-006-4	01	1	0105-
3	GASKET; OIL TANK,P/S	1-21249-006-2	01	1	0105-
5	STRAINER; OIL TANK,P/S	1-21235-006-1	01	1	0105-
7	RING; GASKET,OIL TANK,P/S	1-21249-005-0	01	1	0105-
8	SPRING; OIL TANK,P/S	1-09580-319-1	01	1	0105-0508
8	SPRING; OIL TANK,P/S	1-09580-599-0	01	1	0509-
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	0105-
15	PLATE; FILTER,OIL TANK	1-21249-007-1	04	1	0105-0508
15	PLATE; FILTER,OIL TANK	1-21249-016-0	04	1	0509-
19	SEAT; OIL TANK	1-21262-001-0	02	1	0105-
20	HOLDER; FILTER,OIL TANK,P/S	1-21239-001-2	01	1	0105-
25	BOLT; OIL TANK BRKT M8X20 FLANGE	0-28680-820-0	04	1	0105-0512
25	BOLT; OIL TANK BRKT M8X20 FLANGE	0-28650-820-0	04	1	0601-
31	HOSE; P/S OIL TANK,INL	1-21114-262-0	01	1	0105-
33	HOSE; RUBBER,POWER STRG L=80	1-09360-570-0	01	1	0105-
34	HOSE; P/S OIL TANK,OUTLET	1-21114-254-1	01	1	0105-
37	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	01	1	0105-
37	CLIP; HOSE,P/S (A) ID=38	9-09915-041-1	01	1	0105-
37	CLIP; HOSE,P/S (C) ID=28	9-09915-672-1	02	1	0105-
45	PIPE; OIL,P/S UNIT TO UNION	1-21116-847-0	01	1	0105-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT	1-21116-349-0	01	1	0105-
55	CLIP; P/S RUBBER HOSE ID=28	9-09915-672-1	02	1	0105-
73	PIPE; OIL,FLEX HOSE TO RUBBER HOSE	1-21115-014-1	01	1	0105-
75	PIPE; OIL,P/S,UNION TO UNION	1-21115-533-0	01	1	0105-0109
75	PIPE; OIL,P/S,UNION TO UNION	1-21117-152-0	01	1	0110-
