4-25 — REAR FINAL DRIVE (#8856) — 155 parça

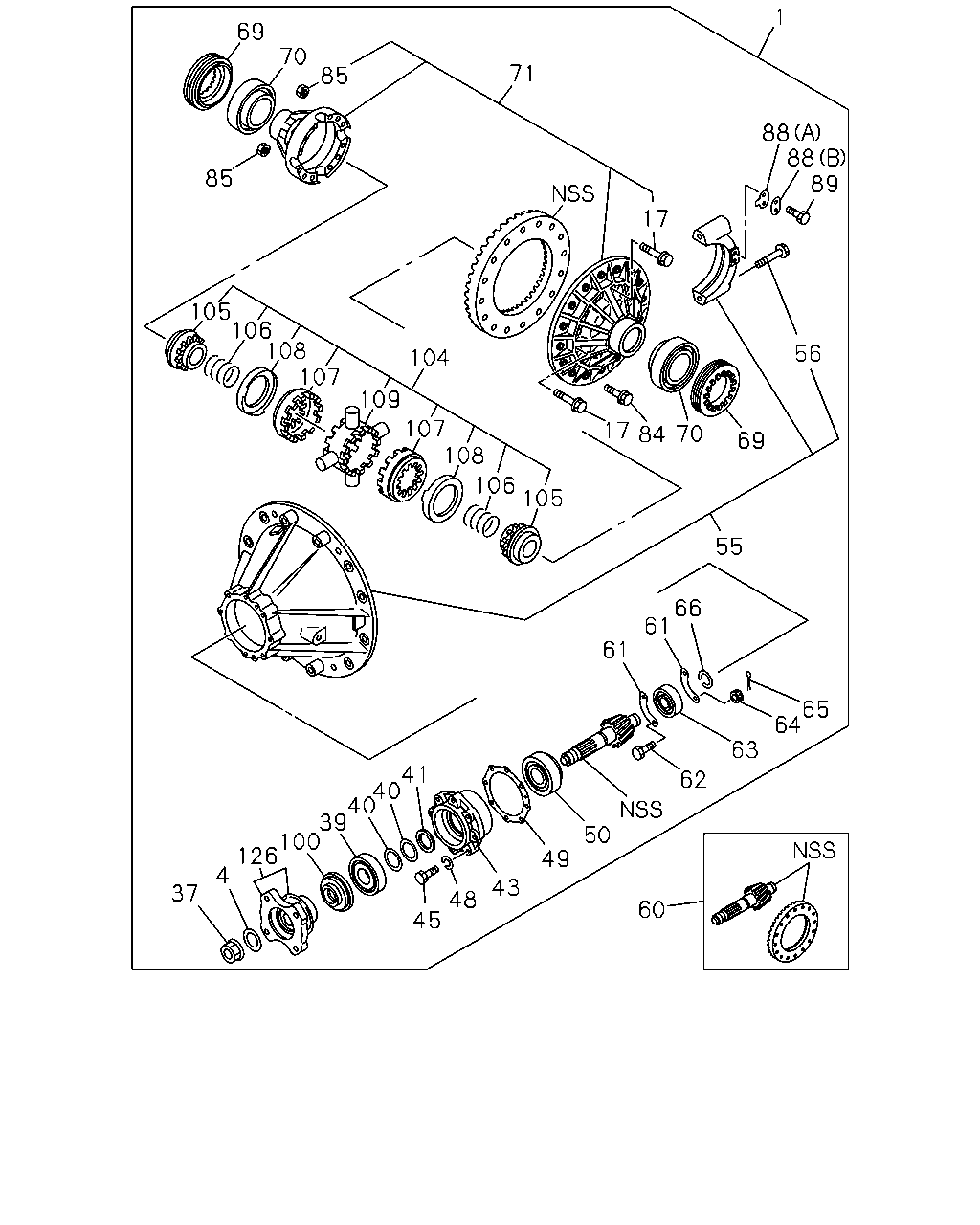

1 69 70 71 85 88 88 89 85 17 105 106 108 107 56 104 109 107 108 17 84 70 69 106 105 55 66 61 61 65 64 63 41 40 40 39 100 126 4 62 50 49 43 37 48 45 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	DRIVE ASM; FINAL,RR 45/7	1-41002-601-0	01	1	0105-	●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF(G86) 43/7	1-41002-772-0	01	1	0105-		●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF(G86) 43/7	1-41002-375-0	01	1	0105-		●
1	DRIVE ASM; FINAL,RR 39/7	1-41002-376-0	01	1	0105-			●
1	DRIVE ASM; FINAL,RR 41/6	1-41002-800-0	01	1	0105-				●
4	GASKET; FLANGE,FINAL PINION ID=57	1-09623-386-0	01	1	0105-	●	●	●	●
17	BOLT; DIFF CAGE SETTING M16X125	1-09070-007-0	04	1	0105-	●	●	●	●
17	BOLT; DIFF CAGE SETTING M16X113	1-09070-018-0	08	1	0105-	●	●	●	●
37	NUT; DRIVING PINION M46 FLANGE	1-09449-071-0	01	1	0105-	●	●	●	●
39	BEARING; FINAL PINION NSK	1-09812-075-0	01	1	0105-	●	●	●	●
39	BEARING; FINAL PINION KOYO	1-09812-076-1	01	1	0105-	●	●	●	●
40	SHIM; FINAL PINION T=3.25	1-41229-245-0	AR	1	0105-	●	●	●	●
40	SHIM; FINAL PINION T=3.26	1-41229-246-0	AR	1	0105-	●	●	●	●
40	SHIM; FINAL PINION T=3.27	1-41229-247-0	AR	1	0105-	●	●	●	●
40	SHIM; FINAL PINION T=3.28	1-41229-248-0	AR	1	0105-	●	●	●	●
40	SHIM; FINAL PINION T=3.29	1-41229-249-0	AR	1	0105-	●	●	●	●
40	SHIM; FINAL PINION T=3.30	1-41229-250-0	AR	1	0105-	●	●	●	●
40	SHIM; FINAL PINION T=3.31	1-41229-251-0	AR	1	0105-	●	●	●	●
40	SHIM; FINAL PINION T=3.32	1-41229-252-0	AR	1	0105-	●	●	●	●
40	SHIM; FINAL PINION T=3.33	1-41229-253-0	AR	1	0105-	●	●	●	●
40	SHIM; FINAL PINION T=3.34	1-41229-254-0	AR	1	0105-	●	●	●	●
40	SHIM; FINAL PINION T=3.35	1-41229-255-0	AR	1	0105-	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.60	1-41229-237-0	AR	1	0105-	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.80	1-41229-238-0	AR	1	0105-	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.00	1-41229-239-0	AR	1	0105-	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.20	1-41229-240-0	AR	1	0105-	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.40	1-41229-241-0	AR	1	0105-	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.60	1-41229-242-0	AR	1	0105-	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.80	1-41229-243-0	AR	1	0105-	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=9.00	1-41229-244-0	AR	1	0105-	●	●	●	●
43	CAGE; FINAL PINION T=81	1-41151-030-0	01	1	0105-	●	●	●	●
45	BOLT; FINAL PINION CAGE M16X55	0-16806-655-0	08	1	0105-	●	●	●	●
48	WASHER; LK,FINAL PINION ID=16.2	9-09150-516-0	08	1	0105-0603	●	●	●	●
48	WASHER; LK,FINAL PINION ID=16.2	0-91510-516-0	08	1	0604-	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.50	1-41154-024-0	AR	1	0105-	●	●	●	●
49	SHIM; FINAL PINION CAGE T=1.00	1-41154-025-0	AR	1	0105-	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-057-0	AR	1	0105-	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-058-0	AR	1	0105-	●	●	●	●
50	BEARING; FINAL PINION NSK	1-09812-073-1	01	1	0105-	●	●	●	●
50	BEARING; FINAL PINION KOYO	1-09812-074-1	01	1	0105-	●	●	●	●
55	CARRIER; DIFF	1-41110-109-0	01	1	0105-	●	●	●	●
56	BOLT; BRG CAP M20X112	1-09070-042-0	04	1	0105-	●	●	●	●
60	GEAR SET; FINAL DRIVE,RR 45/7	1-41210-602-0	01	1	0105-	●
60	GEAR SET; FINAL DRIVE,RR 43/7	1-41210-603-0	01	1	0105-		●
60	GEAR SET; FINAL DRIVE,RR 39/7	1-41210-604-0	01	1	0105-			●
60	GEAR SET; FINAL DRIVE,RR 41/6	1-41210-601-0	01	1	0105-				●
61	RETAINER; PILOT BRG,PINION T=3.2	1-41227-012-0	02	1	0105-	●	●	●	●
62	BOLT; RET M8X40 W/PIN HOLE	1-09042-038-1	02	1	0105-	●	●	●	●
63	BEARING; PINION PILOT KOYO	1-09810-182-0	01	1	0105-	●	●	●	●
63	BEARING; PINION PILOT NSK	1-09810-183-0	01	1	0105-	●	●	●	●
64	NUT; RET M8 SLOTTED	9-09117-508-0	02	1	0105-0512	●	●	●	●
64	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	0601-	●	●	●	●
65	PIN; SPLIT,RET	9-08112-012-0	02	1	0105-	●	●	●	●
66	RING; SNAP,PILOT BRG OD=37.2	1-09588-086-1	01	1	0105-	●	●	●	●
69	NUT; ADJ,DIFF CAGE	1-41121-002-0	01	1	0105-	●	●	●	●
69	NUT; ADJ,DIFF CAGE	1-41121-001-0	01	1	0105-	●	●	●	●
70	BEARING; DIFF CAGE KOYO ID=92 OD=152 T=40	1-09812-225-0	02	1	0105-	●	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-141-0	01	1	0105-0509	●	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-141-0	01	1	0601-	●	●	●	●
84	BOLT; FINAL DRIVE GEAR M18X38 FLANGE	1-09009-049-1	16	1	0105-	●	●	●	●
85	NUT; DIFF CAGE SETTING M16	9-99110-516-0	12	1	0105-0512	●	●	●	●
85	NUT; DIFF CAGE SETTING M16	0-91110-516-0	12	1	0601-	●	●	●	●
88	PLATE; LK,ADJ NUT (A) T=3.2	1-41124-006-0	02	1	0105-	●	●	●	●
88	PLATE; LK,ADJ NUT (B) T=1.0	9-41124-005-0	02	1	0105-	●	●	●	●
89	BOLT; LK PLATE M8X16	0-20800-816-0	04	1	0105-0512	●	●	●	●
89	BOLT; LK PLATE M8X16	0-20850-816-0	04	1	0601-	●	●	●	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-322-0	01	1	0105-	●	●	●	●
104	DIFF ASM; NO SPIN LIMITED SLIP DIFF(G86)	1-41530-023-0	01	1	0105-		●
105	GEAR; SIDE LIMITED SLIP DIFF(G86) Z=24	1-41539-028-0	02	1	0105-		●
106	SPRING; NO SPIN DIFF LIMITED SLIP DIFF(G86)	1-41535-004-0	02	1	0105-		●
107	CLUTCH; DRIVEN LIMITED SLIP DIFF(G86)	1-41532-006-0	02	1	0105-		●
108	RING; HOLD OUT LIMITED SLIP DIFF(G86)	1-41539-024-0	02	1	0105-		●
109	SPIDER; DIFF LIMITED SLIP DIFF(G86)	1-41539-027-0	01	1	0105-		●
126	COUPLING; DRIVING PINION	1-37245-343-0	01	1	0105-	●	●	●	●

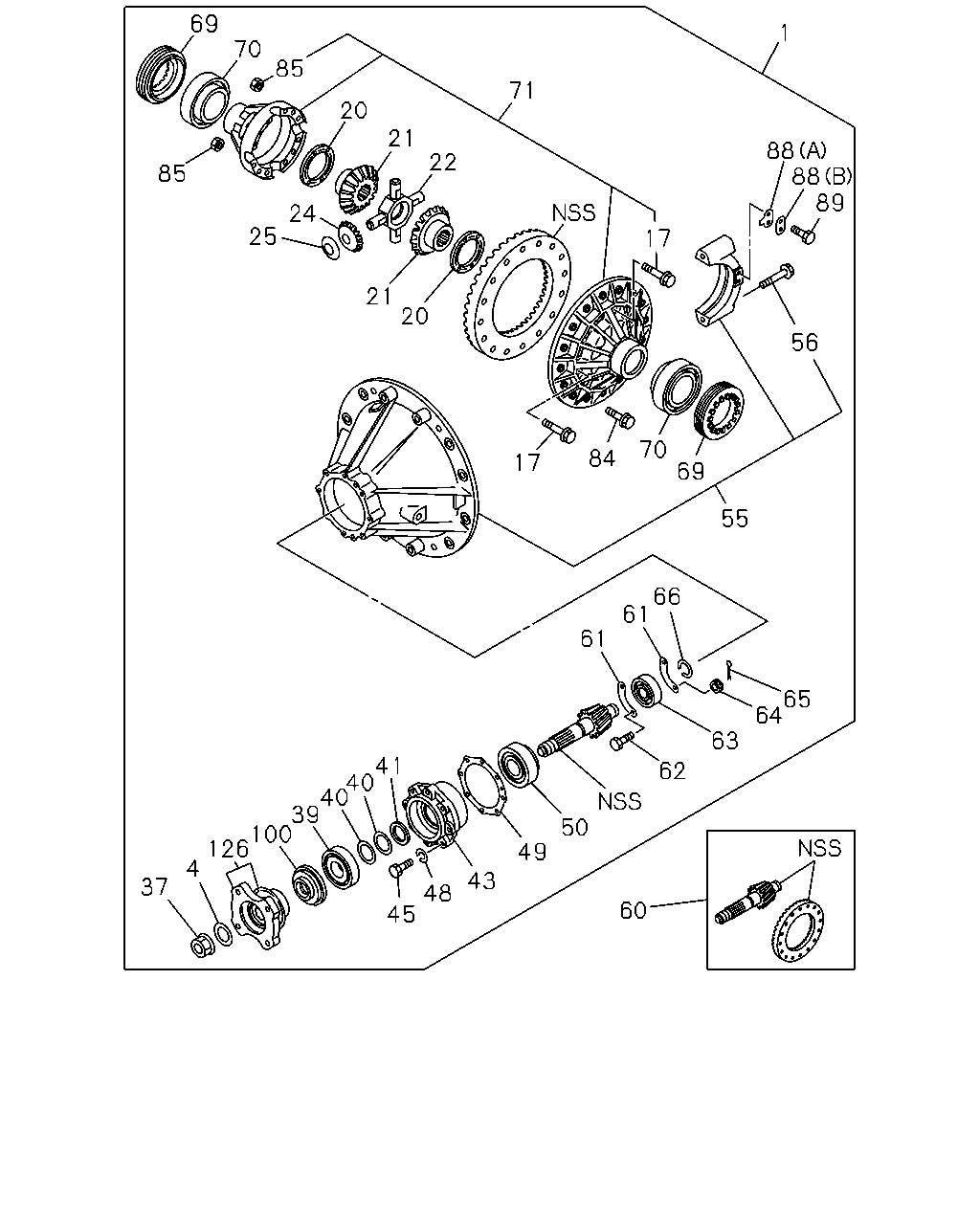

69 1 70 85 71 20 21 88 88 89 22 85 24 25 17 21 20 56 70 84 17 69 55 66 61 61 65 64 63 41 40 40 39 100 126 4 62 50 49 43 37 48 45 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	DRIVE ASM; FINAL,RR 45/7	1-41002-601-0	01	1	0105-	●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF(G86) 43/7	1-41002-772-0	01	1	0105-		●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF(G86) 43/7	1-41002-375-0	01	1	0105-		●
1	DRIVE ASM; FINAL,RR 39/7	1-41002-376-0	01	1	0105-			●
1	DRIVE ASM; FINAL,RR 41/6	1-41002-800-0	01	1	0105-				●
4	GASKET; FLANGE,FINAL PINION ID=57	1-09623-386-0	01	1	0105-	●	●	●	●
17	BOLT; DIFF CAGE SETTING M16X125	1-09070-007-0	04	1	0105-	●	●	●	●
17	BOLT; DIFF CAGE SETTING M16X113	1-09070-018-0	08	1	0105-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=2.8	1-41562-112-0	AR	1	0105-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=2.9	1-41562-113-0	AR	1	0105-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.0	1-41562-114-0	AR	1	0105-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.1	1-41562-115-0	AR	1	0105-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.2	1-41562-116-0	AR	1	0105-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.3	1-41562-117-0	AR	1	0105-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.4	1-41562-118-0	AR	1	0105-	●	●	●	●
21	GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF(G86) Z=16	1-41561-086-0	02	1	0105-0409	●	●	●	●
21	GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF(G86) Z=16	1-41561-139-0	02	1	0410-	●	●	●	●
22	PIN; CROSS,DIFF PINION EXC. LIMITED SLIP DIFF(G86) OD=35	1-41521-037-2	01	1	0105-	●	●	●	●
24	GEAR; PINION,DIFF EXC. LIMITED SLIP DIFF(G86) Z=10	1-41551-025-0	04	1	0105-0409	●	●	●	●
24	GEAR; PINION,DIFF EXC. LIMITED SLIP DIFF(G86) Z=10	1-41551-044-0	04	1	0410-	●	●	●	●
25	WASHER; THRUST,PINION EXC. LIMITED SLIP DIFF(G86) T=1.6	1-41552-017-0	04	1	0105-	●	●	●	●
37	NUT; DRIVING PINION M46 FLANGE	1-09449-071-0	01	1	0105-	●	●	●	●
39	BEARING; FINAL PINION NSK	1-09812-075-0	01	1	0105-	●	●	●	●
39	BEARING; FINAL PINION KOYO	1-09812-076-1	01	1	0105-	●	●	●	●
40	SHIM; FINAL PINION T=3.25	1-41229-245-0	AR	1	0105-	●	●	●	●
40	SHIM; FINAL PINION T=3.26	1-41229-246-0	AR	1	0105-	●	●	●	●
40	SHIM; FINAL PINION T=3.27	1-41229-247-0	AR	1	0105-	●	●	●	●
40	SHIM; FINAL PINION T=3.28	1-41229-248-0	AR	1	0105-	●	●	●	●
40	SHIM; FINAL PINION T=3.29	1-41229-249-0	AR	1	0105-	●	●	●	●
40	SHIM; FINAL PINION T=3.30	1-41229-250-0	AR	1	0105-	●	●	●	●
40	SHIM; FINAL PINION T=3.31	1-41229-251-0	AR	1	0105-	●	●	●	●
40	SHIM; FINAL PINION T=3.32	1-41229-252-0	AR	1	0105-	●	●	●	●
40	SHIM; FINAL PINION T=3.33	1-41229-253-0	AR	1	0105-	●	●	●	●
40	SHIM; FINAL PINION T=3.34	1-41229-254-0	AR	1	0105-	●	●	●	●
40	SHIM; FINAL PINION T=3.35	1-41229-255-0	AR	1	0105-	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.60	1-41229-237-0	AR	1	0105-	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.80	1-41229-238-0	AR	1	0105-	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.00	1-41229-239-0	AR	1	0105-	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.20	1-41229-240-0	AR	1	0105-	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.40	1-41229-241-0	AR	1	0105-	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.60	1-41229-242-0	AR	1	0105-	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.80	1-41229-243-0	AR	1	0105-	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=9.00	1-41229-244-0	AR	1	0105-	●	●	●	●
43	CAGE; FINAL PINION T=81	1-41151-030-0	01	1	0105-	●	●	●	●
45	BOLT; FINAL PINION CAGE M16X55	0-16806-655-0	08	1	0105-	●	●	●	●
48	WASHER; LK,FINAL PINION ID=16.2	9-09150-516-0	08	1	0105-0603	●	●	●	●
48	WASHER; LK,FINAL PINION ID=16.2	0-91510-516-0	08	1	0604-	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.50	1-41154-024-0	AR	1	0105-	●	●	●	●
49	SHIM; FINAL PINION CAGE T=1.00	1-41154-025-0	AR	1	0105-	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-057-0	AR	1	0105-	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-058-0	AR	1	0105-	●	●	●	●
50	BEARING; FINAL PINION NSK	1-09812-073-1	01	1	0105-	●	●	●	●
50	BEARING; FINAL PINION KOYO	1-09812-074-1	01	1	0105-	●	●	●	●
55	CARRIER; DIFF	1-41110-109-0	01	1	0105-	●	●	●	●
56	BOLT; BRG CAP M20X112	1-09070-042-0	04	1	0105-	●	●	●	●
60	GEAR SET; FINAL DRIVE,RR 45/7	1-41210-602-0	01	1	0105-	●
60	GEAR SET; FINAL DRIVE,RR 43/7	1-41210-603-0	01	1	0105-		●
60	GEAR SET; FINAL DRIVE,RR 39/7	1-41210-604-0	01	1	0105-			●
60	GEAR SET; FINAL DRIVE,RR 41/6	1-41210-601-0	01	1	0105-				●
61	RETAINER; PILOT BRG,PINION T=3.2	1-41227-012-0	02	1	0105-	●	●	●	●
62	BOLT; RET M8X40 W/PIN HOLE	1-09042-038-1	02	1	0105-	●	●	●	●
63	BEARING; PINION PILOT KOYO	1-09810-182-0	01	1	0105-	●	●	●	●
63	BEARING; PINION PILOT NSK	1-09810-183-0	01	1	0105-	●	●	●	●
64	NUT; RET M8 SLOTTED	9-09117-508-0	02	1	0105-0512	●	●	●	●
64	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	0601-	●	●	●	●
65	PIN; SPLIT,RET	9-08112-012-0	02	1	0105-	●	●	●	●
66	RING; SNAP,PILOT BRG OD=37.2	1-09588-086-1	01	1	0105-	●	●	●	●
69	NUT; ADJ,DIFF CAGE	1-41121-002-0	01	1	0105-	●	●	●	●
69	NUT; ADJ,DIFF CAGE	1-41121-001-0	01	1	0105-	●	●	●	●
70	BEARING; DIFF CAGE KOYO ID=92 OD=152 T=40	1-09812-225-0	02	1	0105-	●	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-141-0	01	1	0105-0509	●	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-141-0	01	1	0601-	●	●	●	●
84	BOLT; FINAL DRIVE GEAR M18X38 FLANGE	1-09009-049-1	16	1	0105-	●	●	●	●
85	NUT; DIFF CAGE SETTING M16	9-99110-516-0	12	1	0105-0512	●	●	●	●
85	NUT; DIFF CAGE SETTING M16	0-91110-516-0	12	1	0601-	●	●	●	●
88	PLATE; LK,ADJ NUT (A) T=3.2	1-41124-006-0	02	1	0105-	●	●	●	●
88	PLATE; LK,ADJ NUT (B) T=1.0	9-41124-005-0	02	1	0105-	●	●	●	●
89	BOLT; LK PLATE M8X16	0-20800-816-0	04	1	0105-0512	●	●	●	●
89	BOLT; LK PLATE M8X16	0-20850-816-0	04	1	0601-	●	●	●	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-322-0	01	1	0105-	●	●	●	●
126	COUPLING; DRIVING PINION	1-37245-343-0	01	1	0105-	●	●	●	●
