◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CVR ▶ 10860 - CVR LHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-01 - PROPELLER SHAFT ▶
4-01 — PROPELLER SHAFT (#8852) — 124 parça
çizim 72811
95 56 9 1 8 128 107 104 9 106 8 225 106 56 74 9 17 14 19
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHAFT; PROP
(C) L=1314 		1-37124-563-0 01 1 0105- ●
1 SHAFT; PROP
MAG6 M/T<X9T> (A) L=1168 		1-37153-109-0 01 1 0105- ●
1 SHAFT; PROP
MAL5 M/T<X9F> (A) L=1338 		1-37153-110-0 01 1 0105- ●
1 SHAFT; PROP
(C) L=824 		1-37124-967-0 01 1 0105- ●
1 SHAFT; PROP
(B) L=1183 		1-37152-929-0 01 1 0105- ●
1 SHAFT; PROP
MAG6 M/T<X9T> (A) L=1163 		1-37152-651-0 01 1 0105- ●
1 SHAFT; PROP
MAL5 M/T<X9F> (A) L=1333 		1-37153-108-0 01 1 0105- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-079-1 01 1 0105- ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-079-1 01 1 0105- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-079-1 02 1 0105- ● ●
9 JOURNAL ASM; PROP SHAFT
1ST 		1-37300-111-0 AR 1 0105- ●
9 JOURNAL ASM; PROP SHAFT
END 		1-37300-110-0 AR 1 0105- ● ●
9 JOURNAL ASM; PROP SHAFT
1ST 		1-37300-110-0 AR 1 0105- ●
9 JOURNAL ASM; PROP SHAFT
2ND 		1-37300-111-0 AR 1 0105- ●
14 COVER; DUST,SPIDER 1-37249-131-0 AR 1 0105- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5? 		9-09031-110-0 AR 1 0105-0512 ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 AR 1 0105-0512 ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5? 		0-90301-510-0 AR 1 0601- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 AR 1 0601- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-102-1 AR 1 0105- ● ●
56 NUT; YOKE
M14 FLANGE 		1-09440-048-0 04 1 0105- ● ●
56 NUT; YOKE
M14 FLANGE 		1-09440-048-0 04 1 0105- ● ●
74 BOLT; YOKE,TRANS
M14X50 		1-09000-645-0 04 1 0105- ● ●
74 BOLT; YOKE,TRANS
M14X50 		1-09000-645-0 04 1 0105- ●
95 BOLT; YOKE,FINAL
M14X50 		1-09000-645-0 04 1 0105- ● ●
104 PLUG; SLEEVE YOKE 1-09600-067-0 01 1 0105- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(B) MT6 STRAIGHT 		1-09380-006-0 01 1 0105- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(A) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0105-0512 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(A) PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ● ●
107 COVER; RET,SLEEVE 1-37249-132-1 01 1 0105- ● ●
128 SEAL; SLEEVE 1-37247-019-0 01 1 0105- ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=330 		1-37241-124-0 01 1 0105- ● ●

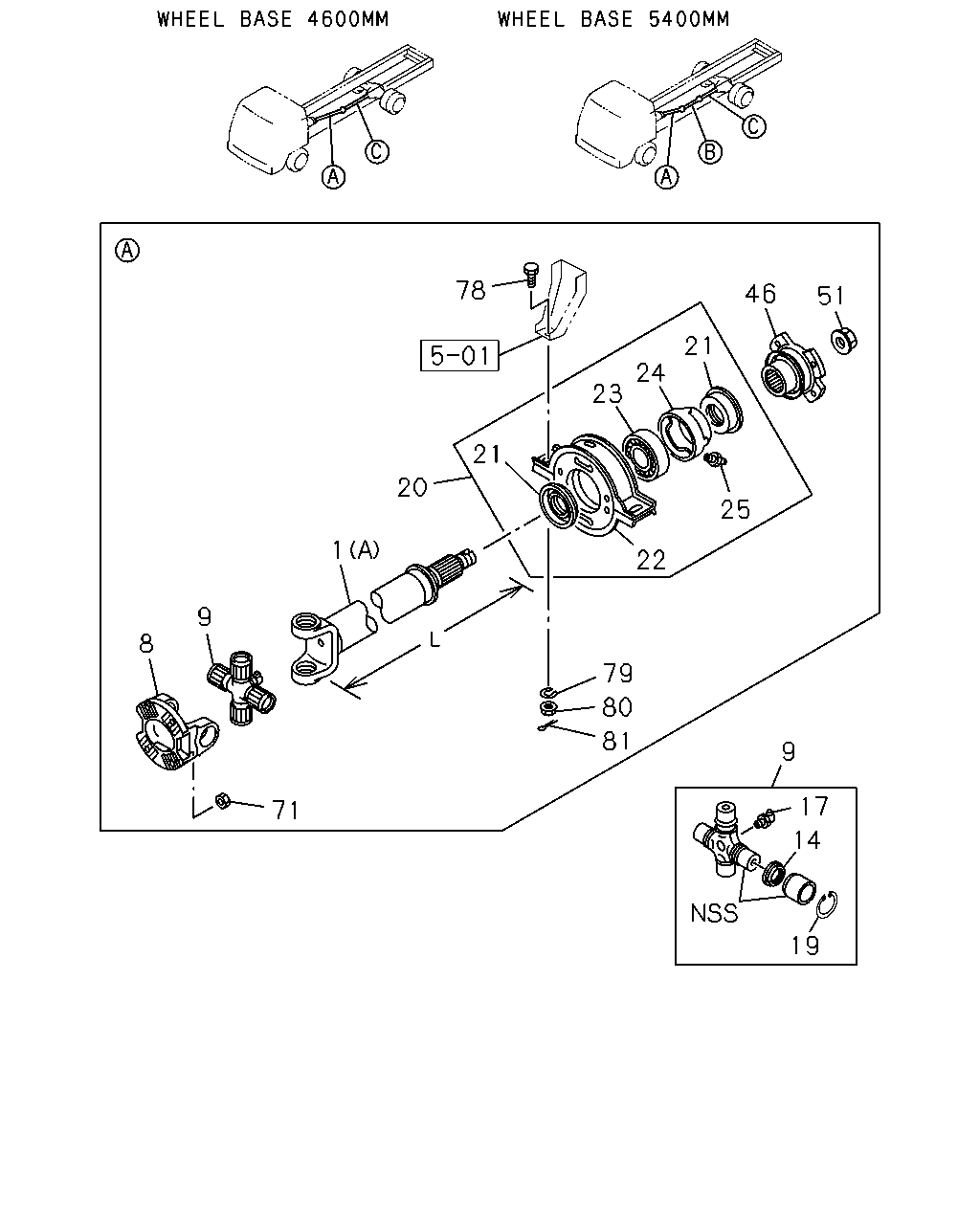

çizim 72977
78 46 51 21 24 23 21 20 25 1 22 9 8 79 80 81 9 17 71 14 19
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHAFT; PROP
(C) L=1314 		1-37124-563-0 01 1 0105- ●
1 SHAFT; PROP
MAG6 M/T<X9T> (A) L=1168 		1-37153-109-0 01 1 0105- ●
1 SHAFT; PROP
MAL5 M/T<X9F> (A) L=1338 		1-37153-110-0 01 1 0105- ●
1 SHAFT; PROP
(C) L=824 		1-37124-967-0 01 1 0105- ●
1 SHAFT; PROP
(B) L=1183 		1-37152-929-0 01 1 0105- ●
1 SHAFT; PROP
MAG6 M/T<X9T> (A) L=1163 		1-37152-651-0 01 1 0105- ●
1 SHAFT; PROP
MAL5 M/T<X9F> (A) L=1333 		1-37153-108-0 01 1 0105- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-079-1 01 1 0105- ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-079-1 01 1 0105- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-079-1 02 1 0105- ● ●
9 JOURNAL ASM; PROP SHAFT
1ST 		1-37300-111-0 AR 1 0105- ●
9 JOURNAL ASM; PROP SHAFT
END 		1-37300-110-0 AR 1 0105- ● ●
9 JOURNAL ASM; PROP SHAFT
1ST 		1-37300-110-0 AR 1 0105- ●
9 JOURNAL ASM; PROP SHAFT
2ND 		1-37300-111-0 AR 1 0105- ●
14 COVER; DUST,SPIDER 1-37249-131-0 AR 1 0105- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5? 		9-09031-110-0 AR 1 0105-0512 ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 AR 1 0105-0512 ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5? 		0-90301-510-0 AR 1 0601- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 AR 1 0601- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-102-1 AR 1 0105- ● ●
20 BEARING ASM; CTR,PROP SHAFT
ID=60 		1-37510-115-0 01 1 0105- ● ●
20 BEARING ASM; CTR,PROP SHAFT
ID=60 		1-37510-115-0 01 1 0105- ●
21 SEAL; OIL,CENTER BRG
FRONT D=120 		1-09625-127-0 01 1 0105- ● ●
21 SEAL; OIL,CENTER BRG
FRONT D=120 		1-09625-127-0 01 1 0105- ●
21 SEAL; OIL,CENTER BRG
REAR 		1-09625-621-0 01 1 0105- ● ●
21 SEAL; OIL,CENTER BRG
REAR 		1-09625-621-0 01 1 0105- ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-048-2 01 1 0105- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-048-2 01 1 0105- ●
23 BEARING; CENTER,PROP SHAFT 9-00090-256-0 01 1 0105- ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-256-0 01 1 0105- ●
24 RETAINER; CENTER BRG,1ST 1-37529-109-0 01 1 0105- ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-109-0 01 1 0105- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0105- ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0105- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-348-0 01 1 0105- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-348-0 01 1 0105- ●
51 NUT; FLANGE,SPLINED
M39 FLANGE 		1-09440-046-0 01 1 0105- ● ●
51 NUT; FLANGE,SPLINED
M39 FLANGE 		1-09440-046-0 01 1 0105- ●
71 NUT; YOKE
M14 FLANGE 		1-09440-048-0 04 1 0105- ● ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
M16X45 		1-09042-030-0 02 1 0105- ● ●
79 WASHER; PL,HOLDER SET,CENTER BRG
ID=17 		1-09503-241-0 02 1 0105- ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		9-99116-516-0 02 1 0105-0605 ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		0-91116-516-0 02 1 0606- ● ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
OD=3.7 L=25 		9-08114-025-0 02 1 0105-0606 ● ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
OD=3.7 L=25 		0-81124-025-0 02 1 0607- ● ●

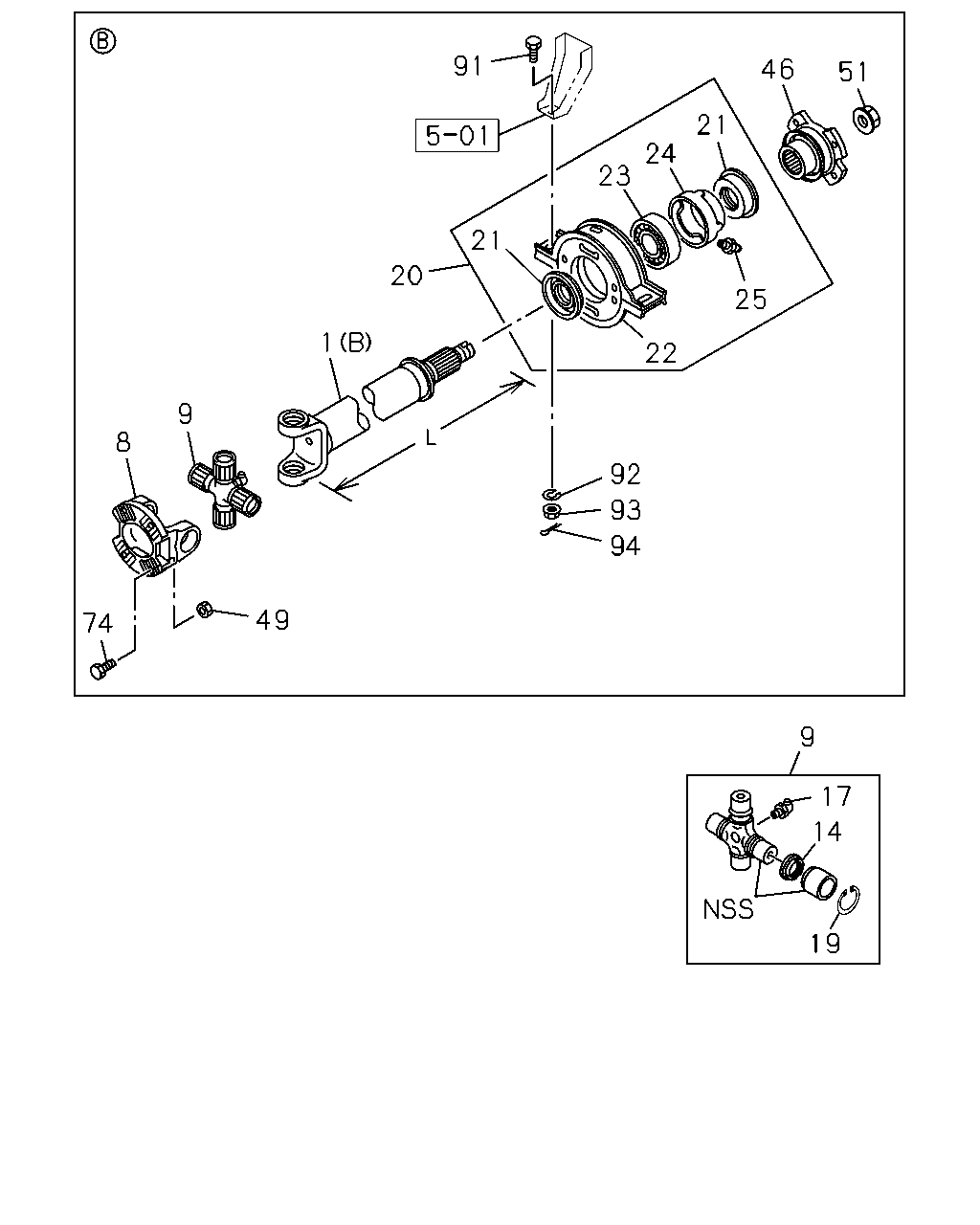

çizim 73309
91 46 51 21 24 23 21 20 25 1 22 9 8 92 93 94 49 74 9 17 14 19
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHAFT; PROP
(C) L=1314 		1-37124-563-0 01 1 0105- ●
1 SHAFT; PROP
MAG6 M/T<X9T> (A) L=1168 		1-37153-109-0 01 1 0105- ●
1 SHAFT; PROP
MAL5 M/T<X9F> (A) L=1338 		1-37153-110-0 01 1 0105- ●
1 SHAFT; PROP
(C) L=824 		1-37124-967-0 01 1 0105- ●
1 SHAFT; PROP
(B) L=1183 		1-37152-929-0 01 1 0105- ●
1 SHAFT; PROP
MAG6 M/T<X9T> (A) L=1163 		1-37152-651-0 01 1 0105- ●
1 SHAFT; PROP
MAL5 M/T<X9F> (A) L=1333 		1-37153-108-0 01 1 0105- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-079-1 01 1 0105- ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-079-1 01 1 0105- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-079-1 02 1 0105- ● ●
9 JOURNAL ASM; PROP SHAFT
1ST 		1-37300-111-0 AR 1 0105- ●
9 JOURNAL ASM; PROP SHAFT
END 		1-37300-110-0 AR 1 0105- ● ●
9 JOURNAL ASM; PROP SHAFT
1ST 		1-37300-110-0 AR 1 0105- ●
9 JOURNAL ASM; PROP SHAFT
2ND 		1-37300-111-0 AR 1 0105- ●
14 COVER; DUST,SPIDER 1-37249-131-0 AR 1 0105- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5? 		9-09031-110-0 AR 1 0105-0512 ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 AR 1 0105-0512 ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5? 		0-90301-510-0 AR 1 0601- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 AR 1 0601- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-102-1 AR 1 0105- ● ●
20 BEARING ASM; CTR,PROP SHAFT
ID=60 		1-37510-115-0 01 1 0105- ● ●
20 BEARING ASM; CTR,PROP SHAFT
ID=60 		1-37510-115-0 01 1 0105- ●
21 SEAL; OIL,CENTER BRG
FRONT D=120 		1-09625-127-0 01 1 0105- ● ●
21 SEAL; OIL,CENTER BRG
FRONT D=120 		1-09625-127-0 01 1 0105- ●
21 SEAL; OIL,CENTER BRG
REAR 		1-09625-621-0 01 1 0105- ● ●
21 SEAL; OIL,CENTER BRG
REAR 		1-09625-621-0 01 1 0105- ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-048-2 01 1 0105- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-048-2 01 1 0105- ●
23 BEARING; CENTER,PROP SHAFT 9-00090-256-0 01 1 0105- ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-256-0 01 1 0105- ●
24 RETAINER; CENTER BRG,1ST 1-37529-109-0 01 1 0105- ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-109-0 01 1 0105- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0105- ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0105- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-348-0 01 1 0105- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-348-0 01 1 0105- ●
49 NUT; YOKE
M14 FLANGE 		1-09440-048-0 04 1 0105- ●
51 NUT; FLANGE,SPLINED
M39 FLANGE 		1-09440-046-0 01 1 0105- ● ●
51 NUT; FLANGE,SPLINED
M39 FLANGE 		1-09440-046-0 01 1 0105- ●
74 BOLT; YOKE,TRANS
M14X50 		1-09000-645-0 04 1 0105- ● ●
74 BOLT; YOKE,TRANS
M14X50 		1-09000-645-0 04 1 0105- ●
91 BOLT; HOLDER SET,CTR BRG
M16X45 		1-09042-030-0 02 1 0105- ●
92 WASHER; LK,HOLDER SET,CTR BRG
ID=17 		1-09503-241-0 02 1 0105- ●
93 NUT; HOLDER SET,CTR BRG
M16 SLOTTED 		9-99116-516-0 02 1 0105-0605 ●
93 NUT; HOLDER SET,CTR BRG
M16 SLOTTED 		0-91116-516-0 02 1 0606- ●
94 PIN; SPLIT,HOLDER SET CTR BRG
OD=3.7 L=25 		9-08114-025-0 02 1 0105-0606 ●
94 PIN; SPLIT,HOLDER SET CTR BRG
OD=3.7 L=25 		0-81124-025-0 02 1 0607- ●
