3-78 — FIXING PARTS; AIR PIPING (#8849) — 136 parça

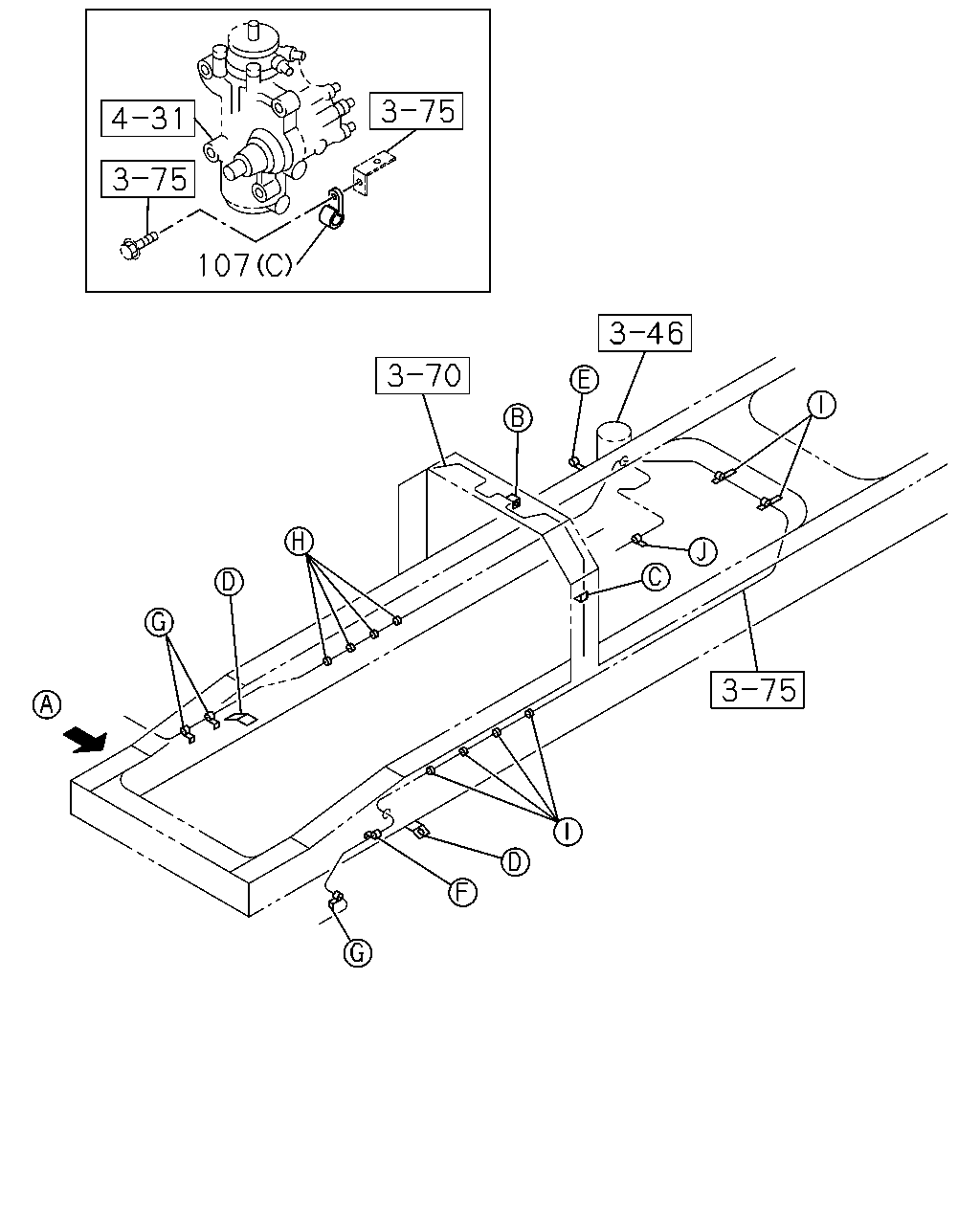

çizim 19874
107
BalonParca AdiParca NoAdetTipApplied Date
107 CLIP; NYLON TUBE
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=29 L=35 		5-09700-293-1 01 1 0108-
107 CLIP; NYLON TUBE
(A) ID=27.5 H=23 L=24 		1-09700-863-0 02 1 0105-
107 CLIP; NYLON TUBE
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=29 H=50 L=45.5 		1-09701-027-0 03 1 0105-0107
107 CLIP; NYLON TUBE
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=29 H=50 L=45.5 		1-09701-027-0 02 1 0108-

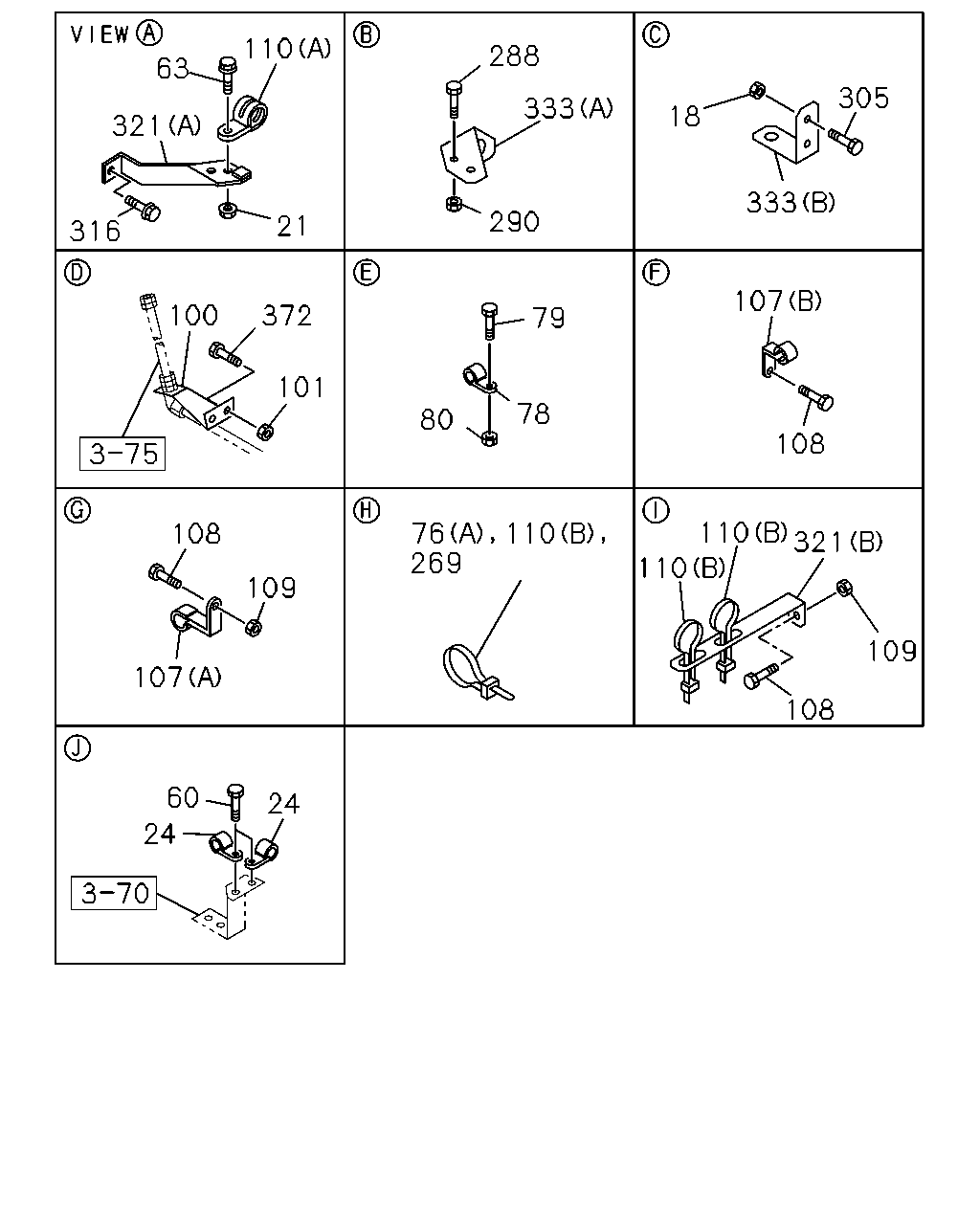

çizim 74858
110 288 63 305 333 18 321 333 290 21 316 107 100 372 79 101 78 80 108 110 321 76 269 110 108 110 109 109 107 108 60 24 24
BalonParca AdiParca NoAdetTipApplied Date
18 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 0105-0602
18 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0603-
21 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0105-0602
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603-
24 CLIP; PIPE
MAG6W M/T(X8B) ID=16 L=20 		9-09525-535-0 02 1 0105-0606
24 CLIP; PIPE
MAG6W M/T(X8B) ID=16 L=20 		0-95235-535-0 02 1 0607-
24 CLIP; PIPE
MAL5T M/T(Y1K) ID=16 L=20 		9-09525-535-0 01 1 0105-0606
24 CLIP; PIPE
MAL5T M/T(Y1K) ID=16 L=20 		0-95235-535-0 01 1 0607-
60 BOLT; CLIP FIX
MAG6W M/T(X8B) M8X25 FLANGE 		0-28680-825-0 02 1 0105-0512
60 BOLT; CLIP FIX
MAG6W M/T(X8B) M8X25 FLANGE 		0-28650-825-0 02 1 0601-
60 BOLT; CLIP FIX
MAL5T M/T(Y1K) M8X25 FLANGE 		0-28680-825-0 01 1 0105-0512
60 BOLT; CLIP FIX
MAL5T M/T(Y1K) M8X25 FLANGE 		0-28650-825-0 01 1 0601-
63 BOLT; CLIP
M8X30 FLANGE 		0-28680-830-0 01 1 0105-0512
63 BOLT; CLIP
M8X30 FLANGE 		0-28650-830-0 01 1 0601-
76 CLIP; NYLON TUBE
(A) L=250 		1-09707-126-0 08 1 0105-
76 CLIP; NYLON TUBE
(B) L=350 		8-94152-256-1 01 1 0105-
76 CLIP; NYLON TUBE
(C) ID=8.3 & 8.3 		8-94426-175-0 01 1 0105-0112
76 CLIP; NYLON TUBE
(C) ID=6 & 8.3 		8-94167-742-0 01 1 0201-
76 CLIP; NYLON TUBE
AIR DRYER<PS7> (A) L=250 		1-09707-126-0 02 1 0105-
76 CLIP; NYLON TUBE
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) L=250 		1-09707-126-0 01 1 0105-
78 CLIP; AIR PIPE
EXC. AIR DRYER<PS7> ID=16 L=28 		9-09525-556-0 01 1 0105-0606
78 CLIP; AIR PIPE
EXC. AIR DRYER<PS7> ID=16 L=28 		0-95235-556-0 01 1 0607-
79 BOLT; PIPE CLIP
EXC. AIR DRYER<PS7> M8X25 FLANGE 		0-28680-825-0 01 1 0105-0512
79 BOLT; PIPE CLIP
EXC. AIR DRYER<PS7> M8X25 FLANGE 		0-28650-825-0 01 1 0601-
80 NUT; CLIP,AIR PIPE
EXC. AIR DRYER<PS7> M8 FLANGE 		0-91150-108-0 01 1 0105-0602
80 NUT; CLIP,AIR PIPE
EXC. AIR DRYER<PS7> M8 FLANGE 		0-91180-108-0 01 1 0603-
100 BRACKET; PIPE CLIP 1-47477-770-0 01 1 0105-
100 BRACKET; PIPE CLIP 1-47477-365-0 01 1 0105-
101 NUT; CLIP BRKT
M8 FLANGE 		0-91150-108-0 04 1 0105-0602
101 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 04 1 0603-
107 CLIP; NYLON TUBE
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=29 L=35 		5-09700-293-1 01 1 0108-
107 CLIP; NYLON TUBE
(A) ID=27.5 H=23 L=24 		1-09700-863-0 02 1 0105-
107 CLIP; NYLON TUBE
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=29 H=50 L=45.5 		1-09701-027-0 03 1 0105-0107
107 CLIP; NYLON TUBE
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=29 H=50 L=45.5 		1-09701-027-0 02 1 0108-
108 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28080-825-0 02 1 0105-0107
108 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28080-820-0 01 1 0108-0512
108 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28050-820-0 01 1 0601-
108 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28080-825-0 03 1 0105-0107
108 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28080-825-0 02 1 0108-0512
108 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28080-825-0 02 1 0108-0512
108 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28050-825-0 02 1 0601-
108 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28050-825-0 02 1 0601-
108 BOLT; TUBE CLIP
M8X30 FLANGE 		0-28680-830-0 02 1 0105-0512
108 BOLT; TUBE CLIP
M8X30 FLANGE 		0-28650-830-0 02 1 0601-
109 NUT; TUBE CLIP
M8 FLANGE 		0-91150-108-0 02 1 0105-0602
109 NUT; TUBE CLIP
M8 FLANGE 		0-91150-108-0 02 1 0105-0602
109 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 02 1 0603-
109 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 02 1 0603-
110 CLIP; BAND,NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) L=250 		1-09707-126-0 01 1 0109-0304
110 CLIP; BAND,NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) L=250 		1-09707-126-0 01 1 0305-
110 CLIP; BAND,NYLON TUBE
LOAD SENSING PROPORTIONING VALVE<JR7> (B) L=250 		1-09707-126-0 01 1 0305-
110 CLIP; BAND,NYLON TUBE
(A) ID=25 L=40 		1-09700-215-1 01 1 0105-0204
110 CLIP; BAND,NYLON TUBE
(A) ID=28 L=40 		1-09700-995-1 01 1 0205-
110 CLIP; BAND,NYLON TUBE
(B) L=250 		1-09707-126-0 07 1 0105-
110 CLIP; BAND,NYLON TUBE
(B) L=250 		1-09707-126-0 17 1 0105-
110 CLIP; BAND,NYLON TUBE
(B) L=250 		1-09707-126-0 10 1 0105-
269 CLIP; BAND,NYLON TUBE
WHEEL BASE 4600MM(46W) L=250 		1-09707-126-0 13 1 0105-
269 CLIP; BAND,NYLON TUBE
WHEEL BASE 5400MM(54W) L=250 		1-09707-126-0 14 1 0105-
288 BOLT; CLIP,AIR PIPE
M8X25 FLANGE 		0-28680-825-0 04 1 0105-0512
288 BOLT; CLIP,AIR PIPE
M8X25 FLANGE 		0-28650-825-0 04 1 0601-
290 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91150-108-0 02 1 0105-0602
290 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91180-108-0 02 1 0603-
305 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0105-0512
305 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0601-
316 BOLT; CLIP
M8X35 FLANGE 		0-28680-835-0 01 1 0105-0512
316 BOLT; CLIP
M8X35 FLANGE 		0-28650-835-0 01 1 0601-
321 BRACKET; CLIP
(A) 		1-47477-746-0 01 1 0105-
321 BRACKET; CLIP
EXC. AIR DRYER<PS7> (B) L=100 		1-47477-645-2 01 1 0105-
333 BRACKET; BRK AIR PIPE
(B) 		1-47477-337-1 01 1 0105-
333 BRACKET; BRK AIR PIPE
(A) 		1-47477-818-0 01 1 0105-
372 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28680-830-0 04 1 0105-0512
372 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 04 1 0601-

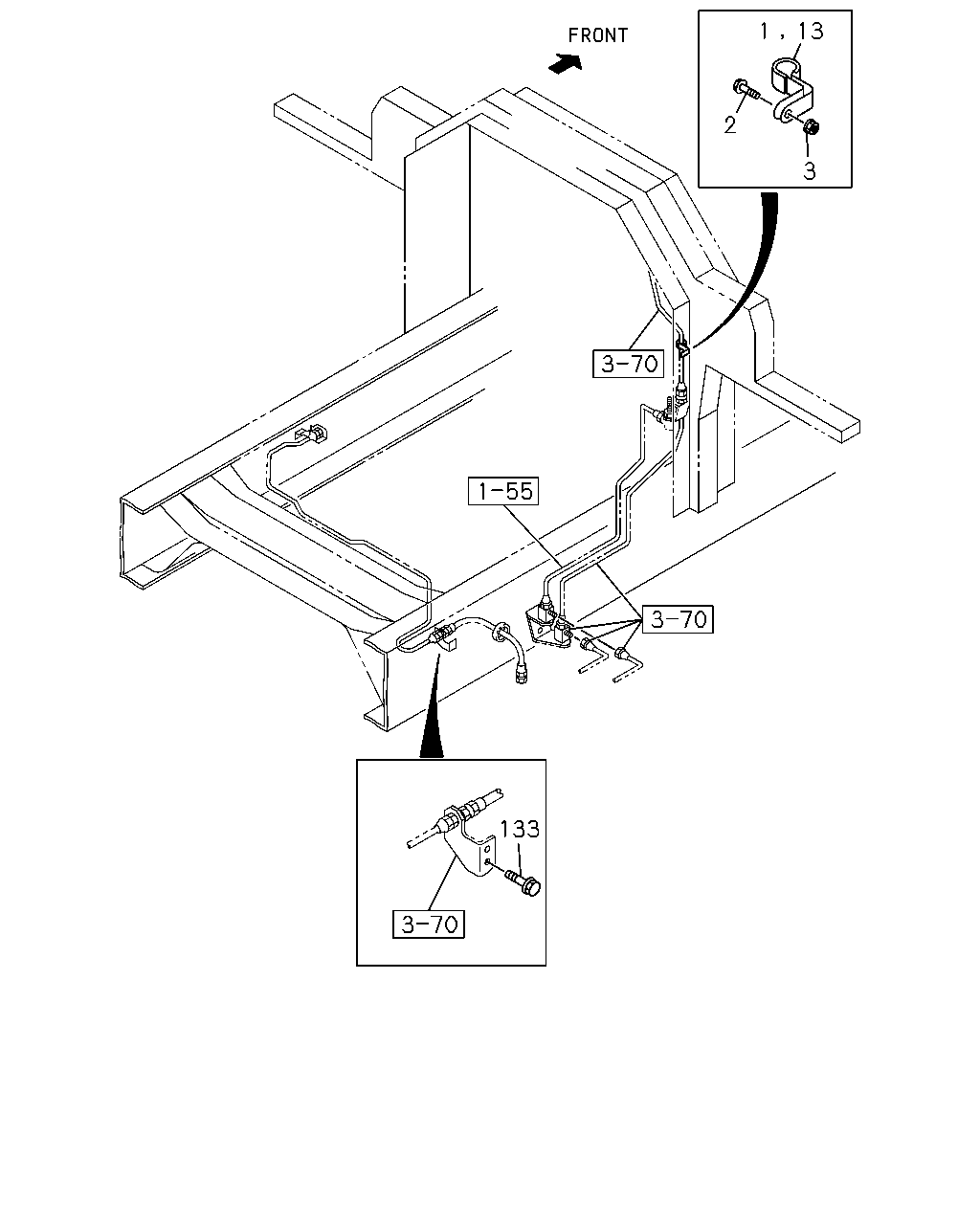

çizim 74997
13 1 2 3 133
BalonParca AdiParca NoAdetTipApplied Date
1 CLIP; AIR PIPE
ID=6 H=20 L=20 		1-09700-603-0 01 1 0105-
2 BOLT; CLIP FIX
M8X20 FLANGE 		0-28680-820-0 01 1 0105-0512
2 BOLT; CLIP FIX
M8X20 FLANGE 		0-28650-820-0 01 1 0601-
3 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91150-108-0 01 1 0105-0602
3 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91180-108-0 01 1 0603-
13 CLIP; AIR PIPE
ID=6 H=20 L=20 		1-09700-603-0 02 1 0105-
133 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0105-
çizim 75096

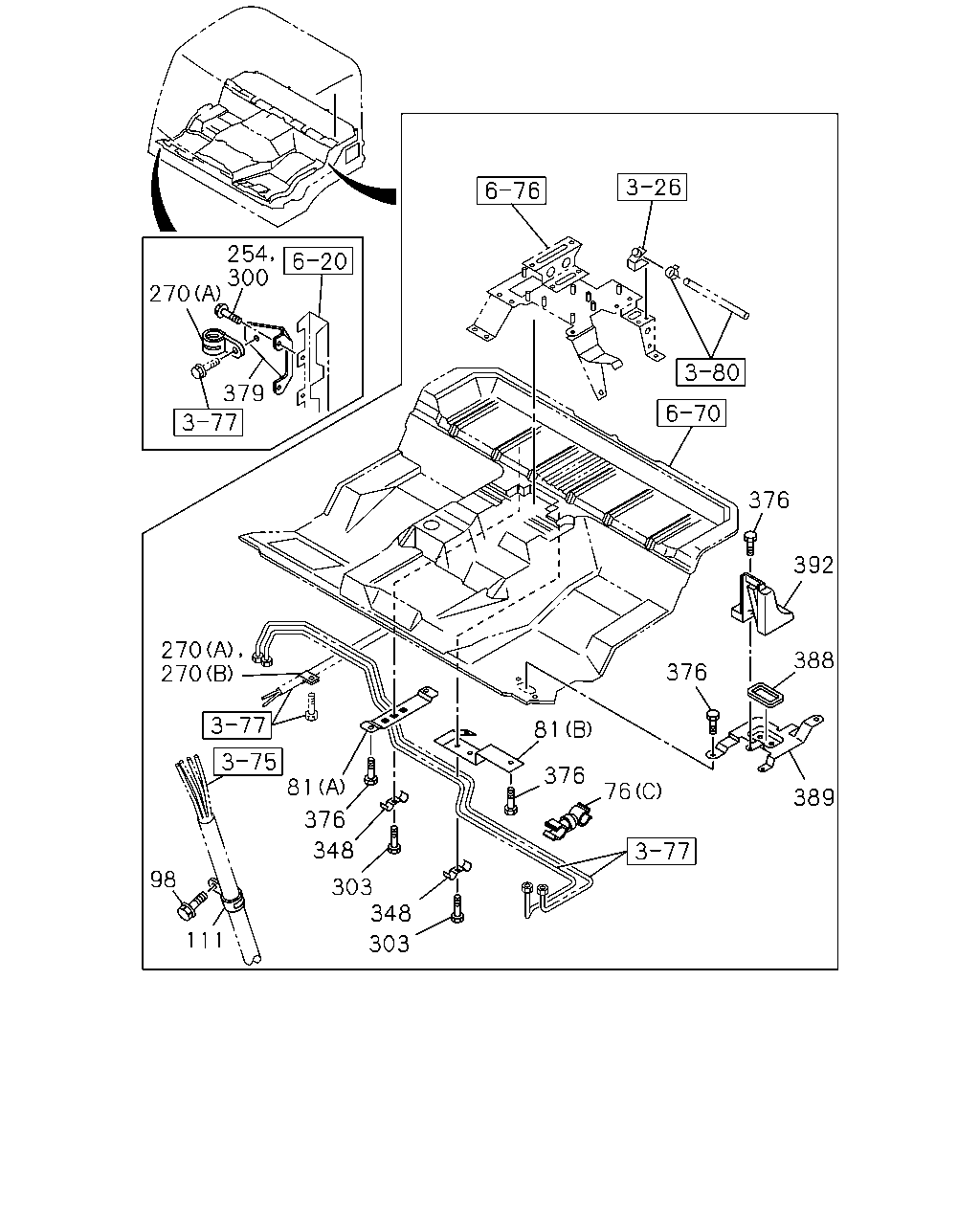

254 300 270 379 376 392 270 270 388 376 81 376 81 76 389 376 348 98 303 348 111 303
BalonParca AdiParca NoAdetTipApplied Date
76 CLIP; NYLON TUBE
(A) L=250 		1-09707-126-0 08 1 0105-
76 CLIP; NYLON TUBE
(B) L=350 		8-94152-256-1 01 1 0105-
76 CLIP; NYLON TUBE
(C) ID=8.3 & 8.3 		8-94426-175-0 01 1 0105-0112
76 CLIP; NYLON TUBE
(C) ID=6 & 8.3 		8-94167-742-0 01 1 0201-
76 CLIP; NYLON TUBE
AIR DRYER<PS7> (A) L=250 		1-09707-126-0 02 1 0105-
76 CLIP; NYLON TUBE
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) L=250 		1-09707-126-0 01 1 0105-
81 BRACKET; CLIP
(B) 		1-79996-133-2 01 1 0105-
81 BRACKET; CLIP
(A) 		1-79996-127-2 01 1 0105-
98 BOLT; PIPE CLIP
M8X30 FLANGE 		0-28680-830-0 01 1 0105-0512
98 BOLT; PIPE CLIP
M8X30 FLANGE 		0-28650-830-0 01 1 0601-
111 CLIP; AIR PIPE
ID=35 L=33 		1-09700-945-0 01 1 0105-
254 BOLT; PIPE CLIP
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0105-0204
254 BOLT; PIPE CLIP
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 0205-0205
270 CLIP; NYLON TUBE
(B) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0309-
270 CLIP; NYLON TUBE
(A) ID=28 L=32 		1-09701-107-1 04 1 0105-0308
270 CLIP; NYLON TUBE
(A) ID=28 L=32 		1-09701-107-1 03 1 0309-
300 BOLT; TUBE CLIP
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 0206-
303 BOLT; PIPE CLIP
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0105-
348 CLIP; AIR PIPE
ID=11 & 9 L=15 & 15 		1-09700-062-0 03 1 0105-
376 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 0105-
376 BOLT; BRKT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 0105-
376 BOLT; BRKT
EXC. AIR DRYER<PS7> M8X30 FLANGE 		0-28680-830-0 01 1 0105-0512
376 BOLT; BRKT
EXC. AIR DRYER<PS7> M8X30 FLANGE 		0-28650-830-0 01 1 0601-
379 BRACKET; NYLON TUBE 1-79996-110-2 01 1 0105-
388 SEAL
L=215 		1-79738-794-1 01 1 0105-
389 BRACKET; UNION 1-79738-790-1 01 1 0105-
392 COVER; BRKT 1-73996-264-1 01 1 0105-
çizim 76903
20 286 361 279 297 296 293 22 292 411 76 320
BalonParca AdiParca NoAdetTipApplied Date
20 BOLT; CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 0105-0512
20 BOLT; CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 0601-
22 BRACKET; CLIP 1-47477-514-3 02 1 0105-
76 CLIP; NYLON TUBE
(A) L=250 		1-09707-126-0 08 1 0105-
76 CLIP; NYLON TUBE
(B) L=350 		8-94152-256-1 01 1 0105-
76 CLIP; NYLON TUBE
(C) ID=8.3 & 8.3 		8-94426-175-0 01 1 0105-0112
76 CLIP; NYLON TUBE
(C) ID=6 & 8.3 		8-94167-742-0 01 1 0201-
76 CLIP; NYLON TUBE
AIR DRYER<PS7> (A) L=250 		1-09707-126-0 02 1 0105-
76 CLIP; NYLON TUBE
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) L=250 		1-09707-126-0 01 1 0105-
279 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0105-0602
279 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603-
279 NUT; BRKT
M10 FLANGE 		0-91150-210-0 02 1 0105-0602
279 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0603-
286 CLIP; NYLON TUBE
L=250 		5-09707-030-1 01 1 0105-0109
286 CLIP; NYLON TUBE
L=250 		1-09707-126-0 01 1 0110-
292 CLIP; AIR PIPE
ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 01 1 0105-
293 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0105-0602
293 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603-
296 BRACKET; CLIP
L=50 		1-47475-299-2 01 1 0105-
297 NUT; BRKT
M10 FLANGE 		0-91150-210-0 02 1 0105-0602
297 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0603-
297 NUT; BRKT
EXC. AIR DRYER<PS7> M8 FLANGE 		0-91150-108-0 01 1 0105-0602
297 NUT; BRKT
EXC. AIR DRYER<PS7> M8 FLANGE 		0-91180-108-0 01 1 0603-
320 CLIP; BAND,FLEX FIX
L=140 		5-09707-031-1 01 1 0105-0105
361 CLIP; FLEX HOSE,AIR PRESS GAGE
L=250 		5-09707-030-1 01 1 0105-
411 SLEEVE; RUBBER
AIR DRYER<PS7> ID=29 OD=39 L=40 		1-09337-013-0 01 1 0110-
