◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CVR ▶ 10860 - CVR LHD ▶ 3 - Brakes, Brake System ▶ 3-77 - BRAKE PIPING; AIR,REAR ▶
3-77 — BRAKE PIPING; AIR,REAR (#8848) — 72 parça

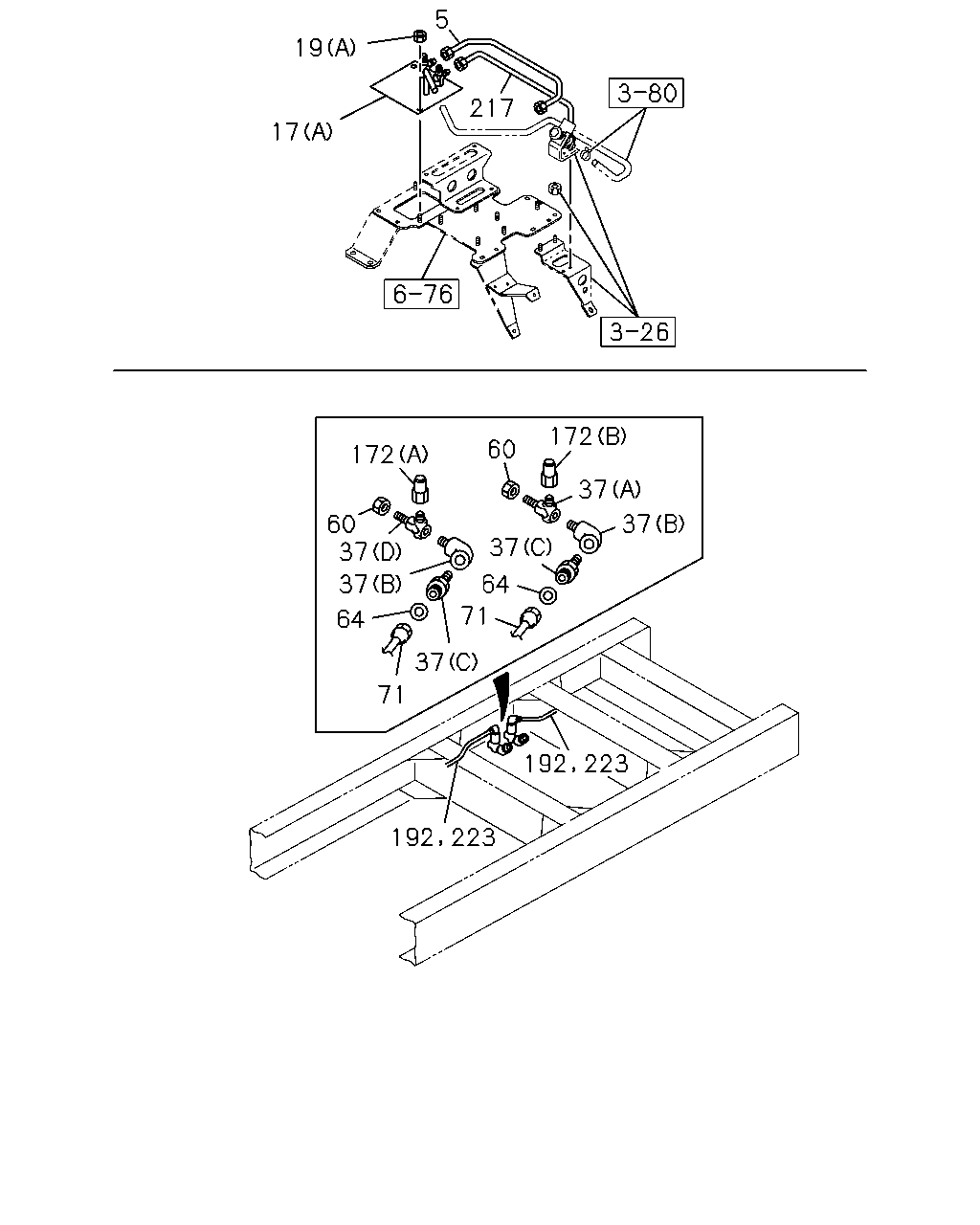

çizim 74639
5 19 217 17 172 60 172 37 37 60 37 37 37 64 71 64 37 71 192 223 192 223
BalonParca AdiParca NoAdetTipApplied Date
5 PIPE; AIR,UNION TO PARKING VLV 1-49114-638-1 01 1 0105-
17 UNION; AIR PIPE
(A) 		1-47470-418-2 01 1 0105-0111
17 UNION; AIR PIPE
(B) 		1-47470-464-3 01 1 0105-
17 UNION; AIR PIPE
(A) 		1-47470-418-2 01 1 0112-
19 NUT; PIPE UNION
(A) M8 FLANGE 		0-91150-108-0 02 1 0105-0111
19 NUT; PIPE UNION
(B) M8 		9-09110-408-0 01 1 0105-0203
19 NUT; PIPE UNION
(A) M8 FLANGE 		0-91150-108-0 02 1 0112-
37 UNION; AIR PIPE
(C) M27 & PT3/8 STRAIGHT 		1-09650-250-0 01 1 0105-
37 UNION; AIR PIPE
(D) 		1-09650-251-1 01 1 0105-
37 UNION; AIR PIPE
(A) M14X35 		1-09650-272-2 01 1 0105-
37 UNION; AIR PIPE
(B) 		1-09664-209-0 01 1 0105-
60 NUT; NIPPLE,AIR PIPE
M20 		9-99111-420-0 01 1 0105-0512
60 NUT; NIPPLE,AIR PIPE
M20 		0-91111-520-0 01 1 0601-
64 GASKET; FLEX HOSE
ID=17.5 		9-09572-515-0 02 1 0105-
64 GASKET; FLEX HOSE
ID=17.5 		9-09572-515-0 02 1 0105-
71 HOSE; FLEX,RWD RR
L=550 		0-07909-550-0 01 1 0105-0607
71 HOSE; FLEX,RWD RR
L=550 		0-57909-550-0 01 1 0608-
172 ADAPTER; UNION
(B) DIN8 & M14 STRAIGHT 		1-09660-874-0 01 1 0105-
172 ADAPTER; UNION
(A) DIN12 & M20 STRAIGHT 		1-09660-877-0 01 1 0105-
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0105-
192 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87410-070-0 AR 1 0105-0512
192 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0601-
192 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87410-071-0 AR 1 0105-
192 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0105-
192 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87410-074-0 AR 1 0105-0512
192 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0601-
217 PIPE; AIR,PARKING BRK VLV TO UNION 1-49114-639-0 01 1 0105-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0601-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 0601-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87410-091-0 AR 1 0105-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=22 		1-87410-096-0 AR 1 0105-0512
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=22 		1-87411-029-0 AR 1 0601-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87410-100-0 AR 1 0105-

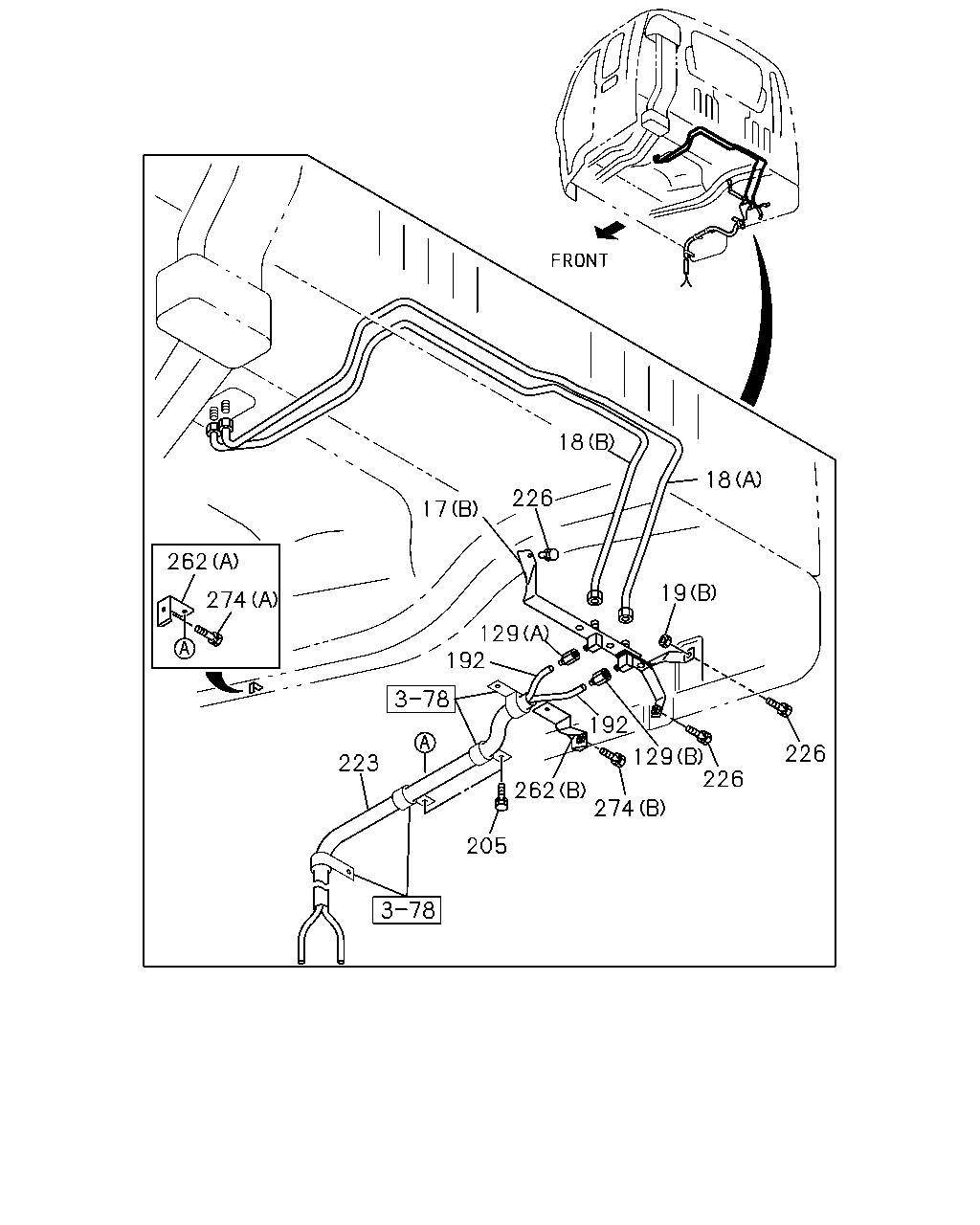

çizim 75294
18 18 226 17 262 19 274 129 192 192 226 129 226 223 262 274 205
BalonParca AdiParca NoAdetTipApplied Date
17 UNION; AIR PIPE
(A) 		1-47470-418-2 01 1 0105-0111
17 UNION; AIR PIPE
(B) 		1-47470-464-3 01 1 0105-
17 UNION; AIR PIPE
(A) 		1-47470-418-2 01 1 0112-
18 PIPE; AIR,UNION TO UNION
(B) L=1937 SERVICED BY L=1950 		1-47426-393-0 01 1 0105-
18 PIPE; AIR,UNION TO UNION
(A) L=2108 SERVICED BY L=2500 		1-47426-423-0 01 1 0105-
19 NUT; PIPE UNION
(A) M8 FLANGE 		0-91150-108-0 02 1 0105-0111
19 NUT; PIPE UNION
(B) M8 		9-09110-408-0 01 1 0105-0203
19 NUT; PIPE UNION
(A) M8 FLANGE 		0-91150-108-0 02 1 0112-
129 CONNECTOR; NYLON TUBE
(A) DIN8 & M14 STRAIGHT 		1-09660-874-0 02 1 0105-0206
129 CONNECTOR; NYLON TUBE
(A) DIN8 & M14 STRAIGHT 		1-09660-874-0 01 1 0207-
129 CONNECTOR; NYLON TUBE
(B) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0105-0206
129 CONNECTOR; NYLON TUBE
(B) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0105-0206
129 CONNECTOR; NYLON TUBE
(B) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0207-
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0105-
192 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87410-070-0 AR 1 0105-0512
192 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0601-
192 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87410-071-0 AR 1 0105-
192 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0105-
192 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87410-074-0 AR 1 0105-0512
192 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0601-
205 BOLT; TUBE CLIP
M8X16 FLANGE 		0-28080-816-0 03 1 0105-0512
205 BOLT; TUBE CLIP
M8X16 FLANGE 		0-28050-816-0 03 1 0601-
205 BOLT; TUBE CLIP
M6X16 W/LK WASHER 		0-50040-616-0 01 1 0105-0211
205 BOLT; TUBE CLIP
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0212-0312
205 BOLT; TUBE CLIP
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 0401-0501
205 BOLT; TUBE CLIP
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0502-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0601-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 0601-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87410-091-0 AR 1 0105-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=22 		1-87410-096-0 AR 1 0105-0512
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=22 		1-87411-029-0 AR 1 0601-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87410-100-0 AR 1 0105-
226 BOLT; UNION
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 0105-0203
226 BOLT; UNION
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0204-
262 BRACKET
(A) 		1-79996-143-0 01 1 0105-
262 BRACKET
(B) 		1-79996-258-1 01 1 0105-
274 BOLT; BRKT
(B) M8X16 FLANGE 		0-28080-816-0 01 1 0105-0512
274 BOLT; BRKT
(B) M8X16 FLANGE 		0-28050-816-0 01 1 0601-
274 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0105-
