Sayfa 3-70 - Isuzu EPC

3-70 — BRAKE PIPING; AIR,AIR MASTER (#8846) — 332 parça

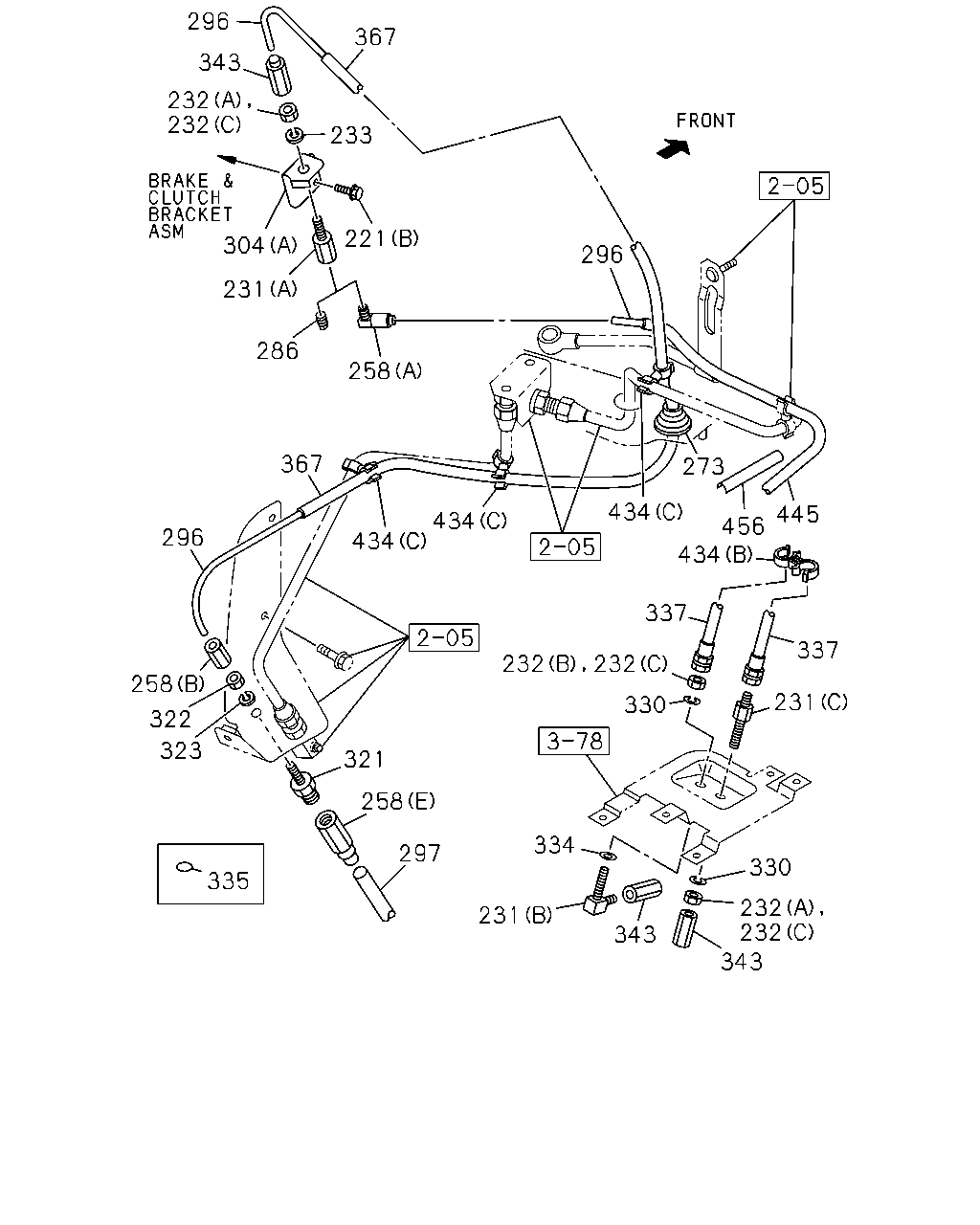

296 367 343 232 232 233 221 304 296 231 286 258 367 273 434 445 434 434 456 434 296 337 337 258 231 330 322 323 321 258 334 297 330 335 232 232 231 343 343 232 232

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
221	BOLT; BRKT (C) M10X35 FLANGE	0-28681-035-0	02	1	0111-0512
221	BOLT; BRKT (C) M10X35 FLANGE	0-28651-035-0	02	1	0601-
221	BOLT; BRKT EXC. AIR DRYER<PS7> (A) M8X35 FLANGE	0-28680-835-0	01	1	0105-0512
221	BOLT; BRKT EXC. AIR DRYER<PS7> (A) M8X35 FLANGE	0-28650-835-0	01	1	0601-
221	BOLT; BRKT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0105-
231	UNION; AIR PIPE (B) M10 ELBOW	1-09654-186-2	01	1	0105-
231	UNION; AIR PIPE (C) M10 STRAIGHT	1-09654-361-0	01	1	0105-
231	UNION; AIR PIPE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-09656-713-2	01	1	0105-
232	NUT; UNION,AIR PIPE (C) M10 H=8	1-09400-029-0	02	1	0105-0312
232	NUT; UNION,AIR PIPE (B) M10	9-09110-410-0	01	1	0401-0512
232	NUT; UNION,AIR PIPE (B) M10	0-91110-510-0	01	1	0601-
232	NUT; UNION,AIR PIPE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M10 H=8	1-09400-029-0	01	1	0105-0312
232	NUT; UNION,AIR PIPE (A) M10 H=8	1-09400-029-0	01	1	0401-
232	NUT; UNION,AIR PIPE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M10 H=8	1-09400-029-0	01	1	0401-
233	WASHER; LK,UNION,AIR PIPE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.2	9-09150-510-0	01	1	0105-0603
233	WASHER; LK,UNION,AIR PIPE ID=10.2	0-91510-510-0	01	1	0604-
258	CONNECTOR; NYLON TUBE (C) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0105-
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) DIN8 R1/8 ELBOW	1-09660-644-1	01	1	0105-0302
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) TRI LC6X4-R1/8	1-09660-760-1	01	1	0303-
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (E) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0105-
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	0105-
258	CONNECTOR; NYLON TUBE TRANSMISSION SIDE PTO WO/LEVER(SH5) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0105-
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0105-
273	GROMMET SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-09332-102-0	01	1	0105-
286	PLUG; AIR PIPE EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	9-09204-510-0	01	1	0105-
296	TUBE; NYLON L=1200 OD=6	1-09366-256-1	AR	1	0105-
296	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0105-
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	0105-
296	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87410-081-0	AR	1	0105-0512
296	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	0601-
297	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87410-081-0	AR	1	0105-
304	BRACKET; UNION (B)	1-47476-556-0	01	1	0105-
304	BRACKET; UNION (C)	1-47477-182-1	01	1	0105-
304	BRACKET; UNION SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-71117-210-0	01	1	0105-
321	JOINT; FLEX HOSE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M12 L=66.5	9-09223-306-1	01	1	0105-0607
321	JOINT; FLEX HOSE M12 L=66.5	0-92113-306-0	01	1	0608-
322	NUT; JOINT,FLEX HOSE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M12	9-09840-280-0	01	1	0302-
322	NUT; JOINT,FLEX HOSE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M12	9-09840-280-0	01	1	0105-0301
323	WASHER; LK,JOINT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=12.2	9-09150-512-0	01	1	0302-0603
323	WASHER; LK,JOINT ID=12.2	0-91510-512-0	01	1	0604-
323	WASHER; LK,JOINT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=12.2	9-09150-512-0	01	1	0105-0301
330	WASHER; LK,UNION,AIR PIPE ID=10.2	9-09150-510-0	02	1	0105-0603
330	WASHER; LK,UNION,AIR PIPE ID=10.2	0-91510-510-0	02	1	0604-
334	SPACER; PIPE UNION ID=10.5 OD=22 T=4	1-09503-045-0	01	1	0105-
335	SEAL; UNION EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) OD=30 BLACK	1-76798-035-0	01	1	0105-
337	HOSE; FLEX,UNION TO AIR PRESS GAGE L=720	0-07210-720-0	02	1	0105-0608
337	HOSE; FLEX,UNION TO AIR PRESS GAGE L=720	0-57210-720-0	02	1	0609-
343	UNION; NYLON TUBE	1-09660-796-1	02	1	0105-
343	UNION; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-09660-796-1	01	1	0105-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=7	1-87410-085-0	AR	1	0105-0512
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=7	1-87411-016-0	AR	1	0601-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	AR	1	0105-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87410-096-0	AR	1	0105-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87410-098-0	AR	1	0105-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87410-100-0	AR	1	0105-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87410-104-0	AR	1	0105-
434	CLIP (A) L=300	1-09707-001-1	01	1	0105-0504
434	CLIP (A) L=350	1-09707-183-0	01	1	0505-
434	CLIP (B) ID=10 & 10	1-09709-221-0	01	1	0105-
434	CLIP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=8.3 & 8.3	8-94426-175-0	03	1	0105-
445	GUARD SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) L=800	1-83129-031-1	01	1	0105-
456	SEAL; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 100X40	1-72498-022-0	01	1	0105-

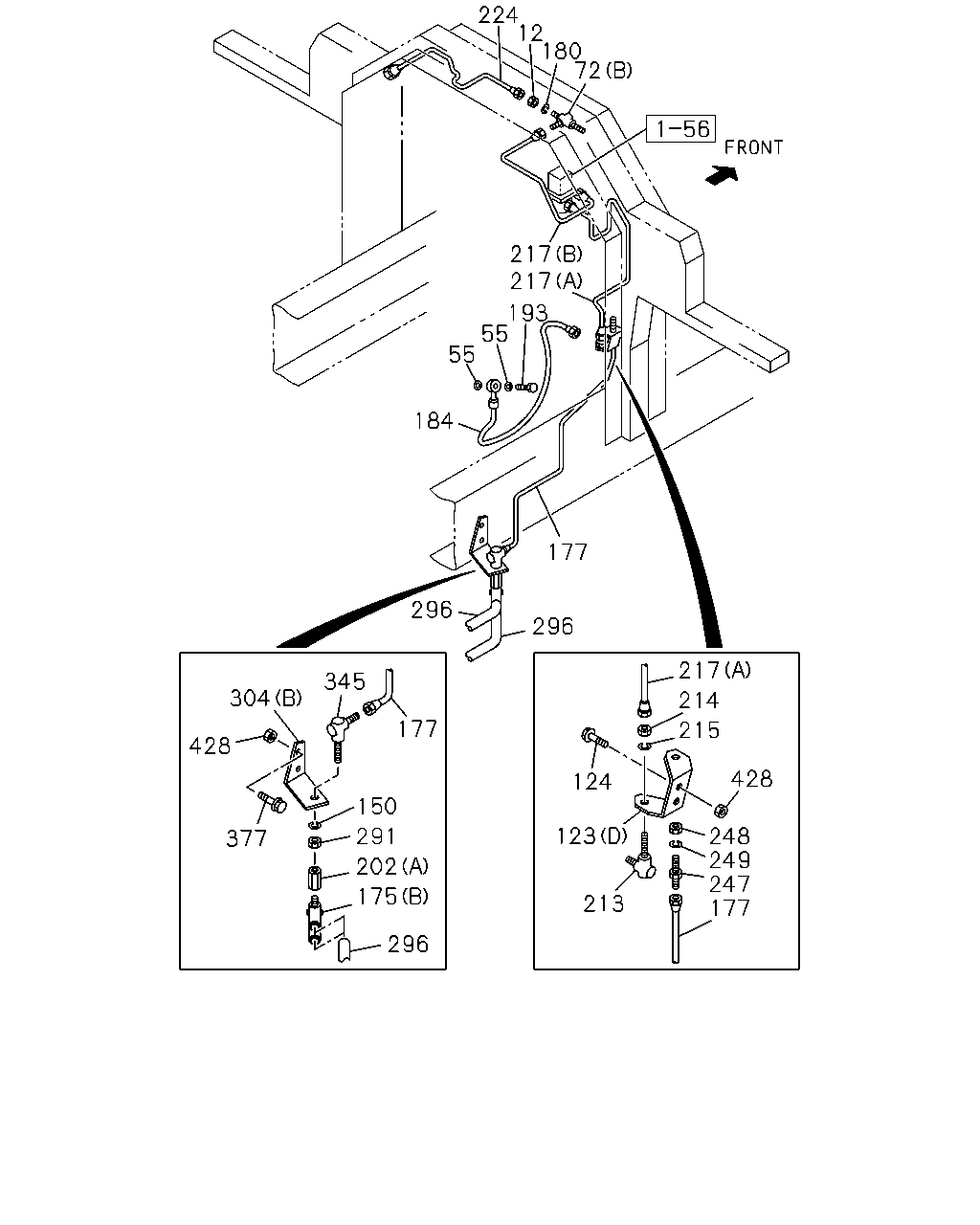

224 12 180 72 217 217 193 55 55 184 177 296 296 217 345 304 214 177 215 428 428 124 150 123 248 249 247 177 291 377 202 175 213 296

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	NUT; UNION M12	9-09840-280-0	01	1	0105-
12	NUT; UNION M20	9-99111-420-0	01	1	0105-0512
12	NUT; UNION M20	0-91111-520-0	01	1	0601-
55	GASKET; AIR PIPE ID=14.2 OD=19.2	1-09630-085-0	02	1	0105-
72	UNION; AIR PIPE (A)	1-09654-097-1	01	1	0105-
72	UNION; AIR PIPE (B) M12 3WAY	9-09228-906-1	01	1	0105-0607
72	UNION; AIR PIPE (B) M12 3WAY	0-92138-906-0	01	1	0608-
123	BRACKET; UNION (E)	1-53458-742-2	01	1	0111-
123	BRACKET; UNION (D)	1-47477-045-0	01	1	0105-
123	BRACKET; UNION (C)	1-47477-654-1	01	1	0105-
123	BRACKET; UNION MAG6 M/T<X9T> (A)	1-47477-188-1	01	1	0105-
123	BRACKET; UNION MAL5 M/T<X9F> (B)	1-47477-189-0	01	1	0105-
124	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	0105-0512
124	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0601-
124	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	02	1	0105-0512
124	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	0601-
150	WASHER; LK,UNION ID=12.2	9-09150-512-0	01	1	0105-0603
150	WASHER; LK,UNION ID=12.2	9-09150-512-0	01	1	0105-0603
150	WASHER; LK,UNION ID=12.2	0-91510-512-0	01	1	0604-
150	WASHER; LK,UNION ID=12.2	0-91510-512-0	01	1	0604-
175	CONNECTOR; AIR PIPE (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0105-
175	CONNECTOR; AIR PIPE (B) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	0105-
177	PIPE; AIR,UNION TO UNION L=548	1-49122-243-0	01	1	0105-
180	WASHER; LK,UNION ID=12.2	9-09150-512-0	01	1	0105-0603
180	WASHER; LK,UNION ID=12.2	0-91510-512-0	01	1	0604-
180	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	0105-0603
180	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	0604-
184	HOSE; FLEX,AIR GOV L=370	0-07532-370-1	01	1	0105-0605
184	HOSE; FLEX,AIR GOV L=370	0-57532-370-1	01	1	0606-
193	BOLT; EYE,FLEX HOSE,GOV LINE M14X27 FLANGE	1-09675-086-0	01	1	0105-
202	ADAPTER (B) M12 & RC1/4 STRAIGHT	1-09660-885-0	02	1	0111-0305
202	ADAPTER (B) M12 & RC1/4 STRAIGHT	1-09660-885-0	01	1	0306-
202	ADAPTER (A)	1-09660-879-0	01	1	0105-
213	UNION; AIR PIPE M12 ELBOW	9-09225-206-1	01	1	0105-0607
213	UNION; AIR PIPE M12 ELBOW	0-92125-206-0	01	1	0608-
214	NUT; UNION,AIR PIPE M12	9-09840-280-0	01	1	0105-
215	WASHER; LK,UNION,AIR PIPE ID=12.2	9-09150-512-0	01	1	0105-0603
215	WASHER; LK,UNION,AIR PIPE ID=12.2	0-91510-512-0	01	1	0604-
217	PIPE; VAC,UNION TO MAG VLV (A) L=620	1-49121-778-0	01	1	0105-
217	PIPE; VAC,UNION TO MAG VLV (B) L=552	1-49121-876-0	01	1	0105-
224	PIPE; AIR,UNION TO FLEX HOSE L=494 SERVICED BY L=500	1-47428-807-0	01	1	0105-
247	UNION; AIR PIPE M12	1-09654-087-1	01	1	0105-
248	NUT; PIPE UNION M12	9-09840-280-0	01	1	0105-
249	WASHER; LK,PIPE UNION ID=12.2	9-09150-512-0	01	1	0105-0603
249	WASHER; LK,PIPE UNION ID=12.2	0-91510-512-0	01	1	0604-
291	NUT; UNION M12	9-09840-280-0	01	1	0105-
296	TUBE; NYLON L=1200 OD=6	1-09366-256-1	AR	1	0105-
296	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0105-
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	0105-
296	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87410-081-0	AR	1	0105-0512
296	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	0601-
304	BRACKET; UNION (B)	1-47476-556-0	01	1	0105-
304	BRACKET; UNION (C)	1-47477-182-1	01	1	0105-
304	BRACKET; UNION SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-71117-210-0	01	1	0105-
345	UNION; AIR PIPE M12 ELBOW	9-09225-206-1	01	1	0105-0607
345	UNION; AIR PIPE M12 ELBOW	0-92125-206-0	01	1	0608-
377	BOLT; BRKT FIX M8X35 FLANGE	0-28680-835-0	02	1	0105-0512
377	BOLT; BRKT FIX M8X35 FLANGE	0-28650-835-0	02	1	0601-
428	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0105-0602
428	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0105-0602
428	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-
428	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-

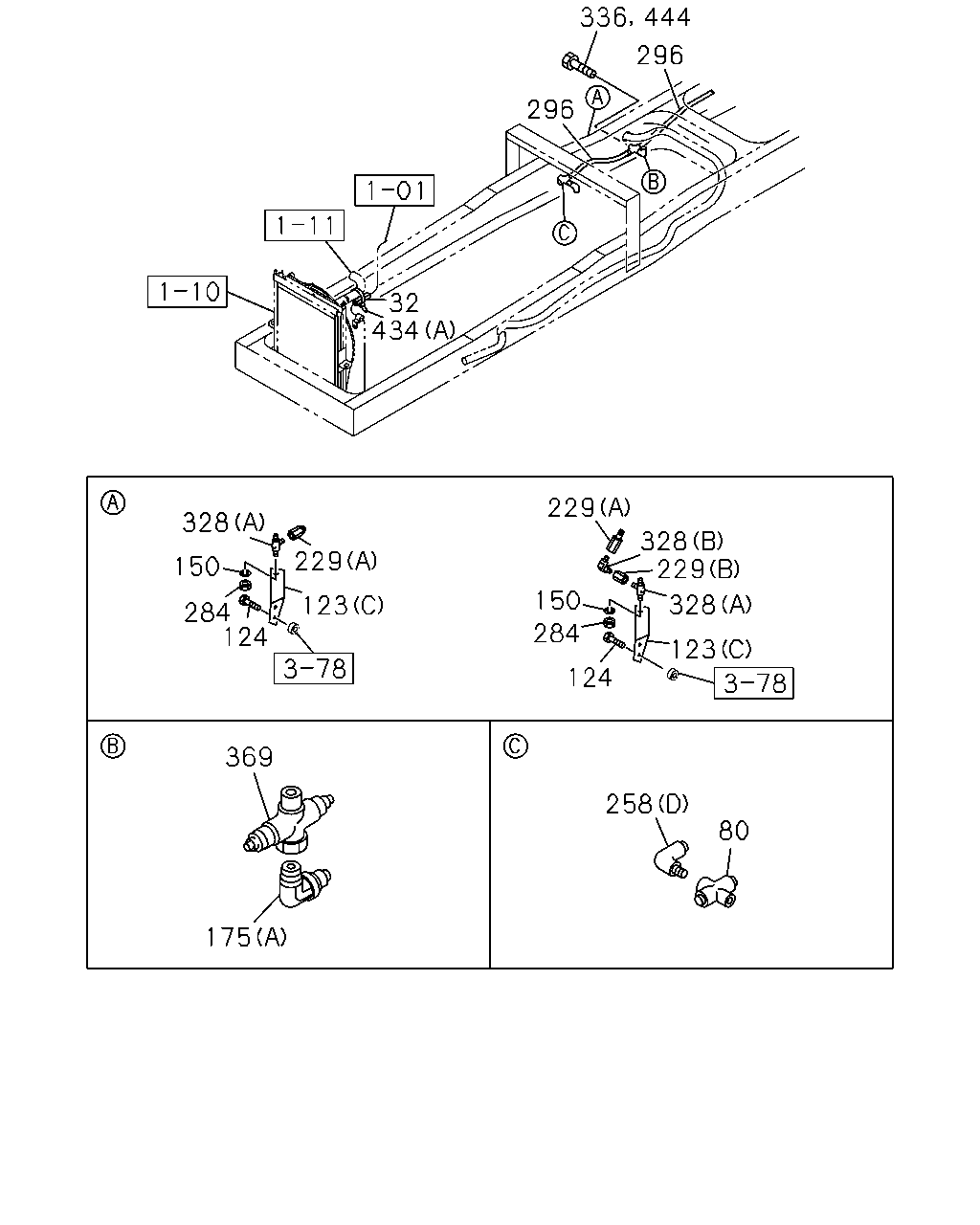

296 296 32 434 229 328 328 229 229 150 150 328 284 123 124 284 123 124 369 258 80 175 336 444

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
32	SLEEVE; RUBBER,AIR PIPE ID=6 OD=10 L=70	1-09376-512-0	01	1	0105-0105
32	SLEEVE; RUBBER,AIR PIPE ID=12.5 OD=15.5 L=30	9-09714-002-0	02	1	0105-0105
80	UNION; 3 WAY TRANSMISSION SIDE PTO WO/LEVER(SH5) DIN8 & DIN12 & R3/8 3WAY	1-09661-130-0	01	1	0105-
80	UNION; 3 WAY SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DIN8 & DIN12 & R3/8 3WAY	1-09661-130-0	01	1	0105-
80	UNION; 3 WAY EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DIN8 & DIN12 & R3/8 3WAY	1-09661-130-0	01	1	0105-
123	BRACKET; UNION (E)	1-53458-742-2	01	1	0111-
123	BRACKET; UNION (D)	1-47477-045-0	01	1	0105-
123	BRACKET; UNION (C)	1-47477-654-1	01	1	0105-
123	BRACKET; UNION MAG6 M/T<X9T> (A)	1-47477-188-1	01	1	0105-
123	BRACKET; UNION MAL5 M/T<X9F> (B)	1-47477-189-0	01	1	0105-
124	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	0105-0512
124	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0601-
124	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	02	1	0105-0512
124	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	0601-
150	WASHER; LK,UNION ID=12.2	9-09150-512-0	01	1	0105-0603
150	WASHER; LK,UNION ID=12.2	9-09150-512-0	01	1	0105-0603
150	WASHER; LK,UNION ID=12.2	0-91510-512-0	01	1	0604-
150	WASHER; LK,UNION ID=12.2	0-91510-512-0	01	1	0604-
175	CONNECTOR; AIR PIPE (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0105-
175	CONNECTOR; AIR PIPE (B) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	0105-
229	ADAPTER; NYLON TUBE (A) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0105-
229	ADAPTER; NYLON TUBE EXC. AIR DRYER<PS7> (B) M12 & RC1/4 STRAIGHT	1-09660-885-0	01	1	0105-
258	CONNECTOR; NYLON TUBE (C) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0105-
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) DIN8 R1/8 ELBOW	1-09660-644-1	01	1	0105-0302
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) TRI LC6X4-R1/8	1-09660-760-1	01	1	0303-
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (E) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0105-
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	0105-
258	CONNECTOR; NYLON TUBE TRANSMISSION SIDE PTO WO/LEVER(SH5) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0105-
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0105-
284	NUT; UNION M12	9-99111-412-0	01	1	0105-0512
284	NUT; UNION M12	0-91111-512-0	01	1	0601-
296	TUBE; NYLON L=1200 OD=6	1-09366-256-1	AR	1	0105-
296	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0105-
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	0105-
296	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87410-081-0	AR	1	0105-0512
296	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	0601-
328	UNION; AIR PIPE (A) M12 2WAY	1-09654-059-2	01	1	0105-
328	UNION; AIR PIPE EXC. AIR DRYER<PS7> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0105-
336	BOLT; PIPE UNION M8X20 FLANGE	0-28680-820-0	01	1	0105-0512
336	BOLT; PIPE UNION M8X20 FLANGE	0-28650-820-0	01	1	0601-
369	UNION; AIR PIPE DIN12X2 & R3/8 3WAY	1-09661-131-0	01	1	0105-
434	CLIP (A) L=300	1-09707-001-1	01	1	0105-0504
434	CLIP (A) L=350	1-09707-183-0	01	1	0505-
434	CLIP (B) ID=10 & 10	1-09709-221-0	01	1	0105-
434	CLIP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=8.3 & 8.3	8-94426-175-0	03	1	0105-
444	BOLT; UNION M8X25 FLANGE	0-28680-825-0	01	1	0105-0512
444	BOLT; UNION M8X25 FLANGE	0-28650-825-0	01	1	0601-

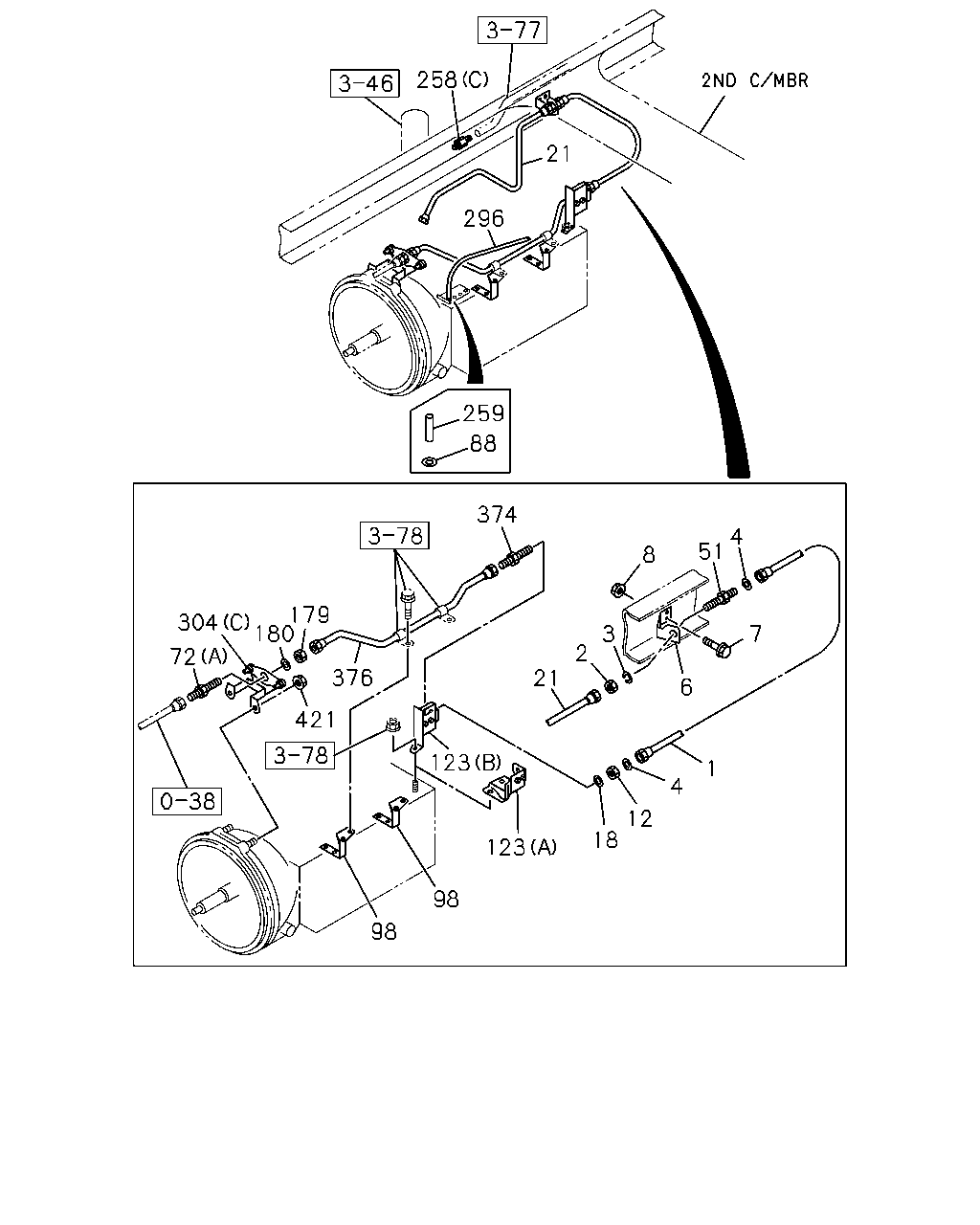

258 21 296 259 88 374 4 51 8 179 304 180 3 7 2 72 376 21 6 421 123 1 4 12 18 12 98 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,AIR TANK MAL5 M/T<X9F> L=580	0-07846-580-1	01	1	0105-0605
1	HOSE; FLEX,AIR TANK MAL5 M/T<X9F> L=580	0-57846-580-1	01	1	0606-
1	HOSE; FLEX,AIR TANK EXC. MAL5 M/T<X9F> L=530	0-07846-530-1	01	1	0105-0605
1	HOSE; FLEX,AIR TANK EXC. MAL5 M/T<X9F> L=530	0-57846-530-1	01	1	0606-
2	NUT; FLEX HOSE,AIR TANK M20	9-99111-420-0	01	1	0105-0512
2	NUT; FLEX HOSE,AIR TANK M20	0-91111-520-0	01	1	0601-
3	WASHER; LK,FLEX HOSE,AIR TANK ID=20.2	9-09150-520-0	01	1	0105-0603
3	WASHER; LK,FLEX HOSE,AIR TANK ID=20.2	0-91510-520-0	01	1	0604-
4	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	01	1	0105-
4	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	02	1	0105-
6	BRACKET; FLEX HOSE,AIR TANK	1-47477-232-0	01	1	0105-
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X30 FLANGE	0-28680-830-0	02	1	0105-0512
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X30 FLANGE	0-28650-830-0	02	1	0601-
8	NUT; BRKT,FLEX HOSE,AIR TANK M8 FLANGE	0-91150-108-0	02	1	0105-0602
8	NUT; BRKT,FLEX HOSE,AIR TANK M8 FLANGE	0-91180-108-0	02	1	0603-
12	NUT; UNION M12	9-09840-280-0	01	1	0105-
12	NUT; UNION M20	9-99111-420-0	01	1	0105-0512
12	NUT; UNION M20	0-91111-520-0	01	1	0601-
18	WASHER; LK,UNION ID=20.2	9-09150-520-0	01	1	0105-0603
18	WASHER; LK,UNION ID=20.2	0-91510-520-0	01	1	0604-
21	PIPE; AIR,UNION TO AIR DRYER	1-49116-141-0	01	1	0105-
51	UNION M20 & M22 STRAIGHT	1-09654-166-1	01	1	0105-
72	UNION; AIR PIPE (A)	1-09654-097-1	01	1	0105-
72	UNION; AIR PIPE (B) M12 3WAY	9-09228-906-1	01	1	0105-0607
72	UNION; AIR PIPE (B) M12 3WAY	0-92138-906-0	01	1	0608-
88	GASKET; NYLON TUBE ASSISTOR SHIFT CONTROL<WX8> ID=11 OD=18	9-09572-510-0	01	1	0105-
98	BRACKET; AIR PIPE	1-47477-840-0	02	1	0105-
123	BRACKET; UNION (E)	1-53458-742-2	01	1	0111-
123	BRACKET; UNION (D)	1-47477-045-0	01	1	0105-
123	BRACKET; UNION (C)	1-47477-654-1	01	1	0105-
123	BRACKET; UNION MAG6 M/T<X9T> (A)	1-47477-188-1	01	1	0105-
123	BRACKET; UNION MAL5 M/T<X9F> (B)	1-47477-189-0	01	1	0105-
179	NUT; UNION M22	9-09111-422-0	01	1	0105-0512
179	NUT; UNION M22	0-91111-522-0	01	1	0601-
180	WASHER; LK,UNION ID=12.2	9-09150-512-0	01	1	0105-0603
180	WASHER; LK,UNION ID=12.2	0-91510-512-0	01	1	0604-
180	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	0105-0603
180	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	0604-
258	CONNECTOR; NYLON TUBE (C) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0105-
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) DIN8 R1/8 ELBOW	1-09660-644-1	01	1	0105-0302
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) TRI LC6X4-R1/8	1-09660-760-1	01	1	0303-
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (E) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0105-
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	0105-
258	CONNECTOR; NYLON TUBE TRANSMISSION SIDE PTO WO/LEVER(SH5) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0105-
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0105-
259	SLEEVE; RUBBER,NYLON TUBE ID=23 OD=27 L=40	1-09337-015-0	02	1	0105-0108
259	SLEEVE; RUBBER,NYLON TUBE L=175	1-09707-178-0	01	1	0109-
296	TUBE; NYLON L=1200 OD=6	1-09366-256-1	AR	1	0105-
296	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0105-
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	0105-
296	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87410-081-0	AR	1	0105-0512
296	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	0601-
304	BRACKET; UNION (B)	1-47476-556-0	01	1	0105-
304	BRACKET; UNION (C)	1-47477-182-1	01	1	0105-
304	BRACKET; UNION SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-71117-210-0	01	1	0105-
374	CONNECTOR M20 & M22 STRAIGHT	1-09654-166-1	01	1	0105-
376	PIPE; AIR,FLEX HOSE MAG6 M/T<X9T> L=643	1-49112-568-0	01	1	0105-
376	PIPE; AIR,FLEX HOSE MAL5 M/T<X9F> L=476	1-49112-572-0	01	1	0105-
421	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	0105-0602
421	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0603-

367 296 296 296 367 367 296 296

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
296	TUBE; NYLON L=1200 OD=6	1-09366-256-1	AR	1	0105-
296	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0105-
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	0105-
296	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87410-081-0	AR	1	0105-0512
296	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	0601-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=7	1-87410-085-0	AR	1	0105-0512
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=7	1-87411-016-0	AR	1	0601-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	AR	1	0105-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87410-096-0	AR	1	0105-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87410-098-0	AR	1	0105-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87410-100-0	AR	1	0105-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87410-104-0	AR	1	0105-

221 221 123 202 148 120

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
120	CONNECTOR; AIR PIPE DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0105-0110
123	BRACKET; UNION (E)	1-53458-742-2	01	1	0111-
123	BRACKET; UNION (D)	1-47477-045-0	01	1	0105-
123	BRACKET; UNION (C)	1-47477-654-1	01	1	0105-
123	BRACKET; UNION MAG6 M/T<X9T> (A)	1-47477-188-1	01	1	0105-
123	BRACKET; UNION MAL5 M/T<X9F> (B)	1-47477-189-0	01	1	0105-
148	CONNECTOR; UNION DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0111-
202	ADAPTER (B) M12 & RC1/4 STRAIGHT	1-09660-885-0	02	1	0111-0305
202	ADAPTER (B) M12 & RC1/4 STRAIGHT	1-09660-885-0	01	1	0306-
202	ADAPTER (A)	1-09660-879-0	01	1	0105-
221	BOLT; BRKT (C) M10X35 FLANGE	0-28681-035-0	02	1	0111-0512
221	BOLT; BRKT (C) M10X35 FLANGE	0-28651-035-0	02	1	0601-
221	BOLT; BRKT EXC. AIR DRYER<PS7> (A) M8X35 FLANGE	0-28680-835-0	01	1	0105-0512
221	BOLT; BRKT EXC. AIR DRYER<PS7> (A) M8X35 FLANGE	0-28650-835-0	01	1	0601-
221	BOLT; BRKT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0105-

163 33 221 258 35 296 17 33 259 16 88 8 374 237 7 25 27 26 179 304 180 6 72 376 421 1 123 4 12 18 123 98 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,AIR TANK MAL5 M/T<X9F> L=580	0-07846-580-1	01	1	0105-0605
1	HOSE; FLEX,AIR TANK MAL5 M/T<X9F> L=580	0-57846-580-1	01	1	0606-
1	HOSE; FLEX,AIR TANK EXC. MAL5 M/T<X9F> L=530	0-07846-530-1	01	1	0105-0605
1	HOSE; FLEX,AIR TANK EXC. MAL5 M/T<X9F> L=530	0-57846-530-1	01	1	0606-
4	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	01	1	0105-
4	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	02	1	0105-
6	BRACKET; FLEX HOSE,AIR TANK	1-47477-232-0	01	1	0105-
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X30 FLANGE	0-28680-830-0	02	1	0105-0512
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X30 FLANGE	0-28650-830-0	02	1	0601-
8	NUT; BRKT,FLEX HOSE,AIR TANK M8 FLANGE	0-91150-108-0	02	1	0105-0602
8	NUT; BRKT,FLEX HOSE,AIR TANK M8 FLANGE	0-91180-108-0	02	1	0603-
12	NUT; UNION M12	9-09840-280-0	01	1	0105-
12	NUT; UNION M20	9-99111-420-0	01	1	0105-0512
12	NUT; UNION M20	0-91111-520-0	01	1	0601-
16	UNION; AIR PIPE EXC. AIR DRYER<PS7> M22	9-09233-315-1	01	1	0105-0607
16	UNION; AIR PIPE EXC. AIR DRYER<PS7> M22	0-92123-315-0	01	1	0608-
17	NUT; UNION EXC. AIR DRYER<PS7> M22	9-09111-422-0	01	1	0105-0512
17	NUT; UNION EXC. AIR DRYER<PS7> M22	0-91111-522-0	01	1	0601-
18	WASHER; LK,UNION ID=20.2	9-09150-520-0	01	1	0105-0603
18	WASHER; LK,UNION ID=20.2	0-91510-520-0	01	1	0604-
25	VALVE; CHECK EXC. AIR DRYER<PS7>	1-48410-138-2	01	1	0105-
26	NUT; CHECK VLV EXC. AIR DRYER<PS7> M20	9-99111-420-0	01	1	0105-0512
26	NUT; CHECK VLV EXC. AIR DRYER<PS7> M20	0-91111-520-0	01	1	0601-
27	WASHER; LK,CHECK VLV EXC. AIR DRYER<PS7> ID=20.2	9-09150-520-0	01	1	0105-0603
27	WASHER; LK,CHECK VLV EXC. AIR DRYER<PS7> ID=20.2	0-91510-520-0	01	1	0604-
33	PIPE; AIR,UNION TO AIR TANK EXC. AIR DRYER<PS7>	1-49122-444-0	01	1	0105-0204
33	PIPE; AIR,UNION TO AIR TANK EXC. AIR DRYER<PS7>	1-49123-435-0	01	1	0205-
35	NUT; BRKT EXC. AIR DRYER<PS7> M8 FLANGE	0-91150-108-0	01	1	0105-0602
35	NUT; BRKT EXC. AIR DRYER<PS7> M8 FLANGE	0-91180-108-0	01	1	0603-
72	UNION; AIR PIPE (A)	1-09654-097-1	01	1	0105-
72	UNION; AIR PIPE (B) M12 3WAY	9-09228-906-1	01	1	0105-0607
72	UNION; AIR PIPE (B) M12 3WAY	0-92138-906-0	01	1	0608-
88	GASKET; NYLON TUBE ASSISTOR SHIFT CONTROL<WX8> ID=11 OD=18	9-09572-510-0	01	1	0105-
98	BRACKET; AIR PIPE	1-47477-840-0	02	1	0105-
123	BRACKET; UNION (E)	1-53458-742-2	01	1	0111-
123	BRACKET; UNION (D)	1-47477-045-0	01	1	0105-
123	BRACKET; UNION (C)	1-47477-654-1	01	1	0105-
123	BRACKET; UNION MAG6 M/T<X9T> (A)	1-47477-188-1	01	1	0105-
123	BRACKET; UNION MAL5 M/T<X9F> (B)	1-47477-189-0	01	1	0105-
163	BRACKET; AIR PIPE EXC. AIR DRYER<PS7> L=55	1-47475-304-0	01	1	0105-
179	NUT; UNION M22	9-09111-422-0	01	1	0105-0512
179	NUT; UNION M22	0-91111-522-0	01	1	0601-
180	WASHER; LK,UNION ID=12.2	9-09150-512-0	01	1	0105-0603
180	WASHER; LK,UNION ID=12.2	0-91510-512-0	01	1	0604-
180	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	0105-0603
180	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	0604-
221	BOLT; BRKT (C) M10X35 FLANGE	0-28681-035-0	02	1	0111-0512
221	BOLT; BRKT (C) M10X35 FLANGE	0-28651-035-0	02	1	0601-
221	BOLT; BRKT EXC. AIR DRYER<PS7> (A) M8X35 FLANGE	0-28680-835-0	01	1	0105-0512
221	BOLT; BRKT EXC. AIR DRYER<PS7> (A) M8X35 FLANGE	0-28650-835-0	01	1	0601-
221	BOLT; BRKT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0105-
237	PIPE; AIR,FLEX HOSE TO UNION EXC. AIR DRYER<PS7> L=495	1-49117-170-0	01	1	0105-
258	CONNECTOR; NYLON TUBE (C) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0105-
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) DIN8 R1/8 ELBOW	1-09660-644-1	01	1	0105-0302
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) TRI LC6X4-R1/8	1-09660-760-1	01	1	0303-
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (E) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0105-
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	0105-
258	CONNECTOR; NYLON TUBE TRANSMISSION SIDE PTO WO/LEVER(SH5) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0105-
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0105-
259	SLEEVE; RUBBER,NYLON TUBE ID=23 OD=27 L=40	1-09337-015-0	02	1	0105-0108
259	SLEEVE; RUBBER,NYLON TUBE L=175	1-09707-178-0	01	1	0109-
296	TUBE; NYLON L=1200 OD=6	1-09366-256-1	AR	1	0105-
296	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0105-
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	0105-
296	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87410-081-0	AR	1	0105-0512
296	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	0601-
304	BRACKET; UNION (B)	1-47476-556-0	01	1	0105-
304	BRACKET; UNION (C)	1-47477-182-1	01	1	0105-
304	BRACKET; UNION SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-71117-210-0	01	1	0105-
374	CONNECTOR M20 & M22 STRAIGHT	1-09654-166-1	01	1	0105-
376	PIPE; AIR,FLEX HOSE MAG6 M/T<X9T> L=643	1-49112-568-0	01	1	0105-
376	PIPE; AIR,FLEX HOSE MAL5 M/T<X9F> L=476	1-49112-572-0	01	1	0105-
421	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	0105-0602
421	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0603-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
