Isuzu WW
▶
TRUCKS
▶
CVR
▶
10860 - CVR LHD
▶
3 - Brakes, Brake System
▶
3-55 - BRAKE PIPING; OIL,REAR
▶

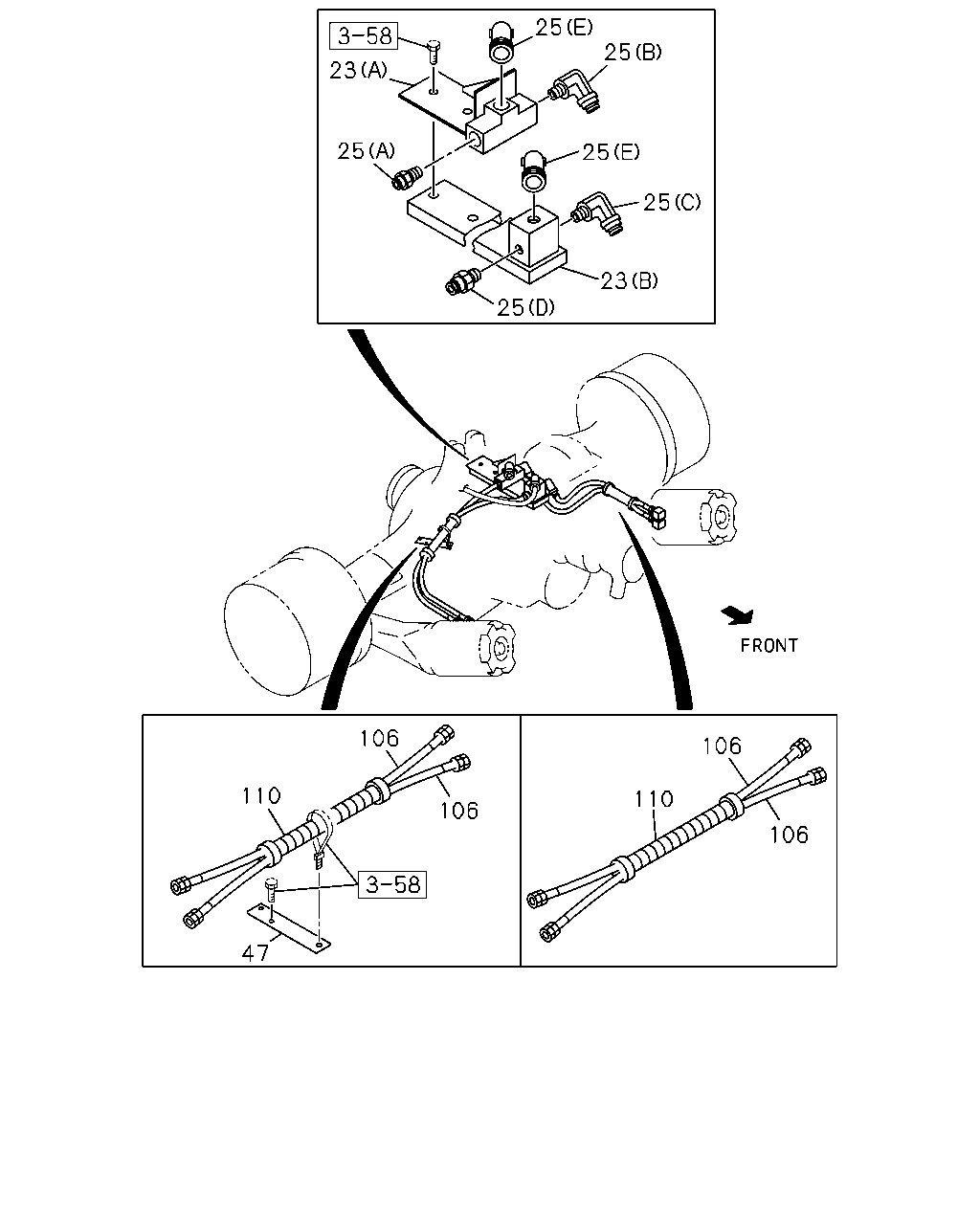

3-55 — BRAKE PIPING; OIL,REAR
(#8844) — 13 parça
25
25
23
25
25
25
23
25
106
106
110
110
106
106
47
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
23
NIPPLE; W/BRKT
(B)
1-47470-380-0
01
1
0105-
23
NIPPLE; W/BRKT
(A)
1-47475-537-1
01
1
0105-
25
CONNECTOR
(E) M27 & PT3/8 ELBOW
1-09660-136-1
02
1
0105-
25
CONNECTOR
(B) DIN8 & R3/8 ELBOW
1-09660-957-0
01
1
0105-
25
CONNECTOR
(C) DIN12 & R3/8 ELBOW
1-09660-959-0
01
1
0105-
25
CONNECTOR
(A) DIN8 & R3/8 STRAIGHT
1-09660-964-0
01
1
0105-
25
CONNECTOR
(D) DIN12 & R3/8 STRAIGHT
1-09660-965-0
01
1
0105-
47
BRACKET
1-42119-065-0
01
1
0105-
106
TUBE; NYLON
SERVICED BY L=2000 OD=12
1-87410-069-0
AR
1
0105-
106
TUBE; NYLON
SERVICED BY L=2000 OD=12
1-87410-069-0
AR
1
0105-
106
TUBE; NYLON
SERVICED BY L=2000 OD=8
1-87410-073-0
AR
1
0105-
106
TUBE; NYLON
SERVICED BY L=2000 OD=8
1-87410-073-0
AR
1
0105-
110
TUBE; CORRUGATE
SERVICED BY L=2000 ID=19
1-87410-094-0
AR
1
0105-
