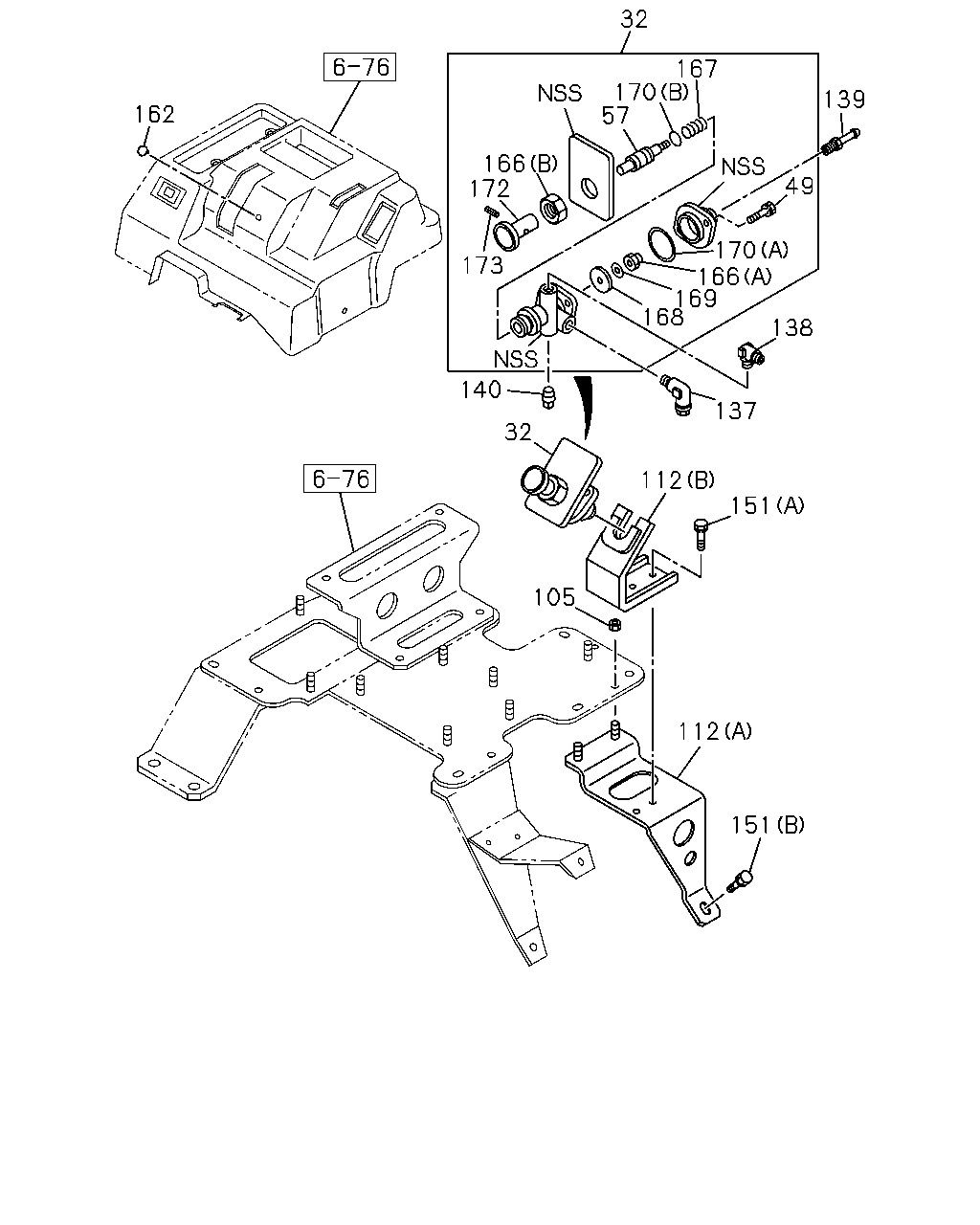

3-26 — TRAILER CONTROL
(#8838) — 27 parça
32
167
170
57
139
162
166
172
49
170
166
169
168
173
138
140
137
32
112
151
105
112
151
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
32
VALVE; BRK,HAND CONT
1-48460-198-0
01
1
0105-
49
SCREW; COVER
1-52139-005-0
02
1
0105-
57
PLUNGER; HAND BRK VLV
1-48469-097-0
01
1
0105-
105
NUT; BRKT
M8 FLANGE
0-91150-108-0
02
1
0105-0602
105
NUT; BRKT
M8 FLANGE
0-91180-108-0
02
1
0603-
105
NUT; BRKT
M8 FLANGE
0-91150-108-0
03
1
0105-0602
105
NUT; BRKT
M8 FLANGE
0-91180-108-0
03
1
0603-
112
BRACKET; CONT VLV
(B)
1-47475-260-2
01
1
0105-0408
112
BRACKET; CONT VLV
(A)
1-79996-113-2
01
1
0105-
137
CONNECTOR; SUPPLY
M16 & PT1/4 ELBOW
1-09650-434-0
01
1
0105-0607
137
CONNECTOR; SUPPLY
M16 & PT1/4 ELBOW
0-92134-310-0
01
1
0608-
138
CONNECTOR; DELIVERY
M14 & PT1/4 ELBOW
1-09650-432-0
01
1
0105-
139
CONNECTOR; EXH
L=45
8-94338-874-0
01
1
0105-
140
PLUG
PT1/4
9-99204-513-0
01
1
0105-
151
BOLT; VLV BRKT
(A) M6X16 W/LK WASHER
0-50040-616-0
02
1
0105-0211
151
BOLT; VLV BRKT
(A) M6X19.5 W/LK&PL WASHER
8-94279-201-0
02
1
0212-
151
BOLT; VLV BRKT
(B) M8X20.5 W/LK&PL WASHER
8-94279-207-0
01
1
0105-
162
SWITCH; PARKING BRK VLV
1-72447-390-0
01
1
0105-
166
NUT; PLUNGER
(A)
1-48129-069-0
01
1
0105-
166
NUT; PLUNGER
(B)
1-48469-101-0
01
1
0105-
167
SPRING; VALVE
1-48469-098-0
01
1
0105-
168
VALVE; INL
1-48469-099-0
01
1
0105-
169
WASHER; PL,VALVE
ID=6.4
9-09164-506-0
01
1
0105-
170
GASKET; VALVE
(A)
1-48469-100-0
01
1
0105-
170
GASKET; VALVE
(B)
9-19519-094-0
01
1
0105-
172
KNOB; VALVE
1-48469-102-0
01
1
0105-
173
PIN; SPR,KNOB
8-94124-044-0
01
1
0105-
