3-20 — AIR TANK (#8835) — 107 parça

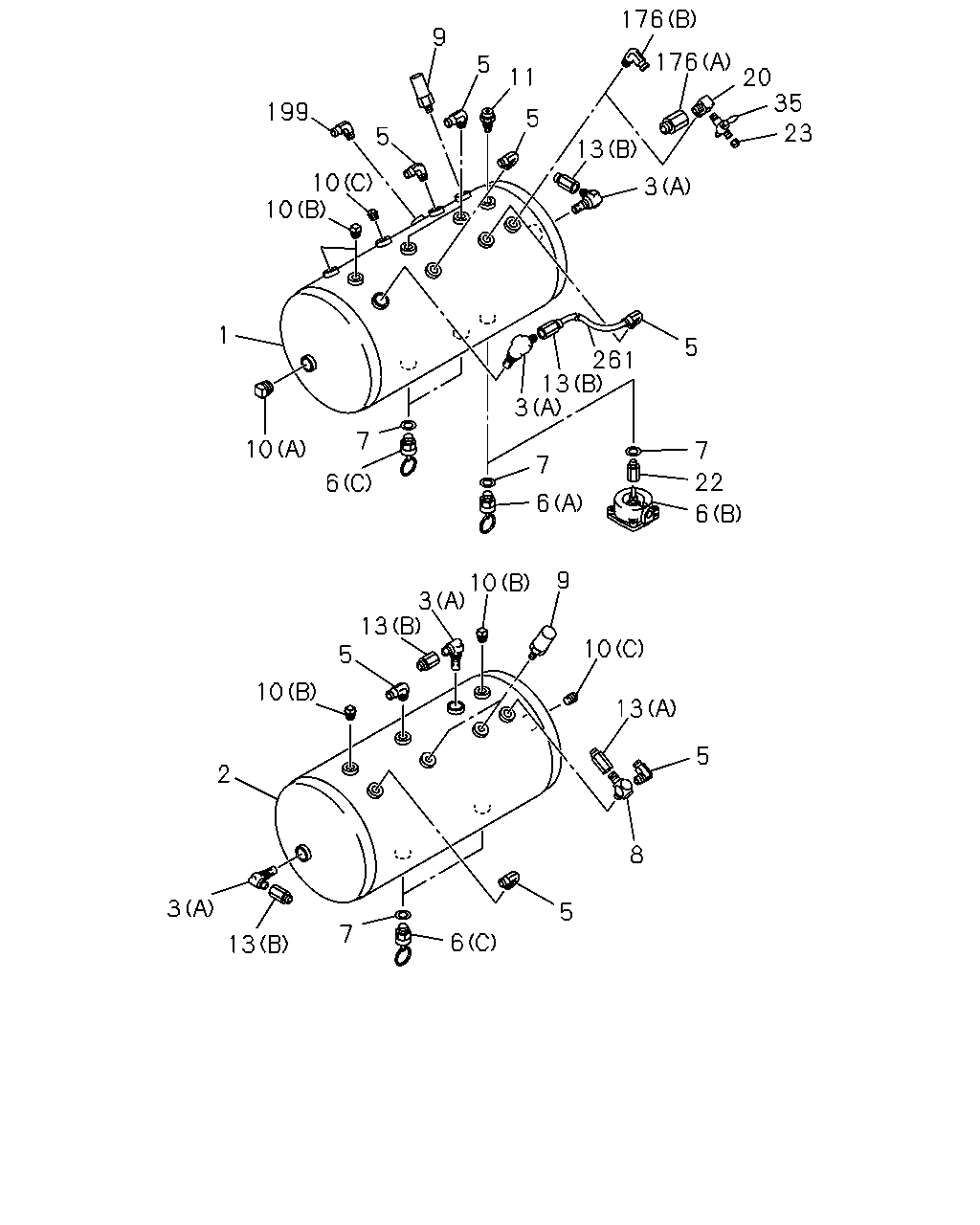

176 9 176 5 11 20 35 23 199 5 5 13 10 10 3 1 5 261 13 3 7 10 7 7 22 6 6 6 9 10 3 13 5 10 10 13 5 2 8 3 5 7 6 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR AIR DRYER<PS7> MAIN	1-48371-334-0	01	1	0312-
1	TANK ASM; AIR MAIN	1-48370-221-0	01	1	0105-0311
1	TANK ASM; AIR EXC. AIR DRYER<PS7> MAIN	1-48370-221-0	01	1	0312-
2	TANK; AIR SUB	1-48370-353-0	01	1	0105-
3	VALVE; CHECK,AIR TANK AIR DRYER<PS7> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) M20 & PT3/4 ELBOW	1-48410-412-0	03	1	0105-
3	VALVE; CHECK,AIR TANK EXC. AIR DRYER<PS7>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) M20 & PT3/4 ELBOW	1-48410-412-0	03	1	0105-
3	VALVE; CHECK,AIR TANK AIR DRYER<PS7> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (A) M20 & PT3/4 ELBOW	1-48410-412-0	04	1	0105-
3	VALVE; CHECK,AIR TANK CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B)	1-48410-182-3	01	1	0105-
3	VALVE; CHECK,AIR TANK CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. AIR DRYER<PS7> (A) M20 & PT3/4 ELBOW	1-48410-412-0	02	1	0105-
5	UNION; AIR TANK CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) DIN12 & R3/8 ELBOW	1-09660-959-0	05	1	0105-
5	UNION; AIR TANK EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) DIN12 & R3/8 ELBOW	1-09660-959-0	07	1	0105-
6	COCK; DRAIN,AIR TANK EXC. AIR DRYER<PS7> (C)	1-48312-015-0	04	1	0312-
6	COCK; DRAIN,AIR TANK (C)	1-48312-015-0	04	1	0105-0311
6	COCK; DRAIN,AIR TANK AIR DRYER<PS7> (C)	1-48312-015-0	03	1	0312-
6	COCK; DRAIN,AIR TANK AUTO DRAIN<J78> (B)	9-09904-177-0	01	1	0105-
6	COCK; DRAIN,AIR TANK EXC. AUTO DRAIN<J78> (A)	1-48312-015-0	01	1	0105-
7	GASKET; DRAIN COCK EXC. AIR DRYER<PS7> ID=14	1-09630-145-0	04	1	0312-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0105-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	04	1	0105-0311
7	GASKET; DRAIN COCK AIR DRYER<PS7> ID=14	1-09630-145-0	03	1	0312-
8	CONNECTOR; AIR TANK M16 PT3/8X2 3WAY	1-09656-556-1	01	1	0105-
9	SWITCH; LOW PRESSURE GAGE,AIR TANK 530KPA	1-48340-054-1	03	1	0105-
10	PLUG; AIR TANK (A) PT3/4	9-09204-526-0	01	1	0105-
10	PLUG; AIR TANK AIR DRYER<PS7> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (C) PT1/4	9-99204-513-0	01	1	0105-
10	PLUG; AIR TANK AIR DRYER<PS7> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (C) PT1/4	9-99204-513-0	02	1	0105-
10	PLUG; AIR TANK EXC. AIR DRYER<PS7> (C) PT1/4	9-99204-513-0	02	1	0105-
10	PLUG; AIR TANK CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) PT3/8	9-09204-517-0	01	1	0105-
10	PLUG; AIR TANK CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) PT3/8	9-09204-517-0	07	1	0105-
10	PLUG; AIR TANK EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B) PT3/8	9-09204-517-0	05	1	0105-
11	VALVE; SAFETY,AIR TANK	1-48320-012-1	01	1	0105-
13	ADAPTER; NYLON TUBE (A) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0105-
13	ADAPTER; NYLON TUBE AIR DRYER<PS7> (B) DIN12 & M20 STRAIGHT	1-09660-877-0	04	1	0105-
13	ADAPTER; NYLON TUBE EXC. AIR DRYER<PS7> (B) DIN12 & M20 STRAIGHT	1-09660-877-0	03	1	0105-
20	NIPPLE; AIR TANK TIRE INFLATOR DEVICE<W47> M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	01	1	0105-
22	ADAPTER; AUTO DRAIN VLV AUTO DRAIN<J78>	1-48319-031-0	01	1	0105-
23	CAP; COCK,AIR TANK TIRE INFLATOR DEVICE<W47>	9-48319-102-0	01	1	0105-
35	COCK; AIR,AIR TANK TIRE INFLATOR DEVICE<W47>	1-09680-099-0	01	1	0105-
176	ADAPTER TIRE INFLATOR DEVICE<W47> (A) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0105-
176	ADAPTER EXC. TIRE INFLATOR DEVICE<W47> (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0105-
199	CONNECTOR; AIR PIPE,AIR CHAMBER EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0105-
261	TUBE; NYLON EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	0105-

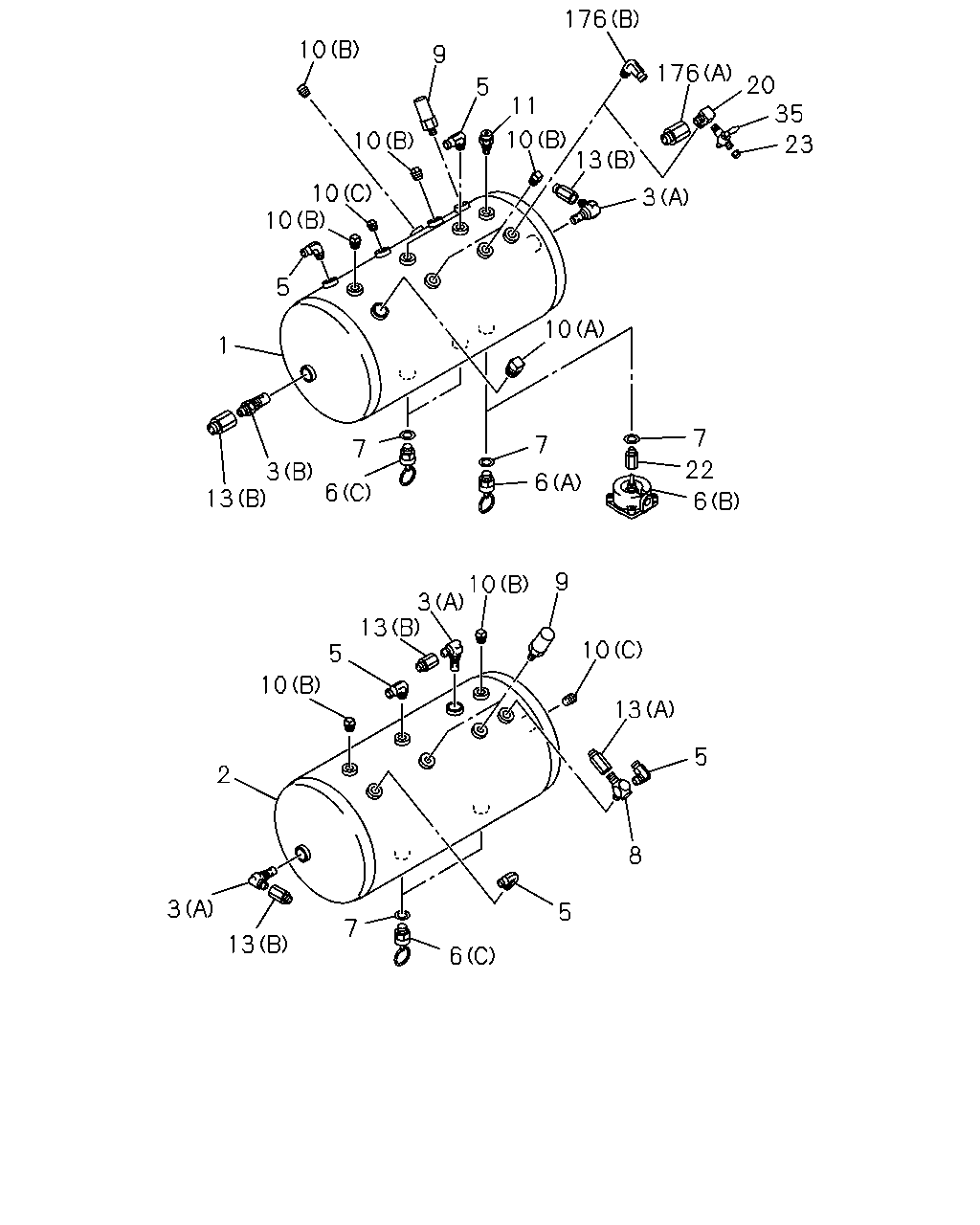

176 10 9 176 20 35 23 5 11 10 10 13 10 10 3 5 10 1 7 7 7 22 3 13 6 6 6 9 10 3 13 10 5 10 13 5 2 8 3 5 7 13 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR AIR DRYER<PS7> MAIN	1-48371-334-0	01	1	0312-
1	TANK ASM; AIR MAIN	1-48370-221-0	01	1	0105-0311
1	TANK ASM; AIR EXC. AIR DRYER<PS7> MAIN	1-48370-221-0	01	1	0312-
2	TANK; AIR SUB	1-48370-353-0	01	1	0105-
3	VALVE; CHECK,AIR TANK AIR DRYER<PS7> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) M20 & PT3/4 ELBOW	1-48410-412-0	03	1	0105-
3	VALVE; CHECK,AIR TANK EXC. AIR DRYER<PS7>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) M20 & PT3/4 ELBOW	1-48410-412-0	03	1	0105-
3	VALVE; CHECK,AIR TANK AIR DRYER<PS7> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (A) M20 & PT3/4 ELBOW	1-48410-412-0	04	1	0105-
3	VALVE; CHECK,AIR TANK CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B)	1-48410-182-3	01	1	0105-
3	VALVE; CHECK,AIR TANK CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. AIR DRYER<PS7> (A) M20 & PT3/4 ELBOW	1-48410-412-0	02	1	0105-
5	UNION; AIR TANK CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) DIN12 & R3/8 ELBOW	1-09660-959-0	05	1	0105-
5	UNION; AIR TANK EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) DIN12 & R3/8 ELBOW	1-09660-959-0	07	1	0105-
6	COCK; DRAIN,AIR TANK EXC. AIR DRYER<PS7> (C)	1-48312-015-0	04	1	0312-
6	COCK; DRAIN,AIR TANK (C)	1-48312-015-0	04	1	0105-0311
6	COCK; DRAIN,AIR TANK AIR DRYER<PS7> (C)	1-48312-015-0	03	1	0312-
6	COCK; DRAIN,AIR TANK AUTO DRAIN<J78> (B)	9-09904-177-0	01	1	0105-
6	COCK; DRAIN,AIR TANK EXC. AUTO DRAIN<J78> (A)	1-48312-015-0	01	1	0105-
7	GASKET; DRAIN COCK EXC. AIR DRYER<PS7> ID=14	1-09630-145-0	04	1	0312-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0105-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	04	1	0105-0311
7	GASKET; DRAIN COCK AIR DRYER<PS7> ID=14	1-09630-145-0	03	1	0312-
8	CONNECTOR; AIR TANK M16 PT3/8X2 3WAY	1-09656-556-1	01	1	0105-
9	SWITCH; LOW PRESSURE GAGE,AIR TANK 530KPA	1-48340-054-1	03	1	0105-
10	PLUG; AIR TANK (A) PT3/4	9-09204-526-0	01	1	0105-
10	PLUG; AIR TANK AIR DRYER<PS7> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (C) PT1/4	9-99204-513-0	01	1	0105-
10	PLUG; AIR TANK AIR DRYER<PS7> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (C) PT1/4	9-99204-513-0	02	1	0105-
10	PLUG; AIR TANK EXC. AIR DRYER<PS7> (C) PT1/4	9-99204-513-0	02	1	0105-
10	PLUG; AIR TANK CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) PT3/8	9-09204-517-0	01	1	0105-
10	PLUG; AIR TANK CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) PT3/8	9-09204-517-0	07	1	0105-
10	PLUG; AIR TANK EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B) PT3/8	9-09204-517-0	05	1	0105-
11	VALVE; SAFETY,AIR TANK	1-48320-012-1	01	1	0105-
13	ADAPTER; NYLON TUBE (A) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0105-
13	ADAPTER; NYLON TUBE AIR DRYER<PS7> (B) DIN12 & M20 STRAIGHT	1-09660-877-0	04	1	0105-
13	ADAPTER; NYLON TUBE EXC. AIR DRYER<PS7> (B) DIN12 & M20 STRAIGHT	1-09660-877-0	03	1	0105-
20	NIPPLE; AIR TANK TIRE INFLATOR DEVICE<W47> M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	01	1	0105-
22	ADAPTER; AUTO DRAIN VLV AUTO DRAIN<J78>	1-48319-031-0	01	1	0105-
23	CAP; COCK,AIR TANK TIRE INFLATOR DEVICE<W47>	9-48319-102-0	01	1	0105-
35	COCK; AIR,AIR TANK TIRE INFLATOR DEVICE<W47>	1-09680-099-0	01	1	0105-
176	ADAPTER TIRE INFLATOR DEVICE<W47> (A) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0105-
176	ADAPTER EXC. TIRE INFLATOR DEVICE<W47> (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0105-

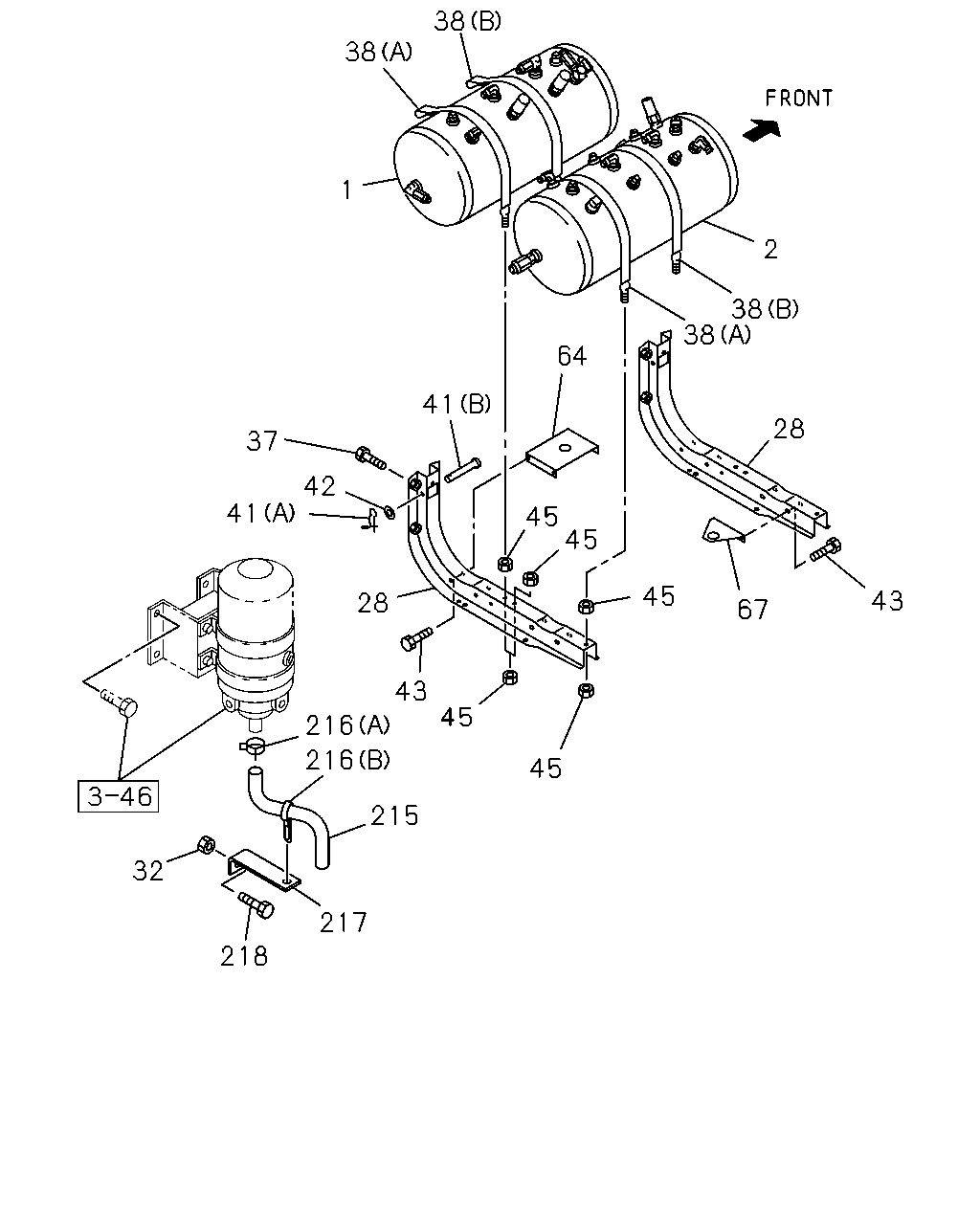

38 38 1 2 38 38 64 41 28 37 42 41 45 45 45 43 28 67 43 45 216 216 45 215 32 217 218

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR AIR DRYER<PS7> MAIN	1-48371-334-0	01	1	0312-
1	TANK ASM; AIR MAIN	1-48370-221-0	01	1	0105-0311
1	TANK ASM; AIR EXC. AIR DRYER<PS7> MAIN	1-48370-221-0	01	1	0312-
2	TANK; AIR SUB	1-48370-353-0	01	1	0105-
28	BRACKET; AIR TANK	1-48317-601-5	02	1	0105-
32	NUT; BRKT TO FRAME AIR DRYER<PS7> M8 FLANGE	0-91150-108-0	01	1	0105-0602
32	NUT; BRKT TO FRAME AIR DRYER<PS7> M8 FLANGE	0-91180-108-0	01	1	0603-
37	BOLT; AIR TANK M12X40 FLANGE	0-28681-240-0	08	1	0105-0512
37	BOLT; AIR TANK M12X40 FLANGE	0-28651-240-0	08	1	0601-
38	BAND; AIR TANK (A)	1-48317-108-2	02	1	0105-
38	BAND; AIR TANK (B)	1-48317-109-2	02	1	0105-
41	PIN; BAND FIX (A) L=32.6	1-09987-142-0	02	1	0105-
41	PIN; BAND FIX (B) OD=10 L=60	9-08224-060-0	02	1	0105-0606
41	PIN; BAND FIX (B) OD=10 L=60	0-82254-060-0	02	1	0607-
42	WASHER; PL ID=10.5	9-09164-510-0	02	1	0105-
43	BOLT; STAY,AIR TANK,MAIN M8X25 FLANGE	0-28680-825-0	06	1	0105-0512
43	BOLT; STAY,AIR TANK,MAIN M8X25 FLANGE	0-28650-825-0	06	1	0601-
45	NUT; AIR TANK,MAIN M8	9-09110-508-0	12	1	0105-0512
45	NUT; AIR TANK,MAIN M8	0-91110-508-0	12	1	0601-
64	STAY; AIR TANK,MAIN	1-48317-607-0	01	1	0105-
67	STAY; SUB TANK	1-48317-711-0	01	1	0105-
215	PIPE; VINYL AIR DRYER<PS7> L=500 SERVICED BY L=3000	0-03566-300-0	01	1	0105-
216	CLIP; PIPE,VINYL AIR DRYER<PS7> (A) ID=21	8-94242-034-0	01	1	0105-
216	CLIP; PIPE,VINYL AIR DRYER<PS7> (B) ID=25 L=55	9-09917-573-0	01	1	0105-
217	BRACKET; RUBBER HOSE AIR DRYER<PS7> L=95	1-82699-085-0	01	1	0105-
218	BOLT; BRKT AIR DRYER<PS7> M8X30 FLANGE	0-28680-830-0	01	1	0105-0512
218	BOLT; BRKT AIR DRYER<PS7> M8X30 FLANGE	0-28650-830-0	01	1	0601-
