Sayfa 2-37 - Isuzu EPC

2-37 — MANUAL TRANSMISSION CONT; MISSION SIDE (#8827) — 48 parça

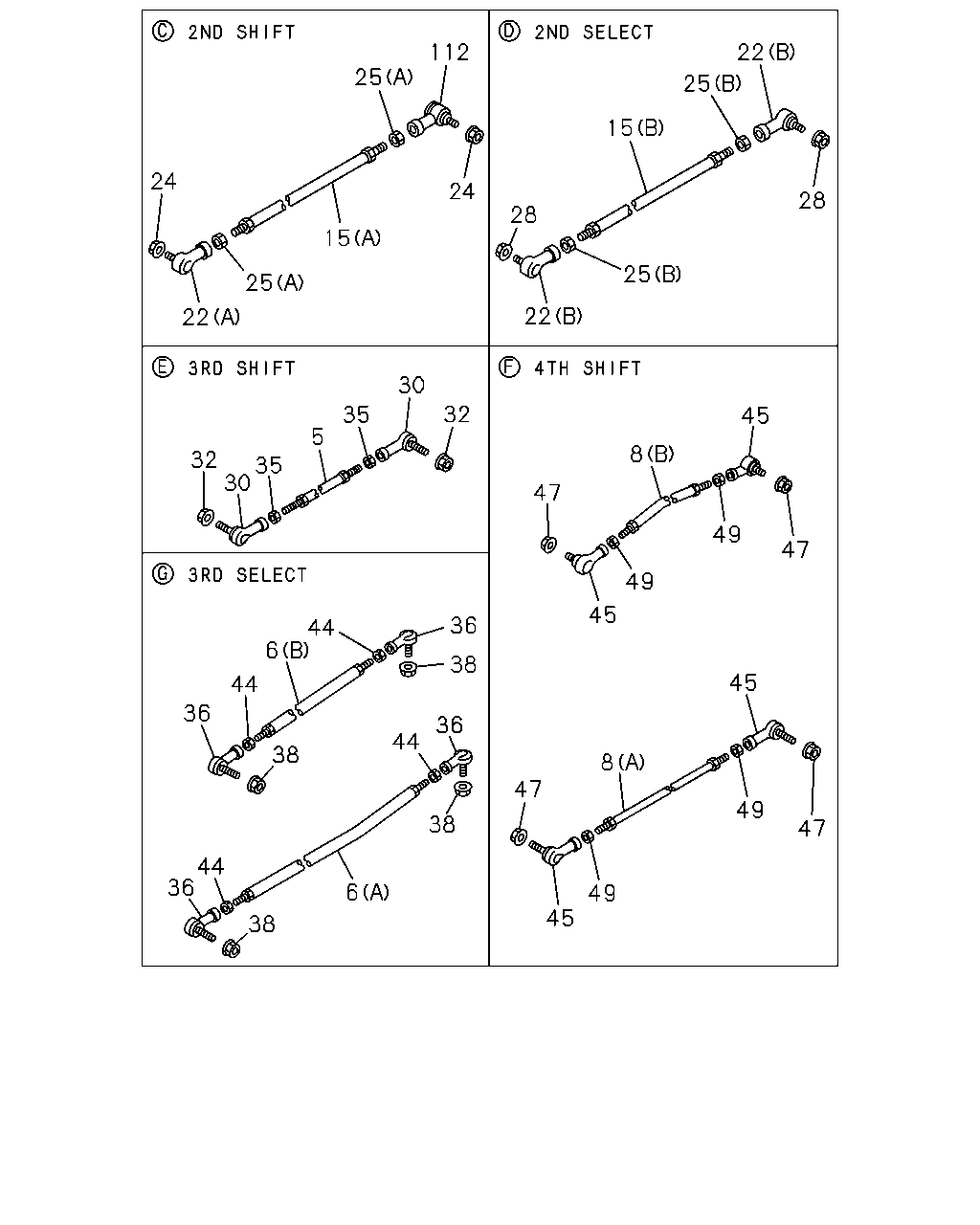

112 22 25 25 15 24 24 28 28 15 25 25 22 22 30 32 35 45 5 8 32 35 30 47 49 47 49 45 36 44 6 38 45 44 36 36 44 38 8 47 49 38 47 44 36 6 49 45 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	ROD; LINK,3RD SHIFT L=855	1-33652-321-0	01	1	0105-
6	ROD; LINK,3RD SELECT ASSISTOR SHIFT CONTROL<WX8> (A) L=1242	1-33652-950-0	01	1	0105-
6	ROD; LINK,3RD SELECT EXC. ASSISTOR SHIFT CONTROL<WX8> (B) L=1250	1-33652-978-0	01	1	0105-
8	ROD; LINK,4TH SHIFT ASSISTOR SHIFT CONTROL<WX8> (A) L=210	1-33652-878-0	01	1	0105-
8	ROD; LINK,4TH SHIFT EXC. ASSISTOR SHIFT CONTROL<WX8> (B) L=337	1-33652-767-1	01	1	0105-
15	ROD; LINK 1ST SHIFT (B) L=440	1-33652-672-0	01	1	0105-
15	ROD; LINK 1ST SHIFT (A) L=490	1-33652-700-0	01	1	0105-
15	ROD; LINK 1ST SHIFT (C) L=556	1-33652-744-0	01	1	0105-
22	JOINT; BALL,SCREW,LINK ROD (B)	1-09760-108-0	02	1	0105-
22	JOINT; BALL,SCREW,LINK ROD (A)	1-09760-125-0	01	1	0105-
24	NUT; 2ND LINK ROD,SHIFT M10 FLANGE	1-09440-061-0	02	1	0105-
25	NUT; LK,RIGHT SCREW,LINK ROD (B) M8	9-09111-408-0	02	1	0105-0512
25	NUT; LK,RIGHT SCREW,LINK ROD (B) M8	0-91111-508-0	02	1	0601-
25	NUT; LK,RIGHT SCREW,LINK ROD (A) M12	9-99111-412-0	02	1	0105-0512
25	NUT; LK,RIGHT SCREW,LINK ROD (A) M12	0-91111-512-0	02	1	0601-
28	NUT; 2ND LINK ROD M8 FLANGE	1-09440-062-1	02	1	0105-
30	JOINT; BALL,RIGHT SCREW,LINK ROD	1-09760-124-0	02	1	0105-
32	NUT; 3RD LINK ROD M10 FLANGE	1-09440-061-0	02	1	0105-
35	NUT; LK,RIGHT SCREW,LINK ROD M10	9-09111-410-0	02	1	0105-0512
35	NUT; LK,RIGHT SCREW,LINK ROD M10	0-91111-510-0	02	1	0601-
36	JOINT; BALL,RIGHT SCREW,LINK ROD	1-09760-124-0	02	1	0105-
38	NUT; 3RD LINK ROD M10 FLANGE	1-09440-061-0	02	1	0105-
44	NUT; LK,RIGHT SCREW,LINK ROD M10	9-09111-410-0	02	1	0105-0512
44	NUT; LK,RIGHT SCREW,LINK ROD M10	0-91111-510-0	02	1	0601-
45	JOINT; BALL,RIGHT SCREW,LINK ROD	1-09760-125-0	02	1	0105-
47	NUT; 4TH LINK ROD M10 FLANGE	1-09440-061-0	02	1	0105-
49	NUT; LK,RIGHT SCREW,LINK ROD M12	9-99111-412-0	02	1	0105-0512
49	NUT; LK,RIGHT SCREW,LINK ROD M12	0-91111-512-0	02	1	0601-
112	JOINT; RUBBER	1-33670-413-1	01	1	0105-
112	JOINT; RUBBER	1-33670-413-1	01	1	0105-

57 39 58 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
39	GASKET; FLEX HOSE ASSISTOR SHIFT CONTROL<WX8> ID=11 OD=18	9-09572-510-0	02	1	0105-
57	NIPPLE; POWER ASSISTOR ASSISTOR SHIFT CONTROL<WX8> M20 & PT1/4 ELBOW	1-09660-681-0	01	1	0105-
58	HOSE; FLEX,POWER ASSISTOR ASSISTOR SHIFT CONTROL<WX8> L=230	0-07150-230-0	01	1	0105-0605
58	HOSE; FLEX,POWER ASSISTOR ASSISTOR SHIFT CONTROL<WX8> L=230	0-57150-230-0	01	1	0606-

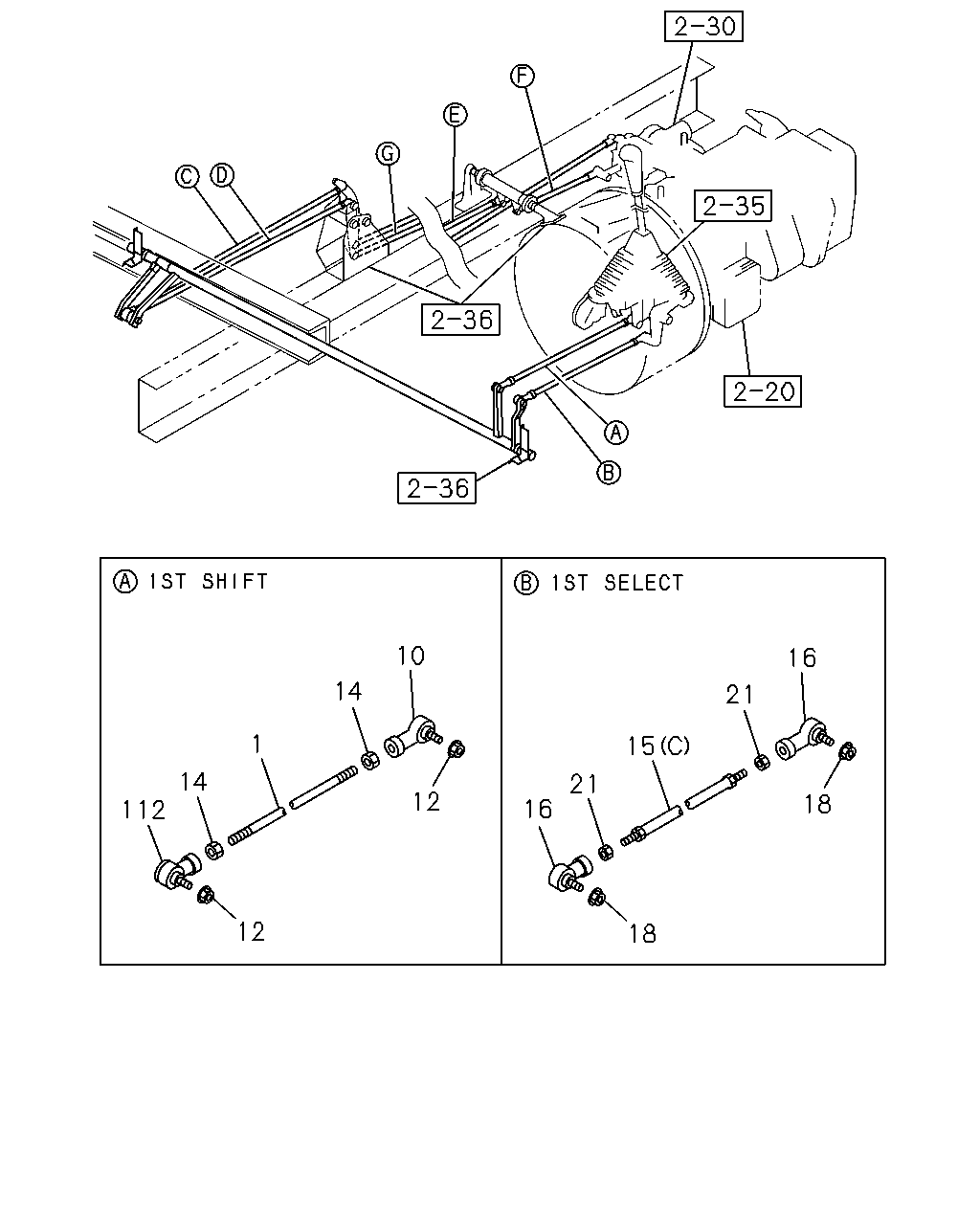

10 16 14 21 1 15 14 21 12 18 16 112 12 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	ROD; LINK,1ST SHIFT L=480	9-08401-248-0	01	1	0105-
10	JOINT ASM; BALL,SELECT ROD	1-09760-125-0	01	1	0105-
12	NUT; 1ST LINK ROD,SHIFT M10 FLANGE	1-09440-061-0	02	1	0105-
14	NUT; LK,RIGHT SCREW,LINK ROD M12	9-99111-412-0	02	1	0105-0512
14	NUT; LK,RIGHT SCREW,LINK ROD M12	0-91111-512-0	02	1	0601-
15	ROD; LINK 1ST SHIFT (B) L=440	1-33652-672-0	01	1	0105-
15	ROD; LINK 1ST SHIFT (A) L=490	1-33652-700-0	01	1	0105-
15	ROD; LINK 1ST SHIFT (C) L=556	1-33652-744-0	01	1	0105-
16	JOINT ASM; BALL,CONT ROD	1-09760-108-0	02	1	0105-
18	NUT; 1ST LINK ROD M8 FLANGE	1-09440-062-1	02	1	0105-
21	NUT; LK,RIGHT SCREW,LINK ROD M8	9-09111-408-0	02	1	0105-0512
21	NUT; LK,RIGHT SCREW,LINK ROD M8	0-91111-508-0	02	1	0601-
112	JOINT; RUBBER	1-33670-413-1	01	1	0105-
112	JOINT; RUBBER	1-33670-413-1	01	1	0105-
