Sayfa 2-30 - Isuzu EPC

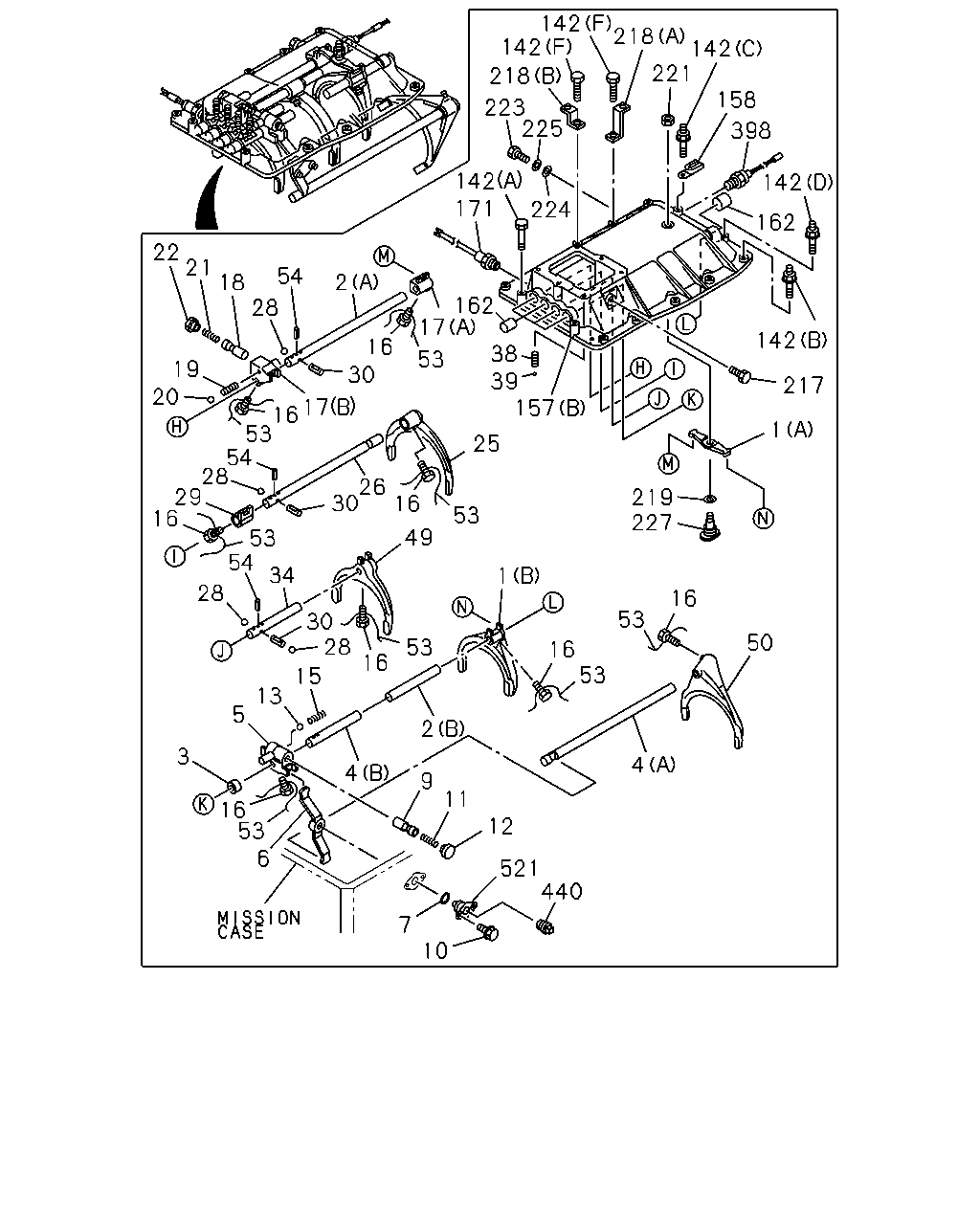

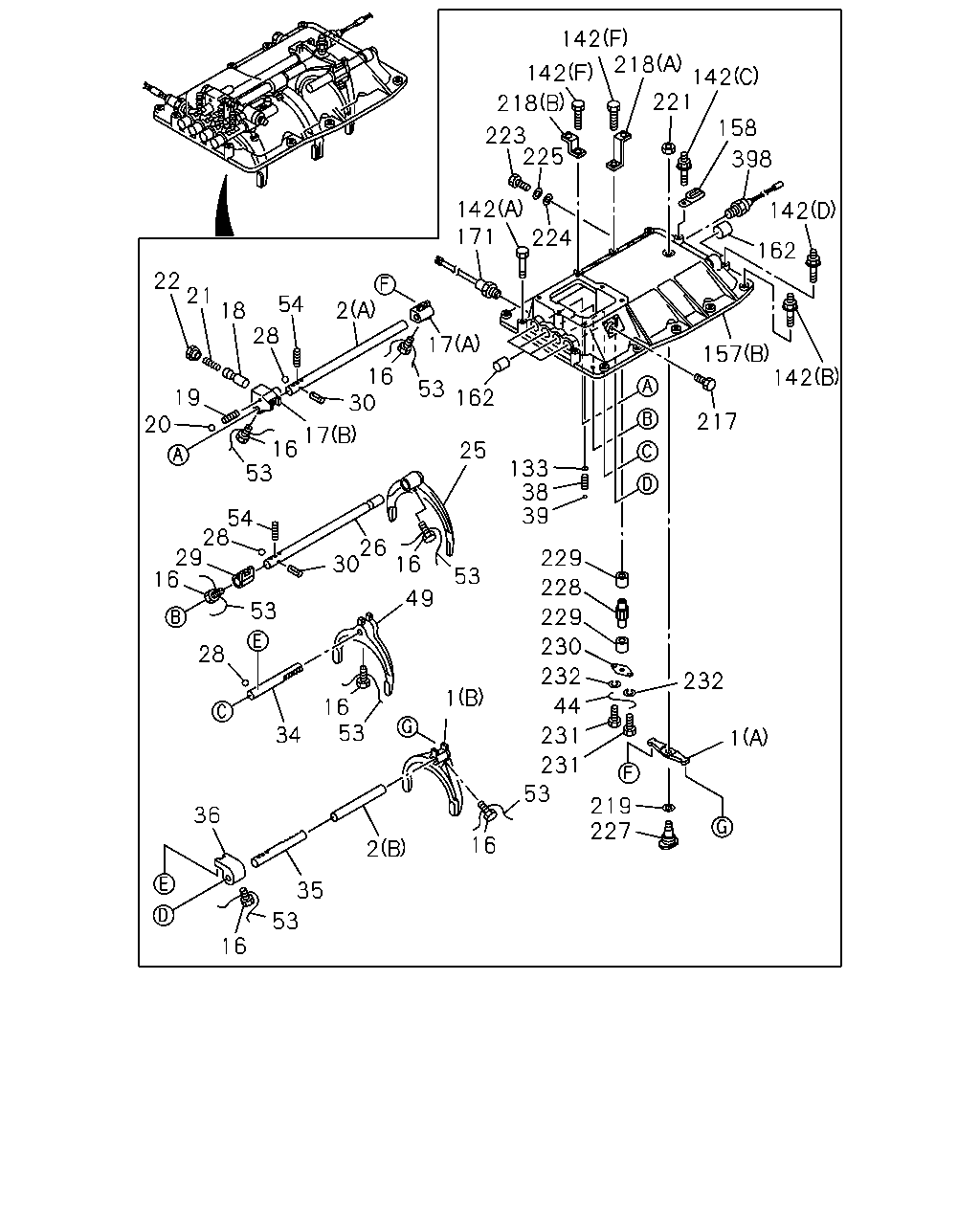

2-30 — GEAR SHIFTER AND QUADRANT BOX (#8824) — 292 parça

142 218 142 142 221 218 158 223 225 38 142 171 142 224 162 22 21 54 18 28 2 162 17 142 16 30 38 39 157 53 19 20 217 17 16 53 54 28 29 16 1 25 26 30 219 227 16 53 49 53 54 34 1 28 16 53 30 28 50 53 16 53 16 15 13 5 2 3 4 9 4 16 53 6 11 12 521 440 7 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	ARM; SHIFT,1ST & REV (B)	1-33511-458-0	01	1	0105-	●
1	ARM; SHIFT,1ST & REV (A)	1-33511-541-0	01	1	0105-	●
1	ARM; SHIFT,1ST & REV (A)	1-33511-082-0	01	1	0105-		●
1	ARM; SHIFT,1ST & REV (B)	1-33511-175-1	01	1	0105-		●
2	ROD; SHIFT,1ST & REV (A)	1-33531-415-1	01	1	0105-	●
2	ROD; SHIFT,1ST & REV (B)	1-33531-400-1	01	1	0105-	●	●
2	ROD; SHIFT,1ST & REV (A)	1-33531-408-1	01	1	0105-		●
3	STOPPER; 6TH SHIFT ROD	9-33537-018-0	01	1	0105-		●
4	ROD; SHIFT,6TH (B)	1-33531-405-1	01	1	0105-		●
4	ROD; SHIFT,6TH (A)	1-33531-414-1	01	1	0105-		●
5	BLOCK; SHIFT,6TH	1-33511-372-2	01	1	0105-		●
6	LEVER; RELAY	9-33511-402-1	01	1	0105-		●
7	GASKET; SPINDLE ALSO INCLUDED IN GASKET SET(M/T). ID=24.4	1-09623-057-0	01	1	0105-		●
9	SLEEVE; 6TH,SHIFT BLOCK	1-33516-022-1	01	1	0105-		●
10	BOLT; SPINDLE M14X20	1-09044-078-0	02	1	0105-		●
11	SPRING; RETURN,SHIFT SLEEVE	9-09941-160-0	01	1	0105-		●
12	CAP; RETURN SPR,SHIFT BLOCK	1-33516-003-1	01	1	0105-		●
13	BALL; LK,SHIFT SLEEVE	9-00097-509-0	01	1	0105-		●
15	SPRING; LK,SHIFT SLEEVE	9-09941-007-0	01	1	0105-		●
16	BOLT; SHIFT ARM & BLOCK SET M12X20 W/HOLE	1-09052-038-0	07	1	0105-	●
16	BOLT; SHIFT ARM & BLOCK SET M12X20 W/HOLE	1-09052-038-0	08	1	0105-		●
17	BLOCK; SHIFT,1ST & REV (B)	1-33511-371-2	01	1	0105-	●
17	BLOCK; SHIFT,1ST & REV (A)	1-33511-540-0	01	1	0105-	●
17	BLOCK; SHIFT,1ST & REV (A)	1-33511-038-2	01	1	0105-		●
17	BLOCK; SHIFT,1ST & REV (B)	1-33511-298-4	01	1	0105-		●
18	SLEEVE; 1ST & REV,SHIFT BLOCK	1-33516-034-1	01	1	0105-	●
18	SLEEVE; 1ST & REV,SHIFT BLOCK	1-33516-022-1	01	1	0105-		●
19	SPRING; COIL COMP	1-09580-438-0	01	1	0105-	●	●
20	BALL; DETENT SLEEVE	9-00097-509-0	01	1	0105-	●	●
21	SPRING; COIL COMP SLEEVE	1-09580-444-0	01	1	0105-	●	●
22	CAP; RETURN SPR,SHIFT BLOCK	1-33516-003-1	01	1	0105-	●	●
25	ARM; SHIFT,2ND & 3RD	1-33511-440-0	01	1	0105-	●
25	ARM; SHIFT,2ND & 3RD	1-33511-184-1	01	1	0105-		●
26	ROD; SHIFT,2ND & 3RD	1-33531-401-1	01	1	0105-	●
26	ROD; SHIFT,2ND & 3RD	1-33531-410-1	01	1	0105-		●
28	BALL; INTER LK	9-00097-501-0	03	1	0105-	●
28	BALL; INTER LK	9-00097-501-0	04	1	0105-		●
29	BLOCK; SHIFT,2ND & 3RD	1-33511-364-1	01	1	0105-	●
29	BLOCK; SHIFT,2ND & 3RD	1-33511-376-1	01	1	0105-		●
30	PIN; INTER LK	9-33534-003-0	02	1	0105-	●
30	PIN; INTER LK	9-33534-003-0	03	1	0105-		●
34	ROD; SHIFT,4TH & 5TH ARM	1-33531-403-1	01	1	0105-	●
34	ROD; SHIFT,4TH & 5TH ARM	1-33531-412-1	01	1	0105-		●
38	SPRING; DETENT	1-09580-379-0	03	1	0105-	●
38	SPRING; DETENT	1-09580-379-0	04	1	0105-		●
39	BALL; DETENT	1-09843-012-0	03	1	0105-	●
39	BALL; DETENT	1-09843-012-0	04	1	0105-		●
49	ARM; SHIFT,4TH & 5TH	1-33511-465-0	01	1	0105-	●
49	ARM; SHIFT,4TH & 5TH	1-33511-369-1	01	1	0105-		●
50	ARM; SHIFT,6TH	1-33511-185-3	01	1	0105-		●
53	WIRE; BOLT L=180	1-09780-024-0	05	1	0105-	●
53	WIRE; BOLT L=200	9-08351-020-0	02	1	0105-	●	●
53	WIRE; BOLT L=180	1-09780-024-0	06	1	0105-		●
54	PIN; SPR,SHIFT BLOCK	1-09748-014-0	02	1	0105-	●
54	PIN; SPR,SHIFT BLOCK	1-09748-014-0	03	1	0105-		●
142	BOLT; QUAD BOX (E) M10X28 FLANGE REAMER	1-09040-089-1	04	1	0105-	●
142	BOLT; QUAD BOX (F) M10X28 FLANGE	0-28181-028-0	11	1	0105-	●	●
142	BOLT; QUAD BOX (B) M10X20,M10X26 L=56	1-09049-014-1	03	1	0105-	●	●
142	BOLT; QUAD BOX (C) M10X20,M10X45 L=75	1-09049-015-0	01	1	0105-	●	●
142	BOLT; QUAD BOX (D) M10X20,M10X55 L=85	1-09049-016-0	01	1	0105-	●	●
142	BOLT; QUAD BOX (A) M10X55 FLANGE	8-94399-863-1	02	1	0105-	●	●
142	BOLT; QUAD BOX (E) M10X28 FLANGE REAMER	1-09040-089-1	02	1	0105-		●
157	BOX; QUAD,TRANS (B)	1-33541-274-4	01	1	0105-	●
157	BOX; QUAD,TRANS ASSISTOR SHIFT CONTROL<WX8> (A)	1-33541-388-1	01	1	0105-	●
157	BOX; QUAD,TRANS EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33541-256-2	01	1	0105-	●	●
157	BOX; QUAD,TRANS (B)	1-33541-415-0	01	1	0105-		●
157	BOX; QUAD,TRANS ASSISTOR SHIFT CONTROL<WX8> (A)	1-33541-507-3	01	1	0105-		●
158	CLIP; HARNESS L=36	8-94224-891-1	01	1	0105-	●	●
162	COVER; SHIFT ROD,QUAD BOX OD=24 L=31	9-33545-011-1	05	1	0105-	●	●
171	SWITCH; NEUTRAL	1-82440-101-1	01	1	0105-	●	●
217	SCREW; SET,6TH SHIFT BLOCK M8X12.5	9-09814-533-0	01	1	0105-	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-47475-689-0	01	1	0105-	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-82699-425-0	01	1	0105-	●	●
219	WASHER; PL,SPINDLE ID=16.5	9-09857-042-0	01	1	0105-	●	●
221	NUT; SPINDLE M12 FLANGE	0-91150-212-0	01	1	0105-0602	●	●
221	NUT; SPINDLE M12 FLANGE	0-91180-212-0	01	1	0603-	●	●
223	SCREW; SET,QUAD BOX M14X45	9-09816-057-1	01	1	0105-	●	●
224	WASHER; PL,QUAD BOX ID=15	9-09160-514-0	01	1	0105-0605	●	●
224	WASHER; PL,QUAD BOX ID=15	0-91610-514-0	01	1	0606-	●	●
225	WASHER; LK,QUAD BOX ID=14.2	9-09150-514-0	01	1	0105-0603	●	●
225	WASHER; LK,QUAD BOX ID=14.2	0-91510-514-0	01	1	0604-	●	●
227	SPINDLE; 1ST & REV	1-33519-012-0	01	1	0105-	●	●
440	PLUG; OIL PT1/4	9-99204-513-0	01	1	0105-		●
521	SPINDLE; 6TH	1-33119-255-0	01	1	0105-		●

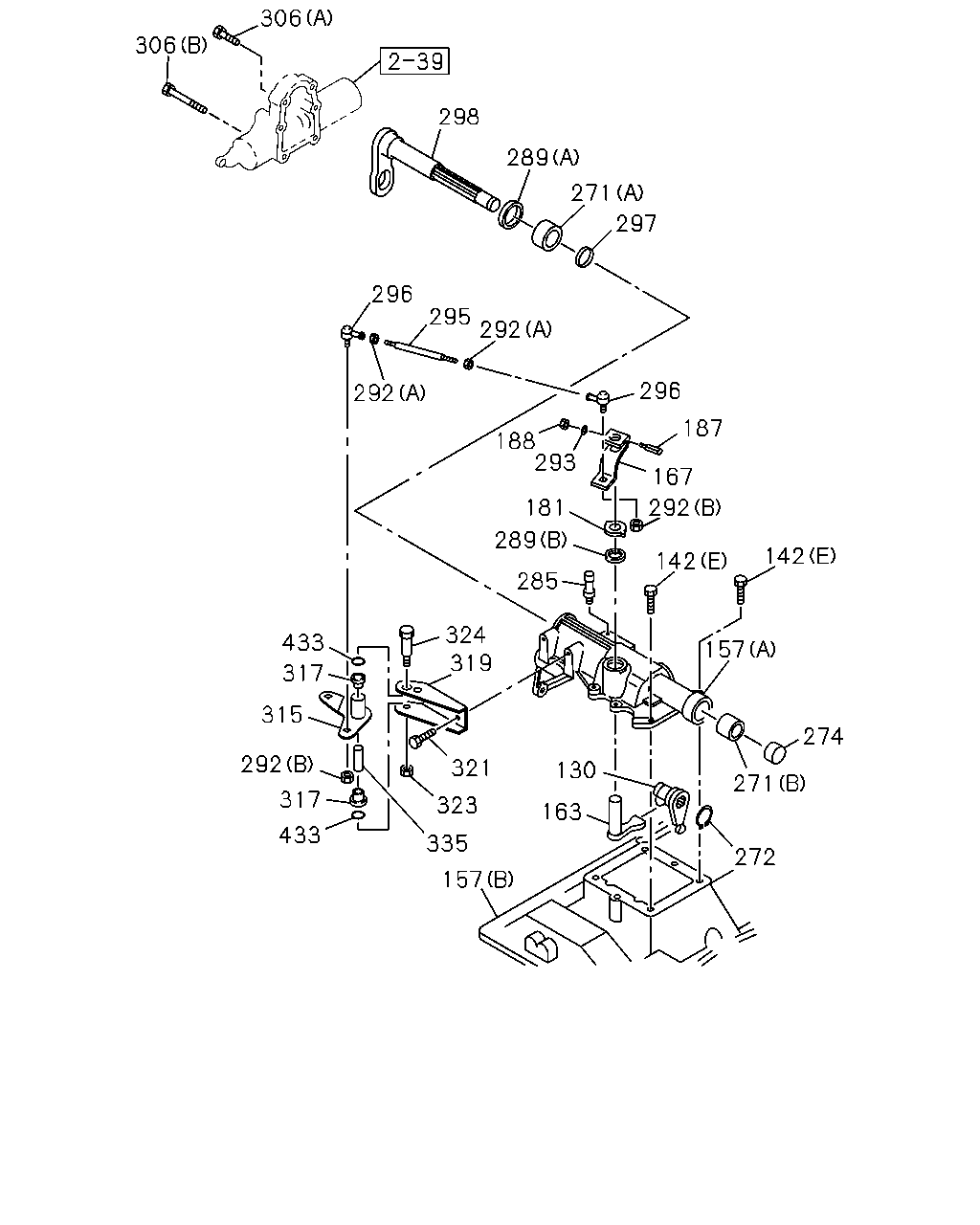

306 306 298 289 271 297 296 295 292 296 292 187 188 293 167 181 292 289 142 142 285 324 319 157 433 317 315 274 292 321 130 271 317 323 163 433 335 272 157

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
130	LEVER; SHIFT,INTERNAL ASSISTOR SHIFT CONTROL<WX8>	1-33521-124-0	01	1	0105-	●	●
130	LEVER; SHIFT,INTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33521-119-0	01	1	0105-	●	●
142	BOLT; QUAD BOX (E) M10X28 FLANGE REAMER	1-09040-089-1	04	1	0105-	●
142	BOLT; QUAD BOX (F) M10X28 FLANGE	0-28181-028-0	11	1	0105-	●	●
142	BOLT; QUAD BOX (B) M10X20,M10X26 L=56	1-09049-014-1	03	1	0105-	●	●
142	BOLT; QUAD BOX (C) M10X20,M10X45 L=75	1-09049-015-0	01	1	0105-	●	●
142	BOLT; QUAD BOX (D) M10X20,M10X55 L=85	1-09049-016-0	01	1	0105-	●	●
142	BOLT; QUAD BOX (A) M10X55 FLANGE	8-94399-863-1	02	1	0105-	●	●
142	BOLT; QUAD BOX (E) M10X28 FLANGE REAMER	1-09040-089-1	02	1	0105-		●
157	BOX; QUAD,TRANS (B)	1-33541-274-4	01	1	0105-	●
157	BOX; QUAD,TRANS ASSISTOR SHIFT CONTROL<WX8> (A)	1-33541-388-1	01	1	0105-	●
157	BOX; QUAD,TRANS EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33541-256-2	01	1	0105-	●	●
157	BOX; QUAD,TRANS (B)	1-33541-415-0	01	1	0105-		●
157	BOX; QUAD,TRANS ASSISTOR SHIFT CONTROL<WX8> (A)	1-33541-507-3	01	1	0105-		●
163	LEVER; SELECT,INTERNAL	1-33522-041-4	01	1	0105-	●
163	LEVER; SELECT,INTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33522-041-4	01	1	0105-		●
163	LEVER; SELECT,INTERNAL ASSISTOR SHIFT CONTROL<WX8>	1-33522-162-1	01	1	0105-		●
167	LEVER; SELECT,EXTERNAL	1-33521-138-0	01	1	0105-	●
167	LEVER; SELECT,EXTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33521-138-0	01	1	0105-		●
167	LEVER; SELECT,EXTERNAL ASSISTOR SHIFT CONTROL<WX8>	1-33521-163-0	01	1	0105-		●
181	WASHER; PL,SELECT LEVER OD=40	1-09532-008-0	01	1	0105-	●	●
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	0105-	●	●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-062-1	01	1	0105-	●	●
271	BUSHING; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (A) ID=20 OD=23	1-33549-016-0	01	1	0105-	●	●
271	BUSHING; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (B) ID=28 OD=32	1-33549-104-0	01	1	0105-	●	●
272	RING; SNAP,QUAD BOX ASSISTOR SHIFT CONTROL<WX8>	1-09588-175-0	01	1	0105-	●	●
274	COVER; SHAFT,QUAD BOX	9-33545-017-1	01	1	0105-	●	●
285	BREATHER; AIR,QUAD BOX	1-33149-008-0	01	1	0105-	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=41	1-09625-334-0	01	1	0105-0307	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=41	1-09625-647-0	01	1	0308-	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=30	1-09625-386-0	01	1	0105-	●	●
292	NUT; LINK ROD (B) M8 FLANGE	1-09440-062-1	02	1	0105-	●	●
292	NUT; LINK ROD (A) M8	9-09111-408-0	02	1	0105-0512	●	●
292	NUT; LINK ROD (A) M8	0-91111-508-0	02	1	0601-	●	●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	9-09160-708-0	01	1	0105-0605	●	●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	0-91610-708-0	01	1	0606-	●	●
295	ROD; LINK,RELAY LEVER ASSISTOR SHIFT CONTROL<WX8>	9-08400-815-0	01	1	0105-	●
295	ROD; LINK,RELAY LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> L=130	1-09765-262-0	01	1	0105-	●
295	ROD; LINK,RELAY LEVER L=130	1-09765-262-0	01	1	0105-		●
296	ROD END	1-09760-108-0	02	1	0105-	●	●
297	STOPPER; SELECT ASSISTOR SHIFT CONTROL<WX8>	1-33537-020-0	01	1	0105-	●
297	STOPPER; SELECT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33537-012-0	01	1	0105-	●
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33522-113-0	01	1	0105-0307	●
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33522-179-0	01	1	0308-	●
298	SHAFT; SHIFT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33522-146-0	01	1	0105-	●	●
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33522-161-0	01	1	0105-0307		●
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33522-180-0	01	1	0308-		●
306	BOLT; SHIFT ASSISTOR ASSISTOR SHIFT CONTROL<WX8> (A) M10X45 FLANGE	0-28181-045-0	02	1	0105-0512	●	●
306	BOLT; SHIFT ASSISTOR ASSISTOR SHIFT CONTROL<WX8> (A) M10X45 FLANGE	0-28151-045-0	02	1	0601-	●	●
306	BOLT; SHIFT ASSISTOR ASSISTOR SHIFT CONTROL<WX8> (B) M10X80 FLANGE	0-28181-080-0	04	1	0105-0512	●	●
306	BOLT; SHIFT ASSISTOR ASSISTOR SHIFT CONTROL<WX8> (B) M10X80 FLANGE	0-28151-080-0	04	1	0601-	●	●
315	LEVER; SELECT ASSISTOR SHIFT CONTROL<WX8>	1-33651-777-0	01	1	0105-	●
315	LEVER; SELECT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33651-970-0	01	1	0105-	●	●
315	LEVER; SELECT ASSISTOR SHIFT CONTROL<WX8>	1-33651-756-0	01	1	0105-		●
317	BUSHING; LEVER	1-09330-119-0	02	1	0105-	●	●
319	BRACKET; SELECT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33657-591-0	01	1	0105-	●
319	BRACKET; SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33657-640-0	01	1	0105-	●	●
319	BRACKET; SELECT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33657-752-0	01	1	0105-		●
321	BOLT; BRKT,RELAY LEVER ASSISTOR SHIFT CONTROL<WX8> M10X22 FLANGE	0-28181-022-0	02	1	0105-	●	●
321	BOLT; BRKT,RELAY LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M10X80	0-10806-080-0	02	1	0105-0512	●	●
321	BOLT; BRKT,RELAY LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M10X80	0-10856-080-0	02	1	0601-	●	●
323	NUT; LK,SELECT LEVER	1-33659-219-0	01	1	0105-	●	●
324	BOLT; SHAFT ASSISTOR SHIFT CONTROL<WX8> M10X60 FLANGE	0-28081-060-0	01	1	0105-	●	●
335	COLLAR; DIST,RELAY LEVER ASM ASSISTOR SHIFT CONTROL<WX8>	1-33659-220-0	01	1	0105-	●	●
433	GASKET; BUSHING	1-09623-636-0	02	1	0105-	●	●

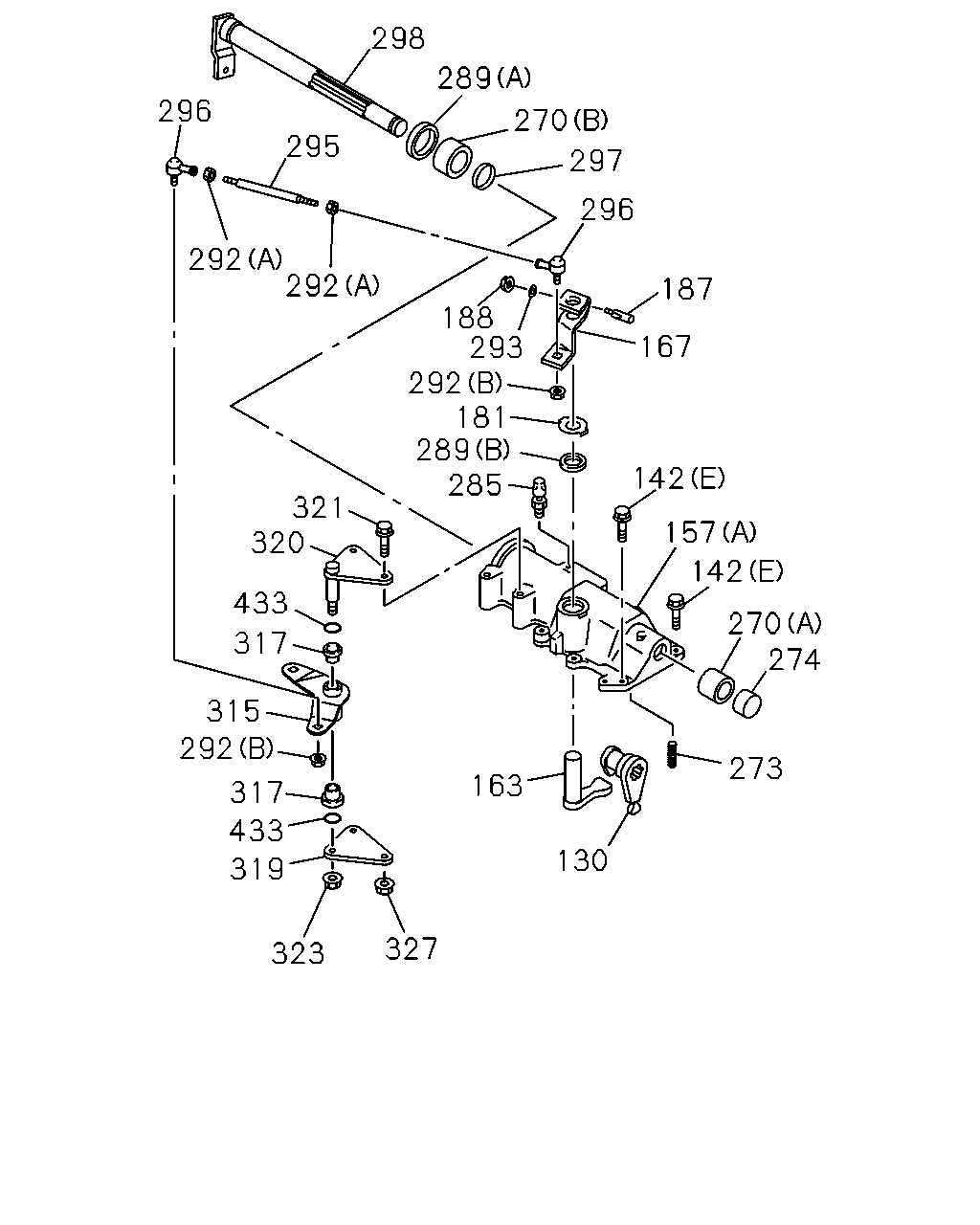

298 289 296 270 295 297 296 292 292 187 188 293 292 181 289 285 167 142 321 320 157 142 433 270 274 317 315 292 273 163 317 433 130 319 327 323

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
130	LEVER; SHIFT,INTERNAL ASSISTOR SHIFT CONTROL<WX8>	1-33521-124-0	01	1	0105-	●	●
130	LEVER; SHIFT,INTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33521-119-0	01	1	0105-	●	●
142	BOLT; QUAD BOX (E) M10X28 FLANGE REAMER	1-09040-089-1	04	1	0105-	●
142	BOLT; QUAD BOX (F) M10X28 FLANGE	0-28181-028-0	11	1	0105-	●	●
142	BOLT; QUAD BOX (B) M10X20,M10X26 L=56	1-09049-014-1	03	1	0105-	●	●
142	BOLT; QUAD BOX (C) M10X20,M10X45 L=75	1-09049-015-0	01	1	0105-	●	●
142	BOLT; QUAD BOX (D) M10X20,M10X55 L=85	1-09049-016-0	01	1	0105-	●	●
142	BOLT; QUAD BOX (A) M10X55 FLANGE	8-94399-863-1	02	1	0105-	●	●
142	BOLT; QUAD BOX (E) M10X28 FLANGE REAMER	1-09040-089-1	02	1	0105-		●
157	BOX; QUAD,TRANS (B)	1-33541-274-4	01	1	0105-	●
157	BOX; QUAD,TRANS ASSISTOR SHIFT CONTROL<WX8> (A)	1-33541-388-1	01	1	0105-	●
157	BOX; QUAD,TRANS EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33541-256-2	01	1	0105-	●	●
157	BOX; QUAD,TRANS (B)	1-33541-415-0	01	1	0105-		●
157	BOX; QUAD,TRANS ASSISTOR SHIFT CONTROL<WX8> (A)	1-33541-507-3	01	1	0105-		●
163	LEVER; SELECT,INTERNAL	1-33522-041-4	01	1	0105-	●
163	LEVER; SELECT,INTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33522-041-4	01	1	0105-		●
163	LEVER; SELECT,INTERNAL ASSISTOR SHIFT CONTROL<WX8>	1-33522-162-1	01	1	0105-		●
167	LEVER; SELECT,EXTERNAL	1-33521-138-0	01	1	0105-	●
167	LEVER; SELECT,EXTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33521-138-0	01	1	0105-		●
167	LEVER; SELECT,EXTERNAL ASSISTOR SHIFT CONTROL<WX8>	1-33521-163-0	01	1	0105-		●
181	WASHER; PL,SELECT LEVER OD=40	1-09532-008-0	01	1	0105-	●	●
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	0105-	●	●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-062-1	01	1	0105-	●	●
270	BEARING; NEEDLE,QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (A) NTN	1-09811-006-0	01	1	0105-	●	●
270	BEARING; NEEDLE,QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (A) NSK	1-09811-057-0	01	1	0105-	●	●
270	BEARING; NEEDLE,QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (B) NTN	1-09811-260-0	01	1	0105-	●	●
273	PIN; SPR,STOPPER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-09748-016-0	01	1	0105-	●	●
274	COVER; SHAFT,QUAD BOX	9-33545-017-1	01	1	0105-	●	●
285	BREATHER; AIR,QUAD BOX	1-33149-008-0	01	1	0105-	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=41	1-09625-334-0	01	1	0105-0307	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=41	1-09625-647-0	01	1	0308-	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=30	1-09625-386-0	01	1	0105-	●	●
292	NUT; LINK ROD (B) M8 FLANGE	1-09440-062-1	02	1	0105-	●	●
292	NUT; LINK ROD (A) M8	9-09111-408-0	02	1	0105-0512	●	●
292	NUT; LINK ROD (A) M8	0-91111-508-0	02	1	0601-	●	●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	9-09160-708-0	01	1	0105-0605	●	●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	0-91610-708-0	01	1	0606-	●	●
295	ROD; LINK,RELAY LEVER ASSISTOR SHIFT CONTROL<WX8>	9-08400-815-0	01	1	0105-	●
295	ROD; LINK,RELAY LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> L=130	1-09765-262-0	01	1	0105-	●
295	ROD; LINK,RELAY LEVER L=130	1-09765-262-0	01	1	0105-		●
296	ROD END	1-09760-108-0	02	1	0105-	●	●
297	STOPPER; SELECT ASSISTOR SHIFT CONTROL<WX8>	1-33537-020-0	01	1	0105-	●
297	STOPPER; SELECT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33537-012-0	01	1	0105-	●
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33522-113-0	01	1	0105-0307	●
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33522-179-0	01	1	0308-	●
298	SHAFT; SHIFT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33522-146-0	01	1	0105-	●	●
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33522-161-0	01	1	0105-0307		●
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33522-180-0	01	1	0308-		●
315	LEVER; SELECT ASSISTOR SHIFT CONTROL<WX8>	1-33651-777-0	01	1	0105-	●
315	LEVER; SELECT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33651-970-0	01	1	0105-	●	●
315	LEVER; SELECT ASSISTOR SHIFT CONTROL<WX8>	1-33651-756-0	01	1	0105-		●
317	BUSHING; LEVER	1-09330-119-0	02	1	0105-	●	●
319	BRACKET; SELECT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33657-591-0	01	1	0105-	●
319	BRACKET; SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33657-640-0	01	1	0105-	●	●
319	BRACKET; SELECT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33657-752-0	01	1	0105-		●
320	SHAFT; LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33619-630-0	01	1	0105-	●	●
321	BOLT; BRKT,RELAY LEVER ASSISTOR SHIFT CONTROL<WX8> M10X22 FLANGE	0-28181-022-0	02	1	0105-	●	●
321	BOLT; BRKT,RELAY LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M10X80	0-10806-080-0	02	1	0105-0512	●	●
321	BOLT; BRKT,RELAY LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M10X80	0-10856-080-0	02	1	0601-	●	●
323	NUT; LK,SELECT LEVER	1-33659-219-0	01	1	0105-	●	●
327	NUT; BRKT,RELAY LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE	0-91150-210-0	02	1	0105-0602	●	●
327	NUT; BRKT,RELAY LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE	0-91180-210-0	02	1	0603-	●	●
433	GASKET; BUSHING	1-09623-636-0	02	1	0105-	●	●

142 218 142 142 221 218 158 223 225 398 142 171 142 224 162 22 21 54 18 28 2 17 157 16 30 142 53 19 20 162 217 17 16 53 25 133 38 39 54 28 29 16 26 30 229 16 53 228 49 53 229 230 28 232 232 1 44 16 53 34 231 1 231 53 219 227 36 16 2 35 53 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	ARM; SHIFT,1ST & REV (B)	1-33511-458-0	01	1	0105-	●
1	ARM; SHIFT,1ST & REV (A)	1-33511-541-0	01	1	0105-	●
1	ARM; SHIFT,1ST & REV (A)	1-33511-082-0	01	1	0105-		●
1	ARM; SHIFT,1ST & REV (B)	1-33511-175-1	01	1	0105-		●
2	ROD; SHIFT,1ST & REV (A)	1-33531-415-1	01	1	0105-	●
2	ROD; SHIFT,1ST & REV (B)	1-33531-400-1	01	1	0105-	●	●
2	ROD; SHIFT,1ST & REV (A)	1-33531-408-1	01	1	0105-		●
16	BOLT; SHIFT ARM & BLOCK SET M12X20 W/HOLE	1-09052-038-0	07	1	0105-	●
16	BOLT; SHIFT ARM & BLOCK SET M12X20 W/HOLE	1-09052-038-0	08	1	0105-		●
17	BLOCK; SHIFT,1ST & REV (B)	1-33511-371-2	01	1	0105-	●
17	BLOCK; SHIFT,1ST & REV (A)	1-33511-540-0	01	1	0105-	●
17	BLOCK; SHIFT,1ST & REV (A)	1-33511-038-2	01	1	0105-		●
17	BLOCK; SHIFT,1ST & REV (B)	1-33511-298-4	01	1	0105-		●
18	SLEEVE; 1ST & REV,SHIFT BLOCK	1-33516-034-1	01	1	0105-	●
18	SLEEVE; 1ST & REV,SHIFT BLOCK	1-33516-022-1	01	1	0105-		●
19	SPRING; COIL COMP	1-09580-438-0	01	1	0105-	●	●
20	BALL; DETENT SLEEVE	9-00097-509-0	01	1	0105-	●	●
21	SPRING; COIL COMP SLEEVE	1-09580-444-0	01	1	0105-	●	●
22	CAP; RETURN SPR,SHIFT BLOCK	1-33516-003-1	01	1	0105-	●	●
25	ARM; SHIFT,2ND & 3RD	1-33511-440-0	01	1	0105-	●
25	ARM; SHIFT,2ND & 3RD	1-33511-184-1	01	1	0105-		●
26	ROD; SHIFT,2ND & 3RD	1-33531-401-1	01	1	0105-	●
26	ROD; SHIFT,2ND & 3RD	1-33531-410-1	01	1	0105-		●
28	BALL; INTER LK	9-00097-501-0	03	1	0105-	●
28	BALL; INTER LK	9-00097-501-0	04	1	0105-		●
29	BLOCK; SHIFT,2ND & 3RD	1-33511-364-1	01	1	0105-	●
29	BLOCK; SHIFT,2ND & 3RD	1-33511-376-1	01	1	0105-		●
30	PIN; INTER LK	9-33534-003-0	02	1	0105-	●
30	PIN; INTER LK	9-33534-003-0	03	1	0105-		●
34	ROD; SHIFT,4TH & 5TH ARM	1-33531-403-1	01	1	0105-	●
34	ROD; SHIFT,4TH & 5TH ARM	1-33531-412-1	01	1	0105-		●
35	ROD; SHIFT,4TH & 5TH BLOCK	1-33531-404-1	01	1	0105-	●
36	BLOCK; SHIFT,4TH & 5TH	1-33511-367-1	01	1	0105-	●
38	SPRING; DETENT	1-09580-379-0	03	1	0105-	●
38	SPRING; DETENT	1-09580-379-0	04	1	0105-		●
39	BALL; DETENT	1-09843-012-0	03	1	0105-	●
39	BALL; DETENT	1-09843-012-0	04	1	0105-		●
44	WIRE; LK L=200	9-08351-020-0	01	1	0105-	●
49	ARM; SHIFT,4TH & 5TH	1-33511-465-0	01	1	0105-	●
49	ARM; SHIFT,4TH & 5TH	1-33511-369-1	01	1	0105-		●
53	WIRE; BOLT L=180	1-09780-024-0	05	1	0105-	●
53	WIRE; BOLT L=200	9-08351-020-0	02	1	0105-	●	●
53	WIRE; BOLT L=180	1-09780-024-0	06	1	0105-		●
54	PIN; SPR,SHIFT BLOCK	1-09748-014-0	02	1	0105-	●
54	PIN; SPR,SHIFT BLOCK	1-09748-014-0	03	1	0105-		●
133	SEAT; SPR	1-33549-072-0	03	1	0105-	●
142	BOLT; QUAD BOX (E) M10X28 FLANGE REAMER	1-09040-089-1	04	1	0105-	●
142	BOLT; QUAD BOX (F) M10X28 FLANGE	0-28181-028-0	11	1	0105-	●	●
142	BOLT; QUAD BOX (B) M10X20,M10X26 L=56	1-09049-014-1	03	1	0105-	●	●
142	BOLT; QUAD BOX (C) M10X20,M10X45 L=75	1-09049-015-0	01	1	0105-	●	●
142	BOLT; QUAD BOX (D) M10X20,M10X55 L=85	1-09049-016-0	01	1	0105-	●	●
142	BOLT; QUAD BOX (A) M10X55 FLANGE	8-94399-863-1	02	1	0105-	●	●
142	BOLT; QUAD BOX (E) M10X28 FLANGE REAMER	1-09040-089-1	02	1	0105-		●
157	BOX; QUAD,TRANS (B)	1-33541-274-4	01	1	0105-	●
157	BOX; QUAD,TRANS ASSISTOR SHIFT CONTROL<WX8> (A)	1-33541-388-1	01	1	0105-	●
157	BOX; QUAD,TRANS EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33541-256-2	01	1	0105-	●	●
157	BOX; QUAD,TRANS (B)	1-33541-415-0	01	1	0105-		●
157	BOX; QUAD,TRANS ASSISTOR SHIFT CONTROL<WX8> (A)	1-33541-507-3	01	1	0105-		●
158	CLIP; HARNESS L=36	8-94224-891-1	01	1	0105-	●	●
162	COVER; SHIFT ROD,QUAD BOX OD=24 L=31	9-33545-011-1	05	1	0105-	●	●
171	SWITCH; NEUTRAL	1-82440-101-1	01	1	0105-	●	●
217	SCREW; SET,6TH SHIFT BLOCK M8X12.5	9-09814-533-0	01	1	0105-	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-47475-689-0	01	1	0105-	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-82699-425-0	01	1	0105-	●	●
219	WASHER; PL,SPINDLE ID=16.5	9-09857-042-0	01	1	0105-	●	●
221	NUT; SPINDLE M12 FLANGE	0-91150-212-0	01	1	0105-0602	●	●
221	NUT; SPINDLE M12 FLANGE	0-91180-212-0	01	1	0603-	●	●
223	SCREW; SET,QUAD BOX M14X45	9-09816-057-1	01	1	0105-	●	●
224	WASHER; PL,QUAD BOX ID=15	9-09160-514-0	01	1	0105-0605	●	●
224	WASHER; PL,QUAD BOX ID=15	0-91610-514-0	01	1	0606-	●	●
225	WASHER; LK,QUAD BOX ID=14.2	9-09150-514-0	01	1	0105-0603	●	●
225	WASHER; LK,QUAD BOX ID=14.2	0-91510-514-0	01	1	0604-	●	●
227	SPINDLE; 1ST & REV	1-33519-012-0	01	1	0105-	●	●
228	PINION; 4TH & 5TH SHIFT	1-33539-019-0	01	1	0105-	●
229	BEARING; NEEDLE,PINION	1-09811-202-0	02	1	0105-	●
230	COVER; BRG,PINION	1-33539-018-0	01	1	0105-	●
231	BOLT; BRG COVER,PINION M8X20	1-09050-005-1	02	1	0105-	●
232	WASHER; LK,BRG COVER ID=8.2	9-09150-508-0	02	1	0105-0603	●
232	WASHER; LK,BRG COVER ID=8.2	0-91510-508-0	02	1	0604-	●
398	SWITCH; REV LAMP	1-82440-082-0	01	1	0105-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
