2-26 — MANUAL TRANSMISSION GEAR (#8823) — 208 parça

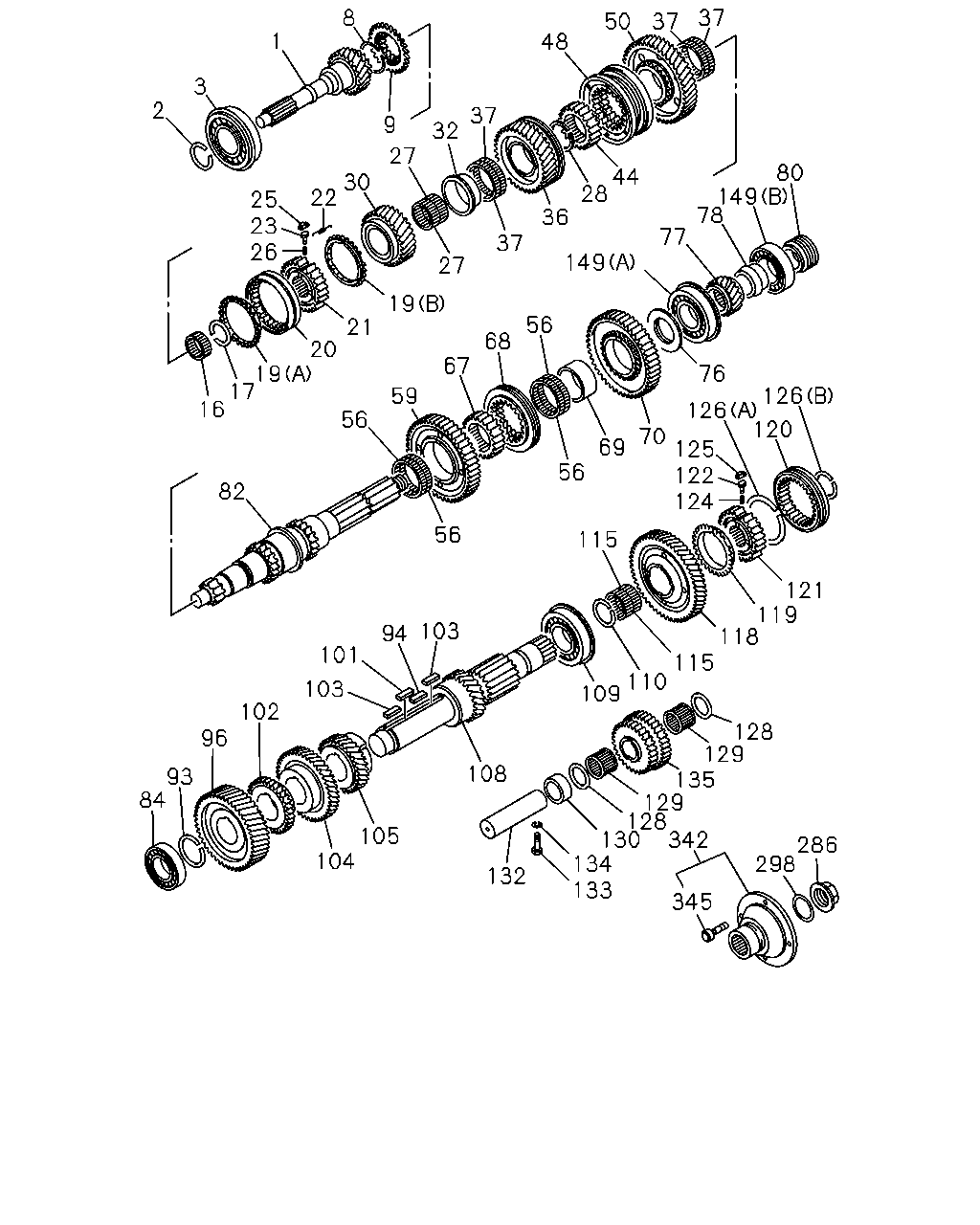

8 37 50 37 1 48 3 2 37 9 32 27 80 149 78 44 28 30 22 25 23 26 36 77 37 149 27 19 56 21 68 20 67 76 19 17 16 126 120 59 126 56 70 69 125 122 124 56 82 56 115 121 119 118 115 110 109 103 94 101 103 102 128 129 135 129 128 134 133 96 108 93 84 105 104 286 298 132 345

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT; TOP GEAR,TRANS Z=24	1-33211-656-1	01	1	0105-	●
1	SHAFT; TOP GEAR,TRANS Z=21	1-33211-608-1	01	1	0105-		●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.53 WHITE	1-09588-131-0	AR	1	0105-	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.56 YELLOW	1-09588-132-0	AR	1	0105-	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.60 BLUE	1-09588-133-0	AR	1	0105-	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.64 GREEN	1-09588-134-0	AR	1	0105-	●	●
3	BEARING; TOP GEAR SHAFT NTN	1-09810-164-0	01	1	0105-	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-185-0	01	1	0105-	●	●
8	CLIP; DOG CLU	1-33219-008-0	01	1	0105-	●	●
9	CLUTCH; DOG,TOP GEAR Z=54	1-33265-152-3	01	1	0105-	●	●
16	BEARING; PILOT,MAINSHAFT NTN	1-09810-208-0	01	1	0105-	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-139-0	01	1	0105-	●	●
17	RING; SNAP,4TH GEAR ID=55.8 T=2.53 WHITE	1-09588-160-1	01	1	0105-	●	●
19	RING; BLOCK,4TH & 5TH (A) Z=54	1-33265-290-7	01	1	0105-	●	●
19	RING; BLOCK,4TH & 5TH (B) Z=54	1-33265-544-0	01	1	0105-	●	●
20	SLEEVE	1-33262-097-1	01	1	0105-	●	●
21	HUB; CLU,4TH & 5TH	1-33261-186-2	01	1	0105-	●	●
22	SPRING; BLOCK,INSERT	1-09583-171-0	03	1	0105-	●	●
23	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	0105-	●	●
25	INSERT; CLU HUB,4TH TO 5TH	1-33263-025-2	03	1	0105-	●	●
26	SPRING; BLOCK,INSERT	1-09580-091-1	03	1	0105-		●
27	BEARING; 4TH GEAR NSK	1-09811-360-0	02	1	0105-	●
27	BEARING; 4TH GEAR NTN	1-09811-391-0	02	1	0105-	●
27	BEARING; 4TH GEAR NSK	1-09811-355-0	02	1	0105-		●
27	BEARING; 4TH GEAR NTN	1-09811-402-0	02	1	0105-		●
28	RING; SNAP,3RD GEAR	1-09588-118-0	01	1	0105-	●	●
30	GEAR; 4TH,MAINSHAFT Z=28	1-33253-462-0	01	1	0105-		●
32	COLLAR; 3RD GEAR	1-33234-075-0	01	1	0105-	●
32	COLLAR; 3RD GEAR	1-33234-056-1	01	1	0105-		●
36	GEAR; 3RD,MAINSHAFT Z=34	1-33252-462-0	01	1	0105-	●
36	GEAR; 3RD,MAINSHAFT Z=36	1-33252-191-2	01	1	0105-		●
37	BEARING; NEEDLE,2ND & 3RD NSK	1-09811-409-0	04	1	0105-		●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-260-0	01	1	0105-	●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-118-1	01	1	0105-		●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-542-0	02	1	0105-0407	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-611-1	02	1	0408-	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33260-102-2	01	1	0105-		●
50	GEAR; 2ND,MAINSHAFT Z=54	1-33251-326-3	01	1	0105-	●
50	GEAR; 2ND,MAINSHAFT Z=45	1-33251-262-0	01	1	0105-		●
56	BEARING; NEEDLE,1ST,REV NTN	1-09811-389-0	04	1	0105-	●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-411-0	04	1	0105-	●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-410-0	04	1	0105-		●
59	GEAR; REV MAINSHAFT Z=38	1-33257-066-1	01	1	0105-	●
59	GEAR; REV MAINSHAFT Z=38	1-33257-046-1	01	1	0105-		●
67	HUB; CLU,1ST TO REV	1-33261-223-0	01	1	0105-	●
67	HUB; CLU,1ST TO REV	1-33261-118-1	01	1	0105-		●
68	SLEEVE; 1ST TO REV	1-33262-160-0	01	1	0105-	●
68	SLEEVE; 1ST TO REV	1-33262-024-1	01	1	0105-		●
69	COLLAR; 1ST GEAR MAIN	1-33234-085-0	01	1	0105-		●
70	GEAR; 1ST,MAINSHAFT Z=44	1-33255-064-0	01	1	0105-	●
70	GEAR; 1ST,MAINSHAFT Z=44	1-33255-038-6	01	1	0105-		●
76	WASHER; THRUST,MAIN LOW	1-33239-146-0	01	1	0105-	●
76	WASHER; THRUST,MAIN LOW	1-33239-093-1	01	1	0105-		●
77	GEAR; 6TH,MAINSHAFT Z=21	1-33253-445-2	01	1	0105-		●
78	COLLAR; DIST,MAINSHAFT BRG	1-33235-074-0	01	1	0105-		●
80	GEAR; SPD DRIVE Z=5	1-33371-014-2	01	1	0105-	●	●
82	SHAFT; MAIN,TRANS Z=37-28-28-18	1-33231-305-0	01	1	0105-	●
82	SHAFT; MAIN,TRANS Z=28-28-28-18	1-33231-310-0	01	1	0105-		●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-221-0	01	1	0105-	●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-222-0	01	1	0105-	●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-119-0	01	1	0105-		●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-241-0	01	1	0105-		●
93	RING; SNAP,COUNTER FRT BRG	1-09588-118-0	01	1	0105-	●	●
94	KEY; FEATHER,COUNTER SHAFT L=50.0	1-09735-010-0	01	1	0105-	●	●
96	GEAR; COUNTER DRIVE Z=39	1-33331-190-0	01	1	0105-	●
96	GEAR; COUNTER DRIVE Z=41	1-33331-194-0	01	1	0105-		●
101	KEY; PTO DRIVE GEAR L=40	1-09735-008-0	01	1	0105-	●	●
102	GEAR; PTO DRIVE,COUNTER Z=33	1-33337-014-1	01	1	0105-	●	●
103	KEY; COUNTER GEAR L=50.0	1-09735-010-0	01	1	0105-	●	●
103	KEY; COUNTER GEAR L=46	1-09735-038-1	01	1	0105-	●	●
104	GEAR; 4TH,COUNTER Z=36	1-33338-251-0	01	1	0105-		●
105	GEAR; 3RD,COUNTER Z=31	1-33333-146-1	01	1	0105-	●
105	GEAR; 3RD,COUNTER Z=29	1-33333-119-0	01	1	0105-		●
108	SHAFT; COUNTER Z=22-13	1-33311-269-0	01	1	0105-	●
108	SHAFT; COUNTER Z=22-13	1-33311-228-0	01	1	0105-		●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-021-1	01	1	0105-	●	●
109	BEARING; COUNTER SHAFT,RR NTN	1-09810-163-0	01	1	0105-	●	●
110	RING; SNAP,COUNTER BRG	1-09588-042-1	01	1	0105-	●	●
115	BEARING; NEEDLE,6TH,COUNTER NSK	1-09811-355-0	02	1	0105-		●
115	BEARING; NEEDLE,6TH,COUNTER NTN	1-09811-402-0	02	1	0105-		●
118	GEAR; 6TH,COUNTER Z=54	1-33338-306-0	01	1	0105-		●
119	RING; BLOCK,6TH SYN Z=54	1-33265-356-0	01	1	0105-		●
120	SLEEVE	1-33262-098-2	01	1	0105-		●
121	HUB; CLU,6TH	1-33261-189-2	01	1	0105-		●
122	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	0105-		●
124	SPRING; PLUNGER,CLU HUB	1-09580-091-1	03	1	0105-	●	●
125	INSERT; 6TH SYN	1-33263-025-2	03	1	0105-		●
126	RING; SNAP,CLU HUB (A) ID=130 T=2.5	1-09588-040-0	01	1	0105-		●
126	RING; SNAP,CLU HUB (B) ID=55.8 T=2.53 WHITE	1-09588-160-1	01	1	0105-		●
128	WASHER; THRUST,REV SHAFT T=4.0	9-33363-015-0	02	1	0105-	●	●
129	BEARING; NEEDLE,IDLER NSK	1-09811-388-0	02	1	0105-	●
129	BEARING; NEEDLE,IDLER NTN	9-00096-215-0	02	1	0105-	●	●
132	SHAFT; REV	1-33351-012-2	01	1	0105-	●	●
133	SCREW; SET,REV SHAFT	1-09122-023-0	01	1	0105-	●	●
134	WASHER; LK,REV SHAFT ID=8.2	9-09150-508-0	01	1	0105-0603	●	●
134	WASHER; LK,REV SHAFT ID=8.2	0-91510-508-0	01	1	0604-	●	●
135	GEAR; REV IDLER Z=27	1-33361-070-0	01	1	0105-	●
135	GEAR; REV IDLER Z=27-22	1-33361-036-1	01	1	0105-		●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NSK	1-09810-021-1	01	1	0105-	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NTN	1-09810-163-0	01	1	0105-	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NSK	1-09810-172-0	01	1	0105-		●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NTN	1-09810-173-0	01	1	0105-		●
286	NUT; LK,MAINSHAFT M44	1-09449-076-0	01	1	0105-	●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T).	9-09920-607-0	01	1	0105-	●	●
345	BOLT; FLANGE TO YOKE M14X48.5	1-09046-013-0	04	1	0105-	●	●

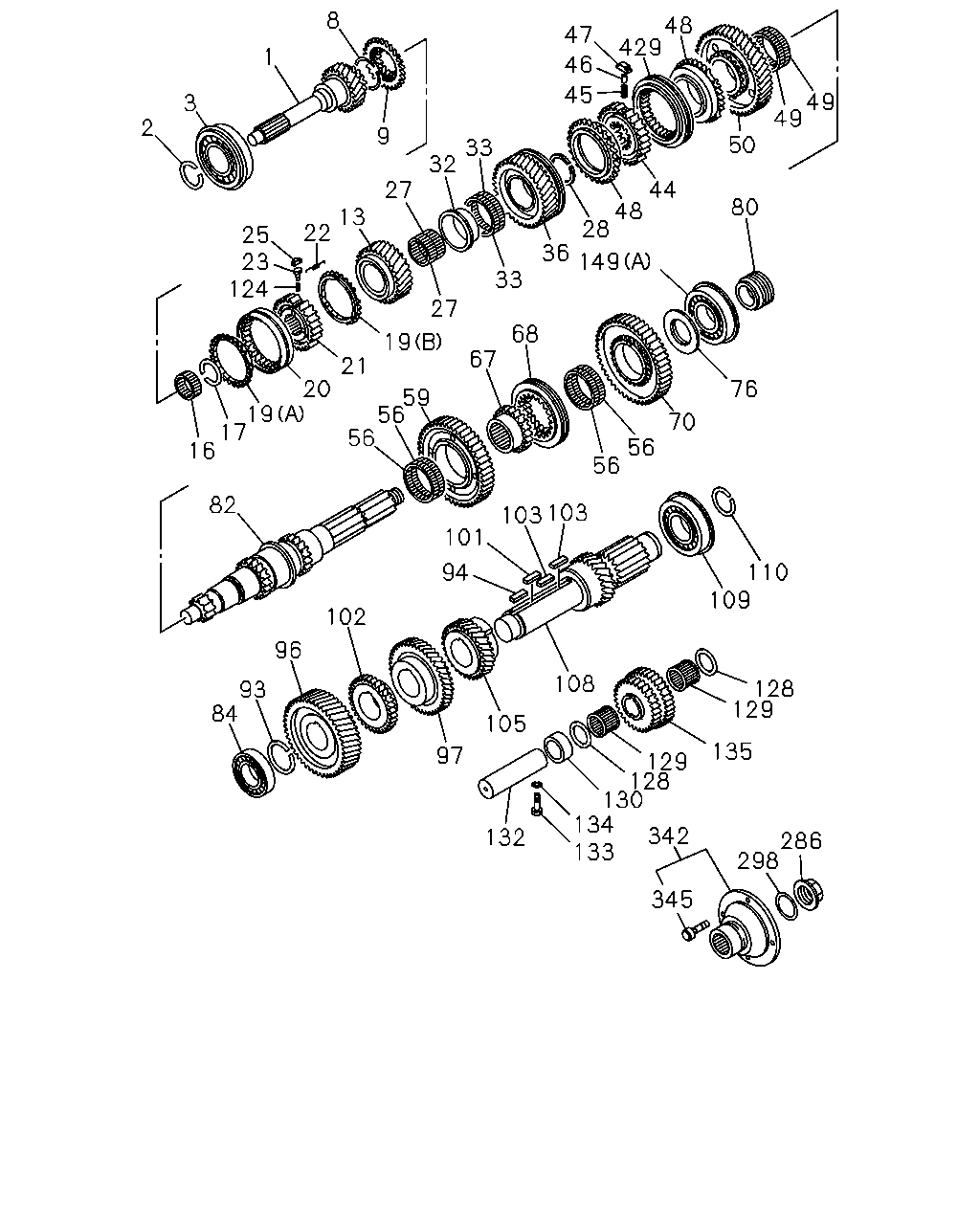

8 48 429 47 1 46 45 49 49 3 2 9 50 33 32 27 44 48 28 80 13 22 25 23 124 36 149 33 27 68 19 67 21 20 76 59 56 56 19 17 16 70 56 56 82 103 103 101 94 110 109 102 96 108 128 129 93 84 105 135 97 129 128 130 134 133 342 132 286 298 345

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT; TOP GEAR,TRANS Z=24	1-33211-656-1	01	1	0105-	●
1	SHAFT; TOP GEAR,TRANS Z=21	1-33211-608-1	01	1	0105-		●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.53 WHITE	1-09588-131-0	AR	1	0105-	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.56 YELLOW	1-09588-132-0	AR	1	0105-	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.60 BLUE	1-09588-133-0	AR	1	0105-	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.64 GREEN	1-09588-134-0	AR	1	0105-	●	●
3	BEARING; TOP GEAR SHAFT NTN	1-09810-164-0	01	1	0105-	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-185-0	01	1	0105-	●	●
8	CLIP; DOG CLU	1-33219-008-0	01	1	0105-	●	●
9	CLUTCH; DOG,TOP GEAR Z=54	1-33265-152-3	01	1	0105-	●	●
13	GEAR; 5TH,MAINSHAFT Z=20	1-33253-553-0	01	1	0105-	●
16	BEARING; PILOT,MAINSHAFT NTN	1-09810-208-0	01	1	0105-	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-139-0	01	1	0105-	●	●
17	RING; SNAP,4TH GEAR ID=55.8 T=2.53 WHITE	1-09588-160-1	01	1	0105-	●	●
19	RING; BLOCK,4TH & 5TH (A) Z=54	1-33265-290-7	01	1	0105-	●	●
19	RING; BLOCK,4TH & 5TH (B) Z=54	1-33265-544-0	01	1	0105-	●	●
20	SLEEVE	1-33262-097-1	01	1	0105-	●	●
21	HUB; CLU,4TH & 5TH	1-33261-186-2	01	1	0105-	●	●
22	SPRING; BLOCK,INSERT	1-09583-171-0	03	1	0105-	●	●
23	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	0105-	●	●
25	INSERT; CLU HUB,4TH TO 5TH	1-33263-025-2	03	1	0105-	●	●
27	BEARING; 4TH GEAR NSK	1-09811-360-0	02	1	0105-	●
27	BEARING; 4TH GEAR NTN	1-09811-391-0	02	1	0105-	●
27	BEARING; 4TH GEAR NSK	1-09811-355-0	02	1	0105-		●
27	BEARING; 4TH GEAR NTN	1-09811-402-0	02	1	0105-		●
28	RING; SNAP,3RD GEAR	1-09588-118-0	01	1	0105-	●	●
32	COLLAR; 3RD GEAR	1-33234-075-0	01	1	0105-	●
32	COLLAR; 3RD GEAR	1-33234-056-1	01	1	0105-		●
33	BEARING; NEEDLE,3RD GEAR NTN	1-09811-389-0	02	1	0105-	●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-411-0	02	1	0105-	●
36	GEAR; 3RD,MAINSHAFT Z=34	1-33252-462-0	01	1	0105-	●
36	GEAR; 3RD,MAINSHAFT Z=36	1-33252-191-2	01	1	0105-		●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-260-0	01	1	0105-	●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-118-1	01	1	0105-		●
45	SPRING; BLOCK INSERT ASSISTOR SHIFT CONTROL<WX8>	1-09580-395-0	06	1	0105-	●
45	SPRING; BLOCK INSERT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-09580-395-0	03	1	0105-	●
46	PLUNGER; DETENT,SYN ASSISTOR SHIFT CONTROL<WX8>	1-33269-037-1	06	1	0105-	●
46	PLUNGER; DETENT,SYN EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33269-037-1	03	1	0105-	●
47	BLOCK; INDEX,SYN ASSISTOR SHIFT CONTROL<WX8>	1-33269-035-1	06	1	0105-	●
47	BLOCK; INDEX,SYN EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33269-035-1	03	1	0105-	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-542-0	02	1	0105-0407	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-611-1	02	1	0408-	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33260-102-2	01	1	0105-		●
49	BEARING; NEEDLE,2ND GEAR NTN	1-09811-389-0	02	1	0105-	●
49	BEARING; NEEDLE,2ND GEAR NSK	1-09811-411-0	02	1	0105-	●
50	GEAR; 2ND,MAINSHAFT Z=54	1-33251-326-3	01	1	0105-	●
50	GEAR; 2ND,MAINSHAFT Z=45	1-33251-262-0	01	1	0105-		●
56	BEARING; NEEDLE,1ST,REV NTN	1-09811-389-0	04	1	0105-	●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-411-0	04	1	0105-	●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-410-0	04	1	0105-		●
59	GEAR; REV MAINSHAFT Z=38	1-33257-066-1	01	1	0105-	●
59	GEAR; REV MAINSHAFT Z=38	1-33257-046-1	01	1	0105-		●
67	HUB; CLU,1ST TO REV	1-33261-223-0	01	1	0105-	●
67	HUB; CLU,1ST TO REV	1-33261-118-1	01	1	0105-		●
68	SLEEVE; 1ST TO REV	1-33262-160-0	01	1	0105-	●
68	SLEEVE; 1ST TO REV	1-33262-024-1	01	1	0105-		●
70	GEAR; 1ST,MAINSHAFT Z=44	1-33255-064-0	01	1	0105-	●
70	GEAR; 1ST,MAINSHAFT Z=44	1-33255-038-6	01	1	0105-		●
76	WASHER; THRUST,MAIN LOW	1-33239-146-0	01	1	0105-	●
76	WASHER; THRUST,MAIN LOW	1-33239-093-1	01	1	0105-		●
80	GEAR; SPD DRIVE Z=5	1-33371-014-2	01	1	0105-	●	●
82	SHAFT; MAIN,TRANS Z=37-28-28-18	1-33231-305-0	01	1	0105-	●
82	SHAFT; MAIN,TRANS Z=28-28-28-18	1-33231-310-0	01	1	0105-		●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-221-0	01	1	0105-	●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-222-0	01	1	0105-	●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-119-0	01	1	0105-		●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-241-0	01	1	0105-		●
93	RING; SNAP,COUNTER FRT BRG	1-09588-118-0	01	1	0105-	●	●
94	KEY; FEATHER,COUNTER SHAFT L=50.0	1-09735-010-0	01	1	0105-	●	●
96	GEAR; COUNTER DRIVE Z=39	1-33331-190-0	01	1	0105-	●
96	GEAR; COUNTER DRIVE Z=41	1-33331-194-0	01	1	0105-		●
97	GEAR; 5TH,COUNTER Z=43	1-33338-294-0	01	1	0105-	●
101	KEY; PTO DRIVE GEAR L=40	1-09735-008-0	01	1	0105-	●	●
102	GEAR; PTO DRIVE,COUNTER Z=33	1-33337-014-1	01	1	0105-	●	●
103	KEY; COUNTER GEAR L=50.0	1-09735-010-0	01	1	0105-	●	●
103	KEY; COUNTER GEAR L=46	1-09735-038-1	01	1	0105-	●	●
105	GEAR; 3RD,COUNTER Z=31	1-33333-146-1	01	1	0105-	●
105	GEAR; 3RD,COUNTER Z=29	1-33333-119-0	01	1	0105-		●
108	SHAFT; COUNTER Z=22-13	1-33311-269-0	01	1	0105-	●
108	SHAFT; COUNTER Z=22-13	1-33311-228-0	01	1	0105-		●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-021-1	01	1	0105-	●	●
109	BEARING; COUNTER SHAFT,RR NTN	1-09810-163-0	01	1	0105-	●	●
110	RING; SNAP,COUNTER BRG	1-09588-042-1	01	1	0105-	●	●
124	SPRING; PLUNGER,CLU HUB	1-09580-091-1	03	1	0105-	●	●
128	WASHER; THRUST,REV SHAFT T=4.0	9-33363-015-0	02	1	0105-	●	●
129	BEARING; NEEDLE,IDLER NSK	1-09811-388-0	02	1	0105-	●
129	BEARING; NEEDLE,IDLER NTN	9-00096-215-0	02	1	0105-	●	●
130	COLLAR; DIST,NEEDLE BRG	1-33359-001-0	01	1	0105-	●	●
132	SHAFT; REV	1-33351-012-2	01	1	0105-	●	●
133	SCREW; SET,REV SHAFT	1-09122-023-0	01	1	0105-	●	●
134	WASHER; LK,REV SHAFT ID=8.2	9-09150-508-0	01	1	0105-0603	●	●
134	WASHER; LK,REV SHAFT ID=8.2	0-91510-508-0	01	1	0604-	●	●
135	GEAR; REV IDLER Z=27	1-33361-070-0	01	1	0105-	●
135	GEAR; REV IDLER Z=27-22	1-33361-036-1	01	1	0105-		●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NSK	1-09810-021-1	01	1	0105-	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NTN	1-09810-163-0	01	1	0105-	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NSK	1-09810-172-0	01	1	0105-		●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NTN	1-09810-173-0	01	1	0105-		●
286	NUT; LK,MAINSHAFT M44	1-09449-076-0	01	1	0105-	●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T).	9-09920-607-0	01	1	0105-	●	●
342	FLANGE; OUTPUT	1-37243-361-0	01	1	0105-	●	●
345	BOLT; FLANGE TO YOKE M14X48.5	1-09046-013-0	04	1	0105-	●	●
429	SLEEVE; 2ND & 3RD	1-33262-220-0	01	1	0105-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
