Isuzu WW
▶
TRUCKS
▶
CVR
▶
10860 - CVR LHD
▶
2 - Clutch, Transmission, Trans Axle
▶
2-25 - SPEEDOMETER DRIVEN GEAR
▶

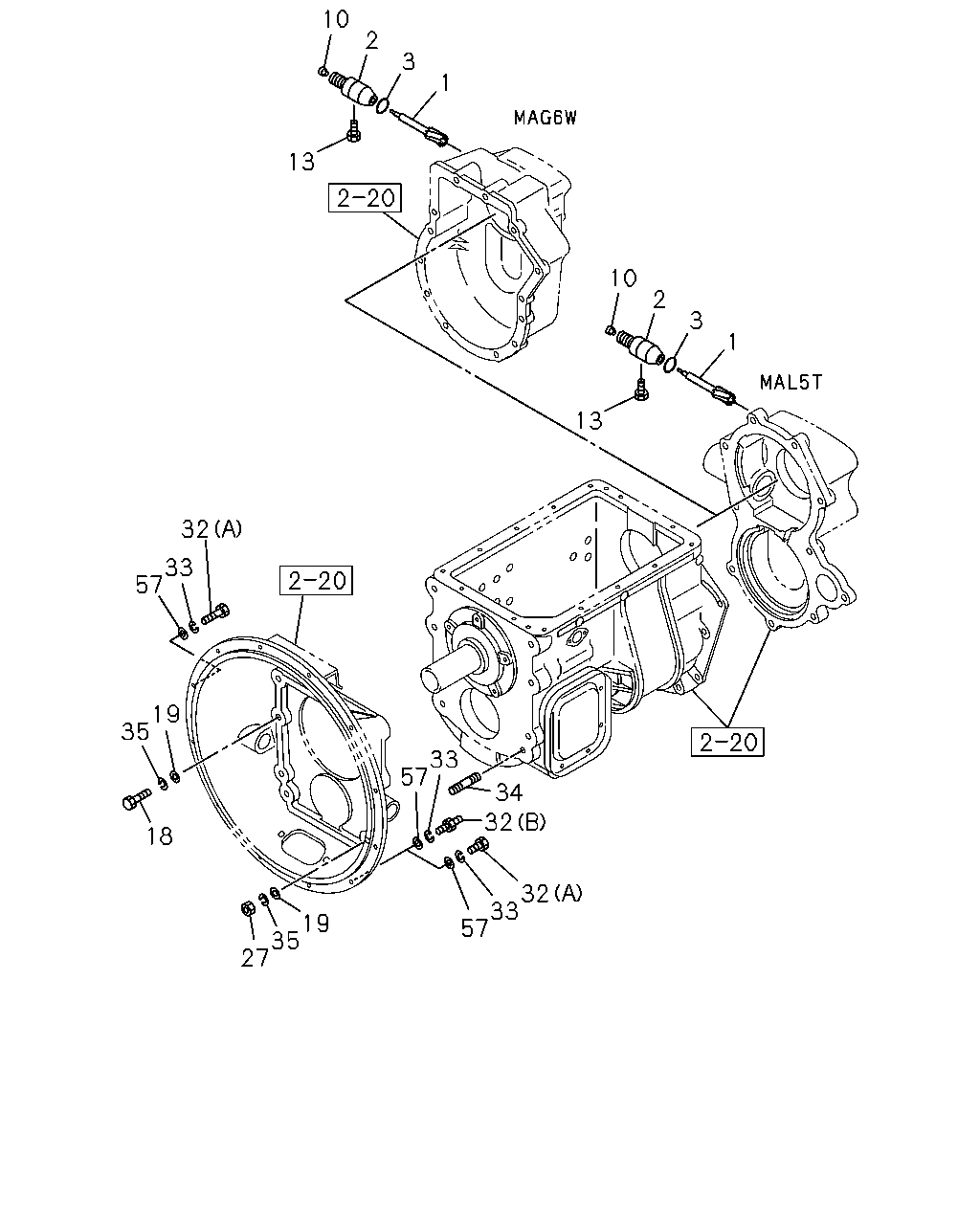

2-25 — SPEEDOMETER DRIVEN GEAR
(#8822) — 20 parça
Tümü
A - MAG6W M/T
B - MAL5T M/T
10
2
3
1
13
10
2
3
1
13
32
33
57
19
35
33
57
34
32
18
32
33
57
19
35
27
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
GEAR; DRIVEN,SPD
Z=15
1-33372-147-4
01
1
0105-
●
●
2
BUSHING; DRIVEN GEAR,SPEEDOMETER
1-33373-077-0
01
1
0105-
●
●
3
GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T).
1-09623-246-0
01
1
0105-
●
●
10
SEAL; OIL,DRIVE GEAR
ALSO INCLUDED IN GASKET SET(M/T). NOK
1-09625-510-0
01
1
0105-
●
●
13
SCREW; BUSHING,DRIVEN GEAR
M6X12.5 FLANGE
1-09044-063-0
01
1
0105-
●
●
18
BOLT; CLU HSG TO TRANS
M16X50 W/LK&PL WASHER
0-50151-650-0
06
1
0105-0512
●
●
18
BOLT; CLU HSG TO TRANS
M16X50 W/LK&PL WASHER
0-50651-650-0
06
1
0601-
●
●
19
WASHER; PL,CLU HSG TO TRANS
ID=17
9-09160-516-0
02
1
0105-0605
●
●
19
WASHER; PL,CLU HSG TO TRANS
ID=17 OD=30
0-91610-516-0
02
1
0606-
●
●
27
NUT; CLU HSG TO TRANS
M16
9-99110-516-0
02
1
0105-0512
●
●
27
NUT; CLU HSG TO TRANS
M16
0-91110-516-0
02
1
0601-
●
●
32
BOLT; CLU HSG TO FLYWHEEL HSG
(A) M12X35 FLANGE
0-28781-235-0
08
1
0105-0512
●
●
32
BOLT; CLU HSG TO FLYWHEEL HSG
(A) M12X35 FLANGE
0-28751-235-0
08
1
0601-
●
●
32
BOLT; CLU HSG TO FLYWHEEL HSG
(B) M10X16,M12X35 L=59
1-09029-031-1
04
1
0105-
●
●
33
WASHER; LK,CLU HSG
ID=12.2
9-09150-612-0
04
1
0105-0603
●
●
33
WASHER; LK,CLU HSG
ID=12.2
0-91510-612-0
04
1
0604-
●
●
34
STUD; CLU HSG
M16X45 L=69
9-04411-645-0
02
1
0105-
●
●
35
WASHER; LK,CLU HSG TO TRANS
ID=16.2
9-09150-516-0
02
1
0105-0603
●
●
35
WASHER; LK,CLU HSG TO TRANS
ID=16.2
0-91510-516-0
02
1
0604-
●
●
57
WASHER; PL,CLU HSG
ID=12.5
9-09164-512-0
04
1
0105-
●
●
