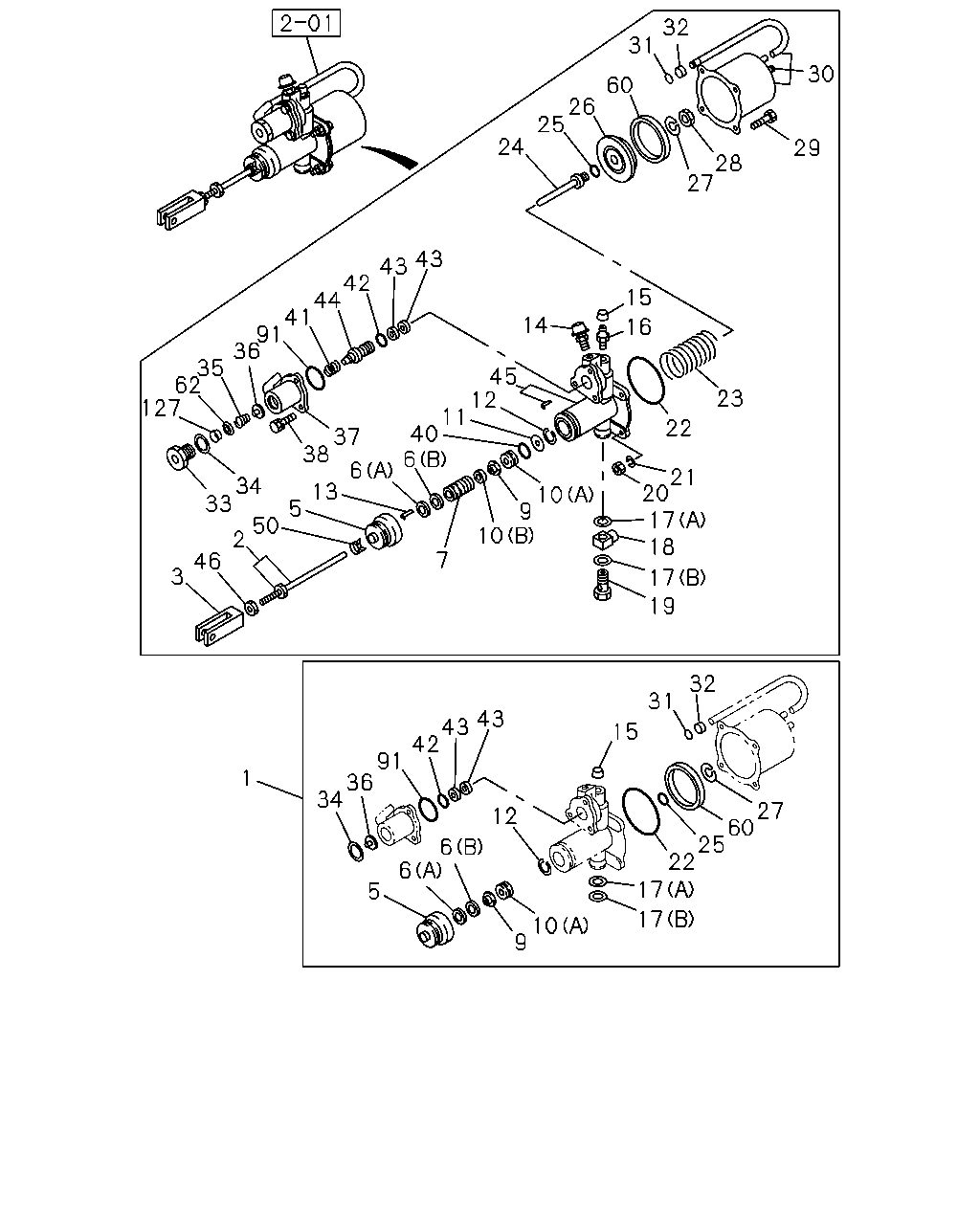

2-07 — CLUTCH BOOSTER; MINIPACK (#8818) — 64 parça

32 31 30 60 26 25 24 29 28 27 43 43 42 44 41 91 36 35 62 127 15 14 16 45 12 23 11 40 6 22 37 38 6 21 20 17 18 34 33 13 10 9 10 5 50 2 7 46 3 17 19 32 31 43 43 42 15 91 36 34 1 12 27 60 25 22 17 6 6 5 17 10 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	REPAIR KIT; CLU BOOSTER CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>	1-31829-523-0	01	1	0105-	●	●
1	REPAIR KIT; CLU BOOSTER EXC. CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>	1-31829-500-0	01	1	0105-	●	●
2	ROD; PUSH,CLU BOOSTER	1-31824-208-0	01	1	0105-0501	●	●
2	ROD; PUSH,CLU BOOSTER	1-31824-233-0	01	1	0502-	●	●
3	CLEVIS; PUSH ROD,CLU BOOSTER	1-31829-287-0	01	1	0105-	●	●
5	GUARD; PISTON,CLU BOOSTER	1-31829-503-0	01	1	0105-	●	●
6	GASKET; PISTON CUP,CLU BOOSTER (A)	1-31829-055-0	01	1	0105-	●	●
6	GASKET; PISTON CUP,CLU BOOSTER (B)	1-31829-056-0	01	1	0105-	●	●
7	PISTON; CLU BOOSTER	1-31821-048-0	01	1	0105-	●	●
9	GASKET; PISTON CUP,CLU BOOSTER	1-31829-251-0	01	1	0105-	●	●
10	RETAINER; PISTON,CLU BOOSTER (A)	1-31829-285-0	01	1	0105-	●	●
10	RETAINER; PISTON,CLU BOOSTER (B)	1-31829-428-0	01	1	0105-	●	●
11	WASHER; PISTON,CLU BOOSTER	1-31829-105-0	01	1	0105-	●	●
12	RING; RET,CLU BOOSTER	1-31829-142-0	01	1	0105-	●	●
13	PIN; SPR	1-31829-109-0	01	1	0105-	●	●
14	COVER; EXH,CLU BOOSTER CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>	1-31829-564-0	01	1	0306-0501	●	●
14	COVER; EXH,CLU BOOSTER	1-31829-564-0	01	1	0502-	●	●
14	COVER; EXH,CLU BOOSTER	1-31829-365-0	01	1	0105-0305	●	●
14	COVER; EXH,CLU BOOSTER EXC. CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>	1-31829-365-0	01	1	0306-0501	●	●
15	PROTECTOR; END PLATE,CLU BOOSTER	9-83335-044-0	01	1	0105-	●	●
16	PLUG; END PLATE,CLU BOOSTER	9-83331-704-0	01	1	0105-	●	●
17	GASKET; CONN,CLU BOOSTER (A)	9-09920-267-0	01	1	0105-	●	●
17	GASKET; CONN,CLU BOOSTER (B)	9-09920-268-0	01	1	0105-	●	●
18	CONNECTOR; END PLATE,CLU BOOSTER	1-31829-248-0	01	1	0105-	●	●
19	BOLT; EYE,END PLATE,CLU BOOSTER	9-83315-047-0	01	1	0105-	●	●
20	NUT; END PLATE TO SHELL,CLU BOOSTER M10	9-09111-410-0	04	1	0105-	●	●
21	WASHER; END PLATE TO SHELL,CLU BOOSTER ID=10.2	9-09150-510-0	04	1	0105-	●	●
22	GASKET; END PLATE TO SHELL,CLU BOOSTER	1-31829-281-0	01	1	0105-	●	●
23	SPRING; SHELL,CLU BOOSTER	1-31829-350-0	01	1	0105-	●	●
24	ROD; PUSH,CLU BOOSTER	1-31824-158-0	01	1	0105-	●	●
25	GASKET; PUSH ROD,CLU BOOSTER	1-31829-277-0	01	1	0105-	●	●
26	PISTON; SHELL,CLU BOOSTER	1-31821-072-0	01	1	0105-	●	●
27	SPRING; CLU BOOSTER	1-31829-291-0	01	1	0105-	●	●
28	NUT; PUSH ROD,CLU BOOSTER	1-31829-290-0	01	1	0105-	●	●
29	BOLT; END PLATE TO SHELL,CLU BOOSTER	9-83315-099-0	04	1	0105-	●	●
30	SHELL; CYL,CLU BOOSTER	1-31811-117-0	01	1	0105-	●	●
31	GASKET; SHELL,CLU BOOSTER	1-31829-279-0	01	1	0105-	●	●
32	BUSHING; SHELL,CLU BOOSTER	1-31829-280-0	01	1	0105-	●	●
33	CONNECTOR; UPR,VLV,CLU BOOSTER	1-31829-214-0	01	1	0105-	●	●
34	GASKET; CONN,CLU BOOSTER	1-31829-053-0	01	1	0105-	●	●
35	SPRING; POPPET VLV,CLU BOOSTER	1-31829-451-0	01	1	0105-	●	●
36	VALVE; POPPET,CLU BOOSTER	1-31829-452-0	01	1	0105-	●	●
37	BODY; UPR,VLV,CLU BOOSTER	1-31811-085-0	01	1	0105-	●	●
38	SCREW; UPR VLV TO END PLATE,CLU BOOSTE	9-83315-113-0	03	1	0105-	●	●
40	GASKET; PISTON,CLU BOOSTER	1-31829-037-0	01	1	0105-	●	●
41	SPRING; DIAPH,CLU BOOSTER CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>	1-31829-458-0	01	1	0105-0501	●	●
41	SPRING; DIAPH,CLU BOOSTER	1-31829-458-0	01	1	0502-	●	●
41	SPRING; DIAPH,CLU BOOSTER EXC. CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>	1-31829-288-0	01	1	0105-0501	●	●
42	GASKET; FITTING,CLU BOOSTER CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>	1-31829-123-0	01	1	0105-	●	●
42	GASKET; FITTING,CLU BOOSTER EXC. CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>	1-31829-148-0	01	1	0105-	●	●
43	GASKET; UPR VLV,CLU BOOSTER	1-31829-060-0	02	1	0105-	●	●
44	PISTON; UPR VLV,CLU BOOSTER CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>	1-31821-082-0	01	1	0105-0305	●	●
44	PISTON; UPR VLV,CLU BOOSTER CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>	1-31821-089-0	01	1	0306-	●	●
44	PISTON; UPR VLV,CLU BOOSTER EXC. CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>	1-31821-058-0	01	1	0105-	●	●
45	PLATE; END,CLU BOOSTER CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>	1-31811-121-0	01	1	0105-0305	●	●
45	PLATE; END,CLU BOOSTER CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>	1-31811-138-0	01	1	0306-	●	●
45	PLATE; END,CLU BOOSTER EXC. CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>	1-31811-067-0	01	1	0105-	●	●
46	NUT; PUSH ROD,CLU BOOSTER	1-31824-126-0	02	1	0105-0501	●	●
46	NUT; PUSH ROD,CLU BOOSTER M10	9-09111-410-0	02	1	0502-	●	●
50	CLAMP; PISTON GUARD,CLU BOOSTER	1-31829-504-0	01	1	0105-	●	●
60	GASKET; SHELL,CLU BOOSTER	1-31829-454-0	01	1	0105-	●	●
62	RETAINER; POPPET	1-31829-489-0	01	1	0105-	●	●
91	GASKET; CLU BOOSTER	1-31829-103-0	01	1	0105-	●	●
127	FILTER; POPPET	1-31829-495-0	01	1	0105-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
