2-05 — CLUTCH PIPING (#8817) — 175 parça

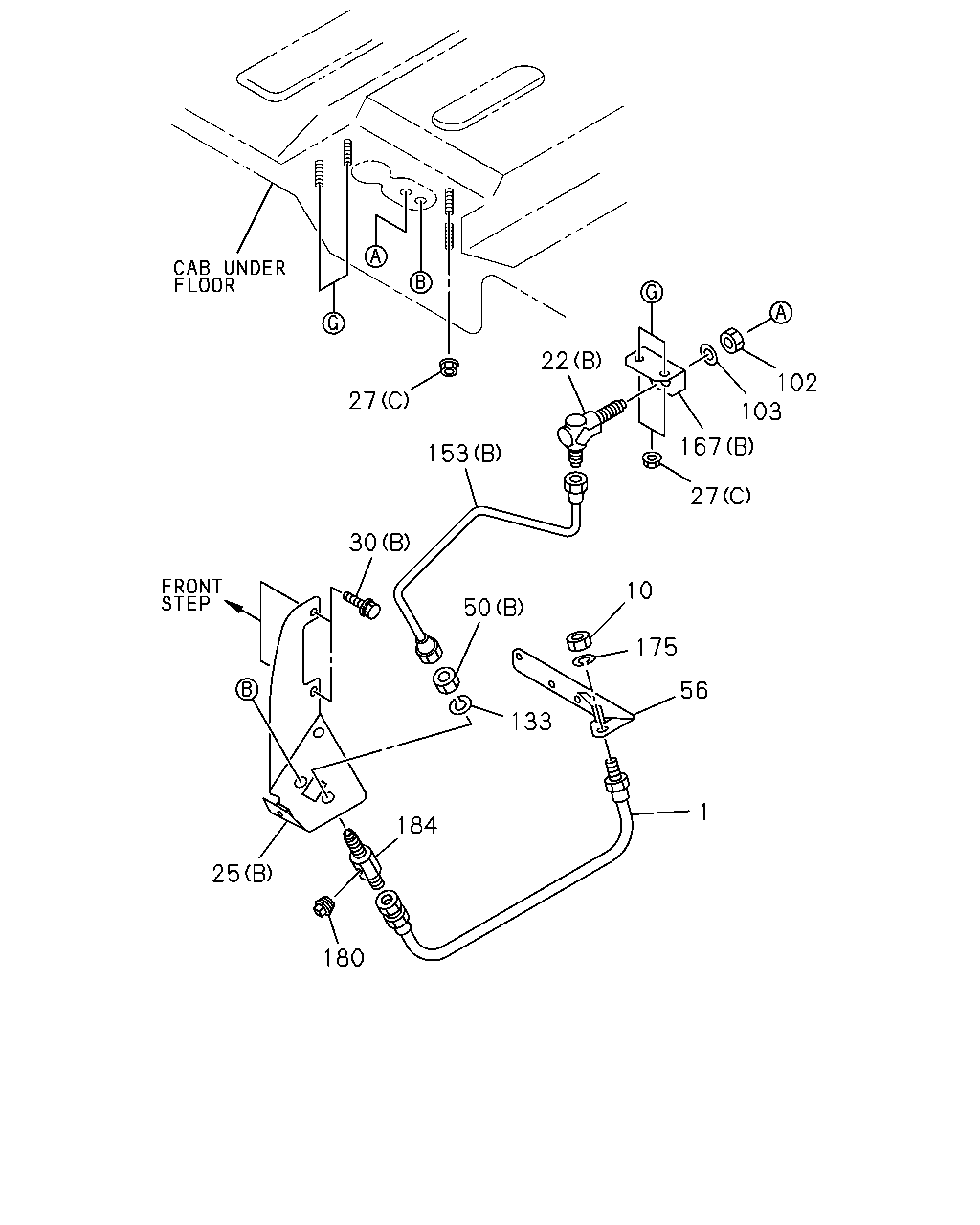

22 102 103 27 167 153 27 30 10 50 175 56 133 1 184 25 180

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,CLU CONT L=520	1-09364-948-1	01	1	0105-
10	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0105-0512
10	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-
22	UNION; CLU PIPE (B) M14	9-09225-208-1	01	1	0105-0607
22	UNION; CLU PIPE (B) M14	0-92125-208-0	01	1	0608-
22	UNION; CLU PIPE ASSISTOR SHIFT CONTROL<WX8> (A)	1-09656-181-1	01	1	0105-
25	BRACKET; OIL PIPE (A)	1-47477-935-2	01	1	0105-
25	BRACKET; OIL PIPE (B)	1-71907-627-2	01	1	0105-
27	NUT; BRKT (A) M8 FLANGE	0-91150-108-0	02	1	0105-0602
27	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	02	1	0603-
27	NUT; BRKT (D) M10 FLANGE	0-91150-210-0	02	1	0105-0602
27	NUT; BRKT (D) M10 FLANGE	0-91180-210-0	02	1	0603-
27	NUT; BRKT (B) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0105-
27	NUT; BRKT (C) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	0105-
30	BOLT; BRKT (A) M8X35 FLANGE	0-28680-835-0	02	1	0105-0512
30	BOLT; BRKT (A) M8X35 FLANGE	0-28650-835-0	02	1	0601-
30	BOLT; BRKT (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0105-
50	NUT; UNION (B) M14	9-99111-414-0	01	1	0105-0512
50	NUT; UNION (B) M14	0-91111-514-0	01	1	0601-
50	NUT; UNION ASSISTOR SHIFT CONTROL<WX8> (A) M20	9-99111-420-0	01	1	0105-0512
50	NUT; UNION ASSISTOR SHIFT CONTROL<WX8> (A) M20	0-91111-520-0	01	1	0601-
56	BRACKET; FLEX HOSE	1-47477-603-1	01	1	0105-
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0105-0512
102	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0105-0603
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-
133	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	0105-0603
133	WASHER; LK,UNION ID=14.2	0-91510-514-0	01	1	0604-
153	PIPE ASM; CLU,UNION TO FLEX (A) L=547 SERVICED BY L=550	1-47426-377-0	01	1	0105-
153	PIPE ASM; CLU,UNION TO FLEX (B) L=490	1-47428-363-0	01	1	0105-0106
153	PIPE ASM; CLU,UNION TO FLEX (B) L=395	1-49166-204-0	01	1	0107-0606
153	PIPE ASM; CLU,UNION TO FLEX (B) L=501 SERVICED BY L=550	1-47426-377-0	01	1	0607-
167	BRACKET; UNION (A)	1-71117-207-1	01	1	0105-
167	BRACKET; UNION (B)	1-71907-376-1	01	1	0105-
175	WASER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0105-0603
175	WASER; LK,FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-
180	PLUG; PIPE	9-09204-510-0	01	1	0105-
184	UNION; FLEX HOSE	1-09656-679-0	01	1	0105-

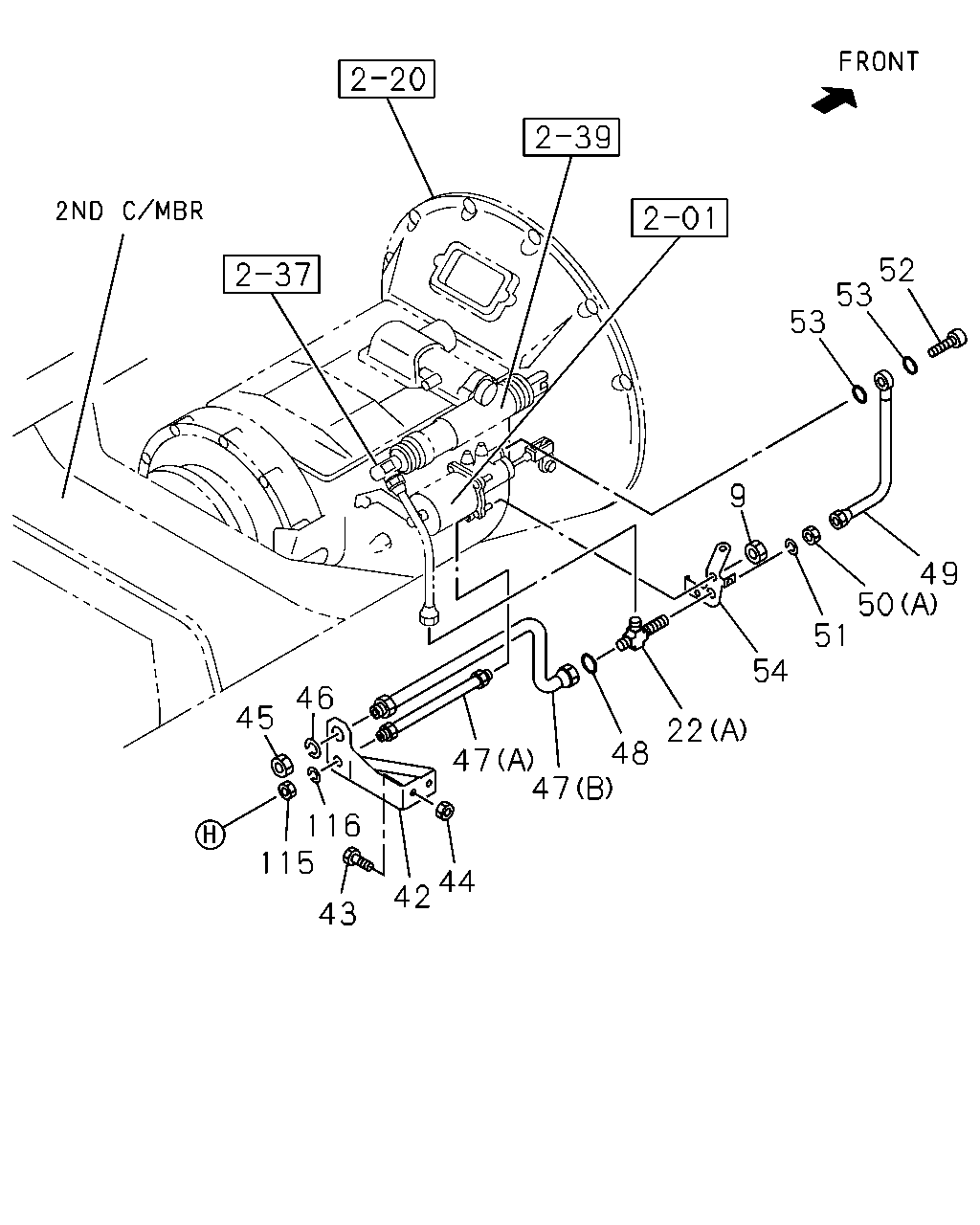

52 53 53 9 49 50 51 54 46 45 22 48 47 47 116 115 44 42 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	NUT; BRKT,FLEX HOSE M10 FLANGE	0-91150-210-0	02	1	0105-0602
9	NUT; BRKT,FLEX HOSE M10 FLANGE	0-91180-210-0	02	1	0603-
22	UNION; CLU PIPE (B) M14	9-09225-208-1	01	1	0105-0607
22	UNION; CLU PIPE (B) M14	0-92125-208-0	01	1	0608-
22	UNION; CLU PIPE ASSISTOR SHIFT CONTROL<WX8> (A)	1-09656-181-1	01	1	0105-
42	BRACKET; FLEX HOSE,CLU CONT	1-47477-546-1	01	1	0105-
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28680-830-0	02	1	0105-0512
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28650-830-0	02	1	0601-
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	0105-0602
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	0603-
45	NUT; FLEX HOSE,CLU CONT ASSISTOR SHIFT CONTROL<WX8> M20	9-99111-420-0	01	1	0105-0512
45	NUT; FLEX HOSE,CLU CONT ASSISTOR SHIFT CONTROL<WX8> M20	0-91111-520-0	01	1	0601-
45	NUT; FLEX HOSE,CLU CONT EXC. ASSISTOR SHIFT CONTROL<WX8> M20	9-99111-420-0	02	1	0105-0512
45	NUT; FLEX HOSE,CLU CONT EXC. ASSISTOR SHIFT CONTROL<WX8> M20	0-91111-520-0	02	1	0601-
46	WASHER; LK,FLEX HOSE,CLU CONT ASSISTOR SHIFT CONTROL<WX8> ID=20.2	9-09150-520-0	01	1	0105-0603
46	WASHER; LK,FLEX HOSE,CLU CONT ASSISTOR SHIFT CONTROL<WX8> ID=20.2	0-91510-520-0	01	1	0604-
46	WASHER; LK,FLEX HOSE,CLU CONT EXC. ASSISTOR SHIFT CONTROL<WX8> ID=20.2	9-09150-520-0	02	1	0105-0603
46	WASHER; LK,FLEX HOSE,CLU CONT EXC. ASSISTOR SHIFT CONTROL<WX8> ID=20.2	0-91510-520-0	02	1	0604-
47	HOSE; FLEX,CLU CONT (A) L=550	1-09364-434-0	01	1	0105-
47	HOSE; FLEX,CLU CONT ASSISTOR SHIFT CONTROL<WX8> (B) L=500	0-07806-500-1	01	1	0105-0605
47	HOSE; FLEX,CLU CONT ASSISTOR SHIFT CONTROL<WX8> (B) L=500	0-57806-500-1	01	1	0606-
47	HOSE; FLEX,CLU CONT EXC. ASSISTOR SHIFT CONTROL<WX8> (B) L=600	0-07706-600-0	01	1	0105-0605
47	HOSE; FLEX,CLU CONT EXC. ASSISTOR SHIFT CONTROL<WX8> (B) L=600	0-57706-600-0	01	1	0606-
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	0105-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER MAG6 M/T<X9T> L=293	1-49117-734-0	01	1	0105-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER MAL5 M/T<X9F> L=245	1-49117-733-0	01	1	0105-
50	NUT; UNION (B) M14	9-99111-414-0	01	1	0105-0512
50	NUT; UNION (B) M14	0-91111-514-0	01	1	0601-
50	NUT; UNION ASSISTOR SHIFT CONTROL<WX8> (A) M20	9-99111-420-0	01	1	0105-0512
50	NUT; UNION ASSISTOR SHIFT CONTROL<WX8> (A) M20	0-91111-520-0	01	1	0601-
51	WASHER; LK ASSISTOR SHIFT CONTROL<WX8> ID=20.2	9-09150-520-0	01	1	0105-0603
51	WASHER; LK ASSISTOR SHIFT CONTROL<WX8> ID=20.2	0-91510-520-0	01	1	0604-
52	BOLT; EYE,AIR PIPE M14X27 FLANGE	1-09675-086-0	01	1	0105-
53	GASKET; JOINT BOLT ID=14.2 OD=19.2	1-09630-085-0	02	1	0105-
54	BRACKET; AIR,FLEX HOSE	1-47477-284-1	01	1	0105-
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0105-0512
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0105-0603
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-

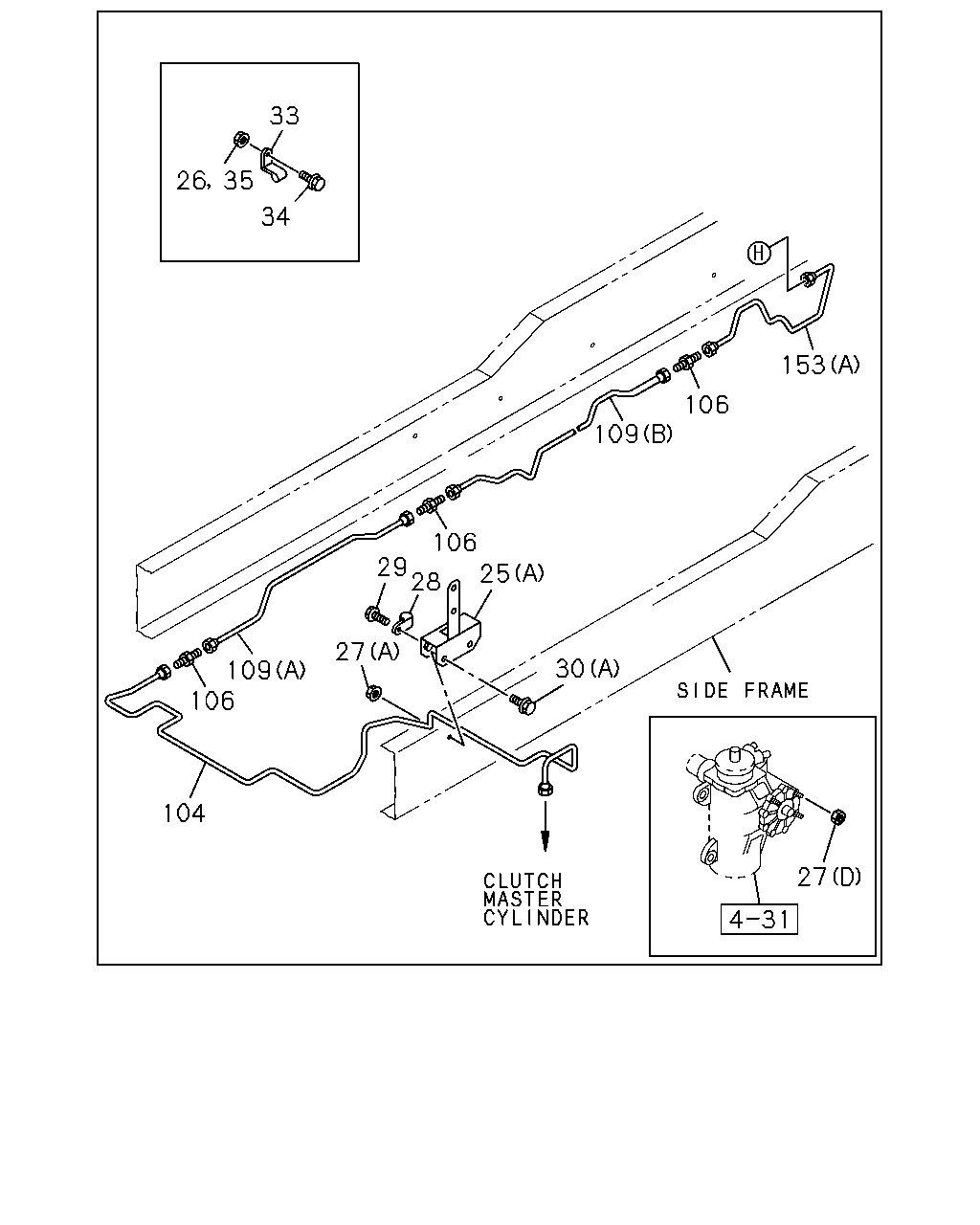

33 26 35 34 153 106 109 106 25 29 28 27 30 109 106 104 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
25	BRACKET; OIL PIPE (A)	1-47477-935-2	01	1	0105-
25	BRACKET; OIL PIPE (B)	1-71907-627-2	01	1	0105-
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	01	1	0105-0602
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	01	1	0603-
27	NUT; BRKT (A) M8 FLANGE	0-91150-108-0	02	1	0105-0602
27	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	02	1	0603-
27	NUT; BRKT (D) M10 FLANGE	0-91150-210-0	02	1	0105-0602
27	NUT; BRKT (D) M10 FLANGE	0-91180-210-0	02	1	0603-
27	NUT; BRKT (B) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0105-
27	NUT; BRKT (C) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	0105-
28	CLIP; OIL PIPE ID=9 L=20	9-09524-835-0	01	1	0105-0606
28	CLIP; OIL PIPE ID=9 L=20	0-95234-835-0	01	1	0607-
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	01	1	0105-0512
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28650-825-0	01	1	0601-
30	BOLT; BRKT (A) M8X35 FLANGE	0-28680-835-0	02	1	0105-0512
30	BOLT; BRKT (A) M8X35 FLANGE	0-28650-835-0	02	1	0601-
30	BOLT; BRKT (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0105-
33	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	03	1	0105-
33	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	01	1	0105-
33	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	01	1	0105-
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	02	1	0105-0512
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28650-830-0	02	1	0601-
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	03	1	0105-0512
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28650-830-0	03	1	0601-
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	01	1	0105-0512
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	01	1	0105-0512
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28650-830-0	01	1	0601-
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28650-830-0	01	1	0601-
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	03	1	0105-0602
35	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	03	1	0603-
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	01	1	0105-0602
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	01	1	0105-0602
35	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	01	1	0603-
35	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	01	1	0603-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=2275 SERVICED BY L=2400	1-47426-395-0	01	1	0105-
106	UNION; OIL PIPE M14 STRAIGHT	9-09223-008-1	01	1	0105-0607
106	UNION; OIL PIPE M14 STRAIGHT	9-09223-008-1	01	1	0105-0607
106	UNION; OIL PIPE M14 STRAIGHT	9-09223-008-1	01	1	0105-0607
106	UNION; OIL PIPE M14 STRAIGHT	0-92113-008-0	01	1	0608-
106	UNION; OIL PIPE M14 STRAIGHT	0-92113-008-0	01	1	0608-
106	UNION; OIL PIPE M14 STRAIGHT	0-92113-008-0	01	1	0608-
109	PIPE; AIR,UNION TO UNION (B) L=969 SERVICED BY L=970	1-47426-385-0	01	1	0105-
109	PIPE; AIR,UNION TO UNION (A) L=1031 SERVICED BY L=1100	1-47426-387-0	01	1	0105-
153	PIPE ASM; CLU,UNION TO FLEX (A) L=547 SERVICED BY L=550	1-47426-377-0	01	1	0105-
153	PIPE ASM; CLU,UNION TO FLEX (B) L=490	1-47428-363-0	01	1	0105-0106
153	PIPE ASM; CLU,UNION TO FLEX (B) L=395	1-49166-204-0	01	1	0107-0606
153	PIPE ASM; CLU,UNION TO FLEX (B) L=501 SERVICED BY L=550	1-47426-377-0	01	1	0607-

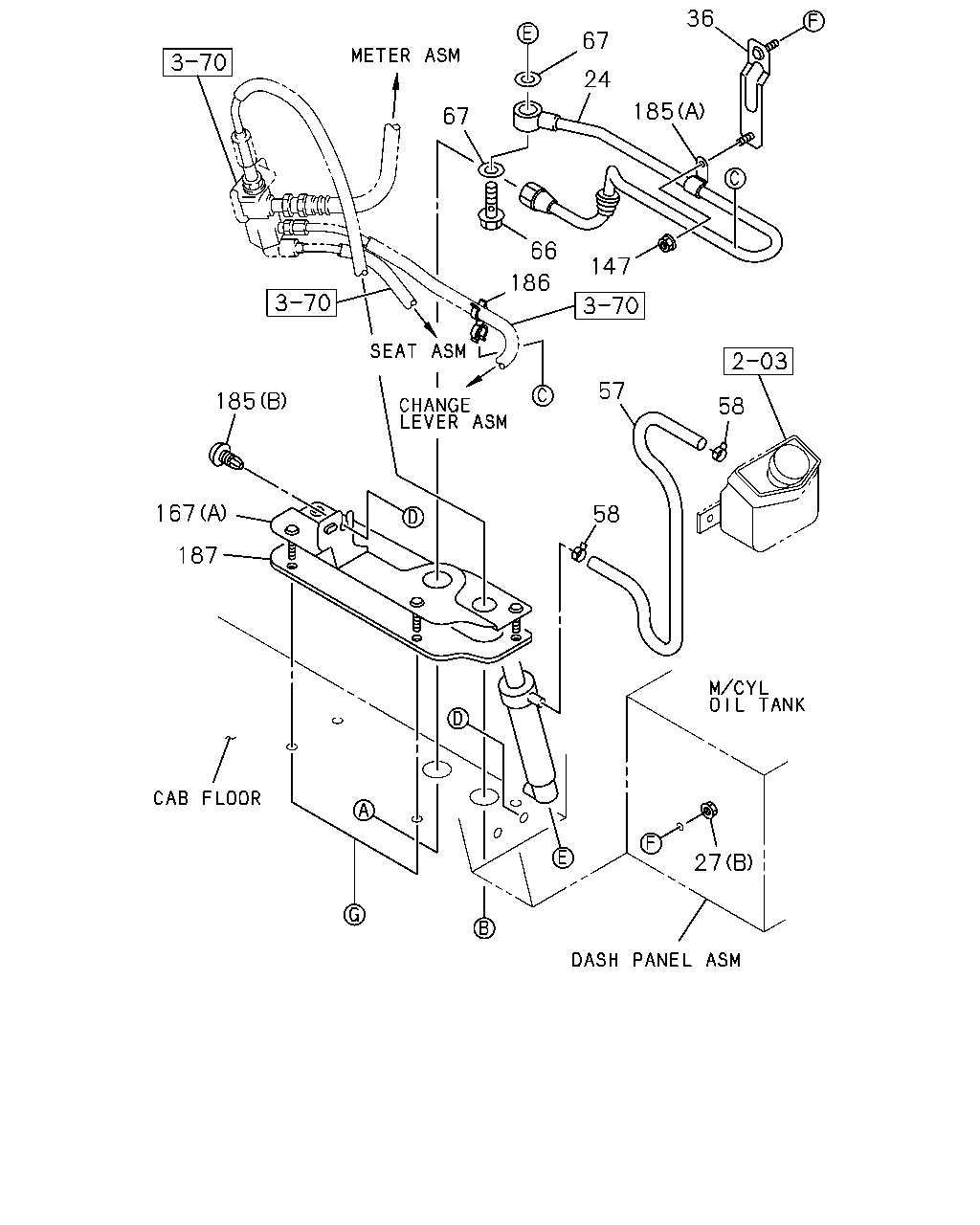

36 67 24 185 67 66 147 186 57 185 58 167 58 187 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	PIPE ASM; CLU,M/CYL TO UNION L=621	1-47428-362-1	01	1	0105-
27	NUT; BRKT (A) M8 FLANGE	0-91150-108-0	02	1	0105-0602
27	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	02	1	0603-
27	NUT; BRKT (D) M10 FLANGE	0-91150-210-0	02	1	0105-0602
27	NUT; BRKT (D) M10 FLANGE	0-91180-210-0	02	1	0603-
27	NUT; BRKT (B) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0105-
27	NUT; BRKT (C) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	0105-
36	BRACKET; CLIP	1-71117-191-1	01	1	0105-
57	HOSE; CLU M/CYL TO OIL TANK	1-47427-312-0	01	1	0105-
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	0105-
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	0105-
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	0105-
147	NUT; CLIP FIX M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	0105-
167	BRACKET; UNION (A)	1-71117-207-1	01	1	0105-
167	BRACKET; UNION (B)	1-71907-376-1	01	1	0105-
185	CLIP; BRKT (B) D8X13.5	1-09987-248-1	01	1	0105-
185	CLIP; BRKT (A) ID=9 L=20	9-09545-108-0	01	1	0105-0205
185	CLIP; BRKT (A) ID=11 L=16	9-09525-025-0	01	1	0206-0606
185	CLIP; BRKT (A) ID=11 L=16	0-95235-025-0	01	1	0607-
186	HOLDER; CLIP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.3 & 8.3	8-94426-175-0	01	1	0105-
187	SEAL; BRKT	1-71117-209-2	01	1	0105-

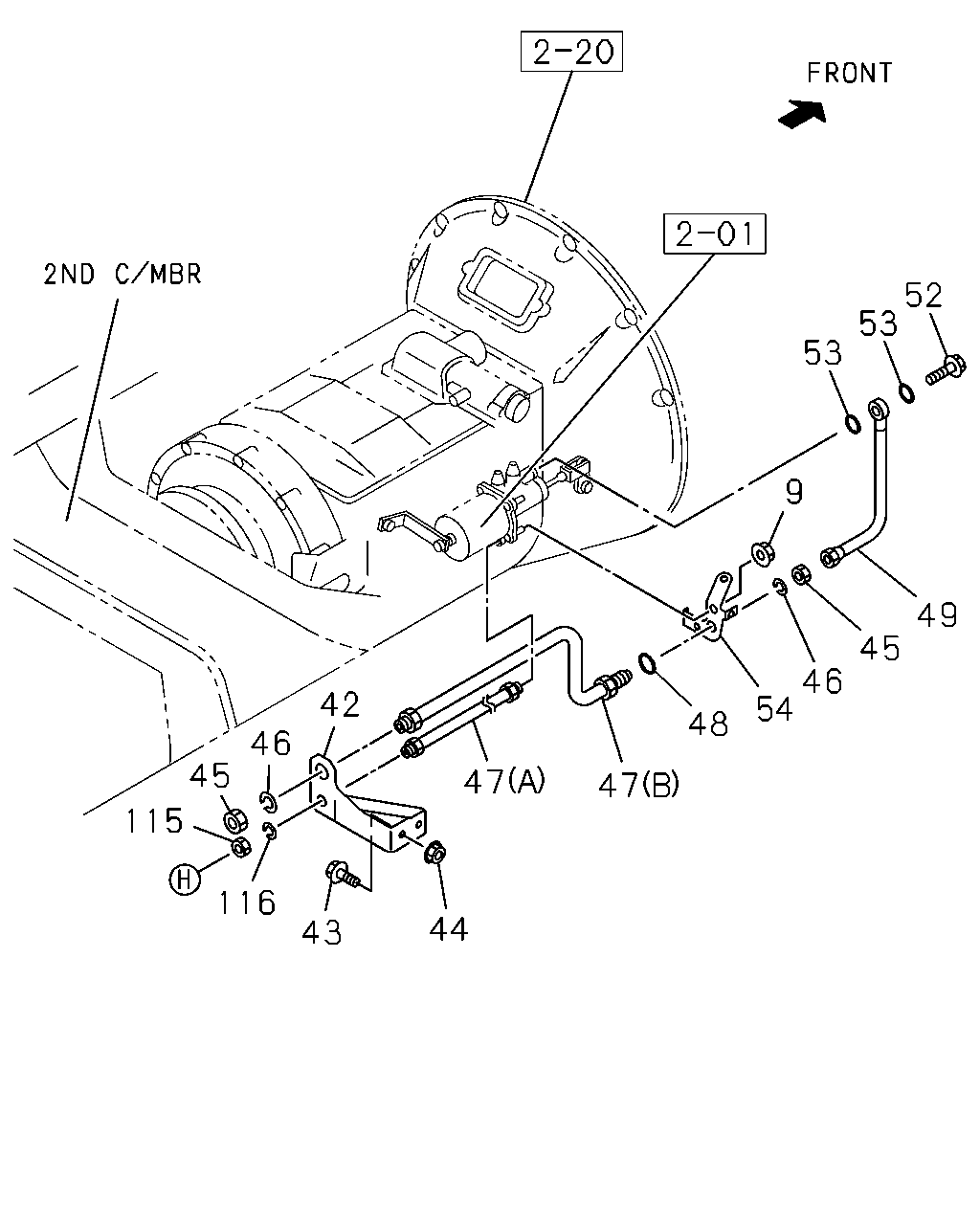

52 53 53 9 49 45 46 54 42 48 46 45 47 47 115 116 44 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	NUT; BRKT,FLEX HOSE M10 FLANGE	0-91150-210-0	02	1	0105-0602
9	NUT; BRKT,FLEX HOSE M10 FLANGE	0-91180-210-0	02	1	0603-
42	BRACKET; FLEX HOSE,CLU CONT	1-47477-546-1	01	1	0105-
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28680-830-0	02	1	0105-0512
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28650-830-0	02	1	0601-
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	0105-0602
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	0603-
45	NUT; FLEX HOSE,CLU CONT ASSISTOR SHIFT CONTROL<WX8> M20	9-99111-420-0	01	1	0105-0512
45	NUT; FLEX HOSE,CLU CONT ASSISTOR SHIFT CONTROL<WX8> M20	0-91111-520-0	01	1	0601-
45	NUT; FLEX HOSE,CLU CONT EXC. ASSISTOR SHIFT CONTROL<WX8> M20	9-99111-420-0	02	1	0105-0512
45	NUT; FLEX HOSE,CLU CONT EXC. ASSISTOR SHIFT CONTROL<WX8> M20	0-91111-520-0	02	1	0601-
46	WASHER; LK,FLEX HOSE,CLU CONT ASSISTOR SHIFT CONTROL<WX8> ID=20.2	9-09150-520-0	01	1	0105-0603
46	WASHER; LK,FLEX HOSE,CLU CONT ASSISTOR SHIFT CONTROL<WX8> ID=20.2	0-91510-520-0	01	1	0604-
46	WASHER; LK,FLEX HOSE,CLU CONT EXC. ASSISTOR SHIFT CONTROL<WX8> ID=20.2	9-09150-520-0	02	1	0105-0603
46	WASHER; LK,FLEX HOSE,CLU CONT EXC. ASSISTOR SHIFT CONTROL<WX8> ID=20.2	0-91510-520-0	02	1	0604-
47	HOSE; FLEX,CLU CONT (A) L=550	1-09364-434-0	01	1	0105-
47	HOSE; FLEX,CLU CONT ASSISTOR SHIFT CONTROL<WX8> (B) L=500	0-07806-500-1	01	1	0105-0605
47	HOSE; FLEX,CLU CONT ASSISTOR SHIFT CONTROL<WX8> (B) L=500	0-57806-500-1	01	1	0606-
47	HOSE; FLEX,CLU CONT EXC. ASSISTOR SHIFT CONTROL<WX8> (B) L=600	0-07706-600-0	01	1	0105-0605
47	HOSE; FLEX,CLU CONT EXC. ASSISTOR SHIFT CONTROL<WX8> (B) L=600	0-57706-600-0	01	1	0606-
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	0105-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER MAG6 M/T<X9T> L=293	1-49117-734-0	01	1	0105-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER MAL5 M/T<X9F> L=245	1-49117-733-0	01	1	0105-
52	BOLT; EYE,AIR PIPE M14X27 FLANGE	1-09675-086-0	01	1	0105-
53	GASKET; JOINT BOLT ID=14.2 OD=19.2	1-09630-085-0	02	1	0105-
54	BRACKET; AIR,FLEX HOSE	1-47477-284-1	01	1	0105-
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0105-0512
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0105-0603
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
