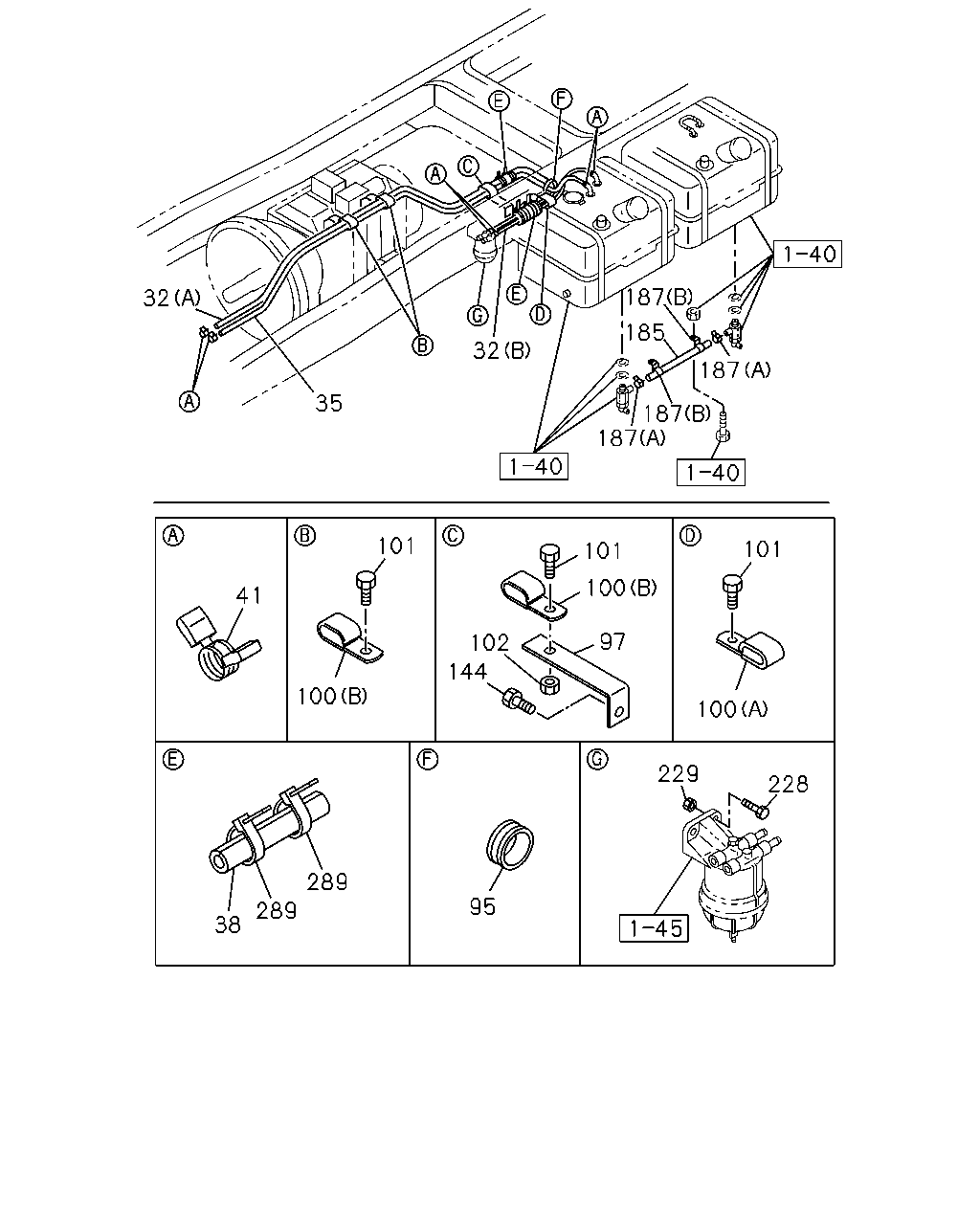

32 |
PIPE; DELIVERY,FUEL TANK
(B)
L=600
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
0105- |
| |
32 |
PIPE; DELIVERY,FUEL TANK
(A)
L=1800
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
0105- |
| |
35 |
PIPE; FUEL TANK,RETURN
L=1450
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
0105- |
| |
38 |
SLEEVE; RUBBER,RUBBER HOSE
L=150
|
1-09360-677-1 |
01 |
1 |
0105-0201 |
| |
38 |
SLEEVE; RUBBER,RUBBER HOSE
L=150
|
1-09360-677-1 |
01 |
1 |
0105-0201 |
| |
38 |
SLEEVE; RUBBER,RUBBER HOSE
L=150
SERVICED BY L=1300
|
1-09360-677-1 |
02 |
1 |
0202- |
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
ID=14
|
1-09704-102-0 |
06 |
1 |
0105- |
| |
95 |
BUSHING; PIPE,FUEL TANK
ID=28 OD=35 T=25
|
1-09332-011-1 |
01 |
1 |
0105- |
| |
97 |
BRACKET; CLIP
L=115
|
1-47475-305-0 |
01 |
1 |
0105- |
| |
100 |
CLIP; FUEL PIPE
(B)
ID=16X2 L=20
|
9-09535-536-0 |
03 |
1 |
0105-0606 |
| |
100 |
CLIP; FUEL PIPE
(B)
ID=16X2 L=20
|
0-95325-536-0 |
03 |
1 |
0607- |
| |
100 |
CLIP; FUEL PIPE
(A)
ID=16X2 L=50
|
9-09535-586-0 |
01 |
1 |
0105-0606 |
| |
100 |
CLIP; FUEL PIPE
(A)
ID=16X2 L=50
|
0-95325-586-0 |
01 |
1 |
0607- |
| |
101 |
BOLT; CLIP,FUEL PIPE
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
0105-0512 |
| |
101 |
BOLT; CLIP,FUEL PIPE
M8X25 FLANGE
|
0-28650-825-0 |
01 |
1 |
0601- |
| |
101 |
BOLT; CLIP,FUEL PIPE
M8X25 FLANGE
|
0-28680-825-0 |
03 |
1 |
0105-0512 |
| |
101 |
BOLT; CLIP,FUEL PIPE
M8X25 FLANGE
|
0-28650-825-0 |
03 |
1 |
0601- |
| |
102 |
NUT; CLIP,FUEL PIPE
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
0105-0602 |
| |
102 |
NUT; CLIP,FUEL PIPE
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0603- |
| |
144 |
BOLT; CLIP,FUEL PIPE,C/MBR
M8X35 FLANGE
|
0-28680-835-0 |
01 |
1 |
0105-0512 |
| |
144 |
BOLT; CLIP,FUEL PIPE,C/MBR
M8X35 FLANGE
|
0-28650-835-0 |
01 |
1 |
0601- |
| |
185 |
PIPE; FUEL TANK TO TANK
FUEL TANK 200L+200L<NF7>
L=840
SERVICED BY L=3000
|
0-01262-300-0 |
01 |
1 |
0105- |
| |
187 |
CLIP; FUEL PIPE TANK TO TANK
FUEL TANK 200L+200L<NF7>
(A)
ID=17.1
|
8-94122-679-0 |
02 |
1 |
0105- |
| |
187 |
CLIP; FUEL PIPE TANK TO TANK
FUEL TANK 200L+200L<NF7>
(B)
ID=19 H=25 L=25
|
9-09917-035-0 |
02 |
1 |
0105- |
| |
228 |
BOLT; BRKT,SEDIMENTER
M10X40 FLANGE
|
0-28081-040-0 |
02 |
1 |
0105-0512 |
| |
228 |
BOLT; BRKT,SEDIMENTER
M10X40 FLANGE
|
0-28051-040-0 |
02 |
1 |
0601- |
| |
229 |
NUT; BRKT,FUEL FILTER
M10 FLANGE
|
0-91150-210-0 |
02 |
1 |
0105-0602 |
| |
229 |
NUT; BRKT,FUEL FILTER
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
0603- |
| |
289 |
CLIP; BAND,HOSE
L=250
|
5-09707-030-1 |
02 |
1 |
0105-0201 |
| |
289 |
CLIP; BAND,HOSE
L=250
|
5-09707-030-1 |
02 |
1 |
0105-0201 |
| |
289 |
CLIP; BAND,HOSE
L=250
|
5-09707-030-1 |
04 |
1 |
0202- |
