Sayfa 1-40 - Isuzu EPC

1-40 — FUEL TANK (#8809) — 154 parça

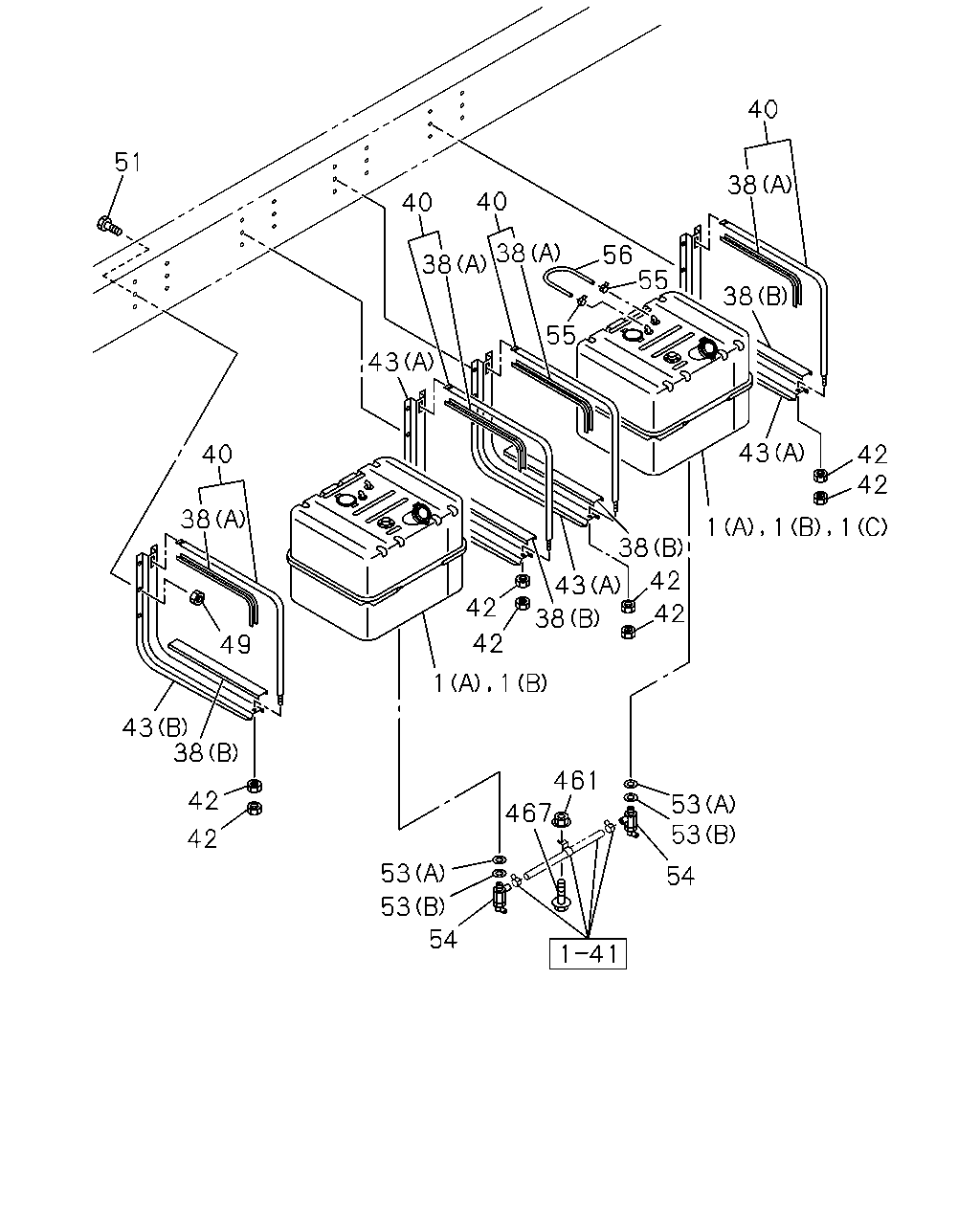

40 51 38 40 40 38 56 55 38 38 55 43 43 40 42 42 38 1 1 1 38 42 43 42 38 42 42 49 1 1 43 38 461 42 53 53 467 42 53 54 53 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK; FUEL FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7> (B) 720X610X496 200L	1-22401-121-1	01	1	0105-0112
1	TANK; FUEL FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7> (B) 720X610X496 200L	1-22401-193-0	01	1	0201-
1	TANK; FUEL FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22401-121-1	02	1	0105-0112
1	TANK; FUEL FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22401-193-0	02	1	0201-
1	TANK; FUEL FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22401-117-1	02	1	0105-0112
1	TANK; FUEL FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22401-190-0	02	1	0201-0404
1	TANK; FUEL FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (C) 720X610X496 200L	1-22401-212-0	01	1	0405-
1	TANK; FUEL EXC. FUEL TANK 200L+200L<NF7>,FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22401-117-1	01	1	0105-0112
1	TANK; FUEL EXC. FUEL TANK 200L+200L<NF7>,FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22401-190-0	01	1	0201-0404
1	TANK; FUEL EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22401-190-1	01	1	0405-
38	INSULATION; SUPPORT BELT FUEL TANK 200L+200L<NF7> (B) L=580	1-22553-003-0	04	1	0105-
38	INSULATION; SUPPORT BELT FUEL TANK 200L+200L<NF7> (A) L=650	1-22553-022-1	04	1	0105-
38	INSULATION; SUPPORT BELT EXC. FUEL TANK 200L+200L<NF7> (B) L=580	1-22553-003-0	02	1	0105-
38	INSULATION; SUPPORT BELT EXC. FUEL TANK 200L+200L<NF7> (A) L=650	1-22553-022-1	02	1	0105-
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L+200L<NF7> L=1030	1-22550-204-2	04	1	0105-
40	BELT; SUPPORT,FUEL TANK EXC. FUEL TANK 200L+200L<NF7> L=1030	1-22550-204-2	02	1	0105-
42	NUT; SUPPORT BELT FUEL TANK 200L+200L<NF7> M10	9-09110-510-0	08	1	0105-0512
42	NUT; SUPPORT BELT FUEL TANK 200L+200L<NF7> M10	0-91110-510-0	08	1	0601-
42	NUT; SUPPORT BELT EXC. FUEL TANK 200L+200L<NF7> M10	9-09110-510-0	04	1	0105-0512
42	NUT; SUPPORT BELT EXC. FUEL TANK 200L+200L<NF7> M10	0-91110-510-0	04	1	0601-
43	BRACKET; FUEL TANK (A)	1-53461-279-4	01	1	0105-
43	BRACKET; FUEL TANK (B)	1-53461-375-0	01	1	0105-
43	BRACKET; FUEL TANK FUEL TANK 200L+200L<NF7> (A)	1-53461-279-4	02	1	0105-
49	NUT; BRKT FUEL TANK 200L+200L<NF7> M12	9-99110-512-0	24	1	0105-0512
49	NUT; BRKT FUEL TANK 200L+200L<NF7> M12	0-91110-512-0	24	1	0601-
49	NUT; BRKT EXC. FUEL TANK 200L+200L<NF7> M12	9-99110-512-0	12	1	0105-0512
49	NUT; BRKT EXC. FUEL TANK 200L+200L<NF7> M12	0-91110-512-0	12	1	0601-
51	BOLT; BRKT TO FRAME FUEL TANK 200L+200L<NF7> M12X35 FLANGE	0-28681-235-0	24	1	0105-0512
51	BOLT; BRKT TO FRAME FUEL TANK 200L+200L<NF7> M12X35 FLANGE	0-28651-235-0	24	1	0601-
51	BOLT; BRKT TO FRAME EXC. FUEL TANK 200L+200L<NF7> M12X35 FLANGE	0-28681-235-0	12	1	0105-0512
51	BOLT; BRKT TO FRAME EXC. FUEL TANK 200L+200L<NF7> M12X35 FLANGE	0-28651-235-0	12	1	0601-
53	GASKET; COCK,FUEL TANK FUEL TANK 200L+200L<NF7> (B) T=1.60	1-22416-001-0	02	1	0105-0112
53	GASKET; COCK,FUEL TANK FUEL TANK 200L+200L<NF7> (A) ID=14.2	8-94462-114-0	02	1	0201-
53	GASKET; COCK,FUEL TANK FUEL TANK 200L+200L<NF7> (A) T=0.80	1-22416-004-0	02	1	0105-0112
53	GASKET; COCK,FUEL TANK FUEL TANK 200L+200L<NF7> (B) ID=14.2 OD=20.0	9-09571-414-0	02	1	0201-
54	COCK ASM; FUEL TANK FUEL TANK 200L+200L<NF7>	9-09904-176-0	02	1	0105-0112
54	COCK ASM; FUEL TANK FUEL TANK 200L+200L<NF7>	1-09680-072-0	02	1	0201-
55	CLIP; FUEL PIPE FUEL TANK 200L+200L<NF7> ID=14	1-09704-102-0	02	1	0105-
56	PIPE; FUEL SHUTTER FUEL TANK 200L+200L<NF7> L=260 SERVICED BY L=3000	0-01260-300-0	01	1	0105-
461	NUT; CLIP,FUEL PIPE FUEL TANK 200L+200L<NF7> M8 FLANGE	0-91150-108-0	02	1	0105-0602
461	NUT; CLIP,FUEL PIPE FUEL TANK 200L+200L<NF7> M8 FLANGE	0-91180-108-0	02	1	0603-
467	BOLT FUEL TANK 200L+200L<NF7> M8X25 FLANGE	0-28680-825-0	02	1	0105-0512
467	BOLT FUEL TANK 200L+200L<NF7> M8X25 FLANGE	0-28650-825-0	02	1	0601-

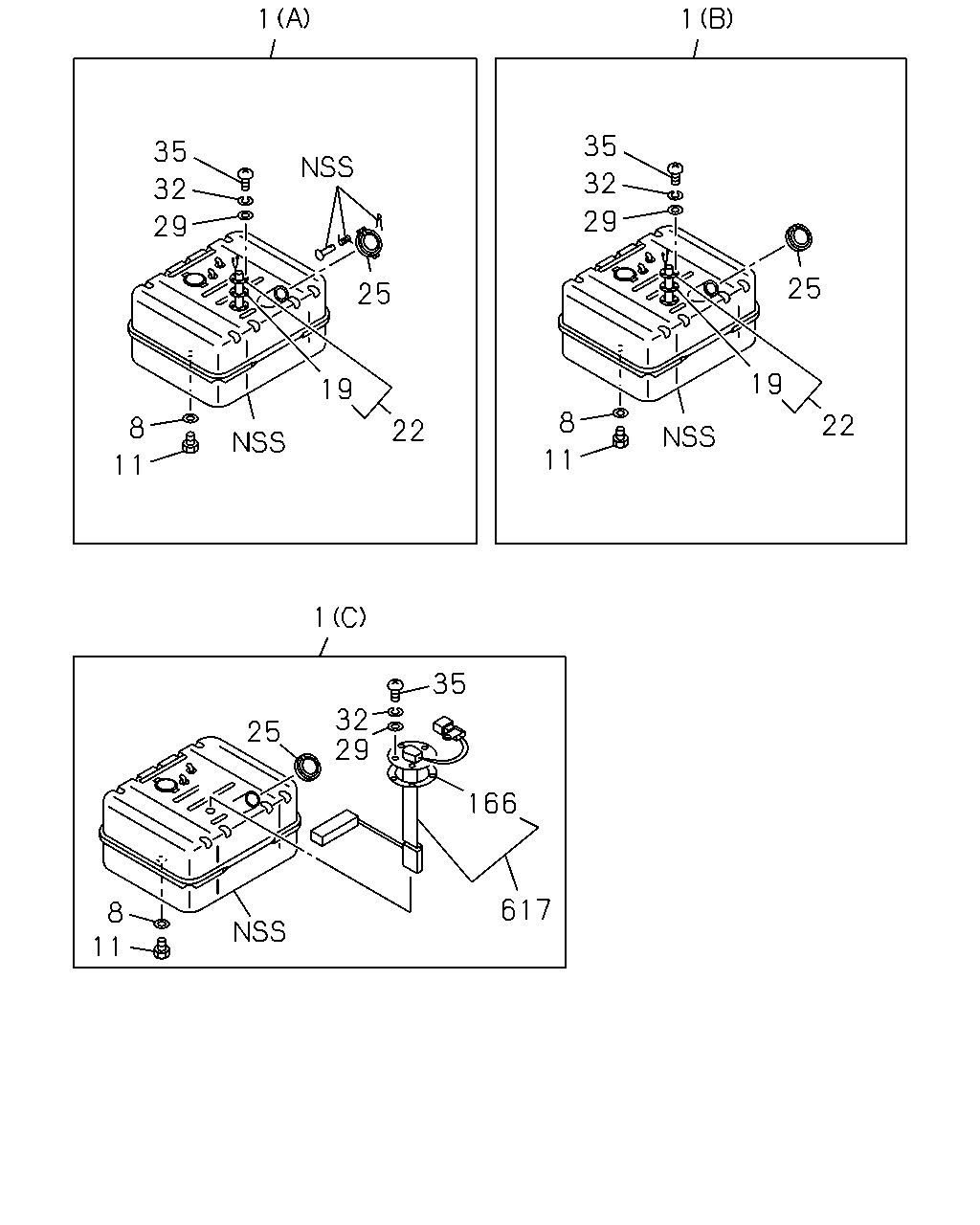

1 1 35 35 32 32 29 29 25 25 19 19 8 22 8 22 11 11 1 35 32 29 25 166 617 8 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK; FUEL FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7> (B) 720X610X496 200L	1-22401-121-1	01	1	0105-0112
1	TANK; FUEL FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7> (B) 720X610X496 200L	1-22401-193-0	01	1	0201-
1	TANK; FUEL FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22401-121-1	02	1	0105-0112
1	TANK; FUEL FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22401-193-0	02	1	0201-
1	TANK; FUEL FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22401-117-1	02	1	0105-0112
1	TANK; FUEL FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22401-190-0	02	1	0201-0404
1	TANK; FUEL FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (C) 720X610X496 200L	1-22401-212-0	01	1	0405-
1	TANK; FUEL EXC. FUEL TANK 200L+200L<NF7>,FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22401-117-1	01	1	0105-0112
1	TANK; FUEL EXC. FUEL TANK 200L+200L<NF7>,FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22401-190-0	01	1	0201-0404
1	TANK; FUEL EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22401-190-1	01	1	0405-
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L+200L<NF7> T=2.0	9-09923-030-0	02	1	0105-0106
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L+200L<NF7> ID=14.2 OD=23.0	9-09572-014-0	02	1	0107-0404
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46> ID=14.2 OD=23.0	9-09572-014-0	02	1	0405-
8	GASKET; DRAIN PLUG,FUEL TANK EXC. FUEL TANK 200L+200L<NF7> T=2.0	9-09923-030-0	01	1	0105-0106
8	GASKET; DRAIN PLUG,FUEL TANK EXC. FUEL TANK 200L+200L<NF7> ID=14.2 OD=23.0	9-09572-014-0	01	1	0107-0404
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> ID=14.2 OD=23.0	9-09572-014-0	01	1	0405-
8	GASKET; DRAIN PLUG,FUEL TANK FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7> ID=14.2 OD=23.0	9-09572-014-0	01	1	0405-
8	GASKET; DRAIN PLUG,FUEL TANK EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> ID=14.2 OD=23.0	9-09572-014-0	01	1	0405-
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L+200L<NF7>	1-09604-052-0	02	1	0105-0106
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L+200L<NF7> M14X14	9-09862-156-0	02	1	0107-0404
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46> M14X14	9-09862-156-0	02	1	0405-
11	PLUG; DRAIN,FUEL TANK EXC. FUEL TANK 200L+200L<NF7>	1-09604-052-0	01	1	0105-0106
11	PLUG; DRAIN,FUEL TANK EXC. FUEL TANK 200L+200L<NF7> M14X14	9-09862-156-0	01	1	0107-0404
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> M14X14	9-09862-156-0	01	1	0405-
11	PLUG; DRAIN,FUEL TANK FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7> M14X14	9-09862-156-0	01	1	0405-
11	PLUG; DRAIN,FUEL TANK EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> M14X14	9-09862-156-0	01	1	0405-
19	GASKET; FUEL TANK UNIT FUEL TANK 200L+200L<NF7>	9-83135-003-0	02	1	0105-0404
19	GASKET; FUEL TANK UNIT FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46>	9-83135-003-0	02	1	0405-
19	GASKET; FUEL TANK UNIT EXC. FUEL TANK 200L+200L<NF7>	9-83135-003-0	01	1	0105-0404
19	GASKET; FUEL TANK UNIT FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7>	9-83135-003-0	01	1	0405-
19	GASKET; FUEL TANK UNIT EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	9-83135-003-0	01	1	0405-
22	UNIT; FUEL TANK FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7>	1-83141-080-1	01	1	0105-
22	UNIT; FUEL TANK FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-080-1	02	1	0105-
22	UNIT; FUEL TANK FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-124-0	02	1	0105-0404
22	UNIT; FUEL TANK EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-124-0	01	1	0405-
22	UNIT; FUEL TANK EXC. FUEL TANK 200L+200L<NF7>,FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-124-0	01	1	0105-0404
25	CAP; FILLER,FUEL TANK FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7>	1-22440-034-1	01	1	0105-
25	CAP; FILLER,FUEL TANK FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-034-1	02	1	0105-
25	CAP; FILLER,FUEL TANK FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-067-0	02	1	0105-0112
25	CAP; FILLER,FUEL TANK FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-070-0	02	1	0201-0404
25	CAP; FILLER,FUEL TANK FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-046-1	01	1	0405-
25	CAP; FILLER,FUEL TANK EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-046-1	01	1	0405-
25	CAP; FILLER,FUEL TANK EXC. FUEL TANK 200L+200L<NF7>,FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-067-0	01	1	0105-0112
25	CAP; FILLER,FUEL TANK EXC. FUEL TANK 200L+200L<NF7>,FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-070-0	01	1	0201-0404
29	WASHER; PL,FUEL TANK UNIT FUEL TANK 200L+200L<NF7> ID=5.3	9-09160-505-0	02	1	0105-0404
29	WASHER; PL,FUEL TANK UNIT FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46> ID=5.3	9-09160-505-0	02	1	0405-0605
29	WASHER; PL,FUEL TANK UNIT FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46> ID=5.3	0-91610-505-0	02	1	0606-
29	WASHER; PL,FUEL TANK UNIT EXC. FUEL TANK 200L+200L<NF7> ID=5.3	9-09160-505-0	01	1	0105-0404
29	WASHER; PL,FUEL TANK UNIT FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> ID=5.3	9-09160-505-0	01	1	0405-0605
29	WASHER; PL,FUEL TANK UNIT FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7> ID=5.3	9-09160-505-0	01	1	0405-0605
29	WASHER; PL,FUEL TANK UNIT EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> ID=5.3	9-09160-505-0	01	1	0405-0605
29	WASHER; PL,FUEL TANK UNIT FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> ID=5.3	0-91610-505-0	01	1	0606-
29	WASHER; PL,FUEL TANK UNIT FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7> ID=5.3	0-91610-505-0	01	1	0606-
29	WASHER; PL,FUEL TANK UNIT EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> ID=5.3	0-91610-505-0	01	1	0606-
32	WASHER; LK,FUEL TANK UNIT FUEL TANK 200L+200L<NF7> ID=5.1	9-09150-505-0	10	1	0105-0404
32	WASHER; LK,FUEL TANK UNIT FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46> ID=5.1	9-09150-505-0	10	1	0405-0603
32	WASHER; LK,FUEL TANK UNIT FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46> ID=5.1	0-91510-505-0	10	1	0604-
32	WASHER; LK,FUEL TANK UNIT EXC. FUEL TANK 200L+200L<NF7> ID=5.1	9-09150-505-0	05	1	0105-0404
32	WASHER; LK,FUEL TANK UNIT FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> ID=5.1	9-09150-505-0	05	1	0405-0603
32	WASHER; LK,FUEL TANK UNIT FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7> ID=5.1	9-09150-505-0	05	1	0405-0603
32	WASHER; LK,FUEL TANK UNIT EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> ID=5.1	9-09150-505-0	05	1	0405-0603
32	WASHER; LK,FUEL TANK UNIT FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> ID=5.1	0-91510-505-0	05	1	0604-
32	WASHER; LK,FUEL TANK UNIT FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7> ID=5.1	0-91510-505-0	05	1	0604-
32	WASHER; LK,FUEL TANK UNIT EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> ID=5.1	0-91510-505-0	05	1	0604-
35	SCREW; FUEL TANK UNIT FUEL TANK 200L+200L<NF7> M5X10	9-93497-510-0	10	1	0105-0404
35	SCREW; FUEL TANK UNIT FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46> M5X10	9-93497-510-0	10	1	0405-0604
35	SCREW; FUEL TANK UNIT FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46> M5X10	0-34218-510-0	10	1	0605-
35	SCREW; FUEL TANK UNIT EXC. FUEL TANK 200L+200L<NF7> M5X10	9-93497-510-0	05	1	0105-0404
35	SCREW; FUEL TANK UNIT FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> M5X10	9-93497-510-0	05	1	0405-0604
35	SCREW; FUEL TANK UNIT FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7> M5X10	9-93497-510-0	05	1	0405-0604
35	SCREW; FUEL TANK UNIT EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> M5X10	9-93497-510-0	05	1	0405-0604
35	SCREW; FUEL TANK UNIT FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> M5X10	0-34218-510-0	05	1	0605-
35	SCREW; FUEL TANK UNIT FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7> M5X10	0-34218-510-0	05	1	0605-
35	SCREW; FUEL TANK UNIT EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> M5X10	0-34218-510-0	05	1	0605-
166	GASKET FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	8-94366-904-0	01	1	0405-
617	PLATE FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22419-021-0	01	1	0405-

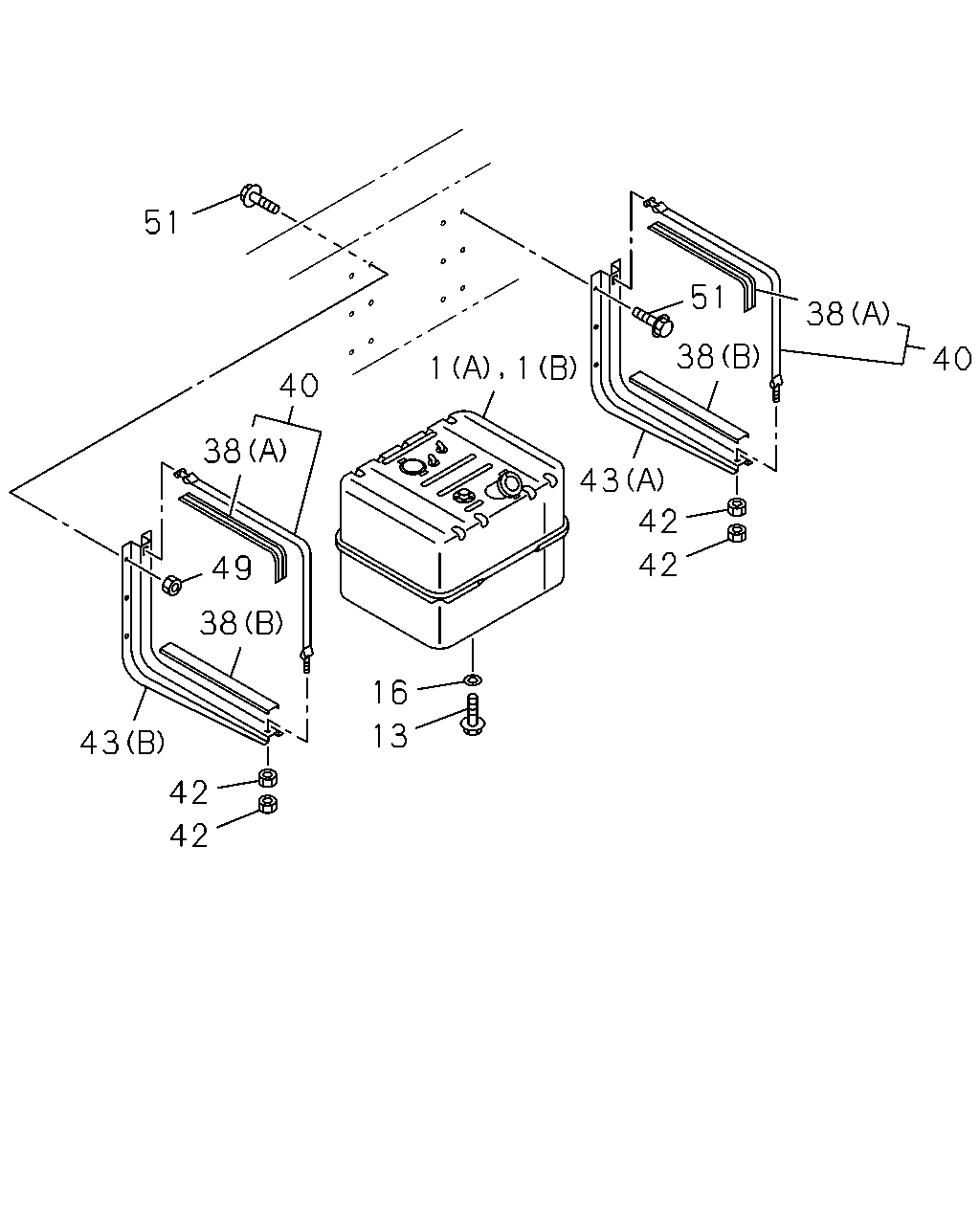

51 51 38 38 40 1 1 40 38 43 42 42 49 38 16 13 43 42 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK; FUEL FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7> (B) 720X610X496 200L	1-22401-121-1	01	1	0105-0112
1	TANK; FUEL FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7> (B) 720X610X496 200L	1-22401-193-0	01	1	0201-
1	TANK; FUEL FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22401-121-1	02	1	0105-0112
1	TANK; FUEL FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22401-193-0	02	1	0201-
1	TANK; FUEL FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22401-117-1	02	1	0105-0112
1	TANK; FUEL FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22401-190-0	02	1	0201-0404
1	TANK; FUEL FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (C) 720X610X496 200L	1-22401-212-0	01	1	0405-
1	TANK; FUEL EXC. FUEL TANK 200L+200L<NF7>,FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22401-117-1	01	1	0105-0112
1	TANK; FUEL EXC. FUEL TANK 200L+200L<NF7>,FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22401-190-0	01	1	0201-0404
1	TANK; FUEL EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22401-190-1	01	1	0405-
13	PLUG; SCREW,SUB TANK JOINT EXC. FUEL TANK 200L+200L<NF7> M18X12	1-09604-081-0	01	1	0105-0112
13	PLUG; SCREW,SUB TANK JOINT EXC. FUEL TANK 200L+200L<NF7> M14X14	9-09862-156-0	01	1	0201-
16	GASKET; PLUG EXC. FUEL TANK 200L+200L<NF7> T=1.60	1-22416-001-0	01	1	0105-0112
16	GASKET; PLUG EXC. FUEL TANK 200L+200L<NF7> ID=14.2 OD=23.0	9-09572-014-0	01	1	0201-
38	INSULATION; SUPPORT BELT FUEL TANK 200L+200L<NF7> (B) L=580	1-22553-003-0	04	1	0105-
38	INSULATION; SUPPORT BELT FUEL TANK 200L+200L<NF7> (A) L=650	1-22553-022-1	04	1	0105-
38	INSULATION; SUPPORT BELT EXC. FUEL TANK 200L+200L<NF7> (B) L=580	1-22553-003-0	02	1	0105-
38	INSULATION; SUPPORT BELT EXC. FUEL TANK 200L+200L<NF7> (A) L=650	1-22553-022-1	02	1	0105-
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L+200L<NF7> L=1030	1-22550-204-2	04	1	0105-
40	BELT; SUPPORT,FUEL TANK EXC. FUEL TANK 200L+200L<NF7> L=1030	1-22550-204-2	02	1	0105-
42	NUT; SUPPORT BELT FUEL TANK 200L+200L<NF7> M10	9-09110-510-0	08	1	0105-0512
42	NUT; SUPPORT BELT FUEL TANK 200L+200L<NF7> M10	0-91110-510-0	08	1	0601-
42	NUT; SUPPORT BELT EXC. FUEL TANK 200L+200L<NF7> M10	9-09110-510-0	04	1	0105-0512
42	NUT; SUPPORT BELT EXC. FUEL TANK 200L+200L<NF7> M10	0-91110-510-0	04	1	0601-
43	BRACKET; FUEL TANK (A)	1-53461-279-4	01	1	0105-
43	BRACKET; FUEL TANK (B)	1-53461-375-0	01	1	0105-
43	BRACKET; FUEL TANK FUEL TANK 200L+200L<NF7> (A)	1-53461-279-4	02	1	0105-
49	NUT; BRKT FUEL TANK 200L+200L<NF7> M12	9-99110-512-0	24	1	0105-0512
49	NUT; BRKT FUEL TANK 200L+200L<NF7> M12	0-91110-512-0	24	1	0601-
49	NUT; BRKT EXC. FUEL TANK 200L+200L<NF7> M12	9-99110-512-0	12	1	0105-0512
49	NUT; BRKT EXC. FUEL TANK 200L+200L<NF7> M12	0-91110-512-0	12	1	0601-
51	BOLT; BRKT TO FRAME FUEL TANK 200L+200L<NF7> M12X35 FLANGE	0-28681-235-0	24	1	0105-0512
51	BOLT; BRKT TO FRAME FUEL TANK 200L+200L<NF7> M12X35 FLANGE	0-28651-235-0	24	1	0601-
51	BOLT; BRKT TO FRAME EXC. FUEL TANK 200L+200L<NF7> M12X35 FLANGE	0-28681-235-0	12	1	0105-0512
51	BOLT; BRKT TO FRAME EXC. FUEL TANK 200L+200L<NF7> M12X35 FLANGE	0-28651-235-0	12	1	0601-
