Isuzu WW
▶
TRUCKS
▶
CVR
▶
10860 - CVR LHD
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-10 - RADIATOR
▶
1-10 — RADIATOR
(#8805) — 45 parça
◀

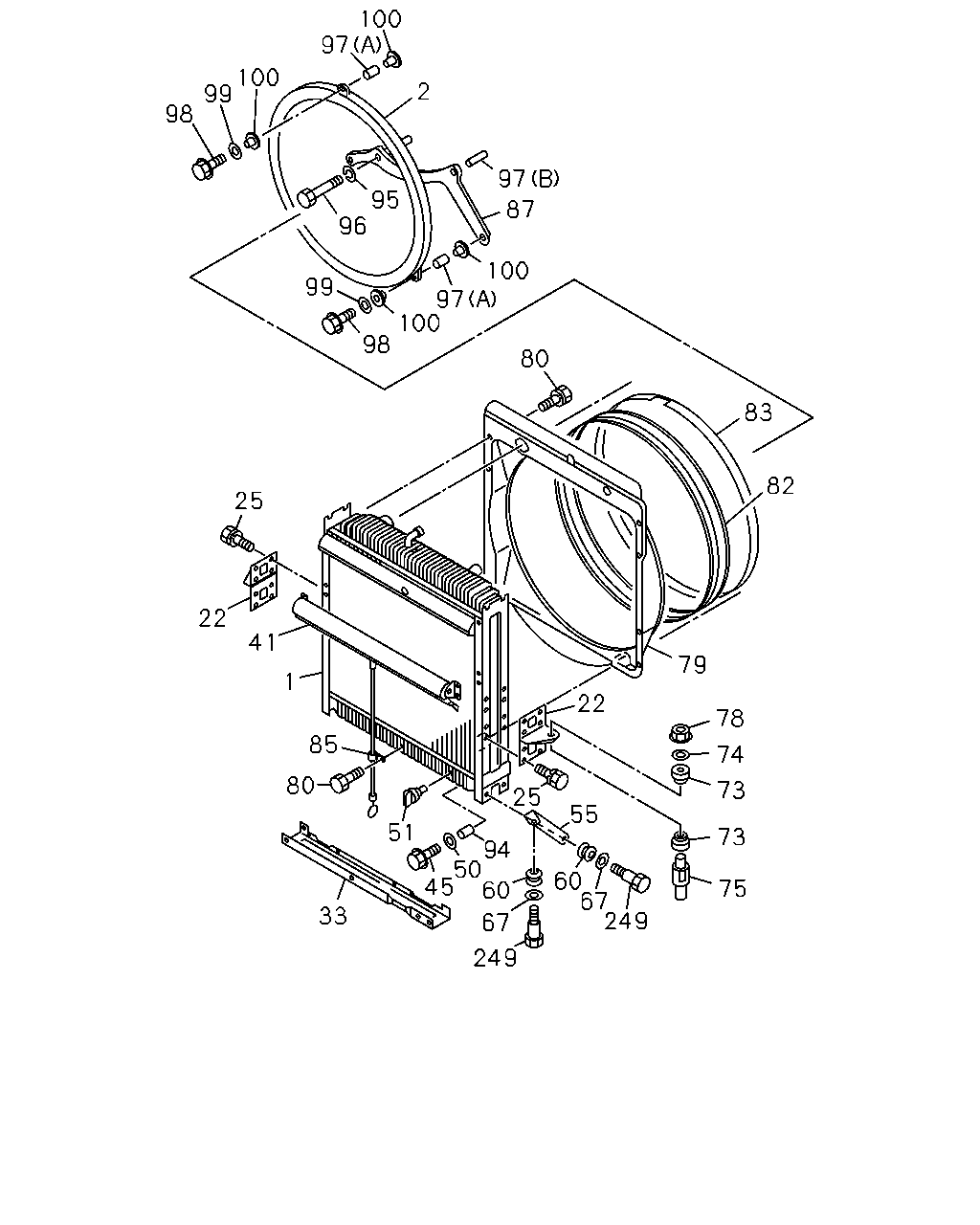

[110A] FIXING;RADIATOR (42 parça)
[110A] WATER PIPE (3 parça)
▶
100
97
100
99
2
98
97
95
96
87
100
99
97
100
98
80
83
82
25
22
41
79
1
22
78
85
74
80
73
25
55
51
73
94
50
60
45
60
67
249
75
33
67
249
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
RADIATOR ASM
1-21410-685-1
01
1
0105-
2
GUIDE; FAN
1-21551-235-3
01
1
0105-
22
BRACKET; RAD MTG
1-21464-382-0
01
1
0105-
22
BRACKET; RAD MTG
1-21464-381-0
01
1
0105-
25
BOLT; BRKT
M8X16 FLANGE
0-28080-816-0
14
1
0105-
33
PROTECTOR; RAD
1-21419-050-0
01
1
0105-
41
SHUTTER ASM; RAD
RADIATOR CURTAIN<SK7>
1-21511-105-1
01
1
0105-
45
BOLT; RAD SHUTTER
RADIATOR CURTAIN<SK7> M8X20 FLANGE
0-28080-820-0
01
1
0105-
50
WASHER; PL,RAD SHUTTER
RADIATOR CURTAIN<SK7> ID=8.4 OD=22
9-09160-708-0
01
1
0105-
51
PLUG; DRAIN
W/GASKET
1-09609-009-0
01
1
0105-
55
STAY; RAD TO UPR MBR
1-21464-386-0
01
1
0105-
55
STAY; RAD TO UPR MBR
1-21464-385-0
01
1
0105-
60
GROMMET
1-09332-117-0
04
1
0105-
67
WASHER; PL,STAY,RAD MBR
ID=12.5 OD=26
9-09160-612-0
04
1
0105-0605
67
WASHER; PL,STAY,RAD MBR
ID=12.5 OD=26
0-91610-612-0
04
1
0606-
73
RUBBER; CUSHION,RAD MTG
T=14
1-21467-004-0
04
1
0105-
74
WASHER; PL,CUSHION RUBBER
ID=8.4 OD=22
1-09503-154-1
02
1
0105-
75
BOLT; CUSHION RUBBER,RAD MTG
1-21466-005-0
02
1
0105-
78
NUT; CUSHION RUBBER
M10 FLANGE
0-91150-210-0
02
1
0105-0602
78
NUT; CUSHION RUBBER
M10 FLANGE
0-91180-210-0
02
1
0603-
79
GUIDE; FAN,RAD
1-21551-450-0
01
1
0105-0111
79
GUIDE; FAN,RAD
1-21551-484-0
01
1
0112-
80
BOLT; FAN GUIDE
RADIATOR CURTAIN<SK7> M8X12 FLANGE
0-28080-812-0
17
1
0105-
80
BOLT; FAN GUIDE
EXC. RADIATOR CURTAIN<SK7> M8X12 FLANGE
0-28080-812-0
12
1
0105-
82
COVER; FAN,RAD
1-21559-134-1
01
1
0105-
83
CLIP; FAN COVER
1-09707-127-1
01
1
0105-
85
CLIP
RADIATOR CURTAIN<SK7>
9-09520-835-0
01
1
0105-
87
STAY; FAN GUIDE
1-21559-285-0
01
1
0105-
94
TUBE; DIST
RADIATOR CURTAIN<SK7>
1-21419-052-0
01
1
0105-
95
WASHER; LK
ID=12.2
9-09150-512-0
02
1
0105-0603
95
WASHER; LK
ID=12.2
0-91510-512-0
02
1
0604-
96
BOLT; STAY FIX
M12X160
1-09020-067-1
02
1
0105-
97
TUBE; DIST,FAN GUIDE
(B) ID=27.6 L=138.8
1-13666-037-0
01
1
0105-
97
TUBE; DIST,FAN GUIDE
(A) ID=11.8 L=27
1-21559-149-0
03
1
0105-
98
BOLT; RAD FAN GUIDE
M8X45 FLANGE
0-28080-845-0
03
1
0105-0512
98
BOLT; RAD FAN GUIDE
M8X45 FLANGE
0-28050-845-0
03
1
0601-
99
WASHER; PL
ID=8.4 OD=26
9-09164-808-0
03
1
0105-0605
99
WASHER; PL
ID=8.4 OD=26
0-91614-808-0
03
1
0606-
100
RUBBER; MTG
1-09337-017-0
06
1
0105-
249
BOLT; STAY,RAD MBR
M8X26
1-09009-175-0
02
1
0202-
249
BOLT; STAY,RAD MBR
M8X30
1-09009-020-1
04
1
0105-0201
249
BOLT; STAY,RAD MBR
M8X30
1-09009-020-1
02
1
0202-
124
124
110
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
110
STAY; FAN GUIDE
1-21559-104-2
01
1
0105-
124
PIPE; WATER,TANK TO RAD
(A)
1-13711-667-2
01
1
0105-
124
PIPE; WATER,TANK TO RAD
(B)
1-13711-728-0
01
1
0105-
