Isuzu WW
▶
TRUCKS
▶
CVR
▶
10860 - CVR LHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-51 - OIL PUMP AND OIL STRAINER
▶

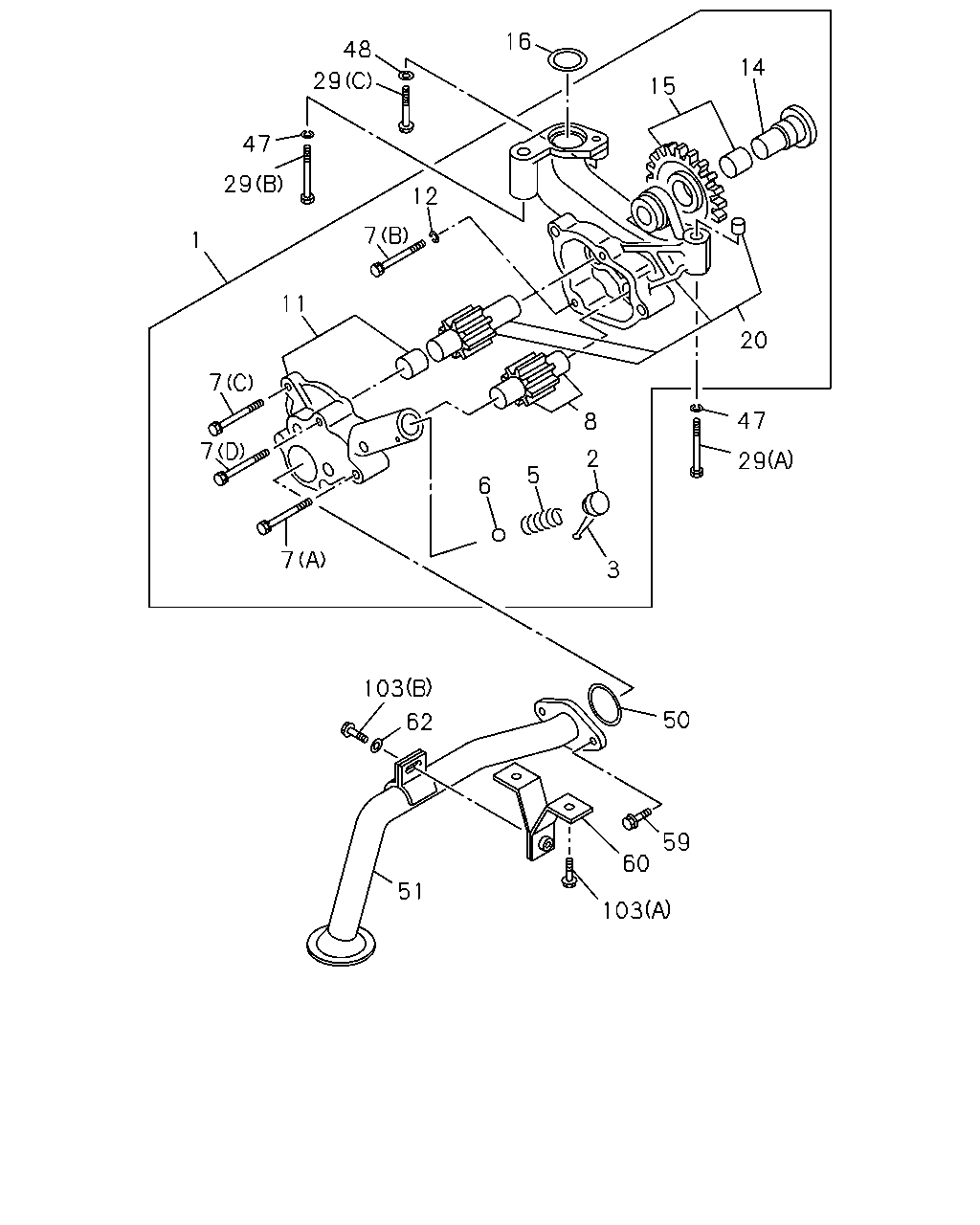

0-51 — OIL PUMP AND OIL STRAINER
(#8792) — 35 parça
16
48
14
29
15
47
29
12
7
1
11
20
7
47
8
7
2
29
5
6
7
3
103
50
62
59
60
51
103
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PUMP ASM; OIL
1-13100-286-0
01
1
0105-
2
SEAT; SPR
1-13165-014-0
01
1
0105-
3
PIN; SPLIT
9-08114-040-0
01
1
0105-0607
3
PIN; SPLIT
0-81124-040-0
01
1
0608-
5
SPRING; COIL
1-09580-552-0
01
1
0105-
6
VALVE ASM; RELIEF,OIL PUMP
1-13161-026-0
01
1
0105-
7
BOLT; COVER,OIL PUMP
(A) M10X55
0-16806-055-0
01
1
0105-
7
BOLT; COVER,OIL PUMP
(B) M10X70
0-16806-070-0
01
1
0105-0512
7
BOLT; COVER,OIL PUMP
(B) M10X70
0-16856-070-0
01
1
0601-
7
BOLT; COVER,OIL PUMP
(C) M10X35 W/LK WASHER
0-50051-035-0
01
1
0105-
7
BOLT; COVER,OIL PUMP
(D) M10X45 W/LK WASHER
0-50051-045-0
01
1
0105-
8
GEAR; DRIVEN,OIL PUMP
1-13125-049-0
01
1
0105-
11
COVER ASM; OIL PUMP
1-13113-070-0
01
1
0105-
12
WASHER; LK,BOLT COVER
ID=10.2
9-09150-510-0
02
1
0105-0603
12
WASHER; LK,BOLT COVER
ID=10.2
0-91510-510-0
02
1
0604-
14
SPINDLE; DRIVEN GEAR
1-13129-010-1
01
1
0105-
15
GEAR ASM; IDLE
1-13128-027-0
01
1
0105-
16
GASKET; OIL PUMP,C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=31.2
1-09623-220-0
01
1
0105-
20
GEAR; DRIVE,OIL PUMP
1-13110-052-0
01
1
0105-
29
BOLT; OIL PUMP
(A) M12X55
9-01666-255-0
01
1
0105-
29
BOLT; OIL PUMP
(B) M12X70
9-01666-270-0
01
1
0105-0512
29
BOLT; OIL PUMP
(B) M12X70
0-16956-270-0
01
1
0601-
29
BOLT; OIL PUMP
(C) M10X30
9-02361-030-0
01
1
0105-0512
29
BOLT; OIL PUMP
(C) M10X30
0-23951-030-0
01
1
0601-
47
WASHER; LK,OIL PUMP
ID=12.5
9-09851-682-0
02
1
0105-
48
WASHER; PL,OIL PUMP
ID=10
1-09503-033-1
01
1
0105-
50
GASKET; OIL PIPE,STRAINER TO PUMP
ALSO INCLUDED IN GASKET SET(ENGINE).
1-09623-397-0
01
1
0105-
51
STRAINER & PIPE ASM; OIL
1-13140-112-2
01
1
0105-
59
BOLT; BRKT,STRAINER
M8X18 FLANGE
0-28080-818-0
02
1
0105-
60
BRACKET; OIL STRAINER
1-13145-048-0
01
1
0105-
62
WASHER; PL,STAY
ID=8.4 OD=18
9-09160-608-0
01
1
0105-0605
62
WASHER; PL,STAY
ID=8.4 OD=18
0-91610-608-0
01
1
0606-
103
BOLT; STRAINER
(A) M8X18 FLANGE
0-28080-818-0
02
1
0105-
103
BOLT; STRAINER
(B) M8X25 W/LK WASHER
0-50040-825-0
01
1
0105-0512
103
BOLT; STRAINER
(B) M8X25 W/LK WASHER
0-50540-825-0
01
1
0601-
