0-50 — OIL COOLER AND OIL FILTER (#8791) — 183 parça

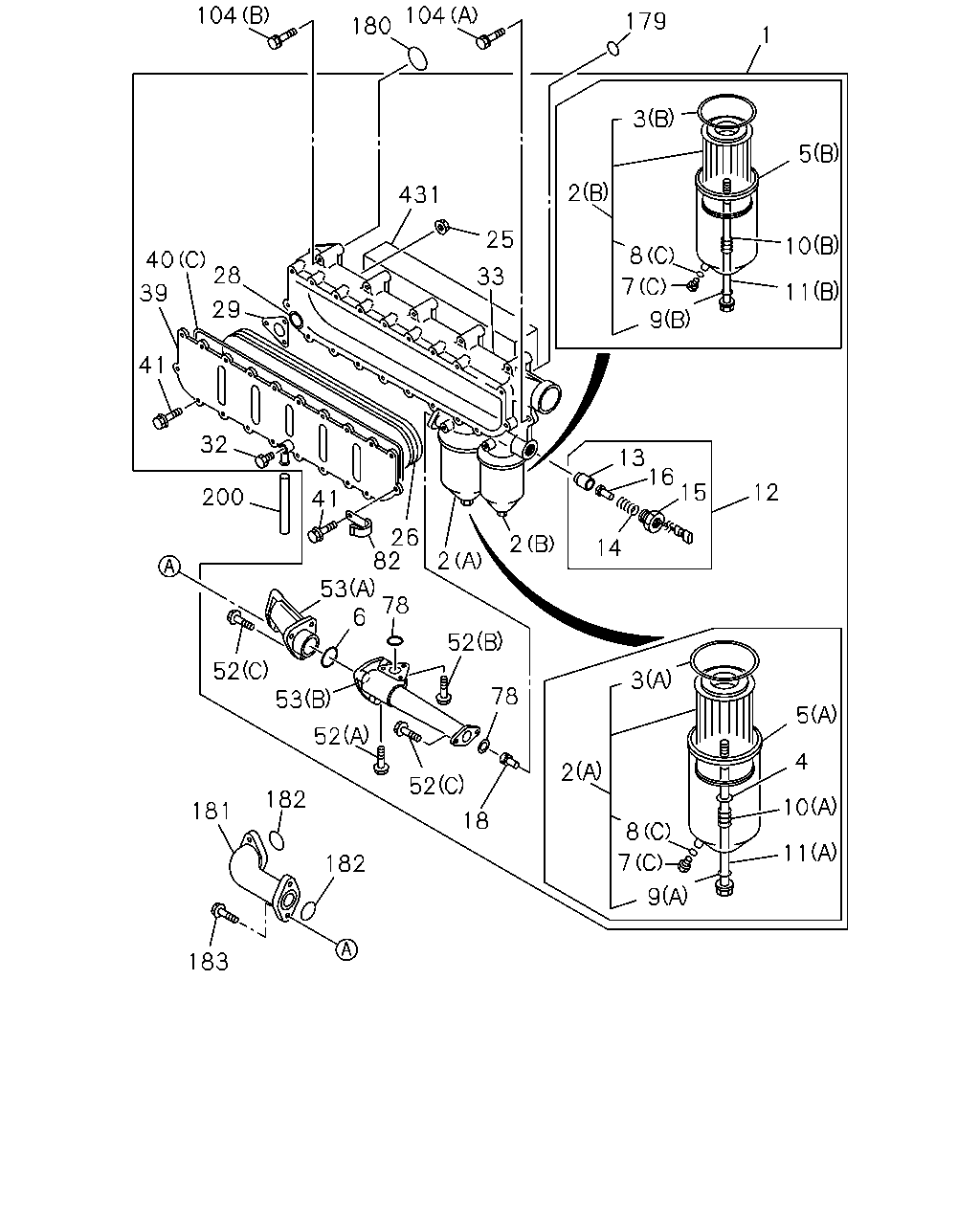

104 104 179 180 1 3 5 2 431 25 10 8 40 28 33 7 11 39 29 9 41 32 13 16 15 41 12 200 26 82 2 14 2 53 6 78 52 52 3 78 53 5 52 4 2 52 182 10 181 18 8 11 7 182 9 183

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	FILTER & COOLER ASM; OIL	1-13200-957-1	01	1	0105-0112
1	FILTER & COOLER ASM; OIL	1-13201-033-0	01	1	0201-0204
1	FILTER & COOLER ASM; OIL	1-13200-974-1	01	1	0205-
2	ELEMENT; OIL FILTER (B) PARTIAL TOKYO ROKI	1-13240-116-0	01	1	0105-0204
2	ELEMENT; OIL FILTER (A) MAIN	1-13240-223-0	01	1	0205-0309
2	ELEMENT; OIL FILTER (A) MAIN	1-13240-233-0	01	1	0310-
2	ELEMENT; OIL FILTER (B) PARTIAL TSUCHIYA	1-13240-200-0	01	1	0105-0204
2	ELEMENT; OIL FILTER (B) PARTIAL	1-13240-224-0	01	1	0205-0309
2	ELEMENT; OIL FILTER (B) PARTIAL	1-13240-234-0	01	1	0310-
2	ELEMENT; OIL FILTER (A) MAIN TOKYO ROKI	1-13240-205-0	01	1	0105-0204
3	GASKET (B)	1-13213-010-0	01	1	0105-0204
3	GASKET (A)	1-09623-643-0	01	1	0205-
3	GASKET (A)	1-13213-011-2	01	1	0105-0204
3	GASKET (B)	1-09623-644-0	01	1	0205-
4	WASHER; ELEMENT	1-13219-259-0	01	1	0105-0204
4	WASHER; ELEMENT	1-13234-007-0	01	1	0205-
5	CASE; OIL FILTER (B)	1-13211-198-3	01	1	0105-0204
5	CASE; OIL FILTER (A)	1-13211-282-0	01	1	0205-
5	CASE; OIL FILTER (A)	1-13211-200-3	01	1	0105-0204
5	CASE; OIL FILTER (B)	1-13211-283-0	01	1	0205-
6	GASKET; VLV CASE	1-13219-258-0	01	1	0105-0204
6	GASKET; VLV CASE	1-13219-333-0	01	1	0205-
7	PLUG; CENTER BOLT (B)	1-13219-347-0	01	1	0205-
7	PLUG; CENTER BOLT (C)	1-09604-088-0	02	1	0105-0204
7	PLUG; CENTER BOLT (A)	1-13219-346-0	01	1	0205-
8	GASKET; PLUG (A)	1-09623-646-0	01	1	0205-
8	GASKET; PLUG (C) ID=11.8	9-09923-579-0	02	1	0105-0204
8	GASKET; PLUG (B)	1-09623-645-0	01	1	0205-
9	GASKET; CENTER BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	1-09623-499-0	01	1	0105-0204
9	GASKET; CENTER BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (C)	1-09623-647-0	01	1	0205-
9	GASKET; CENTER BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-09623-500-0	01	1	0105-0204
9	GASKET; CENTER BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (D)	1-09623-648-0	01	1	0205-
10	SPRING; ELEMENT (B)	1-13219-263-0	01	1	0105-0204
10	SPRING; ELEMENT (C)	1-09580-562-0	01	1	0205-
10	SPRING; ELEMENT (A)	1-13219-264-0	01	1	0105-0204
10	SPRING; ELEMENT (D)	1-09580-563-0	01	1	0205-
11	BOLT; CENTER (B)	1-13231-071-0	01	1	0105-0204
11	BOLT; CENTER (D)	1-13219-349-0	01	1	0205-
11	BOLT; CENTER (A)	1-13231-072-0	01	1	0105-0204
11	BOLT; CENTER (C)	1-13219-366-0	01	1	0205-
12	VALVE ASM; BYPASS	1-13200-875-0	01	1	0105-0204
13	VALVE; RELIEF	9-13262-010-0	01	1	0105-0204
13	VALVE; RELIEF	1-21743-003-0	01	1	0205-
14	SPRING; RELIEF VLV	9-09940-985-0	01	1	0105-0204
14	SPRING; RELIEF VLV	1-13263-008-0	01	1	0205-
15	PLUG; RELIEF VLV	1-13265-024-0	01	1	0105-0204
15	PLUG; RELIEF VLV	1-13265-026-0	01	1	0205-
16	VALVE ASM; RELIEF	1-13269-005-0	01	1	0105-0204
16	VALVE ASM; RELIEF	1-13269-008-0	01	1	0205-
18	VALVE ASM; OIL COOLER	1-21740-002-0	01	1	0105-0204
25	NUT; CORE TO BODY M10 FLANGE	0-91250-210-0	06	1	0105-0204
25	NUT; CORE TO BODY	1-13219-338-0	04	1	0205-
26	CORE ASM; OIL COOLER	1-21491-034-0	01	1	0105-0204
26	CORE ASM; OIL COOLER	1-21491-053-0	01	1	0205-
28	GASKET; CORE TO BODY	1-09623-560-0	02	1	0105-0204
28	GASKET; CORE TO BODY	1-13213-023-0	02	1	0205-
29	GASKET; CORE TO BODY	1-13213-014-1	02	1	0105-0204
29	GASKET; CORE TO BODY	1-13213-020-0	02	1	0205-
32	PLUG; DRAIN	1-13219-276-0	01	1	0105-0204
33	HOUSING ASM; COOLER	1-21721-069-4	01	1	0105-0112
33	HOUSING ASM; COOLER	1-21721-064-3	01	1	0201-0204
33	HOUSING ASM; COOLER	1-13211-278-0	01	1	0205-
39	COVER; OIL COOLER	1-21722-028-0	01	1	0105-0204
39	COVER; OIL COOLER	1-21722-042-0	01	1	0205-
40	GASKET; COVER TO OIL COOLER ALSO INCLUDED IN GASKET SET(ENGINE). (B)	1-13219-333-0	02	1	0205-
40	GASKET; COVER TO OIL COOLER ALSO INCLUDED IN GASKET SET(ENGINE). (C)	1-13213-013-0	01	1	0105-0204
40	GASKET; COVER TO OIL COOLER ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-13213-019-0	01	1	0205-
41	BOLT; COVER FIX	1-13219-163-1	20	1	0105-0204
41	BOLT; COVER FIX	1-13219-339-0	21	1	0205-
52	BOLT; OIL INL PIPE & VLV CASE (C) M8X30 FLANGE	0-28080-830-0	05	1	0105-0204
52	BOLT; OIL INL PIPE & VLV CASE (D) M8X30 FLANGE	1-13219-340-0	03	1	0205-
52	BOLT; OIL INL PIPE & VLV CASE (A)	1-13219-261-1	02	1	0105-0204
52	BOLT; OIL INL PIPE & VLV CASE (B)	1-13219-262-1	01	1	0105-0204
53	PIPE; OIL INL (A)	1-13219-255-0	01	1	0105-0204
53	PIPE; OIL INL (C)	1-13219-332-0	01	1	0205-
53	PIPE; OIL INL (B)	1-13219-256-2	01	1	0105-0204
78	GASKET; PIPE	1-13219-257-0	02	1	0105-0204
82	HOLDER; OIL COOLER ID=11 L=30	1-09700-511-0	01	1	0105-
104	BOLT; OIL COOLER (A) M10X60 FLANGE	0-28181-060-0	02	1	0105-0512
104	BOLT; OIL COOLER (A) M10X60 FLANGE	0-28151-060-0	02	1	0601-
104	BOLT; OIL COOLER (B) M10X90 FLANGE	0-28181-090-0	05	1	0105-0512
104	BOLT; OIL COOLER (B) M10X90 FLANGE	0-28151-090-0	05	1	0601-
179	GASKET; OIL OUT ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.7	1-09623-416-0	01	1	0105-
180	GASKET; WATER OUT ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-425-0	01	1	0105-
181	CONNECTOR; HSG TO COOLER	1-13312-082-0	01	1	0105-
182	GASKET; CONNECTOR,HSG TO COOLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.7	1-09623-416-0	02	1	0105-
183	BOLT; CONNECTOR,HSG TO COOLER M8X22 FLANGE	0-28080-822-0	04	1	0105-
200	PIPE; VINYL,WATER DRAIN L=510 SERVICED BY L=10000	9-09914-701-0	01	1	0105-
431	SPACER; OIL COOLER	1-19389-182-0	01	1	0105-0204
431	SPACER; OIL COOLER	1-19389-220-0	01	1	0205-

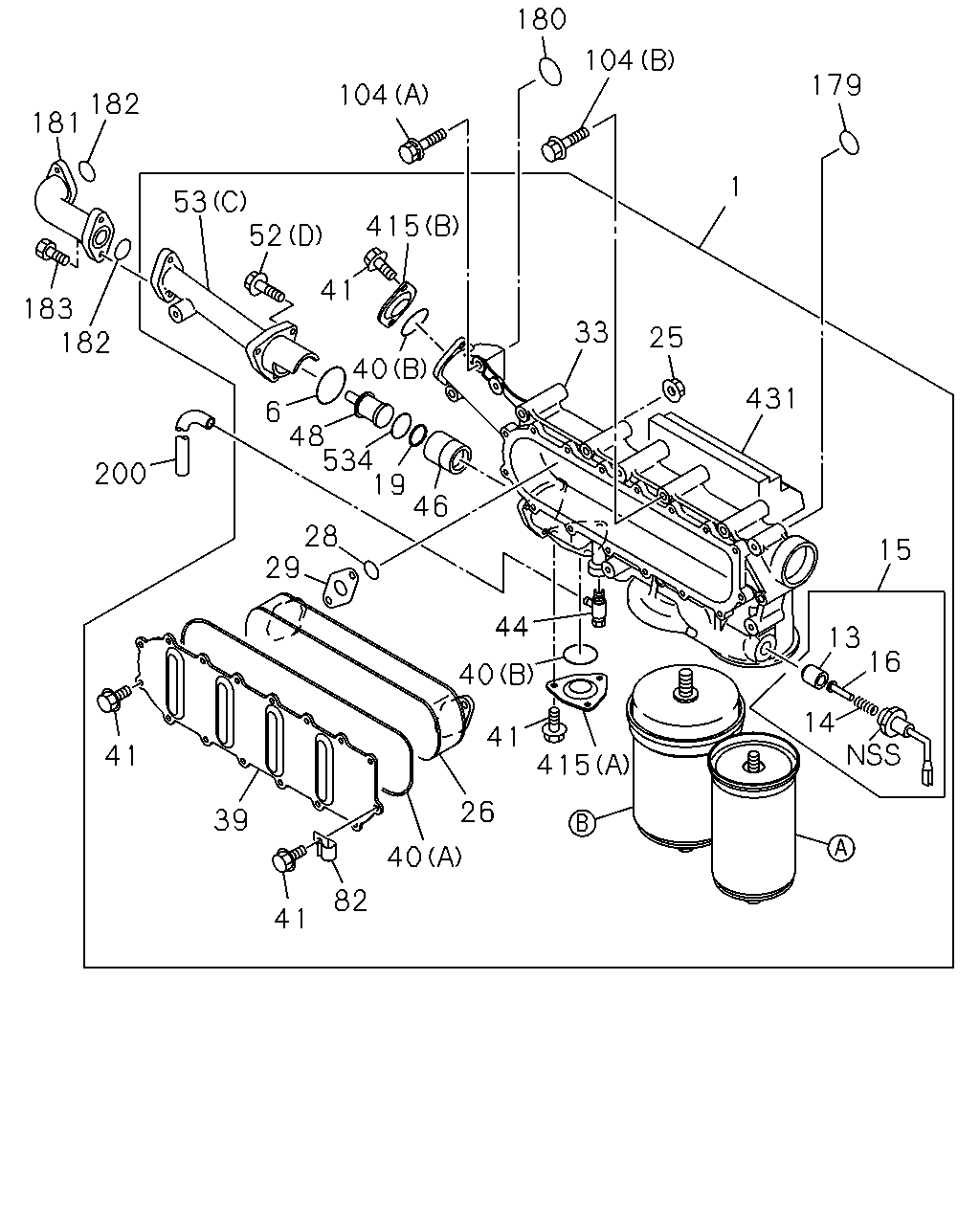

180 104 179 104 182 181 1 53 52 415 41 183 182 33 40 25 431 6 48 534 19 46 200 28 29 15 44 13 16 40 14 41 41 415 26 39 40 82 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	FILTER & COOLER ASM; OIL	1-13200-957-1	01	1	0105-0112
1	FILTER & COOLER ASM; OIL	1-13201-033-0	01	1	0201-0204
1	FILTER & COOLER ASM; OIL	1-13200-974-1	01	1	0205-
6	GASKET; VLV CASE	1-13219-258-0	01	1	0105-0204
6	GASKET; VLV CASE	1-13219-333-0	01	1	0205-
13	VALVE; RELIEF	9-13262-010-0	01	1	0105-0204
13	VALVE; RELIEF	1-21743-003-0	01	1	0205-
14	SPRING; RELIEF VLV	9-09940-985-0	01	1	0105-0204
14	SPRING; RELIEF VLV	1-13263-008-0	01	1	0205-
15	PLUG; RELIEF VLV	1-13265-024-0	01	1	0105-0204
15	PLUG; RELIEF VLV	1-13265-026-0	01	1	0205-
16	VALVE ASM; RELIEF	1-13269-005-0	01	1	0105-0204
16	VALVE ASM; RELIEF	1-13269-008-0	01	1	0205-
19	SEAL ASM; VLV	1-13779-013-0	01	1	0205-
25	NUT; CORE TO BODY M10 FLANGE	0-91250-210-0	06	1	0105-0204
25	NUT; CORE TO BODY	1-13219-338-0	04	1	0205-
26	CORE ASM; OIL COOLER	1-21491-034-0	01	1	0105-0204
26	CORE ASM; OIL COOLER	1-21491-053-0	01	1	0205-
28	GASKET; CORE TO BODY	1-09623-560-0	02	1	0105-0204
28	GASKET; CORE TO BODY	1-13213-023-0	02	1	0205-
29	GASKET; CORE TO BODY	1-13213-014-1	02	1	0105-0204
29	GASKET; CORE TO BODY	1-13213-020-0	02	1	0205-
33	HOUSING ASM; COOLER	1-21721-069-4	01	1	0105-0112
33	HOUSING ASM; COOLER	1-21721-064-3	01	1	0201-0204
33	HOUSING ASM; COOLER	1-13211-278-0	01	1	0205-
39	COVER; OIL COOLER	1-21722-028-0	01	1	0105-0204
39	COVER; OIL COOLER	1-21722-042-0	01	1	0205-
40	GASKET; COVER TO OIL COOLER ALSO INCLUDED IN GASKET SET(ENGINE). (B)	1-13219-333-0	02	1	0205-
40	GASKET; COVER TO OIL COOLER ALSO INCLUDED IN GASKET SET(ENGINE). (C)	1-13213-013-0	01	1	0105-0204
40	GASKET; COVER TO OIL COOLER ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-13213-019-0	01	1	0205-
41	BOLT; COVER FIX	1-13219-163-1	20	1	0105-0204
41	BOLT; COVER FIX	1-13219-339-0	21	1	0205-
44	COCK ASM; WATER DRAIN	1-13219-335-0	01	1	0205-
46	CASE; THERMO VLV	1-21729-113-0	01	1	0205-
48	VALVE; THERMO,OIL COOLER	1-13770-088-0	01	1	0205-
52	BOLT; OIL INL PIPE & VLV CASE (C) M8X30 FLANGE	0-28080-830-0	05	1	0105-0204
52	BOLT; OIL INL PIPE & VLV CASE (D) M8X30 FLANGE	1-13219-340-0	03	1	0205-
52	BOLT; OIL INL PIPE & VLV CASE (A)	1-13219-261-1	02	1	0105-0204
52	BOLT; OIL INL PIPE & VLV CASE (B)	1-13219-262-1	01	1	0105-0204
53	PIPE; OIL INL (A)	1-13219-255-0	01	1	0105-0204
53	PIPE; OIL INL (C)	1-13219-332-0	01	1	0205-
53	PIPE; OIL INL (B)	1-13219-256-2	01	1	0105-0204
82	HOLDER; OIL COOLER ID=11 L=30	1-09700-511-0	01	1	0105-
104	BOLT; OIL COOLER (A) M10X60 FLANGE	0-28181-060-0	02	1	0105-0512
104	BOLT; OIL COOLER (A) M10X60 FLANGE	0-28151-060-0	02	1	0601-
104	BOLT; OIL COOLER (B) M10X90 FLANGE	0-28181-090-0	05	1	0105-0512
104	BOLT; OIL COOLER (B) M10X90 FLANGE	0-28151-090-0	05	1	0601-
179	GASKET; OIL OUT ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.7	1-09623-416-0	01	1	0105-
180	GASKET; WATER OUT ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-425-0	01	1	0105-
181	CONNECTOR; HSG TO COOLER	1-13312-082-0	01	1	0105-
182	GASKET; CONNECTOR,HSG TO COOLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.7	1-09623-416-0	02	1	0105-
183	BOLT; CONNECTOR,HSG TO COOLER M8X22 FLANGE	0-28080-822-0	04	1	0105-
200	PIPE; VINYL,WATER DRAIN L=510 SERVICED BY L=10000	9-09914-701-0	01	1	0105-
415	COVER; OIL COOLER (A)	1-21722-043-0	01	1	0205-
415	COVER; OIL COOLER (B)	1-21722-044-0	01	1	0205-
431	SPACER; OIL COOLER	1-19389-182-0	01	1	0105-0204
431	SPACER; OIL COOLER	1-19389-220-0	01	1	0205-
534	PLATE; THERMOSTAT	1-21729-114-0	01	1	0205-

3 3 2 4 10 10 2 5 5 8 9 8 9 7 7 11 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	ELEMENT; OIL FILTER (B) PARTIAL TOKYO ROKI	1-13240-116-0	01	1	0105-0204
2	ELEMENT; OIL FILTER (A) MAIN	1-13240-223-0	01	1	0205-0309
2	ELEMENT; OIL FILTER (A) MAIN	1-13240-233-0	01	1	0310-
2	ELEMENT; OIL FILTER (B) PARTIAL TSUCHIYA	1-13240-200-0	01	1	0105-0204
2	ELEMENT; OIL FILTER (B) PARTIAL	1-13240-224-0	01	1	0205-0309
2	ELEMENT; OIL FILTER (B) PARTIAL	1-13240-234-0	01	1	0310-
2	ELEMENT; OIL FILTER (A) MAIN TOKYO ROKI	1-13240-205-0	01	1	0105-0204
3	GASKET (B)	1-13213-010-0	01	1	0105-0204
3	GASKET (A)	1-09623-643-0	01	1	0205-
3	GASKET (A)	1-13213-011-2	01	1	0105-0204
3	GASKET (B)	1-09623-644-0	01	1	0205-
4	WASHER; ELEMENT	1-13219-259-0	01	1	0105-0204
4	WASHER; ELEMENT	1-13234-007-0	01	1	0205-
5	CASE; OIL FILTER (B)	1-13211-198-3	01	1	0105-0204
5	CASE; OIL FILTER (A)	1-13211-282-0	01	1	0205-
5	CASE; OIL FILTER (A)	1-13211-200-3	01	1	0105-0204
5	CASE; OIL FILTER (B)	1-13211-283-0	01	1	0205-
7	PLUG; CENTER BOLT (B)	1-13219-347-0	01	1	0205-
7	PLUG; CENTER BOLT (C)	1-09604-088-0	02	1	0105-0204
7	PLUG; CENTER BOLT (A)	1-13219-346-0	01	1	0205-
8	GASKET; PLUG (A)	1-09623-646-0	01	1	0205-
8	GASKET; PLUG (C) ID=11.8	9-09923-579-0	02	1	0105-0204
8	GASKET; PLUG (B)	1-09623-645-0	01	1	0205-
9	GASKET; CENTER BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	1-09623-499-0	01	1	0105-0204
9	GASKET; CENTER BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (C)	1-09623-647-0	01	1	0205-
9	GASKET; CENTER BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-09623-500-0	01	1	0105-0204
9	GASKET; CENTER BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (D)	1-09623-648-0	01	1	0205-
10	SPRING; ELEMENT (B)	1-13219-263-0	01	1	0105-0204
10	SPRING; ELEMENT (C)	1-09580-562-0	01	1	0205-
10	SPRING; ELEMENT (A)	1-13219-264-0	01	1	0105-0204
10	SPRING; ELEMENT (D)	1-09580-563-0	01	1	0205-
11	BOLT; CENTER (B)	1-13231-071-0	01	1	0105-0204
11	BOLT; CENTER (D)	1-13219-349-0	01	1	0205-
11	BOLT; CENTER (A)	1-13231-072-0	01	1	0105-0204
11	BOLT; CENTER (C)	1-13219-366-0	01	1	0205-
