0-40 — FUEL INJECTION SYSTEM (#8788) — 112 parça

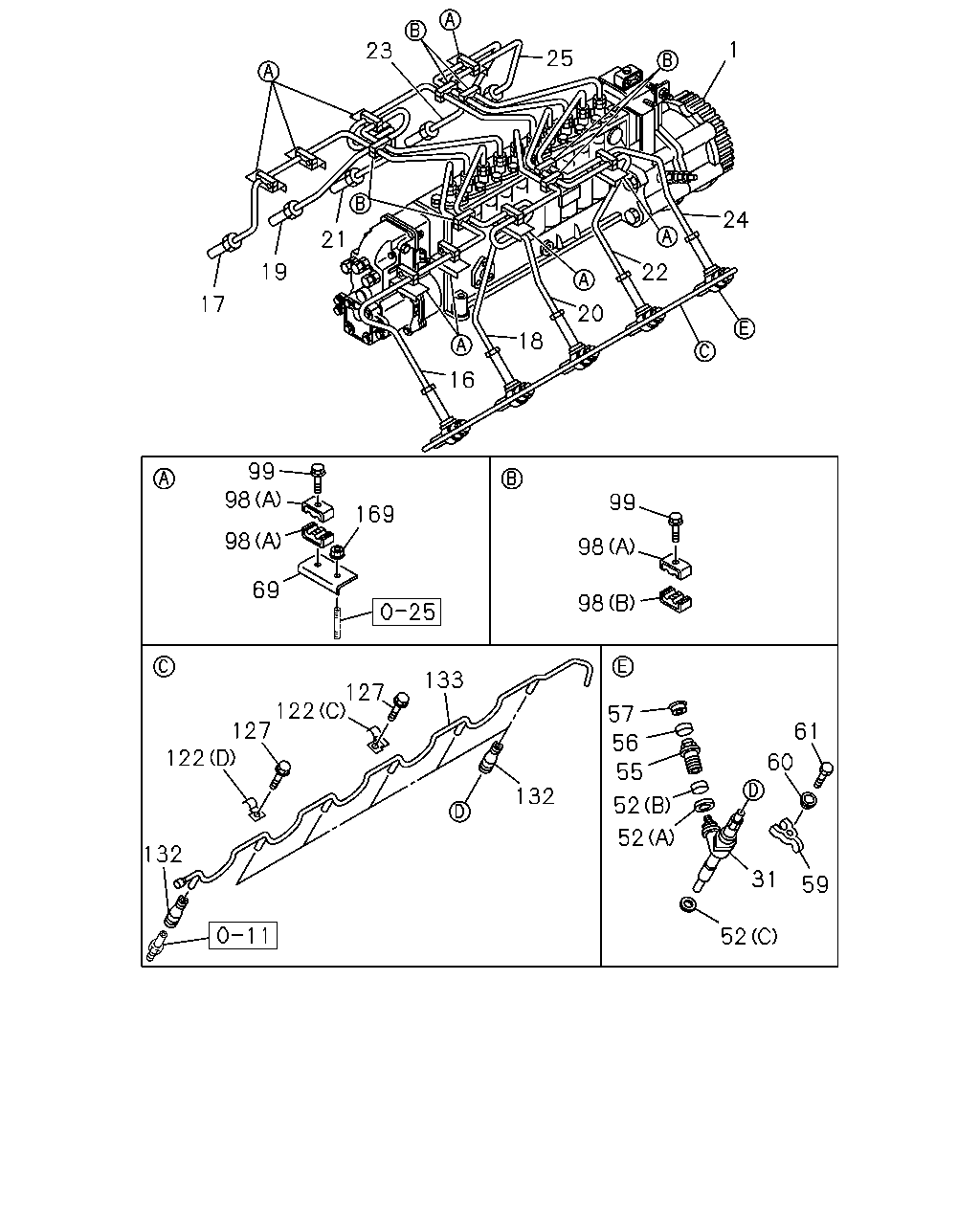

1 23 25 24 21 19 22 17 20 18 16 99 98 99 169 98 98 69 98 133 127 122 127 122 57 61 56 60 55 132 52 52 132 31 59 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	1-15603-370-1	01	1	0105-0308
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	1-15603-370-1	01	1	0309-
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	1-15603-209-1	01	1	0105-0308
16	PIPE; INJ NO.1	1-15415-559-1	01	1	0105-
17	PIPE; INJ NO.2	1-15415-560-1	01	1	0105-
18	PIPE; INJ NO.3	1-15415-589-2	01	1	0105-
19	PIPE; INJ NO.4	1-15415-562-1	01	1	0105-
20	PIPE; INJ NO.5	1-15415-563-1	01	1	0105-
21	PIPE; INJ NO.6	1-15415-564-1	01	1	0105-
22	PIPE; INJ NO.7	1-15415-590-2	01	1	0105-
23	PIPE; INJ NO.8	1-15415-566-1	01	1	0105-
24	PIPE; INJ NO.9	1-15415-567-1	01	1	0105-
25	PIPE; INJ NO.10	1-15415-568-1	01	1	0105-
31	NOZZLE ASM; INJ	1-15300-368-0	10	1	0105-
52	GASKET; SLEEVE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) OD=26.0	1-09630-111-0	10	1	0105-
52	GASKET; SLEEVE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=15	1-15315-011-0	10	1	0105-
52	GASKET; SLEEVE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) OD=28.5	1-09639-030-0	10	1	0105-
55	SLEEVE; INJ PUMP	1-15339-094-0	10	1	0105-
56	COVER	1-15419-028-0	10	1	0105-
57	GASKET; DUST COVER ALSO INCLUDED IN GASKET SET(ENGINE).	1-15419-027-1	10	1	0105-
59	CLAMP; NOZZLE HOLDER	1-15337-012-0	10	1	0105-
60	WASHER; NOZZLE HOLDER	1-09509-046-0	10	1	0105-
61	BOLT; CLAMP NOZZLE HOLDER M12X50	9-01666-250-0	10	1	0105-0512
61	BOLT; CLAMP NOZZLE HOLDER M12X50	0-16956-250-0	10	1	0601-
69	BRACKET; INJ PIPE CLIP	1-15419-391-1	08	1	0105-
98	CLIP; "A",INJ PIPE (A) ID=15 L=30	1-09701-132-1	22	1	0105-
98	CLIP; "A",INJ PIPE (B)	1-09701-213-0	06	1	0105-
99	BOLT; CLIP,INJ,PIPE M6X30 FLANGE	0-28080-630-0	14	1	0105-0512
99	BOLT; CLIP,INJ,PIPE M6X30 FLANGE	0-28050-630-0	14	1	0601-
122	CLIP; LEAK OFF PIPE (A)	1-09701-172-2	02	1	0105-
122	CLIP; LEAK OFF PIPE (B)	1-09701-173-1	02	1	0105-
122	CLIP; LEAK OFF PIPE (C) L=19	1-09709-104-0	04	1	0105-
122	CLIP; LEAK OFF PIPE (D) L=22	1-09709-156-0	02	1	0105-
127	BOLT; CLIP LEAK OFF PIPE M8X18 FLANGE	0-28080-818-0	06	1	0105-
132	CONNECTOR ASM; LEAK OFF	1-15449-009-0	12	1	0105-
133	PIPE; INJ NOZZLE LEAK OFF	1-15414-534-0	02	1	0105-
169	NUT; BRKT M8 FLANGE	0-91150-108-0	08	1	0105-0602
169	NUT; BRKT M8 FLANGE	0-91180-108-0	08	1	0603-

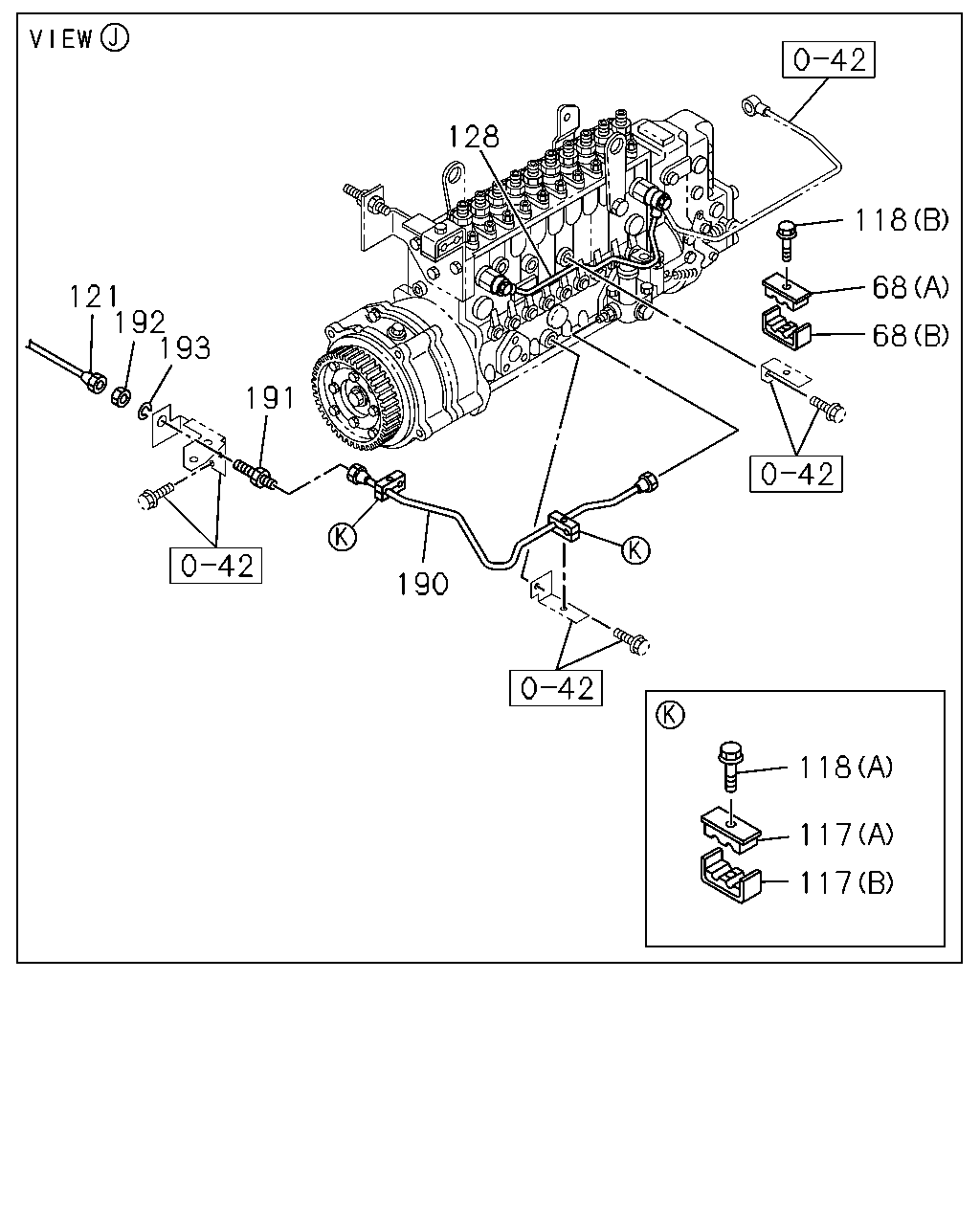

128 118 68 121 192 193 68 191 190 118 117 117

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
68	CLIP; INJ PIPE (A)	1-09701-180-0	01	1	0105-
68	CLIP; INJ PIPE (B) ID=10 & 10 L=25	8-94393-280-2	01	1	0105-
117	CLIP; INJ PIPE (A)	1-09701-195-2	02	1	0105-
117	CLIP; INJ PIPE (B)	1-09701-196-1	02	1	0105-
118	BOLT; CLIP,INJ PIPE (B) M6X30 FLANGE	0-28080-630-0	01	1	0105-0512
118	BOLT; CLIP,INJ PIPE (B) M6X30 FLANGE	0-28050-630-0	01	1	0601-
118	BOLT; CLIP,INJ PIPE (A) M6X35 FLANGE	0-28080-635-0	02	1	0105-0512
118	BOLT; CLIP,INJ PIPE (A) M6X35 FLANGE	0-28050-635-0	02	1	0601-
121	PIPE; FUEL,FEED PUMP,SUCTION	1-15415-657-0	01	1	0105-
128	PIPE ASM; INJ	1-15415-740-1	01	1	0105-
190	PIPE; FUEL INLET	1-15415-915-0	01	1	0105-
191	UNION; FLARE M20 L=77.5	9-09233-212-1	01	1	0105-0607
191	UNION; FLARE M20 L=77.5	0-92123-212-0	01	1	0608-
192	NUT; UNION M20	9-99110-420-0	01	1	0105-
193	WASHER; UNION ID=20.2	9-09150-520-0	01	1	0105-0603
193	WASHER; UNION ID=20.2	0-91510-520-0	01	1	0604-

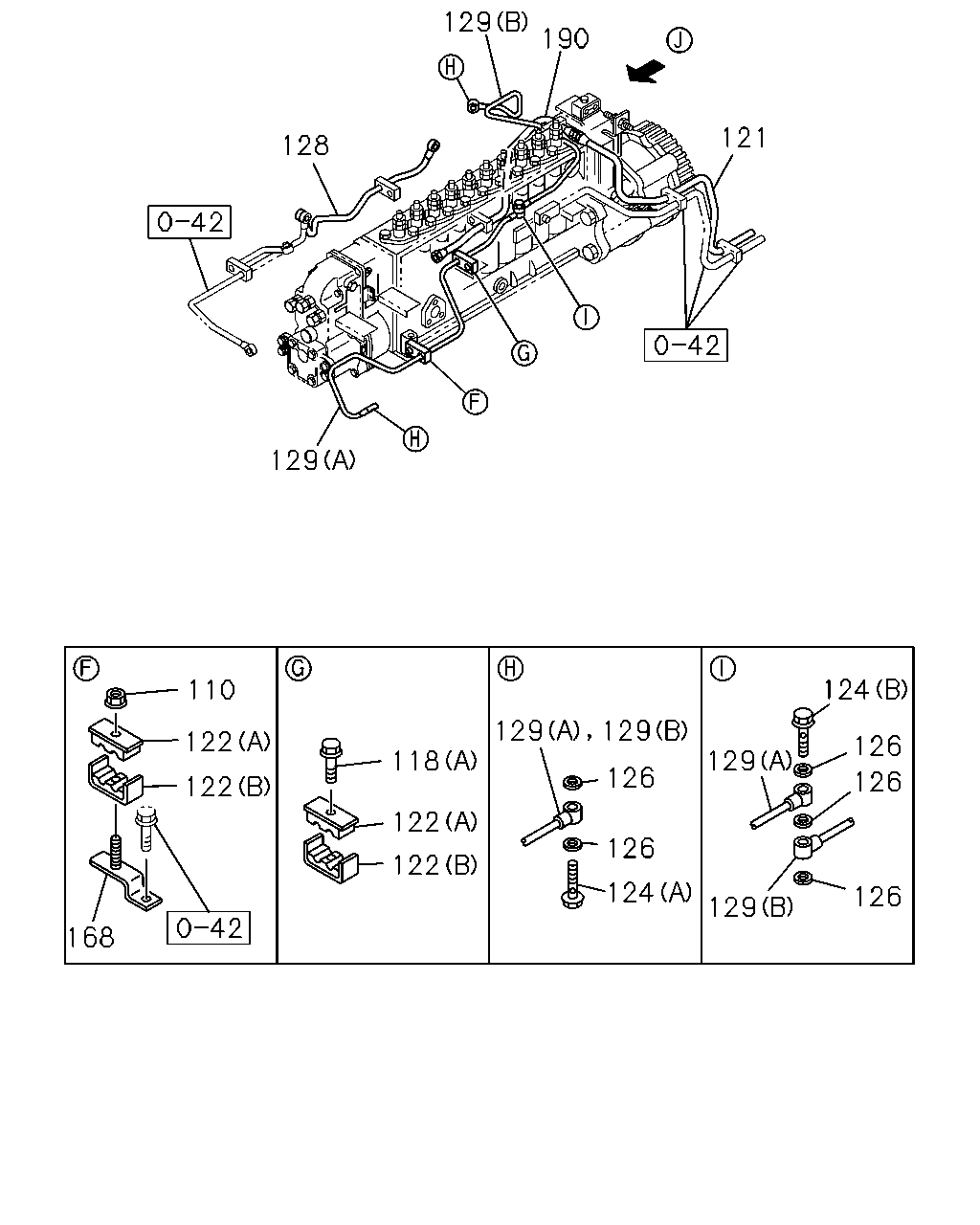

129 190 121 128 129 124 110 129 129 122 126 118 129 126 126 122 122 126 122 124 126 129 168

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
110	NUT; CLIP M6 FLANGE	0-91150-106-0	01	1	0105-0602
110	NUT; CLIP M6 FLANGE	0-91180-106-0	01	1	0603-
118	BOLT; CLIP,INJ PIPE (B) M6X30 FLANGE	0-28080-630-0	01	1	0105-0512
118	BOLT; CLIP,INJ PIPE (B) M6X30 FLANGE	0-28050-630-0	01	1	0601-
118	BOLT; CLIP,INJ PIPE (A) M6X35 FLANGE	0-28080-635-0	02	1	0105-0512
118	BOLT; CLIP,INJ PIPE (A) M6X35 FLANGE	0-28050-635-0	02	1	0601-
121	PIPE; FUEL,FEED PUMP,SUCTION	1-15415-657-0	01	1	0105-
122	CLIP; LEAK OFF PIPE (A)	1-09701-172-2	02	1	0105-
122	CLIP; LEAK OFF PIPE (B)	1-09701-173-1	02	1	0105-
122	CLIP; LEAK OFF PIPE (C) L=19	1-09709-104-0	04	1	0105-
122	CLIP; LEAK OFF PIPE (D) L=22	1-09709-156-0	02	1	0105-
124	BOLT; EYE LEAK OFF PIPE (A) M8X18 EYE BOLT	1-09675-037-1	02	1	0105-
124	BOLT; EYE LEAK OFF PIPE (B) M8X30 FLANGE	1-09675-039-1	01	1	0105-
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	07	1	0105-
128	PIPE ASM; INJ	1-15415-740-1	01	1	0105-
129	PIPE ASM; LEAK OFF OUTER (A)	1-15415-390-0	01	1	0105-
129	PIPE ASM; LEAK OFF OUTER (B)	1-15415-620-0	01	1	0105-
168	BRACKET; FUEL PIPE	1-15419-622-0	01	1	0105-
190	PIPE; FUEL INLET	1-15415-915-0	01	1	0105-

37 40 39 143 44 141 140 31 32 47 140 138 45 46 33 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
31	NOZZLE ASM; INJ	1-15300-368-0	10	1	0105-
32	HOLDER ASM; NOZZLE	1-15330-109-0	10	1	0105-
33	NOZZLE; INJ	1-15311-286-0	10	1	0105-
35	NUT; NOZZLE RET,NOZZLE HOLDER	1-15332-017-0	10	1	0105-
37	NUT; CAP,NOZZLE HOLDER	1-15334-004-0	10	1	0105-
39	SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER	1-15345-004-0	10	1	0105-
40	NUT; ADJ SCREW,NOZZLE HOLDER	1-15332-011-0	10	1	0105-
44	SPRING; NOZZLE,NOZZLE HOLDER	8-94246-531-0	10	1	0105-
45	ROD; PUSH,NOZZLE HOLDER	1-15341-005-0	10	1	0105-
46	PIN; NOZZLE SET,NOZZLE HOLDER	9-15347-003-0	20	1	0105-
47	SPACER; NOZZLE SPRING,NOZZLE HOLDER	1-15339-015-0	10	1	0105-
138	SPRING; NOZZLE LWR,NOZZLE HOLDER	1-15343-001-0	10	1	0105-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.50	5-15339-007-0	AR	1	0105-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.60	5-15339-008-0	AR	1	0105-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.70	5-15339-009-0	AR	1	0105-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.80	5-15339-010-0	AR	1	0105-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.90	5-15339-011-0	AR	1	0105-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.00	5-15339-012-0	AR	1	0105-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.52	5-15339-018-0	AR	1	0105-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.54	5-15339-019-0	AR	1	0105-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.56	5-15339-020-0	AR	1	0105-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.58	5-15339-021-0	AR	1	0105-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.10	8-94128-982-0	AR	1	0105-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.20	8-94128-983-0	AR	1	0105-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.30	8-94128-984-0	AR	1	0105-
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.40	8-94128-985-0	AR	1	0105-
141	ROD; PUSH,UPR,NOZZLE HOLDER	1-15341-004-0	10	1	0105-
143	SCREW; SET,NOZZLE SPRING,NOZZLE HOLDER	1-15345-003-0	10	1	0105-

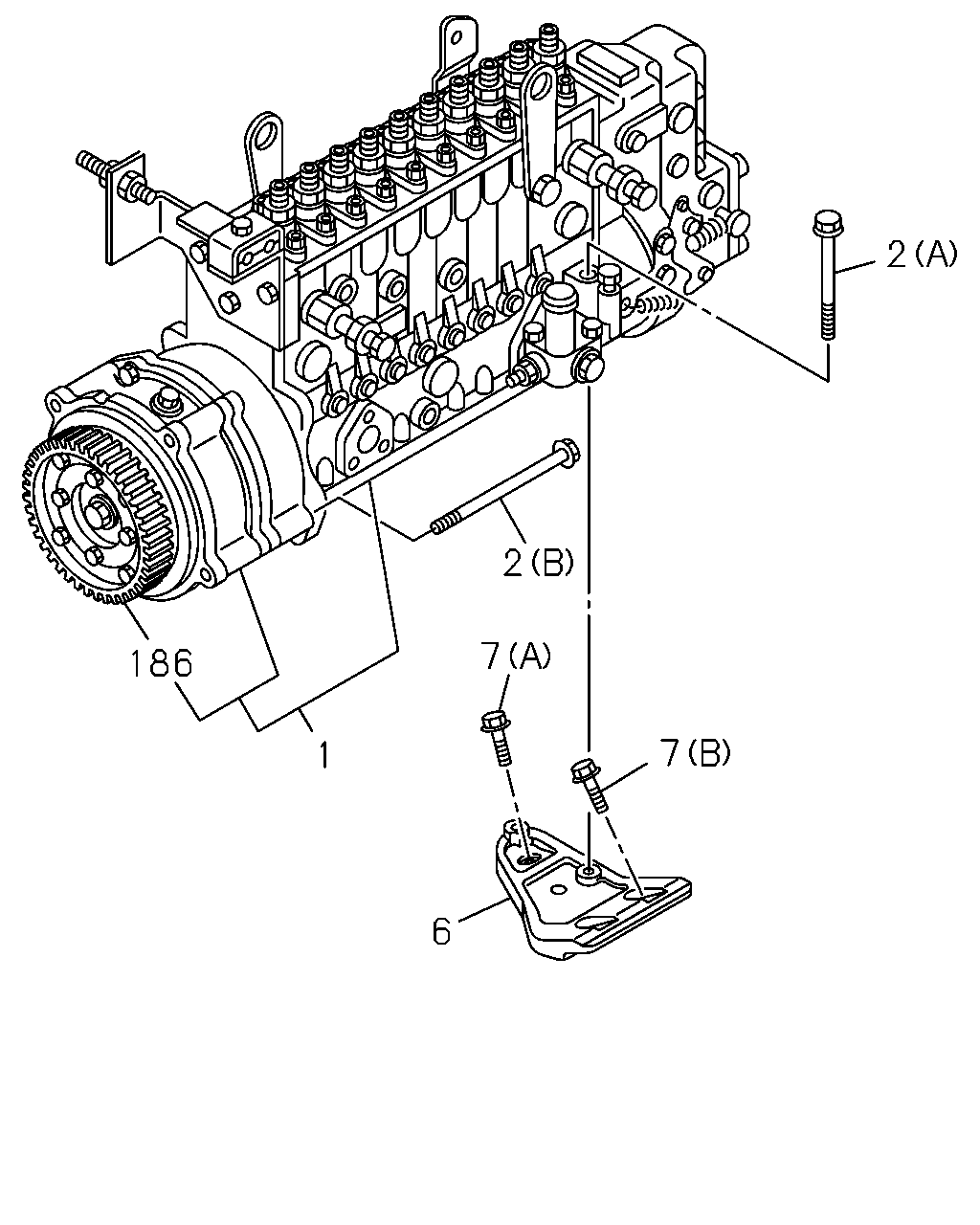

2 2 7 186 7 1 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	1-15603-370-1	01	1	0105-0308
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	1-15603-370-1	01	1	0309-
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	1-15603-209-1	01	1	0105-0308
2	BOLT; INJ PUMP (B) M10X80 FLANGE	0-28181-080-0	04	1	0105-0512
2	BOLT; INJ PUMP (B) M10X80 FLANGE	0-28151-080-0	04	1	0601-
2	BOLT; INJ PUMP (A) M10X95 FLANGE	8-94397-027-1	02	1	0105-
6	BRACKET; INJ PUMP TO C/BL	1-19751-051-0	01	1	0105-
7	BOLT; INJ PUMP BRKT (A) M10X22 FLANGE	0-28181-022-0	01	1	0105-
7	BOLT; INJ PUMP BRKT (B) M10X40 FLANGE	0-28181-040-0	01	1	0105-0512
7	BOLT; INJ PUMP BRKT (B) M10X40 FLANGE	0-28151-040-0	01	1	0601-
186	GEAR; INJ PUMP	1-12524-085-3	01	1	0105-
