10860 - CVR LHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-38 - AIR COMPRESSOR PIPING; ENGINE SIDE
▶
0-38 — AIR COMPRESSOR PIPING; ENGINE SIDE
(#8786) — 34 parça
◀

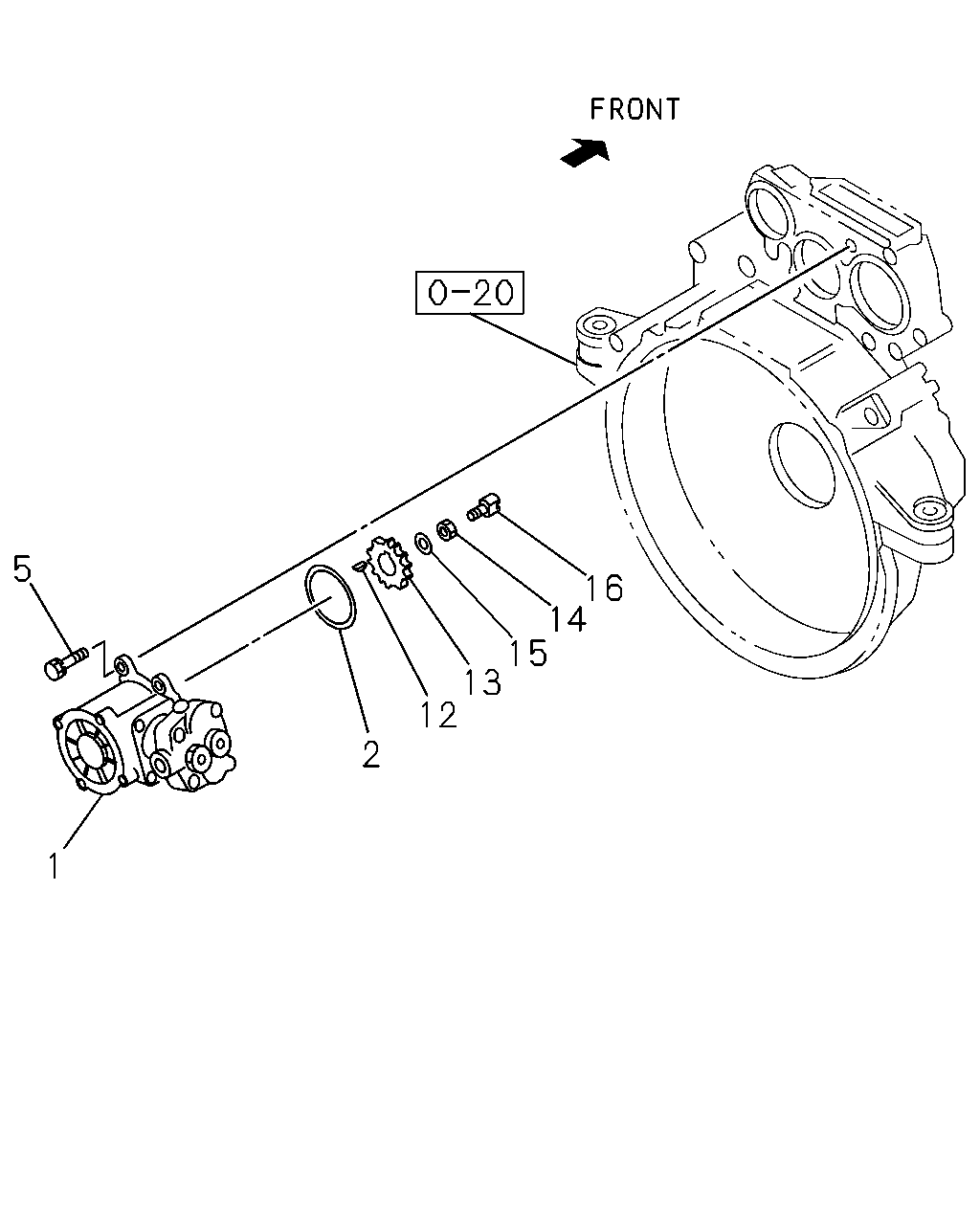

[038A] AIR COMPRESSOR ASM;FIXING (10 parça)

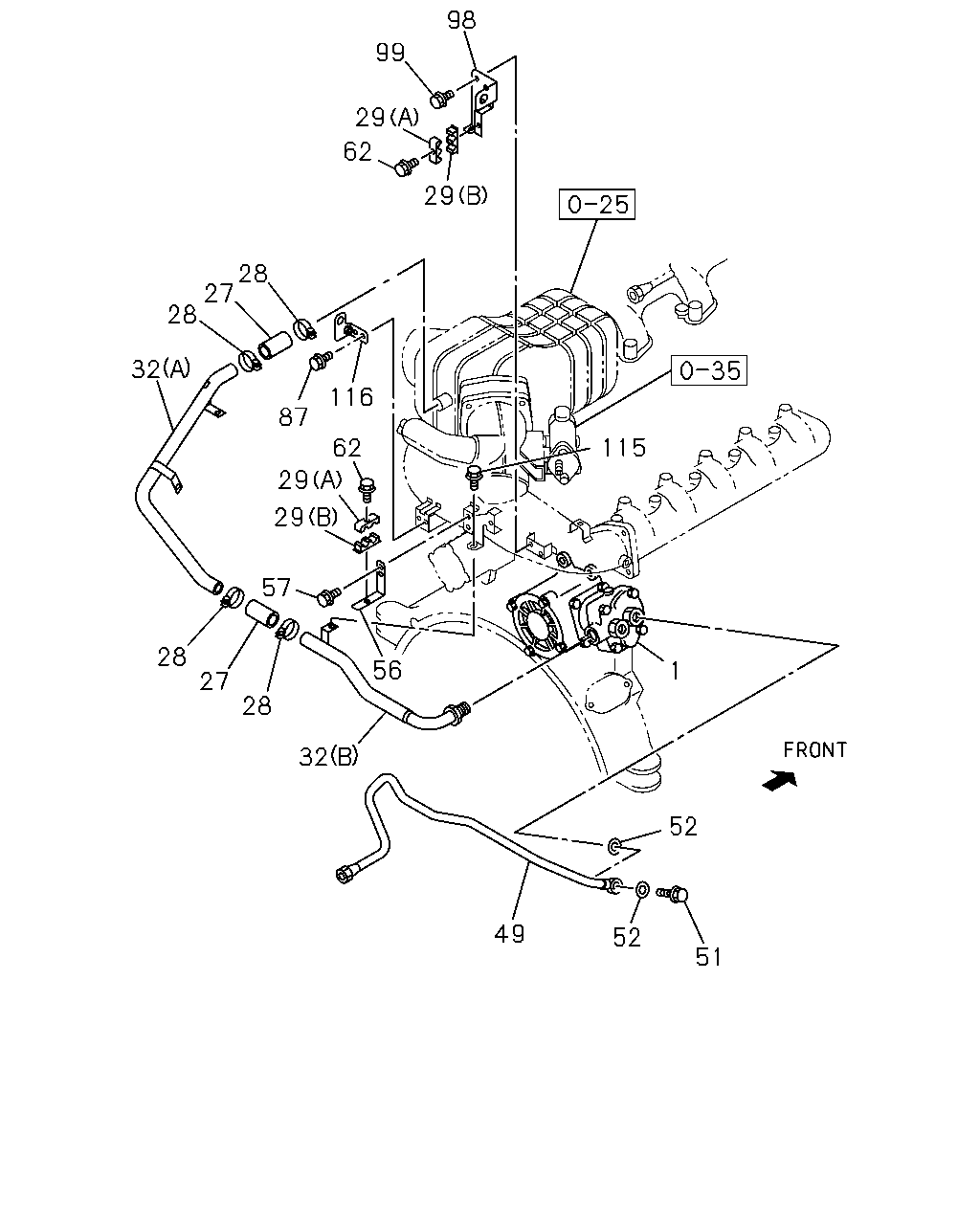

[038A] PIPE,CLIP AND BRKT;FIXING (24 parça)
▶
5
16
14
15
13
12
2
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT.
1-19100-177-5
01
1
0105-
2
GASKET; AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=105.6
1-09623-423-0
01
1
0105-
5
BOLT; AIR CMPR FIX
M12X35 FLANGE
0-28181-235-0
04
1
0105-0512
5
BOLT; AIR CMPR FIX
M12X35 FLANGE
0-28151-235-0
04
1
0601-
12
KEY; AIR CMPR GEAR
9-08055-516-0
01
1
0105-
13
GEAR; AIR CMPR DRIVE
Z=26
1-12524-044-1
01
1
0105-
14
NUT; GEAR
M20
9-99111-520-0
01
1
0105-0512
14
NUT; GEAR
M20
0-91111-520-0
01
1
0601-
15
WASHER; GEAR
ID=21
9-09164-520-0
01
1
0105-
16
ADAPTER
1-12539-010-0
01
1
0105-
98
99
29
62
2
28
27
28
32
116
87
115
62
29
29
57
28
56
1
27
28
32
52
49
52
51
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT.
1-19100-177-5
01
1
0105-
2
GASKET; AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=105.6
1-09623-423-0
01
1
0105-
27
HOSE; AIR CMPR,SUCTION
L=55
1-09360-784-0
02
1
0105-
28
CLIP; HOSE,AIR CMPR
ID=28.5
1-09707-150-0
04
1
0105-
29
CLIP; AIR PIPE
(A)
1-09701-193-1
02
1
0105-
29
CLIP; AIR PIPE
(B)
1-09701-194-1
02
1
0105-
32
PIPE; AIR,AIR CMPR
(A)
1-19192-902-0
01
1
0105-
32
PIPE; AIR,AIR CMPR
(B)
1-19192-983-0
01
1
0105-
49
PIPE; AIR,CHARGE
1-19192-928-0
01
1
0105-
51
BOLT; EYE,AIR PIPE TO CMPR
M24X39
1-09675-175-1
01
1
0105-
52
GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32
9-09571-424-0
02
1
0105-
56
BRACKET; AIR PIPE FIX
1-19199-228-0
01
1
0105-
57
BOLT; BRKT,AIR PIPE
M6X12 FLANGE
0-28080-612-0
02
1
0105-0512
57
BOLT; BRKT,AIR PIPE
M6X12 FLANGE
0-28050-612-0
02
1
0601-
62
BOLT; CLIP
M6X35 FLANGE
0-28080-635-0
02
1
0105-0512
62
BOLT; CLIP
M6X35 FLANGE
0-28050-635-0
02
1
0601-
87
BOLT; BRKT FIX
M8X16 FLANGE
0-28080-816-0
02
1
0105-0512
87
BOLT; BRKT FIX
M8X16 FLANGE
0-28050-816-0
02
1
0601-
98
BRACKET; AIR & OIL PIPE
1-19199-227-0
01
1
0105-
99
BOLT; BRKT AIR PIPE
M8X16 FLANGE
0-28080-816-0
02
1
0105-0512
99
BOLT; BRKT AIR PIPE
M8X16 FLANGE
0-28050-816-0
02
1
0601-
115
BOLT; AIR PIPE
M6X12 FLANGE
0-28080-612-0
03
1
0105-0512
115
BOLT; AIR PIPE
M6X12 FLANGE
0-28050-612-0
03
1
0601-
116
BRACKET; AIR PIPE
1-22196-326-1
01
1
0105-
