Isuzu WW
▶
TRUCKS
▶
CVR
▶
10860 - CVR LHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-35 - ENGINE CONTROL VALVE AND LEVER
▶

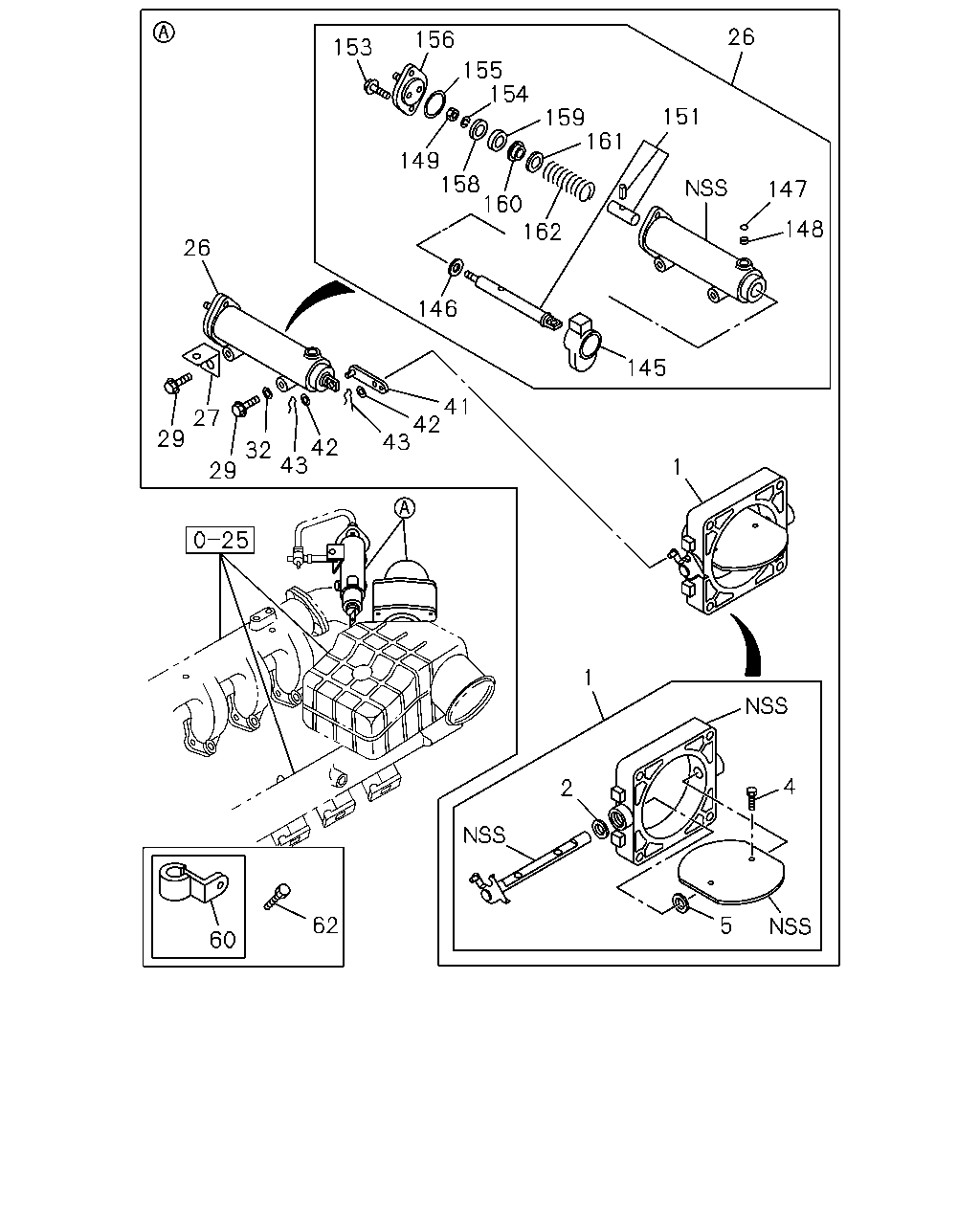

0-35 — ENGINE CONTROL VALVE AND LEVER
(#8785) — 31 parça
26
156
153
155
154
151
159
161
149
158
160
162
147
148
26
146
145
41
42
43
27
29
32
42
43
29
1
1
4
2
62
5
60
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SHUTTER ASM; INT
1-14310-219-1
01
1
0105-
2
COVER; DUST,SHAFT
9-14319-316-0
01
1
0105-
4
SCREW; VLV FIX
9-92050-514-0
02
1
0105-
5
WASHER; THRUST,INT SHUTTER
ID=12.5
9-09160-512-0
01
1
0105-0605
5
WASHER; THRUST,INT SHUTTER
ID=12.5 OD=22
0-91610-512-0
01
1
0606-
26
CYLINDER ASM; CONT
1-22190-527-1
01
1
0105-
27
BRACKET; WIRE CLIP
1-83129-087-0
01
1
0105-
29
BOLT; CONT CYL
M10X55 FLANGE
8-94399-863-1
02
1
0105-
32
WASHER; LK,CONT CYL
ID=10.5 OD=18
9-09160-510-0
01
1
0105-0605
32
WASHER; LK,CONT CYL
ID=10.5
0-91610-510-0
01
1
0606-
41
LINK; INT SHUTTER
1-14319-133-0
01
1
0105-
42
WASHER; LK,ROD LOCK
ID=6.4
9-09160-506-0
02
1
0105-
43
PIN; SNAP ROD LK
L=21.2
1-09747-003-0
02
1
0105-
60
CLIP; CABLE
ID=8 H=20 L=20
1-09700-604-0
01
1
0105-
62
BOLT; CABLE END
M6X16 FLANGE
0-28080-616-0
02
1
0105-0512
62
BOLT; CABLE END
M6X16 FLANGE
0-28050-616-0
02
1
0601-
145
COVER; BREATHER
1-22199-008-0
01
1
0105-
146
SEAL; DUST,CONT
1-22189-016-0
01
1
0105-
147
RING; RET
9-88510-331-0
01
1
0105-
148
FILTER; CONT CYL
9-88510-330-0
01
1
0105-
149
NUT; LOCK,CONT SHAFT
9-83315-085-0
01
1
0105-
151
SHAFT; CONT CYL
1-22196-256-0
01
1
0105-
153
BOLT; CONT CYL
1-33739-326-0
02
1
0105-
154
WASHER; LK,CYL
ID=8.2
9-09150-508-0
01
1
0105-
155
GASKET; CONT CYL
9-88510-372-0
01
1
0105-
156
COVER; CONT CYL
1-22189-162-1
01
1
0105-
158
RETAINER; GASKET,CYL
9-88510-324-0
01
1
0105-
159
GASKET; CONT CYL
9-88510-373-0
01
1
0105-
160
PLATE
1-22199-020-0
01
1
0105-
161
RING; WEAR
1-22199-002-0
01
1
0105-
162
SPRING; CONT CYL
1-22199-018-0
01
1
0105-
