Isuzu WW
▶
TRUCKS
▶
CVR
▶
10860 - CVR LHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-33 - FAN AND FAN BELT
▶

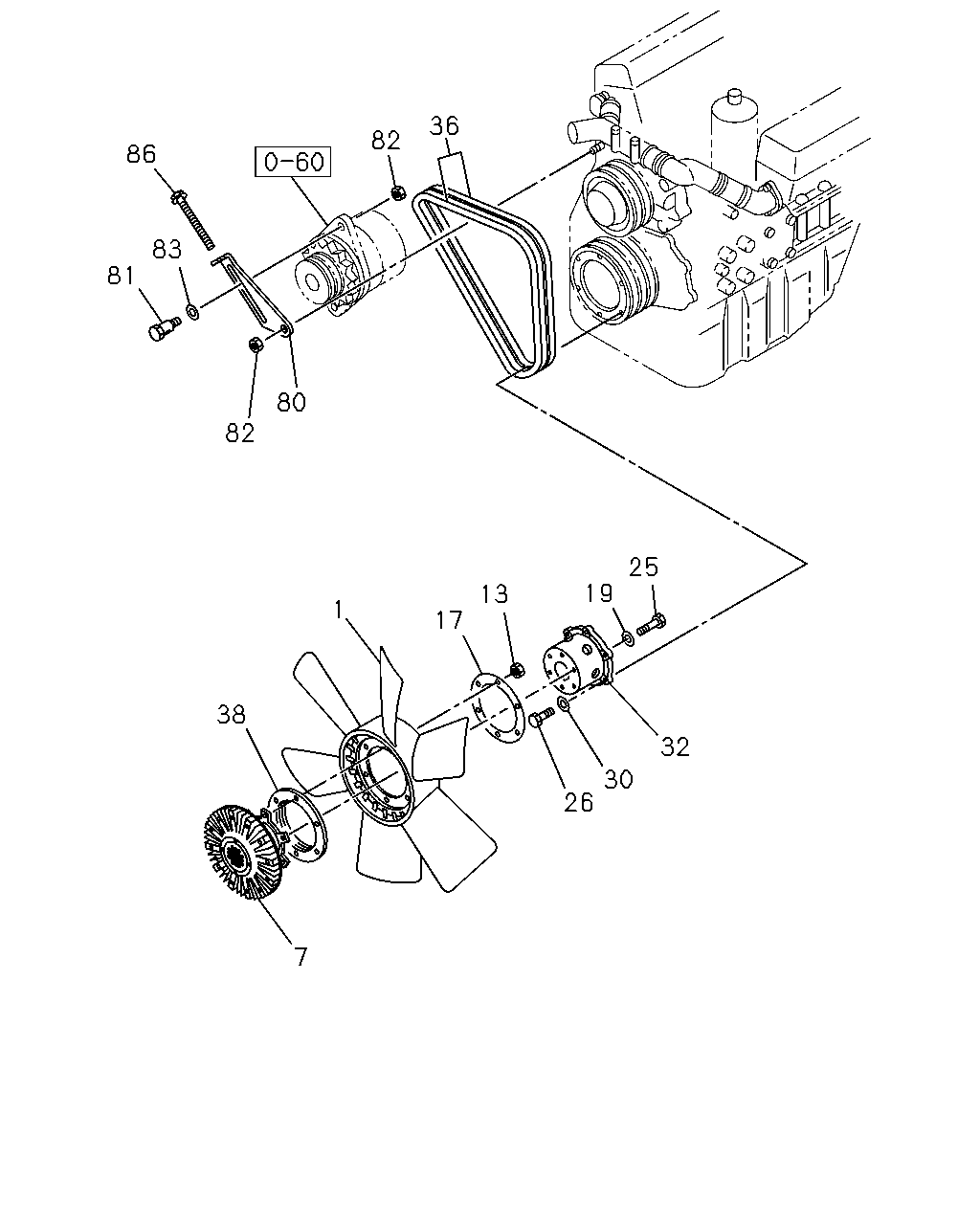

0-33 — FAN AND FAN BELT
(#8783) — 22 parça
36
82
86
83
81
80
82
25
19
13
1
17
38
32
30
26
7
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
FAN; COOLING
1-13660-224-0
01
1
0105-
7
COUPLING; FAN
INJ PUMP Q SET SPECIAL +5%Q(T1A)
1-21650-183-1
01
1
0303-
7
COUPLING; FAN
1-21650-184-1
01
1
0105-0302
7
COUPLING; FAN
INJ PUMP Q SET STD(T1B) EXC. INTAKE HEATER<SL2>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)
1-21650-184-1
01
1
0303-
13
NUT; COOLING FAN
M8 FLANGE
0-91150-108-0
06
1
0105-0602
13
NUT; COOLING FAN
M8 FLANGE
0-91180-108-0
06
1
0603-
17
WASHER; LK,FAN TO COUPLING
1-13669-107-0
01
1
0105-
19
WASHER; PL,FAN DRIVE
ID=10
1-09503-033-1
06
1
0105-
25
BOLT; ADAPTER
M10X110
9-09801-316-1
06
1
0105-
26
BOLT; FAN TO CLU
M10X30 FLANGE
0-28181-030-0
06
1
0105-0512
26
BOLT; FAN TO CLU
M10X30 FLANGE
0-28151-030-0
06
1
0601-
30
WASHER; PL,ADAPTER
ID=10
1-09503-033-1
06
1
0105-
32
ADAPTER; FAN TO PULLEY
1-13669-156-0
01
1
0105-
36
BELT; COOLING FAN
1 SET=2 PIECE(1136714010) MITSUBOSHI
1-13671-400-0
01
1
0105-
38
SPACER; FAN
1-13669-162-1
01
1
0105-0302
38
SPACER; FAN
INJ PUMP Q SET STD(T1B) EXC. INTAKE HEATER<SL2>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)
1-13669-162-1
01
1
0303-
80
PLATE; ADJ
1-13674-257-0
01
1
0105-
81
PIECE; SLIDING
M12X59
1-13674-161-0
01
1
0105-
82
NUT; ADJ PLATE
M12 FLANGE
0-91150-112-0
02
1
0105-0602
82
NUT; ADJ PLATE
M12 FLANGE
0-91180-112-0
02
1
0603-
83
WASHER; PL
ID=12.5 T=5.8
8-94217-363-0
01
1
0105-
86
BOLT; ADJ
M10X155 FLANGE
1-09009-114-1
01
1
0105-
