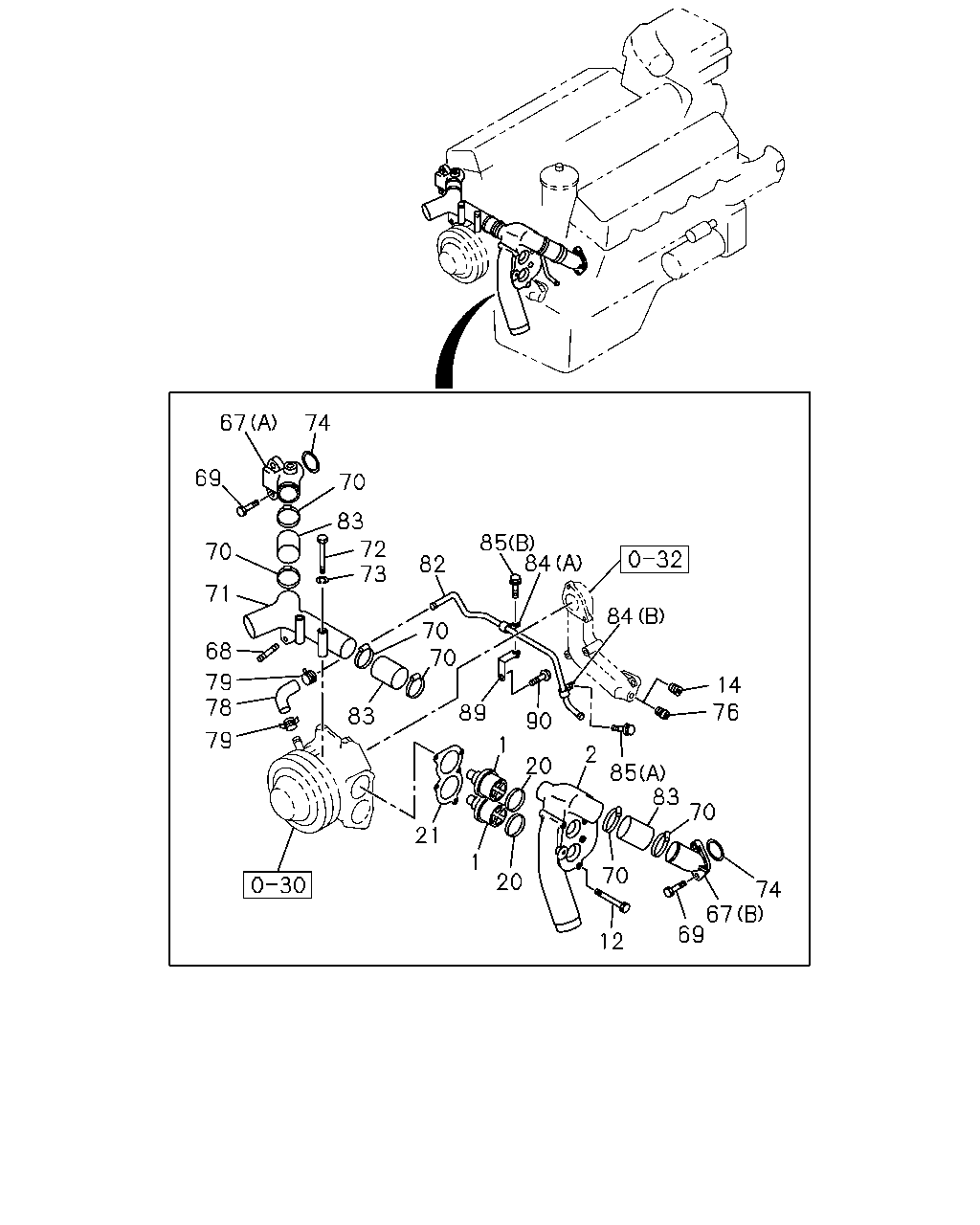

1 |
THERMOSTAT
76.5?C
|
1-13770-080-1 |
02 |
1 |
0105- |
| |
2 |
HOUSING; THERMOSTAT
|
1-13716-188-1 |
01 |
1 |
0105-0106 |
| |
2 |
HOUSING; THERMOSTAT
|
1-13716-186-1 |
01 |
1 |
0107- |
| |
12 |
BOLT; HSG
M8X100 W/LK&PL WASHER
|
0-50140-800-0 |
05 |
1 |
0105- |
| |
14 |
PLUG; SW
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER
MANUALCONTROL(C60)
PT3/8
|
9-09204-517-0 |
01 |
1 |
0105- |
| |
20 |
RING; SEAL
|
1-13779-005-0 |
02 |
1 |
0105- |
| |
21 |
GASKET; PUMP TO HSG
ALSO INCLUDED IN GASKET SET(ENGINE).
|
1-13743-042-1 |
01 |
1 |
0105- |
| |
67 |
DUCT; WATER,OUTLET
(B)
LH BANK
|
1-13711-583-0 |
01 |
1 |
0105- |
| |
67 |
DUCT; WATER,OUTLET
(A)
RH BANK
|
1-13711-617-2 |
01 |
1 |
0105- |
| |
68 |
STUD; ADJ PLATE
M12X25 L=43
|
9-94411-225-0 |
01 |
1 |
0105-0604 |
| |
68 |
STUD; ADJ PLATE
M12X25 L=43
|
0-44011-225-0 |
01 |
1 |
0605- |
| |
69 |
BOLT; DUCT,WATER OUTLET
M10X30 FLANGE
|
0-28181-030-0 |
04 |
1 |
0105-0512 |
| |
69 |
BOLT; DUCT,WATER OUTLET
M10X30 FLANGE
|
0-28151-030-0 |
04 |
1 |
0601- |
| |
70 |
CLIP; RUBBER HOSE,DUCT TO DUCT
|
1-09704-065-0 |
06 |
1 |
0105- |
| |
71 |
DUCT; WATER,OUTLET,CONNECTOR
|
1-13711-380-1 |
01 |
1 |
0105-0206 |
| |
71 |
DUCT; WATER,OUTLET,CONNECTOR
|
1-13711-263-2 |
01 |
1 |
0207- |
| |
72 |
BOLT; CONNECTOR
M10X90
|
0-16806-090-0 |
02 |
1 |
0105-0512 |
| |
72 |
BOLT; CONNECTOR
M10X90
|
0-16856-090-0 |
02 |
1 |
0601- |
| |
73 |
WASHER; LK,CONNECTOR
ID=10.2
|
9-09150-510-0 |
02 |
1 |
0105-0603 |
| |
73 |
WASHER; LK,CONNECTOR
ID=10.2
|
0-91510-510-0 |
02 |
1 |
0604- |
| |
74 |
GASKET; WATER OUTLET DUCT
ALSO INCLUDED IN GASKET SET(ENGINE).
|
1-09623-425-0 |
02 |
1 |
0105- |
| |
76 |
JOINT; WATER DUCT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
PT3/8 & OD=18.3 L=47
|
9-09903-631-0 |
01 |
1 |
0105- |
| |
78 |
HOSE; RUBBER,WATER PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
|
1-09361-081-1 |
01 |
1 |
0105- |
| |
79 |
CLIP; RUBBER HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
ID=20
|
1-09707-084-1 |
02 |
1 |
0105- |
| |
82 |
PIPE; WATER,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
|
1-13721-369-2 |
01 |
1 |
0105- |
| |
83 |
HOSE; RUBBER,DUCT TO DUCT
|
1-09361-080-1 |
03 |
1 |
0105- |
| |
84 |
CLIP; WATER PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
(A)
ID=19 L=25
|
1-09700-515-1 |
01 |
1 |
0105- |
| |
84 |
CLIP; WATER PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
(B)
ID=19 L=23
|
5-09700-386-0 |
01 |
1 |
0105- |
| |
85 |
BOLT; CLIP
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
(A)
M10X16 W/LK WASHER
|
1-09033-012-0 |
01 |
1 |
0105- |
| |
85 |
BOLT; CLIP
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
(B)
M10X18 FLANGE
|
8-94147-156-1 |
01 |
1 |
0105- |
| |
89 |
BRACKET
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
|
1-13719-027-0 |
01 |
1 |
0105- |
| |
90 |
BOLT; BRKT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
M10X16 W/LK WASHER
|
1-09033-012-0 |
01 |
1 |
0105- |
