0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#878) — 113 parça

13 11 71 114 107 126 2 1 115 8 112 10 24 25 80 23 33 9 25 79 23 28 71 12 79 9 23 26 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CABLE; BATTERY BATTERY 65D23R MAINTENANCE FREE<WL4> L=180	9-82932-233-1	01	1	9202-9407	●	●
1	CABLE; BATTERY BATTERY 65D23R MAINTENANCE FREE<WL4> L=180	1-82650-265-0	01	1	9408-	●	●
1	CABLE; BATTERY BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> L=450	9-82932-417-1	01	1	9202-	●	●
2	CABLE; BATTERY BATTERY 65D23R MAINTENANCE FREE<WL4> L=185	1-82650-067-2	01	1	9202-	●	●
2	CABLE; BATTERY BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> L=380	9-82932-713-2	01	1	9202-	●	●
8	CABLE; BATTERY,STARTER BATTERY 65D23R MAINTENANCE FREE<WL4> L=950	1-82650-207-0	01	1	9202-9202	●	●
8	CABLE; BATTERY,STARTER BATTERY 65D23R MAINTENANCE FREE<WL4> L=850	1-82650-219-1	01	1	9203-	●	●
8	CABLE; BATTERY,STARTER BATTERY 65D23R MAINTENANCE FREE<WL4> L=1450	1-82650-217-1	01	1	9202-	●	●
9	CLIP; BATTERY CABLE BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> (A) ID=16 L=50 H=25	1-09700-838-0	03	1	9202-9202	●	●
9	CLIP; BATTERY CABLE BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> (B) ID=14 L=44	9-09917-427-0	01	1	9202-	●	●
10	BOLT; BATTERY CABLE CLIP BATTERY 65D23R MAINTENANCE FREE<WL4> M8X25 W/LK WASHER	9-01900-825-0	03	1	9202-9204	●	●
10	BOLT; BATTERY CABLE CLIP BATTERY 65D23R MAINTENANCE FREE<WL4> M8X25 W/LK WASHER	0-50040-825-0	03	1	9205-9207	●	●
10	BOLT; BATTERY CABLE CLIP BATTERY 65D23R MAINTENANCE FREE<WL4> M10X35	9-01901-035-0	01	1	9202-9204	●	●
10	BOLT; BATTERY CABLE CLIP M10X35 W/LK WASHER	0-50041-035-0	01	1	9205-	●	●
10	BOLT; BATTERY CABLE CLIP BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M10X20 W/LK WASHER	0-50041-020-0	01	1	9205-	●	●
11	WASHER; BATTERY CABLE EARTH ID=10.5 OD=22	9-09160-610-0	01	1	9202-	●	●
12	NUT; BATTERY CABLE CLIP MLD6 M/T<X9Y>,MLD7 M/T<X9Z> M8	9-09110-408-0	01	1	9202-	●	●
13	GROMMET; BATTERY CABLE ID=28 OD=35 T=25	1-09332-011-1	01	1	9202-	●	●
23	BRACKET; CABLE CLIP TO FRAME BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> (A)	1-47465-518-0	01	1	9202-9202	●	●
23	BRACKET; CABLE CLIP TO FRAME (C)	1-82699-584-0	01	1	9203-	●	●
23	BRACKET; CABLE CLIP TO FRAME BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> (B)	1-47475-304-0	01	1	9202-	●	●
24	BOLT; BRKT TO FRAME BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8X22 FLANGE	0-28080-822-0	01	1	9202-9202	●	●
24	BOLT; BRKT TO FRAME BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8X22 FLANGE	0-28080-822-0	02	1	9203-9207	●	●
24	BOLT; BRKT TO FRAME BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8X25 FLANGE	0-28080-825-0	01	1	9208-	●	●
24	BOLT; BRKT TO FRAME M8X25 FLANGE	0-28080-825-0	01	1	9208-	●	●
25	CLIP; BATTERY CABLE TO BRKT BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> ID=16 L=28	1-09700-872-0	01	1	9202-9202	●	●
25	CLIP; BATTERY CABLE TO BRKT BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> ID=16 L=28	1-09700-872-0	02	1	9203-9207	●	●
25	CLIP; BATTERY CABLE TO BRKT BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> ID=16 L=28	1-09700-872-0	01	1	9208-	●	●
25	CLIP; BATTERY CABLE TO BRKT ID=16 L=28	1-09700-872-0	01	1	9208-	●	●
26	BOLT; BATTERY CABLE CLIP TO BRKT BATTERY 65D23R MAINTENANCE FREE<WL4> M8X22 FLANGE	0-28010-822-0	01	1	9202-9204	●	●
26	BOLT; BATTERY CABLE CLIP TO BRKT BATTERY 65D23R MAINTENANCE FREE<WL4> M8X22 FLANGE	0-28080-822-0	03	1	9205-9205	●	●
26	BOLT; BATTERY CABLE CLIP TO BRKT BATTERY 65D23R MAINTENANCE FREE<WL4> M8X22 FLANGE	0-28080-822-0	02	1	9206-9207	●	●
26	BOLT; BATTERY CABLE CLIP TO BRKT BATTERY 65D23R MAINTENANCE FREE<WL4> M8X22 FLANGE	0-28080-822-0	01	1	9208-	●	●
26	BOLT; BATTERY CABLE CLIP TO BRKT BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8X22 FLANGE	0-28080-822-0	01	1	9206-9207	●	●
26	BOLT; BATTERY CABLE CLIP TO BRKT M8X22 FLANGE	0-28080-822-0	01	1	9206-9207	●	●
26	BOLT; BATTERY CABLE CLIP TO BRKT BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8X25 FLANGE	0-28080-825-0	01	1	9208-	●	●
26	BOLT; BATTERY CABLE CLIP TO BRKT M8X25 FLANGE	0-28080-825-0	01	1	9208-	●	●
27	NUT; BATTERY CABLE CLIP TO BRKT BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8	9-09110-408-0	01	1	9202-9202	●	●
27	NUT; BATTERY CABLE CLIP TO BRKT BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8	9-09110-408-0	02	1	9203-9207	●	●
27	NUT; BATTERY CABLE CLIP TO BRKT BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8	9-09110-408-0	01	1	9208-	●	●
27	NUT; BATTERY CABLE CLIP TO BRKT M8	9-09110-408-0	01	1	9208-	●	●
28	NUT; BRKT TO FRAME BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8	9-09110-408-0	01	1	9202-9205	●	●
28	NUT; BRKT TO FRAME BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8	9-09110-408-0	01	1	9206-	●	●
28	NUT; BRKT TO FRAME M8	9-09110-408-0	01	1	9206-	●	●
33	CAP; INSULATOR	1-82699-431-0	01	1	9202-	●	●
71	BOLT; BATTERY CABLE M10X20 FLANGE	0-28081-020-0	01	1	9202-	●	●
79	CLIP; BATTERY CABLE (B) ID=16 H=30 L=30	1-09701-080-0	01	1	9202-	●	●
79	CLIP; BATTERY CABLE MBG5 M/T<X9W> (A)	1-09700-838-0	01	1	9202-9207	●	●
80	BOLT; BATTERY CABLE CLIP M8X20 W/LK WASHER	9-01900-820-0	01	1	9202-9204	●	●
80	BOLT; BATTERY CABLE CLIP M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9207	●	●
80	BOLT; BATTERY CABLE CLIP MBG5 M/T<X9W> M8X20 FLANGE	0-28080-820-0	01	1	9208-9209	●	●
80	BOLT; BATTERY CABLE CLIP MLD6 M/T<X9Y>,MLD7 M/T<X9Z> M8X25 FLANGE	0-28080-825-0	01	1	9208-9209	●	●
80	BOLT; BATTERY CABLE CLIP M8X14 FLANGE	0-28080-814-0	01	1	9210-	●	●
107	CLIP; BAND BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> L=140	5-09707-031-0	01	1	9202-	●	●
112	TERMINAL; BATTERY <+>	1-82695-003-0	01	1	9202-	●	●
114	NUT; CABLE,BATTERY TERMINAL M10	9-09110-510-0	01	1	9202-	●	●
115	WASHER; LK,CABLE,BATTERY ID=10.2	9-09150-510-0	01	1	9202-	●	●
126	CAP; TERMINAL,AC GEN	9-82951-331-0	01	1	9202-9204	●	●

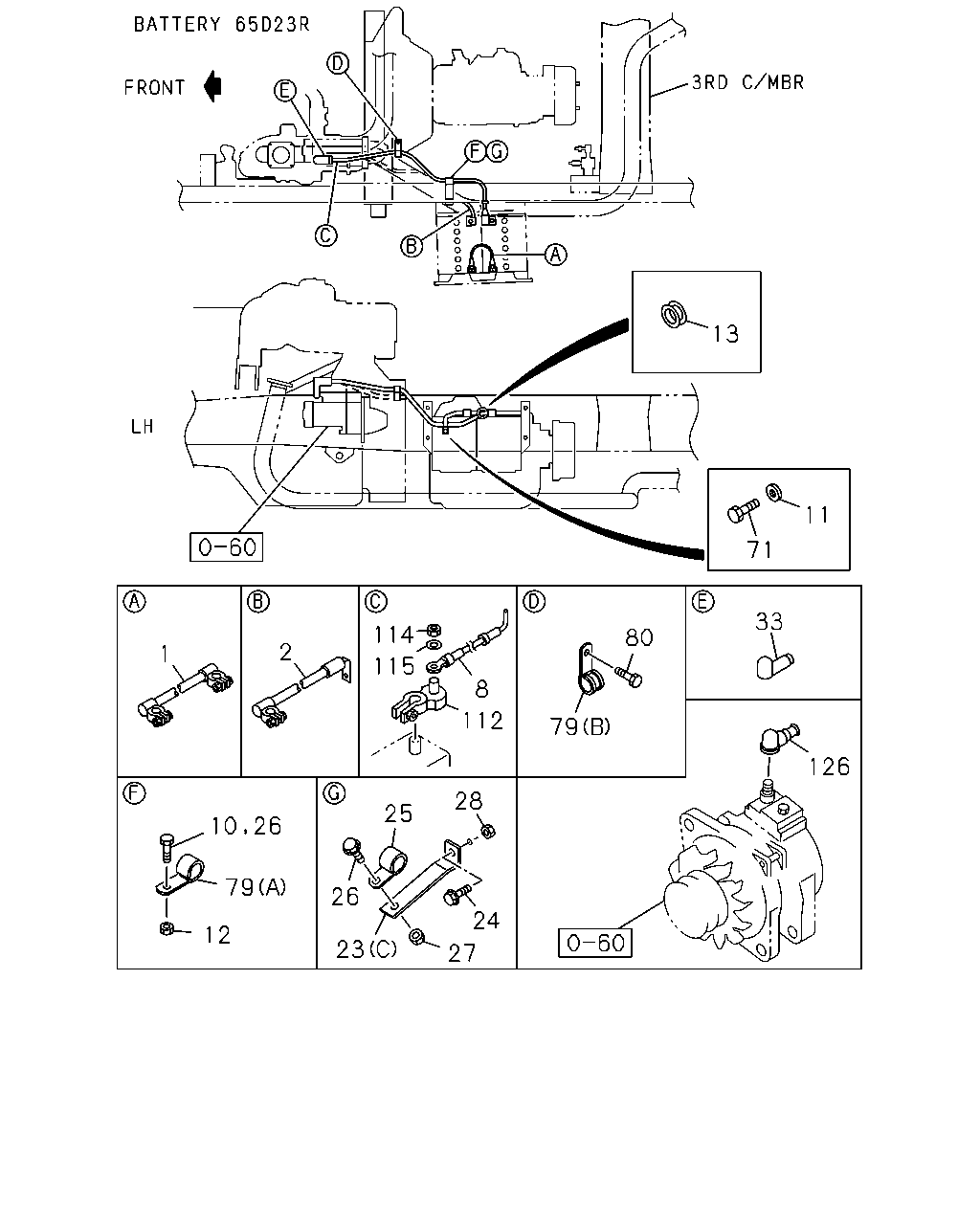

13 11 71 33 114 80 2 1 115 8 112 79 126 28 25 10 26 79 23 24 12 27 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CABLE; BATTERY BATTERY 65D23R MAINTENANCE FREE<WL4> L=180	9-82932-233-1	01	1	9202-9407	●	●
1	CABLE; BATTERY BATTERY 65D23R MAINTENANCE FREE<WL4> L=180	1-82650-265-0	01	1	9408-	●	●
1	CABLE; BATTERY BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> L=450	9-82932-417-1	01	1	9202-	●	●
2	CABLE; BATTERY BATTERY 65D23R MAINTENANCE FREE<WL4> L=185	1-82650-067-2	01	1	9202-	●	●
2	CABLE; BATTERY BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> L=380	9-82932-713-2	01	1	9202-	●	●
8	CABLE; BATTERY,STARTER BATTERY 65D23R MAINTENANCE FREE<WL4> L=950	1-82650-207-0	01	1	9202-9202	●	●
8	CABLE; BATTERY,STARTER BATTERY 65D23R MAINTENANCE FREE<WL4> L=850	1-82650-219-1	01	1	9203-	●	●
8	CABLE; BATTERY,STARTER BATTERY 65D23R MAINTENANCE FREE<WL4> L=1450	1-82650-217-1	01	1	9202-	●	●
10	BOLT; BATTERY CABLE CLIP BATTERY 65D23R MAINTENANCE FREE<WL4> M8X25 W/LK WASHER	9-01900-825-0	03	1	9202-9204	●	●
10	BOLT; BATTERY CABLE CLIP BATTERY 65D23R MAINTENANCE FREE<WL4> M8X25 W/LK WASHER	0-50040-825-0	03	1	9205-9207	●	●
10	BOLT; BATTERY CABLE CLIP BATTERY 65D23R MAINTENANCE FREE<WL4> M10X35	9-01901-035-0	01	1	9202-9204	●	●
10	BOLT; BATTERY CABLE CLIP M10X35 W/LK WASHER	0-50041-035-0	01	1	9205-	●	●
10	BOLT; BATTERY CABLE CLIP BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M10X20 W/LK WASHER	0-50041-020-0	01	1	9205-	●	●
11	WASHER; BATTERY CABLE EARTH ID=10.5 OD=22	9-09160-610-0	01	1	9202-	●	●
12	NUT; BATTERY CABLE CLIP MLD6 M/T<X9Y>,MLD7 M/T<X9Z> M8	9-09110-408-0	01	1	9202-	●	●
13	GROMMET; BATTERY CABLE ID=28 OD=35 T=25	1-09332-011-1	01	1	9202-	●	●
23	BRACKET; CABLE CLIP TO FRAME BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> (A)	1-47465-518-0	01	1	9202-9202	●	●
23	BRACKET; CABLE CLIP TO FRAME (C)	1-82699-584-0	01	1	9203-	●	●
23	BRACKET; CABLE CLIP TO FRAME BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> (B)	1-47475-304-0	01	1	9202-	●	●
24	BOLT; BRKT TO FRAME BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8X22 FLANGE	0-28080-822-0	01	1	9202-9202	●	●
24	BOLT; BRKT TO FRAME BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8X22 FLANGE	0-28080-822-0	02	1	9203-9207	●	●
24	BOLT; BRKT TO FRAME BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8X25 FLANGE	0-28080-825-0	01	1	9208-	●	●
24	BOLT; BRKT TO FRAME M8X25 FLANGE	0-28080-825-0	01	1	9208-	●	●
25	CLIP; BATTERY CABLE TO BRKT BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> ID=16 L=28	1-09700-872-0	01	1	9202-9202	●	●
25	CLIP; BATTERY CABLE TO BRKT BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> ID=16 L=28	1-09700-872-0	02	1	9203-9207	●	●
25	CLIP; BATTERY CABLE TO BRKT BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> ID=16 L=28	1-09700-872-0	01	1	9208-	●	●
25	CLIP; BATTERY CABLE TO BRKT ID=16 L=28	1-09700-872-0	01	1	9208-	●	●
26	BOLT; BATTERY CABLE CLIP TO BRKT BATTERY 65D23R MAINTENANCE FREE<WL4> M8X22 FLANGE	0-28010-822-0	01	1	9202-9204	●	●
26	BOLT; BATTERY CABLE CLIP TO BRKT BATTERY 65D23R MAINTENANCE FREE<WL4> M8X22 FLANGE	0-28080-822-0	03	1	9205-9205	●	●
26	BOLT; BATTERY CABLE CLIP TO BRKT BATTERY 65D23R MAINTENANCE FREE<WL4> M8X22 FLANGE	0-28080-822-0	02	1	9206-9207	●	●
26	BOLT; BATTERY CABLE CLIP TO BRKT BATTERY 65D23R MAINTENANCE FREE<WL4> M8X22 FLANGE	0-28080-822-0	01	1	9208-	●	●
26	BOLT; BATTERY CABLE CLIP TO BRKT BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8X22 FLANGE	0-28080-822-0	01	1	9206-9207	●	●
26	BOLT; BATTERY CABLE CLIP TO BRKT M8X22 FLANGE	0-28080-822-0	01	1	9206-9207	●	●
26	BOLT; BATTERY CABLE CLIP TO BRKT BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8X25 FLANGE	0-28080-825-0	01	1	9208-	●	●
26	BOLT; BATTERY CABLE CLIP TO BRKT M8X25 FLANGE	0-28080-825-0	01	1	9208-	●	●
27	NUT; BATTERY CABLE CLIP TO BRKT BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8	9-09110-408-0	01	1	9202-9202	●	●
27	NUT; BATTERY CABLE CLIP TO BRKT BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8	9-09110-408-0	02	1	9203-9207	●	●
27	NUT; BATTERY CABLE CLIP TO BRKT BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8	9-09110-408-0	01	1	9208-	●	●
27	NUT; BATTERY CABLE CLIP TO BRKT M8	9-09110-408-0	01	1	9208-	●	●
28	NUT; BRKT TO FRAME BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8	9-09110-408-0	01	1	9202-9205	●	●
28	NUT; BRKT TO FRAME BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8	9-09110-408-0	01	1	9206-	●	●
28	NUT; BRKT TO FRAME M8	9-09110-408-0	01	1	9206-	●	●
33	CAP; INSULATOR	1-82699-431-0	01	1	9202-	●	●
71	BOLT; BATTERY CABLE M10X20 FLANGE	0-28081-020-0	01	1	9202-	●	●
79	CLIP; BATTERY CABLE (B) ID=16 H=30 L=30	1-09701-080-0	01	1	9202-	●	●
79	CLIP; BATTERY CABLE MBG5 M/T<X9W> (A)	1-09700-838-0	01	1	9202-9207	●	●
80	BOLT; BATTERY CABLE CLIP M8X20 W/LK WASHER	9-01900-820-0	01	1	9202-9204	●	●
80	BOLT; BATTERY CABLE CLIP M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9207	●	●
80	BOLT; BATTERY CABLE CLIP MBG5 M/T<X9W> M8X20 FLANGE	0-28080-820-0	01	1	9208-9209	●	●
80	BOLT; BATTERY CABLE CLIP MLD6 M/T<X9Y>,MLD7 M/T<X9Z> M8X25 FLANGE	0-28080-825-0	01	1	9208-9209	●	●
80	BOLT; BATTERY CABLE CLIP M8X14 FLANGE	0-28080-814-0	01	1	9210-	●	●
112	TERMINAL; BATTERY <+>	1-82695-003-0	01	1	9202-	●	●
114	NUT; CABLE,BATTERY TERMINAL M10	9-09110-510-0	01	1	9202-	●	●
115	WASHER; LK,CABLE,BATTERY ID=10.2	9-09150-510-0	01	1	9202-	●	●
126	CAP; TERMINAL,AC GEN	9-82951-331-0	01	1	9202-9204	●	●
