Isuzu WW
▶
TRUCKS
▶
FV
▶
10828 - FV/GV(AUSTRAL)L.SUS
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-40 - HEATER SYSTEM
▶
8-40 — HEATER SYSTEM
(#8776) — 35 parça
Tümü
A - FVM5MF
B - FVR5MF
C - FVZ5MF
D - GVR5MC
◀

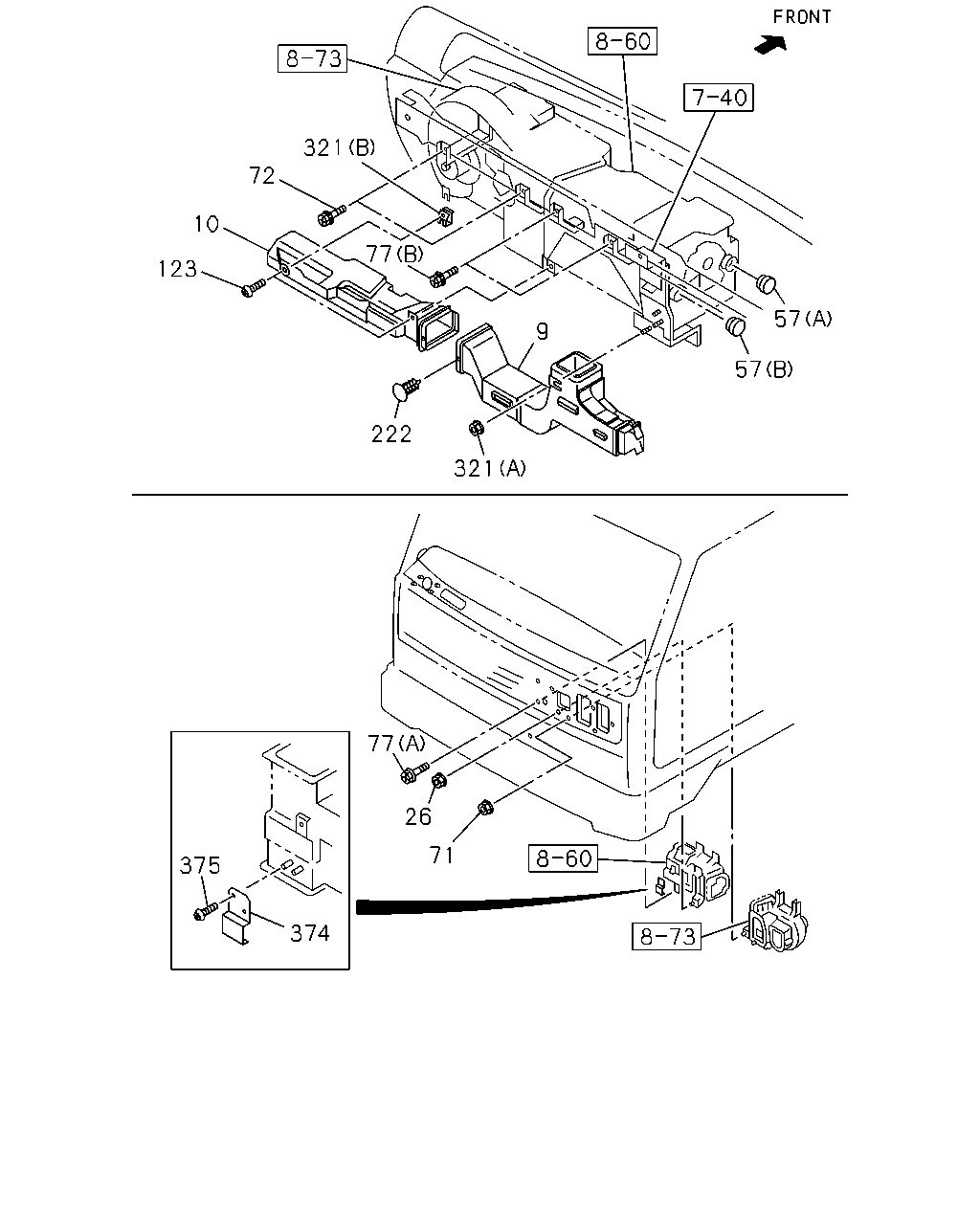

[840A] HTR DUCT AND FIXING HTR UNIT (18 parça)

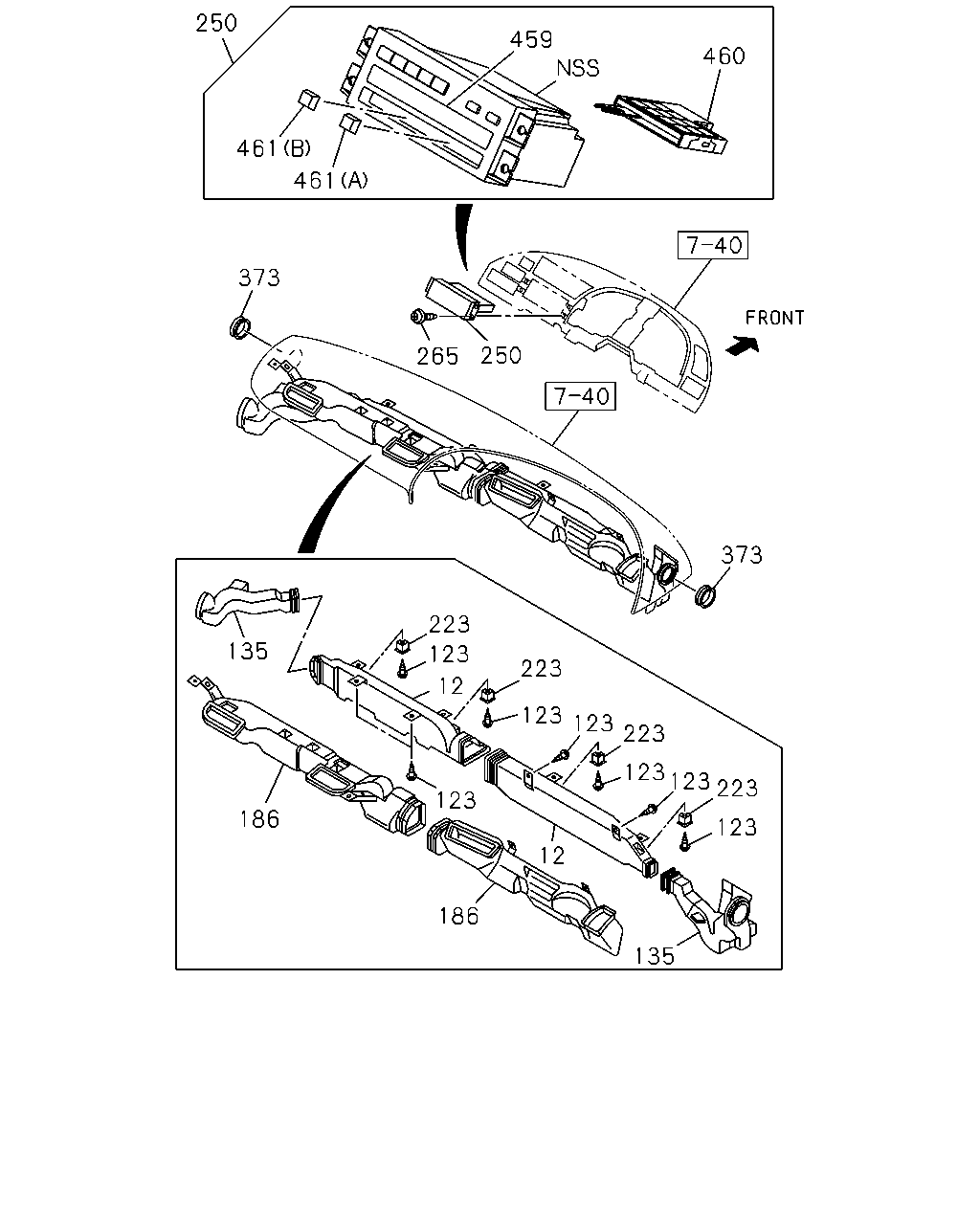

[840A] DEFR NOZZLE,VENT DUCT AND A/C CONT ASM (17 parça)
▶
321
72
10
77
123
57
9
57
222
321
77
26
71
375
374
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
9
DUCT; HTR AIR,FOOT CENTER
1-76378-409-0
01
1
0005-0006
●
●
●
●
9
DUCT; HTR AIR,FOOT CENTER
1-76378-426-2
01
1
0007-
●
●
●
●
10
DUCT; HTR AIR,ASSIST FOOT
1-76378-413-0
01
1
0005-
●
●
●
●
26
NUT; HTR
M6 FLANGE W/RUBBER
1-09984-180-0
02
1
0005-
●
●
●
●
57
COVER; INL DUCT
(A)
1-83579-617-0
02
1
0005-
●
●
●
●
57
COVER; INL DUCT
(B)
1-83579-618-0
01
1
0005-
●
●
●
●
71
NUT; BLOWER UNIT TO DASH
M6 FLANGE W/RUBBER
1-09984-180-0
04
1
0005-
●
●
●
●
72
BOLT; BLOWER UNIT
M6X19.5 W/LK&PL WASHER
8-94279-201-0
02
1
0005-
●
●
●
●
77
BOLT; HTR UNIT
(A) M6X16
1-09980-598-1
02
1
0005-
●
●
●
●
77
BOLT; HTR UNIT
(B) M6X19.5 W/LK&PL WASHER
8-94279-201-0
02
1
0005-
●
●
●
●
123
SCREW; DUCT
M5X14
8-94279-325-0
10
1
0005-
●
●
●
●
222
FASTENER; DUCT
ID=6 OD=16 L=18
8-94178-705-0
01
1
0005-
●
●
●
●
321
NUT; DUCT FIX
(A) M6 FLANGE
0-91150-106-0
01
1
0005-0602
●
●
●
●
321
NUT; DUCT FIX
(A) M6 FLANGE
0-91180-106-0
01
1
0603-
●
●
●
●
321
NUT; DUCT FIX
(B) M5
1-09984-150-0
01
1
0005-0409
●
●
●
●
321
NUT; DUCT FIX
(B) M5
1-09984-196-0
01
1
0410-
●
●
●
●
374
HOLDER; DUCT
1-76398-012-1
01
1
0005-
●
●
●
●
375
SCREW; HOLDER
M5X14
8-94279-325-0
02
1
0005-
●
●
●
●
250
459
460
461
461
373
250
265
373
223
135
123
223
12
123
123
223
123
123
223
123
186
123
12
186
135
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
12
NOZZLE; DEFROSTER
1-76378-321-6
01
1
0005-
●
●
●
●
12
NOZZLE; DEFROSTER
1-76377-172-7
01
1
0005-
●
●
●
●
123
SCREW; DUCT
M5X14
8-94279-325-0
10
1
0005-
●
●
●
●
135
HOSE; DEFROSTER
1-76378-253-4
01
1
0005-
●
●
●
●
135
HOSE; DEFROSTER
1-76378-252-7
01
1
0005-
●
●
●
●
186
DUCT; VENTILATOR
1-76378-418-0
01
1
0005-
●
●
●
●
186
DUCT; VENTILATOR
1-76377-173-6
01
1
0005-0710
●
●
●
●
186
DUCT; VENTILATOR
1-76377-246-0
01
1
0711-
●
●
●
●
223
GROMMET; SCREW
D=7.8X7.8 L 13 M6 NATURAL
8-94279-084-2
04
1
0005-
●
●
●
●
250
CONTROL ASM; A/C
1-83543-050-0
01
1
0005-
●
●
●
●
265
SCREW; A/C CONT UNIT
M6X20 TAPPING W/PL WASHER
0-74110-620-0
01
1
0005-0604
●
●
●
●
265
SCREW; A/C CONT UNIT
M6X20 TAPPING W/PL WASHER
0-74160-620-0
01
1
0605-
●
●
●
●
373
RUBBER; JOINT
1-76378-291-0
02
1
0005-
●
●
●
●
459
PANEL; CONTROL ASM,A/C
1-83549-013-0
01
1
0005-
●
●
●
●
460
SWITCH; CONTROL ASM,A/C
1-82489-006-0
01
1
0005-
●
●
●
●
461
KNOB; CONTROL ASM,A/C
(B)
1-83549-015-0
01
1
0005-
●
●
●
●
461
KNOB; CONTROL ASM,A/C
(A)
1-83549-016-0
01
1
0005-
●
●
●
●
