8-26 — ELECTRICAL CONTROL AND OTHER PARTS
(#8774) — 127 parça
Tümü
A - FVZ5MF
B - FVM5MF
C - FVR5MF
D - GVR5MC
◀

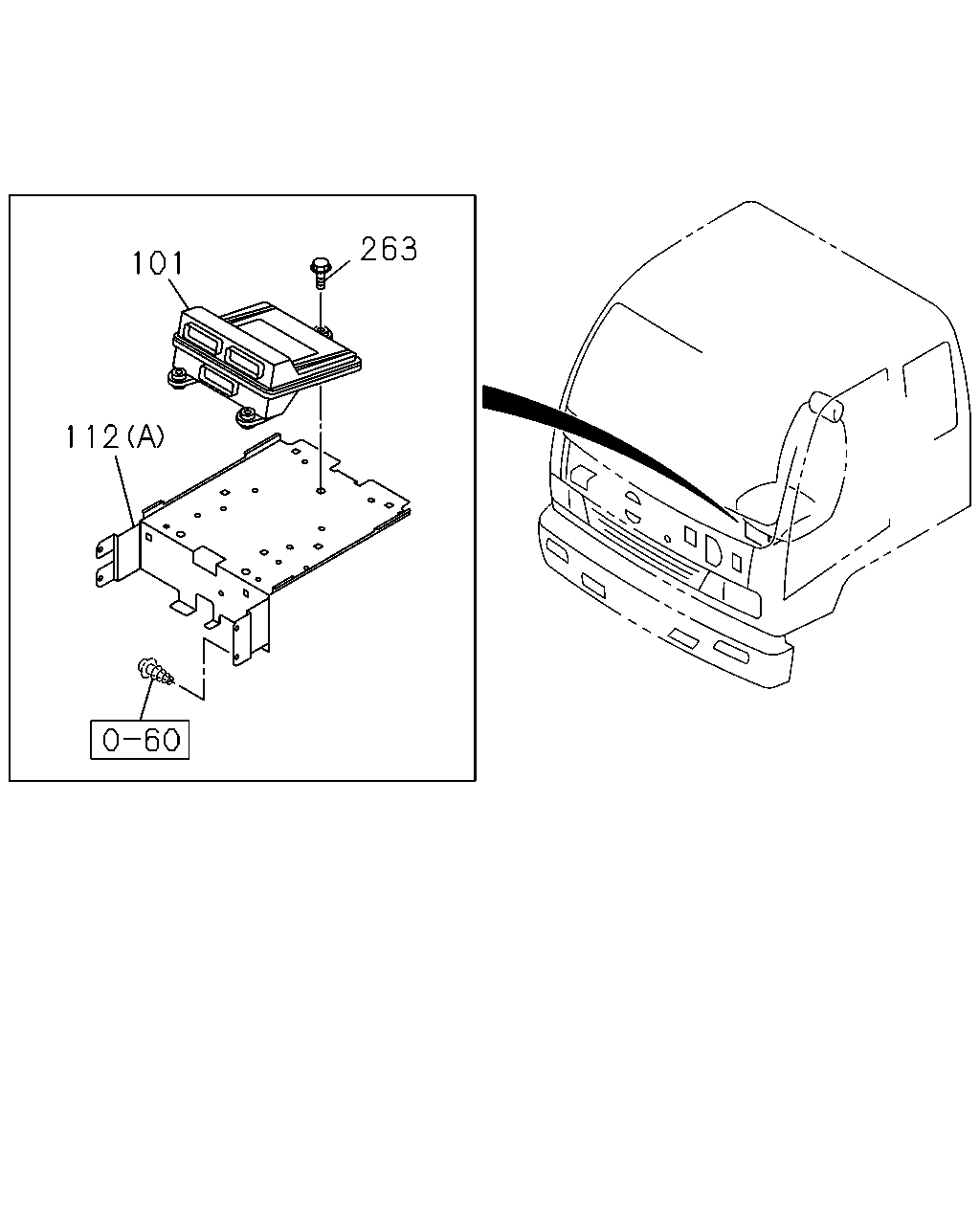

[826A] -'02/10 SEAT STAND SIDE;A/T CONT UNIT (9 parça)

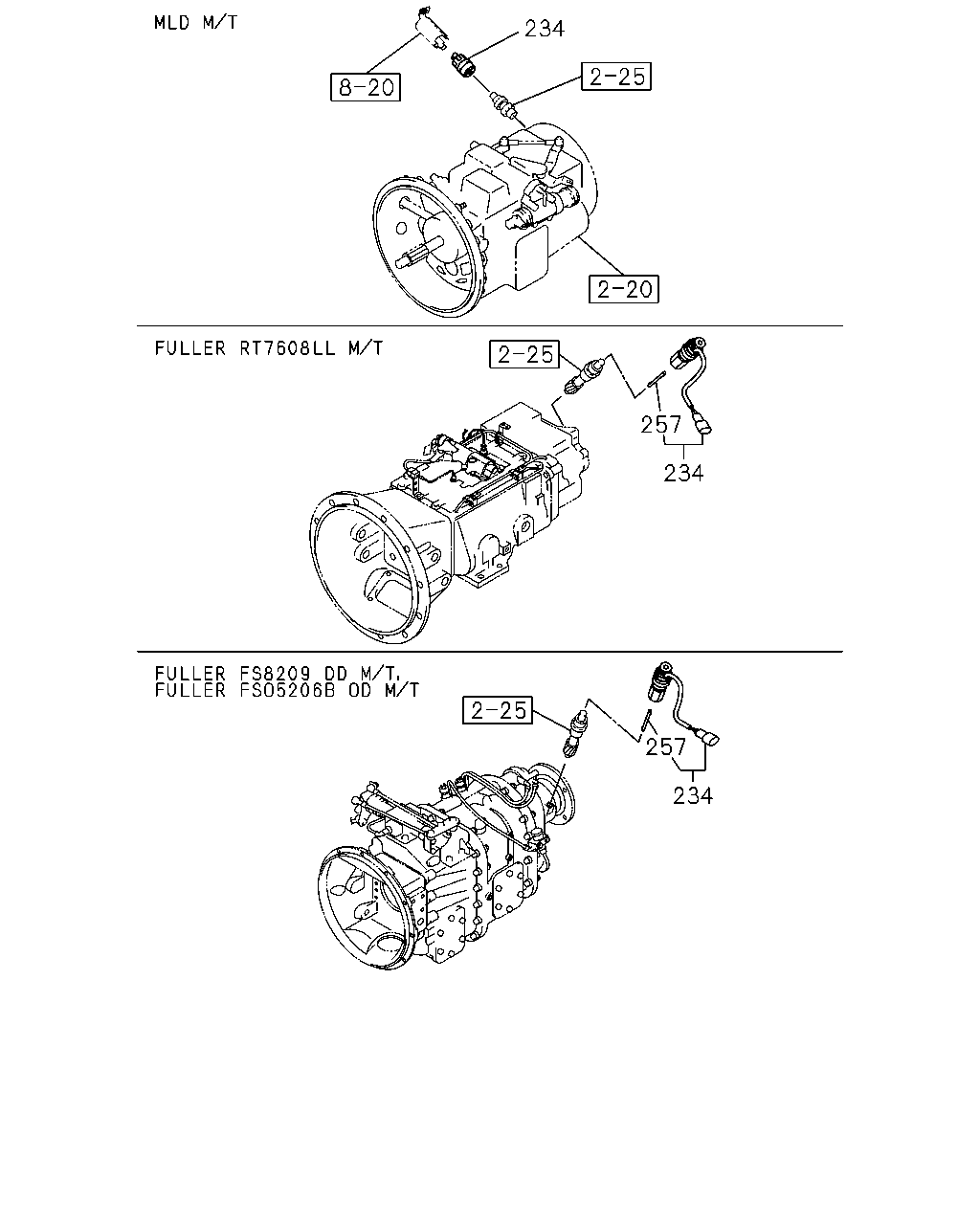

[826A] SENSOR;VEHICLE SPEED (17 parça)

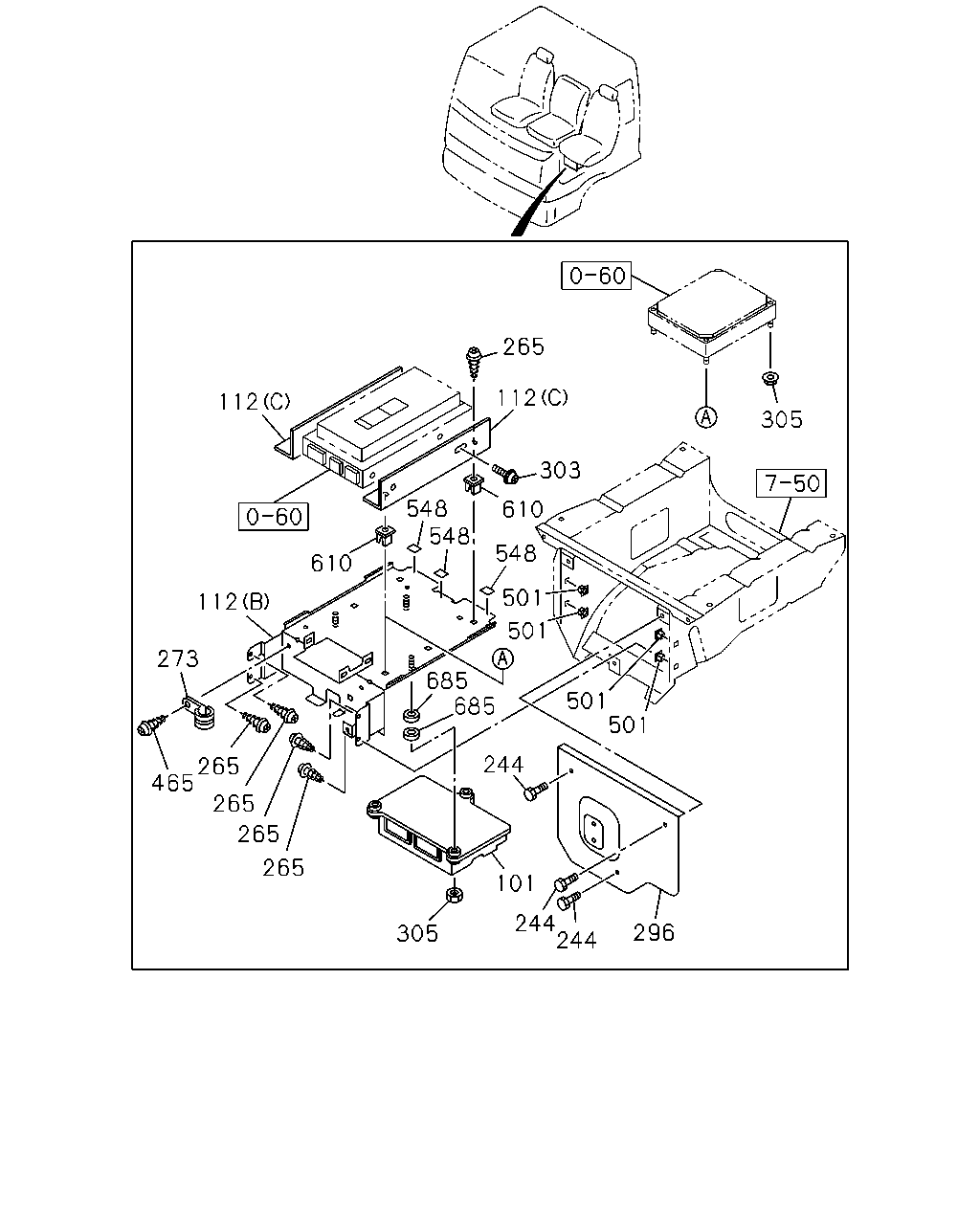

[826A] '02/11- SEAT UNDER BRACKET (35 parça)

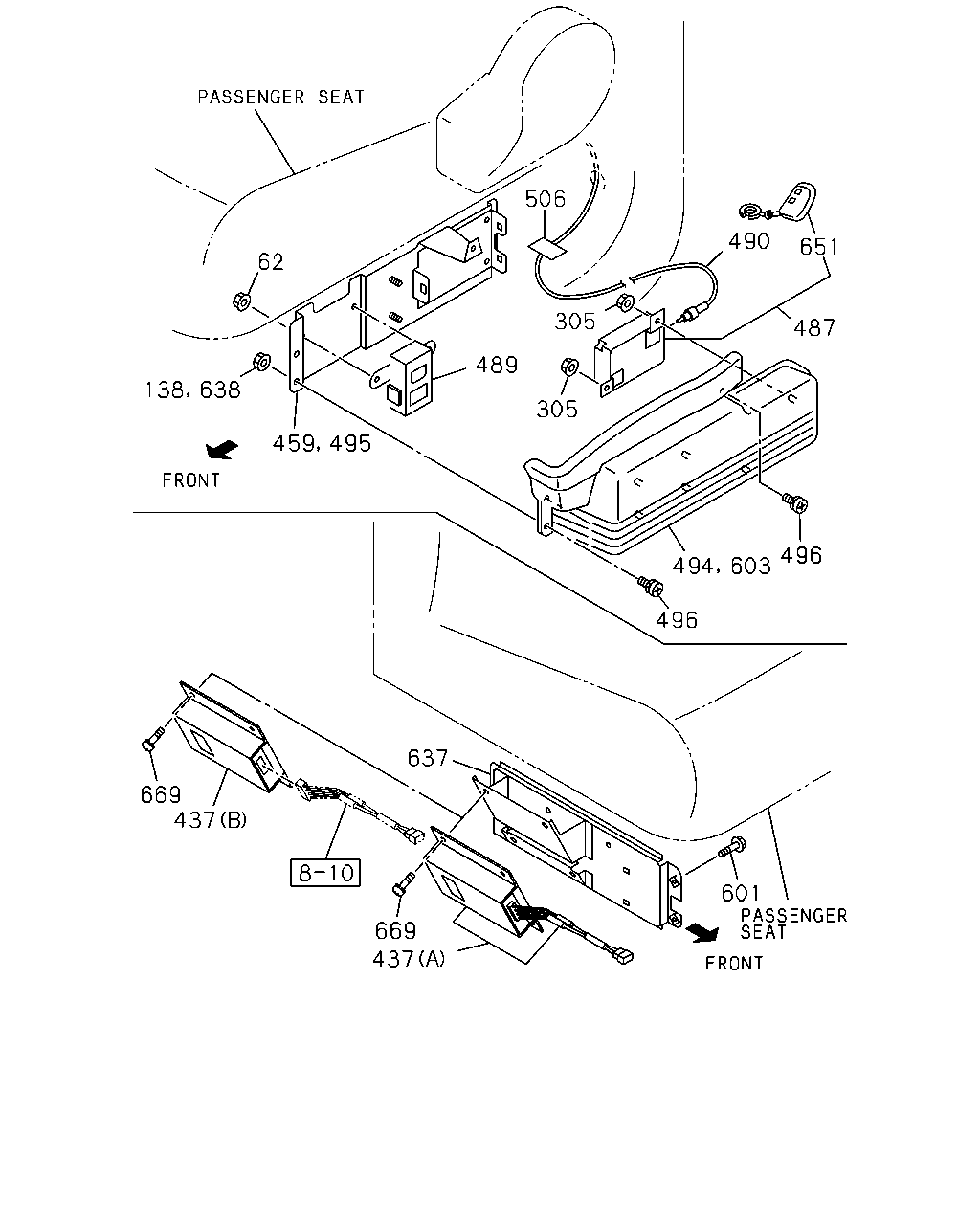

[826A] SEAT STAND SIDE;CONVERTER,CONTROL UNIT (37 parça)

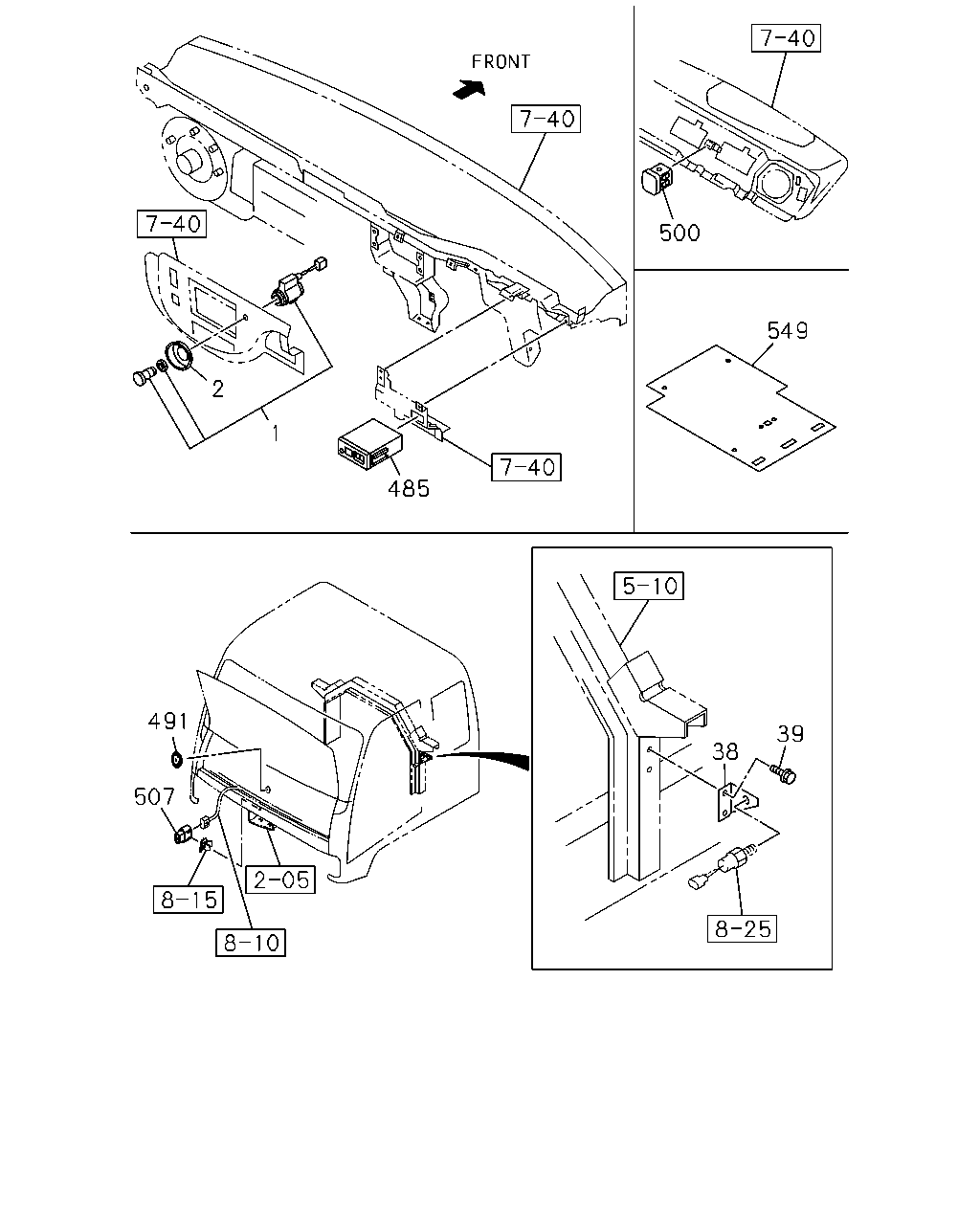

[826A] CIGAR,SPEED CONT UNIT,AUTOLIGHT SENSOR (29 parça)
▶
263
101
112
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
101
CONTROL UNIT; ELEC,A/T
ALLISON MD3560P A/T(Y3B)
1-80110-754-0
01
1
0112-0208
●
101
CONTROL UNIT; ELEC,A/T
ALLISON MD3560P A/T(Y3B)
1-80111-015-0
01
1
0209-0210
●
101
CONTROL UNIT; ELEC,A/T
ALLISON MD3560P A/T(Y3B)
1-80110-878-0
01
1
0211-0405
●
101
CONTROL UNIT; ELEC,A/T
ALLISON MD3560P A/T(Y3B)
1-80111-119-0
01
1
0406-
●
112
BRACKET; CONT UNIT
(B)
1-75558-614-2
01
1
0211-
●
●
●
●
112
BRACKET; CONT UNIT
A/T<X9D> (A)
1-75557-465-4
01
1
0112-0210
●
112
BRACKET; CONT UNIT
(C)
1-75558-566-0
02
1
0211-
●
●
●
112
BRACKET; CONT UNIT
6SD1 TCN ENG(31L) (C)
1-75558-566-0
02
1
0211-
●
263
BOLT; CONT UNIT
A/T<X9D> M6X40 LK&PL WASHER
8-94279-215-0
03
1
0112-0210
●
234
257
234
257
234
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
234
SENSOR; VEHICLE SPD
FULLER FSO5206B OD M/T(Y4V) 25 PULSE ALUMINUM
8-97328-058-1
01
1
0303-
●
234
SENSOR; VEHICLE SPD
FULLER FS8209 DD M/T(Y2S) 25 PULSE
1-83127-414-1
01
1
0005-0210
●
●
234
SENSOR; VEHICLE SPD
6SD1 TCN ENG(31L) 25 PULSE
1-83127-414-1
01
1
0005-0210
●
234
SENSOR; VEHICLE SPD
FULLER RT7608LL M/T(X8P) 25 PULSE
1-83127-414-1
01
1
0005-0210
●
234
SENSOR; VEHICLE SPD
25 PULSE
1-83127-414-1
01
1
0211-0302
●
●
●
234
SENSOR; VEHICLE SPD
FULLER M/T<X9B> 25 PULSE
1-83127-414-1
01
1
0211-0302
●
234
SENSOR; VEHICLE SPD
FULLER FS8209HD DD M/T(Y3A) 25 PULSE
1-83127-414-1
01
1
0303-
●
●
●
234
SENSOR; VEHICLE SPD
FULLER RT7608LL M/T(X8P) 25 PULSE
1-83127-414-1
01
1
0303-
●
234
SENSOR; VEHICLE SPD
6HE1 TC ENG(57L),6HH1 STD ENG(65L) MLD7Q M/T(X5K)
1-80240-001-1
01
1
0005-0202
●
234
SENSOR; VEHICLE SPD
6HE1 TC ENG(57L),6HH1 STD ENG(65L) MLD7Q M/T(X5K) 25 PULSE ALUMINUM
8-97328-058-0
01
1
0203-0210
●
257
KEY; SPEED SENSOR
FULLER FS8209 DD M/T(Y2S)
1-83129-073-0
01
1
0005-0210
●
●
257
KEY; SPEED SENSOR
6SD1 TCN ENG(31L)
1-83129-073-0
01
1
0005-0210
●
257
KEY; SPEED SENSOR
FULLER RT7608LL M/T(X8P)
1-83129-073-0
01
1
0005-0210
●
257
KEY; SPEED SENSOR
1-83129-073-0
01
1
0211-0302
●
●
●
257
KEY; SPEED SENSOR
FULLER M/T<X9B>
1-83129-073-0
01
1
0211-0302
●
257
KEY; SPEED SENSOR
FULLER FS8209HD DD M/T(Y3A)
1-83129-073-0
01
1
0303-
●
●
●
257
KEY; SPEED SENSOR
FULLER RT7608LL M/T(X8P)
1-83129-073-0
01
1
0303-
●
265
112
112
305
303
548
548
610
548
610
501
501
112
273
685
685
501
501
244
265
465
265
265
265
101
244
244
296
305
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
101
CONTROL UNIT; ELEC,A/T
ALLISON MD3560P A/T(Y3B)
1-80110-754-0
01
1
0112-0208
●
101
CONTROL UNIT; ELEC,A/T
ALLISON MD3560P A/T(Y3B)
1-80111-015-0
01
1
0209-0210
●
101
CONTROL UNIT; ELEC,A/T
ALLISON MD3560P A/T(Y3B)
1-80110-878-0
01
1
0211-0405
●
101
CONTROL UNIT; ELEC,A/T
ALLISON MD3560P A/T(Y3B)
1-80111-119-0
01
1
0406-
●
112
BRACKET; CONT UNIT
(B)
1-75558-614-2
01
1
0211-
●
●
●
●
112
BRACKET; CONT UNIT
A/T<X9D> (A)
1-75557-465-4
01
1
0112-0210
●
112
BRACKET; CONT UNIT
(C)
1-75558-566-0
02
1
0211-
●
●
●
112
BRACKET; CONT UNIT
6SD1 TCN ENG(31L) (C)
1-75558-566-0
02
1
0211-
●
244
BOLT; COVER
M6X19.5 W/LK&PL WASHER
8-94279-201-0
03
1
0211-0703
●
●
●
●
244
BOLT; COVER
M6X16
0-52000-616-0
03
1
0704-
●
●
●
●
265
SCREW; BRKT,CONT UNIT
M6X12 TAPPING W/PL WASHER
0-74100-612-0
04
1
0211-
●
●
●
●
265
SCREW; BRKT,CONT UNIT
6SD1 TCN ENG(31L) M6X12 TAPPING W/PL WASHER
0-74100-612-0
04
1
0211-
●
●
●
●
273
CLIP; HARNESS
ID=35 L=35
1-09700-726-0
01
1
0211-
●
●
●
●
296
COVER; CONT UNIT
1-75558-556-1
01
1
0211-
●
●
●
●
303
SCREW; CONT UNIT
M5X10 W/LK+PL WASHER
9-03920-510-0
04
1
0211-0604
●
●
●
303
SCREW; CONT UNIT
6SD1 TCN ENG(31L) M5X10 W/LK+PL WASHER
9-03920-510-0
04
1
0211-0604
●
303
SCREW; CONT UNIT
M5X10 W/LK+PL WASHER
0-36230-510-0
04
1
0605-
●
●
●
303
SCREW; CONT UNIT
6SD1 TCN ENG(31L) M5X10 W/LK+PL WASHER
0-36230-510-0
04
1
0605-
●
305
NUT; CONT UNIT
CUSTOM CAB(SR5) M6 FLANGE
0-91150-106-0
02
1
0005-0210
●
●
305
NUT; CONT UNIT
M6 FLANGE
0-91150-106-0
02
1
0211-0602
●
●
●
●
305
NUT; CONT UNIT
M6 FLANGE
0-91180-106-0
02
1
0603-0809
●
●
●
●
305
NUT; CONT UNIT
6HK1 TCS ENG(80L) M6 FLANGE
0-91150-106-0
04
1
0303-0602
●
305
NUT; CONT UNIT
6HK1 TCS ENG(80L) M6 FLANGE
0-91180-106-0
04
1
0603-
●
305
NUT; CONT UNIT
A/T<X9D> M6 FLANGE
0-91150-106-0
03
1
0211-0602
●
305
NUT; CONT UNIT
A/T<X9D> M6 FLANGE
0-91180-106-0
03
1
0603-
●
465
BOLT; CLIP
M6X12 TAPPING W/PL WASHER
0-74100-612-0
01
1
0211-
●
●
●
●
501
GROMMET; SCREW
D=9.7X9.7 L=8
8-94222-314-0
05
1
0211-
●
●
●
●
548
SEAL; NOISE
30X30
8-97866-626-0
03
1
0211-0309
●
●
●
●
548
SEAL; NOISE
30X30
1-74998-128-1
03
1
0310-0908
●
●
●
●
548
SEAL; NOISE
30X30
8-98142-344-0
03
1
0909-1305
●
●
●
●
548
SEAL; NOISE
30X30
8-98142-344-0
01
1
1306-
●
●
●
●
610
GROMMET; SCREW,BRKT ELEC UNIT
D=9.7X9.7 L=8
8-94222-314-0
04
1
0211-
●
●
●
610
GROMMET; SCREW,BRKT ELEC UNIT
6SD1 TCN ENG(31L) D=9.7X9.7 L=8
8-94222-314-0
04
1
0211-
●
685
SPACER; BRKT
A/T<X9D> ID=6.4
1-09985-038-0
06
1
0211-0703
●
685
SPACER; BRKT
A/T<X9D>
8-94279-637-1
06
1
0704-
●
506
490
651
62
305
487
489
138
638
305
496
603
494
496
637
669
437
601
669
437
459
495
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
62
NUT; BRKT
M6 FLANGE
0-91150-106-0
02
1
0005-0210
●
●
●
●
138
NUT; BRKT
M6 FLANGE
0-91150-106-0
02
1
0211-0602
●
●
●
●
138
NUT; BRKT
M6 FLANGE
0-91180-106-0
02
1
0603-
●
●
●
●
305
NUT; CONT UNIT
CUSTOM CAB(SR5) M6 FLANGE
0-91150-106-0
02
1
0005-0210
●
●
305
NUT; CONT UNIT
M6 FLANGE
0-91150-106-0
02
1
0211-0602
●
●
●
●
305
NUT; CONT UNIT
M6 FLANGE
0-91180-106-0
02
1
0603-0809
●
●
●
●
305
NUT; CONT UNIT
6HK1 TCS ENG(80L) M6 FLANGE
0-91150-106-0
04
1
0303-0602
●
305
NUT; CONT UNIT
6HK1 TCS ENG(80L) M6 FLANGE
0-91180-106-0
04
1
0603-
●
305
NUT; CONT UNIT
A/T<X9D> M6 FLANGE
0-91150-106-0
03
1
0211-0602
●
305
NUT; CONT UNIT
A/T<X9D> M6 FLANGE
0-91180-106-0
03
1
0603-
●
437
CONVERTER; DC
(A)
1-84122-037-1
01
1
0005-0008
●
●
●
●
437
CONVERTER; DC
(B) MITSUBISHI
1-84122-034-1
01
1
0009-0603
●
●
●
●
437
CONVERTER; DC
(B) METRO
8-98046-423-0
01
1
0604-
●
●
●
●
459
BRACKET; CONTROL BOX
1-75558-488-5
01
1
0005-0210
●
●
●
●
487
CONTROL UNIT; DOOR LOCK,AUTO REMOTE
CUSTOM CAB(SR5)
1-86855-006-1
01
1
0005-0106
●
●
487
CONTROL UNIT; DOOR LOCK,AUTO REMOTE
CUSTOM CAB(SR5)
1-86855-033-0
01
1
0107-0210
●
●
487
CONTROL UNIT; DOOR LOCK,AUTO REMOTE
1-86855-033-2
01
1
0211-0809
●
●
●
●
489
CONTROL UNIT; AUTO LIGHT
AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT>
1-82540-049-1
01
1
0005-0210
●
●
489
CONTROL UNIT; AUTO LIGHT
AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT>
1-82540-049-1
01
1
0211-
●
490
ANTENNA; AUTO REMOTE DOOR LOCK
CUSTOM CAB(SR5)
1-86855-023-1
01
1
0005-0210
●
●
490
ANTENNA; AUTO REMOTE DOOR LOCK
1-86855-023-1
01
1
0211-0809
●
●
●
●
494
COVER; ELEC BOX
1-72538-160-3
01
1
0211-0810
●
●
●
●
494
COVER; ELEC BOX
8-97589-725-0
01
1
0811-
●
●
●
●
495
BRACKET; ELEC BOX
1-75558-488-5
01
1
0211-
●
●
●
●
496
SCREW; COVER
M6X16 W/LK&PL WASHER
8-94279-402-0
03
1
0005-0703
●
●
●
●
496
SCREW; COVER
M6X12 W/LK&PL WASHER
0-36230-612-0
03
1
0704-
●
●
●
●
506
TAPE; ANTENNA
CUSTOM CAB(SR5) 100X30
1-74998-068-0
06
1
0005-0210
●
●
506
TAPE; ANTENNA
100X30
1-74998-068-0
06
1
0211-0809
●
●
●
●
601
BOLT; DC-DC CONVERTER
M6X12 W/LK&PL WASHER
8-94279-200-0
02
1
0005-0703
●
●
●
●
601
BOLT; DC-DC CONVERTER
M6X12 W/LK&PL WASHER
0-36230-612-0
02
1
0704-
●
●
●
●
603
COVER; CONT UNIT,SEAT STAND
1-72538-160-2
01
1
0005-0210
●
●
●
●
637
BRACKET; DC-DC CONVERTER
1-75557-483-1
01
1
0005-
●
●
●
●
638
NUT; DC-DC CONVERTER
M6 FLANGE
0-91150-106-0
04
1
0005-0210
●
●
●
●
651
TRANSMITTER; DOOR LOCK,AUTO REMOTE
CUSTOM CAB(SR5)
1-86855-017-0
01
1
0005-0106
●
●
651
TRANSMITTER; DOOR LOCK,AUTO REMOTE
CUSTOM CAB(SR5)
1-86860-008-0
01
1
0107-0210
●
●
651
TRANSMITTER; DOOR LOCK,AUTO REMOTE
1-86860-008-0
01
1
0211-0809
●
●
●
●
669
SCREW; DC-DC CONVERTER
M6X12 W/PL WASHER
1-09981-380-0
04
1
0005-
●
●
●
●
2
1
485
500
549
39
38
491
507
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
1
LIGHTER; CIGAR
8-97064-970-1
01
1
0005-0108
●
●
●
●
1
LIGHTER; CIGAR
8-97320-325-0
01
1
0109-
●
●
●
●
2
BEZEL; CIGAR LIGHTER
1-73998-883-2
01
1
0005-
●
●
●
●
38
BRACKET; SW,STARTER SUB
1-82698-232-0
01
1
0005-0211
●
●
●
●
38
BRACKET; SW,STARTER SUB
EXC. STARTER SWITCH DELETION<E5D>
1-82698-232-0
01
1
0212-
●
●
●
●
39
BOLT; BRKT,STARTER SUB SW
M8X20 FLANGE
0-28680-820-0
02
1
0005-0211
●
●
●
●
39
BOLT; BRKT,STARTER SUB SW
EXC. STARTER SWITCH DELETION<E5D> M8X20 FLANGE
0-28680-820-0
02
1
0212-0512
●
●
●
●
39
BOLT; BRKT,STARTER SUB SW
EXC. STARTER SWITCH DELETION<E5D> M8X20 FLANGE
0-28650-820-0
02
1
0601-
●
●
●
●
485
CONTROL UNIT; SPEED SENSOR
FULLER FS8209 DD M/T(Y2S)
1-80190-038-1
01
1
0005-0111
●
●
485
CONTROL UNIT; SPEED SENSOR
6SD1 TCN ENG(31L)
1-80190-038-1
01
1
0005-0111
●
485
CONTROL UNIT; SPEED SENSOR
6HE1 TC ENG(57L),6HH1 STD ENG(65L) MLD7Q M/T(X5K)
1-80190-038-1
01
1
0005-0111
●
485
CONTROL UNIT; SPEED SENSOR
FULLER RT7608LL M/T(X8P)
1-80190-038-1
01
1
0005-0111
●
485
CONTROL UNIT; SPEED SENSOR
1-80190-038-1
01
1
0112-0210
●
●
●
485
CONTROL UNIT; SPEED SENSOR
FULLER RT7608LL M/T(X8P)
1-80190-038-1
01
1
0112-0210
●
485
CONTROL UNIT; SPEED SENSOR
1-80190-059-1
01
1
0211-1008
●
●
●
485
CONTROL UNIT; SPEED SENSOR
FULLER M/T<X9B>
1-80190-059-1
01
1
0211-1008
●
485
CONTROL UNIT; SPEED SENSOR
8-98140-862-0
01
1
1009-1109
●
●
●
485
CONTROL UNIT; SPEED SENSOR
FULLER M/T<X9B>
8-98140-862-0
01
1
1009-1109
●
485
CONTROL UNIT; SPEED SENSOR
1-80190-059-1
01
1
1110-
●
●
●
485
CONTROL UNIT; SPEED SENSOR
FULLER M/T<X9B>
1-80190-059-1
01
1
1110-
●
485
CONTROL UNIT; SPEED SENSOR
ALLISON MD3560P A/T(Y3B)
1-80190-061-0
01
1
0112-0210
●
485
CONTROL UNIT; SPEED SENSOR
A/T<X9D>
1-80190-061-0
01
1
0211-
●
491
PLUG; HOLE,CONT UNIT
OD=54.5
1-73907-309-0
01
1
0005-0210
●
●
●
491
PLUG; HOLE,CONT UNIT
6SD1 TCN ENG(31L) OD=54.5
1-73907-309-0
01
1
0005-0210
●
491
PLUG; HOLE,CONT UNIT
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. EURO2 SPECIFICATION<THN> OD=54.5
1-73907-309-0
01
1
0005-0210
●
500
SENSOR; AUTO LIGHT
AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT>
1-82486-002-0
01
1
0005-0210
●
●
500
SENSOR; AUTO LIGHT
AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT>
1-82486-002-1
01
1
0211-
●
507
CONNECTOR
AIR HORN<WB8>
1-82690-666-0
01
1
0705-
●
●
●
●
549
SHEET
ALLISON MD3560P A/T(Y3B)
8-98236-226-0
01
1
0005-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
