◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FV ▶ 10828 - FV/GV(AUSTRAL)L.SUS ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-25 - SWITCH AND RELAY; INSTRUMENT PANEL ▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#8773) — 77 parça

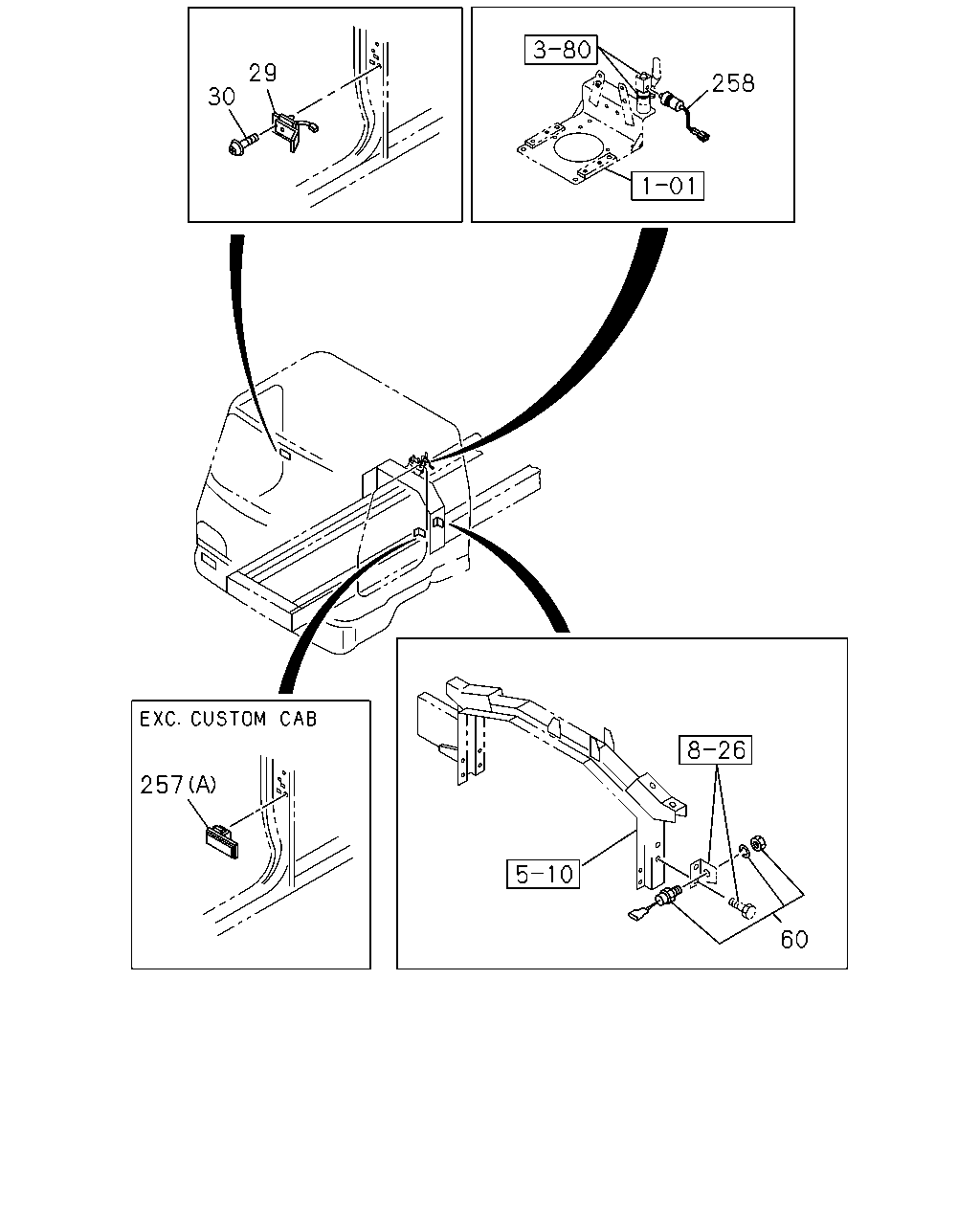

çizim 9840
29 258 30 257 60
BalonParca AdiParca NoAdetTipApplied Date A B C D
29 SWITCH; DOOR
CUSTOM CAB(SR5) 		8-97855-032-3 02 1 0005-0210 ● ●
29 SWITCH; DOOR 8-97855-032-3 02 1 0211- ● ● ● ●
29 SWITCH; DOOR
EXC. CUSTOM CAB(SR5) 		8-97855-032-3 01 1 0005-0210 ● ●
29 SWITCH; DOOR 8-97855-032-3 01 1 0005-0210 ● ●
30 SCREW; DOOR SW
CUSTOM CAB(SR5) M5X11 		1-09981-536-1 02 1 0005-0210 ● ●
30 SCREW; DOOR SW
M5X11 		1-09981-536-1 02 1 0211- ● ● ● ●
30 SCREW; DOOR SW
EXC. CUSTOM CAB(SR5) M5X11 		1-09981-536-1 01 1 0005-0210 ● ●
30 SCREW; DOOR SW
M5X11 		1-09981-536-1 01 1 0005-0210 ● ●
60 SWITCH; STARTER SUB 1-82380-107-1 01 1 0005-0211 ● ● ● ●
60 SWITCH; STARTER SUB
EXC. STARTER SWITCH DELETION<E5D> 		1-82380-107-1 01 1 0212- ● ● ● ●
257 COVER; HOLE,SW
EXC. CUSTOM CAB(SR5) (A) 		8-94229-914-1 01 1 0005-0210 ● ●
257 COVER; HOLE,SW
(A) 		8-94229-914-1 01 1 0005-0210 ● ●
257 COVER; HOLE,SW
EXC. POWER WINDOW<A30> (B) 		1-82389-012-2 01 1 0005-0210 ● ●
257 COVER; HOLE,SW
(B) 		1-82389-012-2 01 1 0005-0210 ● ●
257 COVER; HOLE,SW
EXC. POWER WINDOW<A30> (B) 		1-82389-011-2 01 1 0005-0210 ● ●
257 COVER; HOLE,SW
(B) 		1-82389-011-2 01 1 0005-0210 ● ●
258 SWITCH; FLASHER UNIT 1-82410-137-1 01 1 0005- ●

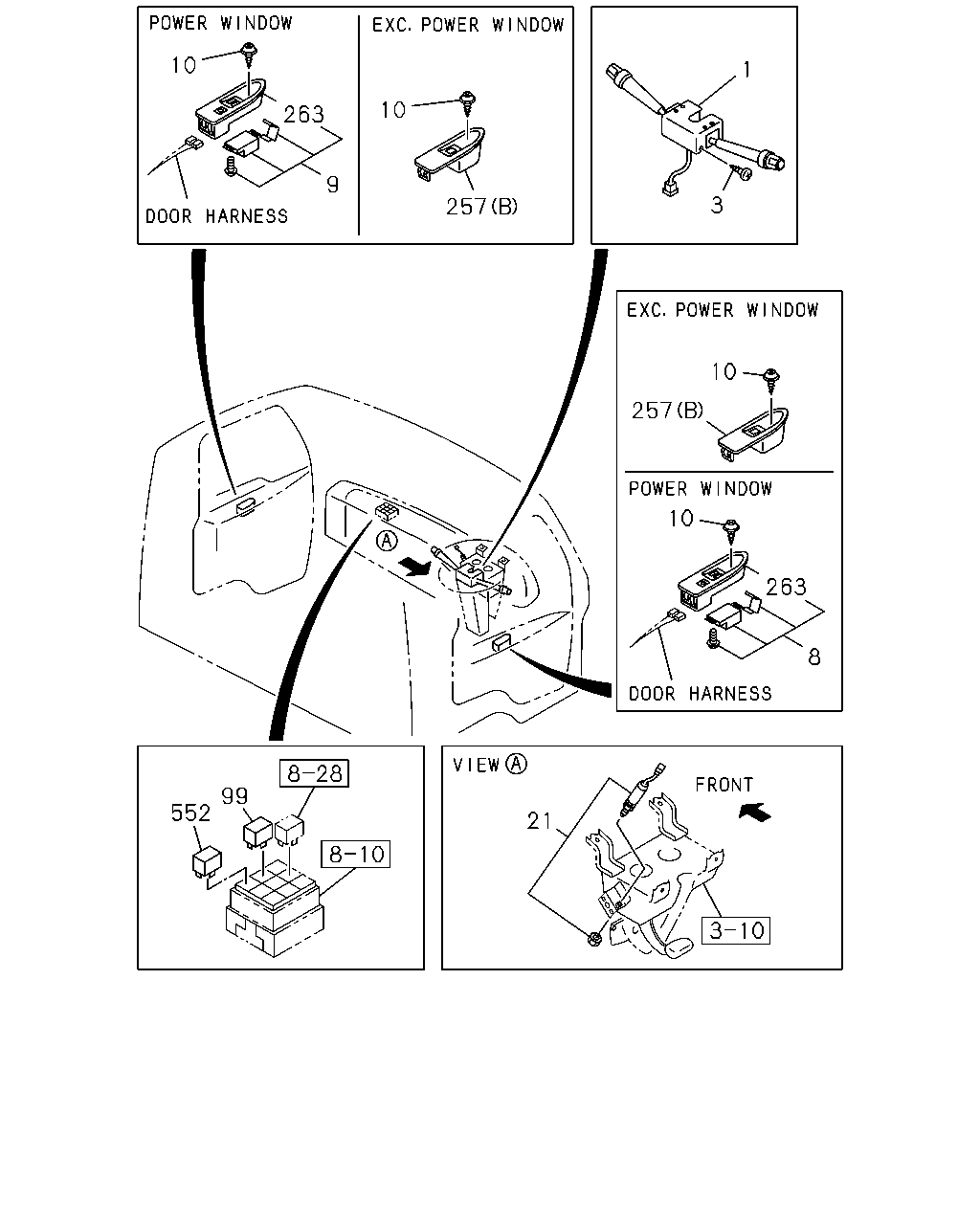

çizim 44880
10 1 10 263 9 3 257 10 257 10 263 8 99 552 21
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SWITCH; COMB
AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> FOG LAMP<T96> 		1-82360-763-0 01 1 0601- ●
1 SWITCH; COMB
FOG LAMP<T96> EXC. AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> 		1-82360-715-0 01 1 0601- ●
1 SWITCH; COMB
FOG LAMP<T96> 		1-82360-715-0 01 1 0601- ● ● ●
1 SWITCH; COMB
AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> EXC. BRAKE SYSTEM RETARDER<RE2> 		1-82360-532-0 01 1 0005-0103 ●
1 SWITCH; COMB
6HE1 TC ENG(57L),6HH1 STD ENG(65L) AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> 		1-82360-532-0 01 1 0005-0103 ●
1 SWITCH; COMB
AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> EXC. BRAKE SYSTEM RETARDER<RE2> 		1-82360-636-0 01 1 0104-0210 ●
1 SWITCH; COMB
6HE1 TC ENG(57L),6HH1 STD ENG(65L) AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> 		1-82360-636-0 01 1 0104-0210 ●
1 SWITCH; COMB
AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> 		1-82360-636-0 01 1 0211-0312 ●
1 SWITCH; COMB
AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> 		1-82360-721-0 01 1 0401-0512 ●
1 SWITCH; COMB
AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> EXC. FOG LAMP<T96> 		1-82360-721-0 01 1 0601- ●
1 SWITCH; COMB
BRAKE SYSTEM RETARDER<RE2> AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> 		1-82360-535-0 01 1 0005-0103 ●
1 SWITCH; COMB
BRAKE SYSTEM RETARDER<RE2> AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> 		1-82360-638-0 01 1 0104-0210 ●
1 SWITCH; COMB
BRAKE SYSTEM RETARDER<RE2> EXC. AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> 		1-82360-513-0 01 1 0005-0103 ●
1 SWITCH; COMB
BRAKE SYSTEM RETARDER<RE2> EXC. AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> 		1-82360-635-0 01 1 0104-0210 ●
1 SWITCH; COMB
EXC. AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> 		1-82360-618-0 01 1 0211-0312 ●
1 SWITCH; COMB 1-82360-618-0 01 1 0211-0312 ● ● ●
1 SWITCH; COMB
EXC. AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> 		1-82360-714-0 01 1 0401-0512 ●
1 SWITCH; COMB 1-82360-714-0 01 1 0401-0512 ● ● ●
1 SWITCH; COMB
EXC. AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT>, FOG LAMP<T96> 		1-82360-714-0 01 1 0601- ●
1 SWITCH; COMB
EXC. FOG LAMP<T96> 		1-82360-714-0 01 1 0601- ● ● ●
1 SWITCH; COMB
EXC. BRAKE SYSTEM RETARDER<RE2>,AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> 		1-82360-403-4 01 1 0005-0103 ●
1 SWITCH; COMB
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> 		1-82360-403-4 01 1 0005-0103 ●
1 SWITCH; COMB
6SD1 TCN ENG(31L) 		1-82360-403-4 01 1 0005-0103 ●
1 SWITCH; COMB 1-82360-403-4 01 1 0005-0103 ● ●
1 SWITCH; COMB
EXC. BRAKE SYSTEM RETARDER<RE2>,AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> 		1-82360-618-0 01 1 0104-0210 ●
1 SWITCH; COMB
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> 		1-82360-618-0 01 1 0104-0210 ●
1 SWITCH; COMB
6SD1 TCN ENG(31L) 		1-82360-618-0 01 1 0104-0210 ●
1 SWITCH; COMB 1-82360-618-0 01 1 0104-0210 ● ●
3 SCREW; COMB SW
M5X12 TAPPING W/PL WASHER 		0-74105-512-0 04 1 0005-0604 ● ● ● ●
3 SCREW; COMB SW
M5X12 TAPPING W/PL WASHER 		0-74165-512-0 04 1 0605- ● ● ● ●
8 SWITCH; POWER WINDOW
POWER WINDOW<A30> 		1-82380-155-3 01 1 0005-0210 ● ●
8 SWITCH; POWER WINDOW 1-82380-155-4 01 1 0211- ● ● ● ●
9 SWITCH; POWER WINDOW
POWER WINDOW<A30> 		1-82380-154-3 01 1 0005-0210 ● ●
9 SWITCH; POWER WINDOW 1-82380-154-3 01 1 0211- ● ● ● ●
10 SCREW; POWER WINDOW SW
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0005-0604 ● ● ● ●
10 SCREW; POWER WINDOW SW
M5X16 TAPPING W/PL WASHER 		0-74360-516-0 02 1 0605- ● ● ● ●
21 SWITCH; CLU 1-82380-114-2 01 1 0005-0210 ● ● ● ●
21 SWITCH; CLU 1-82440-116-1 01 1 0211-0608 ● ● ●
21 SWITCH; CLU
FULLER M/T<X9B> 		1-82440-116-1 01 1 0211-0608 ●
21 SWITCH; CLU 1-82440-126-1 01 1 0609- ● ● ●
21 SWITCH; CLU
FULLER M/T<X9B> 		1-82440-126-1 01 1 0609- ●
99 RELAY; FOG LAMP
FOG LAMP<T96> 24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0601- ● ● ● ●
257 COVER; HOLE,SW
EXC. CUSTOM CAB(SR5) (A) 		8-94229-914-1 01 1 0005-0210 ● ●
257 COVER; HOLE,SW
(A) 		8-94229-914-1 01 1 0005-0210 ● ●
257 COVER; HOLE,SW
EXC. POWER WINDOW<A30> (B) 		1-82389-012-2 01 1 0005-0210 ● ●
257 COVER; HOLE,SW
(B) 		1-82389-012-2 01 1 0005-0210 ● ●
257 COVER; HOLE,SW
EXC. POWER WINDOW<A30> (B) 		1-82389-011-2 01 1 0005-0210 ● ●
257 COVER; HOLE,SW
(B) 		1-82389-011-2 01 1 0005-0210 ● ●
263 COVER; SW
POWER WINDOW<A30> 		1-82385-006-3 01 1 0005-0210 ● ●
263 COVER; SW 1-82385-006-3 01 1 0211- ● ● ● ●
263 COVER; SW
POWER WINDOW<A30> 		1-82385-005-2 01 1 0005-0210 ● ●
263 COVER; SW 1-82385-005-2 01 1 0211- ● ● ● ●
552 RELAY; CIGAR LIGHTER
24V 12.5A JIDECO 		8-97062-815-1 01 1 0005-0111 ● ● ● ●
552 RELAY; CIGAR LIGHTER
24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0112- ● ● ● ●

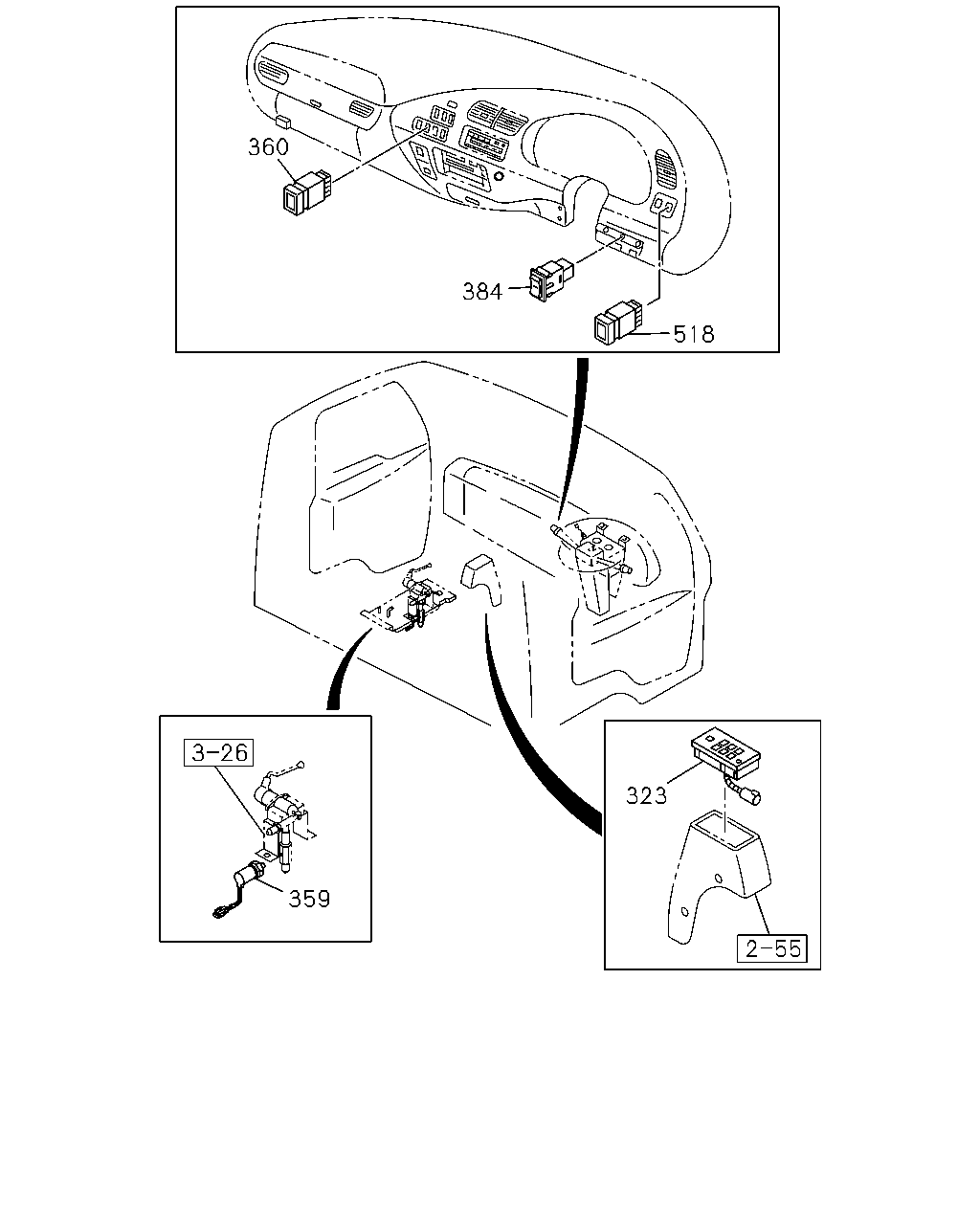

çizim 47113
360 384 518 323 359
BalonParca AdiParca NoAdetTipApplied Date A B C D
323 SWITCH ASM; SELECTOR
A/T<X9D> 		1-80290-013-0 01 1 0112- ●
359 SWITCH; TRAILER BRAKE
GREEN 		1-82410-176-1 01 1 0005- ●
360 SWITCH ASM; DIFF LK 1-82340-404-0 01 1 0005-0210 ●
360 SWITCH ASM; DIFF LK
A/T<X9D> 		1-82340-404-0 01 1 0211- ●
384 SWITCH; IDLING CONT,ELEC 1-82350-213-1 01 1 0211- ● ● ● ●
518 SWITCH; RADIO TUNE 1-82350-231-0 01 1 0005- ● ● ● ●
