◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FV ▶ 10828 - FV/GV(AUSTRAL)L.SUS ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-21 - METER ASM ▶
8-21 — METER ASM (#8772) — 99 parça

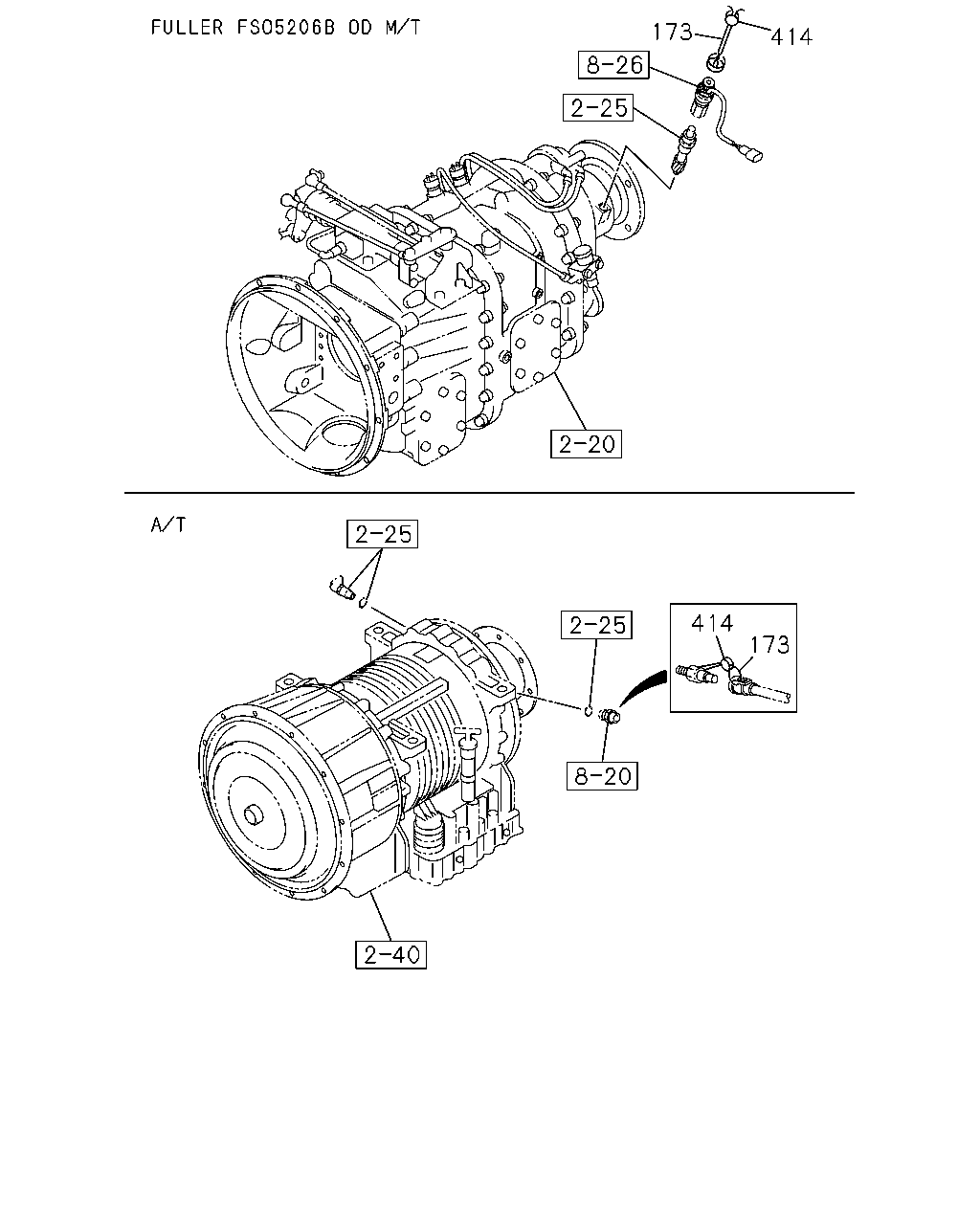

çizim 11071
173 414 414 173
BalonParca AdiParca NoAdetTipApplied Date A B C D
173 WIRE; LEAD
FULLER FSO5206B OD M/T(Y4V) 		1-80249-010-0 01 1 0305- ●
173 WIRE; LEAD
SPEED LIMITER 100KM<NMU> A/T<X9D> 		9-81325-446-0 01 1 0211-0304 ●
173 WIRE; LEAD
ALLISON MD3560P A/T(Y3B) SPEED LIMITER 100KM<NMU> 		9-81325-446-0 01 1 0305- ●
414 SEAL; LEAD
SPEED LIMITER 100KM<NMU> A/T<X9D> 		1-15739-002-0 01 1 0211-0304 ●
414 SEAL; LEAD
FULLER FSO5206B OD M/T(Y4V) 		1-15739-002-0 01 1 0305-0407 ●
414 SEAL; LEAD
ALLISON MD3560P A/T(Y3B) SPEED LIMITER 100KM<NMU> 		1-15739-002-0 01 1 0305-0407 ●
414 SEAL; LEAD
FULLER FSO5206B OD M/T(Y4V) 		1-15739-008-0 01 1 0408- ●
414 SEAL; LEAD
ALLISON MD3560P A/T(Y3B) SPEED LIMITER 100KM<NMU> 		1-15739-008-0 01 1 0408- ●

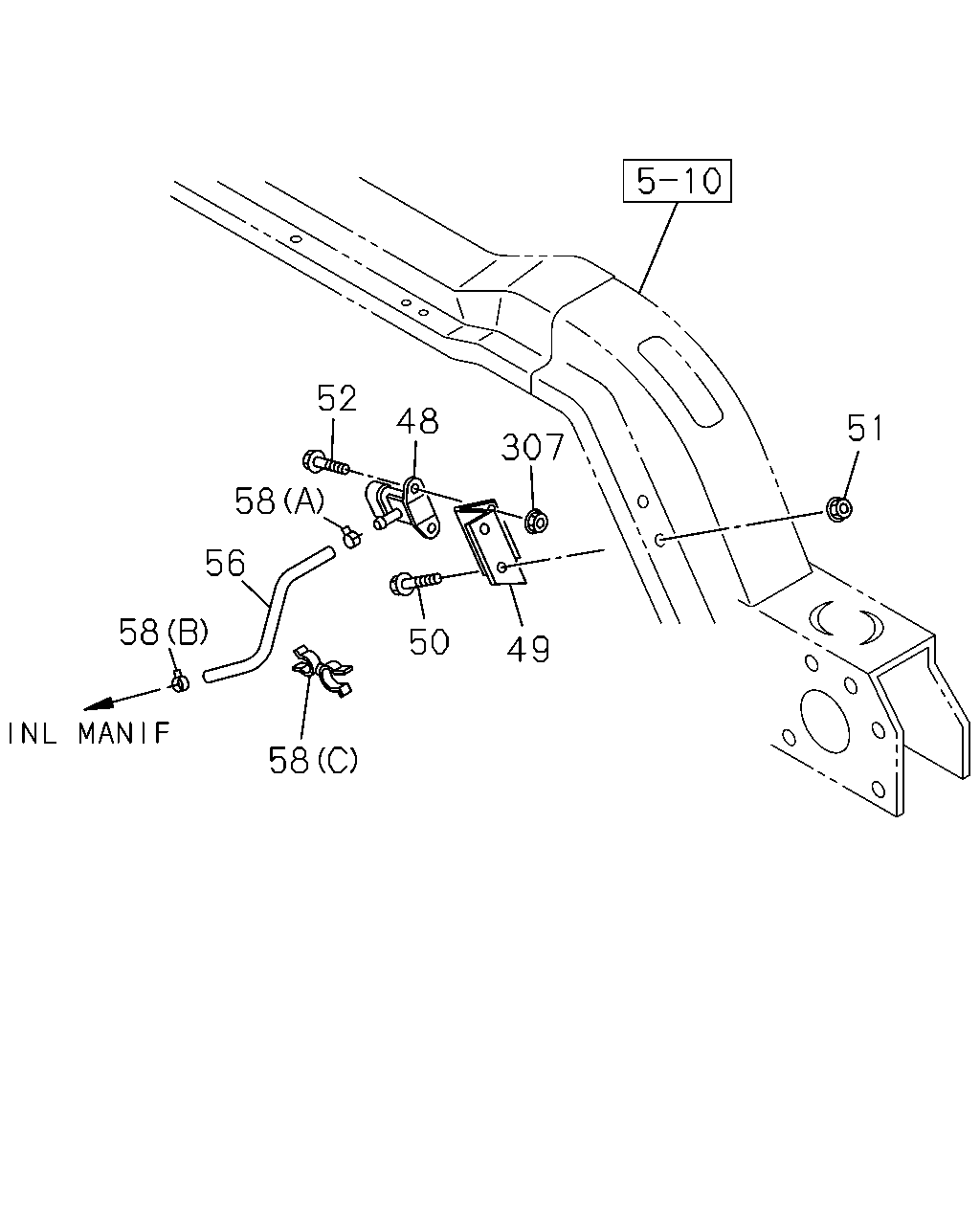

çizim 45645
52 48 51 307 58 56 58 50 49 58
BalonParca AdiParca NoAdetTipApplied Date A B C D
48 SENSOR; BOOST
6HK1 TCS ENG(80L) 		1-80220-014-0 01 1 0303- ●
49 BRACKET; SENSOR
6HK1 TCS ENG(80L) 		1-47479-242-1 01 1 0303- ●
50 BOLT; FIX
6HK1 TCS ENG(80L) M8X20 FLANGE 		0-28680-820-0 02 1 0303-0512 ●
50 BOLT; FIX
6HK1 TCS ENG(80L) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
51 NUT; FIX
6HK1 TCS ENG(80L) M8 FLANGE 		0-91150-108-0 02 1 0303-0602 ●
51 NUT; FIX
6HK1 TCS ENG(80L) M8 FLANGE 		0-91180-108-0 02 1 0603- ●
52 BOLT; SENSOR
6HK1 TCS ENG(80L) M6X16 FLANGE 		0-28680-616-0 02 1 0303-0512 ●
52 BOLT; SENSOR
6HK1 TCS ENG(80L) M6X16 FLANGE 		0-28650-616-0 02 1 0601- ●
56 HOSE; NIPPLE TO SENSOR
6HK1 TCS ENG(80L) 		8-97602-583-1 01 1 0303- ●
58 CLIP; HOSE
6HK1 TCS ENG(80L) (C) ID=8.3 & 12 		8-94155-469-0 01 1 0304-0304 ●
58 CLIP; HOSE
6HK1 TCS ENG(80L) (C) ID=10 & 12 		1-09709-278-1 01 1 0305- ●
58 CLIP; HOSE
6HK1 TCS ENG(80L) (A) ID=11 		8-94238-570-0 01 1 0303- ●
58 CLIP; HOSE
6HK1 TCS ENG(80L) (B) ID=12 		8-94238-610-0 01 1 0303- ●
307 NUT
6HK1 TCS ENG(80L) M6 FLANGE 		0-91150-106-0 02 1 0303-0602 ●
307 NUT
6HK1 TCS ENG(80L) M6 FLANGE 		0-91180-106-0 02 1 0603- ●

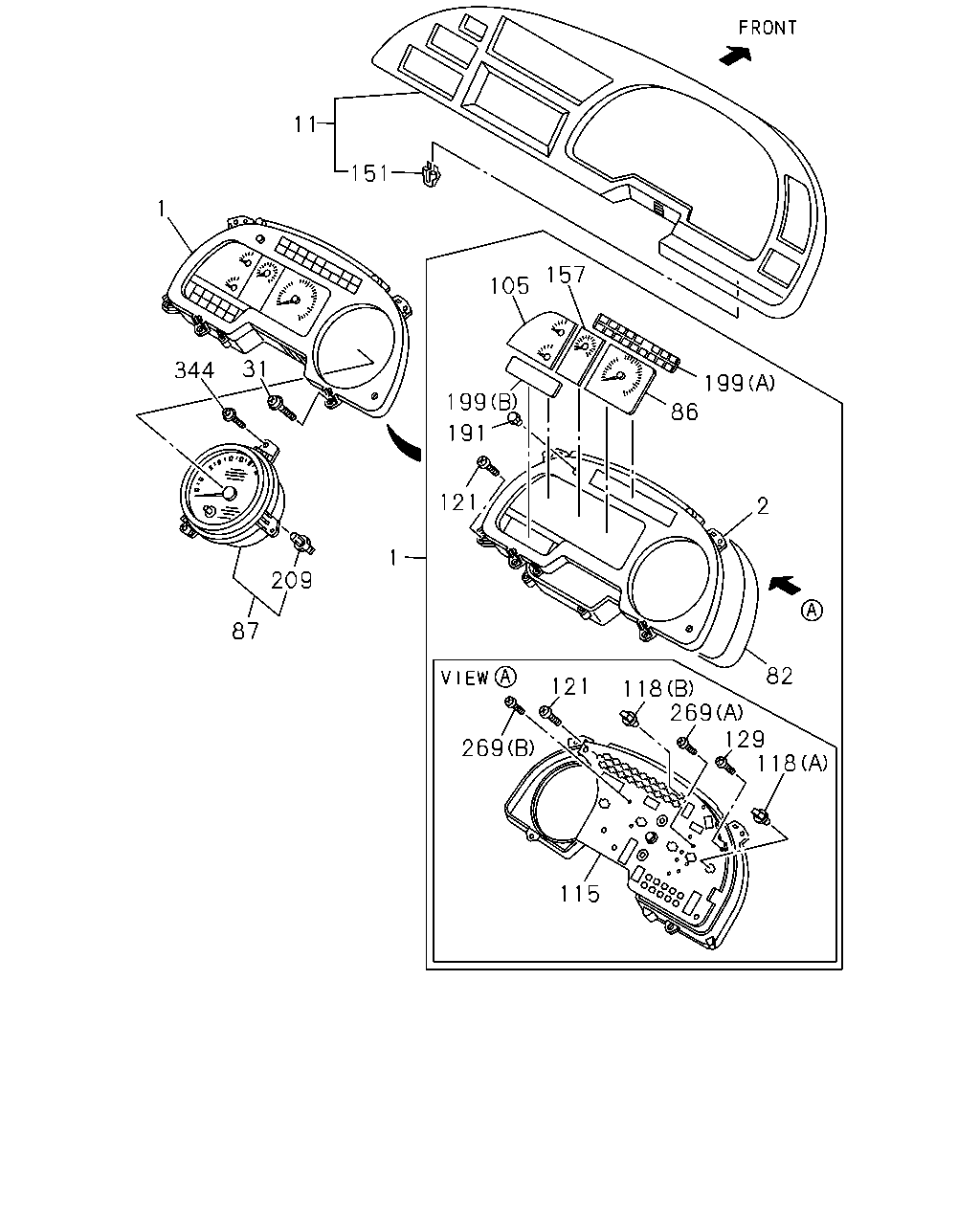

çizim 47684
11 151 1 157 105 31 344 199 199 86 191 121 2 1 209 87 82 121 118 269 129 118 269 115
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 METER COMPL; CLUSTER 1-83115-223-0 01 1 0005-0111 ● ● ●
1 METER COMPL; CLUSTER
6SD1 TCN ENG(31L) 		1-83115-223-0 01 1 0005-0111 ●
1 METER COMPL; CLUSTER
6SD1 TCN ENG(31L) EXC. A/T<X9D> 		1-83115-223-0 01 1 0112-0210 ● ● ● ●
1 METER COMPL; CLUSTER
6SD1 TCN ENG(31L) 		1-83115-896-0 01 1 0211- ● ● ●
1 METER COMPL; CLUSTER
6SD1 TCN ENG(31L) EXC. A/T<X9D> 		1-83115-896-0 01 1 0211- ●
1 METER COMPL; CLUSTER
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> 		1-83114-995-0 01 1 0005-0210 ●
1 METER COMPL; CLUSTER
6HH1 STD ENG(65L) 		1-83114-974-0 01 1 0005-0210 ●
1 METER COMPL; CLUSTER
6HK1 TCS ENG(80L) 		1-83115-795-1 01 1 0303- ●
1 METER COMPL; CLUSTER
6SD1 TCN ENG(31L) A/T<X9D> 		1-83115-099-0 01 1 0112-0210 ●
1 METER COMPL; CLUSTER
6SD1 TCN ENG(31L) A/T<X9D> 		1-83115-914-0 01 1 0211- ●
2 PANEL; CLUSTER 1-83119-499-0 01 1 0005- ● ● ● ●
11 CLUSTER ASM; METER
CUSTOM CAB(SR5) 		1-72418-014-7 01 1 0005-0210 ● ●
11 CLUSTER ASM; METER
CUSTOM CAB(SR5) 		1-72418-014-9 01 1 0211- ●
11 CLUSTER ASM; METER
EXC. CUSTOM CAB(SR5) 		1-72418-012-7 01 1 0005-0210 ● ●
11 CLUSTER ASM; METER 1-72418-012-7 01 1 0005-0210 ● ●
11 CLUSTER ASM; METER
EXC. CUSTOM CAB(SR5) 		1-72418-012-9 01 1 0211- ●
11 CLUSTER ASM; METER 1-72418-012-9 01 1 0211- ● ● ●
31 SCREW; METER,INST PANEL
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 03 1 0005-0604 ● ● ● ●
31 SCREW; METER,INST PANEL
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 03 1 0605- ● ● ● ●
82 CASE ASM; CLUSTER METER 1-83119-432-0 01 1 0005- ● ● ● ●
86 TACHOMETER; CLUSTER METER
6SD1 TCN ENG(31L) 		1-83120-923-0 01 1 0211- ● ● ● ●
86 TACHOMETER; CLUSTER METER
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> 		1-83120-836-0 01 1 0005-0210 ●
86 TACHOMETER; CLUSTER METER
6HH1 STD ENG(65L) 		1-83120-832-0 01 1 0005-0210 ●
86 TACHOMETER; CLUSTER METER
6HK1 TCS ENG(80L) 		1-83120-922-0 01 1 0303- ●
86 TACHOMETER; CLUSTER METER
6SD1 TCN ENG(31L) A/T<X9D> 		1-83120-833-0 01 1 0112-0210 ●
86 TACHOMETER; CLUSTER METER 1-83120-833-0 01 1 0005-0111 ● ● ●
86 TACHOMETER; CLUSTER METER
6SD1 TCN ENG(31L) 		1-83120-833-0 01 1 0005-0111 ●
86 TACHOMETER; CLUSTER METER
6SD1 TCN ENG(31L) EXC. A/T<X9D> 		1-83120-833-0 01 1 0112-0210 ● ● ● ●
87 SPEEDOMETER 1-83120-490-1 01 1 0005- ● ● ● ●
105 GAUGE; THERMO & FUEL,CLUSTER METER 1-83180-274-0 01 1 0005- ● ● ● ●
115 CIRCUIT; PRINTED,CLUSTER METER 1-83189-426-0 01 1 0005-0111 ● ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
6SD1 TCN ENG(31L) 		1-83189-426-0 01 1 0005-0111 ●
115 CIRCUIT; PRINTED,CLUSTER METER
6SD1 TCN ENG(31L) EXC. A/T<X9D> 		1-83189-426-0 01 1 0112-0210 ● ● ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
6HE1 TC ENG(57L),6HH1 STD ENG(65L) 		1-83189-308-0 01 1 0005-0210 ●
115 CIRCUIT; PRINTED,CLUSTER METER
6SD1 TCN ENG(31L) 		1-83189-447-0 01 1 0211-0302 ● ● ● ●
115 CIRCUIT; PRINTED,CLUSTER METER 1-83189-447-0 01 1 0303- ● ● ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
6SD1 TCN ENG(31L) A/T<X9D> 		1-83189-354-0 01 1 0112-0210 ●
118 BULB; CLUSTER METER
(A) 24V 3W GREEN SOCKET 		1-82194-061-0 04 1 0005- ● ● ● ●
118 BULB; CLUSTER METER
(B) 24V 1.8W BROWN SOCKET 		1-82194-062-0 16 1 0005-0111 ● ● ●
118 BULB; CLUSTER METER
6SD1 TCN ENG(31L) (B) 24V 1.8W BROWN SOCKET 		1-82194-062-0 16 1 0005-0111 ●
118 BULB; CLUSTER METER
6SD1 TCN ENG(31L) EXC. A/T<X9D> (B) 24V 1.8W BROWN SOCKET 		1-82194-062-0 16 1 0112-0210 ● ● ● ●
118 BULB; CLUSTER METER
6SD1 TCN ENG(31L) (B) 24V 1.8W BROWN SOCKET 		1-82194-062-0 25 1 0211-0302 ● ● ●
118 BULB; CLUSTER METER
6SD1 TCN ENG(31L) EXC. A/T<X9D> (B) 24V 1.8W BROWN SOCKET 		1-82194-062-0 25 1 0211-0302 ●
118 BULB; CLUSTER METER
(B) 24V 1.8W BROWN SOCKET 		1-82194-062-0 25 1 0303- ● ● ●
118 BULB; CLUSTER METER
FULLER M/T<X9B> (B) 24V 1.8W BROWN SOCKET 		1-82194-062-0 25 1 0303- ●
118 BULB; CLUSTER METER
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (B) 24V 1.8W BROWN SOCKET 		1-82194-062-0 15 1 0005-0111 ●
118 BULB; CLUSTER METER
6HE1 TC ENG(57L) (B) 24V 1.8W BROWN SOCKET 		1-82194-062-0 15 1 0112-0210 ●
118 BULB; CLUSTER METER
6SD1 TCN ENG(31L) A/T<X9D> (B) 24V 1.8W BROWN SOCKET 		1-82194-062-0 15 1 0112-0210 ●
118 BULB; CLUSTER METER
6SD1 TCN ENG(31L) A/T<X9D> (B) 24V 1.8W BROWN SOCKET 		1-82194-062-0 26 1 0211- ●
118 BULB; CLUSTER METER
6HH1 STD ENG(65L) (B) 24V 1.8W BROWN SOCKET 		1-82194-062-0 14 1 0005-0210 ●
121 SCREW; PANEL FIX,CLUSTER METER
M4 TAPPING 		1-83119-442-0 08 1 0005- ● ● ● ●
129 SCREW; PRINTED CIRCUIT,CLUSTER METER
M3 TAPPING 		1-83119-052-0 10 1 0005- ● ● ● ●
151 CLIP; METER CLUSTER 8-97217-066-0 10 1 0005- ● ● ● ●
157 METER; AIR PRESSURE,CLUSTER METER 1-83150-187-0 01 1 0005- ● ● ● ●
191 KNOB; BULB CHECK 1-83119-500-0 01 1 0005- ● ● ● ●
199 LENS; WARNING LAMP
(B) 		1-83119-435-0 01 1 0005-0302 ● ● ● ●
199 LENS; WARNING LAMP
(B) 		1-83119-805-0 01 1 0303- ● ● ● ●
199 LENS; WARNING LAMP
(A) 		1-83119-771-0 01 1 0005-0111 ● ● ●
199 LENS; WARNING LAMP
6SD1 TCN ENG(31L) (A) 		1-83119-771-0 01 1 0005-0111 ●
199 LENS; WARNING LAMP
6SD1 TCN ENG(31L) EXC. A/T<X9D> (A) 		1-83119-771-0 01 1 0112-0210 ● ● ● ●
199 LENS; WARNING LAMP
6HE1 TC ENG(57L),6HH1 STD ENG(65L) (A) 		1-83119-526-0 01 1 0005-0210 ●
199 LENS; WARNING LAMP
6SD1 TCN ENG(31L) (A) 		1-83119-526-0 01 1 0211-0302 ● ● ● ●
199 LENS; WARNING LAMP
(A) 		1-83119-526-0 01 1 0303- ● ● ● ●
199 LENS; WARNING LAMP
6SD1 TCN ENG(31L) A/T<X9D> (A) 		1-83119-621-0 01 1 0112-0210 ●
209 BULB; SPEEDOMETER
24V 3W GREEN SOCKET 		1-82194-061-0 02 1 0005- ● ● ● ●
269 SCREW; METER CLUSTER
(A) M3 TAPPING 		1-83119-441-0 06 1 0005- ● ● ● ●
269 SCREW; METER CLUSTER
(B) M3 TAPPING 		1-83119-439-0 03 1 0005-0210 ● ● ●
269 SCREW; METER CLUSTER
6SD1 TCN ENG(31L),6HE1 TC ENG(57L) (B) M3 TAPPING 		1-83119-439-0 03 1 0005-0210 ●
269 SCREW; METER CLUSTER
6SD1 TCN ENG(31L) (B) M3 TAPPING 		1-83119-439-0 04 1 0211-0302 ● ● ●
269 SCREW; METER CLUSTER
6SD1 TCN ENG(31L) EXC. A/T<X9D> (B) M3 TAPPING 		1-83119-439-0 04 1 0211-0302 ●
269 SCREW; METER CLUSTER
(B) M3 TAPPING 		1-83119-439-0 04 1 0303- ● ● ●
269 SCREW; METER CLUSTER
FULLER M/T<X9B> (B) M3 TAPPING 		1-83119-439-0 04 1 0303- ●
269 SCREW; METER CLUSTER
6HH1 STD ENG(65L) (B) M3 TAPPING 		1-83119-439-0 05 1 0005-0210 ●
269 SCREW; METER CLUSTER
6SD1 TCN ENG(31L) A/T<X9D> (B) M3 TAPPING 		1-83119-439-0 03 1 0211- ●
344 SCREW; SPEEDOMETER
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 03 1 0005-0604 ● ● ● ●
344 SCREW; SPEEDOMETER
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 03 1 0605- ● ● ● ●
