◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FV ▶ 10828 - FV/GV(AUSTRAL)L.SUS ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#8770) — 1347 parça

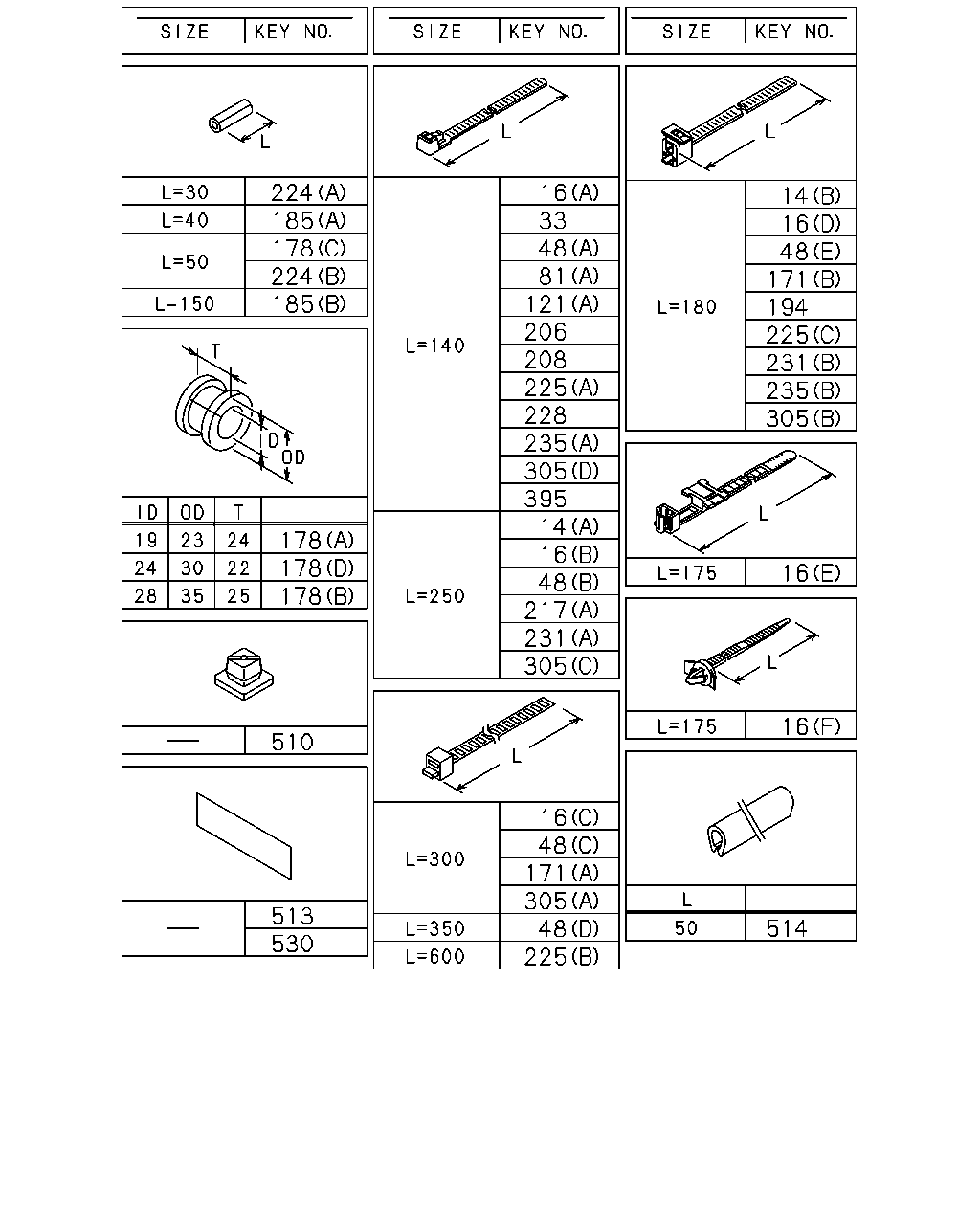

çizim 9728
224 185 178 224 185 178 178 178 510 513 530 225 48 305 171 48 16 305 231 217 48 16 14 395 305 235 228 225 208 206 121 81 48 33 16 14 16 48 171 194 225 231 235 305 16 16 514
BalonParca AdiParca NoAdetTipApplied Date A B C D
14 CLIP; BAND,HARNESS
(B) L=180 		1-09707-162-1 01 1 0005- ● ● ● ●
14 CLIP; BAND,HARNESS
6HH1 STD ENG(65L) (A) L=250 		5-09707-030-1 01 1 0005-0210 ●
16 CLIP; HARNESS
WHEEL BASE 4200MM(42W) (L) ID=11 L=41 		1-09700-403-0 01 1 0303- ●
16 CLIP; HARNESS
(L) ID=11 L=41 		1-09700-403-0 02 1 0005-0210 ●
16 CLIP; HARNESS
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (L) ID=11 L=41 		1-09700-403-0 02 1 0005-0210 ●
16 CLIP; HARNESS
(L) ID=11 L=41 		1-09700-403-0 03 1 0211-0405 ● ● ● ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) (L) ID=11 L=41 		1-09700-403-0 03 1 0211-0405 ●
16 CLIP; HARNESS
EXC. AIR HORN<WB8> (L) ID=11 L=41 		1-09700-403-0 03 1 0406- ● ● ● ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) (L) ID=11 L=41 		1-09700-403-0 03 1 0406- ●
16 CLIP; HARNESS
POWER WINDOW<A30> (Q) L=55 		8-94432-655-0 03 1 0005-0111 ● ●
16 CLIP; HARNESS
POWER WINDOW<A30> (F) L=175 		8-97110-167-0 04 1 0005-0111 ● ●
16 CLIP; HARNESS
POWER WINDOW<A30> (Q) L=55 		8-94432-655-0 03 1 0112-0210 ● ●
16 CLIP; HARNESS
(Q) L=55 		8-94432-655-0 03 1 0211- ● ● ● ●
16 CLIP; HARNESS
POWER WINDOW<A30> (F) L=175 		8-97110-167-0 04 1 0112-0210 ● ●
16 CLIP; HARNESS
(F) L=175 		8-97110-167-0 06 1 0211- ● ● ● ●
16 CLIP; HARNESS
POWER WINDOW<A30> CUSTOM CAB(SR5) (R) 		1-82698-130-0 03 1 0005-0109 ● ●
16 CLIP; HARNESS
POWER WINDOW<A30> CUSTOM CAB(SR5) (S) 		8-97229-356-0 03 1 0110-0210 ● ●
16 CLIP; HARNESS
(S) 		8-97229-356-0 03 1 0211- ● ● ● ●
16 CLIP; HARNESS
POWER WINDOW<A30> CUSTOM CAB(SR5) (F) L=175 		8-97110-167-0 02 1 0005-0210 ● ●
16 CLIP; HARNESS
(W) ID=24 L=27 		1-09700-809-0 01 1 0211- ● ● ● ●
16 CLIP; HARNESS
(L) ID=11 L=41 		1-09700-403-0 03 1 0005-0210 ● ● ● ●
16 CLIP; HARNESS
WHEEL BASE 7100MM(71W) (L) ID=11 L=41 		1-09700-403-0 02 1 0211- ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) (L) ID=11 L=41 		1-09700-403-0 02 1 0211- ●
16 CLIP; HARNESS
(O) ID=28 L=78 		1-09700-858-0 01 1 0005-0410 ● ● ● ●
16 CLIP; HARNESS
(Z) ID=35 H=45 L=33 		1-09701-047-0 01 1 0411- ● ● ● ●
16 CLIP; HARNESS
(K) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0005- ● ● ● ●
16 CLIP; HARNESS
(C) L=300 		1-09707-001-1 01 1 0005-0305 ● ● ● ●
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 02 1 0306- ● ● ● ●
16 CLIP; HARNESS
(B) L=250 		5-09707-030-1 02 1 0005-0007 ● ● ● ●
16 CLIP; HARNESS
FULLER RT7608LL M/T(X8P) ENGINE REAR PTO(SV1) (B) L=250 		5-09707-030-1 02 1 0005-0007 ●
16 CLIP; HARNESS
(B) L=250 		5-09707-030-1 02 1 0008-0111 ●
16 CLIP; HARNESS
6HE1 TC ENG(57L),6HH1 STD ENG(65L) (B) L=250 		5-09707-030-1 02 1 0008-0111 ●
16 CLIP; HARNESS
ENGINE REAR PTO(SV1) (B) L=250 		5-09707-030-1 02 1 0008-0111 ●
16 CLIP; HARNESS
WHEEL BASE 5000MM(50W) (B) L=250 		5-09707-030-1 02 1 0008-0111 ●
16 CLIP; HARNESS
(B) L=250 		5-09707-030-1 02 1 0112-0210 ●
16 CLIP; HARNESS
6HE1 TC ENG(57L),6HH1 STD ENG(65L) (B) L=250 		5-09707-030-1 02 1 0112-0210 ●
16 CLIP; HARNESS
ENGINE REAR PTO(SV1) (B) L=250 		5-09707-030-1 02 1 0112-0210 ●
16 CLIP; HARNESS
WHEEL BASE 5000MM(50W),WHEEL BASE 5900MM(59W) (B) L=250 		5-09707-030-1 02 1 0112-0210 ●
16 CLIP; HARNESS
(B) L=250 		5-09707-030-1 02 1 0211-0305 ● ● ● ●
16 CLIP; HARNESS
FULLER RT7608LL M/T(X8P) ENGINE REAR PTO(SV1) (B) L=250 		5-09707-030-1 02 1 0211-0305 ●
16 CLIP; HARNESS
(B) L=300 		1-09707-001-1 01 1 0306- ● ● ● ●
16 CLIP; HARNESS
FULLER RT7608LL M/T(X8P) ENGINE REAR PTO(SV1) (B) L=300 		1-09707-001-1 01 1 0306- ●
16 CLIP; HARNESS
(B) L=250 		5-09707-030-1 01 1 0005-0007 ● ● ● ●
16 CLIP; HARNESS
(B) L=250 		5-09707-030-1 01 1 0008-0210 ● ● ●
16 CLIP; HARNESS
(B) L=250 		5-09707-030-1 01 1 0008-0210 ● ● ●
16 CLIP; HARNESS
(X) ID=31 L=30 		1-09700-969-0 02 1 0211- ● ● ●
16 CLIP; HARNESS
6SD1 TCN ENG(31L) (X) ID=31 L=30 		1-09700-969-0 02 1 0211- ●
16 CLIP; HARNESS
(A) L=140 		5-09707-031-1 01 1 0005-0210 ● ● ●
16 CLIP; HARNESS
6SD1 TCN ENG(31L) (A) L=140 		5-09707-031-1 01 1 0005-0210 ●
16 CLIP; HARNESS
(N) ID=20 L=50 		9-09917-430-0 03 1 0005- ● ● ●
16 CLIP; HARNESS
6SD1 TCN ENG(31L) (N) ID=20 L=50 		9-09917-430-0 03 1 0005- ●
16 CLIP; HARNESS
EURO2 SPECIFICATION<THN> (I) ID=25 L=50 		1-09701-019-0 01 1 0005-0210 ●
16 CLIP; HARNESS
EURO2 SPECIFICATION<THN> (H) ID=24 L=40 		1-09701-139-0 01 1 0005-0210 ●
16 CLIP; HARNESS
6HE1 TC ENG(57L),6HH1 STD ENG(65L) (J) ID=19 H=21 L=50 		1-09700-910-1 01 1 0005-0210 ●
16 CLIP; HARNESS
6HE1 TC ENG(57L),6HH1 STD ENG(65L) (D) L=180 		1-09707-162-1 01 1 0005-0210 ●
16 CLIP; HARNESS
6HE1 TC ENG(57L),6HH1 STD ENG(65L) (G) ID=19 L=32 		9-09525-866-0 01 1 0005-0210 ●
16 CLIP; HARNESS
6HE1 TC ENG(57L),6HH1 STD ENG(65L) (M) ID=14 L=44 		9-09917-427-0 03 1 0005-0210 ●
16 CLIP; HARNESS
6HE1 TC ENG(57L),6HH1 STD ENG(65L) WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W) (L) ID=11 L=41 		1-09700-403-0 01 1 0005-0210 ●
16 CLIP; HARNESS
WHEEL BASE 6000MM(60W) (L) ID=11 L=41 		1-09700-403-0 01 1 0211-0212 ●
16 CLIP; HARNESS
WHEEL BASE 6000MM(60W) (L) ID=11 L=41 		1-09700-403-0 04 1 0301-0405 ●
16 CLIP; HARNESS
WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) (L) ID=11 L=41 		1-09700-403-0 04 1 0406- ●
16 CLIP; HARNESS
6HK1 TCS ENG(80L) (V) ID=20X2 L=55 		1-09700-554-0 02 1 0303- ●
16 CLIP; HARNESS
6HK1 TCS ENG(80L) (J) ID=19 H=21 L=50 		1-09700-910-1 01 1 0303- ●
16 CLIP; HARNESS
6HK1 TCS ENG(80L) (U) ID=28 H=45 L=30 		1-09700-948-0 02 1 0303- ●
16 CLIP; HARNESS
6HK1 TCS ENG(80L) (T) ID=26 L=26 		1-09701-236-0 01 1 0303- ●
16 CLIP; HARNESS
6HK1 TCS ENG(80L) (D) L=180 		1-09707-162-1 01 1 0303-0303 ●
16 CLIP; HARNESS
6HK1 TCS ENG(80L) (Y) ID=12 & 16.5 		8-94400-865-0 01 1 0303- ●
16 CLIP; HARNESS
6HK1 TCS ENG(80L) (G) ID=19 L=32 		9-09525-866-0 01 1 0303-0606 ●
16 CLIP; HARNESS
6HK1 TCS ENG(80L) (G) ID=19 L=32 		0-95235-866-0 01 1 0607- ●
16 CLIP; HARNESS
6HK1 TCS ENG(80L) (M) ID=14 L=44 		9-09917-427-0 03 1 0303- ●
16 CLIP; HARNESS
A/T<X9D> (E) L=175 		1-09707-176-1 01 1 0112- ●
16 CLIP; HARNESS
WHEEL BASE 5000MM(50W),WHEEL BASE 6300MM(63W) (L) ID=11 L=41 		1-09700-403-0 05 1 0005-0111 ●
16 CLIP; HARNESS
WHEEL BASE 5000MM(50W),WHEEL BASE 5900MM(59W), WHEEL BASE 6300MM(63W) (L) ID=11 L=41 		1-09700-403-0 05 1 0112-0210 ●
16 CLIP; HARNESS
WHEEL BASE 5000MM(50W) (L) ID=11 L=41 		1-09700-403-0 05 1 0211- ●
16 CLIP; HARNESS
(P) W/SPONGE RUBBER 		1-09709-150-0 01 1 0005- ●
33 CLIP; HARNESS,VLV
6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) EURO2 SPECIFICATION<THN> L=140 		5-09707-031-1 01 1 0005-0210 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6200MM(62W) (P) ID=11 L=41 		1-09700-403-0 05 1 0408- ●
48 CLIP; FRAME HARNESS
(S) ID=20 L=50 		9-09917-430-0 23 1 0005-0210 ●
48 CLIP; FRAME HARNESS
6SD1 TCN ENG(31L) WHEEL BASE 5000MM(50W) (Q) ID=11 L=61 		1-09700-484-0 05 1 0211- ●
48 CLIP; FRAME HARNESS
(R) ID=14 L=44 		9-09917-427-0 03 1 0005-0111 ● ● ● ●
48 CLIP; FRAME HARNESS
(R) ID=14 L=44 		9-09917-427-0 03 1 0005-0111 ● ● ●
48 CLIP; FRAME HARNESS
(R) ID=14 L=44 		9-09917-427-0 03 1 0112-0210 ● ● ● ●
48 CLIP; FRAME HARNESS
6SD1 TCN ENG(31L) (R) ID=14 L=44 		9-09917-427-0 03 1 0112-0210 ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W),WHEEL BASE 7100MM(71W) (P) ID=11 L=41 		1-09700-403-0 01 1 0211- ●
48 CLIP; FRAME HARNESS
(O) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0005- ● ● ● ●
48 CLIP; FRAME HARNESS
(F) ID=19 L=28 		9-09525-856-0 01 1 0005-0111 ● ● ● ●
48 CLIP; FRAME HARNESS
(F) ID=19 L=28 		9-09525-856-0 01 1 0112-0210 ● ● ●
48 CLIP; FRAME HARNESS
FULLER M/T<X9B> (F) ID=19 L=28 		9-09525-856-0 01 1 0112-0210 ●
48 CLIP; FRAME HARNESS
(F) ID=19 L=28 		9-09525-856-0 01 1 0211-0606 ● ● ●
48 CLIP; FRAME HARNESS
EXC. A/T<X9D> (F) ID=19 L=28 		9-09525-856-0 01 1 0211-0606 ●
48 CLIP; FRAME HARNESS
(F) ID=19 L=28 		0-95235-856-0 01 1 0607- ● ● ●
48 CLIP; FRAME HARNESS
EXC. A/T<X9D> (F) ID=19 L=28 		0-95235-856-0 01 1 0607- ●
48 CLIP; FRAME HARNESS
(E) L=180 		1-09707-162-1 01 1 0202-0210 ● ● ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5900MM(59W) (P) ID=11 L=41 		1-09700-403-0 03 1 0211- ●
48 CLIP; FRAME HARNESS
(T) ID=20 L=70 		1-09700-485-0 04 1 0301- ● ● ●
48 CLIP; FRAME HARNESS
6SD1 TCN ENG(31L) (T) ID=20 L=70 		1-09700-485-0 04 1 0301- ●
48 CLIP; FRAME HARNESS
(T) ID=20 L=70 		1-09700-485-0 07 1 0005-0010 ● ●
48 CLIP; FRAME HARNESS
(T) ID=20 L=70 		1-09700-485-0 06 1 0011-0210 ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) (T) ID=20 L=70 		1-09700-485-0 06 1 0011-0210 ●
48 CLIP; FRAME HARNESS
(T) ID=20 L=70 		1-09700-485-0 10 1 0211-0212 ● ● ●
48 CLIP; FRAME HARNESS
6SD1 TCN ENG(31L) (T) ID=20 L=70 		1-09700-485-0 10 1 0211-0212 ●
48 CLIP; FRAME HARNESS
6SD1 TCN ENG(31L) (T) ID=20 L=70 		1-09700-485-0 06 1 0301-0302 ● ● ● ●
48 CLIP; FRAME HARNESS
6SD1 TCN ENG(31L) (T) ID=20 L=70 		1-09700-485-0 06 1 0303- ● ● ● ●
48 CLIP; FRAME HARNESS
6HK1 TCS ENG(80L) WHEEL BASE 4200MM(42W) (T) ID=20 L=70 		1-09700-485-0 06 1 0303- ●
48 CLIP; FRAME HARNESS
(T) ID=20 L=70 		1-09700-485-0 04 1 0005-0111 ● ● ●
48 CLIP; FRAME HARNESS
6HE1 TC ENG(57L),6HH1 STD ENG(65L) (T) ID=20 L=70 		1-09700-485-0 04 1 0005-0111 ●
48 CLIP; FRAME HARNESS
(T) ID=20 L=70 		1-09700-485-0 04 1 0112-0210 ● ●
48 CLIP; FRAME HARNESS
6HE1 TC ENG(57L),6HH1 STD ENG(65L) (T) ID=20 L=70 		1-09700-485-0 04 1 0112-0210 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) (T) ID=20 L=70 		1-09700-485-0 04 1 0112-0210 ●
48 CLIP; FRAME HARNESS
(U) ID=28 L=78 		1-09700-858-0 03 1 0005-0702 ● ● ●
48 CLIP; FRAME HARNESS
6SD1 TCN ENG(31L) (U) ID=28 L=78 		1-09700-858-0 03 1 0005-0702 ●
48 CLIP; FRAME HARNESS
(U) ID=28 L=78 		1-09700-858-0 04 1 0703- ● ● ● ●
48 CLIP; FRAME HARNESS
(G) ID=19 L=60 		9-09525-896-0 01 1 0005-0606 ● ● ●
48 CLIP; FRAME HARNESS
6SD1 TCN ENG(31L) (G) ID=19 L=60 		9-09525-896-0 01 1 0005-0606 ●
48 CLIP; FRAME HARNESS
(G) ID=19 L=60 		0-95235-896-0 01 1 0607- ● ● ●
48 CLIP; FRAME HARNESS
6SD1 TCN ENG(31L) (G) ID=19 L=60 		0-95235-896-0 01 1 0607- ●
48 CLIP; FRAME HARNESS
(S) ID=20 L=50 		9-09917-430-0 03 1 0005-0210 ● ● ●
48 CLIP; FRAME HARNESS
6SD1 TCN ENG(31L) (S) ID=20 L=50 		9-09917-430-0 03 1 0005-0210 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6000MM(60W) (S) ID=20 L=50 		9-09917-430-0 21 1 0211-0212 ●
48 CLIP; FRAME HARNESS
6SD1 TCN ENG(31L) WHEEL BASE 6000MM(60W) (S) ID=20 L=50 		9-09917-430-0 21 1 0301-0405 ●
48 CLIP; FRAME HARNESS
6SD1 TCN ENG(31L) WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) (S) ID=20 L=50 		9-09917-430-0 21 1 0406- ●
48 CLIP; FRAME HARNESS
(K) ID=35 L=75 		1-09700-608-2 01 1 0005-0210 ● ● ●
48 CLIP; FRAME HARNESS
6SD1 TCN ENG(31L) (K) ID=35 L=75 		1-09700-608-2 01 1 0005-0210 ●
48 CLIP; FRAME HARNESS
(J) ID=32 L=75 		1-09700-704-1 02 1 0005-0210 ● ● ●
48 CLIP; FRAME HARNESS
6SD1 TCN ENG(31L) (J) ID=32 L=75 		1-09700-704-1 02 1 0005-0210 ●
48 CLIP; FRAME HARNESS
(E) L=180 		1-09707-162-1 01 1 0005-0104 ● ● ●
48 CLIP; FRAME HARNESS
6SD1 TCN ENG(31L) (E) L=180 		1-09707-162-1 01 1 0005-0104 ●
48 CLIP; FRAME HARNESS
(C) L=300 		1-09707-001-1 01 1 0105-0209 ● ● ●
48 CLIP; FRAME HARNESS
6SD1 TCN ENG(31L) (C) L=300 		1-09707-001-1 01 1 0105-0209 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6000MM(60W) (S) ID=20 L=50 		9-09917-430-0 21 1 0005-0111 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6300MM(63W) (S) ID=20 L=50 		9-09917-430-0 21 1 0005-0111 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6000MM(60W) (S) ID=20 L=50 		9-09917-430-0 21 1 0112-0202 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) (S) ID=20 L=50 		9-09917-430-0 21 1 0112-0202 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6000MM(60W) (S) ID=20 L=50 		9-09917-430-0 21 1 0203-0210 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6300MM(63W) (S) ID=20 L=50 		9-09917-430-0 21 1 0203-0210 ●
48 CLIP; FRAME HARNESS
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (N) ID=25 H=30 L=35 		1-09700-875-0 01 1 0005-0005 ●
48 CLIP; FRAME HARNESS
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (I) ID=25 L=50 		1-09700-976-0 02 1 0005-0210 ●
48 CLIP; FRAME HARNESS
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (L) ID=24 H=40 L=24 		1-09701-243-0 01 1 0005-0005 ●
48 CLIP; FRAME HARNESS
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (L) ID=24 H=40 L=24 		1-09701-243-0 02 1 0006-0210 ●
48 CLIP; FRAME HARNESS
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (D) L=350 		1-09707-183-0 01 1 0005-0210 ●
48 CLIP; FRAME HARNESS
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (B) L=250 		5-09707-030-1 01 1 0005-0210 ●
48 CLIP; FRAME HARNESS
EURO2 SPECIFICATION<THN> (B) L=250 		5-09707-030-1 01 1 0005-0210 ●
48 CLIP; FRAME HARNESS
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (A) L=140 		5-09707-031-1 03 1 0005-0210 ●
48 CLIP; FRAME HARNESS
6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) (P) ID=11 L=41 		1-09700-403-0 01 1 0005-0009 ●
48 CLIP; FRAME HARNESS
6SD1 TCN ENG(31L) (P) ID=11 L=41 		1-09700-403-0 01 1 0005-0009 ●
48 CLIP; FRAME HARNESS
6SD1 TCN ENG(31L) (P) ID=11 L=41 		1-09700-403-0 01 1 0010-0210 ●
48 CLIP; FRAME HARNESS
6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) (P) ID=11 L=41 		1-09700-403-0 01 1 0010-0210 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) (P) ID=11 L=41 		1-09700-403-0 01 1 0010-0210 ●
48 CLIP; FRAME HARNESS
6SD1 TCN ENG(31L) (P) ID=11 L=41 		1-09700-403-0 04 1 0211-0302 ● ● ●
48 CLIP; FRAME HARNESS
6SD1 TCN ENG(31L) (P) ID=11 L=41 		1-09700-403-0 04 1 0211-0302 ●
48 CLIP; FRAME HARNESS
6SD1 TCN ENG(31L) (P) ID=11 L=41 		1-09700-403-0 04 1 0303-0405 ● ● ●
48 CLIP; FRAME HARNESS
6HK1 TCS ENG(80L) WHEEL BASE 6000MM(60W) (P) ID=11 L=41 		1-09700-403-0 04 1 0303-0405 ●
48 CLIP; FRAME HARNESS
6SD1 TCN ENG(31L) (P) ID=11 L=41 		1-09700-403-0 04 1 0303-0405 ●
48 CLIP; FRAME HARNESS
6SD1 TCN ENG(31L) (P) ID=11 L=41 		1-09700-403-0 04 1 0406-0407 ● ● ●
48 CLIP; FRAME HARNESS
6SD1 TCN ENG(31L) (P) ID=11 L=41 		1-09700-403-0 04 1 0406-0407 ●
48 CLIP; FRAME HARNESS
6HK1 TCS ENG(80L) WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) (P) ID=11 L=41 		1-09700-403-0 04 1 0406-0407 ●
48 CLIP; FRAME HARNESS
6SD1 TCN ENG(31L) (P) ID=11 L=41 		1-09700-403-0 04 1 0408- ● ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6000MM(60W) (P) ID=11 L=41 		1-09700-403-0 04 1 0408- ●
48 CLIP; FRAME HARNESS
6HE1 TC ENG(57L),6HH1 STD ENG(65L) (P) ID=11 L=41 		1-09700-403-0 08 1 0005-0210 ●
48 CLIP; FRAME HARNESS
6HE1 TC ENG(57L),6HH1 STD ENG(65L) (U) ID=28 L=78 		1-09700-858-0 04 1 0005-0210 ●
48 CLIP; FRAME HARNESS
6HE1 TC ENG(57L),6HH1 STD ENG(65L) (M) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0005-0010 ●
48 CLIP; FRAME HARNESS
(M) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0011-0210 ● ● ● ●
48 CLIP; FRAME HARNESS
6HE1 TC ENG(57L),6HH1 STD ENG(65L) (R) ID=14 L=44 		9-09917-427-0 02 1 0005-0210 ●
48 CLIP; FRAME HARNESS
6HE1 TC ENG(57L),6HH1 STD ENG(65L) (S) ID=20 L=50 		9-09917-430-0 01 1 0005-0210 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) (S) ID=20 L=50 		9-09917-430-0 13 1 0211-0302 ●
48 CLIP; FRAME HARNESS
6HE1 TC ENG(57L),6HH1 STD ENG(65L) WHEEL BASE 4200MM(42W) (S) ID=20 L=50 		9-09917-430-0 13 1 0303- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) (S) ID=20 L=50 		9-09917-430-0 13 1 0303- ●
48 CLIP; FRAME HARNESS
6HE1 TC ENG(57L),6HH1 STD ENG(65L) WHEEL BASE 4200MM(42W) (S) ID=20 L=50 		9-09917-430-0 13 1 0005-0210 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) (S) ID=20 L=50 		9-09917-430-0 13 1 0005-0210 ●
48 CLIP; FRAME HARNESS
6SD1 TCN ENG(31L) (S) ID=20 L=50 		9-09917-430-0 03 1 0211-0302 ● ● ● ●
48 CLIP; FRAME HARNESS
6SD1 TCN ENG(31L) (S) ID=20 L=50 		9-09917-430-0 03 1 0211-0302 ●
48 CLIP; FRAME HARNESS
(S) ID=20 L=50 		9-09917-430-0 03 1 0303- ● ● ● ●
48 CLIP; FRAME HARNESS
(S) ID=20 L=50 		9-09917-430-0 03 1 0303- ●
48 CLIP; FRAME HARNESS
6HK1 TCS ENG(80L) (P) ID=11 L=41 		1-09700-403-0 07 1 0303- ●
48 CLIP; FRAME HARNESS
6HK1 TCS ENG(80L) (X) ID=15 L=65 		1-09700-466-0 01 1 0303- ●
48 CLIP; FRAME HARNESS
6HK1 TCS ENG(80L) (U) ID=28 L=78 		1-09700-858-0 04 1 0303-0702 ●
48 CLIP; FRAME HARNESS
6HK1 TCS ENG(80L) (A) L=140 		5-09707-031-1 07 1 0303- ●
48 CLIP; FRAME HARNESS
6HK1 TCS ENG(80L) (R) ID=14 L=44 		9-09917-427-0 01 1 0303- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (T) ID=20 L=70 		1-09700-485-0 02 1 0303- ●
48 CLIP; FRAME HARNESS
6HK1 TCS ENG(80L) WHEEL BASE 6000MM(60W) (T) ID=20 L=70 		1-09700-485-0 08 1 0303-0405 ●
48 CLIP; FRAME HARNESS
6HK1 TCS ENG(80L) WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) (T) ID=20 L=70 		1-09700-485-0 08 1 0406- ●
48 CLIP; FRAME HARNESS
6HK1 TCS ENG(80L) WHEEL BASE 6000MM(60W) (S) ID=20 L=50 		9-09917-430-0 24 1 0303-0405 ●
48 CLIP; FRAME HARNESS
6HK1 TCS ENG(80L) WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) (S) ID=20 L=50 		9-09917-430-0 24 1 0406- ●
48 CLIP; FRAME HARNESS
6SD1 TCN ENG(31L) (Q) ID=11 L=61 		1-09700-484-0 08 1 0005-0210 ●
48 CLIP; FRAME HARNESS
6SD1 TCN ENG(31L) WHEEL BASE 6000MM(60W) (Q) ID=11 L=61 		1-09700-484-0 06 1 0211-0405 ●
48 CLIP; FRAME HARNESS
6SD1 TCN ENG(31L) WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) (Q) ID=11 L=61 		1-09700-484-0 06 1 0406- ●
48 CLIP; FRAME HARNESS
6SD1 TCN ENG(31L) (T) ID=20 L=70 		1-09700-485-0 11 1 0005-0010 ●
48 CLIP; FRAME HARNESS
(T) ID=20 L=70 		1-09700-485-0 11 1 0005-0010 ●
48 CLIP; FRAME HARNESS
6SD1 TCN ENG(31L) (T) ID=20 L=70 		1-09700-485-0 10 1 0011-0111 ●
48 CLIP; FRAME HARNESS
(T) ID=20 L=70 		1-09700-485-0 10 1 0011-0111 ●
48 CLIP; FRAME HARNESS
6SD1 TCN ENG(31L) (T) ID=20 L=70 		1-09700-485-0 10 1 0112-0210 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) (T) ID=20 L=70 		1-09700-485-0 10 1 0112-0210 ●
48 CLIP; FRAME HARNESS
(W) ID=35 H=45 L=33 		1-09701-047-0 02 1 0211- ● ● ●
48 CLIP; FRAME HARNESS
6SD1 TCN ENG(31L) (W) ID=35 H=45 L=33 		1-09701-047-0 02 1 0211- ●
48 CLIP; FRAME HARNESS
(P) ID=11 L=41 		1-09700-403-0 02 1 0005-0009 ●
48 CLIP; FRAME HARNESS
(P) ID=11 L=41 		1-09700-403-0 02 1 0010-0111 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5900MM(59W) (P) ID=11 L=41 		1-09700-403-0 03 1 0112-0210 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 7100MM(71W) (S) ID=20 L=50 		9-09917-430-0 23 1 0211- ● ●
48 CLIP; FRAME HARNESS
(P) ID=11 L=41 		1-09700-403-0 02 1 0112-0210 ●
48 CLIP; FRAME HARNESS
A/T<X9D> (P) ID=11 L=41 		1-09700-403-0 02 1 0211- ●
48 CLIP; FRAME HARNESS
A/T<X9D> (V) ID=31 L=30 		1-09700-969-0 01 1 0112-0210 ●
48 CLIP; FRAME HARNESS
A/T<X9D> (H) ID=24 L=24 		1-09701-001-1 01 1 0112- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) (Q) ID=11 L=61 		1-09700-484-0 07 1 0005-0111 ●
48 CLIP; FRAME HARNESS
6SD1 TCN ENG(31L) WHEEL BASE 5000MM(50W) (Q) ID=11 L=61 		1-09700-484-0 07 1 0112-0210 ●
48 CLIP; FRAME HARNESS
A/T<X9D> (Q) ID=11 L=61 		1-09700-484-0 02 1 0211- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5900MM(59W) (S) ID=20 L=50 		9-09917-430-0 20 1 0203- ●
48 CLIP; FRAME HARNESS
(Q) ID=11 L=61 		1-09700-484-0 05 1 0005-0210 ●
48 CLIP; FRAME HARNESS
(Q) ID=11 L=61 		1-09700-484-0 03 1 0211- ●
48 CLIP; FRAME HARNESS
(T) ID=20 L=70 		1-09700-485-0 05 1 0005-0010 ●
48 CLIP; FRAME HARNESS
(S) ID=20 L=50 		9-09917-430-0 08 1 0005-0112 ●
48 CLIP; FRAME HARNESS
(S) ID=20 L=50 		9-09917-430-0 09 1 0201- ●
81 CLIP; HARNESS
(A) L=140 		5-09707-031-1 02 1 0005- ● ● ● ●
81 CLIP; HARNESS
(B) ID=26 L=26 		1-09701-236-0 01 1 0211- ● ● ● ●
121 CLIP; FACIA HARNESS
(A) L=140 		5-09707-031-1 01 1 0005-0007 ●
121 CLIP; FACIA HARNESS
6HE1 TC ENG(57L),6HH1 STD ENG(65L) (A) L=140 		5-09707-031-1 01 1 0005-0007 ●
121 CLIP; FACIA HARNESS
WHEEL BASE 5000MM(50W) (A) L=140 		5-09707-031-1 01 1 0005-0007 ●
121 CLIP; FACIA HARNESS
(A) L=140 		5-09707-031-1 01 1 0008- ● ● ● ●
121 CLIP; FACIA HARNESS
EXC. POWER WINDOW<A30> (B) OD=7 H=1.2 		8-94364-750-0 02 1 0005-0210 ● ●
121 CLIP; FACIA HARNESS
(B) OD=7 H=1.2 		8-94364-750-0 02 1 0005-0210 ● ●
171 CLIP; STARTER HARNESS
(K) ID=18 L=44 		8-94225-185-0 01 1 0005-0210 ● ● ● ●
171 CLIP; STARTER HARNESS
(K) ID=18 L=44 		8-94225-185-0 01 1 0211-0801 ● ● ●
171 CLIP; STARTER HARNESS
6SD1 TCN ENG(31L) (K) ID=18 L=44 		8-94225-185-0 01 1 0211-0801 ●
171 CLIP; STARTER HARNESS
(K) ID=18 L=44 		8-97367-985-1 01 1 0802- ● ● ●
171 CLIP; STARTER HARNESS
6SD1 TCN ENG(31L) (K) ID=18 L=44 		8-97367-985-1 01 1 0802- ●
171 CLIP; STARTER HARNESS
(C) ID=10 & 16.5 		8-94360-745-0 01 1 0201- ● ● ●
171 CLIP; STARTER HARNESS
6SD1 TCN ENG(31L) (C) ID=10 & 16.5 		8-94360-745-0 01 1 0201- ●
171 CLIP; STARTER HARNESS
FULLER FS8209 DD M/T(Y2S) (G) ID=11 L=41 		1-09700-403-0 01 1 0005-0111 ● ●
171 CLIP; STARTER HARNESS
(G) ID=11 L=41 		1-09700-403-0 01 1 0005-0111 ●
171 CLIP; STARTER HARNESS
FULLER RT7608LL M/T(X8P) (G) ID=11 L=41 		1-09700-403-0 01 1 0005-0111 ●
171 CLIP; STARTER HARNESS
FULLER FS8209 DD M/T(Y2S) (G) ID=11 L=41 		1-09700-403-0 01 1 0112-0210 ● ● ●
171 CLIP; STARTER HARNESS
FULLER RT7608LL M/T(X8P) (G) ID=11 L=41 		1-09700-403-0 01 1 0112-0210 ●
171 CLIP; STARTER HARNESS
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) (G) ID=11 L=41 		1-09700-403-0 01 1 0211- ● ● ●
171 CLIP; STARTER HARNESS
6SD1 TCN ENG(31L) FULLER RT7608LL M/T(X8P) (G) ID=11 L=41 		1-09700-403-0 01 1 0211- ●
171 CLIP; STARTER HARNESS
FULLER FS8209 DD M/T(Y2S) (E) ID=21 L=30 H=40 		1-09700-991-1 02 1 0005-0111 ● ●
171 CLIP; STARTER HARNESS
6SD1 TCN ENG(31L) (E) ID=21 L=30 H=40 		1-09700-991-1 02 1 0005-0111 ●
171 CLIP; STARTER HARNESS
FULLER FS8209 DD M/T(Y2S) (E) ID=21 L=30 H=40 		1-09700-991-1 02 1 0112-0210 ● ● ●
171 CLIP; STARTER HARNESS
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) (E) ID=21 L=30 H=40 		1-09700-991-1 02 1 0211- ● ● ●
171 CLIP; STARTER HARNESS
FULLER FS8209 DD M/T(Y2S) (B) L=180 		1-09707-162-1 02 1 0005-0111 ● ●
171 CLIP; STARTER HARNESS
6SD1 TCN ENG(31L) (B) L=180 		1-09707-162-1 02 1 0005-0111 ●
171 CLIP; STARTER HARNESS
FULLER FS8209 DD M/T(Y2S) (B) L=180 		1-09707-162-1 02 1 0112-0210 ● ● ●
171 CLIP; STARTER HARNESS
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) (B) L=180 		1-09707-162-1 02 1 0211-0302 ● ● ●
171 CLIP; STARTER HARNESS
(B) L=180 		1-09707-162-1 02 1 0303-0309 ● ● ●
171 CLIP; STARTER HARNESS
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) (B) L=180 		1-09707-162-1 02 1 0310- ● ● ●
171 CLIP; STARTER HARNESS
FULLER FS8209 DD M/T(Y2S) (D) ID=19 L=28 		9-09525-856-0 01 1 0005-0111 ● ●
171 CLIP; STARTER HARNESS
(D) ID=19 L=28 		9-09525-856-0 01 1 0005-0111 ●
171 CLIP; STARTER HARNESS
FULLER RT7608LL M/T(X8P) (D) ID=19 L=28 		9-09525-856-0 01 1 0005-0111 ●
171 CLIP; STARTER HARNESS
FULLER FS8209 DD M/T(Y2S) (D) ID=19 L=28 		9-09525-856-0 01 1 0112-0210 ● ● ●
171 CLIP; STARTER HARNESS
(D) ID=19 L=28 		9-09525-856-0 01 1 0112-0210 ●
171 CLIP; STARTER HARNESS
(D) ID=19 L=28 		9-09525-856-0 01 1 0211-0606 ● ● ● ●
171 CLIP; STARTER HARNESS
(D) ID=19 L=28 		0-95235-856-0 01 1 0607- ● ● ● ●
171 CLIP; STARTER HARNESS
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (E) ID=21 L=30 H=40 		1-09700-991-1 01 1 0005-0210 ●
171 CLIP; STARTER HARNESS
6HH1 STD ENG(65L) (E) ID=21 L=30 H=40 		1-09700-991-1 01 1 0005-0210 ●
171 CLIP; STARTER HARNESS
6HE1 TC ENG(57L),6HH1 STD ENG(65L) (A) L=300 		1-09707-001-1 01 1 0005-0201 ●
171 CLIP; STARTER HARNESS
(A) L=300 		1-09707-001-1 01 1 0202-0210 ● ● ● ●
171 CLIP; STARTER HARNESS
(A) L=300 		1-09707-001-1 01 1 0211- ● ● ● ●
171 CLIP; STARTER HARNESS
6SD1 TCN ENG(31L) (A) L=300 		1-09707-001-1 01 1 0211- ● ● ● ●
171 CLIP; STARTER HARNESS
6HE1 TC ENG(57L),6HH1 STD ENG(65L) (B) L=180 		1-09707-162-1 01 1 0005-0210 ●
171 CLIP; STARTER HARNESS
FULLER RT7608LL M/T(X8P) (B) L=180 		1-09707-162-1 01 1 0005-0210 ●
171 CLIP; STARTER HARNESS
FULLER RT7608LL M/T(X8P) (B) L=180 		1-09707-162-1 01 1 0211-0309 ●
171 CLIP; STARTER HARNESS
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) (B) L=180 		1-09707-162-1 01 1 0310-0609 ●
171 CLIP; STARTER HARNESS
FULLER RT7608LL M/T(X8P) (B) L=180 		1-09707-162-1 01 1 0310-0609 ●
171 CLIP; STARTER HARNESS
6HK1 TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A),FULLER FSO5206B OD M/T(Y4V) (B) L=180 		1-09707-162-1 01 1 0610- ●
171 CLIP; STARTER HARNESS
FULLER RT7608LL M/T(X8P) (B) L=180 		1-09707-162-1 01 1 0610- ●
171 CLIP; STARTER HARNESS
6HE1 TC ENG(57L),6HH1 STD ENG(65L) (J) OD=9 H=6 		1-09709-178-0 01 1 0005-0210 ●
171 CLIP; STARTER HARNESS
FULLER RT7608LL M/T(X8P) (J) OD=9 H=6 		1-09709-178-0 01 1 0005-0210 ●
171 CLIP; STARTER HARNESS
FULLER RT7608LL M/T(X8P) (J) OD=9 H=6 		1-09709-178-0 01 1 0211-0309 ●
171 CLIP; STARTER HARNESS
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) (J) OD=9 H=6 		1-09709-178-0 01 1 0310-0609 ●
171 CLIP; STARTER HARNESS
FULLER RT7608LL M/T(X8P) (J) OD=9 H=6 		1-09709-178-0 01 1 0310-0609 ●
171 CLIP; STARTER HARNESS
6HK1 TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A),FULLER FSO5206B OD M/T(Y4V) (J) OD=9 H=6 		1-09709-178-0 01 1 0610- ●
171 CLIP; STARTER HARNESS
FULLER RT7608LL M/T(X8P) (J) OD=9 H=6 		1-09709-178-0 01 1 0610- ●
171 CLIP; STARTER HARNESS
6HE1 TC ENG(57L),6HH1 STD ENG(65L) (D) ID=19 L=28 		9-09525-856-0 04 1 0005-0210 ●
171 CLIP; STARTER HARNESS
6HK1 TCS ENG(80L) (E) ID=21 L=30 H=40 		1-09700-991-1 01 1 0303-0303 ●
171 CLIP; STARTER HARNESS
6HK1 TCS ENG(80L) (D) ID=19 L=28 		9-09525-856-0 02 1 0303-0303 ●
171 CLIP; STARTER HARNESS
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) (D) ID=19 L=28 		9-09525-856-0 02 1 0304-0309 ●
171 CLIP; STARTER HARNESS
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) (D) ID=19 L=28 		9-09525-856-0 05 1 0310-0606 ●
171 CLIP; STARTER HARNESS
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) (D) ID=19 L=28 		0-95235-856-0 05 1 0607-0609 ●
171 CLIP; STARTER HARNESS
6HK1 TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A),FULLER FSO5206B OD M/T(Y4V) (D) ID=19 L=28 		0-95235-856-0 05 1 0610- ●
171 CLIP; STARTER HARNESS
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) (L) ID=19 L=40 		9-09525-876-0 02 1 0303-0309 ●
171 CLIP; STARTER HARNESS
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) (E) ID=21 L=30 H=40 		1-09700-991-1 01 1 0310-0609 ●
171 CLIP; STARTER HARNESS
6HK1 TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A),FULLER FSO5206B OD M/T(Y4V) (E) ID=21 L=30 H=40 		1-09700-991-1 01 1 0610- ●
171 CLIP; STARTER HARNESS
A/T<X9D> (F) ID=28 H=45 L=30 		1-09700-948-0 01 1 0112- ●
171 CLIP; STARTER HARNESS
A/T<X9D> (H) ID=20 L=50 		9-09917-430-0 02 1 0112- ●
171 CLIP; STARTER HARNESS
FULLER RT7608LL M/T(X8P) (I) ID=11 L=20 		9-09525-035-0 01 1 0005-0606 ●
171 CLIP; STARTER HARNESS
FULLER RT7608LL M/T(X8P) (I) ID=11 L=20 		0-95235-035-0 01 1 0607- ●
171 CLIP; STARTER HARNESS
FULLER RT7608LL M/T(X8P) (H) ID=20 L=50 		9-09917-430-0 01 1 0005- ●
178 GROMMET; HARNESS
(A) ID=19 OD=23 T=24 		1-09332-103-0 01 1 0005- ● ● ● ●
178 GROMMET; HARNESS
(A) ID=19 OD=23 T=24 		1-09332-103-0 02 1 0005- ● ● ●
178 GROMMET; HARNESS
6SD1 TCN ENG(31L) (A) ID=19 OD=23 T=24 		1-09332-103-0 02 1 0005- ●
178 GROMMET; HARNESS
6HE1 TC ENG(57L),6HH1 STD ENG(65L) (B) ID=28 OD=35 T=25 		1-09332-011-1 02 1 0005-0210 ●
178 GROMMET; HARNESS
(C) ID=32 OD=36 L=50 		1-09337-023-0 01 1 0211- ● ● ● ●
178 GROMMET; HARNESS
6HK1 TCS ENG(80L) (B) ID=28 OD=35 T=25 		1-09332-011-1 01 1 0303- ●
178 GROMMET; HARNESS
6HK1 TCS ENG(80L) (D) ID=24 OD=30 T=22 		1-09332-104-0 01 1 0303- ●
185 SLEEVE; RUBBER
6HE1 TC ENG(57L),6HH1 STD ENG(65L) (A) ID=17 OD=21 L=40 		1-09337-012-0 01 1 0005-0210 ●
185 SLEEVE; RUBBER
FULLER RT7608LL M/T(X8P) ENGINE REAR PTO(SV1) (B) L=150 SERVICED BY L=1300 		1-09360-677-1 01 1 0005-0305 ●
194 CLIP; BAND
L=180 		1-09707-162-1 03 1 0005-0210 ● ● ● ●
194 CLIP; BAND
L=180 		1-09707-162-1 03 1 0211-0302 ● ● ●
194 CLIP; BAND
L=180 		1-09707-162-1 03 1 0303- ● ● ●
194 CLIP; BAND
6HK1 TCS ENG(80L) WHEEL BASE 4200MM(42W) L=180 		1-09707-162-1 03 1 0303- ●
194 CLIP; BAND
L=180 		1-09707-162-1 04 1 0211-0302 ●
194 CLIP; BAND
6SD1 TCN ENG(31L) L=180 		1-09707-162-1 04 1 0303-0405 ●
194 CLIP; BAND
6HK1 TCS ENG(80L) WHEEL BASE 6000MM(60W) L=180 		1-09707-162-1 04 1 0303-0405 ●
194 CLIP; BAND
6SD1 TCN ENG(31L) L=180 		1-09707-162-1 04 1 0406- ●
194 CLIP; BAND
6HK1 TCS ENG(80L) WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) L=180 		1-09707-162-1 04 1 0406- ●
206 CLIP; FUEL TANK HARNESS
L=140 		5-09707-031-1 02 1 0005- ● ● ● ●
208 CLIP; HARNESS,MAG VLV
BRAKE SYSTEM RETARDER<RE2> L=140 		5-09707-031-1 01 1 0011-0210 ●
217 CLIP; RR BODY HARNESS
(B) ID=15 L=70 		1-09700-980-0 02 1 0005-0208 ● ● ● ●
217 CLIP; RR BODY HARNESS
(A) L=250 		5-09707-030-1 02 1 0005- ● ● ● ●
224 SLEEVE; RUBBER,HARNESS
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (B) ID=32 OD=36 L=50 		1-09337-023-0 01 1 0005-0210 ●
224 SLEEVE; RUBBER,HARNESS
6HK1 TCS ENG(80L) (A) ID=10 OD=14 L=30 		9-09956-682-0 05 1 0303- ●
225 CLIP; AIR TANK HARNESS
(D) ID=11 L=61 		1-09700-484-0 02 1 0005-0111 ● ● ● ●
225 CLIP; AIR TANK HARNESS
WHEEL BASE 6000MM(60W) (D) ID=11 L=61 		1-09700-484-0 02 1 0005-0111 ●
225 CLIP; AIR TANK HARNESS
(D) ID=11 L=61 		1-09700-484-0 02 1 0112-0210 ● ●
225 CLIP; AIR TANK HARNESS
WHEEL BASE 6000MM(60W) (D) ID=11 L=61 		1-09700-484-0 02 1 0112-0210 ●
225 CLIP; AIR TANK HARNESS
WHEEL BASE 5000MM(50W),WHEEL BASE 5900MM(59W) (D) ID=11 L=61 		1-09700-484-0 02 1 0112-0210 ●
225 CLIP; AIR TANK HARNESS
(D) ID=11 L=61 		1-09700-484-0 02 1 0211-0405 ● ● ●
225 CLIP; AIR TANK HARNESS
WHEEL BASE 6000MM(60W) (D) ID=11 L=61 		1-09700-484-0 02 1 0211-0405 ●
225 CLIP; AIR TANK HARNESS
(D) ID=11 L=61 		1-09700-484-0 02 1 0406- ● ● ●
225 CLIP; AIR TANK HARNESS
WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) (D) ID=11 L=61 		1-09700-484-0 02 1 0406- ●
225 CLIP; AIR TANK HARNESS
(C) L=180 		1-09707-162-1 01 1 0005-0112 ● ● ● ●
225 CLIP; AIR TANK HARNESS
(B) L=600 		1-09707-107-1 01 1 0201- ● ● ● ●
225 CLIP; AIR TANK HARNESS
6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W) (A) L=140 		5-09707-031-1 01 1 0005-0210 ●
225 CLIP; AIR TANK HARNESS
(E) ID=5-12 L=18 		1-09709-287-0 01 1 0005- ●
228 CLIP; COOLER HARNESS
L=140 		5-09707-031-1 01 1 0005- ● ● ● ●
231 CLIP; BAND,OIL PRESS
(A) L=250 		5-09707-030-1 01 1 0005-0104 ● ● ●
231 CLIP; BAND,OIL PRESS
6SD1 TCN ENG(31L) (A) L=250 		5-09707-030-1 01 1 0005-0104 ●
231 CLIP; BAND,OIL PRESS
6SD1 TCN ENG(31L) (A) L=250 		5-09707-030-1 01 1 0105-0111 ●
231 CLIP; BAND,OIL PRESS
(A) L=250 		5-09707-030-1 01 1 0105-0111 ●
231 CLIP; BAND,OIL PRESS
6SD1 TCN ENG(31L) (A) L=250 		5-09707-030-1 01 1 0112-0210 ●
231 CLIP; BAND,OIL PRESS
WHEEL BASE 6300MM(63W) (A) L=250 		5-09707-030-1 01 1 0112-0210 ●
231 CLIP; BAND,OIL PRESS
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (C) OD=9 H=6 		1-09709-178-0 01 1 0005-0210 ●
231 CLIP; BAND,OIL PRESS
6HE1 TC ENG(57L) EXC. EURO2 SPECIFICATION<THN> (B) L=180 		1-09707-162-1 01 1 0005-0104 ●
231 CLIP; BAND,OIL PRESS
6HH1 STD ENG(65L) (B) L=180 		1-09707-162-1 01 1 0005-0104 ●
231 CLIP; BAND,OIL PRESS
(B) L=180 		1-09707-162-1 01 1 0105-0111 ● ● ●
231 CLIP; BAND,OIL PRESS
6HE1 TC ENG(57L) EXC. EURO2 SPECIFICATION<THN> (B) L=180 		1-09707-162-1 01 1 0105-0111 ●
231 CLIP; BAND,OIL PRESS
6HH1 STD ENG(65L) (B) L=180 		1-09707-162-1 01 1 0105-0111 ●
231 CLIP; BAND,OIL PRESS
(B) L=180 		1-09707-162-1 01 1 0112-0210 ● ●
231 CLIP; BAND,OIL PRESS
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. EURO2 SPECIFICATION<THN> (B) L=180 		1-09707-162-1 01 1 0112-0210 ●
231 CLIP; BAND,OIL PRESS
WHEEL BASE 5000MM(50W),WHEEL BASE 5900MM(59W) (B) L=180 		1-09707-162-1 01 1 0112-0210 ●
231 CLIP; BAND,OIL PRESS
(B) L=180 		1-09707-162-1 01 1 0211- ● ● ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
FULLER FS8209 DD M/T(Y2S) (A) L=140 		5-09707-031-1 01 1 0005-0111 ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
6SD1 TCN ENG(31L) (A) L=140 		5-09707-031-1 01 1 0005-0111 ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
FULLER FS8209 DD M/T(Y2S) (A) L=140 		5-09707-031-1 01 1 0112-0210 ● ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
FULLER FS8209HD DD M/T(Y3A) (A) L=140 		5-09707-031-1 01 1 0211-0302 ● ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(A) L=140 		5-09707-031-1 01 1 0303- ● ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
6HE1 TC ENG(57L),6HH1 STD ENG(65L) (C) ID=12 L=35 		5-09700-206-0 01 1 0005-0210 ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
A/T<X9D> (B) L=180 		1-09707-162-1 01 1 0112- ●
305 CLIP; ENG HARNESS
(A) L=300 		1-09707-001-1 01 1 0005- ● ● ●
305 CLIP; ENG HARNESS
6SD1 TCN ENG(31L) (A) L=300 		1-09707-001-1 01 1 0005- ●
305 CLIP; ENG HARNESS
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (B) L=180 		1-09707-162-1 01 1 0005-0210 ●
305 CLIP; ENG HARNESS
(D) L=140 		5-09707-031-1 01 1 0211- ● ● ●
305 CLIP; ENG HARNESS
6SD1 TCN ENG(31L) (D) L=140 		5-09707-031-1 01 1 0211- ●
305 CLIP; ENG HARNESS
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. EURO2 SPECIFICATION<THN> (B) L=180 		1-09707-162-1 02 1 0005-0210 ●
305 CLIP; ENG HARNESS
6HK1 TCS ENG(80L) (C) L=250 		5-09707-030-1 07 1 0303- ●
395 CLIP; WIPER HARNESS
L=140 		5-09707-031-1 01 1 0005-0007 ●
395 CLIP; WIPER HARNESS
6HE1 TC ENG(57L),6HH1 STD ENG(65L) L=140 		5-09707-031-1 01 1 0005-0007 ●
395 CLIP; WIPER HARNESS
WHEEL BASE 5000MM(50W) L=140 		5-09707-031-1 01 1 0005-0007 ●
395 CLIP; WIPER HARNESS
L=140 		5-09707-031-1 01 1 0008- ● ● ● ●
510 GROMMET; SCREW
EURO2 SPECIFICATION<THN> D=9.7X9.7 L=8 		8-94222-314-0 01 1 0005-0210 ●
513 TAPE; SOFT,HARNESS
100X40 		1-72498-022-0 08 1 0005-0005 ● ● ● ●
513 TAPE; SOFT,HARNESS
100X40 		1-72498-022-0 09 1 0005-0007 ●
513 TAPE; SOFT,HARNESS
6HE1 TC ENG(57L),6HH1 STD ENG(65L) 100X40 		1-72498-022-0 09 1 0005-0007 ●
513 TAPE; SOFT,HARNESS
WHEEL BASE 5000MM(50W) 100X40 		1-72498-022-0 09 1 0005-0007 ●
513 TAPE; SOFT,HARNESS
100X40 		1-72498-022-0 09 1 0008-0906 ● ● ● ●
513 TAPE; SOFT,HARNESS
100X40 		1-72498-022-1 08 1 0907- ● ● ● ●
513 TAPE; SOFT,HARNESS
6SD1 TCN ENG(31L) 100X40 		1-72498-022-0 08 1 0005-0007 ●
513 TAPE; SOFT,HARNESS
WHEEL BASE 6300MM(63W) 100X40 		1-72498-022-0 08 1 0005-0007 ●
513 TAPE; SOFT,HARNESS
100X40 		1-72498-022-0 08 1 0005-0007 ●
514 FINISHER; HARNESS
L=50 		8-94270-377-1 01 1 0907- ● ● ● ●
530 SEAL; HARNESS
180X40 		1-72498-019-0 01 1 0006-0101 ● ● ● ●
530 SEAL; HARNESS
180X40 		1-72498-019-0 07 1 0102-0111 ●
530 SEAL; HARNESS
6HE1 TC ENG(57L),6HH1 STD ENG(65L) 180X40 		1-72498-019-0 07 1 0102-0111 ●
530 SEAL; HARNESS
WHEEL BASE 5000MM(50W) 180X40 		1-72498-019-0 07 1 0102-0111 ●
530 SEAL; HARNESS
180X40 		1-72498-019-0 07 1 0112-0210 ●
530 SEAL; HARNESS
6HE1 TC ENG(57L),6HH1 STD ENG(65L) 180X40 		1-72498-019-0 07 1 0112-0210 ●
530 SEAL; HARNESS
WHEEL BASE 5000MM(50W),WHEEL BASE 5900MM(59W) 180X40 		1-72498-019-0 07 1 0112-0210 ●
530 SEAL; HARNESS
6SD1 TCN ENG(31L) 180X40 		1-72498-019-0 01 1 0102-0210 ●
530 SEAL; HARNESS
WHEEL BASE 6300MM(63W) 180X40 		1-72498-019-0 01 1 0102-0210 ●
530 SEAL; HARNESS
180X40 		1-72498-019-0 01 1 0102-0210 ●
530 SEAL; HARNESS
6SD1 TCN ENG(31L) 180X40 		1-72498-019-0 06 1 0102-0210 ●
530 SEAL; HARNESS
WHEEL BASE 6300MM(63W) 180X40 		1-72498-019-0 06 1 0102-0210 ●
530 SEAL; HARNESS
180X40 		1-72498-019-0 06 1 0102-0210 ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 07 1 0211- ● ● ● ●

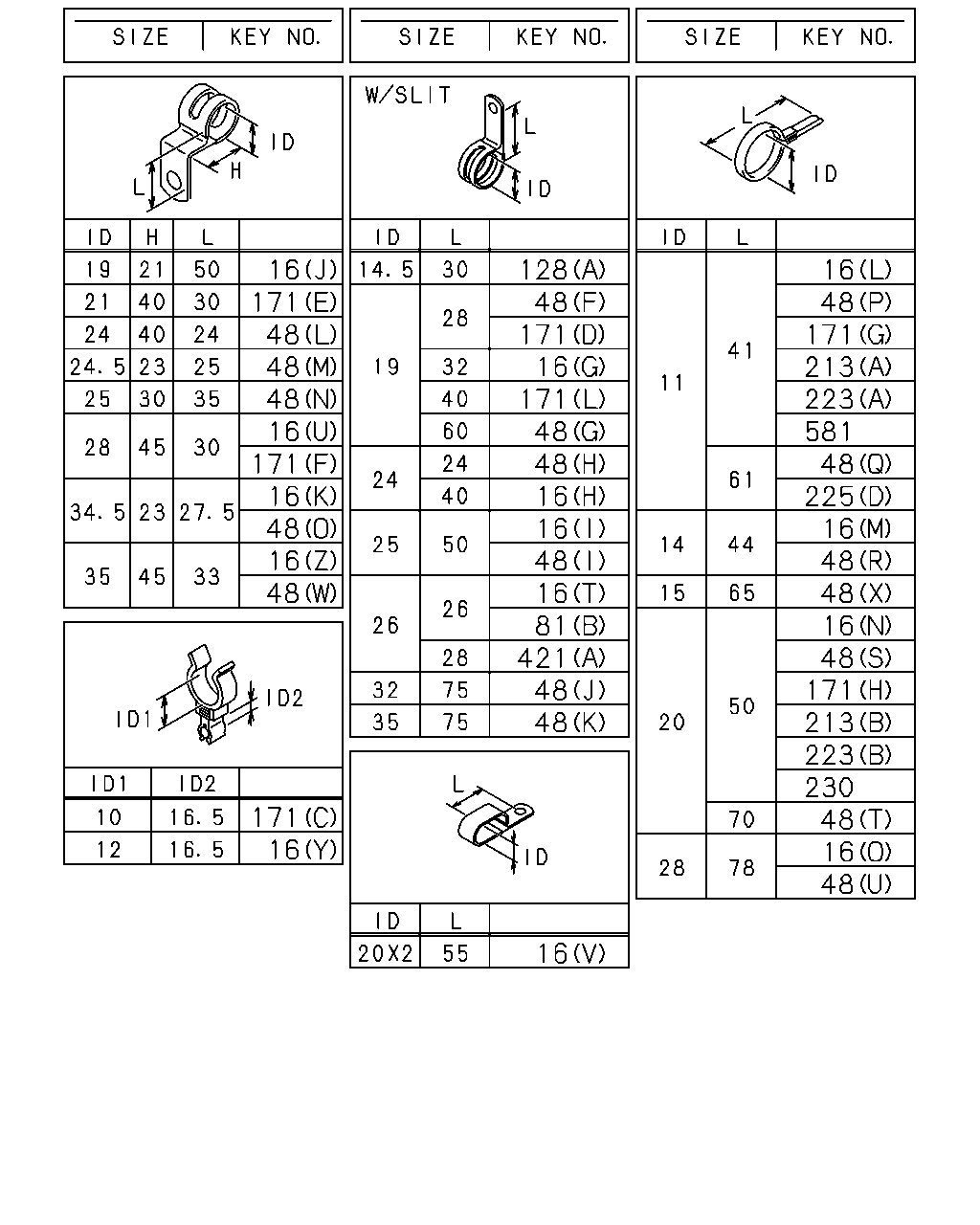

çizim 9839
16 171 48 48 48 16 171 16 48 16 48 171 16 16 48 48 421 81 16 48 16 16 48 48 171 16 171 48 128 16 48 171 213 223 581 48 225 16 48 48 16 48 171 213 223 230 48 16 48
BalonParca AdiParca NoAdetTipApplied Date A B C D
16 CLIP; HARNESS
WHEEL BASE 4200MM(42W) (L) ID=11 L=41 		1-09700-403-0 01 1 0303- ●
16 CLIP; HARNESS
(L) ID=11 L=41 		1-09700-403-0 02 1 0005-0210 ●
16 CLIP; HARNESS
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (L) ID=11 L=41 		1-09700-403-0 02 1 0005-0210 ●
16 CLIP; HARNESS
(L) ID=11 L=41 		1-09700-403-0 03 1 0211-0405 ● ● ● ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) (L) ID=11 L=41 		1-09700-403-0 03 1 0211-0405 ●
16 CLIP; HARNESS
EXC. AIR HORN<WB8> (L) ID=11 L=41 		1-09700-403-0 03 1 0406- ● ● ● ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) (L) ID=11 L=41 		1-09700-403-0 03 1 0406- ●
16 CLIP; HARNESS
POWER WINDOW<A30> (Q) L=55 		8-94432-655-0 03 1 0005-0111 ● ●
16 CLIP; HARNESS
POWER WINDOW<A30> (F) L=175 		8-97110-167-0 04 1 0005-0111 ● ●
16 CLIP; HARNESS
POWER WINDOW<A30> (Q) L=55 		8-94432-655-0 03 1 0112-0210 ● ●
16 CLIP; HARNESS
(Q) L=55 		8-94432-655-0 03 1 0211- ● ● ● ●
16 CLIP; HARNESS
POWER WINDOW<A30> (F) L=175 		8-97110-167-0 04 1 0112-0210 ● ●
16 CLIP; HARNESS
(F) L=175 		8-97110-167-0 06 1 0211- ● ● ● ●
16 CLIP; HARNESS
POWER WINDOW<A30> CUSTOM CAB(SR5) (R) 		1-82698-130-0 03 1 0005-0109 ● ●
16 CLIP; HARNESS
POWER WINDOW<A30> CUSTOM CAB(SR5) (S) 		8-97229-356-0 03 1 0110-0210 ● ●
16 CLIP; HARNESS
(S) 		8-97229-356-0 03 1 0211- ● ● ● ●
16 CLIP; HARNESS
POWER WINDOW<A30> CUSTOM CAB(SR5) (F) L=175 		8-97110-167-0 02 1 0005-0210 ● ●
16 CLIP; HARNESS
(W) ID=24 L=27 		1-09700-809-0 01 1 0211- ● ● ● ●
16 CLIP; HARNESS
(L) ID=11 L=41 		1-09700-403-0 03 1 0005-0210 ● ● ● ●
16 CLIP; HARNESS
WHEEL BASE 7100MM(71W) (L) ID=11 L=41 		1-09700-403-0 02 1 0211- ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) (L) ID=11 L=41 		1-09700-403-0 02 1 0211- ●
16 CLIP; HARNESS
(O) ID=28 L=78 		1-09700-858-0 01 1 0005-0410 ● ● ● ●
16 CLIP; HARNESS
(Z) ID=35 H=45 L=33 		1-09701-047-0 01 1 0411- ● ● ● ●
16 CLIP; HARNESS
(K) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0005- ● ● ● ●
16 CLIP; HARNESS
(C) L=300 		1-09707-001-1 01 1 0005-0305 ● ● ● ●
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 02 1 0306- ● ● ● ●
16 CLIP; HARNESS
(B) L=250 		5-09707-030-1 02 1 0005-0007 ● ● ● ●
16 CLIP; HARNESS
FULLER RT7608LL M/T(X8P) ENGINE REAR PTO(SV1) (B) L=250 		5-09707-030-1 02 1 0005-0007 ●
16 CLIP; HARNESS
(B) L=250 		5-09707-030-1 02 1 0008-0111 ●
16 CLIP; HARNESS
6HE1 TC ENG(57L),6HH1 STD ENG(65L) (B) L=250 		5-09707-030-1 02 1 0008-0111 ●
16 CLIP; HARNESS
ENGINE REAR PTO(SV1) (B) L=250 		5-09707-030-1 02 1 0008-0111 ●
16 CLIP; HARNESS
WHEEL BASE 5000MM(50W) (B) L=250 		5-09707-030-1 02 1 0008-0111 ●
16 CLIP; HARNESS
(B) L=250 		5-09707-030-1 02 1 0112-0210 ●
16 CLIP; HARNESS
6HE1 TC ENG(57L),6HH1 STD ENG(65L) (B) L=250 		5-09707-030-1 02 1 0112-0210 ●
16 CLIP; HARNESS
ENGINE REAR PTO(SV1) (B) L=250 		5-09707-030-1 02 1 0112-0210 ●
16 CLIP; HARNESS
WHEEL BASE 5000MM(50W),WHEEL BASE 5900MM(59W) (B) L=250 		5-09707-030-1 02 1 0112-0210 ●
16 CLIP; HARNESS
(B) L=250 		5-09707-030-1 02 1 0211-0305 ● ● ● ●
16 CLIP; HARNESS
FULLER RT7608LL M/T(X8P) ENGINE REAR PTO(SV1) (B) L=250 		5-09707-030-1 02 1 0211-0305 ●
16 CLIP; HARNESS
(B) L=300 		1-09707-001-1 01 1 0306- ● ● ● ●
16 CLIP; HARNESS
FULLER RT7608LL M/T(X8P) ENGINE REAR PTO(SV1) (B) L=300 		1-09707-001-1 01 1 0306- ●
16 CLIP; HARNESS
(B) L=250 		5-09707-030-1 01 1 0005-0007 ● ● ● ●
16 CLIP; HARNESS
(B) L=250 		5-09707-030-1 01 1 0008-0210 ● ● ●
16 CLIP; HARNESS
(B) L=250 		5-09707-030-1 01 1 0008-0210 ● ● ●
16 CLIP; HARNESS
(X) ID=31 L=30 		1-09700-969-0 02 1 0211- ● ● ●
16 CLIP; HARNESS
6SD1 TCN ENG(31L) (X) ID=31 L=30 		1-09700-969-0 02 1 0211- ●
16 CLIP; HARNESS
(A) L=140 		5-09707-031-1 01 1 0005-0210 ● ● ●
16 CLIP; HARNESS
6SD1 TCN ENG(31L) (A) L=140 		5-09707-031-1 01 1 0005-0210 ●
16 CLIP; HARNESS
(N) ID=20 L=50 		9-09917-430-0 03 1 0005- ● ● ●
16 CLIP; HARNESS
6SD1 TCN ENG(31L) (N) ID=20 L=50 		9-09917-430-0 03 1 0005- ●
16 CLIP; HARNESS
EURO2 SPECIFICATION<THN> (I) ID=25 L=50 		1-09701-019-0 01 1 0005-0210 ●
16 CLIP; HARNESS
EURO2 SPECIFICATION<THN> (H) ID=24 L=40 		1-09701-139-0 01 1 0005-0210 ●
16 CLIP; HARNESS
6HE1 TC ENG(57L),6HH1 STD ENG(65L) (J) ID=19 H=21 L=50 		1-09700-910-1 01 1 0005-0210 ●
16 CLIP; HARNESS
6HE1 TC ENG(57L),6HH1 STD ENG(65L) (D) L=180 		1-09707-162-1 01 1 0005-0210 ●
16 CLIP; HARNESS
6HE1 TC ENG(57L),6HH1 STD ENG(65L) (G) ID=19 L=32 		9-09525-866-0 01 1 0005-0210 ●
16 CLIP; HARNESS
6HE1 TC ENG(57L),6HH1 STD ENG(65L) (M) ID=14 L=44 		9-09917-427-0 03 1 0005-0210 ●
16 CLIP; HARNESS
6HE1 TC ENG(57L),6HH1 STD ENG(65L) WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W) (L) ID=11 L=41 		1-09700-403-0 01 1 0005-0210 ●
16 CLIP; HARNESS
WHEEL BASE 6000MM(60W) (L) ID=11 L=41 		1-09700-403-0 01 1 0211-0212 ●
16 CLIP; HARNESS
WHEEL BASE 6000MM(60W) (L) ID=11 L=41 		1-09700-403-0 04 1 0301-0405 ●
16 CLIP; HARNESS
WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) (L) ID=11 L=41 		1-09700-403-0 04 1 0406- ●
16 CLIP; HARNESS
6HK1 TCS ENG(80L) (V) ID=20X2 L=55 		1-09700-554-0 02 1 0303- ●
16 CLIP; HARNESS
6HK1 TCS ENG(80L) (J) ID=19 H=21 L=50 		1-09700-910-1 01 1 0303- ●
16 CLIP; HARNESS
6HK1 TCS ENG(80L) (U) ID=28 H=45 L=30 		1-09700-948-0 02 1 0303- ●
16 CLIP; HARNESS
6HK1 TCS ENG(80L) (T) ID=26 L=26 		1-09701-236-0 01 1 0303- ●
16 CLIP; HARNESS
6HK1 TCS ENG(80L) (D) L=180 		1-09707-162-1 01 1 0303-0303 ●
16 CLIP; HARNESS
6HK1 TCS ENG(80L) (Y) ID=12 & 16.5 		8-94400-865-0 01 1 0303- ●
16 CLIP; HARNESS
6HK1 TCS ENG(80L) (G) ID=19 L=32 		9-09525-866-0 01 1 0303-0606 ●
16 CLIP; HARNESS
6HK1 TCS ENG(80L) (G) ID=19 L=32 		0-95235-866-0 01 1 0607- ●
16 CLIP; HARNESS
6HK1 TCS ENG(80L) (M) ID=14 L=44 		9-09917-427-0 03 1 0303- ●
16 CLIP; HARNESS
A/T<X9D> (E) L=175 		1-09707-176-1 01 1 0112- ●
16 CLIP; HARNESS
WHEEL BASE 5000MM(50W),WHEEL BASE 6300MM(63W) (L) ID=11 L=41 		1-09700-403-0 05 1 0005-0111 ●
16 CLIP; HARNESS
WHEEL BASE 5000MM(50W),WHEEL BASE 5900MM(59W), WHEEL BASE 6300MM(63W) (L) ID=11 L=41 		1-09700-403-0 05 1 0112-0210 ●
16 CLIP; HARNESS
WHEEL BASE 5000MM(50W) (L) ID=11 L=41 		1-09700-403-0 05 1 0211- ●
16 CLIP; HARNESS
(P) W/SPONGE RUBBER 		1-09709-150-0 01 1 0005- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6200MM(62W) (P) ID=11 L=41 		1-09700-403-0 05 1 0408- ●
48 CLIP; FRAME HARNESS
(S) ID=20 L=50 		9-09917-430-0 23 1 0005-0210 ●
48 CLIP; FRAME HARNESS
6SD1 TCN ENG(31L) WHEEL BASE 5000MM(50W) (Q) ID=11 L=61 		1-09700-484-0 05 1 0211- ●
48 CLIP; FRAME HARNESS
(R) ID=14 L=44 		9-09917-427-0 03 1 0005-0111 ● ● ● ●
48 CLIP; FRAME HARNESS
(R) ID=14 L=44 		9-09917-427-0 03 1 0005-0111 ● ● ●
48 CLIP; FRAME HARNESS
(R) ID=14 L=44 		9-09917-427-0 03 1 0112-0210 ● ● ● ●
48 CLIP; FRAME HARNESS
6SD1 TCN ENG(31L) (R) ID=14 L=44 		9-09917-427-0 03 1 0112-0210 ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W),WHEEL BASE 7100MM(71W) (P) ID=11 L=41 		1-09700-403-0 01 1 0211- ●
48 CLIP; FRAME HARNESS
(O) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0005- ● ● ● ●
48 CLIP; FRAME HARNESS
(F) ID=19 L=28 		9-09525-856-0 01 1 0005-0111 ● ● ● ●
48 CLIP; FRAME HARNESS
(F) ID=19 L=28 		9-09525-856-0 01 1 0112-0210 ● ● ●
48 CLIP; FRAME HARNESS
FULLER M/T<X9B> (F) ID=19 L=28 		9-09525-856-0 01 1 0112-0210 ●
48 CLIP; FRAME HARNESS
(F) ID=19 L=28 		9-09525-856-0 01 1 0211-0606 ● ● ●
48 CLIP; FRAME HARNESS
EXC. A/T<X9D> (F) ID=19 L=28 		9-09525-856-0 01 1 0211-0606 ●
48 CLIP; FRAME HARNESS
(F) ID=19 L=28 		0-95235-856-0 01 1 0607- ● ● ●
48 CLIP; FRAME HARNESS
EXC. A/T<X9D> (F) ID=19 L=28 		0-95235-856-0 01 1 0607- ●
48 CLIP; FRAME HARNESS
(E) L=180 		1-09707-162-1 01 1 0202-0210 ● ● ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5900MM(59W) (P) ID=11 L=41 		1-09700-403-0 03 1 0211- ●
48 CLIP; FRAME HARNESS
(T) ID=20 L=70 		1-09700-485-0 04 1 0301- ● ● ●
48 CLIP; FRAME HARNESS
6SD1 TCN ENG(31L) (T) ID=20 L=70 		1-09700-485-0 04 1 0301- ●
48 CLIP; FRAME HARNESS
(T) ID=20 L=70 		1-09700-485-0 07 1 0005-0010 ● ●
48 CLIP; FRAME HARNESS
(T) ID=20 L=70 		1-09700-485-0 06 1 0011-0210 ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) (T) ID=20 L=70 		1-09700-485-0 06 1 0011-0210 ●
48 CLIP; FRAME HARNESS
(T) ID=20 L=70 		1-09700-485-0 10 1 0211-0212 ● ● ●
48 CLIP; FRAME HARNESS
6SD1 TCN ENG(31L) (T) ID=20 L=70 		1-09700-485-0 10 1 0211-0212 ●
48 CLIP; FRAME HARNESS
6SD1 TCN ENG(31L) (T) ID=20 L=70 		1-09700-485-0 06 1 0301-0302 ● ● ● ●
48 CLIP; FRAME HARNESS
6SD1 TCN ENG(31L) (T) ID=20 L=70 		1-09700-485-0 06 1 0303- ● ● ● ●
48 CLIP; FRAME HARNESS
6HK1 TCS ENG(80L) WHEEL BASE 4200MM(42W) (T) ID=20 L=70 		1-09700-485-0 06 1 0303- ●
48 CLIP; FRAME HARNESS
(T) ID=20 L=70 		1-09700-485-0 04 1 0005-0111 ● ● ●
48 CLIP; FRAME HARNESS
6HE1 TC ENG(57L),6HH1 STD ENG(65L) (T) ID=20 L=70 		1-09700-485-0 04 1 0005-0111 ●
48 CLIP; FRAME HARNESS
(T) ID=20 L=70 		1-09700-485-0 04 1 0112-0210 ● ●
48 CLIP; FRAME HARNESS
6HE1 TC ENG(57L),6HH1 STD ENG(65L) (T) ID=20 L=70 		1-09700-485-0 04 1 0112-0210 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) (T) ID=20 L=70 		1-09700-485-0 04 1 0112-0210 ●
48 CLIP; FRAME HARNESS
(U) ID=28 L=78 		1-09700-858-0 03 1 0005-0702 ● ● ●
48 CLIP; FRAME HARNESS
6SD1 TCN ENG(31L) (U) ID=28 L=78 		1-09700-858-0 03 1 0005-0702 ●
48 CLIP; FRAME HARNESS
(U) ID=28 L=78 		1-09700-858-0 04 1 0703- ● ● ● ●
48 CLIP; FRAME HARNESS
(G) ID=19 L=60 		9-09525-896-0 01 1 0005-0606 ● ● ●
48 CLIP; FRAME HARNESS
6SD1 TCN ENG(31L) (G) ID=19 L=60 		9-09525-896-0 01 1 0005-0606 ●
48 CLIP; FRAME HARNESS
(G) ID=19 L=60 		0-95235-896-0 01 1 0607- ● ● ●
48 CLIP; FRAME HARNESS
6SD1 TCN ENG(31L) (G) ID=19 L=60 		0-95235-896-0 01 1 0607- ●
48 CLIP; FRAME HARNESS
(S) ID=20 L=50 		9-09917-430-0 03 1 0005-0210 ● ● ●
48 CLIP; FRAME HARNESS
6SD1 TCN ENG(31L) (S) ID=20 L=50 		9-09917-430-0 03 1 0005-0210 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6000MM(60W) (S) ID=20 L=50 		9-09917-430-0 21 1 0211-0212 ●
48 CLIP; FRAME HARNESS
6SD1 TCN ENG(31L) WHEEL BASE 6000MM(60W) (S) ID=20 L=50 		9-09917-430-0 21 1 0301-0405 ●
48 CLIP; FRAME HARNESS
6SD1 TCN ENG(31L) WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) (S) ID=20 L=50 		9-09917-430-0 21 1 0406- ●
48 CLIP; FRAME HARNESS
(K) ID=35 L=75 		1-09700-608-2 01 1 0005-0210 ● ● ●
48 CLIP; FRAME HARNESS
6SD1 TCN ENG(31L) (K) ID=35 L=75 		1-09700-608-2 01 1 0005-0210 ●
48 CLIP; FRAME HARNESS
(J) ID=32 L=75 		1-09700-704-1 02 1 0005-0210 ● ● ●
48 CLIP; FRAME HARNESS
6SD1 TCN ENG(31L) (J) ID=32 L=75 		1-09700-704-1 02 1 0005-0210 ●
48 CLIP; FRAME HARNESS
(E) L=180 		1-09707-162-1 01 1 0005-0104 ● ● ●
48 CLIP; FRAME HARNESS
6SD1 TCN ENG(31L) (E) L=180 		1-09707-162-1 01 1 0005-0104 ●
48 CLIP; FRAME HARNESS
(C) L=300 		1-09707-001-1 01 1 0105-0209 ● ● ●
48 CLIP; FRAME HARNESS
6SD1 TCN ENG(31L) (C) L=300 		1-09707-001-1 01 1 0105-0209 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6000MM(60W) (S) ID=20 L=50 		9-09917-430-0 21 1 0005-0111 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6300MM(63W) (S) ID=20 L=50 		9-09917-430-0 21 1 0005-0111 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6000MM(60W) (S) ID=20 L=50 		9-09917-430-0 21 1 0112-0202 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) (S) ID=20 L=50 		9-09917-430-0 21 1 0112-0202 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6000MM(60W) (S) ID=20 L=50 		9-09917-430-0 21 1 0203-0210 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6300MM(63W) (S) ID=20 L=50 		9-09917-430-0 21 1 0203-0210 ●
48 CLIP; FRAME HARNESS
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (N) ID=25 H=30 L=35 		1-09700-875-0 01 1 0005-0005 ●
48 CLIP; FRAME HARNESS
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (I) ID=25 L=50 		1-09700-976-0 02 1 0005-0210 ●
48 CLIP; FRAME HARNESS
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (L) ID=24 H=40 L=24 		1-09701-243-0 01 1 0005-0005 ●
48 CLIP; FRAME HARNESS
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (L) ID=24 H=40 L=24 		1-09701-243-0 02 1 0006-0210 ●
48 CLIP; FRAME HARNESS
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (D) L=350 		1-09707-183-0 01 1 0005-0210 ●
48 CLIP; FRAME HARNESS
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (B) L=250 		5-09707-030-1 01 1 0005-0210 ●
48 CLIP; FRAME HARNESS
EURO2 SPECIFICATION<THN> (B) L=250 		5-09707-030-1 01 1 0005-0210 ●
48 CLIP; FRAME HARNESS
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (A) L=140 		5-09707-031-1 03 1 0005-0210 ●
48 CLIP; FRAME HARNESS
6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) (P) ID=11 L=41 		1-09700-403-0 01 1 0005-0009 ●
48 CLIP; FRAME HARNESS
6SD1 TCN ENG(31L) (P) ID=11 L=41 		1-09700-403-0 01 1 0005-0009 ●
48 CLIP; FRAME HARNESS
6SD1 TCN ENG(31L) (P) ID=11 L=41 		1-09700-403-0 01 1 0010-0210 ●
48 CLIP; FRAME HARNESS
6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) (P) ID=11 L=41 		1-09700-403-0 01 1 0010-0210 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) (P) ID=11 L=41 		1-09700-403-0 01 1 0010-0210 ●
48 CLIP; FRAME HARNESS
6SD1 TCN ENG(31L) (P) ID=11 L=41 		1-09700-403-0 04 1 0211-0302 ● ● ●
48 CLIP; FRAME HARNESS
6SD1 TCN ENG(31L) (P) ID=11 L=41 		1-09700-403-0 04 1 0211-0302 ●
48 CLIP; FRAME HARNESS
6SD1 TCN ENG(31L) (P) ID=11 L=41 		1-09700-403-0 04 1 0303-0405 ● ● ●
48 CLIP; FRAME HARNESS
6HK1 TCS ENG(80L) WHEEL BASE 6000MM(60W) (P) ID=11 L=41 		1-09700-403-0 04 1 0303-0405 ●
48 CLIP; FRAME HARNESS
6SD1 TCN ENG(31L) (P) ID=11 L=41 		1-09700-403-0 04 1 0303-0405 ●
48 CLIP; FRAME HARNESS
6SD1 TCN ENG(31L) (P) ID=11 L=41 		1-09700-403-0 04 1 0406-0407 ● ● ●
48 CLIP; FRAME HARNESS
6SD1 TCN ENG(31L) (P) ID=11 L=41 		1-09700-403-0 04 1 0406-0407 ●
48 CLIP; FRAME HARNESS
6HK1 TCS ENG(80L) WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) (P) ID=11 L=41 		1-09700-403-0 04 1 0406-0407 ●
48 CLIP; FRAME HARNESS
6SD1 TCN ENG(31L) (P) ID=11 L=41 		1-09700-403-0 04 1 0408- ● ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6000MM(60W) (P) ID=11 L=41 		1-09700-403-0 04 1 0408- ●
48 CLIP; FRAME HARNESS
6HE1 TC ENG(57L),6HH1 STD ENG(65L) (P) ID=11 L=41 		1-09700-403-0 08 1 0005-0210 ●
48 CLIP; FRAME HARNESS
6HE1 TC ENG(57L),6HH1 STD ENG(65L) (U) ID=28 L=78 		1-09700-858-0 04 1 0005-0210 ●
48 CLIP; FRAME HARNESS
6HE1 TC ENG(57L),6HH1 STD ENG(65L) (M) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0005-0010 ●
48 CLIP; FRAME HARNESS
(M) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0011-0210 ● ● ● ●
48 CLIP; FRAME HARNESS
6HE1 TC ENG(57L),6HH1 STD ENG(65L) (R) ID=14 L=44 		9-09917-427-0 02 1 0005-0210 ●
48 CLIP; FRAME HARNESS
6HE1 TC ENG(57L),6HH1 STD ENG(65L) (S) ID=20 L=50 		9-09917-430-0 01 1 0005-0210 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) (S) ID=20 L=50 		9-09917-430-0 13 1 0211-0302 ●
48 CLIP; FRAME HARNESS
6HE1 TC ENG(57L),6HH1 STD ENG(65L) WHEEL BASE 4200MM(42W) (S) ID=20 L=50 		9-09917-430-0 13 1 0303- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) (S) ID=20 L=50 		9-09917-430-0 13 1 0303- ●
48 CLIP; FRAME HARNESS
6HE1 TC ENG(57L),6HH1 STD ENG(65L) WHEEL BASE 4200MM(42W) (S) ID=20 L=50 		9-09917-430-0 13 1 0005-0210 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) (S) ID=20 L=50 		9-09917-430-0 13 1 0005-0210 ●
48 CLIP; FRAME HARNESS
6SD1 TCN ENG(31L) (S) ID=20 L=50 		9-09917-430-0 03 1 0211-0302 ● ● ● ●
48 CLIP; FRAME HARNESS
6SD1 TCN ENG(31L) (S) ID=20 L=50 		9-09917-430-0 03 1 0211-0302 ●
48 CLIP; FRAME HARNESS
(S) ID=20 L=50 		9-09917-430-0 03 1 0303- ● ● ● ●
48 CLIP; FRAME HARNESS
(S) ID=20 L=50 		9-09917-430-0 03 1 0303- ●
48 CLIP; FRAME HARNESS
6HK1 TCS ENG(80L) (P) ID=11 L=41 		1-09700-403-0 07 1 0303- ●
48 CLIP; FRAME HARNESS
6HK1 TCS ENG(80L) (X) ID=15 L=65 		1-09700-466-0 01 1 0303- ●
48 CLIP; FRAME HARNESS
6HK1 TCS ENG(80L) (U) ID=28 L=78 		1-09700-858-0 04 1 0303-0702 ●
48 CLIP; FRAME HARNESS
6HK1 TCS ENG(80L) (A) L=140 		5-09707-031-1 07 1 0303- ●
48 CLIP; FRAME HARNESS
6HK1 TCS ENG(80L) (R) ID=14 L=44 		9-09917-427-0 01 1 0303- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (T) ID=20 L=70 		1-09700-485-0 02 1 0303- ●
48 CLIP; FRAME HARNESS
6HK1 TCS ENG(80L) WHEEL BASE 6000MM(60W) (T) ID=20 L=70 		1-09700-485-0 08 1 0303-0405 ●
48 CLIP; FRAME HARNESS
6HK1 TCS ENG(80L) WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) (T) ID=20 L=70 		1-09700-485-0 08 1 0406- ●
48 CLIP; FRAME HARNESS
6HK1 TCS ENG(80L) WHEEL BASE 6000MM(60W) (S) ID=20 L=50 		9-09917-430-0 24 1 0303-0405 ●
48 CLIP; FRAME HARNESS
6HK1 TCS ENG(80L) WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) (S) ID=20 L=50 		9-09917-430-0 24 1 0406- ●
48 CLIP; FRAME HARNESS
6SD1 TCN ENG(31L) (Q) ID=11 L=61 		1-09700-484-0 08 1 0005-0210 ●
48 CLIP; FRAME HARNESS
6SD1 TCN ENG(31L) WHEEL BASE 6000MM(60W) (Q) ID=11 L=61 		1-09700-484-0 06 1 0211-0405 ●
48 CLIP; FRAME HARNESS
6SD1 TCN ENG(31L) WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) (Q) ID=11 L=61 		1-09700-484-0 06 1 0406- ●
48 CLIP; FRAME HARNESS
6SD1 TCN ENG(31L) (T) ID=20 L=70 		1-09700-485-0 11 1 0005-0010 ●
48 CLIP; FRAME HARNESS
(T) ID=20 L=70 		1-09700-485-0 11 1 0005-0010 ●
48 CLIP; FRAME HARNESS
6SD1 TCN ENG(31L) (T) ID=20 L=70 		1-09700-485-0 10 1 0011-0111 ●
48 CLIP; FRAME HARNESS
(T) ID=20 L=70 		1-09700-485-0 10 1 0011-0111 ●
48 CLIP; FRAME HARNESS
6SD1 TCN ENG(31L) (T) ID=20 L=70 		1-09700-485-0 10 1 0112-0210 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) (T) ID=20 L=70 		1-09700-485-0 10 1 0112-0210 ●
48 CLIP; FRAME HARNESS
(W) ID=35 H=45 L=33 		1-09701-047-0 02 1 0211- ● ● ●
48 CLIP; FRAME HARNESS
6SD1 TCN ENG(31L) (W) ID=35 H=45 L=33 		1-09701-047-0 02 1 0211- ●
48 CLIP; FRAME HARNESS
(P) ID=11 L=41 		1-09700-403-0 02 1 0005-0009 ●
48 CLIP; FRAME HARNESS
(P) ID=11 L=41 		1-09700-403-0 02 1 0010-0111 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5900MM(59W) (P) ID=11 L=41 		1-09700-403-0 03 1 0112-0210 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 7100MM(71W) (S) ID=20 L=50 		9-09917-430-0 23 1 0211- ● ●
48 CLIP; FRAME HARNESS
(P) ID=11 L=41 		1-09700-403-0 02 1 0112-0210 ●
48 CLIP; FRAME HARNESS
A/T<X9D> (P) ID=11 L=41 		1-09700-403-0 02 1 0211- ●
48 CLIP; FRAME HARNESS
A/T<X9D> (V) ID=31 L=30 		1-09700-969-0 01 1 0112-0210 ●
48 CLIP; FRAME HARNESS
A/T<X9D> (H) ID=24 L=24 		1-09701-001-1 01 1 0112- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) (Q) ID=11 L=61 		1-09700-484-0 07 1 0005-0111 ●
48 CLIP; FRAME HARNESS
6SD1 TCN ENG(31L) WHEEL BASE 5000MM(50W) (Q) ID=11 L=61 		1-09700-484-0 07 1 0112-0210 ●
48 CLIP; FRAME HARNESS
A/T<X9D> (Q) ID=11 L=61 		1-09700-484-0 02 1 0211- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5900MM(59W) (S) ID=20 L=50 		9-09917-430-0 20 1 0203- ●
48 CLIP; FRAME HARNESS
(Q) ID=11 L=61 		1-09700-484-0 05 1 0005-0210 ●
48 CLIP; FRAME HARNESS
(Q) ID=11 L=61 		1-09700-484-0 03 1 0211- ●
48 CLIP; FRAME HARNESS
(T) ID=20 L=70 		1-09700-485-0 05 1 0005-0010 ●
48 CLIP; FRAME HARNESS
(S) ID=20 L=50 		9-09917-430-0 08 1 0005-0112 ●
48 CLIP; FRAME HARNESS
(S) ID=20 L=50 		9-09917-430-0 09 1 0201- ●
81 CLIP; HARNESS
(A) L=140 		5-09707-031-1 02 1 0005- ● ● ● ●
81 CLIP; HARNESS
(B) ID=26 L=26 		1-09701-236-0 01 1 0211- ● ● ● ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=16 L=20 		9-09525-535-0 01 1 0005-0606 ● ● ● ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=16 L=20 		0-95235-535-0 01 1 0607- ● ● ● ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(C) ID=19 L=32 		9-09525-862-0 01 1 0005-0011 ● ● ● ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=14.5 L=30 		9-09916-893-1 01 1 0012- ● ● ● ●
171 CLIP; STARTER HARNESS
(K) ID=18 L=44 		8-94225-185-0 01 1 0005-0210 ● ● ● ●
171 CLIP; STARTER HARNESS
(K) ID=18 L=44 		8-94225-185-0 01 1 0211-0801 ● ● ●
171 CLIP; STARTER HARNESS
6SD1 TCN ENG(31L) (K) ID=18 L=44 		8-94225-185-0 01 1 0211-0801 ●
171 CLIP; STARTER HARNESS
(K) ID=18 L=44 		8-97367-985-1 01 1 0802- ● ● ●
171 CLIP; STARTER HARNESS
6SD1 TCN ENG(31L) (K) ID=18 L=44 		8-97367-985-1 01 1 0802- ●
171 CLIP; STARTER HARNESS
(C) ID=10 & 16.5 		8-94360-745-0 01 1 0201- ● ● ●
171 CLIP; STARTER HARNESS
6SD1 TCN ENG(31L) (C) ID=10 & 16.5 		8-94360-745-0 01 1 0201- ●
171 CLIP; STARTER HARNESS
FULLER FS8209 DD M/T(Y2S) (G) ID=11 L=41 		1-09700-403-0 01 1 0005-0111 ● ●
171 CLIP; STARTER HARNESS
(G) ID=11 L=41 		1-09700-403-0 01 1 0005-0111 ●
171 CLIP; STARTER HARNESS
FULLER RT7608LL M/T(X8P) (G) ID=11 L=41 		1-09700-403-0 01 1 0005-0111 ●
171 CLIP; STARTER HARNESS
FULLER FS8209 DD M/T(Y2S) (G) ID=11 L=41 		1-09700-403-0 01 1 0112-0210 ● ● ●
171 CLIP; STARTER HARNESS
FULLER RT7608LL M/T(X8P) (G) ID=11 L=41 		1-09700-403-0 01 1 0112-0210 ●
171 CLIP; STARTER HARNESS
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) (G) ID=11 L=41 		1-09700-403-0 01 1 0211- ● ● ●
171 CLIP; STARTER HARNESS
6SD1 TCN ENG(31L) FULLER RT7608LL M/T(X8P) (G) ID=11 L=41 		1-09700-403-0 01 1 0211- ●
171 CLIP; STARTER HARNESS
FULLER FS8209 DD M/T(Y2S) (E) ID=21 L=30 H=40 		1-09700-991-1 02 1 0005-0111 ● ●
171 CLIP; STARTER HARNESS
6SD1 TCN ENG(31L) (E) ID=21 L=30 H=40 		1-09700-991-1 02 1 0005-0111 ●
171 CLIP; STARTER HARNESS
FULLER FS8209 DD M/T(Y2S) (E) ID=21 L=30 H=40 		1-09700-991-1 02 1 0112-0210 ● ● ●
171 CLIP; STARTER HARNESS
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) (E) ID=21 L=30 H=40 		1-09700-991-1 02 1 0211- ● ● ●
171 CLIP; STARTER HARNESS
FULLER FS8209 DD M/T(Y2S) (B) L=180 		1-09707-162-1 02 1 0005-0111 ● ●
171 CLIP; STARTER HARNESS
6SD1 TCN ENG(31L) (B) L=180 		1-09707-162-1 02 1 0005-0111 ●
171 CLIP; STARTER HARNESS
FULLER FS8209 DD M/T(Y2S) (B) L=180 		1-09707-162-1 02 1 0112-0210 ● ● ●
171 CLIP; STARTER HARNESS
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) (B) L=180 		1-09707-162-1 02 1 0211-0302 ● ● ●
171 CLIP; STARTER HARNESS
(B) L=180 		1-09707-162-1 02 1 0303-0309 ● ● ●
171 CLIP; STARTER HARNESS
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) (B) L=180 		1-09707-162-1 02 1 0310- ● ● ●
171 CLIP; STARTER HARNESS
FULLER FS8209 DD M/T(Y2S) (D) ID=19 L=28 		9-09525-856-0 01 1 0005-0111 ● ●
171 CLIP; STARTER HARNESS
(D) ID=19 L=28 		9-09525-856-0 01 1 0005-0111 ●
171 CLIP; STARTER HARNESS
FULLER RT7608LL M/T(X8P) (D) ID=19 L=28 		9-09525-856-0 01 1 0005-0111 ●
171 CLIP; STARTER HARNESS
FULLER FS8209 DD M/T(Y2S) (D) ID=19 L=28 		9-09525-856-0 01 1 0112-0210 ● ● ●
171 CLIP; STARTER HARNESS
(D) ID=19 L=28 		9-09525-856-0 01 1 0112-0210 ●
171 CLIP; STARTER HARNESS
(D) ID=19 L=28 		9-09525-856-0 01 1 0211-0606 ● ● ● ●
171 CLIP; STARTER HARNESS
(D) ID=19 L=28 		0-95235-856-0 01 1 0607- ● ● ● ●
171 CLIP; STARTER HARNESS
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (E) ID=21 L=30 H=40 		1-09700-991-1 01 1 0005-0210 ●
171 CLIP; STARTER HARNESS
6HH1 STD ENG(65L) (E) ID=21 L=30 H=40 		1-09700-991-1 01 1 0005-0210 ●
171 CLIP; STARTER HARNESS
6HE1 TC ENG(57L),6HH1 STD ENG(65L) (A) L=300 		1-09707-001-1 01 1 0005-0201 ●
171 CLIP; STARTER HARNESS
(A) L=300 		1-09707-001-1 01 1 0202-0210 ● ● ● ●
171 CLIP; STARTER HARNESS
(A) L=300 		1-09707-001-1 01 1 0211- ● ● ● ●
171 CLIP; STARTER HARNESS
6SD1 TCN ENG(31L) (A) L=300 		1-09707-001-1 01 1 0211- ● ● ● ●
171 CLIP; STARTER HARNESS
6HE1 TC ENG(57L),6HH1 STD ENG(65L) (B) L=180 		1-09707-162-1 01 1 0005-0210 ●
171 CLIP; STARTER HARNESS
FULLER RT7608LL M/T(X8P) (B) L=180 		1-09707-162-1 01 1 0005-0210 ●
171 CLIP; STARTER HARNESS
FULLER RT7608LL M/T(X8P) (B) L=180 		1-09707-162-1 01 1 0211-0309 ●
171 CLIP; STARTER HARNESS
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) (B) L=180 		1-09707-162-1 01 1 0310-0609 ●
171 CLIP; STARTER HARNESS
FULLER RT7608LL M/T(X8P) (B) L=180 		1-09707-162-1 01 1 0310-0609 ●
171 CLIP; STARTER HARNESS
6HK1 TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A),FULLER FSO5206B OD M/T(Y4V) (B) L=180 		1-09707-162-1 01 1 0610- ●
171 CLIP; STARTER HARNESS
FULLER RT7608LL M/T(X8P) (B) L=180 		1-09707-162-1 01 1 0610- ●
171 CLIP; STARTER HARNESS
6HE1 TC ENG(57L),6HH1 STD ENG(65L) (J) OD=9 H=6 		1-09709-178-0 01 1 0005-0210 ●
171 CLIP; STARTER HARNESS
FULLER RT7608LL M/T(X8P) (J) OD=9 H=6 		1-09709-178-0 01 1 0005-0210 ●
171 CLIP; STARTER HARNESS
FULLER RT7608LL M/T(X8P) (J) OD=9 H=6 		1-09709-178-0 01 1 0211-0309 ●
171 CLIP; STARTER HARNESS
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) (J) OD=9 H=6 		1-09709-178-0 01 1 0310-0609 ●
171 CLIP; STARTER HARNESS
FULLER RT7608LL M/T(X8P) (J) OD=9 H=6 		1-09709-178-0 01 1 0310-0609 ●
171 CLIP; STARTER HARNESS
6HK1 TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A),FULLER FSO5206B OD M/T(Y4V) (J) OD=9 H=6 		1-09709-178-0 01 1 0610- ●
171 CLIP; STARTER HARNESS
FULLER RT7608LL M/T(X8P) (J) OD=9 H=6 		1-09709-178-0 01 1 0610- ●
171 CLIP; STARTER HARNESS
6HE1 TC ENG(57L),6HH1 STD ENG(65L) (D) ID=19 L=28 		9-09525-856-0 04 1 0005-0210 ●
171 CLIP; STARTER HARNESS
6HK1 TCS ENG(80L) (E) ID=21 L=30 H=40 		1-09700-991-1 01 1 0303-0303 ●
171 CLIP; STARTER HARNESS
6HK1 TCS ENG(80L) (D) ID=19 L=28 		9-09525-856-0 02 1 0303-0303 ●
171 CLIP; STARTER HARNESS
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) (D) ID=19 L=28 		9-09525-856-0 02 1 0304-0309 ●
171 CLIP; STARTER HARNESS
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) (D) ID=19 L=28 		9-09525-856-0 05 1 0310-0606 ●
171 CLIP; STARTER HARNESS
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) (D) ID=19 L=28 		0-95235-856-0 05 1 0607-0609 ●
171 CLIP; STARTER HARNESS
6HK1 TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A),FULLER FSO5206B OD M/T(Y4V) (D) ID=19 L=28 		0-95235-856-0 05 1 0610- ●
171 CLIP; STARTER HARNESS
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) (L) ID=19 L=40 		9-09525-876-0 02 1 0303-0309 ●
171 CLIP; STARTER HARNESS
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) (E) ID=21 L=30 H=40 		1-09700-991-1 01 1 0310-0609 ●
171 CLIP; STARTER HARNESS
6HK1 TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A),FULLER FSO5206B OD M/T(Y4V) (E) ID=21 L=30 H=40 		1-09700-991-1 01 1 0610- ●
171 CLIP; STARTER HARNESS
A/T<X9D> (F) ID=28 H=45 L=30 		1-09700-948-0 01 1 0112- ●
171 CLIP; STARTER HARNESS
A/T<X9D> (H) ID=20 L=50 		9-09917-430-0 02 1 0112- ●
171 CLIP; STARTER HARNESS
FULLER RT7608LL M/T(X8P) (I) ID=11 L=20 		9-09525-035-0 01 1 0005-0606 ●
171 CLIP; STARTER HARNESS
FULLER RT7608LL M/T(X8P) (I) ID=11 L=20 		0-95235-035-0 01 1 0607- ●
171 CLIP; STARTER HARNESS
FULLER RT7608LL M/T(X8P) (H) ID=20 L=50 		9-09917-430-0 01 1 0005- ●
213 CLIP; END CROSS HARNESS
(B) ID=20 L=50 		9-09917-430-0 03 1 0005- ● ● ● ●
213 CLIP; END CROSS HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 0005- ●
223 CLIP; AIR TANK HARNESS
(C) OD=9 H=17.5 		1-09709-181-0 01 1 0005- ● ● ● ●
223 CLIP; AIR TANK HARNESS
(B) ID=20 L=50 		9-09917-430-0 03 1 0005-0005 ● ● ● ●
223 CLIP; AIR TANK HARNESS
(B) ID=20 L=50 		9-09917-430-0 04 1 0006-0111 ● ● ●
223 CLIP; AIR TANK HARNESS
6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W) (B) ID=20 L=50 		9-09917-430-0 04 1 0006-0111 ●
223 CLIP; AIR TANK HARNESS
6HH1 STD ENG(65L) WHEEL BASE 6000MM(60W) (B) ID=20 L=50 		9-09917-430-0 04 1 0006-0111 ●
223 CLIP; AIR TANK HARNESS
(B) ID=20 L=50 		9-09917-430-0 04 1 0112-0210 ● ●
223 CLIP; AIR TANK HARNESS
6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W) (B) ID=20 L=50 		9-09917-430-0 04 1 0112-0210 ●
223 CLIP; AIR TANK HARNESS
6HH1 STD ENG(65L) WHEEL BASE 6000MM(60W) (B) ID=20 L=50 		9-09917-430-0 04 1 0112-0210 ●
223 CLIP; AIR TANK HARNESS
WHEEL BASE 5000MM(50W),WHEEL BASE 5900MM(59W) (B) ID=20 L=50 		9-09917-430-0 04 1 0112-0210 ●
223 CLIP; AIR TANK HARNESS
(B) ID=20 L=50 		9-09917-430-0 04 1 0211-0302 ● ● ●
223 CLIP; AIR TANK HARNESS
(B) ID=20 L=50 		9-09917-430-0 04 1 0303-0305 ● ● ●
223 CLIP; AIR TANK HARNESS
WHEEL BASE 4200MM(42W) (B) ID=20 L=50 		9-09917-430-0 04 1 0303-0305 ●
223 CLIP; AIR TANK HARNESS
(B) ID=20 L=50 		9-09917-430-0 05 1 0306- ● ● ●
223 CLIP; AIR TANK HARNESS
WHEEL BASE 4200MM(42W) (B) ID=20 L=50 		9-09917-430-0 05 1 0306- ●
223 CLIP; AIR TANK HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 0005- ● ● ●
223 CLIP; AIR TANK HARNESS
6SD1 TCN ENG(31L) (A) ID=11 L=41 		1-09700-403-0 01 1 0005- ●
223 CLIP; AIR TANK HARNESS
6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W) (B) ID=20 L=50 		9-09917-430-0 01 1 0005-0005 ●
225 CLIP; AIR TANK HARNESS
(D) ID=11 L=61 		1-09700-484-0 02 1 0005-0111 ● ● ● ●
225 CLIP; AIR TANK HARNESS
WHEEL BASE 6000MM(60W) (D) ID=11 L=61 		1-09700-484-0 02 1 0005-0111 ●
225 CLIP; AIR TANK HARNESS
(D) ID=11 L=61 		1-09700-484-0 02 1 0112-0210 ● ●
225 CLIP; AIR TANK HARNESS
WHEEL BASE 6000MM(60W) (D) ID=11 L=61 		1-09700-484-0 02 1 0112-0210 ●
225 CLIP; AIR TANK HARNESS
WHEEL BASE 5000MM(50W),WHEEL BASE 5900MM(59W) (D) ID=11 L=61 		1-09700-484-0 02 1 0112-0210 ●
225 CLIP; AIR TANK HARNESS
(D) ID=11 L=61 		1-09700-484-0 02 1 0211-0405 ● ● ●
225 CLIP; AIR TANK HARNESS
WHEEL BASE 6000MM(60W) (D) ID=11 L=61 		1-09700-484-0 02 1 0211-0405 ●
225 CLIP; AIR TANK HARNESS
(D) ID=11 L=61 		1-09700-484-0 02 1 0406- ● ● ●
225 CLIP; AIR TANK HARNESS
WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) (D) ID=11 L=61 		1-09700-484-0 02 1 0406- ●
225 CLIP; AIR TANK HARNESS
(C) L=180 		1-09707-162-1 01 1 0005-0112 ● ● ● ●
225 CLIP; AIR TANK HARNESS
(B) L=600 		1-09707-107-1 01 1 0201- ● ● ● ●
225 CLIP; AIR TANK HARNESS
6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W) (A) L=140 		5-09707-031-1 01 1 0005-0210 ●
225 CLIP; AIR TANK HARNESS
(E) ID=5-12 L=18 		1-09709-287-0 01 1 0005- ●
230 CLIP; C/MBR HARNESS
ID=20 L=50 		9-09917-430-0 02 1 0005- ● ● ● ●
421 CLIP; FLOOR HARNESS
(B) L=20 		1-09987-246-2 07 1 0005-0101 ● ● ● ●
421 CLIP; FLOOR HARNESS
(B) L=20 		1-09987-246-2 01 1 0102- ● ● ● ●
421 CLIP; FLOOR HARNESS
A/T<X9D> (A) ID=26 L=28 		9-09917-538-1 01 1 0112- ●
581 CLIP; HARNESS,REAR SUSP
6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) ID=11 L=41 		1-09700-403-0 03 1 0005-0210 ●
581 CLIP; HARNESS,REAR SUSP
6SD1 TCN ENG(31L) ID=11 L=41 		1-09700-403-0 03 1 0005-0210 ●
581 CLIP; HARNESS,REAR SUSP
WHEEL BASE 6000MM(60W) ID=11 L=41 		1-09700-403-0 03 1 0211-0405 ●
581 CLIP; HARNESS,REAR SUSP
WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) ID=11 L=41 		1-09700-403-0 03 1 0406- ●
çizim 44877
38 38 38 139 313 38 139 242 38 38 139 313 139 139 38 38 133 239 150 516 150 150 239 239 38 88 173 239 239 38 88 133
BalonParca AdiParca NoAdetTipApplied Date A B C D
38 BOLT; CLIP,HARNESS
6HK1 TCS ENG(80L) (D) M8X25 FLANGE 		0-28680-825-0 01 1 0411-0512 ●
38 BOLT; CLIP,HARNESS
6HK1 TCS ENG(80L) (D) M8X25 FLANGE 		0-28650-825-0 01 1 0601- ●
38 BOLT; CLIP,HARNESS
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) (A) M8X16 FLANGE 		0-28080-816-0 02 1 0310-0512 ●
38 BOLT; CLIP,HARNESS
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) (A) M8X16 FLANGE 		0-28050-816-0 02 1 0601-0609 ●
38 BOLT; CLIP,HARNESS
6HK1 TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A),FULLER FSO5206B OD M/T(Y4V) (A) M8X16 FLANGE 		0-28050-816-0 02 1 0610- ●
38 BOLT; CLIP,HARNESS
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) (C) M8X20 FLANGE 		0-28680-820-0 04 1 0304-0512 ●
38 BOLT; CLIP,HARNESS
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) (C) M8X20 FLANGE 		0-28650-820-0 04 1 0601-0609 ●
38 BOLT; CLIP,HARNESS
6HK1 TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A),FULLER FSO5206B OD M/T(Y4V) (C) M8X20 FLANGE 		0-28650-820-0 04 1 0610- ●
38 BOLT; CLIP,HARNESS
(D) M8X25 FLANGE 		0-28680-825-0 01 1 0005-0302 ● ● ● ●
38 BOLT; CLIP,HARNESS
(D) M8X25 FLANGE 		0-28680-825-0 01 1 0303-0410 ● ● ● ●
38 BOLT; CLIP,HARNESS
6HK1 TCS ENG(80L) (D) M8X25 FLANGE 		0-28680-825-0 01 1 0303-0410 ●
38 BOLT; CLIP,HARNESS
(D) M8X25 FLANGE 		0-28680-825-0 02 1 0411-0512 ● ● ● ●
38 BOLT; CLIP,HARNESS
(D) M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ● ● ●
38 BOLT; CLIP,HARNESS
(E) M8X30 FLANGE 		0-28680-830-0 02 1 0005-0201 ● ● ● ●
38 BOLT; CLIP,HARNESS
(E) M8X30 FLANGE 		0-28680-830-0 03 1 0202-0210 ● ● ● ●
38 BOLT; CLIP,HARNESS
ALLISON MD3560P A/T(Y3B) (E) M8X30 FLANGE 		0-28680-830-0 03 1 0202-0210 ●
38 BOLT; CLIP,HARNESS
(I) M8X20 FLANGE 		0-28080-820-0 04 1 0211-0306 ● ● ●
38 BOLT; CLIP,HARNESS
6SD1 TCN ENG(31L) (I) M8X20 FLANGE 		0-28080-820-0 04 1 0211-0306 ●
38 BOLT; CLIP,HARNESS
(I) M8X20 FLANGE 		0-28080-820-0 03 1 0307-0512 ● ● ● ●
38 BOLT; CLIP,HARNESS
(I) M8X20 FLANGE 		0-28050-820-0 03 1 0601- ● ● ● ●
38 BOLT; CLIP,HARNESS
(F) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0005-0210 ● ● ● ●
38 BOLT; CLIP,HARNESS
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EURO2 SPECIFICATION<THN> (F) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0005-0210 ●
38 BOLT; CLIP,HARNESS
(F) M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 0211-1201 ● ● ● ●
38 BOLT; CLIP,HARNESS
(J) M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1202- ● ● ● ●
38 BOLT; CLIP,HARNESS
(H) M8X30 W/LK&PL WASHER 		0-50140-830-0 02 1 0005-0512 ● ● ● ●
38 BOLT; CLIP,HARNESS
(H) M8X30 W/LK&PL WASHER 		0-50640-830-0 02 1 0601- ● ● ● ●
38 BOLT; CLIP,HARNESS
(E) M8X30 FLANGE 		0-28680-830-0 04 1 0005-0201 ● ● ●
38 BOLT; CLIP,HARNESS
6SD1 TCN ENG(31L) (E) M8X30 FLANGE 		0-28680-830-0 04 1 0005-0201 ●
38 BOLT; CLIP,HARNESS
(E) M8X30 FLANGE 		0-28680-830-0 04 1 0202-0210 ● ●
38 BOLT; CLIP,HARNESS
6SD1 TCN ENG(31L) (E) M8X30 FLANGE 		0-28680-830-0 04 1 0202-0210 ●
38 BOLT; CLIP,HARNESS
FULLER RT7608LL M/T(X8P),FULLER FS8209 DD M/T(Y2S) (E) M8X30 FLANGE 		0-28680-830-0 04 1 0202-0210 ●
38 BOLT; CLIP,HARNESS
(E) M8X30 FLANGE 		0-28680-830-0 03 1 0211-0512 ● ● ●
38 BOLT; CLIP,HARNESS
6SD1 TCN ENG(31L) (E) M8X30 FLANGE 		0-28680-830-0 03 1 0211-0512 ●
38 BOLT; CLIP,HARNESS
(E) M8X30 FLANGE 		0-28650-830-0 03 1 0601- ● ● ●
38 BOLT; CLIP,HARNESS
6SD1 TCN ENG(31L) (E) M8X30 FLANGE 		0-28650-830-0 03 1 0601- ●
38 BOLT; CLIP,HARNESS
FULLER FS8209 DD M/T(Y2S) (C) M8X20 FLANGE 		0-28680-820-0 03 1 0005-0210 ● ●
38 BOLT; CLIP,HARNESS
6SD1 TCN ENG(31L) (C) M8X20 FLANGE 		0-28680-820-0 03 1 0005-0210 ●
38 BOLT; CLIP,HARNESS
FULLER RT7608LL M/T(X8P) EXC. ENGINE REAR PTO(SV1) (C) M8X20 FLANGE 		0-28680-820-0 03 1 0005-0210 ●
38 BOLT; CLIP,HARNESS
FULLER FS8209HD DD M/T(Y3A) (C) M8X20 FLANGE 		0-28680-820-0 03 1 0211-0302 ● ● ●
38 BOLT; CLIP,HARNESS
FULLER RT7608LL M/T(X8P) EXC. ENGINE REAR PTO(SV1) (C) M8X20 FLANGE 		0-28680-820-0 03 1 0211-0302 ●
38 BOLT; CLIP,HARNESS
(C) M8X20 FLANGE 		0-28680-820-0 03 1 0303-0303 ● ● ●
38 BOLT; CLIP,HARNESS
FULLER RT7608LL M/T(X8P) EXC. ENGINE REAR PTO(SV1) (C) M8X20 FLANGE 		0-28680-820-0 03 1 0303-0303 ●
38 BOLT; CLIP,HARNESS
FULLER FS8209HD DD M/T(Y3A) (C) M8X20 FLANGE 		0-28680-820-0 03 1 0304-0512 ● ● ●
38 BOLT; CLIP,HARNESS
FULLER RT7608LL M/T(X8P) EXC. ENGINE REAR PTO(SV1) (C) M8X20 FLANGE 		0-28680-820-0 03 1 0304-0512 ●
38 BOLT; CLIP,HARNESS
FULLER FS8209HD DD M/T(Y3A) (C) M8X20 FLANGE 		0-28650-820-0 03 1 0601-0609 ● ● ●
38 BOLT; CLIP,HARNESS
FULLER RT7608LL M/T(X8P) EXC. ENGINE REAR PTO(SV1) (C) M8X20 FLANGE 		0-28650-820-0 03 1 0601-0609 ●
38 BOLT; CLIP,HARNESS
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) (C) M8X20 FLANGE 		0-28650-820-0 03 1 0610- ● ● ●
38 BOLT; CLIP,HARNESS
6SD1 TCN ENG(31L) FULLER RT7608LL M/T(X8P) EXC. ENGINE REAR PTO(SV1) (C) M8X20 FLANGE 		0-28650-820-0 03 1 0610- ●
38 BOLT; CLIP,HARNESS
EURO2 SPECIFICATION<THN> (D) M8X25 FLANGE 		0-28680-825-0 03 1 0005-0210 ●
38 BOLT; CLIP,HARNESS
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (A) M8X16 FLANGE 		0-28080-816-0 01 1 0005-0210 ●
38 BOLT; CLIP,HARNESS
6HH1 STD ENG(65L) (A) M8X16 FLANGE 		0-28080-816-0 01 1 0005-0210 ●
38 BOLT; CLIP,HARNESS
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (C) M8X20 FLANGE 		0-28680-820-0 04 1 0005-0210 ●
38 BOLT; CLIP,HARNESS
6HE1 TC ENG(57L),6HH1 STD ENG(65L) (A) M8X16 FLANGE 		0-28080-816-0 04 1 0005-0210 ●
38 BOLT; CLIP,HARNESS
6HE1 TC ENG(57L),6HH1 STD ENG(65L) (B) M10X16 FLANGE 		0-28181-016-0 01 1 0005-0210 ●
38 BOLT; CLIP,HARNESS
6HE1 TC ENG(57L),6HH1 STD ENG(65L) (C) M8X20 FLANGE 		0-28680-820-0 02 1 0005-0111 ●
38 BOLT; CLIP,HARNESS
FULLER RT7608LL M/T(X8P) ENGINE REAR PTO(SV1) (C) M8X20 FLANGE 		0-28680-820-0 02 1 0005-0111 ●
38 BOLT; CLIP,HARNESS
6HE1 TC ENG(57L),6HH1 STD ENG(65L) (C) M8X20 FLANGE 		0-28680-820-0 02 1 0112-0210 ●
38 BOLT; CLIP,HARNESS
ALLISON MD3560P A/T(Y3B) (C) M8X20 FLANGE 		0-28680-820-0 02 1 0112-0210 ●
38 BOLT; CLIP,HARNESS
FULLER RT7608LL M/T(X8P) ENGINE REAR PTO(SV1) (C) M8X20 FLANGE 		0-28680-820-0 02 1 0112-0210 ●
38 BOLT; CLIP,HARNESS
A/T<X9D> (C) M8X20 FLANGE 		0-28680-820-0 02 1 0211-0512 ●
38 BOLT; CLIP,HARNESS
FULLER RT7608LL M/T(X8P) ENGINE REAR PTO(SV1) (C) M8X20 FLANGE 		0-28680-820-0 02 1 0211-0512 ●
38 BOLT; CLIP,HARNESS
A/T<X9D> (C) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
38 BOLT; CLIP,HARNESS
FULLER RT7608LL M/T(X8P) ENGINE REAR PTO(SV1) (C) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
38 BOLT; CLIP,HARNESS
6HE1 TC ENG(57L),6HH1 STD ENG(65L) (E) M8X30 FLANGE 		0-28680-830-0 01 1 0005-0201 ●
38 BOLT; CLIP,HARNESS
6SD1 TCN ENG(31L) (E) M8X30 FLANGE 		0-28680-830-0 01 1 0202-0210 ●
38 BOLT; CLIP,HARNESS
(E) M8X30 FLANGE 		0-28680-830-0 02 1 0211-0512 ● ● ● ●
38 BOLT; CLIP,HARNESS
(E) M8X30 FLANGE 		0-28650-830-0 02 1 0601- ● ● ● ●
38 BOLT; CLIP,HARNESS
6HK1 TCS ENG(80L) (A) M8X16 FLANGE 		0-28080-816-0 04 1 0303-0303 ●
38 BOLT; CLIP,HARNESS
6HK1 TCS ENG(80L) (A) M8X16 FLANGE 		0-28080-816-0 01 1 0304-0512 ●
38 BOLT; CLIP,HARNESS
6HK1 TCS ENG(80L) (A) M8X16 FLANGE 		0-28050-816-0 01 1 0601- ●
38 BOLT; CLIP,HARNESS
6HK1 TCS ENG(80L) (I) M8X20 FLANGE 		0-28080-820-0 05 1 0303-0306 ●
38 BOLT; CLIP,HARNESS
6HK1 TCS ENG(80L) (C) M8X20 FLANGE 		0-28680-820-0 01 1 0303-0306 ●
38 BOLT; CLIP,HARNESS
(C) M8X20 FLANGE 		0-28680-820-0 01 1 0307-0512 ● ● ● ●
38 BOLT; CLIP,HARNESS
6HK1 TCS ENG(80L) (C) M8X20 FLANGE 		0-28680-820-0 01 1 0307-0512 ●
38 BOLT; CLIP,HARNESS
(C) M8X20 FLANGE 		0-28650-820-0 01 1 0601- ● ● ● ●
38 BOLT; CLIP,HARNESS
6HK1 TCS ENG(80L) (C) M8X20 FLANGE 		0-28650-820-0 01 1 0601- ●
38 BOLT; CLIP,HARNESS
(G) M8X25 W/LK&PL WASHER 		0-50140-825-0 01 1 0005-0512 ●
38 BOLT; CLIP,HARNESS
(G) M8X25 W/LK&PL WASHER 		0-50640-825-0 01 1 0601- ●
88 BOLT; DOOR HARNESS EARTH
POWER WINDOW<A30> (A) M8X25 W/LK&PL WASHER 		8-97087-203-0 02 1 0005-0210 ● ●
88 BOLT; DOOR HARNESS EARTH
(A) M8X25 W/LK&PL WASHER 		8-97087-203-0 02 1 0211-1007 ● ● ● ●
88 BOLT; DOOR HARNESS EARTH
(B) M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1008- ● ● ● ●
88 BOLT; DOOR HARNESS EARTH
DOOR WINDOW MANUAL CONT<SKF> (A) M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0005-0210 ● ● ● ●
133 SCREW; HARNESS CLIP,STRG COLUMN
(C) M6X16 W/LK&PL WASHER 		8-94279-402-0 01 1 0005-0110 ● ● ● ●
133 SCREW; HARNESS CLIP,STRG COLUMN
(B) M6X12 W/PL WASHER 		8-97806-950-0 01 1 0111- ● ● ● ●
133 SCREW; HARNESS CLIP,STRG COLUMN
(A) M6X12 W/LK&PL WASHER 		8-94279-200-0 01 1 0107-0210 ● ● ● ●
139 BOLT; BRKT
(B) M8X35 FLANGE 		0-28680-835-0 02 1 0005-0209 ● ● ● ●
139 BOLT; BRKT
(B) M8X35 FLANGE 		0-28680-835-0 01 1 0210-0210 ● ● ● ●
139 BOLT; BRKT
(B) M8X35 FLANGE 		0-28680-835-0 02 1 0211-0512 ● ● ● ●
139 BOLT; BRKT
(B) M8X35 FLANGE 		0-28650-835-0 02 1 0601- ● ● ● ●
139 BOLT; BRKT
FULLER FS8209 DD M/T(Y2S) (B) M8X35 FLANGE 		0-28680-835-0 01 1 0005-0111 ● ●
139 BOLT; BRKT
(B) M8X35 FLANGE 		0-28680-835-0 01 1 0005-0111 ●
139 BOLT; BRKT
FULLER RT7608LL M/T(X8P) (B) M8X35 FLANGE 		0-28680-835-0 01 1 0005-0111 ●
139 BOLT; BRKT
FULLER FS8209 DD M/T(Y2S) (B) M8X35 FLANGE 		0-28680-835-0 01 1 0112-0209 ● ● ●
139 BOLT; BRKT
(B) M8X35 FLANGE 		0-28680-835-0 01 1 0112-0209 ●
139 BOLT; BRKT
(B) M8X35 FLANGE 		0-28680-835-0 02 1 0210-0210 ● ●
139 BOLT; BRKT
(B) M8X35 FLANGE 		0-28680-835-0 01 1 0211-0512 ● ● ●
139 BOLT; BRKT
(B) M8X35 FLANGE 		0-28650-835-0 01 1 0601- ● ● ●
139 BOLT; BRKT
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (A) M8X30 FLANGE 		0-28680-830-0 01 1 0005-0210 ●
139 BOLT; BRKT
(D) M8X20 FLANGE 		0-28680-820-0 01 1 0211-0212 ● ● ●
139 BOLT; BRKT
6SD1 TCN ENG(31L) (D) M8X20 FLANGE 		0-28680-820-0 01 1 0211-0212 ●
139 BOLT; BRKT
6SD1 TCN ENG(31L) (D) M8X20 FLANGE 		0-28680-820-0 01 1 0301-0512 ● ● ● ●
139 BOLT; BRKT
6SD1 TCN ENG(31L) FULLER RT7608LL M/T(X8P) ENGINE REAR PTO(SV1) (D) M8X20 FLANGE 		0-28680-820-0 01 1 0301-0512 ●
139 BOLT; BRKT
6SD1 TCN ENG(31L) (D) M8X20 FLANGE 		0-28650-820-0 01 1 0601- ● ● ● ●
139 BOLT; BRKT
6SD1 TCN ENG(31L) FULLER RT7608LL M/T(X8P) ENGINE REAR PTO(SV1) (D) M8X20 FLANGE 		0-28650-820-0 01 1 0601- ●
139 BOLT; BRKT
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) (C) M10X16 FLANGE 		0-28181-016-0 01 1 0303-0309 ●
139 BOLT; BRKT
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) (C) M10X16 FLANGE 		0-28081-016-0 02 1 0310-0512 ●
139 BOLT; BRKT
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) (C) M10X16 FLANGE 		0-28051-016-0 02 1 0601-0609 ●
139 BOLT; BRKT
6HK1 TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A),FULLER FSO5206B OD M/T(Y4V) (C) M10X16 FLANGE 		0-28051-016-0 02 1 0610- ●
139 BOLT; BRKT
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) (E) M10X20 FLANGE 		0-28681-020-0 02 1 0303-0309 ●
139 BOLT; BRKT
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) (E) M10X20 FLANGE 		0-28781-020-0 01 1 0310-0512 ●
139 BOLT; BRKT
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) (E) M10X20 FLANGE 		0-28751-020-0 01 1 0601-0609 ●
139 BOLT; BRKT
6HK1 TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A),FULLER FSO5206B OD M/T(Y4V) (E) M10X20 FLANGE 		0-28751-020-0 01 1 0610- ●
150 BOLT; CLIP
(B) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 0211-0608 ● ● ● ●
150 BOLT; CLIP
(C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0609-0904 ● ● ● ●
150 BOLT; CLIP
(C) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 0905- ● ● ● ●
150 BOLT; CLIP
A/T<X9D> (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0112- ●
173 BOLT; STARTER EARTH
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 0005- ● ● ● ●
239 BOLT; GRAND
(B) M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 0005-0007 ● ● ●
239 BOLT; GRAND
(A) M5X8 		0-20800-508-0 01 1 0005- ● ● ● ●
239 BOLT; GRAND
(B) M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 0005-1007 ● ● ● ●
239 BOLT; GRAND
(D) M6X14 W/PL WASHER 		8-98164-836-0 02 1 1008- ● ● ● ●
239 BOLT; GRAND
(C) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 0005-1201 ● ● ● ●
239 BOLT; GRAND
(E) M8X14 W/PL WASHER 		8-98164-837-0 01 1 1202- ● ● ● ●
242 BOLT; BRKT,HARNESS
6HK1 TCS ENG(80L) M8X20 FLANGE 		0-28680-820-0 01 1 0303-0512 ●
242 BOLT; BRKT,HARNESS
6HK1 TCS ENG(80L) M8X20 FLANGE 		0-28650-820-0 01 1 0601- ●
313 BOLT; BRKT
(A) M6X20 FLANGE 		0-28680-620-0 01 1 0005-0212 ● ● ● ●
313 BOLT; BRKT
6SD1 TCN ENG(31L) (A) M6X20 FLANGE 		0-28680-620-0 01 1 0301-0302 ● ● ● ●
313 BOLT; BRKT
6SD1 TCN ENG(31L) (A) M6X20 FLANGE 		0-28680-620-0 01 1 0303-0512 ● ● ● ●
313 BOLT; BRKT
6HK1 TCS ENG(80L) WHEEL BASE 4200MM(42W) (A) M6X20 FLANGE 		0-28680-620-0 01 1 0303-0512 ●
313 BOLT; BRKT
6SD1 TCN ENG(31L) (A) M6X20 FLANGE 		0-28650-620-0 01 1 0601- ● ● ● ●
313 BOLT; BRKT
6HK1 TCS ENG(80L) WHEEL BASE 4200MM(42W) (A) M6X20 FLANGE 		0-28650-620-0 01 1 0601- ●
313 BOLT; BRKT
6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) (B) M8X30 FLANGE 		0-28680-830-0 04 1 0005-0210 ●
313 BOLT; BRKT
6SD1 TCN ENG(31L) (B) M8X30 FLANGE 		0-28680-830-0 04 1 0005-0210 ●
313 BOLT; BRKT
6SD1 TCN ENG(31L) (B) M8X30 FLANGE 		0-28680-830-0 04 1 0211-0302 ●
313 BOLT; BRKT
6SD1 TCN ENG(31L) (B) M8X30 FLANGE 		0-28680-830-0 04 1 0303-0405 ●
313 BOLT; BRKT
6HK1 TCS ENG(80L) WHEEL BASE 6000MM(60W) (B) M8X30 FLANGE 		0-28680-830-0 04 1 0303-0405 ●
313 BOLT; BRKT
6SD1 TCN ENG(31L) (B) M8X30 FLANGE 		0-28680-830-0 04 1 0406-0512 ●
313 BOLT; BRKT
6HK1 TCS ENG(80L) WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) (B) M8X30 FLANGE 		0-28680-830-0 04 1 0406-0512 ●
313 BOLT; BRKT
6SD1 TCN ENG(31L) (B) M8X30 FLANGE 		0-28650-830-0 04 1 0601- ●
313 BOLT; BRKT
6HK1 TCS ENG(80L) WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) (B) M8X30 FLANGE 		0-28650-830-0 04 1 0601- ●
516 BOLT; HARNESS
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0005-0007 ● ● ● ●
516 BOLT; HARNESS
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0005-0007 ● ● ●
516 BOLT; HARNESS
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0008- ● ● ● ●
çizim 45493
225 235 171 128 128 16 16 48 16 148 121 148 168 217 116 421 168 16 16 16 171 229 231 470 223 171 462
BalonParca AdiParca NoAdetTipApplied Date A B C D
16 CLIP; HARNESS
WHEEL BASE 4200MM(42W) (L) ID=11 L=41 		1-09700-403-0 01 1 0303- ●
16 CLIP; HARNESS
(L) ID=11 L=41 		1-09700-403-0 02 1 0005-0210 ●
16 CLIP; HARNESS
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (L) ID=11 L=41 		1-09700-403-0 02 1 0005-0210 ●
16 CLIP; HARNESS
(L) ID=11 L=41 		1-09700-403-0 03 1 0211-0405 ● ● ● ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) (L) ID=11 L=41 		1-09700-403-0 03 1 0211-0405 ●
16 CLIP; HARNESS
EXC. AIR HORN<WB8> (L) ID=11 L=41 		1-09700-403-0 03 1 0406- ● ● ● ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) (L) ID=11 L=41 		1-09700-403-0 03 1 0406- ●
16 CLIP; HARNESS
POWER WINDOW<A30> (Q) L=55 		8-94432-655-0 03 1 0005-0111 ● ●
16 CLIP; HARNESS
POWER WINDOW<A30> (F) L=175 		8-97110-167-0 04 1 0005-0111 ● ●
16 CLIP; HARNESS
POWER WINDOW<A30> (Q) L=55 		8-94432-655-0 03 1 0112-0210 ● ●
16 CLIP; HARNESS
(Q) L=55 		8-94432-655-0 03 1 0211- ● ● ● ●
16 CLIP; HARNESS
POWER WINDOW<A30> (F) L=175 		8-97110-167-0 04 1 0112-0210 ● ●
16 CLIP; HARNESS
(F) L=175 		8-97110-167-0 06 1 0211- ● ● ● ●
16 CLIP; HARNESS
POWER WINDOW<A30> CUSTOM CAB(SR5) (R) 		1-82698-130-0 03 1 0005-0109 ● ●
16 CLIP; HARNESS
POWER WINDOW<A30> CUSTOM CAB(SR5) (S) 		8-97229-356-0 03 1 0110-0210 ● ●
16 CLIP; HARNESS
(S) 		8-97229-356-0 03 1 0211- ● ● ● ●
16 CLIP; HARNESS
POWER WINDOW<A30> CUSTOM CAB(SR5) (F) L=175 		8-97110-167-0 02 1 0005-0210 ● ●
16 CLIP; HARNESS
(W) ID=24 L=27 		1-09700-809-0 01 1 0211- ● ● ● ●
16 CLIP; HARNESS
(L) ID=11 L=41 		1-09700-403-0 03 1 0005-0210 ● ● ● ●
16 CLIP; HARNESS
WHEEL BASE 7100MM(71W) (L) ID=11 L=41 		1-09700-403-0 02 1 0211- ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) (L) ID=11 L=41 		1-09700-403-0 02 1 0211- ●
16 CLIP; HARNESS
(O) ID=28 L=78 		1-09700-858-0 01 1 0005-0410 ● ● ● ●
16 CLIP; HARNESS
(Z) ID=35 H=45 L=33 		1-09701-047-0 01 1 0411- ● ● ● ●
16 CLIP; HARNESS
(K) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0005- ● ● ● ●
16 CLIP; HARNESS
(C) L=300 		1-09707-001-1 01 1 0005-0305 ● ● ● ●
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 02 1 0306- ● ● ● ●
16 CLIP; HARNESS
(B) L=250 		5-09707-030-1 02 1 0005-0007 ● ● ● ●
16 CLIP; HARNESS
FULLER RT7608LL M/T(X8P) ENGINE REAR PTO(SV1) (B) L=250 		5-09707-030-1 02 1 0005-0007 ●
16 CLIP; HARNESS
(B) L=250 		5-09707-030-1 02 1 0008-0111 ●
16 CLIP; HARNESS
6HE1 TC ENG(57L),6HH1 STD ENG(65L) (B) L=250 		5-09707-030-1 02 1 0008-0111 ●
16 CLIP; HARNESS
ENGINE REAR PTO(SV1) (B) L=250 		5-09707-030-1 02 1 0008-0111 ●
16 CLIP; HARNESS
WHEEL BASE 5000MM(50W) (B) L=250 		5-09707-030-1 02 1 0008-0111 ●
16 CLIP; HARNESS
(B) L=250 		5-09707-030-1 02 1 0112-0210 ●
16 CLIP; HARNESS
6HE1 TC ENG(57L),6HH1 STD ENG(65L) (B) L=250 		5-09707-030-1 02 1 0112-0210 ●
16 CLIP; HARNESS
ENGINE REAR PTO(SV1) (B) L=250 		5-09707-030-1 02 1 0112-0210 ●
16 CLIP; HARNESS
WHEEL BASE 5000MM(50W),WHEEL BASE 5900MM(59W) (B) L=250 		5-09707-030-1 02 1 0112-0210 ●
16 CLIP; HARNESS
(B) L=250 		5-09707-030-1 02 1 0211-0305 ● ● ● ●
16 CLIP; HARNESS
FULLER RT7608LL M/T(X8P) ENGINE REAR PTO(SV1) (B) L=250 		5-09707-030-1 02 1 0211-0305 ●
16 CLIP; HARNESS
(B) L=300 		1-09707-001-1 01 1 0306- ● ● ● ●
16 CLIP; HARNESS
FULLER RT7608LL M/T(X8P) ENGINE REAR PTO(SV1) (B) L=300 		1-09707-001-1 01 1 0306- ●
16 CLIP; HARNESS
(B) L=250 		5-09707-030-1 01 1 0005-0007 ● ● ● ●
16 CLIP; HARNESS
(B) L=250 		5-09707-030-1 01 1 0008-0210 ● ● ●
16 CLIP; HARNESS
(B) L=250 		5-09707-030-1 01 1 0008-0210 ● ● ●
16 CLIP; HARNESS
(X) ID=31 L=30 		1-09700-969-0 02 1 0211- ● ● ●
16 CLIP; HARNESS
6SD1 TCN ENG(31L) (X) ID=31 L=30 		1-09700-969-0 02 1 0211- ●
16 CLIP; HARNESS
(A) L=140 		5-09707-031-1 01 1 0005-0210 ● ● ●
16 CLIP; HARNESS
6SD1 TCN ENG(31L) (A) L=140 		5-09707-031-1 01 1 0005-0210 ●
16 CLIP; HARNESS
(N) ID=20 L=50 		9-09917-430-0 03 1 0005- ● ● ●
16 CLIP; HARNESS
6SD1 TCN ENG(31L) (N) ID=20 L=50 		9-09917-430-0 03 1 0005- ●
16 CLIP; HARNESS
EURO2 SPECIFICATION<THN> (I) ID=25 L=50 		1-09701-019-0 01 1 0005-0210 ●
16 CLIP; HARNESS
EURO2 SPECIFICATION<THN> (H) ID=24 L=40 		1-09701-139-0 01 1 0005-0210 ●
16 CLIP; HARNESS
6HE1 TC ENG(57L),6HH1 STD ENG(65L) (J) ID=19 H=21 L=50 		1-09700-910-1 01 1 0005-0210 ●
16 CLIP; HARNESS
6HE1 TC ENG(57L),6HH1 STD ENG(65L) (D) L=180 		1-09707-162-1 01 1 0005-0210 ●
16 CLIP; HARNESS
6HE1 TC ENG(57L),6HH1 STD ENG(65L) (G) ID=19 L=32 		9-09525-866-0 01 1 0005-0210 ●
16 CLIP; HARNESS
6HE1 TC ENG(57L),6HH1 STD ENG(65L) (M) ID=14 L=44 		9-09917-427-0 03 1 0005-0210 ●
16 CLIP; HARNESS
6HE1 TC ENG(57L),6HH1 STD ENG(65L) WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W) (L) ID=11 L=41 		1-09700-403-0 01 1 0005-0210 ●
16 CLIP; HARNESS
WHEEL BASE 6000MM(60W) (L) ID=11 L=41 		1-09700-403-0 01 1 0211-0212 ●
16 CLIP; HARNESS
WHEEL BASE 6000MM(60W) (L) ID=11 L=41 		1-09700-403-0 04 1 0301-0405 ●
16 CLIP; HARNESS
WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) (L) ID=11 L=41 		1-09700-403-0 04 1 0406- ●
16 CLIP; HARNESS
6HK1 TCS ENG(80L) (V) ID=20X2 L=55 		1-09700-554-0 02 1 0303- ●
16 CLIP; HARNESS
6HK1 TCS ENG(80L) (J) ID=19 H=21 L=50 		1-09700-910-1 01 1 0303- ●
16 CLIP; HARNESS
6HK1 TCS ENG(80L) (U) ID=28 H=45 L=30 		1-09700-948-0 02 1 0303- ●
16 CLIP; HARNESS
6HK1 TCS ENG(80L) (T) ID=26 L=26 		1-09701-236-0 01 1 0303- ●
16 CLIP; HARNESS
6HK1 TCS ENG(80L) (D) L=180 		1-09707-162-1 01 1 0303-0303 ●
16 CLIP; HARNESS
6HK1 TCS ENG(80L) (Y) ID=12 & 16.5 		8-94400-865-0 01 1 0303- ●
16 CLIP; HARNESS
6HK1 TCS ENG(80L) (G) ID=19 L=32 		9-09525-866-0 01 1 0303-0606 ●
16 CLIP; HARNESS
6HK1 TCS ENG(80L) (G) ID=19 L=32 		0-95235-866-0 01 1 0607- ●
16 CLIP; HARNESS
6HK1 TCS ENG(80L) (M) ID=14 L=44 		9-09917-427-0 03 1 0303- ●
16 CLIP; HARNESS
A/T<X9D> (E) L=175 		1-09707-176-1 01 1 0112- ●
16 CLIP; HARNESS
WHEEL BASE 5000MM(50W),WHEEL BASE 6300MM(63W) (L) ID=11 L=41 		1-09700-403-0 05 1 0005-0111 ●
16 CLIP; HARNESS
WHEEL BASE 5000MM(50W),WHEEL BASE 5900MM(59W), WHEEL BASE 6300MM(63W) (L) ID=11 L=41 		1-09700-403-0 05 1 0112-0210 ●
16 CLIP; HARNESS
WHEEL BASE 5000MM(50W) (L) ID=11 L=41 		1-09700-403-0 05 1 0211- ●
16 CLIP; HARNESS
(P) W/SPONGE RUBBER 		1-09709-150-0 01 1 0005- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6200MM(62W) (P) ID=11 L=41 		1-09700-403-0 05 1 0408- ●
48 CLIP; FRAME HARNESS
(S) ID=20 L=50 		9-09917-430-0 23 1 0005-0210 ●
48 CLIP; FRAME HARNESS
6SD1 TCN ENG(31L) WHEEL BASE 5000MM(50W) (Q) ID=11 L=61 		1-09700-484-0 05 1 0211- ●
48 CLIP; FRAME HARNESS
(R) ID=14 L=44 		9-09917-427-0 03 1 0005-0111 ● ● ● ●
48 CLIP; FRAME HARNESS
(R) ID=14 L=44 		9-09917-427-0 03 1 0005-0111 ● ● ●
48 CLIP; FRAME HARNESS
(R) ID=14 L=44 		9-09917-427-0 03 1 0112-0210 ● ● ● ●
48 CLIP; FRAME HARNESS
6SD1 TCN ENG(31L) (R) ID=14 L=44 		9-09917-427-0 03 1 0112-0210 ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W),WHEEL BASE 7100MM(71W) (P) ID=11 L=41 		1-09700-403-0 01 1 0211- ●
48 CLIP; FRAME HARNESS
(O) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0005- ● ● ● ●
48 CLIP; FRAME HARNESS
(F) ID=19 L=28 		9-09525-856-0 01 1 0005-0111 ● ● ● ●
48 CLIP; FRAME HARNESS
(F) ID=19 L=28 		9-09525-856-0 01 1 0112-0210 ● ● ●
48 CLIP; FRAME HARNESS
FULLER M/T<X9B> (F) ID=19 L=28 		9-09525-856-0 01 1 0112-0210 ●
48 CLIP; FRAME HARNESS
(F) ID=19 L=28 		9-09525-856-0 01 1 0211-0606 ● ● ●
48 CLIP; FRAME HARNESS
EXC. A/T<X9D> (F) ID=19 L=28 		9-09525-856-0 01 1 0211-0606 ●
48 CLIP; FRAME HARNESS
(F) ID=19 L=28 		0-95235-856-0 01 1 0607- ● ● ●
48 CLIP; FRAME HARNESS
EXC. A/T<X9D> (F) ID=19 L=28 		0-95235-856-0 01 1 0607- ●
48 CLIP; FRAME HARNESS
(E) L=180 		1-09707-162-1 01 1 0202-0210 ● ● ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5900MM(59W) (P) ID=11 L=41 		1-09700-403-0 03 1 0211- ●
48 CLIP; FRAME HARNESS
(T) ID=20 L=70 		1-09700-485-0 04 1 0301- ● ● ●
48 CLIP; FRAME HARNESS
6SD1 TCN ENG(31L) (T) ID=20 L=70 		1-09700-485-0 04 1 0301- ●
48 CLIP; FRAME HARNESS
(T) ID=20 L=70 		1-09700-485-0 07 1 0005-0010 ● ●
48 CLIP; FRAME HARNESS
(T) ID=20 L=70 		1-09700-485-0 06 1 0011-0210 ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) (T) ID=20 L=70 		1-09700-485-0 06 1 0011-0210 ●
48 CLIP; FRAME HARNESS
(T) ID=20 L=70 		1-09700-485-0 10 1 0211-0212 ● ● ●
48 CLIP; FRAME HARNESS
6SD1 TCN ENG(31L) (T) ID=20 L=70 		1-09700-485-0 10 1 0211-0212 ●
48 CLIP; FRAME HARNESS
6SD1 TCN ENG(31L) (T) ID=20 L=70 		1-09700-485-0 06 1 0301-0302 ● ● ● ●
48 CLIP; FRAME HARNESS
6SD1 TCN ENG(31L) (T) ID=20 L=70 		1-09700-485-0 06 1 0303- ● ● ● ●
48 CLIP; FRAME HARNESS
6HK1 TCS ENG(80L) WHEEL BASE 4200MM(42W) (T) ID=20 L=70 		1-09700-485-0 06 1 0303- ●
48 CLIP; FRAME HARNESS
(T) ID=20 L=70 		1-09700-485-0 04 1 0005-0111 ● ● ●
48 CLIP; FRAME HARNESS
6HE1 TC ENG(57L),6HH1 STD ENG(65L) (T) ID=20 L=70 		1-09700-485-0 04 1 0005-0111 ●
48 CLIP; FRAME HARNESS
(T) ID=20 L=70 		1-09700-485-0 04 1 0112-0210 ● ●
48 CLIP; FRAME HARNESS
6HE1 TC ENG(57L),6HH1 STD ENG(65L) (T) ID=20 L=70 		1-09700-485-0 04 1 0112-0210 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) (T) ID=20 L=70 		1-09700-485-0 04 1 0112-0210 ●
48 CLIP; FRAME HARNESS
(U) ID=28 L=78 		1-09700-858-0 03 1 0005-0702 ● ● ●
48 CLIP; FRAME HARNESS
6SD1 TCN ENG(31L) (U) ID=28 L=78 		1-09700-858-0 03 1 0005-0702 ●
48 CLIP; FRAME HARNESS
(U) ID=28 L=78 		1-09700-858-0 04 1 0703- ● ● ● ●
48 CLIP; FRAME HARNESS
(G) ID=19 L=60 		9-09525-896-0 01 1 0005-0606 ● ● ●
48 CLIP; FRAME HARNESS
6SD1 TCN ENG(31L) (G) ID=19 L=60 		9-09525-896-0 01 1 0005-0606 ●
48 CLIP; FRAME HARNESS
(G) ID=19 L=60 		0-95235-896-0 01 1 0607- ● ● ●
48 CLIP; FRAME HARNESS
6SD1 TCN ENG(31L) (G) ID=19 L=60 		0-95235-896-0 01 1 0607- ●
48 CLIP; FRAME HARNESS
(S) ID=20 L=50 		9-09917-430-0 03 1 0005-0210 ● ● ●
48 CLIP; FRAME HARNESS
6SD1 TCN ENG(31L) (S) ID=20 L=50 		9-09917-430-0 03 1 0005-0210 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6000MM(60W) (S) ID=20 L=50 		9-09917-430-0 21 1 0211-0212 ●
48 CLIP; FRAME HARNESS
6SD1 TCN ENG(31L) WHEEL BASE 6000MM(60W) (S) ID=20 L=50 		9-09917-430-0 21 1 0301-0405 ●
48 CLIP; FRAME HARNESS
6SD1 TCN ENG(31L) WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) (S) ID=20 L=50 		9-09917-430-0 21 1 0406- ●
48 CLIP; FRAME HARNESS
(K) ID=35 L=75 		1-09700-608-2 01 1 0005-0210 ● ● ●
48 CLIP; FRAME HARNESS
6SD1 TCN ENG(31L) (K) ID=35 L=75 		1-09700-608-2 01 1 0005-0210 ●
48 CLIP; FRAME HARNESS
(J) ID=32 L=75 		1-09700-704-1 02 1 0005-0210 ● ● ●
48 CLIP; FRAME HARNESS
6SD1 TCN ENG(31L) (J) ID=32 L=75 		1-09700-704-1 02 1 0005-0210 ●
48 CLIP; FRAME HARNESS
(E) L=180 		1-09707-162-1 01 1 0005-0104 ● ● ●
48 CLIP; FRAME HARNESS
6SD1 TCN ENG(31L) (E) L=180 		1-09707-162-1 01 1 0005-0104 ●
48 CLIP; FRAME HARNESS
(C) L=300 		1-09707-001-1 01 1 0105-0209 ● ● ●
48 CLIP; FRAME HARNESS
6SD1 TCN ENG(31L) (C) L=300 		1-09707-001-1 01 1 0105-0209 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6000MM(60W) (S) ID=20 L=50 		9-09917-430-0 21 1 0005-0111 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6300MM(63W) (S) ID=20 L=50 		9-09917-430-0 21 1 0005-0111 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6000MM(60W) (S) ID=20 L=50 		9-09917-430-0 21 1 0112-0202 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) (S) ID=20 L=50 		9-09917-430-0 21 1 0112-0202 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6000MM(60W) (S) ID=20 L=50 		9-09917-430-0 21 1 0203-0210 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6300MM(63W) (S) ID=20 L=50 		9-09917-430-0 21 1 0203-0210 ●
48 CLIP; FRAME HARNESS
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (N) ID=25 H=30 L=35 		1-09700-875-0 01 1 0005-0005 ●
48 CLIP; FRAME HARNESS
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (I) ID=25 L=50 		1-09700-976-0 02 1 0005-0210 ●
48 CLIP; FRAME HARNESS
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (L) ID=24 H=40 L=24 		1-09701-243-0 01 1 0005-0005 ●
48 CLIP; FRAME HARNESS
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (L) ID=24 H=40 L=24 		1-09701-243-0 02 1 0006-0210 ●
48 CLIP; FRAME HARNESS
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (D) L=350 		1-09707-183-0 01 1 0005-0210 ●
48 CLIP; FRAME HARNESS
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (B) L=250 		5-09707-030-1 01 1 0005-0210 ●
48 CLIP; FRAME HARNESS
EURO2 SPECIFICATION<THN> (B) L=250 		5-09707-030-1 01 1 0005-0210 ●
48 CLIP; FRAME HARNESS
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (A) L=140 		5-09707-031-1 03 1 0005-0210 ●
48 CLIP; FRAME HARNESS
6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) (P) ID=11 L=41 		1-09700-403-0 01 1 0005-0009 ●
48 CLIP; FRAME HARNESS
6SD1 TCN ENG(31L) (P) ID=11 L=41 		1-09700-403-0 01 1 0005-0009 ●
48 CLIP; FRAME HARNESS
6SD1 TCN ENG(31L) (P) ID=11 L=41 		1-09700-403-0 01 1 0010-0210 ●
48 CLIP; FRAME HARNESS
6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) (P) ID=11 L=41 		1-09700-403-0 01 1 0010-0210 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) (P) ID=11 L=41 		1-09700-403-0 01 1 0010-0210 ●
48 CLIP; FRAME HARNESS
6SD1 TCN ENG(31L) (P) ID=11 L=41 		1-09700-403-0 04 1 0211-0302 ● ● ●
48 CLIP; FRAME HARNESS
6SD1 TCN ENG(31L) (P) ID=11 L=41 		1-09700-403-0 04 1 0211-0302 ●
48 CLIP; FRAME HARNESS
6SD1 TCN ENG(31L) (P) ID=11 L=41 		1-09700-403-0 04 1 0303-0405 ● ● ●
48 CLIP; FRAME HARNESS
6HK1 TCS ENG(80L) WHEEL BASE 6000MM(60W) (P) ID=11 L=41 		1-09700-403-0 04 1 0303-0405 ●
48 CLIP; FRAME HARNESS
6SD1 TCN ENG(31L) (P) ID=11 L=41 		1-09700-403-0 04 1 0303-0405 ●
48 CLIP; FRAME HARNESS
6SD1 TCN ENG(31L) (P) ID=11 L=41 		1-09700-403-0 04 1 0406-0407 ● ● ●
48 CLIP; FRAME HARNESS
6SD1 TCN ENG(31L) (P) ID=11 L=41 		1-09700-403-0 04 1 0406-0407 ●
48 CLIP; FRAME HARNESS
6HK1 TCS ENG(80L) WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) (P) ID=11 L=41 		1-09700-403-0 04 1 0406-0407 ●
48 CLIP; FRAME HARNESS
6SD1 TCN ENG(31L) (P) ID=11 L=41 		1-09700-403-0 04 1 0408- ● ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6000MM(60W) (P) ID=11 L=41 		1-09700-403-0 04 1 0408- ●
48 CLIP; FRAME HARNESS
6HE1 TC ENG(57L),6HH1 STD ENG(65L) (P) ID=11 L=41 		1-09700-403-0 08 1 0005-0210 ●
48 CLIP; FRAME HARNESS
6HE1 TC ENG(57L),6HH1 STD ENG(65L) (U) ID=28 L=78 		1-09700-858-0 04 1 0005-0210 ●
48 CLIP; FRAME HARNESS
6HE1 TC ENG(57L),6HH1 STD ENG(65L) (M) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0005-0010 ●
48 CLIP; FRAME HARNESS
(M) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0011-0210 ● ● ● ●
48 CLIP; FRAME HARNESS
6HE1 TC ENG(57L),6HH1 STD ENG(65L) (R) ID=14 L=44 		9-09917-427-0 02 1 0005-0210 ●
48 CLIP; FRAME HARNESS
6HE1 TC ENG(57L),6HH1 STD ENG(65L) (S) ID=20 L=50 		9-09917-430-0 01 1 0005-0210 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) (S) ID=20 L=50 		9-09917-430-0 13 1 0211-0302 ●
48 CLIP; FRAME HARNESS
6HE1 TC ENG(57L),6HH1 STD ENG(65L) WHEEL BASE 4200MM(42W) (S) ID=20 L=50 		9-09917-430-0 13 1 0303- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) (S) ID=20 L=50 		9-09917-430-0 13 1 0303- ●
48 CLIP; FRAME HARNESS
6HE1 TC ENG(57L),6HH1 STD ENG(65L) WHEEL BASE 4200MM(42W) (S) ID=20 L=50 		9-09917-430-0 13 1 0005-0210 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) (S) ID=20 L=50 		9-09917-430-0 13 1 0005-0210 ●
48 CLIP; FRAME HARNESS
6SD1 TCN ENG(31L) (S) ID=20 L=50 		9-09917-430-0 03 1 0211-0302 ● ● ● ●
48 CLIP; FRAME HARNESS
6SD1 TCN ENG(31L) (S) ID=20 L=50 		9-09917-430-0 03 1 0211-0302 ●
48 CLIP; FRAME HARNESS
(S) ID=20 L=50 		9-09917-430-0 03 1 0303- ● ● ● ●
48 CLIP; FRAME HARNESS
(S) ID=20 L=50 		9-09917-430-0 03 1 0303- ●
48 CLIP; FRAME HARNESS
6HK1 TCS ENG(80L) (P) ID=11 L=41 		1-09700-403-0 07 1 0303- ●
48 CLIP; FRAME HARNESS
6HK1 TCS ENG(80L) (X) ID=15 L=65 		1-09700-466-0 01 1 0303- ●
48 CLIP; FRAME HARNESS
6HK1 TCS ENG(80L) (U) ID=28 L=78 		1-09700-858-0 04 1 0303-0702 ●
48 CLIP; FRAME HARNESS
6HK1 TCS ENG(80L) (A) L=140 		5-09707-031-1 07 1 0303- ●
48 CLIP; FRAME HARNESS
6HK1 TCS ENG(80L) (R) ID=14 L=44 		9-09917-427-0 01 1 0303- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (T) ID=20 L=70 		1-09700-485-0 02 1 0303- ●
48 CLIP; FRAME HARNESS
6HK1 TCS ENG(80L) WHEEL BASE 6000MM(60W) (T) ID=20 L=70 		1-09700-485-0 08 1 0303-0405 ●
48 CLIP; FRAME HARNESS
6HK1 TCS ENG(80L) WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) (T) ID=20 L=70 		1-09700-485-0 08 1 0406- ●
48 CLIP; FRAME HARNESS
6HK1 TCS ENG(80L) WHEEL BASE 6000MM(60W) (S) ID=20 L=50 		9-09917-430-0 24 1 0303-0405 ●
48 CLIP; FRAME HARNESS
6HK1 TCS ENG(80L) WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) (S) ID=20 L=50 		9-09917-430-0 24 1 0406- ●
48 CLIP; FRAME HARNESS
6SD1 TCN ENG(31L) (Q) ID=11 L=61 		1-09700-484-0 08 1 0005-0210 ●
48 CLIP; FRAME HARNESS
6SD1 TCN ENG(31L) WHEEL BASE 6000MM(60W) (Q) ID=11 L=61 		1-09700-484-0 06 1 0211-0405 ●
48 CLIP; FRAME HARNESS
6SD1 TCN ENG(31L) WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) (Q) ID=11 L=61 		1-09700-484-0 06 1 0406- ●
48 CLIP; FRAME HARNESS
6SD1 TCN ENG(31L) (T) ID=20 L=70 		1-09700-485-0 11 1 0005-0010 ●
48 CLIP; FRAME HARNESS
(T) ID=20 L=70 		1-09700-485-0 11 1 0005-0010 ●
48 CLIP; FRAME HARNESS
6SD1 TCN ENG(31L) (T) ID=20 L=70 		1-09700-485-0 10 1 0011-0111 ●
48 CLIP; FRAME HARNESS
(T) ID=20 L=70 		1-09700-485-0 10 1 0011-0111 ●
48 CLIP; FRAME HARNESS
6SD1 TCN ENG(31L) (T) ID=20 L=70 		1-09700-485-0 10 1 0112-0210 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) (T) ID=20 L=70 		1-09700-485-0 10 1 0112-0210 ●
48 CLIP; FRAME HARNESS
(W) ID=35 H=45 L=33 		1-09701-047-0 02 1 0211- ● ● ●
48 CLIP; FRAME HARNESS
6SD1 TCN ENG(31L) (W) ID=35 H=45 L=33 		1-09701-047-0 02 1 0211- ●
48 CLIP; FRAME HARNESS
(P) ID=11 L=41 		1-09700-403-0 02 1 0005-0009 ●
48 CLIP; FRAME HARNESS
(P) ID=11 L=41 		1-09700-403-0 02 1 0010-0111 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5900MM(59W) (P) ID=11 L=41 		1-09700-403-0 03 1 0112-0210 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 7100MM(71W) (S) ID=20 L=50 		9-09917-430-0 23 1 0211- ● ●
48 CLIP; FRAME HARNESS
(P) ID=11 L=41 		1-09700-403-0 02 1 0112-0210 ●
48 CLIP; FRAME HARNESS
A/T<X9D> (P) ID=11 L=41 		1-09700-403-0 02 1 0211- ●
48 CLIP; FRAME HARNESS
A/T<X9D> (V) ID=31 L=30 		1-09700-969-0 01 1 0112-0210 ●
48 CLIP; FRAME HARNESS
A/T<X9D> (H) ID=24 L=24 		1-09701-001-1 01 1 0112- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) (Q) ID=11 L=61 		1-09700-484-0 07 1 0005-0111 ●
48 CLIP; FRAME HARNESS
6SD1 TCN ENG(31L) WHEEL BASE 5000MM(50W) (Q) ID=11 L=61 		1-09700-484-0 07 1 0112-0210 ●
48 CLIP; FRAME HARNESS
A/T<X9D> (Q) ID=11 L=61 		1-09700-484-0 02 1 0211- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5900MM(59W) (S) ID=20 L=50 		9-09917-430-0 20 1 0203- ●
48 CLIP; FRAME HARNESS
(Q) ID=11 L=61 		1-09700-484-0 05 1 0005-0210 ●
48 CLIP; FRAME HARNESS
(Q) ID=11 L=61 		1-09700-484-0 03 1 0211- ●
48 CLIP; FRAME HARNESS
(T) ID=20 L=70 		1-09700-485-0 05 1 0005-0010 ●
48 CLIP; FRAME HARNESS
(S) ID=20 L=50 		9-09917-430-0 08 1 0005-0112 ●
48 CLIP; FRAME HARNESS
(S) ID=20 L=50 		9-09917-430-0 09 1 0201- ●
116 CLIP; ROOF HARNESS
MAP LAMP<C85> L=20 		1-09987-246-2 05 1 0005-0009 ● ●
116 CLIP; ROOF HARNESS
MAP LAMP<C85> L=20 		1-09987-246-2 06 1 0010-0112 ● ●
116 CLIP; ROOF HARNESS
MAP LAMP<C85> L=20 		1-09987-246-2 05 1 0201-0210 ● ●
116 CLIP; ROOF HARNESS
MAP LAMP<C85> L=20 		1-09987-246-2 05 1 0211-0405 ●
116 CLIP; ROOF HARNESS
MAP LAMP<C85> L=20 		1-09987-246-2 05 1 0406-1409 ● ● ● ●
116 CLIP; ROOF HARNESS
MAP LAMP<C85> L=20 		1-09987-246-2 06 1 1410- ● ● ● ●
116 CLIP; ROOF HARNESS
EXC. MAP LAMP<C85> L=20 		1-09987-246-2 02 1 0005-0009 ● ●
116 CLIP; ROOF HARNESS
L=20 		1-09987-246-2 02 1 0005-0009 ● ●
116 CLIP; ROOF HARNESS
EXC. MAP LAMP<C85> L=20 		1-09987-246-2 03 1 0010-0210 ● ●
116 CLIP; ROOF HARNESS
L=20 		1-09987-246-2 03 1 0010-0210 ● ●
116 CLIP; ROOF HARNESS
EXC. MAP LAMP<C85> L=20 		1-09987-246-2 03 1 0211-0405 ●
116 CLIP; ROOF HARNESS
L=20 		1-09987-246-2 03 1 0211-0405 ● ● ●
116 CLIP; ROOF HARNESS
EXC. MAP LAMP<C85> L=20 		1-09987-246-2 03 1 0406-1409 ● ● ● ●
116 CLIP; ROOF HARNESS
EXC. MAP LAMP<C85> L=20 		1-09987-246-2 04 1 1410- ● ● ● ●
121 CLIP; FACIA HARNESS
(A) L=140 		5-09707-031-1 01 1 0005-0007 ●
121 CLIP; FACIA HARNESS
6HE1 TC ENG(57L),6HH1 STD ENG(65L) (A) L=140 		5-09707-031-1 01 1 0005-0007 ●
121 CLIP; FACIA HARNESS
WHEEL BASE 5000MM(50W) (A) L=140 		5-09707-031-1 01 1 0005-0007 ●
121 CLIP; FACIA HARNESS
(A) L=140 		5-09707-031-1 01 1 0008- ● ● ● ●
121 CLIP; FACIA HARNESS
EXC. POWER WINDOW<A30> (B) OD=7 H=1.2 		8-94364-750-0 02 1 0005-0210 ● ●
121 CLIP; FACIA HARNESS
(B) OD=7 H=1.2 		8-94364-750-0 02 1 0005-0210 ● ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=16 L=20 		9-09525-535-0 01 1 0005-0606 ● ● ● ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=16 L=20 		0-95235-535-0 01 1 0607- ● ● ● ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(C) ID=19 L=32 		9-09525-862-0 01 1 0005-0011 ● ● ● ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=14.5 L=30 		9-09916-893-1 01 1 0012- ● ● ● ●
148 CLIP; BAND,HEADLAMP HARNESS
(A) L=85 		8-94232-611-0 01 1 0005- ● ● ● ●
148 CLIP; BAND,HEADLAMP HARNESS
(B) ID=6 & 10-13 		8-97069-515-0 01 1 0005- ● ● ● ●
168 CLIP; DASH HARNESS
(B) ID=6 & 10-13 		8-97069-515-0 05 1 0005- ● ● ● ●
168 CLIP; DASH HARNESS
(A) L=30 		1-09987-265-0 01 1 0102- ● ● ● ●
171 CLIP; STARTER HARNESS
(K) ID=18 L=44 		8-94225-185-0 01 1 0005-0210 ● ● ● ●
171 CLIP; STARTER HARNESS
(K) ID=18 L=44 		8-94225-185-0 01 1 0211-0801 ● ● ●
171 CLIP; STARTER HARNESS
6SD1 TCN ENG(31L) (K) ID=18 L=44 		8-94225-185-0 01 1 0211-0801 ●
171 CLIP; STARTER HARNESS
(K) ID=18 L=44 		8-97367-985-1 01 1 0802- ● ● ●
171 CLIP; STARTER HARNESS
6SD1 TCN ENG(31L) (K) ID=18 L=44 		8-97367-985-1 01 1 0802- ●
171 CLIP; STARTER HARNESS
(C) ID=10 & 16.5 		8-94360-745-0 01 1 0201- ● ● ●
171 CLIP; STARTER HARNESS
6SD1 TCN ENG(31L) (C) ID=10 & 16.5 		8-94360-745-0 01 1 0201- ●
171 CLIP; STARTER HARNESS
FULLER FS8209 DD M/T(Y2S) (G) ID=11 L=41 		1-09700-403-0 01 1 0005-0111 ● ●
171 CLIP; STARTER HARNESS
(G) ID=11 L=41 		1-09700-403-0 01 1 0005-0111 ●
171 CLIP; STARTER HARNESS
FULLER RT7608LL M/T(X8P) (G) ID=11 L=41 		1-09700-403-0 01 1 0005-0111 ●
171 CLIP; STARTER HARNESS
FULLER FS8209 DD M/T(Y2S) (G) ID=11 L=41 		1-09700-403-0 01 1 0112-0210 ● ● ●
171 CLIP; STARTER HARNESS
FULLER RT7608LL M/T(X8P) (G) ID=11 L=41 		1-09700-403-0 01 1 0112-0210 ●
171 CLIP; STARTER HARNESS
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) (G) ID=11 L=41 		1-09700-403-0 01 1 0211- ● ● ●
171 CLIP; STARTER HARNESS
6SD1 TCN ENG(31L) FULLER RT7608LL M/T(X8P) (G) ID=11 L=41 		1-09700-403-0 01 1 0211- ●
171 CLIP; STARTER HARNESS
FULLER FS8209 DD M/T(Y2S) (E) ID=21 L=30 H=40 		1-09700-991-1 02 1 0005-0111 ● ●
171 CLIP; STARTER HARNESS
6SD1 TCN ENG(31L) (E) ID=21 L=30 H=40 		1-09700-991-1 02 1 0005-0111 ●
171 CLIP; STARTER HARNESS
FULLER FS8209 DD M/T(Y2S) (E) ID=21 L=30 H=40 		1-09700-991-1 02 1 0112-0210 ● ● ●
171 CLIP; STARTER HARNESS
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) (E) ID=21 L=30 H=40 		1-09700-991-1 02 1 0211- ● ● ●
171 CLIP; STARTER HARNESS
FULLER FS8209 DD M/T(Y2S) (B) L=180 		1-09707-162-1 02 1 0005-0111 ● ●
171 CLIP; STARTER HARNESS
6SD1 TCN ENG(31L) (B) L=180 		1-09707-162-1 02 1 0005-0111 ●
171 CLIP; STARTER HARNESS
FULLER FS8209 DD M/T(Y2S) (B) L=180 		1-09707-162-1 02 1 0112-0210 ● ● ●
171 CLIP; STARTER HARNESS
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) (B) L=180 		1-09707-162-1 02 1 0211-0302 ● ● ●
171 CLIP; STARTER HARNESS
(B) L=180 		1-09707-162-1 02 1 0303-0309 ● ● ●
171 CLIP; STARTER HARNESS
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) (B) L=180 		1-09707-162-1 02 1 0310- ● ● ●
171 CLIP; STARTER HARNESS
FULLER FS8209 DD M/T(Y2S) (D) ID=19 L=28 		9-09525-856-0 01 1 0005-0111 ● ●
171 CLIP; STARTER HARNESS
(D) ID=19 L=28 		9-09525-856-0 01 1 0005-0111 ●
171 CLIP; STARTER HARNESS
FULLER RT7608LL M/T(X8P) (D) ID=19 L=28 		9-09525-856-0 01 1 0005-0111 ●
171 CLIP; STARTER HARNESS
FULLER FS8209 DD M/T(Y2S) (D) ID=19 L=28 		9-09525-856-0 01 1 0112-0210 ● ● ●
171 CLIP; STARTER HARNESS
(D) ID=19 L=28 		9-09525-856-0 01 1 0112-0210 ●
171 CLIP; STARTER HARNESS
(D) ID=19 L=28 		9-09525-856-0 01 1 0211-0606 ● ● ● ●
171 CLIP; STARTER HARNESS
(D) ID=19 L=28 		0-95235-856-0 01 1 0607- ● ● ● ●
171 CLIP; STARTER HARNESS
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (E) ID=21 L=30 H=40 		1-09700-991-1 01 1 0005-0210 ●
171 CLIP; STARTER HARNESS
6HH1 STD ENG(65L) (E) ID=21 L=30 H=40 		1-09700-991-1 01 1 0005-0210 ●
171 CLIP; STARTER HARNESS
6HE1 TC ENG(57L),6HH1 STD ENG(65L) (A) L=300 		1-09707-001-1 01 1 0005-0201 ●
171 CLIP; STARTER HARNESS
(A) L=300 		1-09707-001-1 01 1 0202-0210 ● ● ● ●
171 CLIP; STARTER HARNESS
(A) L=300 		1-09707-001-1 01 1 0211- ● ● ● ●
171 CLIP; STARTER HARNESS
6SD1 TCN ENG(31L) (A) L=300 		1-09707-001-1 01 1 0211- ● ● ● ●
171 CLIP; STARTER HARNESS
6HE1 TC ENG(57L),6HH1 STD ENG(65L) (B) L=180 		1-09707-162-1 01 1 0005-0210 ●
171 CLIP; STARTER HARNESS
FULLER RT7608LL M/T(X8P) (B) L=180 		1-09707-162-1 01 1 0005-0210 ●
171 CLIP; STARTER HARNESS
FULLER RT7608LL M/T(X8P) (B) L=180 		1-09707-162-1 01 1 0211-0309 ●
171 CLIP; STARTER HARNESS
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) (B) L=180 		1-09707-162-1 01 1 0310-0609 ●
171 CLIP; STARTER HARNESS
FULLER RT7608LL M/T(X8P) (B) L=180 		1-09707-162-1 01 1 0310-0609 ●
171 CLIP; STARTER HARNESS
6HK1 TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A),FULLER FSO5206B OD M/T(Y4V) (B) L=180 		1-09707-162-1 01 1 0610- ●
171 CLIP; STARTER HARNESS
FULLER RT7608LL M/T(X8P) (B) L=180 		1-09707-162-1 01 1 0610- ●
171 CLIP; STARTER HARNESS
6HE1 TC ENG(57L),6HH1 STD ENG(65L) (J) OD=9 H=6 		1-09709-178-0 01 1 0005-0210 ●
171 CLIP; STARTER HARNESS
FULLER RT7608LL M/T(X8P) (J) OD=9 H=6 		1-09709-178-0 01 1 0005-0210 ●
171 CLIP; STARTER HARNESS
FULLER RT7608LL M/T(X8P) (J) OD=9 H=6 		1-09709-178-0 01 1 0211-0309 ●
171 CLIP; STARTER HARNESS
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) (J) OD=9 H=6 		1-09709-178-0 01 1 0310-0609 ●
171 CLIP; STARTER HARNESS
FULLER RT7608LL M/T(X8P) (J) OD=9 H=6 		1-09709-178-0 01 1 0310-0609 ●
171 CLIP; STARTER HARNESS
6HK1 TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A),FULLER FSO5206B OD M/T(Y4V) (J) OD=9 H=6 		1-09709-178-0 01 1 0610- ●
171 CLIP; STARTER HARNESS
FULLER RT7608LL M/T(X8P) (J) OD=9 H=6 		1-09709-178-0 01 1 0610- ●
171 CLIP; STARTER HARNESS
6HE1 TC ENG(57L),6HH1 STD ENG(65L) (D) ID=19 L=28 		9-09525-856-0 04 1 0005-0210 ●
171 CLIP; STARTER HARNESS
6HK1 TCS ENG(80L) (E) ID=21 L=30 H=40 		1-09700-991-1 01 1 0303-0303 ●
171 CLIP; STARTER HARNESS
6HK1 TCS ENG(80L) (D) ID=19 L=28 		9-09525-856-0 02 1 0303-0303 ●
171 CLIP; STARTER HARNESS
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) (D) ID=19 L=28 		9-09525-856-0 02 1 0304-0309 ●
171 CLIP; STARTER HARNESS
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) (D) ID=19 L=28 		9-09525-856-0 05 1 0310-0606 ●
171 CLIP; STARTER HARNESS
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) (D) ID=19 L=28 		0-95235-856-0 05 1 0607-0609 ●
171 CLIP; STARTER HARNESS
6HK1 TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A),FULLER FSO5206B OD M/T(Y4V) (D) ID=19 L=28 		0-95235-856-0 05 1 0610- ●
171 CLIP; STARTER HARNESS
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) (L) ID=19 L=40 		9-09525-876-0 02 1 0303-0309 ●
171 CLIP; STARTER HARNESS
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) (E) ID=21 L=30 H=40 		1-09700-991-1 01 1 0310-0609 ●
171 CLIP; STARTER HARNESS
6HK1 TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A),FULLER FSO5206B OD M/T(Y4V) (E) ID=21 L=30 H=40 		1-09700-991-1 01 1 0610- ●
171 CLIP; STARTER HARNESS
A/T<X9D> (F) ID=28 H=45 L=30 		1-09700-948-0 01 1 0112- ●
171 CLIP; STARTER HARNESS
A/T<X9D> (H) ID=20 L=50 		9-09917-430-0 02 1 0112- ●
171 CLIP; STARTER HARNESS
FULLER RT7608LL M/T(X8P) (I) ID=11 L=20 		9-09525-035-0 01 1 0005-0606 ●
171 CLIP; STARTER HARNESS
FULLER RT7608LL M/T(X8P) (I) ID=11 L=20 		0-95235-035-0 01 1 0607- ●
171 CLIP; STARTER HARNESS
FULLER RT7608LL M/T(X8P) (H) ID=20 L=50 		9-09917-430-0 01 1 0005- ●
217 CLIP; RR BODY HARNESS
(B) ID=15 L=70 		1-09700-980-0 02 1 0005-0208 ● ● ● ●
217 CLIP; RR BODY HARNESS
(A) L=250 		5-09707-030-1 02 1 0005- ● ● ● ●
223 CLIP; AIR TANK HARNESS
(C) OD=9 H=17.5 		1-09709-181-0 01 1 0005- ● ● ● ●
223 CLIP; AIR TANK HARNESS
(B) ID=20 L=50 		9-09917-430-0 03 1 0005-0005 ● ● ● ●
223 CLIP; AIR TANK HARNESS
(B) ID=20 L=50 		9-09917-430-0 04 1 0006-0111 ● ● ●
223 CLIP; AIR TANK HARNESS
6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W) (B) ID=20 L=50 		9-09917-430-0 04 1 0006-0111 ●
223 CLIP; AIR TANK HARNESS
6HH1 STD ENG(65L) WHEEL BASE 6000MM(60W) (B) ID=20 L=50 		9-09917-430-0 04 1 0006-0111 ●
223 CLIP; AIR TANK HARNESS
(B) ID=20 L=50 		9-09917-430-0 04 1 0112-0210 ● ●
223 CLIP; AIR TANK HARNESS
6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W) (B) ID=20 L=50 		9-09917-430-0 04 1 0112-0210 ●
223 CLIP; AIR TANK HARNESS
6HH1 STD ENG(65L) WHEEL BASE 6000MM(60W) (B) ID=20 L=50 		9-09917-430-0 04 1 0112-0210 ●
223 CLIP; AIR TANK HARNESS
WHEEL BASE 5000MM(50W),WHEEL BASE 5900MM(59W) (B) ID=20 L=50 		9-09917-430-0 04 1 0112-0210 ●
223 CLIP; AIR TANK HARNESS
(B) ID=20 L=50 		9-09917-430-0 04 1 0211-0302 ● ● ●
223 CLIP; AIR TANK HARNESS
(B) ID=20 L=50 		9-09917-430-0 04 1 0303-0305 ● ● ●
223 CLIP; AIR TANK HARNESS
WHEEL BASE 4200MM(42W) (B) ID=20 L=50 		9-09917-430-0 04 1 0303-0305 ●
223 CLIP; AIR TANK HARNESS
(B) ID=20 L=50 		9-09917-430-0 05 1 0306- ● ● ●
223 CLIP; AIR TANK HARNESS
WHEEL BASE 4200MM(42W) (B) ID=20 L=50 		9-09917-430-0 05 1 0306- ●
223 CLIP; AIR TANK HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 0005- ● ● ●
223 CLIP; AIR TANK HARNESS
6SD1 TCN ENG(31L) (A) ID=11 L=41 		1-09700-403-0 01 1 0005- ●
223 CLIP; AIR TANK HARNESS
6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W) (B) ID=20 L=50 		9-09917-430-0 01 1 0005-0005 ●
225 CLIP; AIR TANK HARNESS
(D) ID=11 L=61 		1-09700-484-0 02 1 0005-0111 ● ● ● ●
225 CLIP; AIR TANK HARNESS
WHEEL BASE 6000MM(60W) (D) ID=11 L=61 		1-09700-484-0 02 1 0005-0111 ●
225 CLIP; AIR TANK HARNESS
(D) ID=11 L=61 		1-09700-484-0 02 1 0112-0210 ● ●
225 CLIP; AIR TANK HARNESS
WHEEL BASE 6000MM(60W) (D) ID=11 L=61 		1-09700-484-0 02 1 0112-0210 ●
225 CLIP; AIR TANK HARNESS
WHEEL BASE 5000MM(50W),WHEEL BASE 5900MM(59W) (D) ID=11 L=61 		1-09700-484-0 02 1 0112-0210 ●
225 CLIP; AIR TANK HARNESS
(D) ID=11 L=61 		1-09700-484-0 02 1 0211-0405 ● ● ●
225 CLIP; AIR TANK HARNESS
WHEEL BASE 6000MM(60W) (D) ID=11 L=61 		1-09700-484-0 02 1 0211-0405 ●
225 CLIP; AIR TANK HARNESS
(D) ID=11 L=61 		1-09700-484-0 02 1 0406- ● ● ●
225 CLIP; AIR TANK HARNESS
WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) (D) ID=11 L=61 		1-09700-484-0 02 1 0406- ●
225 CLIP; AIR TANK HARNESS
(C) L=180 		1-09707-162-1 01 1 0005-0112 ● ● ● ●
225 CLIP; AIR TANK HARNESS
(B) L=600 		1-09707-107-1 01 1 0201- ● ● ● ●
225 CLIP; AIR TANK HARNESS
6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W) (A) L=140 		5-09707-031-1 01 1 0005-0210 ●
225 CLIP; AIR TANK HARNESS
(E) ID=5-12 L=18 		1-09709-287-0 01 1 0005- ●
229 CLIP; STARTER SUB SW HARNESS
OD=9 H=6 		1-09709-178-0 01 1 0005- ● ● ● ●
231 CLIP; BAND,OIL PRESS
(A) L=250 		5-09707-030-1 01 1 0005-0104 ● ● ●
231 CLIP; BAND,OIL PRESS
6SD1 TCN ENG(31L) (A) L=250 		5-09707-030-1 01 1 0005-0104 ●
231 CLIP; BAND,OIL PRESS
6SD1 TCN ENG(31L) (A) L=250 		5-09707-030-1 01 1 0105-0111 ●
231 CLIP; BAND,OIL PRESS
(A) L=250 		5-09707-030-1 01 1 0105-0111 ●
231 CLIP; BAND,OIL PRESS
6SD1 TCN ENG(31L) (A) L=250 		5-09707-030-1 01 1 0112-0210 ●
231 CLIP; BAND,OIL PRESS
WHEEL BASE 6300MM(63W) (A) L=250 		5-09707-030-1 01 1 0112-0210 ●
231 CLIP; BAND,OIL PRESS
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (C) OD=9 H=6 		1-09709-178-0 01 1 0005-0210 ●
231 CLIP; BAND,OIL PRESS
6HE1 TC ENG(57L) EXC. EURO2 SPECIFICATION<THN> (B) L=180 		1-09707-162-1 01 1 0005-0104 ●
231 CLIP; BAND,OIL PRESS
6HH1 STD ENG(65L) (B) L=180 		1-09707-162-1 01 1 0005-0104 ●
231 CLIP; BAND,OIL PRESS
(B) L=180 		1-09707-162-1 01 1 0105-0111 ● ● ●
231 CLIP; BAND,OIL PRESS
6HE1 TC ENG(57L) EXC. EURO2 SPECIFICATION<THN> (B) L=180 		1-09707-162-1 01 1 0105-0111 ●
231 CLIP; BAND,OIL PRESS
6HH1 STD ENG(65L) (B) L=180 		1-09707-162-1 01 1 0105-0111 ●
231 CLIP; BAND,OIL PRESS
(B) L=180 		1-09707-162-1 01 1 0112-0210 ● ●
231 CLIP; BAND,OIL PRESS
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. EURO2 SPECIFICATION<THN> (B) L=180 		1-09707-162-1 01 1 0112-0210 ●
231 CLIP; BAND,OIL PRESS
WHEEL BASE 5000MM(50W),WHEEL BASE 5900MM(59W) (B) L=180 		1-09707-162-1 01 1 0112-0210 ●
231 CLIP; BAND,OIL PRESS
(B) L=180 		1-09707-162-1 01 1 0211- ● ● ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
FULLER FS8209 DD M/T(Y2S) (A) L=140 		5-09707-031-1 01 1 0005-0111 ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
6SD1 TCN ENG(31L) (A) L=140 		5-09707-031-1 01 1 0005-0111 ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
FULLER FS8209 DD M/T(Y2S) (A) L=140 		5-09707-031-1 01 1 0112-0210 ● ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
FULLER FS8209HD DD M/T(Y3A) (A) L=140 		5-09707-031-1 01 1 0211-0302 ● ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(A) L=140 		5-09707-031-1 01 1 0303- ● ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
6HE1 TC ENG(57L),6HH1 STD ENG(65L) (C) ID=12 L=35 		5-09700-206-0 01 1 0005-0210 ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
A/T<X9D> (B) L=180 		1-09707-162-1 01 1 0112- ●
421 CLIP; FLOOR HARNESS
(B) L=20 		1-09987-246-2 07 1 0005-0101 ● ● ● ●
421 CLIP; FLOOR HARNESS
(B) L=20 		1-09987-246-2 01 1 0102- ● ● ● ●
421 CLIP; FLOOR HARNESS
A/T<X9D> (A) ID=26 L=28 		9-09917-538-1 01 1 0112- ●
462 CLIP; HARNESS,HTR
ID=20 		1-09709-068-0 02 1 0005- ● ● ● ●
470 CLIP; HARNESS,LICENSE LAMP
OD=9 H=6 		1-09709-178-0 01 1 0005- ● ● ● ●
çizim 46512
53 59 324 334 334 334 334 312 334 335 334 33 53 334 335 154 503 503 69 342
BalonParca AdiParca NoAdetTipApplied Date A B C D
33 CLIP; HARNESS,VLV
6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) EURO2 SPECIFICATION<THN> L=140 		5-09707-031-1 01 1 0005-0210 ●
53 BRACKET; HARNESS
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (A) 		1-47476-812-1 01 1 0005-0210 ●
53 BRACKET; HARNESS
6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) (B) L=95 		1-82699-085-0 04 1 0005-0210 ●
53 BRACKET; HARNESS
6SD1 TCN ENG(31L) (B) L=95 		1-82699-085-0 04 1 0005-0210 ●
53 BRACKET; HARNESS
6SD1 TCN ENG(31L) (B) L=95 		1-82699-085-0 04 1 0211-0302 ●
53 BRACKET; HARNESS
6SD1 TCN ENG(31L) (B) L=95 		1-82699-085-0 04 1 0303-0405 ●
53 BRACKET; HARNESS
6HK1 TCS ENG(80L) WHEEL BASE 6000MM(60W) (B) L=95 		1-82699-085-0 04 1 0303-0405 ●
53 BRACKET; HARNESS
6SD1 TCN ENG(31L) (B) L=95 		1-82699-085-0 04 1 0406- ●
53 BRACKET; HARNESS
6HK1 TCS ENG(80L) WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) (B) L=95 		1-82699-085-0 04 1 0406- ●
59 BRACKET; FRAME HARNESS
L=95 		1-82699-085-0 01 1 0005- ● ● ● ●
69 BRACKET; CLIP
25X37 		1-34656-004-0 01 1 0211- ● ● ●
69 BRACKET; CLIP
6SD1 TCN ENG(31L) 25X37 		1-34656-004-0 01 1 0211- ●
154 BRACKET; STARTER EARTH CABLE
6HH1 STD ENG(65L) 		1-47465-518-0 01 1 0005-0210 ●
312 BRACKET; CLIP HARNESS 1-82699-109-0 01 1 0005-0212 ● ● ● ●
312 BRACKET; CLIP HARNESS
6SD1 TCN ENG(31L) 		1-82699-109-0 01 1 0301-0302 ● ● ● ●
312 BRACKET; CLIP HARNESS
6SD1 TCN ENG(31L) 		1-82699-109-0 01 1 0303-0507 ● ● ● ●
312 BRACKET; CLIP HARNESS
6HK1 TCS ENG(80L) WHEEL BASE 4200MM(42W) 		1-82699-109-0 01 1 0303-0507 ●
312 BRACKET; CLIP HARNESS 1-82699-109-0 01 1 0508- ● ● ●
312 BRACKET; CLIP HARNESS
WHEEL BASE 4200MM(42W) 		1-82699-109-0 01 1 0508- ●
324 BRACKET; CLIP
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> L=120 		1-82699-465-0 01 1 0005-0210 ●
334 BRACKET
(A) 		1-47477-571-3 01 1 0211- ● ● ●
334 BRACKET
6SD1 TCN ENG(31L) (A) 		1-47477-571-3 01 1 0211- ●
334 BRACKET
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) (C) T=3.2 		1-46147-083-0 01 1 0303-0309 ●
334 BRACKET
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) (E) 		1-82699-639-1 01 1 0310-0609 ●
334 BRACKET
6HK1 TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A),FULLER FSO5206B OD M/T(Y4V) (E) 		1-82699-639-1 01 1 0610- ●
334 BRACKET
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) (D) 		1-47477-698-0 02 1 0303-0609 ●
334 BRACKET
6HK1 TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A),FULLER FSO5206B OD M/T(Y4V) (D) 		1-47477-698-0 02 1 0610- ●
334 BRACKET
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) (E) 		1-82699-639-1 02 1 0303-0303 ●
334 BRACKET
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) (E) 		1-82699-639-1 01 1 0304-0309 ●
334 BRACKET
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) (G) 		1-47475-868-0 01 1 0310-0609 ●
334 BRACKET
6HK1 TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A),FULLER FSO5206B OD M/T(Y4V) (G) 		1-47475-868-0 01 1 0610- ●
334 BRACKET
FULLER RT7608LL M/T(X8P) (F) 		1-47476-812-1 01 1 0005- ●
334 BRACKET
6SD1 TCN ENG(31L) FULLER RT7608LL M/T(X8P) ENGINE REAR PTO(SV1) (B) 		1-82698-470-0 01 1 0301- ●
335 BRACKET; CONNECTOR
(A) 		1-82698-167-0 01 1 0005- ● ● ●
335 BRACKET; CONNECTOR
FULLER FS8209 DD M/T(Y2S) (B) L=60 		1-82699-875-0 01 1 0005-0111 ● ●
335 BRACKET; CONNECTOR
(B) L=60 		1-82699-875-0 01 1 0005-0111 ●
335 BRACKET; CONNECTOR
FULLER RT7608LL M/T(X8P) (B) L=60 		1-82699-875-0 01 1 0005-0111 ●
335 BRACKET; CONNECTOR
FULLER FS8209 DD M/T(Y2S) (B) L=60 		1-82699-875-0 01 1 0112-0206 ● ● ●
335 BRACKET; CONNECTOR
FULLER RT7608LL M/T(X8P) (B) L=60 		1-82699-875-0 01 1 0112-0206 ●
335 BRACKET; CONNECTOR
A/T<X9D> (C) 		1-82699-963-0 01 1 0112-0206 ●
335 BRACKET; CONNECTOR
FULLER FS8209 DD M/T(Y2S) (C) 		1-82699-963-0 01 1 0207-0210 ● ● ●
335 BRACKET; CONNECTOR
(C) 		1-82699-963-0 01 1 0207-0210 ●
335 BRACKET; CONNECTOR
(C) 		1-82699-963-0 01 1 0211- ● ● ● ●
342 BRACKET; HARNESS CAB MTG
6HK1 TCS ENG(80L) L=40 		1-47478-410-0 01 1 0303- ●
503 CONNECTOR
(A) 		1-82690-668-0 01 1 0005- ● ● ● ●
503 CONNECTOR
STARTER SWITCH DELETION<E5D> (B) 		1-82690-666-0 01 1 0212- ● ● ● ●
çizim 46758
119 64 294 524 219 294 294 133 210 520 184 209
BalonParca AdiParca NoAdetTipApplied Date A B C D
64 SCREW; CLIP
EURO2 SPECIFICATION<THN> M6X12 TAPPING W/PL WASHER 		0-74100-612-0 01 1 0005-0210 ●
119 SCREW; DOOR HARNESS EARTH
POWER WINDOW<A30> M5X14 W/PL WASHER 		8-94447-551-0 02 1 0005-0210 ● ●
119 SCREW; DOOR HARNESS EARTH
M5X14 W/PL WASHER 		8-94447-551-0 02 1 0211- ● ● ● ●
133 SCREW; HARNESS CLIP,STRG COLUMN
(C) M6X16 W/LK&PL WASHER 		8-94279-402-0 01 1 0005-0110 ● ● ● ●
133 SCREW; HARNESS CLIP,STRG COLUMN
(B) M6X12 W/PL WASHER 		8-97806-950-0 01 1 0111- ● ● ● ●
133 SCREW; HARNESS CLIP,STRG COLUMN
(A) M6X12 W/LK&PL WASHER 		8-94279-200-0 01 1 0107-0210 ● ● ● ●
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 0005- ● ● ● ●
209 WASHER; LK,GEN,EARTH
ID=5.1 		9-09150-505-0 01 1 0005-0603 ● ● ● ●
209 WASHER; LK,GEN,EARTH
ID=5.1 		0-91510-505-0 01 1 0604- ● ● ● ●
210 WASHER; PL,GEN
ID=8.4 		1-09503-264-0 01 1 0005- ● ● ● ●
219 NUT
M8 FLANGE 		0-91150-108-0 05 1 0005-0210 ● ● ●
219 NUT
M8 FLANGE 		0-91150-108-0 05 1 0211-0410 ● ● ● ●
219 NUT
M8 FLANGE 		0-91150-108-0 04 1 0411-0602 ● ● ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 04 1 0603- ● ● ● ●
219 NUT
M8 FLANGE 		0-91150-108-0 02 1 0005-0111 ● ● ●
219 NUT
6HE1 TC ENG(57L),6HH1 STD ENG(65L) M8 FLANGE 		0-91150-108-0 02 1 0112-0210 ●
219 NUT
FULLER RT7608LL M/T(X8P) EXC. ENGINE REAR PTO(SV1) M8 FLANGE 		0-91150-108-0 02 1 0112-0210 ●
219 NUT
M8 FLANGE 		0-91150-108-0 02 1 0112-0210 ●
219 NUT
M8 FLANGE 		0-91150-108-0 01 1 0005-0111 ● ● ●
219 NUT
6HE1 TC ENG(57L),6HH1 STD ENG(65L) EURO2 SPECIFICATION<THN> M8 FLANGE 		0-91150-108-0 01 1 0005-0111 ●
219 NUT
6SD1 TCN ENG(31L) M8 FLANGE 		0-91150-108-0 01 1 0005-0111 ●
219 NUT
FULLER RT7608LL M/T(X8P) ENGINE REAR PTO(SV1) M8 FLANGE 		0-91150-108-0 01 1 0005-0111 ●
219 NUT
6SD1 TCN ENG(31L) M8 FLANGE 		0-91150-108-0 01 1 0112-0210 ● ● ● ●
219 NUT
EURO2 SPECIFICATION<THN> M8 FLANGE 		0-91150-108-0 01 1 0112-0210 ●
219 NUT
FULLER RT7608LL M/T(X8P) ENGINE REAR PTO(SV1) M8 FLANGE 		0-91150-108-0 01 1 0112-0210 ●
219 NUT
6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) M8 FLANGE 		0-91150-108-0 03 1 0211-0302 ● ● ●
219 NUT
M8 FLANGE 		0-91150-108-0 03 1 0303-0602 ● ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 03 1 0603- ● ● ●
219 NUT
FULLER FS8209 DD M/T(Y2S) M8 FLANGE 		0-91150-108-0 03 1 0005-0111 ● ●
219 NUT
6SD1 TCN ENG(31L) M8 FLANGE 		0-91150-108-0 03 1 0005-0111 ●
219 NUT
FULLER FS8209 DD M/T(Y2S) M8 FLANGE 		0-91150-108-0 03 1 0112-0210 ● ● ●
219 NUT
6SD1 TCN ENG(31L) M8 FLANGE 		0-91150-108-0 02 1 0211-0410 ● ● ● ●
219 NUT
A/T<X9D> M8 FLANGE 		0-91150-108-0 02 1 0211-0410 ●
219 NUT
FULLER RT7608LL M/T(X8P) EXC. ENGINE REAR PTO(SV1) M8 FLANGE 		0-91150-108-0 02 1 0211-0410 ●
219 NUT
6SD1 TCN ENG(31L) M8 FLANGE 		0-91150-108-0 02 1 0411-0602 ● ● ● ●
219 NUT
M8 FLANGE 		0-91150-108-0 02 1 0411-0602 ● ● ● ●
219 NUT
A/T<X9D> M8 FLANGE 		0-91150-108-0 02 1 0411-0602 ●
219 NUT
FULLER RT7608LL M/T(X8P) EXC. ENGINE REAR PTO(SV1) M8 FLANGE 		0-91150-108-0 02 1 0411-0602 ●
219 NUT
6SD1 TCN ENG(31L) M8 FLANGE 		0-91180-108-0 02 1 0603- ● ● ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ● ● ●
219 NUT
A/T<X9D> M8 FLANGE 		0-91180-108-0 02 1 0603- ●
219 NUT
FULLER RT7608LL M/T(X8P) EXC. ENGINE REAR PTO(SV1) M8 FLANGE 		0-91180-108-0 02 1 0603- ●
219 NUT
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> M8 FLANGE 		0-91150-108-0 04 1 0005-0210 ●
219 NUT
FULLER RT7608LL M/T(X8P) ENGINE REAR PTO(SV1) M8 FLANGE 		0-91150-108-0 01 1 0211-0602 ●
219 NUT
M8 FLANGE 		0-91150-108-0 01 1 0211-0602 ●
219 NUT
FULLER RT7608LL M/T(X8P) ENGINE REAR PTO(SV1) M8 FLANGE 		0-91180-108-0 01 1 0603- ●
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 0603- ●
219 NUT
M8 FLANGE 		0-91150-108-0 06 1 0005-0210 ●
294 NUT
(A) M6 FLANGE 		0-91150-106-0 01 1 0005-0212 ● ● ● ●
294 NUT
6SD1 TCN ENG(31L) (A) M6 FLANGE 		0-91150-106-0 01 1 0301-0302 ● ● ● ●
294 NUT
6SD1 TCN ENG(31L) (A) M6 FLANGE 		0-91150-106-0 01 1 0303-0602 ● ● ● ●
294 NUT
6HK1 TCS ENG(80L) WHEEL BASE 4200MM(42W) (A) M6 FLANGE 		0-91150-106-0 01 1 0303-0602 ●
294 NUT
6SD1 TCN ENG(31L) (A) M6 FLANGE 		0-91180-106-0 01 1 0603- ● ● ● ●
294 NUT
6HK1 TCS ENG(80L) WHEEL BASE 4200MM(42W) (A) M6 FLANGE 		0-91180-106-0 01 1 0603- ●
294 NUT
(B) M8 FLANGE 		0-91150-108-0 02 1 0005-0209 ● ● ●
294 NUT
6HE1 TC ENG(57L),6HH1 STD ENG(65L) (B) M8 FLANGE 		0-91150-108-0 02 1 0005-0209 ●
294 NUT
(B) M8 FLANGE 		0-91150-108-0 01 1 0210-0210 ● ● ● ●
294 NUT
FULLER FS8209 DD M/T(Y2S) (B) M8 FLANGE 		0-91150-108-0 01 1 0005-0111 ● ●
294 NUT
(B) M8 FLANGE 		0-91150-108-0 01 1 0005-0111 ●
294 NUT
FULLER RT7608LL M/T(X8P) (B) M8 FLANGE 		0-91150-108-0 01 1 0005-0111 ●
294 NUT
FULLER FS8209 DD M/T(Y2S) (B) M8 FLANGE 		0-91150-108-0 01 1 0112-0209 ● ● ●
294 NUT
(B) M8 FLANGE 		0-91150-108-0 01 1 0112-0209 ●
294 NUT
(B) M8 FLANGE 		0-91150-108-0 02 1 0210-0210 ●
294 NUT
(B) M8 FLANGE 		0-91150-108-0 02 1 0211-0602 ● ● ● ●
294 NUT
(B) M8 FLANGE 		0-91180-108-0 02 1 0603- ● ● ● ●
294 NUT
6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) (B) M8 FLANGE 		0-91150-108-0 04 1 0005-0210 ●
294 NUT
6SD1 TCN ENG(31L) (B) M8 FLANGE 		0-91150-108-0 04 1 0211-0302 ●
294 NUT
6SD1 TCN ENG(31L) (B) M8 FLANGE 		0-91150-108-0 04 1 0303-0405 ●
294 NUT
6HK1 TCS ENG(80L) WHEEL BASE 6000MM(60W) (B) M8 FLANGE 		0-91150-108-0 04 1 0303-0405 ●
294 NUT
6SD1 TCN ENG(31L) (B) M8 FLANGE 		0-91150-108-0 04 1 0406-0602 ●
294 NUT
6HK1 TCS ENG(80L) WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) (B) M8 FLANGE 		0-91150-108-0 04 1 0406-0602 ●
294 NUT
6SD1 TCN ENG(31L) (B) M8 FLANGE 		0-91180-108-0 04 1 0603- ●
294 NUT
6HK1 TCS ENG(80L) WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) (B) M8 FLANGE 		0-91180-108-0 04 1 0603- ●
294 NUT
6SD1 TCN ENG(31L) (B) M8 FLANGE 		0-91150-108-0 06 1 0005-0210 ●
294 NUT
(B) M8 FLANGE 		0-91150-108-0 01 1 0211-0602 ● ● ●
294 NUT
(B) M8 FLANGE 		0-91180-108-0 01 1 0603- ● ● ●
294 NUT
FULLER RT7608LL M/T(X8P) (C) M10 FLANGE 		0-91150-210-0 01 1 0005-0210 ●
294 NUT
FULLER RT7608LL M/T(X8P) (C) M10 FLANGE 		0-91150-210-0 01 1 0211-0302 ●
294 NUT
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) (C) M10 FLANGE 		0-91150-210-0 01 1 0303-0602 ●
294 NUT
FULLER RT7608LL M/T(X8P) (C) M10 FLANGE 		0-91150-210-0 01 1 0303-0602 ●
294 NUT
6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) (C) M10 FLANGE 		0-91180-210-0 01 1 0603-0609 ●
294 NUT
FULLER RT7608LL M/T(X8P) (C) M10 FLANGE 		0-91180-210-0 01 1 0603-0609 ●
294 NUT
6HK1 TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A),FULLER FSO5206B OD M/T(Y4V) (C) M10 FLANGE 		0-91180-210-0 01 1 0610- ●
294 NUT
FULLER RT7608LL M/T(X8P) (C) M10 FLANGE 		0-91180-210-0 01 1 0610- ●
520 WASHER; PL,EARTH CABLE
ID=8.4 		1-09503-264-0 01 1 0005-0111 ● ● ● ●
520 WASHER; PL,EARTH CABLE
ID=8.4 		1-09503-264-0 01 1 0112-0210 ● ● ● ●
520 WASHER; PL,EARTH CABLE
WHEEL BASE 5900MM(59W) ID=8.4 		1-09503-264-0 01 1 0112-0210 ●
520 WASHER; PL,EARTH CABLE
ID=8.4 		1-09503-264-0 01 1 0211- ● ● ● ●
520 WASHER; PL,EARTH CABLE
A/T<X9D> ID=8.4 		1-09503-264-0 01 1 0211- ●
524 NUT; HARNESS
M6 FLANGE 		0-91150-106-0 01 1 0005-0007 ● ● ● ●
524 NUT; HARNESS
M6 FLANGE 		0-91150-106-0 01 1 0005-0007 ● ● ●
524 NUT; HARNESS
M6 FLANGE 		0-91150-106-0 01 1 0008-0602 ● ● ● ●
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 01 1 0603- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
