◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FV ▶ 10828 - FV/GV(AUSTRAL)L.SUS ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-05 - INTERIOR LAMP ▶
8-05 — INTERIOR LAMP (#8768) — 80 parça
çizim 7663
34 35 38 1 2 2 4 3
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 LAMP ASM; ROOM
EXC. MAP LAMP<C85> 		1-82140-050-1 01 1 0005-0210 ● ●
1 LAMP ASM; ROOM 1-82140-050-1 01 1 0005-0210 ● ●
1 LAMP ASM; ROOM
EXC. MAP LAMP<C85> 		1-82140-050-1 01 1 0211-0405 ●
1 LAMP ASM; ROOM 1-82140-050-1 01 1 0211-0405 ● ● ●
1 LAMP ASM; ROOM
EXC. MAP LAMP<C85> 		1-82140-050-1 01 1 0406- ● ● ● ●
2 BULB; ROOM LAMP
EXC. MAP LAMP<C85> 24V 10W 		1-82195-001-0 02 1 0005-0210 ● ●
2 BULB; ROOM LAMP
24V 10W 		1-82195-001-0 02 1 0005-0210 ● ●
2 BULB; ROOM LAMP
EXC. MAP LAMP<C85> 24V 10W 		1-82195-001-0 02 1 0211-0405 ●
2 BULB; ROOM LAMP
24V 10W 		1-82195-001-0 02 1 0211-0405 ● ● ●
2 BULB; ROOM LAMP
EXC. MAP LAMP<C85> 24V 10W 		1-82195-001-0 02 1 0406- ● ● ● ●
3 LENS; ROOM LAMP
EXC. MAP LAMP<C85> 		1-82145-020-0 01 1 0005-0210 ● ●
3 LENS; ROOM LAMP 1-82145-020-0 01 1 0005-0210 ● ●
3 LENS; ROOM LAMP
EXC. MAP LAMP<C85> 		1-82145-020-0 01 1 0211-0405 ●
3 LENS; ROOM LAMP 1-82145-020-0 01 1 0211-0405 ● ● ●
3 LENS; ROOM LAMP
EXC. MAP LAMP<C85> 		1-82145-020-0 01 1 0406- ● ● ● ●
4 SCREW; ROOM LAMP
EXC. MAP LAMP<C85> M5X20 TAPPING 		9-07066-520-0 03 1 0005-0210 ● ●
4 SCREW; ROOM LAMP
M5X20 TAPPING 		9-07066-520-0 03 1 0005-0210 ● ●
4 SCREW; ROOM LAMP
EXC. MAP LAMP<C85> M5X20 TAPPING 		9-07066-520-0 03 1 0211-0405 ●
4 SCREW; ROOM LAMP
M5X20 TAPPING 		9-07066-520-0 03 1 0211-0405 ● ● ●
4 SCREW; ROOM LAMP
EXC. MAP LAMP<C85> M5X20 TAPPING 		9-07066-520-0 03 1 0406-0603 ● ● ● ●
4 SCREW; ROOM LAMP
EXC. MAP LAMP<C85> M5X20 TAPPING 		0-71040-520-0 03 1 0604- ● ● ● ●
34 COVER; STEP LAMP 1-79998-925-0 02 1 0005- ● ● ● ●
35 SCREW; STEP LAMP
M4X20 TAPPING W/PL WASHER 		0-74310-420-0 04 1 0005-0604 ● ● ● ●
35 SCREW; STEP LAMP
M4X20 TAPPING W/PL WASHER 		0-74360-420-0 04 1 0605- ● ● ● ●
38 COVER; STEP LAMP,DOOR 1-74997-029-2 01 1 0005- ● ● ● ●

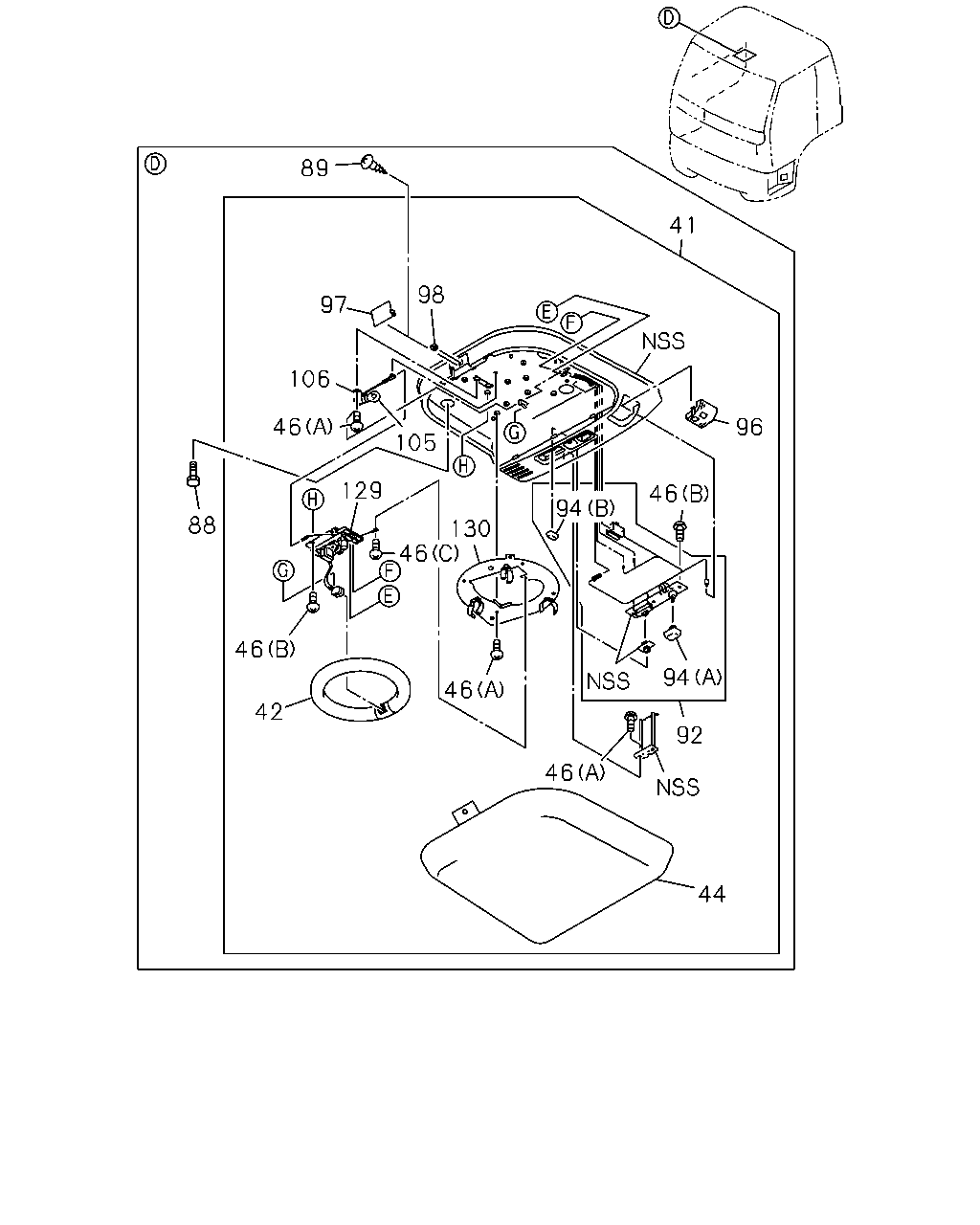

çizim 45496
89 41 98 97 106 46 96 105 129 46 94 88 130 46 46 94 46 42 92 46 44
BalonParca AdiParca NoAdetTipApplied Date A B C D
41 LAMP ASM; FLUORESCENT
MAP LAMP<C85> 		1-86830-315-1 01 1 0005-0210 ● ●
41 LAMP ASM; FLUORESCENT
MAP LAMP<C85> 		1-86830-315-2 01 1 0211-0405 ●
41 LAMP ASM; FLUORESCENT
MAP LAMP<C85> 		1-86830-315-2 01 1 0406- ● ● ● ●
42 LAMP; FLUORESCENT
MAP LAMP<C85> 		1-86830-094-1 01 1 0005-0210 ● ●
42 LAMP; FLUORESCENT
MAP LAMP<C85> 		1-86830-094-1 01 1 0211-0405 ●
42 LAMP; FLUORESCENT
MAP LAMP<C85> 		1-86830-094-1 01 1 0406- ● ● ● ●
44 LENS; FLUORESCENT LAMP
MAP LAMP<C85> 		1-86830-092-0 01 1 0005-0210 ● ●
44 LENS; FLUORESCENT LAMP
MAP LAMP<C85> 		1-86830-092-0 01 1 0211-0405 ●
44 LENS; FLUORESCENT LAMP
MAP LAMP<C85> 		1-86830-092-0 01 1 0406- ● ● ● ●
46 SCREW; FLUORESCENT LAMP
MAP LAMP<C85> (A) M5X10 TAPPING 		1-86830-095-0 08 1 0005-0210 ● ●
46 SCREW; FLUORESCENT LAMP
MAP LAMP<C85> (A) M5X10 TAPPING 		1-86830-095-0 08 1 0211-0405 ●
46 SCREW; FLUORESCENT LAMP
MAP LAMP<C85> (A) M5X10 TAPPING 		1-86830-095-0 08 1 0406- ● ● ● ●
46 SCREW; FLUORESCENT LAMP
MAP LAMP<C85> (B) M4X12 		1-86830-202-0 07 1 0005-0210 ● ●
46 SCREW; FLUORESCENT LAMP
MAP LAMP<C85> (B) M4X12 		1-86830-202-0 07 1 0211-0405 ●
46 SCREW; FLUORESCENT LAMP
MAP LAMP<C85> (B) M4X12 		1-86830-202-0 07 1 0406- ● ● ● ●
46 SCREW; FLUORESCENT LAMP
MAP LAMP<C85> (C) M3X6 TAPPING 		1-86830-336-0 01 1 0005-0210 ● ●
46 SCREW; FLUORESCENT LAMP
MAP LAMP<C85> (C) M3X6 TAPPING 		1-86830-336-0 01 1 0211-0405 ●
46 SCREW; FLUORESCENT LAMP
MAP LAMP<C85> (C) M3X6 TAPPING 		1-86830-336-0 01 1 0406- ● ● ● ●
88 BOLT; LAMP
MAP LAMP<C85> M6X16 W/LK&PL WASHER 		1-09980-574-0 04 1 0005-0210 ● ●
88 BOLT; LAMP
MAP LAMP<C85> M6X16 W/LK&PL WASHER 		1-09980-574-0 04 1 0211-0405 ●
88 BOLT; LAMP
MAP LAMP<C85> M6X16 W/LK&PL WASHER 		1-09980-574-0 04 1 0406- ● ● ● ●
89 SCREW; LENS,FLUORESCENT LAMP
MAP LAMP<C85> M5X10 TAPPING 		9-07076-510-0 01 1 0005-0210 ● ●
89 SCREW; LENS,FLUORESCENT LAMP
MAP LAMP<C85> M5X10 TAPPING 		9-07076-510-0 01 1 0211-0405 ●
89 SCREW; LENS,FLUORESCENT LAMP
MAP LAMP<C85> M5X10 TAPPING 		9-07076-510-0 01 1 0406-0603 ● ● ● ●
89 SCREW; LENS,FLUORESCENT LAMP
MAP LAMP<C85> M5X10 TAPPING 		0-71240-510-0 01 1 0604- ● ● ● ●
92 SWITCH ASM; FLUORESCENT
MAP LAMP<C85> 		1-86830-306-0 01 1 0211-0405 ●
92 SWITCH ASM; FLUORESCENT
MAP LAMP<C85> 		1-86830-306-0 01 1 0406- ● ● ● ●
92 SWITCH ASM; FLUORESCENT
MAP LAMP<C85> 		1-86830-341-0 01 1 0005-0210 ● ●
94 KNOB; ROOM LAMP SW
MAP LAMP<C85> (A) 		1-86830-312-0 01 1 0005-0210 ● ●
94 KNOB; ROOM LAMP SW
MAP LAMP<C85> (A) 		1-86830-312-0 01 1 0211-0405 ●
94 KNOB; ROOM LAMP SW
MAP LAMP<C85> (A) 		1-86830-312-0 01 1 0406- ● ● ● ●
94 KNOB; ROOM LAMP SW
MAP LAMP<C85> (B) 		1-86830-313-0 01 1 0005-0210 ● ●
94 KNOB; ROOM LAMP SW
MAP LAMP<C85> (B) 		1-86830-313-0 01 1 0211-0405 ●
94 KNOB; ROOM LAMP SW
MAP LAMP<C85> (B) 		1-86830-313-0 01 1 0406- ● ● ● ●
96 CAP; SPOT LAMP
MAP LAMP<C85> 		1-86830-385-0 01 1 0211-0405 ●
96 CAP; SPOT LAMP
MAP LAMP<C85> 		1-86830-385-0 01 1 0406- ● ● ● ●
96 CAP; SPOT LAMP
MAP LAMP<C85> 		1-86830-337-0 01 1 0005-0210 ● ●
97 CAP; LENS FIX
MAP LAMP<C85> 		1-86830-311-0 01 1 0005-0210 ● ●
97 CAP; LENS FIX
MAP LAMP<C85> 		1-86830-311-0 01 1 0211-0405 ●
97 CAP; LENS FIX
MAP LAMP<C85> 		1-86830-311-0 01 1 0406- ● ● ● ●
98 GROMMET; SCREW,LENS FIX
MAP LAMP<C85> 		1-86830-102-0 01 1 0005-0210 ● ●
98 GROMMET; SCREW,LENS FIX
MAP LAMP<C85> 		1-86830-102-0 01 1 0211-0405 ●
98 GROMMET; SCREW,LENS FIX
MAP LAMP<C85> 		1-86830-102-0 01 1 0406- ● ● ● ●
105 BULB; FLUORESCENT LAMP
MAP LAMP<C85> 28V 20W 		1-86830-200-0 01 1 0005-0210 ● ●
105 BULB; FLUORESCENT LAMP
MAP LAMP<C85> 28V 20W 		1-86830-200-0 01 1 0211-0405 ●
105 BULB; FLUORESCENT LAMP
MAP LAMP<C85> 28V 20W 		1-86830-200-0 01 1 0406- ● ● ● ●
106 SOCKET; BULB
MAP LAMP<C85> 		1-86830-201-0 01 1 0005-0210 ● ●
106 SOCKET; BULB
MAP LAMP<C85> 		1-86830-201-0 01 1 0211-0405 ●
106 SOCKET; BULB
MAP LAMP<C85> 		1-86830-201-0 01 1 0406- ● ● ● ●
129 INVERTER ASM; FLUORESCENT LAMP
MAP LAMP<C85> 		1-86830-338-0 01 1 0005-0210 ● ●
129 INVERTER ASM; FLUORESCENT LAMP
MAP LAMP<C85> 		1-86830-338-0 01 1 0211-0405 ●
129 INVERTER ASM; FLUORESCENT LAMP
MAP LAMP<C85> 		1-86830-338-0 01 1 0406- ● ● ● ●
130 PLATE ASM; FLUORESCENT LAMP
MAP LAMP<C85> 		1-86830-339-0 01 1 0005-0210 ● ●
130 PLATE ASM; FLUORESCENT LAMP
MAP LAMP<C85> 		1-86830-339-0 01 1 0211-0405 ●
130 PLATE ASM; FLUORESCENT LAMP
MAP LAMP<C85> 		1-86830-339-0 01 1 0406- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
