Sayfa 7-70 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FV ▶ 10828 - FV/GV(AUSTRAL)L.SUS ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-70 - SEPARATER AND BED ▶

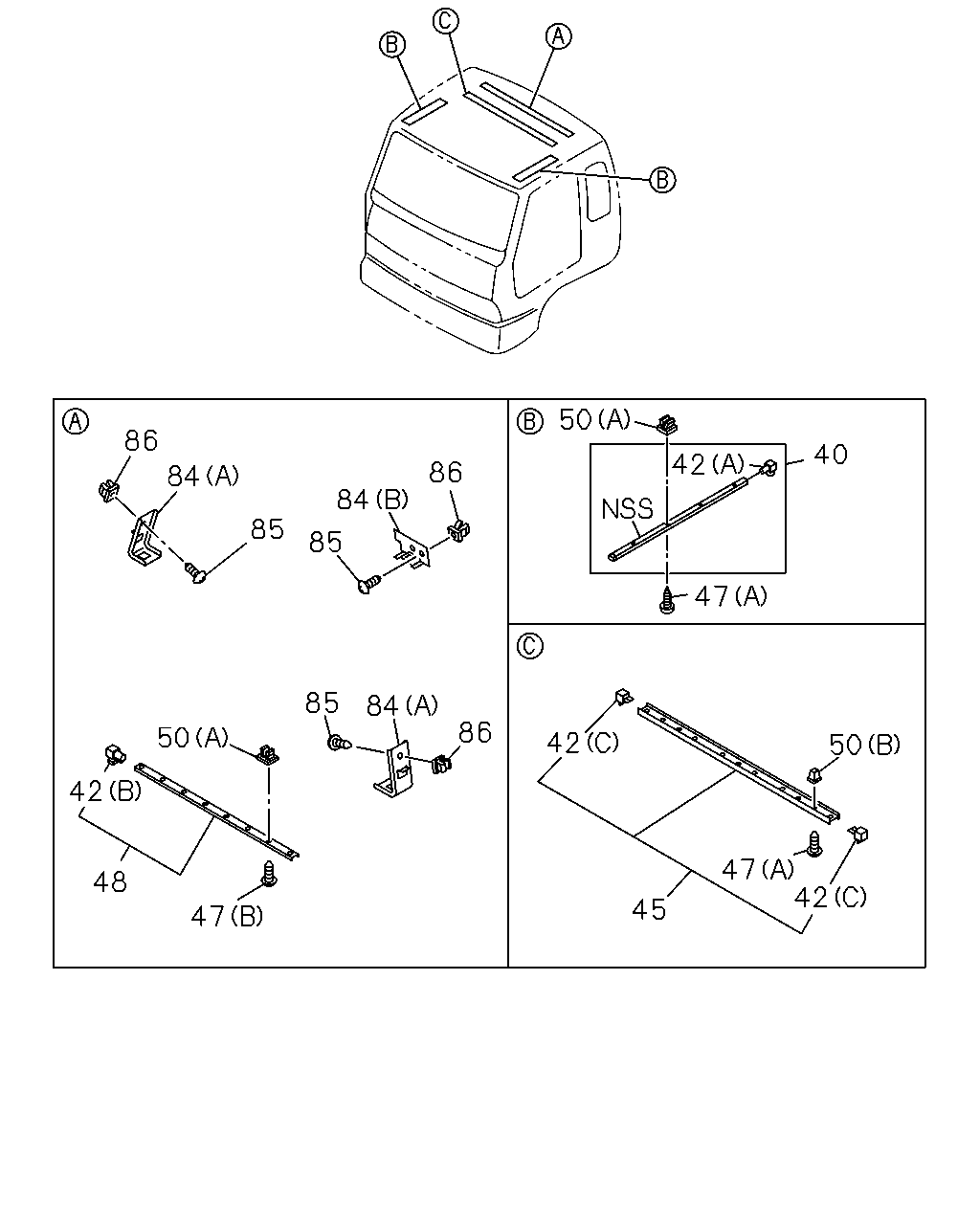

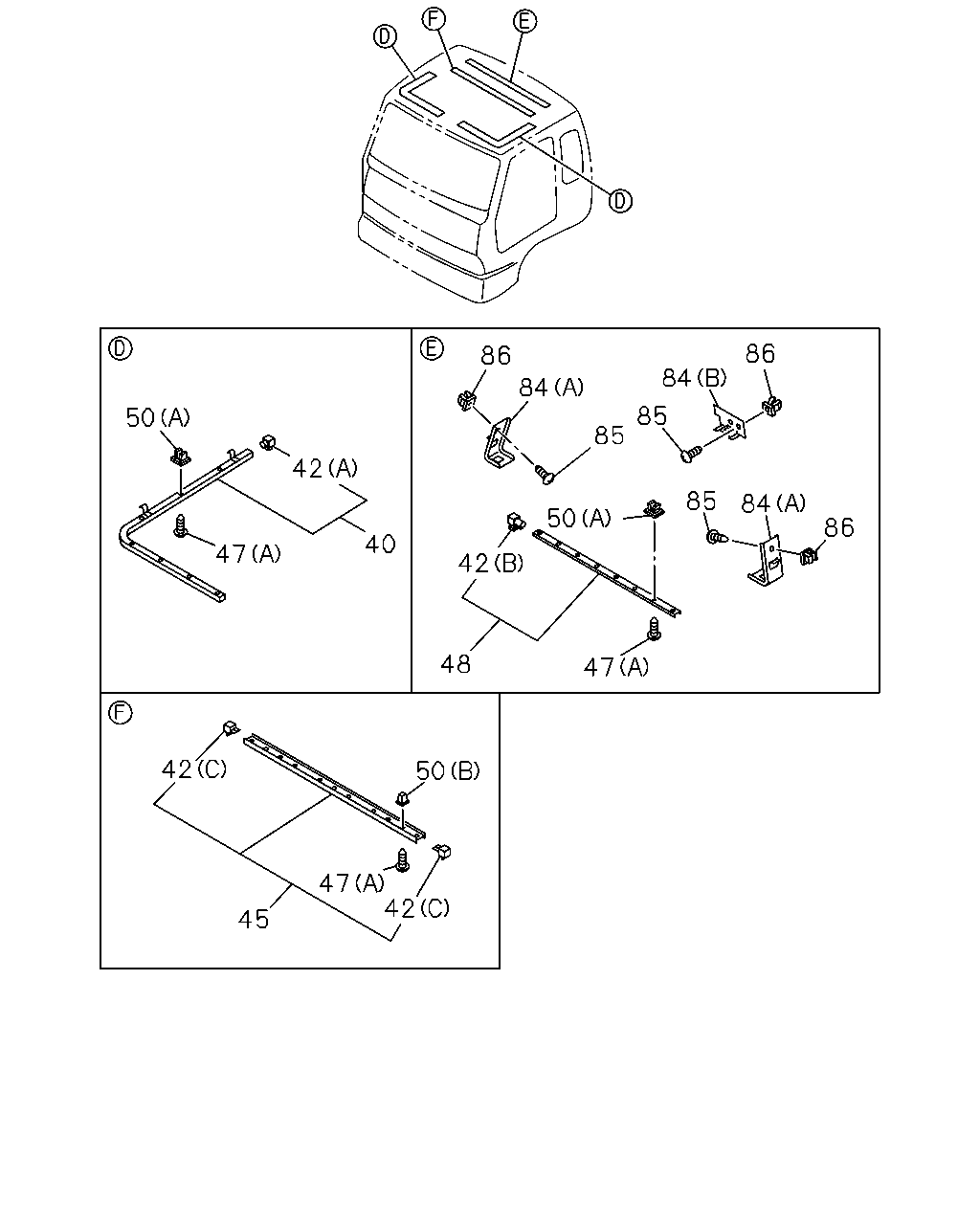

7-70 — SEPARATER AND BED (#8765) — 108 parça

86 86 84 84 85 50 85 42 85 84 50 86 40 47 42 48 47 42 50 47 42 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
40	RAIL; CURTAIN,SIDE CUSTOM CAB(SR5)	1-73908-356-0	01	1	0005-0210	●	●
40	RAIL; CURTAIN,SIDE CUSTOM CAB(SR5)	1-73908-356-1	01	1	0211-	●
40	RAIL; CURTAIN,SIDE CUSTOM CAB(SR5)	1-73908-355-0	01	1	0005-0210	●	●
40	RAIL; CURTAIN,SIDE CUSTOM CAB(SR5)	1-73908-355-1	01	1	0211-	●
40	RAIL; CURTAIN,SIDE EXC. CUSTOM CAB(SR5)	1-73996-378-0	02	1	0005-0210	●	●
40	RAIL; CURTAIN,SIDE	1-73996-378-0	02	1	0005-0210			●	●
40	RAIL; CURTAIN,SIDE EXC. CUSTOM CAB(SR5)	1-73996-378-1	02	1	0211-	●
40	RAIL; CURTAIN,SIDE	1-73996-378-1	02	1	0211-		●	●	●
42	STOPPER; CURTAIN RAIL CUSTOM CAB(SR5) (C)	1-73996-401-0	02	1	0005-0210	●	●
42	STOPPER; CURTAIN RAIL CUSTOM CAB(SR5) (C)	1-73996-401-0	02	1	0211-0305	●
42	STOPPER; CURTAIN RAIL EXC. CUSTOM CAB(SR5) (C)	1-73996-402-0	02	1	0005-0210	●	●
42	STOPPER; CURTAIN RAIL (C)	1-73996-402-0	02	1	0005-0210			●	●
42	STOPPER; CURTAIN RAIL EXC. CUSTOM CAB(SR5) (C)	1-73996-402-0	02	1	0211-0305	●
42	STOPPER; CURTAIN RAIL (C)	1-73996-402-0	02	1	0211-0305		●	●	●
42	STOPPER; CURTAIN RAIL (C)	1-73996-402-0	02	1	0306-	●	●	●	●
42	STOPPER; CURTAIN RAIL (A)	1-73996-393-0	02	1	0005-	●	●	●	●
42	STOPPER; CURTAIN RAIL (B)	1-73996-399-0	01	1	0005-	●	●	●	●
45	RAIL; CURTAIN,FRT CUSTOM CAB(SR5)	1-73996-492-0	01	1	0005-0210	●	●
45	RAIL; CURTAIN,FRT CUSTOM CAB(SR5)	1-73996-492-0	01	1	0211-0305	●
45	RAIL; CURTAIN,FRT EXC. CUSTOM CAB(SR5)	1-73996-369-0	01	1	0005-0210	●	●
45	RAIL; CURTAIN,FRT	1-73996-369-0	01	1	0005-0210			●	●
45	RAIL; CURTAIN,FRT EXC. CUSTOM CAB(SR5)	1-73996-369-0	01	1	0211-0305	●
45	RAIL; CURTAIN,FRT	1-73996-369-0	01	1	0211-0305		●	●	●
45	RAIL; CURTAIN,FRT	1-73996-369-1	01	1	0306-	●	●	●	●
47	SCREW; CURTAIN RAIL CUSTOM CAB(SR5) (A) M5X20	5-09981-059-0	30	1	0005-0210	●	●
47	SCREW; CURTAIN RAIL CUSTOM CAB(SR5) (A) M5X20	5-09981-059-0	30	1	0211-	●
47	SCREW; CURTAIN RAIL EXC. CUSTOM CAB(SR5) (A) M5X20	5-09981-059-0	19	1	0005-0210	●	●
47	SCREW; CURTAIN RAIL (A) M5X20	5-09981-059-0	19	1	0005-0210			●	●
47	SCREW; CURTAIN RAIL EXC. CUSTOM CAB(SR5) (A) M5X20	5-09981-059-0	19	1	0211-	●
47	SCREW; CURTAIN RAIL (A) M5X20	5-09981-059-0	19	1	0211-		●	●	●
47	SCREW; CURTAIN RAIL EXC. CUSTOM CAB(SR5) (B) M5X25	5-09981-093-0	07	1	0005-0210	●	●
47	SCREW; CURTAIN RAIL (B) M5X25	5-09981-093-0	07	1	0005-0210			●	●
47	SCREW; CURTAIN RAIL EXC. CUSTOM CAB(SR5) (B) M5X25	5-09981-093-0	07	1	0211-	●
47	SCREW; CURTAIN RAIL (B) M5X25	5-09981-093-0	07	1	0211-		●	●	●
48	RAIL; CURTAIN,BACK	1-73996-385-1	01	1	0005-	●	●	●	●
50	GROMMET; SCREW,CURTAIN RAIL CUSTOM CAB(SR5) (B) D=8X8 L=13 M5	1-09983-159-0	07	1	0005-0210	●	●
50	GROMMET; SCREW,CURTAIN RAIL CUSTOM CAB(SR5) (B) D=8X8 L=13 M5	1-09983-159-0	07	1	0211-	●
50	GROMMET; SCREW,CURTAIN RAIL CUSTOM CAB(SR5) (A) D=8.6X7.7 L=7.5	8-94279-078-0	25	1	0005-0210	●	●
50	GROMMET; SCREW,CURTAIN RAIL CUSTOM CAB(SR5) (A) D=8.6X7.7 L=7.5	8-94279-078-0	25	1	0211-	●
50	GROMMET; SCREW,CURTAIN RAIL EXC. CUSTOM CAB(SR5) (B) D=8X8 L=13 M5	1-09983-159-0	15	1	0005-0210	●	●
50	GROMMET; SCREW,CURTAIN RAIL (B) D=8X8 L=13 M5	1-09983-159-0	15	1	0005-0210			●	●
50	GROMMET; SCREW,CURTAIN RAIL EXC. CUSTOM CAB(SR5) (B) D=8X8 L=13 M5	1-09983-159-0	15	1	0211-	●
50	GROMMET; SCREW,CURTAIN RAIL (B) D=8X8 L=13 M5	1-09983-159-0	15	1	0211-		●	●	●
50	GROMMET; SCREW,CURTAIN RAIL EXC. CUSTOM CAB(SR5) (A) D=8.6X7.7 L=7.5	8-94279-078-0	11	1	0005-0210	●	●
50	GROMMET; SCREW,CURTAIN RAIL (A) D=8.6X7.7 L=7.5	8-94279-078-0	11	1	0005-0210			●	●
50	GROMMET; SCREW,CURTAIN RAIL EXC. CUSTOM CAB(SR5) (A) D=8.6X7.7 L=7.5	8-94279-078-0	11	1	0211-	●
50	GROMMET; SCREW,CURTAIN RAIL (A) D=8.6X7.7 L=7.5	8-94279-078-0	11	1	0211-		●	●	●
84	BRACKET; CURTAIN RAIL (A)	1-73998-986-2	02	1	0005-	●	●	●	●
84	BRACKET; CURTAIN RAIL (B)	1-73998-987-4	03	1	0005-0305	●	●	●	●
84	BRACKET; CURTAIN RAIL (B)	1-73998-987-4	07	1	0306-	●	●	●	●
85	SCREW; BRKT M5X20	5-09981-059-0	05	1	0005-0305	●	●	●	●
85	SCREW; BRKT M5X20	5-09981-059-0	09	1	0306-	●	●	●	●
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5	8-94279-078-0	05	1	0005-0305	●	●	●	●
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5	8-94279-078-0	09	1	0306-	●	●	●	●

50 86 40 42 86 84 84 85 85 47 85 84 86 50 42 50 42 47 42 48 45 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
40	RAIL; CURTAIN,SIDE CUSTOM CAB(SR5)	1-73908-356-0	01	1	0005-0210	●	●
40	RAIL; CURTAIN,SIDE CUSTOM CAB(SR5)	1-73908-356-1	01	1	0211-	●
40	RAIL; CURTAIN,SIDE CUSTOM CAB(SR5)	1-73908-355-0	01	1	0005-0210	●	●
40	RAIL; CURTAIN,SIDE CUSTOM CAB(SR5)	1-73908-355-1	01	1	0211-	●
40	RAIL; CURTAIN,SIDE EXC. CUSTOM CAB(SR5)	1-73996-378-0	02	1	0005-0210	●	●
40	RAIL; CURTAIN,SIDE	1-73996-378-0	02	1	0005-0210			●	●
40	RAIL; CURTAIN,SIDE EXC. CUSTOM CAB(SR5)	1-73996-378-1	02	1	0211-	●
40	RAIL; CURTAIN,SIDE	1-73996-378-1	02	1	0211-		●	●	●
42	STOPPER; CURTAIN RAIL CUSTOM CAB(SR5) (C)	1-73996-401-0	02	1	0005-0210	●	●
42	STOPPER; CURTAIN RAIL CUSTOM CAB(SR5) (C)	1-73996-401-0	02	1	0211-0305	●
42	STOPPER; CURTAIN RAIL EXC. CUSTOM CAB(SR5) (C)	1-73996-402-0	02	1	0005-0210	●	●
42	STOPPER; CURTAIN RAIL (C)	1-73996-402-0	02	1	0005-0210			●	●
42	STOPPER; CURTAIN RAIL EXC. CUSTOM CAB(SR5) (C)	1-73996-402-0	02	1	0211-0305	●
42	STOPPER; CURTAIN RAIL (C)	1-73996-402-0	02	1	0211-0305		●	●	●
42	STOPPER; CURTAIN RAIL (C)	1-73996-402-0	02	1	0306-	●	●	●	●
42	STOPPER; CURTAIN RAIL (A)	1-73996-393-0	02	1	0005-	●	●	●	●
42	STOPPER; CURTAIN RAIL (B)	1-73996-399-0	01	1	0005-	●	●	●	●
45	RAIL; CURTAIN,FRT CUSTOM CAB(SR5)	1-73996-492-0	01	1	0005-0210	●	●
45	RAIL; CURTAIN,FRT CUSTOM CAB(SR5)	1-73996-492-0	01	1	0211-0305	●
45	RAIL; CURTAIN,FRT EXC. CUSTOM CAB(SR5)	1-73996-369-0	01	1	0005-0210	●	●
45	RAIL; CURTAIN,FRT	1-73996-369-0	01	1	0005-0210			●	●
45	RAIL; CURTAIN,FRT EXC. CUSTOM CAB(SR5)	1-73996-369-0	01	1	0211-0305	●
45	RAIL; CURTAIN,FRT	1-73996-369-0	01	1	0211-0305		●	●	●
45	RAIL; CURTAIN,FRT	1-73996-369-1	01	1	0306-	●	●	●	●
47	SCREW; CURTAIN RAIL CUSTOM CAB(SR5) (A) M5X20	5-09981-059-0	30	1	0005-0210	●	●
47	SCREW; CURTAIN RAIL CUSTOM CAB(SR5) (A) M5X20	5-09981-059-0	30	1	0211-	●
47	SCREW; CURTAIN RAIL EXC. CUSTOM CAB(SR5) (A) M5X20	5-09981-059-0	19	1	0005-0210	●	●
47	SCREW; CURTAIN RAIL (A) M5X20	5-09981-059-0	19	1	0005-0210			●	●
47	SCREW; CURTAIN RAIL EXC. CUSTOM CAB(SR5) (A) M5X20	5-09981-059-0	19	1	0211-	●
47	SCREW; CURTAIN RAIL (A) M5X20	5-09981-059-0	19	1	0211-		●	●	●
47	SCREW; CURTAIN RAIL EXC. CUSTOM CAB(SR5) (B) M5X25	5-09981-093-0	07	1	0005-0210	●	●
47	SCREW; CURTAIN RAIL (B) M5X25	5-09981-093-0	07	1	0005-0210			●	●
47	SCREW; CURTAIN RAIL EXC. CUSTOM CAB(SR5) (B) M5X25	5-09981-093-0	07	1	0211-	●
47	SCREW; CURTAIN RAIL (B) M5X25	5-09981-093-0	07	1	0211-		●	●	●
48	RAIL; CURTAIN,BACK	1-73996-385-1	01	1	0005-	●	●	●	●
50	GROMMET; SCREW,CURTAIN RAIL CUSTOM CAB(SR5) (B) D=8X8 L=13 M5	1-09983-159-0	07	1	0005-0210	●	●
50	GROMMET; SCREW,CURTAIN RAIL CUSTOM CAB(SR5) (B) D=8X8 L=13 M5	1-09983-159-0	07	1	0211-	●
50	GROMMET; SCREW,CURTAIN RAIL CUSTOM CAB(SR5) (A) D=8.6X7.7 L=7.5	8-94279-078-0	25	1	0005-0210	●	●
50	GROMMET; SCREW,CURTAIN RAIL CUSTOM CAB(SR5) (A) D=8.6X7.7 L=7.5	8-94279-078-0	25	1	0211-	●
50	GROMMET; SCREW,CURTAIN RAIL EXC. CUSTOM CAB(SR5) (B) D=8X8 L=13 M5	1-09983-159-0	15	1	0005-0210	●	●
50	GROMMET; SCREW,CURTAIN RAIL (B) D=8X8 L=13 M5	1-09983-159-0	15	1	0005-0210			●	●
50	GROMMET; SCREW,CURTAIN RAIL EXC. CUSTOM CAB(SR5) (B) D=8X8 L=13 M5	1-09983-159-0	15	1	0211-	●
50	GROMMET; SCREW,CURTAIN RAIL (B) D=8X8 L=13 M5	1-09983-159-0	15	1	0211-		●	●	●
50	GROMMET; SCREW,CURTAIN RAIL EXC. CUSTOM CAB(SR5) (A) D=8.6X7.7 L=7.5	8-94279-078-0	11	1	0005-0210	●	●
50	GROMMET; SCREW,CURTAIN RAIL (A) D=8.6X7.7 L=7.5	8-94279-078-0	11	1	0005-0210			●	●
50	GROMMET; SCREW,CURTAIN RAIL EXC. CUSTOM CAB(SR5) (A) D=8.6X7.7 L=7.5	8-94279-078-0	11	1	0211-	●
50	GROMMET; SCREW,CURTAIN RAIL (A) D=8.6X7.7 L=7.5	8-94279-078-0	11	1	0211-		●	●	●
84	BRACKET; CURTAIN RAIL (A)	1-73998-986-2	02	1	0005-	●	●	●	●
84	BRACKET; CURTAIN RAIL (B)	1-73998-987-4	03	1	0005-0305	●	●	●	●
84	BRACKET; CURTAIN RAIL (B)	1-73998-987-4	07	1	0306-	●	●	●	●
85	SCREW; BRKT M5X20	5-09981-059-0	05	1	0005-0305	●	●	●	●
85	SCREW; BRKT M5X20	5-09981-059-0	09	1	0306-	●	●	●	●
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5	8-94279-078-0	05	1	0005-0305	●	●	●	●
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5	8-94279-078-0	09	1	0306-	●	●	●	●
