◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FV ▶ 10828 - FV/GV(AUSTRAL)L.SUS ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-50 - FRONT SEAT ▶
7-50 — FRONT SEAT (#8763) — 228 parça

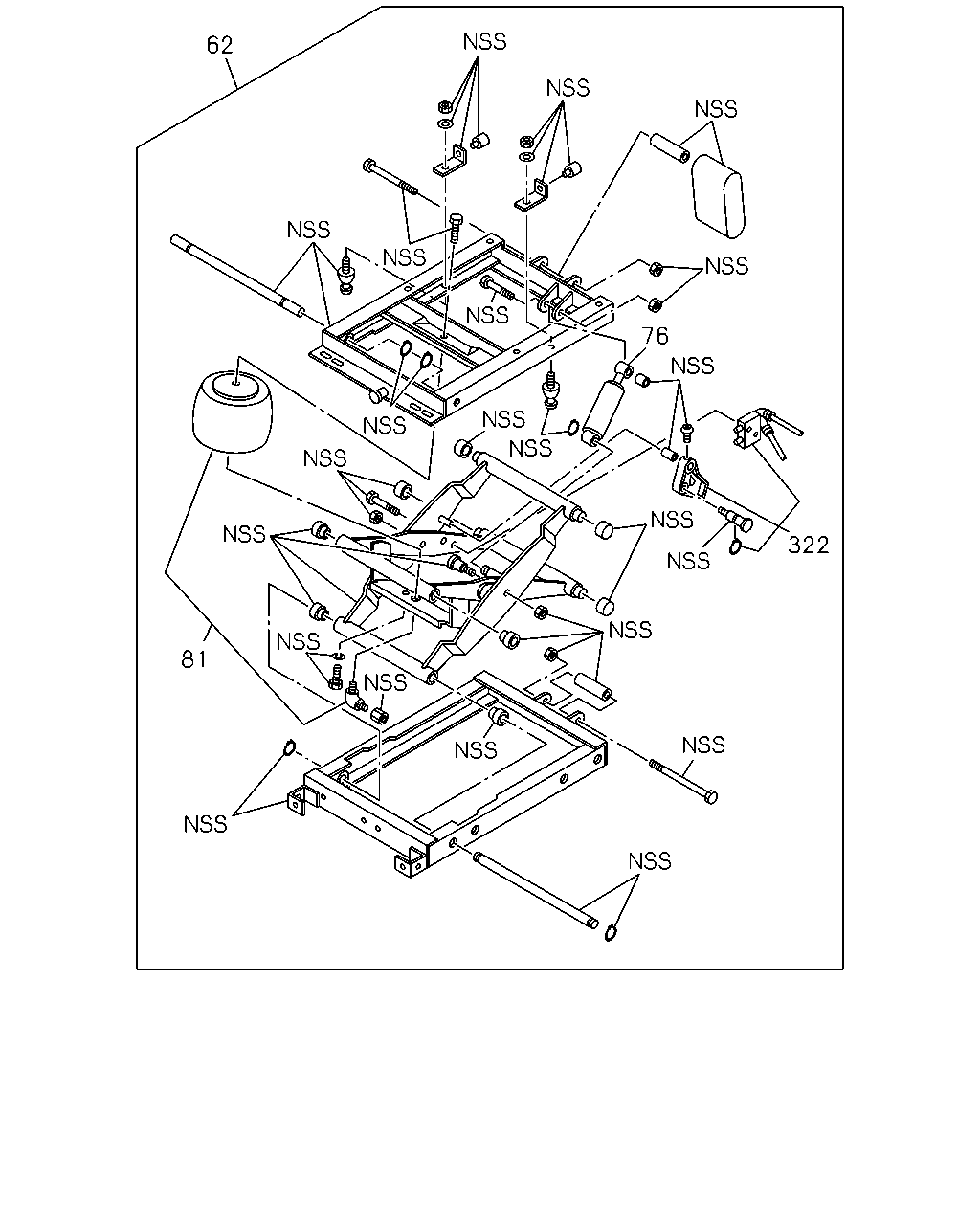

çizim 7848
62 76 322 81
BalonParca AdiParca NoAdetTipApplied Date A B C D
62 DAMPER ASM; SEAT SUSP
DRIVER 		1-75538-198-0 01 1 0005- ● ● ● ●
76 DAMPER; AIR SUSP 1-75538-201-0 01 1 0005- ● ● ● ●
81 SPRING; AIR 1-75538-199-0 01 1 0005- ● ● ● ●
322 VALVE; AIR SPRING 1-75538-200-0 01 1 0005- ● ● ● ●

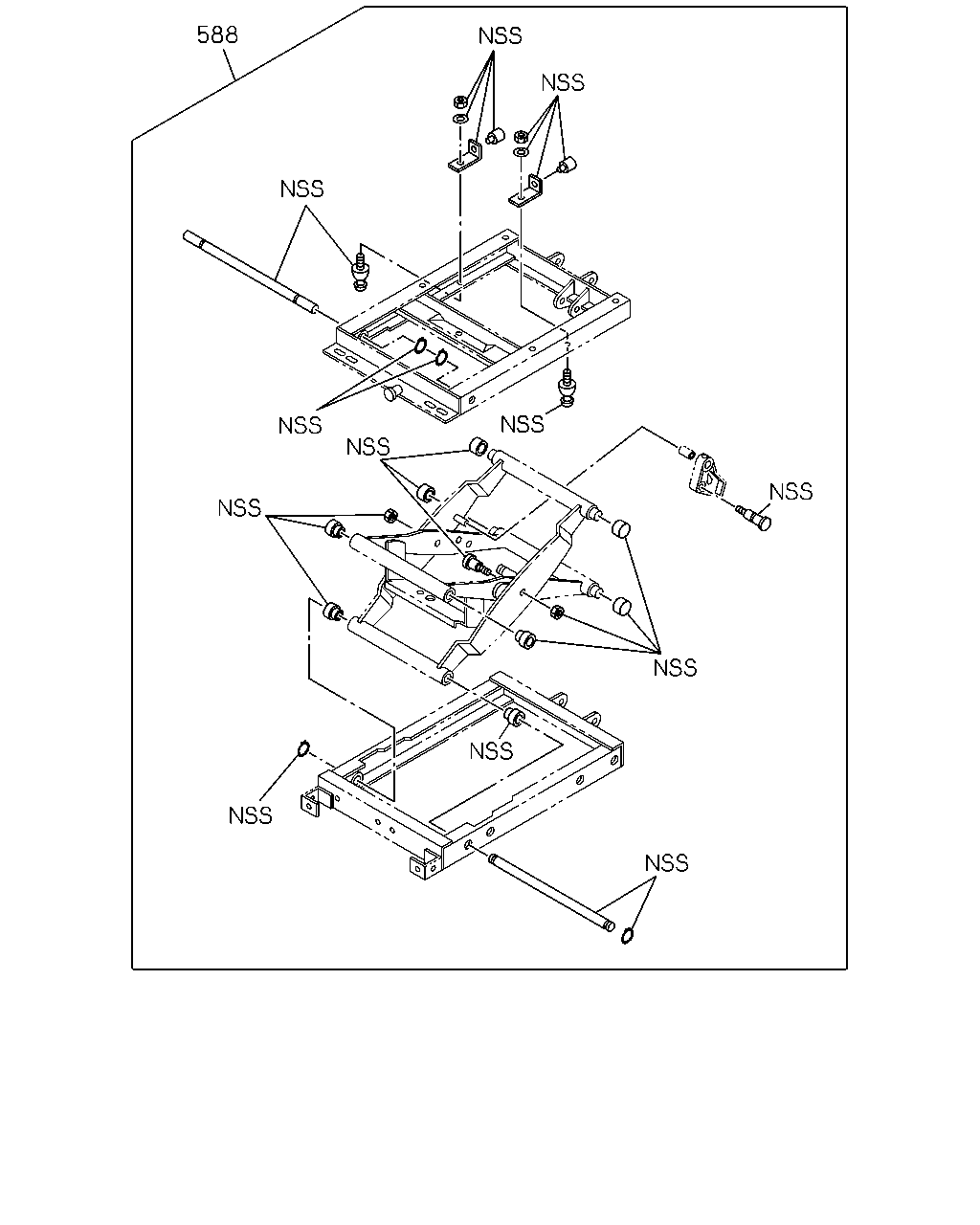

çizim 9890
588
BalonParca AdiParca NoAdetTipApplied Date A B C D
588 REPAIR KIT; SUSPENSION 1-75538-202-0 01 1 0005- ● ● ● ●

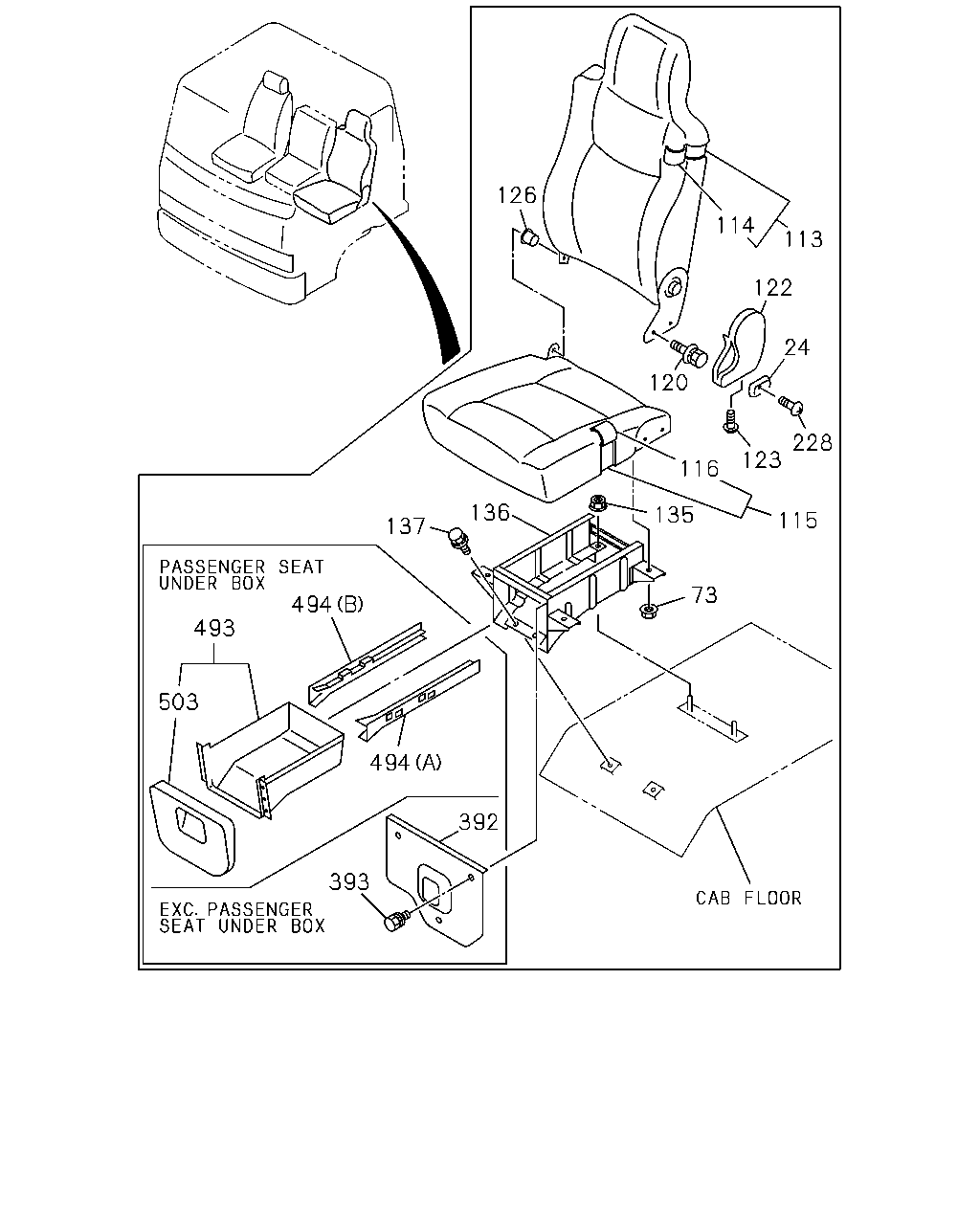

çizim 43629
126 114 113 122 24 120 228 123 116 136 135 115 137 73 494 493 503 494 392 393
BalonParca AdiParca NoAdetTipApplied Date A B C D
24 KNOB; RECLINING,FRT,SEAT
PASSENGER DARK GRAY 		8-97859-019-0 01 1 0005- ● ● ● ●
73 NUT; ADJ,HEIGHT CONT
PASSENGER SEAT M8 FLANGE 		1-75538-207-0 04 1 0005- ● ● ● ●
113 BACK ASM; SEAT
PASSENGER 		1-75026-796-0 01 1 0005-0105 ● ● ● ●
113 BACK ASM; SEAT
PASSENGER 		1-75208-191-4 01 1 0106- ● ● ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK 1-75116-709-2 01 1 0005- ● ● ● ●
115 CUSHION ASM; PASSENGER SEAT 1-75026-782-2 01 1 0005- ● ● ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION 1-75116-589-2 01 1 0005- ● ● ● ●
120 BOLT; RECLINING ADJ
PASSENGER SEAT M8X20 		8-97255-906-0 02 1 0005- ● ● ● ●
122 COVER; ADJ,RECLINING
PASSENGER SEAT DARK GRAY 		8-97859-018-0 01 1 0005- ● ● ● ●
123 SCREW; COVER,RECLINING
PASSENGER SEAT M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0005- ● ● ● ●
126 BUSHING; HINGE,RECLINING
PASSENGER SEAT 		8-97854-087-0 01 1 0005- ● ● ● ●
135 NUT; SEAT STAND
PASSENGER SEAT M10 FLANGE 		1-09984-153-0 02 1 0005-0703 ● ● ● ●
135 NUT; SEAT STAND
M10 FLANGE 		0-91180-110-0 02 1 0704- ● ● ● ●
136 STAND; PASSENGER SEAT 1-75558-584-0 01 1 0005-0105 ● ● ●
136 STAND; PASSENGER SEAT
PASSENGER SEAT UNDER BOX<TDN> 		1-75558-584-0 01 1 0005-0105 ●
136 STAND; PASSENGER SEAT 1-75558-603-0 01 1 0106-0111 ● ● ●
136 STAND; PASSENGER SEAT
PASSENGER SEAT UNDER BOX<TDN> 		1-75558-603-0 01 1 0106-0111 ●
136 STAND; PASSENGER SEAT 1-75558-603-0 01 1 0112-0210 ● ●
136 STAND; PASSENGER SEAT
PASSENGER SEAT UNDER BOX<TDN> 		1-75558-603-0 01 1 0112-0210 ●
136 STAND; PASSENGER SEAT
WHEEL BASE 5000MM(50W),WHEEL BASE 6300MM(63W) 		1-75558-603-0 01 1 0112-0210 ●
136 STAND; PASSENGER SEAT 1-75558-601-3 01 1 0211-1305 ● ● ● ●
136 STAND; PASSENGER SEAT 8-98242-298-0 01 1 1306- ● ● ● ●
136 STAND; PASSENGER SEAT
EXC. PASSENGER SEAT UNDER BOX<TDN> 		1-75558-585-0 01 1 0005-0105 ●
136 STAND; PASSENGER SEAT
EXC. PASSENGER SEAT UNDER BOX<TDN> 		1-75558-601-0 01 1 0106-0111 ●
136 STAND; PASSENGER SEAT
EXC. PASSENGER SEAT UNDER BOX<TDN> 		1-75558-601-0 01 1 0112-0210 ●
136 STAND; PASSENGER SEAT
WHEEL BASE 5900MM(59W) 		1-75558-601-0 01 1 0112-0210 ●
137 BOLT; STAND
PASSENGER SEAT M10X20 W/LK&PL WASHER 		8-94279-211-0 02 1 0005-0703 ● ● ● ●
137 BOLT; STAND
M10X20 FLANGE 		0-28451-020-0 02 1 0704- ● ● ● ●
228 SCREW; KNOB
PASSENGER SEAT M4X6 		8-97042-273-0 01 1 0005- ● ● ● ●
392 COVER; STAND,PASSENGER SEAT
EXC. PASSENGER SEAT UNDER BOX<TDN> 		1-75558-523-4 01 1 0005-0111 ●
392 COVER; STAND,PASSENGER SEAT
EXC. PASSENGER SEAT UNDER BOX<TDN> 		1-75558-523-4 01 1 0112-0112 ●
392 COVER; STAND,PASSENGER SEAT
WHEEL BASE 5900MM(59W) 		1-75558-523-4 01 1 0112-0112 ●
392 COVER; STAND,PASSENGER SEAT
EXC. PASSENGER SEAT UNDER BOX<TDN> 		1-75558-556-1 01 1 0112-0210 ●
392 COVER; STAND,PASSENGER SEAT
WHEEL BASE 5900MM(59W) 		1-75558-556-1 01 1 0112-0210 ●
393 BOLT; COVER,SEAT STAND
EXC. PASSENGER SEAT UNDER BOX<TDN> PASSENGER M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0005-0111 ●
393 BOLT; COVER,SEAT STAND
EXC. PASSENGER SEAT UNDER BOX<TDN> PASSENGER M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0112-0210 ●
393 BOLT; COVER,SEAT STAND
WHEEL BASE 5900MM(59W) PASSENGER M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0112-0210 ●
493 BOX; SEAT STAND
PASSENGER 		1-72537-130-1 01 1 0005-0111 ● ● ●
493 BOX; SEAT STAND
PASSENGER SEAT UNDER BOX<TDN> PASSENGER 		1-72537-130-1 01 1 0005-0111 ●
493 BOX; SEAT STAND
PASSENGER 		1-72537-130-1 01 1 0112-0210 ● ●
493 BOX; SEAT STAND
PASSENGER SEAT UNDER BOX<TDN> PASSENGER 		1-72537-130-1 01 1 0112-0210 ●
493 BOX; SEAT STAND
WHEEL BASE 5000MM(50W),WHEEL BASE 6300MM(63W) PASSENGER 		1-72537-130-1 01 1 0112-0210 ●
494 RAIL; GUIDE
(A) PASSENGER SEAT 		1-72537-149-0 01 1 0005-0111 ● ● ●
494 RAIL; GUIDE
PASSENGER SEAT UNDER BOX<TDN> (A) PASSENGER SEAT 		1-72537-149-0 01 1 0005-0111 ●
494 RAIL; GUIDE
(A) PASSENGER SEAT 		1-72537-149-0 01 1 0112-0210 ● ●
494 RAIL; GUIDE
PASSENGER SEAT UNDER BOX<TDN> (A) PASSENGER SEAT 		1-72537-149-0 01 1 0112-0210 ●
494 RAIL; GUIDE
WHEEL BASE 5000MM(50W),WHEEL BASE 6300MM(63W) (A) PASSENGER SEAT 		1-72537-149-0 01 1 0112-0210 ●
494 RAIL; GUIDE
(B) PASSENGER SEAT 		1-72537-150-0 01 1 0005-0111 ● ● ●
494 RAIL; GUIDE
PASSENGER SEAT UNDER BOX<TDN> (B) PASSENGER SEAT 		1-72537-150-0 01 1 0005-0111 ●
494 RAIL; GUIDE
(B) PASSENGER SEAT 		1-72537-150-0 01 1 0112-0210 ● ●
494 RAIL; GUIDE
PASSENGER SEAT UNDER BOX<TDN> (B) PASSENGER SEAT 		1-72537-150-0 01 1 0112-0210 ●
494 RAIL; GUIDE
WHEEL BASE 5000MM(50W),WHEEL BASE 6300MM(63W) (B) PASSENGER SEAT 		1-72537-150-0 01 1 0112-0210 ●
503 COVER; BOX
PASSENGER SEAT 		1-72537-136-0 01 1 0005-0111 ● ● ●
503 COVER; BOX
PASSENGER SEAT UNDER BOX<TDN> PASSENGER SEAT 		1-72537-136-0 01 1 0005-0111 ●
503 COVER; BOX
PASSENGER SEAT 		1-72537-136-0 01 1 0112-0210 ● ●
503 COVER; BOX
PASSENGER SEAT UNDER BOX<TDN> PASSENGER SEAT 		1-72537-136-0 01 1 0112-0210 ●
503 COVER; BOX
WHEEL BASE 5000MM(50W),WHEEL BASE 6300MM(63W) PASSENGER SEAT 		1-72537-136-0 01 1 0112-0210 ●

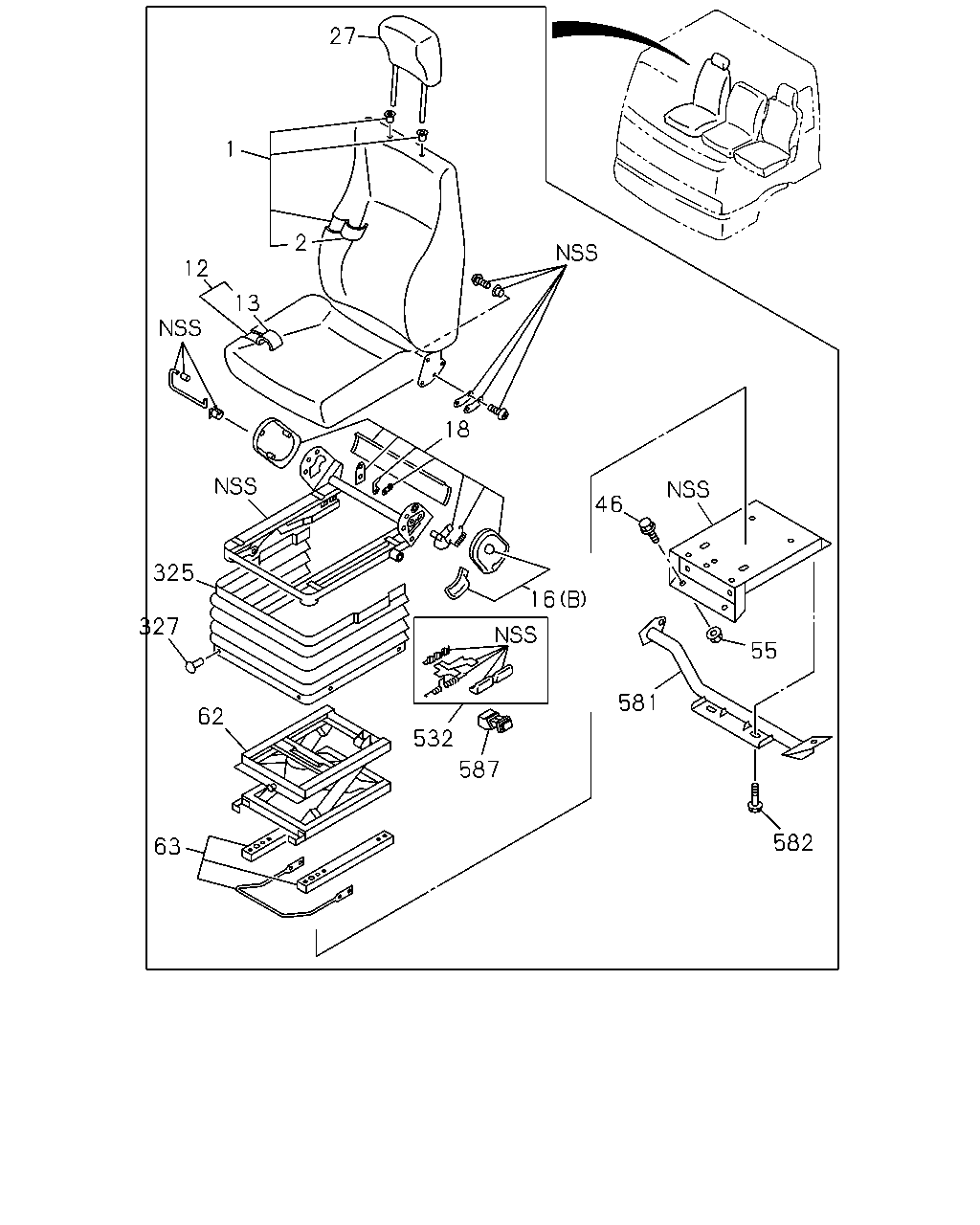

çizim 43753
27 1 2 12 13 18 46 325 16 327 55 581 62 532 587 582 63
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 BACK ASM; SEAT
DRIVER 		1-75026-267-0 01 1 0005- ● ● ● ●
2 COVER; TRIM,FRT SEAT,BACK
DRIVER 		1-75116-464-0 01 1 0005- ● ● ● ●
12 CUSHION; SEAT,FRT
DRIVER 		1-75026-268-0 01 1 0005- ● ● ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
DRIVER 		1-75116-465-0 01 1 0005- ● ● ● ●
16 ADJUSTER ASM; RECLINING
(B) DRIVER SEAT 		1-75418-064-0 01 1 0005- ● ● ● ●
16 ADJUSTER ASM; RECLINING
(A) CENTER SEAT 		1-75418-062-0 01 1 0005-0210 ● ● ●
16 ADJUSTER ASM; RECLINING
EXC. CENTER SEAT DELETE 2 CREWS<SP9> (A) CENTER SEAT 		1-75418-062-0 01 1 0005-0210 ●
16 ADJUSTER ASM; RECLINING
(A) CENTER SEAT 		1-75418-062-1 01 1 0211- ● ● ●
16 ADJUSTER ASM; RECLINING
CENTER SEAT 3 CREWS<SA1> (A) CENTER SEAT 		1-75418-062-1 01 1 0211- ●
18 COVER; RECLINING
DRIVER SEAT 		1-75418-063-0 01 1 0005- ● ● ● ●
27 REST; HD,FRT SEAT
DRIVER 		1-75658-052-0 01 1 0005- ● ● ● ●
46 BOLT; STAND TO FLOOR
DRIVER SEAT M10X20 W/LK&PL WASHER 		8-94279-211-0 02 1 0005-0703 ● ● ● ●
46 BOLT; STAND TO FLOOR
M10X20 FLANGE 		0-28451-020-0 02 1 0704- ● ● ● ●
55 NUT; DRIVER SEAT STAND TO FLOOR PANEL
M10 FLANGE 		1-09984-153-0 02 1 0005-0703 ● ● ● ●
55 NUT; DRIVER SEAT STAND TO FLOOR PANEL
M10 FLANGE 		0-91180-110-0 02 1 0704- ● ● ● ●
62 DAMPER ASM; SEAT SUSP
DRIVER 		1-75538-198-0 01 1 0005- ● ● ● ●
63 ADJUSTER; SEAT SLIDE
DRIVER 		1-75518-315-0 01 1 0005- ● ● ● ●
325 COVER; SUSPENSION DEVICE
DRIVER SEAT 		1-75538-196-0 01 1 0005- ● ● ● ●
327 CLIP; COVER
DRIVER SEAT 		1-75538-197-0 01 1 0005- ● ● ● ●
532 LEVER ASM; TILT
DRIVER SEAT 		1-75518-314-0 01 1 0005- ● ● ● ●
581 PIPE; SEAT
DRIVER 		1-73907-573-3 01 1 0005- ● ● ● ●
582 BOLT; PIPE,SEAT
DRIVER 		1-09980-619-1 02 1 0005- ● ● ● ●
587 VALVE; LUMBAR SUPPORT
DRIVER SEAT 		1-75418-065-0 01 1 0005- ● ● ● ●

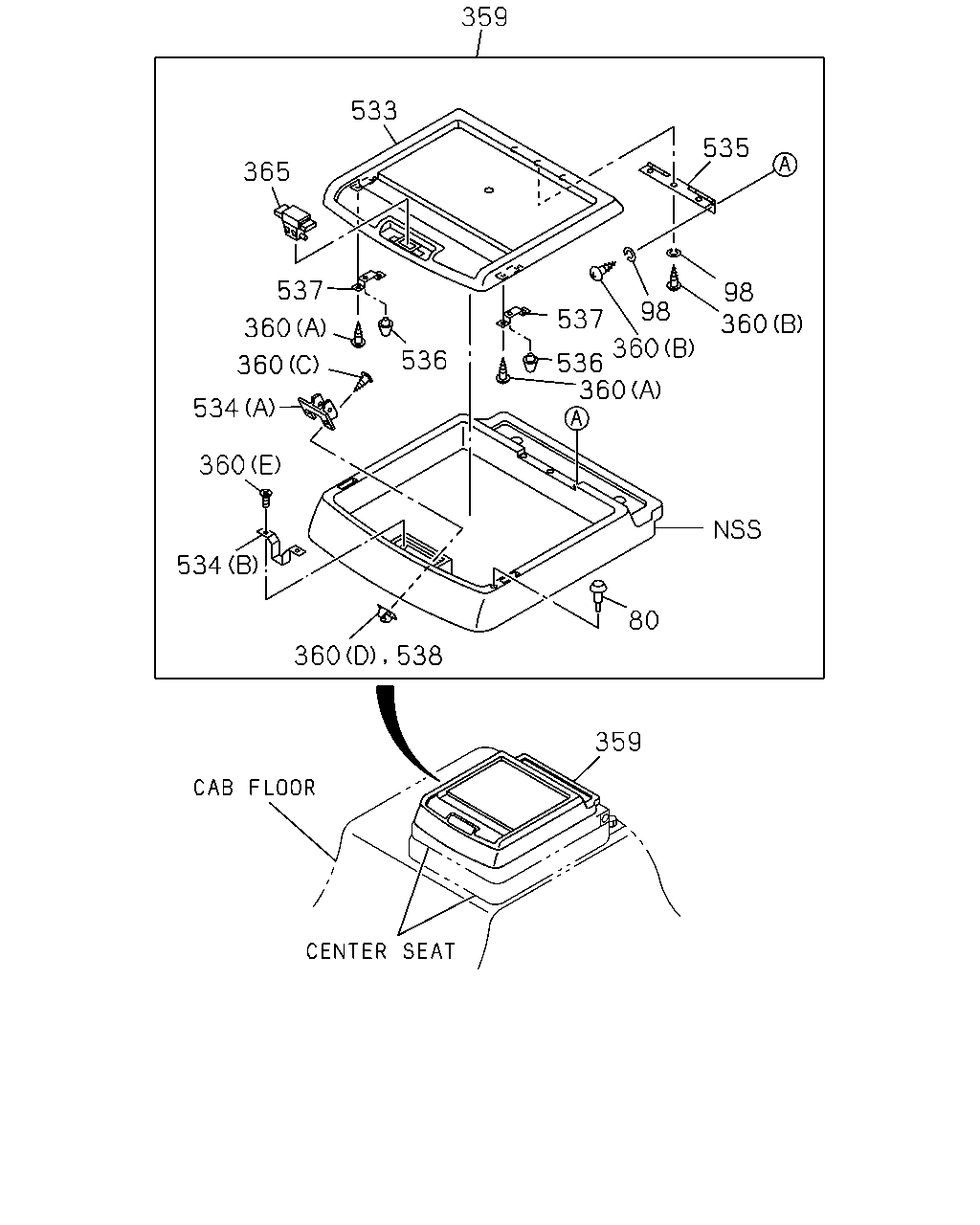

çizim 43785
359 533 535 365 537 98 360 98 537 360 536 360 360 536 360 534 360 534 80 359 538 360
BalonParca AdiParca NoAdetTipApplied Date A B C D
80 RUBBER; STOPPER 1-72538-187-0 02 1 1007- ● ● ●
80 RUBBER; STOPPER
CENTER SEAT 3 CREWS<SA1> 		1-72538-187-0 02 1 1007- ●
98 WASHER; HINGE
ID=4.3 TOOTH LK COUNTERSUNK 		9-09152-704-0 06 1 0005-0210 ● ● ●
98 WASHER; HINGE
EXC. CENTER SEAT DELETE 2 CREWS<SP9> ID=4.3 TOOTH LK COUNTERSUNK 		9-09152-704-0 06 1 0005-0210 ●
98 WASHER; HINGE
ID=4.3 TOOTH LK COUNTERSUNK 		9-09152-704-0 06 1 0211- ● ● ●
98 WASHER; HINGE
CENTER SEAT 3 CREWS<SA1> ID=4.3 TOOTH LK COUNTERSUNK 		9-09152-704-0 06 1 0211- ●
359 BOX; PARCEL 1-72538-275-0 01 1 0005-0210 ● ● ●
359 BOX; PARCEL
EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-72538-275-0 01 1 0005-0210 ●
359 BOX; PARCEL 1-72538-275-4 01 1 0211-1006 ● ● ●
359 BOX; PARCEL
CENTER SEAT 3 CREWS<SA1> 		1-72538-275-4 01 1 0211-1006 ●
359 BOX; PARCEL 8-98145-114-0 01 1 1007- ● ● ●
359 BOX; PARCEL
CENTER SEAT 3 CREWS<SA1> 		8-98145-114-0 01 1 1007- ●
360 SCREW; PARCEL
(A) M3X10 TAPPING CK-HEAD 		0-70080-310-0 04 1 0005-0210 ● ● ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE 2 CREWS<SP9> (A) M3X10 TAPPING CK-HEAD 		0-70080-310-0 04 1 0005-0210 ●
360 SCREW; PARCEL
(A) M3X10 TAPPING CK-HEAD 		0-70080-310-0 04 1 0211-0612 ● ● ●
360 SCREW; PARCEL
CENTER SEAT 3 CREWS<SA1> (A) M3X10 TAPPING CK-HEAD 		0-70080-310-0 04 1 0211-0612 ●
360 SCREW; PARCEL
(A) M3X10 TAPPING CK-HEAD 		0-70040-310-0 04 1 0701-1006 ● ● ●
360 SCREW; PARCEL
CENTER SEAT 3 CREWS<SA1> (A) M3X10 TAPPING CK-HEAD 		0-70040-310-0 04 1 0701-1006 ●
360 SCREW; PARCEL
(E) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1007- ● ● ●
360 SCREW; PARCEL
CENTER SEAT 3 CREWS<SA1> (E) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1007- ●
360 SCREW; PARCEL
(B) M4X16 		0-70080-416-0 06 1 0005-0210 ● ● ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE 2 CREWS<SP9> (B) M4X16 		0-70080-416-0 06 1 0005-0210 ●
360 SCREW; PARCEL
(B) M4X16 		0-70080-416-0 06 1 0211-0612 ● ● ●
360 SCREW; PARCEL
CENTER SEAT 3 CREWS<SA1> (B) M4X16 		0-70080-416-0 06 1 0211-0612 ●
360 SCREW; PARCEL
(B) M4X16 		0-70040-416-0 06 1 0701-1104 ● ● ●
360 SCREW; PARCEL
CENTER SEAT 3 CREWS<SA1> (B) M4X16 		0-70040-416-0 06 1 0701-1104 ●
360 SCREW; PARCEL
(B) M4X16 		0-70080-416-0 06 1 1105- ● ● ●
360 SCREW; PARCEL
CENTER SEAT 3 CREWS<SA1> (B) M4X16 		0-70080-416-0 06 1 1105- ●
360 SCREW; PARCEL
(C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 06 1 0005-0210 ● ● ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE 2 CREWS<SP9> (C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 06 1 0005-0210 ●
360 SCREW; PARCEL
(C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 06 1 0211-1006 ● ● ●
360 SCREW; PARCEL
CENTER SEAT 3 CREWS<SA1> (C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 06 1 0211-1006 ●
360 SCREW; PARCEL
(C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 04 1 1007- ● ● ●
360 SCREW; PARCEL
CENTER SEAT 3 CREWS<SA1> (C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 04 1 1007- ●
360 SCREW; PARCEL
(D) 		1-09983-165-0 02 1 0005-0210 ● ● ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE 2 CREWS<SP9> (D) 		1-09983-165-0 02 1 0005-0210 ●
360 SCREW; PARCEL
(D) 		1-09983-165-0 02 1 0211-0310 ● ● ●
360 SCREW; PARCEL
CENTER SEAT 3 CREWS<SA1> (D) 		1-09983-165-0 02 1 0211-0310 ●
365 LOCK ASM; SEAT 1-72538-180-0 01 1 0005-0210 ● ● ●
365 LOCK ASM; SEAT
EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-72538-180-0 01 1 0005-0210 ●
365 LOCK ASM; SEAT 1-72538-180-0 01 1 0211- ● ● ●
365 LOCK ASM; SEAT
CENTER SEAT 3 CREWS<SA1> 		1-72538-180-0 01 1 0211- ●
533 LID; PARCEL BOX 1-72538-277-0 01 1 0005-0210 ● ● ●
533 LID; PARCEL BOX
EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-72538-277-0 01 1 0005-0210 ●
533 LID; PARCEL BOX 1-72538-277-1 01 1 0211-1006 ● ● ●
533 LID; PARCEL BOX
CENTER SEAT 3 CREWS<SA1> 		1-72538-277-1 01 1 0211-1006 ●
533 LID; PARCEL BOX 8-98145-118-0 01 1 1007- ● ● ●
533 LID; PARCEL BOX
CENTER SEAT 3 CREWS<SA1> 		8-98145-118-0 01 1 1007- ●
534 STRIKER; PARCEL BOX
(A) 		1-72538-181-0 01 1 0005-0210 ● ● ●
534 STRIKER; PARCEL BOX
EXC. CENTER SEAT DELETE 2 CREWS<SP9> (A) 		1-72538-181-0 01 1 0005-0210 ●
534 STRIKER; PARCEL BOX
(A) 		1-72538-181-0 01 1 0211-1006 ● ● ●
534 STRIKER; PARCEL BOX
CENTER SEAT 3 CREWS<SA1> (A) 		1-72538-181-0 01 1 0211-1006 ●
534 STRIKER; PARCEL BOX
(B) 		1-72538-190-0 01 1 1007- ● ● ●
534 STRIKER; PARCEL BOX
CENTER SEAT 3 CREWS<SA1> (B) 		1-72538-190-0 01 1 1007- ●
535 HINGE; PARCEL BOX 1-72447-391-1 01 1 0005-0210 ● ● ●
535 HINGE; PARCEL BOX
EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-72447-391-1 01 1 0005-0210 ●
535 HINGE; PARCEL BOX 1-72447-391-1 01 1 0211- ● ● ●
535 HINGE; PARCEL BOX
CENTER SEAT 3 CREWS<SA1> 		1-72447-391-1 01 1 0211- ●
536 RUBBER; CUSHION 5-09983-002-1 02 1 0005-0210 ● ● ●
536 RUBBER; CUSHION
EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		5-09983-002-1 02 1 0005-0210 ●
536 RUBBER; CUSHION 5-09983-002-1 02 1 0211-1006 ● ● ●
536 RUBBER; CUSHION
CENTER SEAT 3 CREWS<SA1> 		5-09983-002-1 02 1 0211-1006 ●
537 BRACKET; RUBBER 1-72548-057-1 02 1 0005-0210 ● ● ●
537 BRACKET; RUBBER
EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-72548-057-1 02 1 0005-0210 ●
537 BRACKET; RUBBER 1-72548-057-1 02 1 0211-1006 ● ● ●
537 BRACKET; RUBBER
CENTER SEAT 3 CREWS<SA1> 		1-72548-057-1 02 1 0211-1006 ●
538 GROMMET; SCREW 1-09983-165-0 02 1 0311-1006 ● ● ●
538 GROMMET; SCREW
CENTER SEAT 3 CREWS<SA1> 		1-09983-165-0 02 1 0311-1006 ●
çizim 45494
506 360 175 176 188 16 189 188 359 403 179 182 403
BalonParca AdiParca NoAdetTipApplied Date A B C D
16 ADJUSTER ASM; RECLINING
(B) DRIVER SEAT 		1-75418-064-0 01 1 0005- ● ● ● ●
16 ADJUSTER ASM; RECLINING
(A) CENTER SEAT 		1-75418-062-0 01 1 0005-0210 ● ● ●
16 ADJUSTER ASM; RECLINING
EXC. CENTER SEAT DELETE 2 CREWS<SP9> (A) CENTER SEAT 		1-75418-062-0 01 1 0005-0210 ●
16 ADJUSTER ASM; RECLINING
(A) CENTER SEAT 		1-75418-062-1 01 1 0211- ● ● ●
16 ADJUSTER ASM; RECLINING
CENTER SEAT 3 CREWS<SA1> (A) CENTER SEAT 		1-75418-062-1 01 1 0211- ●
175 BACK ASM; PASSENGER CENTER SEAT 1-75026-857-0 01 1 0005-0210 ● ● ●
175 BACK ASM; PASSENGER CENTER SEAT
EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-75026-857-0 01 1 0005-0210 ●
175 BACK ASM; PASSENGER CENTER SEAT 1-75026-857-4 01 1 0211- ● ● ●
175 BACK ASM; PASSENGER CENTER SEAT
CENTER SEAT 3 CREWS<SA1> 		1-75026-857-4 01 1 0211- ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK 1-75116-711-0 01 1 0005-0210 ● ● ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-75116-711-0 01 1 0005-0210 ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK 1-75116-711-2 01 1 0211- ● ● ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
CENTER SEAT 3 CREWS<SA1> 		1-75116-711-2 01 1 0211- ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH 1-75116-694-0 01 1 0005-0210 ● ● ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-75116-694-0 01 1 0005-0210 ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH 1-75116-694-2 01 1 0211- ● ● ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
CENTER SEAT 3 CREWS<SA1> 		1-75116-694-2 01 1 0211- ●
182 CUSHION ASM; CENTER SEAT 1-75026-843-0 01 1 0005-0210 ● ● ●
182 CUSHION ASM; CENTER SEAT
EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-75026-843-0 01 1 0005-0210 ●
182 CUSHION ASM; CENTER SEAT 1-75026-843-4 01 1 0211- ● ● ●
182 CUSHION ASM; CENTER SEAT
CENTER SEAT 3 CREWS<SA1> 		1-75026-843-4 01 1 0211- ●
188 BOLT; BACK TO CUSHION
M10X16 FLANGE 		1-75198-053-0 04 1 0005-0210 ● ● ●
188 BOLT; BACK TO CUSHION
EXC. CENTER SEAT DELETE 2 CREWS<SP9> M10X16 FLANGE 		1-75198-053-0 04 1 0005-0210 ●
188 BOLT; BACK TO CUSHION
M10X16 FLANGE 		1-75198-053-0 04 1 0211- ● ● ●
188 BOLT; BACK TO CUSHION
CENTER SEAT 3 CREWS<SA1> M10X16 FLANGE 		1-75198-053-0 04 1 0211- ●
189 BUSHING; HINGE,CENTER SEAT BACK 8-97854-900-0 01 1 0005-0210 ● ● ●
189 BUSHING; HINGE,CENTER SEAT BACK
EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		8-97854-900-0 01 1 0005-0210 ●
189 BUSHING; HINGE,CENTER SEAT BACK 8-97854-900-0 01 1 0211- ● ● ●
189 BUSHING; HINGE,CENTER SEAT BACK
CENTER SEAT 3 CREWS<SA1> 		8-97854-900-0 01 1 0211- ●
359 BOX; PARCEL 1-72538-275-0 01 1 0005-0210 ● ● ●
359 BOX; PARCEL
EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-72538-275-0 01 1 0005-0210 ●
359 BOX; PARCEL 1-72538-275-4 01 1 0211-1006 ● ● ●
359 BOX; PARCEL
CENTER SEAT 3 CREWS<SA1> 		1-72538-275-4 01 1 0211-1006 ●
359 BOX; PARCEL 8-98145-114-0 01 1 1007- ● ● ●
359 BOX; PARCEL
CENTER SEAT 3 CREWS<SA1> 		8-98145-114-0 01 1 1007- ●
360 SCREW; PARCEL
(A) M3X10 TAPPING CK-HEAD 		0-70080-310-0 04 1 0005-0210 ● ● ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE 2 CREWS<SP9> (A) M3X10 TAPPING CK-HEAD 		0-70080-310-0 04 1 0005-0210 ●
360 SCREW; PARCEL
(A) M3X10 TAPPING CK-HEAD 		0-70080-310-0 04 1 0211-0612 ● ● ●
360 SCREW; PARCEL
CENTER SEAT 3 CREWS<SA1> (A) M3X10 TAPPING CK-HEAD 		0-70080-310-0 04 1 0211-0612 ●
360 SCREW; PARCEL
(A) M3X10 TAPPING CK-HEAD 		0-70040-310-0 04 1 0701-1006 ● ● ●
360 SCREW; PARCEL
CENTER SEAT 3 CREWS<SA1> (A) M3X10 TAPPING CK-HEAD 		0-70040-310-0 04 1 0701-1006 ●
360 SCREW; PARCEL
(E) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1007- ● ● ●
360 SCREW; PARCEL
CENTER SEAT 3 CREWS<SA1> (E) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1007- ●
360 SCREW; PARCEL
(B) M4X16 		0-70080-416-0 06 1 0005-0210 ● ● ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE 2 CREWS<SP9> (B) M4X16 		0-70080-416-0 06 1 0005-0210 ●
360 SCREW; PARCEL
(B) M4X16 		0-70080-416-0 06 1 0211-0612 ● ● ●
360 SCREW; PARCEL
CENTER SEAT 3 CREWS<SA1> (B) M4X16 		0-70080-416-0 06 1 0211-0612 ●
360 SCREW; PARCEL
(B) M4X16 		0-70040-416-0 06 1 0701-1104 ● ● ●
360 SCREW; PARCEL
CENTER SEAT 3 CREWS<SA1> (B) M4X16 		0-70040-416-0 06 1 0701-1104 ●
360 SCREW; PARCEL
(B) M4X16 		0-70080-416-0 06 1 1105- ● ● ●
360 SCREW; PARCEL
CENTER SEAT 3 CREWS<SA1> (B) M4X16 		0-70080-416-0 06 1 1105- ●
360 SCREW; PARCEL
(C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 06 1 0005-0210 ● ● ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE 2 CREWS<SP9> (C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 06 1 0005-0210 ●
360 SCREW; PARCEL
(C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 06 1 0211-1006 ● ● ●
360 SCREW; PARCEL
CENTER SEAT 3 CREWS<SA1> (C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 06 1 0211-1006 ●
360 SCREW; PARCEL
(C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 04 1 1007- ● ● ●
360 SCREW; PARCEL
CENTER SEAT 3 CREWS<SA1> (C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 04 1 1007- ●
360 SCREW; PARCEL
(D) 		1-09983-165-0 02 1 0005-0210 ● ● ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE 2 CREWS<SP9> (D) 		1-09983-165-0 02 1 0005-0210 ●
360 SCREW; PARCEL
(D) 		1-09983-165-0 02 1 0211-0310 ● ● ●
360 SCREW; PARCEL
CENTER SEAT 3 CREWS<SA1> (D) 		1-09983-165-0 02 1 0211-0310 ●
403 NUT; CENTER SEAT
M8 FLANGE 		8-94279-518-0 04 1 0005-0210 ● ● ●
403 NUT; CENTER SEAT
EXC. CENTER SEAT DELETE 2 CREWS<SP9> M8 FLANGE 		8-94279-518-0 04 1 0005-0210 ●
403 NUT; CENTER SEAT
M8 FLANGE 		8-94279-518-0 04 1 0211-0312 ● ● ●
403 NUT; CENTER SEAT
CENTER SEAT 3 CREWS<SA1> M8 FLANGE 		8-94279-518-0 04 1 0211-0312 ●
403 NUT; CENTER SEAT
M8 FLANGE 		1-75538-207-0 04 1 0401-0703 ● ● ●
403 NUT; CENTER SEAT
CENTER SEAT 3 CREWS<SA1> M8 FLANGE 		1-75538-207-0 04 1 0401-0703 ●
403 NUT; CENTER SEAT
M8 FLANGE 		0-91180-108-0 04 1 0704- ● ● ●
403 NUT; CENTER SEAT
CENTER SEAT 3 CREWS<SA1> M8 FLANGE 		0-91180-108-0 04 1 0704- ●
506 CAP; PARCEL BOX 1-09983-180-0 04 1 0005-0210 ● ● ●
506 CAP; PARCEL BOX
EXC. CENTER SEAT DELETE 2 CREWS<SP9> 		1-09983-180-0 04 1 0005-0210 ●
506 CAP; PARCEL BOX 1-09983-180-3 04 1 0211-1006 ● ● ●
506 CAP; PARCEL BOX
CENTER SEAT 3 CREWS<SA1> 		1-09983-180-3 04 1 0211-1006 ●
506 CAP; PARCEL BOX 1-09983-180-3 02 1 1007- ● ● ●
506 CAP; PARCEL BOX
CENTER SEAT 3 CREWS<SA1> 		1-09983-180-3 02 1 1007- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
