◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FV ▶ 10828 - FV/GV(AUSTRAL)L.SUS ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-43 - SUN VISOR AND ASSIST GRIP ▶
7-43 — SUN VISOR AND ASSIST GRIP (#8761) — 183 parça

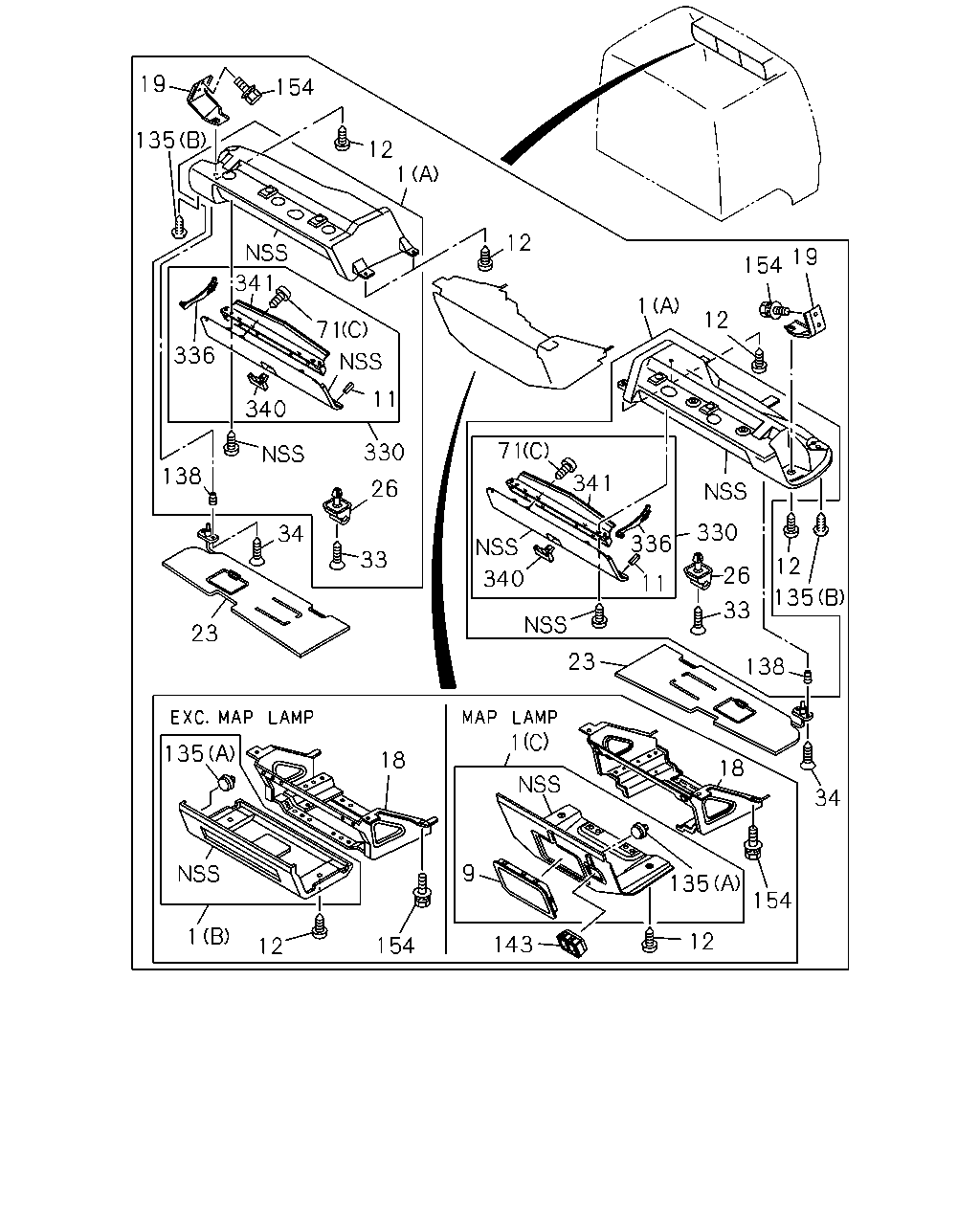

çizim 7563
19 154 135 12 1 12 19 154 341 1 12 71 336 11 340 71 330 138 341 26 330 34 336 33 12 26 340 11 135 33 23 23 138 1 135 18 18 34 9 135 154 1 12 143 154 12
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 BOARD; HEADER SHELF
CUSTOM CAB(SR5) (A) 		1-72448-678-0 01 1 0005-0210 ● ●
1 BOARD; HEADER SHELF
CUSTOM CAB(SR5) (A) 		1-72448-678-0 01 1 0211-0305 ●
1 BOARD; HEADER SHELF
CUSTOM CAB(SR5) (A) 		1-72448-677-0 01 1 0005-0210 ● ●
1 BOARD; HEADER SHELF
CUSTOM CAB(SR5) (A) 		1-72448-677-0 01 1 0211-0305 ●
1 BOARD; HEADER SHELF
EXC. CUSTOM CAB(SR5) (D) 		1-73318-691-0 01 1 0005-0210 ● ●
1 BOARD; HEADER SHELF
(D) 		1-73318-691-0 01 1 0005-0210 ● ●
1 BOARD; HEADER SHELF
EXC. CUSTOM CAB(SR5) (D) 		1-73318-691-0 01 1 0211-0305 ●
1 BOARD; HEADER SHELF
(D) 		1-73318-691-0 01 1 0211-0305 ● ● ●
1 BOARD; HEADER SHELF
(D) 		1-73318-691-0 01 1 0306- ● ● ● ●
1 BOARD; HEADER SHELF
EXC. CUSTOM CAB(SR5) (D) 		1-73318-690-0 01 1 0005-0210 ● ●
1 BOARD; HEADER SHELF
(D) 		1-73318-690-0 01 1 0005-0210 ● ●
1 BOARD; HEADER SHELF
EXC. CUSTOM CAB(SR5) (D) 		1-73318-690-0 01 1 0211-0305 ●
1 BOARD; HEADER SHELF
(D) 		1-73318-690-0 01 1 0211-0305 ● ● ●
1 BOARD; HEADER SHELF
(D) 		1-73318-690-0 01 1 0306- ● ● ● ●
1 BOARD; HEADER SHELF
MAP LAMP<C85> (C) CENTER 		1-72448-667-0 01 1 0005-0210 ● ●
1 BOARD; HEADER SHELF
MAP LAMP<C85> (C) CENTER 		1-72448-667-0 01 1 0211-0405 ●
1 BOARD; HEADER SHELF
MAP LAMP<C85> (C) CENTER 		1-72448-667-0 01 1 0406- ● ● ● ●
1 BOARD; HEADER SHELF
EXC. MAP LAMP<C85> (B) CENTER 		1-72448-663-0 01 1 0005-0210 ● ●
1 BOARD; HEADER SHELF
(B) CENTER 		1-72448-663-0 01 1 0005-0210 ● ●
1 BOARD; HEADER SHELF
EXC. MAP LAMP<C85> (B) CENTER 		1-72448-663-0 01 1 0211-0405 ●
1 BOARD; HEADER SHELF
(B) CENTER 		1-72448-663-0 01 1 0211-0405 ● ● ●
1 BOARD; HEADER SHELF
EXC. MAP LAMP<C85> (B) CENTER 		1-72448-663-0 01 1 0406- ● ● ● ●
9 COVER; HOLE,HEADER SHELF CENTER
MAP LAMP<C85> 		1-72448-547-2 01 1 0005-0210 ● ●
9 COVER; HOLE,HEADER SHELF CENTER
MAP LAMP<C85> 		1-72448-547-2 01 1 0211-0405 ●
9 COVER; HOLE,HEADER SHELF CENTER
MAP LAMP<C85> 		1-72448-547-2 01 1 0406- ● ● ● ●
11 CAP; HEADER SHELF 8-94270-538-0 04 1 0005- ● ● ● ●
12 SCREW; HEADER SHELF
M6X24 W/LK&PL WASHER 		8-94279-404-0 12 1 0005- ● ● ● ●
18 SUPPORT; HEADER SHELF CENTER
MAP LAMP<C85> 		1-72448-632-0 01 1 0005-0210 ● ●
18 SUPPORT; HEADER SHELF CENTER
MAP LAMP<C85> 		1-72448-632-1 01 1 0211-0405 ●
18 SUPPORT; HEADER SHELF CENTER
MAP LAMP<C85> 		1-72448-632-1 01 1 0406- ● ● ● ●
18 SUPPORT; HEADER SHELF CENTER
EXC. MAP LAMP<C85> 		8-97865-124-0 01 1 0005-0210 ● ●
18 SUPPORT; HEADER SHELF CENTER 8-97865-124-0 01 1 0005-0210 ● ●
18 SUPPORT; HEADER SHELF CENTER
EXC. MAP LAMP<C85> 		8-97865-124-1 01 1 0211-0405 ●
18 SUPPORT; HEADER SHELF CENTER 8-97865-124-1 01 1 0211-0405 ● ● ●
18 SUPPORT; HEADER SHELF CENTER
EXC. MAP LAMP<C85> 		8-97865-124-1 01 1 0406- ● ● ● ●
19 SUPPORT ASM; HEADER SHELF 1-72448-324-1 01 1 0005- ● ● ● ●
19 SUPPORT ASM; HEADER SHELF 1-72448-323-1 01 1 0005- ● ● ● ●
23 SUN VISOR 1-73138-157-1 01 1 0005- ● ● ● ●
23 SUN VISOR 1-73138-156-1 01 1 0005- ● ● ● ●
26 HOLDER; SUN VISOR 1-73137-175-0 02 1 0005- ● ● ● ●
33 SCREW; HOLDER,SUN VISOR
M4X16 TAPPING OVAL-HEAD 		0-70580-416-0 02 1 0005-0603 ● ● ● ●
33 SCREW; HOLDER,SUN VISOR
M4X16 TAPPING OVAL-HEAD 		0-70540-416-0 02 1 0604- ● ● ● ●
34 SCREW; SUN VISOR
M6X25 		1-09981-441-0 04 1 0005- ● ● ● ●
71 SCREW
(A) M6X35 W/PL WASHER 		1-09981-422-0 02 1 0005-0212 ● ● ● ●
71 SCREW
ASSIST GRIP<EG5> (A) M6X35 W/PL WASHER 		1-09981-422-0 02 1 0301-0310 ● ● ● ●
71 SCREW
ASSIST GRIP<EG5> (A) M6X30 W/LK WASHER 		5-09981-064-0 02 1 0311- ● ● ● ●
71 SCREW
(B) M6X20 W/LK&PL WASHER 		1-09981-509-0 04 1 0005-0211 ● ● ● ●
71 SCREW
(B) M6X34 W/LK&PL WASHER 		8-94279-411-0 04 1 0212- ● ● ● ●
71 SCREW
(C) M5X14 W/PL WASHER 		5-09981-050-0 06 1 0005- ● ● ● ●
135 CLIP; HEADER SHELF
EXC. MAP LAMP<C85> (A) OD=7.9 BLACK 		8-94279-974-1 06 1 0006-0210 ● ●
135 CLIP; HEADER SHELF
(A) OD=7.9 BLACK 		8-94279-974-1 06 1 0006-0210 ● ●
135 CLIP; HEADER SHELF
EXC. MAP LAMP<C85> (A) OD=7.9 BLACK 		8-94279-974-1 06 1 0211-0405 ●
135 CLIP; HEADER SHELF
(A) OD=7.9 BLACK 		8-94279-974-1 06 1 0211-0405 ● ● ●
135 CLIP; HEADER SHELF
EXC. MAP LAMP<C85> (A) OD=7.9 BLACK 		8-94279-974-1 06 1 0406- ● ● ● ●
135 CLIP; HEADER SHELF
(B) D6X23 DARK GRAY 		1-09987-238-0 02 1 0005-0209 ● ● ● ●
135 CLIP; HEADER SHELF
(B) D6X23 BLACK 		1-09987-114-0 02 1 0210- ● ● ● ●
135 CLIP; HEADER SHELF
(A) OD=7.9 BLACK 		8-94279-974-1 03 1 0005-0005 ● ● ● ●
135 CLIP; HEADER SHELF
MAP LAMP<C85> (A) OD=7.9 BLACK 		8-94279-974-1 03 1 0006-0210 ● ●
135 CLIP; HEADER SHELF
MAP LAMP<C85> (A) OD=7.9 BLACK 		8-94279-974-1 03 1 0211-0405 ●
135 CLIP; HEADER SHELF
MAP LAMP<C85> (A) OD=7.9 BLACK 		8-94279-974-1 03 1 0406- ● ● ● ●
138 NUT; BRKT,HEADER SHELF
CUSTOM CAB(SR5) 		1-09984-166-0 04 1 0005-0210 ● ●
138 NUT; BRKT,HEADER SHELF
CUSTOM CAB(SR5) 		1-09984-166-0 04 1 0211-0305 ●
143 BEZEL
CUSTOM CAB(SR5) 		1-72448-532-0 01 1 0005-0210 ● ●
143 BEZEL
CUSTOM CAB(SR5) 		1-72448-532-0 01 1 0211-0407 ●
143 BEZEL
MAP LAMP<C85> 		1-72448-532-0 01 1 0408- ● ● ● ●
154 BOLT; SUPPORT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 0005- ● ● ● ●
330 LID; HEADER SHELF 1-72448-679-0 02 1 0005- ● ● ● ●
336 STAY; LID 1-72448-379-3 04 1 0005- ● ● ● ●
340 LOCK; HEADER SHELF 1-72448-376-0 02 1 0005- ● ● ● ●
341 HINGE; LID,HEADER SHELF 1-72448-403-1 02 1 0005- ● ● ● ●

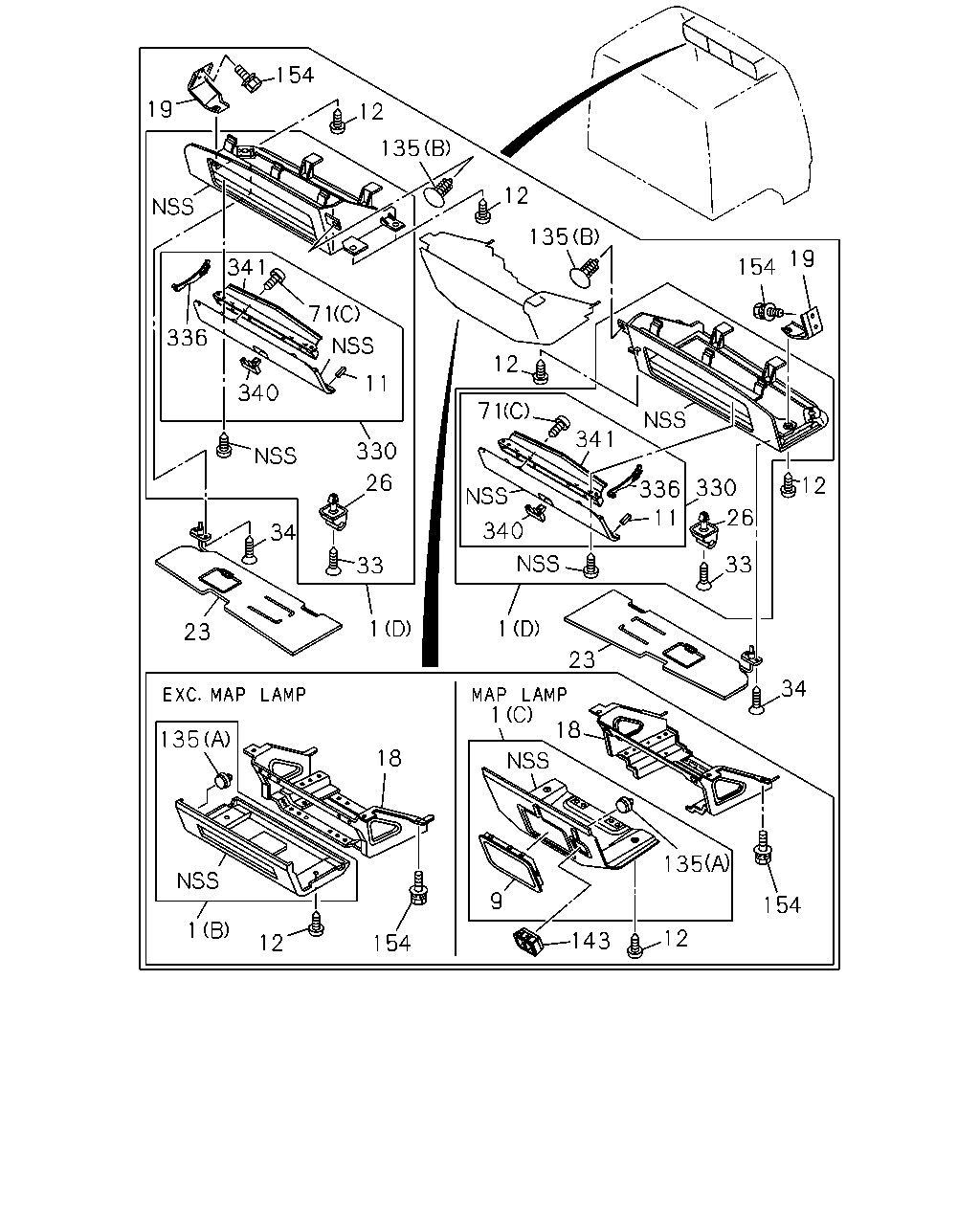

çizim 9596
154 19 12 135 12 135 19 154 341 71 336 12 11 340 71 341 330 26 12 330 336 26 11 340 34 33 33 1 1 23 23 34 1 18 135 18 135 9 154 1 12 143 12 154
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 BOARD; HEADER SHELF
CUSTOM CAB(SR5) (A) 		1-72448-678-0 01 1 0005-0210 ● ●
1 BOARD; HEADER SHELF
CUSTOM CAB(SR5) (A) 		1-72448-678-0 01 1 0211-0305 ●
1 BOARD; HEADER SHELF
CUSTOM CAB(SR5) (A) 		1-72448-677-0 01 1 0005-0210 ● ●
1 BOARD; HEADER SHELF
CUSTOM CAB(SR5) (A) 		1-72448-677-0 01 1 0211-0305 ●
1 BOARD; HEADER SHELF
EXC. CUSTOM CAB(SR5) (D) 		1-73318-691-0 01 1 0005-0210 ● ●
1 BOARD; HEADER SHELF
(D) 		1-73318-691-0 01 1 0005-0210 ● ●
1 BOARD; HEADER SHELF
EXC. CUSTOM CAB(SR5) (D) 		1-73318-691-0 01 1 0211-0305 ●
1 BOARD; HEADER SHELF
(D) 		1-73318-691-0 01 1 0211-0305 ● ● ●
1 BOARD; HEADER SHELF
(D) 		1-73318-691-0 01 1 0306- ● ● ● ●
1 BOARD; HEADER SHELF
EXC. CUSTOM CAB(SR5) (D) 		1-73318-690-0 01 1 0005-0210 ● ●
1 BOARD; HEADER SHELF
(D) 		1-73318-690-0 01 1 0005-0210 ● ●
1 BOARD; HEADER SHELF
EXC. CUSTOM CAB(SR5) (D) 		1-73318-690-0 01 1 0211-0305 ●
1 BOARD; HEADER SHELF
(D) 		1-73318-690-0 01 1 0211-0305 ● ● ●
1 BOARD; HEADER SHELF
(D) 		1-73318-690-0 01 1 0306- ● ● ● ●
1 BOARD; HEADER SHELF
MAP LAMP<C85> (C) CENTER 		1-72448-667-0 01 1 0005-0210 ● ●
1 BOARD; HEADER SHELF
MAP LAMP<C85> (C) CENTER 		1-72448-667-0 01 1 0211-0405 ●
1 BOARD; HEADER SHELF
MAP LAMP<C85> (C) CENTER 		1-72448-667-0 01 1 0406- ● ● ● ●
1 BOARD; HEADER SHELF
EXC. MAP LAMP<C85> (B) CENTER 		1-72448-663-0 01 1 0005-0210 ● ●
1 BOARD; HEADER SHELF
(B) CENTER 		1-72448-663-0 01 1 0005-0210 ● ●
1 BOARD; HEADER SHELF
EXC. MAP LAMP<C85> (B) CENTER 		1-72448-663-0 01 1 0211-0405 ●
1 BOARD; HEADER SHELF
(B) CENTER 		1-72448-663-0 01 1 0211-0405 ● ● ●
1 BOARD; HEADER SHELF
EXC. MAP LAMP<C85> (B) CENTER 		1-72448-663-0 01 1 0406- ● ● ● ●
9 COVER; HOLE,HEADER SHELF CENTER
MAP LAMP<C85> 		1-72448-547-2 01 1 0005-0210 ● ●
9 COVER; HOLE,HEADER SHELF CENTER
MAP LAMP<C85> 		1-72448-547-2 01 1 0211-0405 ●
9 COVER; HOLE,HEADER SHELF CENTER
MAP LAMP<C85> 		1-72448-547-2 01 1 0406- ● ● ● ●
11 CAP; HEADER SHELF 8-94270-538-0 04 1 0005- ● ● ● ●
12 SCREW; HEADER SHELF
M6X24 W/LK&PL WASHER 		8-94279-404-0 12 1 0005- ● ● ● ●
18 SUPPORT; HEADER SHELF CENTER
MAP LAMP<C85> 		1-72448-632-0 01 1 0005-0210 ● ●
18 SUPPORT; HEADER SHELF CENTER
MAP LAMP<C85> 		1-72448-632-1 01 1 0211-0405 ●
18 SUPPORT; HEADER SHELF CENTER
MAP LAMP<C85> 		1-72448-632-1 01 1 0406- ● ● ● ●
18 SUPPORT; HEADER SHELF CENTER
EXC. MAP LAMP<C85> 		8-97865-124-0 01 1 0005-0210 ● ●
18 SUPPORT; HEADER SHELF CENTER 8-97865-124-0 01 1 0005-0210 ● ●
18 SUPPORT; HEADER SHELF CENTER
EXC. MAP LAMP<C85> 		8-97865-124-1 01 1 0211-0405 ●
18 SUPPORT; HEADER SHELF CENTER 8-97865-124-1 01 1 0211-0405 ● ● ●
18 SUPPORT; HEADER SHELF CENTER
EXC. MAP LAMP<C85> 		8-97865-124-1 01 1 0406- ● ● ● ●
19 SUPPORT ASM; HEADER SHELF 1-72448-324-1 01 1 0005- ● ● ● ●
19 SUPPORT ASM; HEADER SHELF 1-72448-323-1 01 1 0005- ● ● ● ●
23 SUN VISOR 1-73138-157-1 01 1 0005- ● ● ● ●
23 SUN VISOR 1-73138-156-1 01 1 0005- ● ● ● ●
26 HOLDER; SUN VISOR 1-73137-175-0 02 1 0005- ● ● ● ●
33 SCREW; HOLDER,SUN VISOR
M4X16 TAPPING OVAL-HEAD 		0-70580-416-0 02 1 0005-0603 ● ● ● ●
33 SCREW; HOLDER,SUN VISOR
M4X16 TAPPING OVAL-HEAD 		0-70540-416-0 02 1 0604- ● ● ● ●
34 SCREW; SUN VISOR
M6X25 		1-09981-441-0 04 1 0005- ● ● ● ●
71 SCREW
(A) M6X35 W/PL WASHER 		1-09981-422-0 02 1 0005-0212 ● ● ● ●
71 SCREW
ASSIST GRIP<EG5> (A) M6X35 W/PL WASHER 		1-09981-422-0 02 1 0301-0310 ● ● ● ●
71 SCREW
ASSIST GRIP<EG5> (A) M6X30 W/LK WASHER 		5-09981-064-0 02 1 0311- ● ● ● ●
71 SCREW
(B) M6X20 W/LK&PL WASHER 		1-09981-509-0 04 1 0005-0211 ● ● ● ●
71 SCREW
(B) M6X34 W/LK&PL WASHER 		8-94279-411-0 04 1 0212- ● ● ● ●
71 SCREW
(C) M5X14 W/PL WASHER 		5-09981-050-0 06 1 0005- ● ● ● ●
135 CLIP; HEADER SHELF
EXC. MAP LAMP<C85> (A) OD=7.9 BLACK 		8-94279-974-1 06 1 0006-0210 ● ●
135 CLIP; HEADER SHELF
(A) OD=7.9 BLACK 		8-94279-974-1 06 1 0006-0210 ● ●
135 CLIP; HEADER SHELF
EXC. MAP LAMP<C85> (A) OD=7.9 BLACK 		8-94279-974-1 06 1 0211-0405 ●
135 CLIP; HEADER SHELF
(A) OD=7.9 BLACK 		8-94279-974-1 06 1 0211-0405 ● ● ●
135 CLIP; HEADER SHELF
EXC. MAP LAMP<C85> (A) OD=7.9 BLACK 		8-94279-974-1 06 1 0406- ● ● ● ●
135 CLIP; HEADER SHELF
(B) D6X23 DARK GRAY 		1-09987-238-0 02 1 0005-0209 ● ● ● ●
135 CLIP; HEADER SHELF
(B) D6X23 BLACK 		1-09987-114-0 02 1 0210- ● ● ● ●
135 CLIP; HEADER SHELF
(A) OD=7.9 BLACK 		8-94279-974-1 03 1 0005-0005 ● ● ● ●
135 CLIP; HEADER SHELF
MAP LAMP<C85> (A) OD=7.9 BLACK 		8-94279-974-1 03 1 0006-0210 ● ●
135 CLIP; HEADER SHELF
MAP LAMP<C85> (A) OD=7.9 BLACK 		8-94279-974-1 03 1 0211-0405 ●
135 CLIP; HEADER SHELF
MAP LAMP<C85> (A) OD=7.9 BLACK 		8-94279-974-1 03 1 0406- ● ● ● ●
143 BEZEL
CUSTOM CAB(SR5) 		1-72448-532-0 01 1 0005-0210 ● ●
143 BEZEL
CUSTOM CAB(SR5) 		1-72448-532-0 01 1 0211-0407 ●
143 BEZEL
MAP LAMP<C85> 		1-72448-532-0 01 1 0408- ● ● ● ●
154 BOLT; SUPPORT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 0005- ● ● ● ●
330 LID; HEADER SHELF 1-72448-679-0 02 1 0005- ● ● ● ●
336 STAY; LID 1-72448-379-3 04 1 0005- ● ● ● ●
340 LOCK; HEADER SHELF 1-72448-376-0 02 1 0005- ● ● ● ●
341 HINGE; LID,HEADER SHELF 1-72448-403-1 02 1 0005- ● ● ● ●

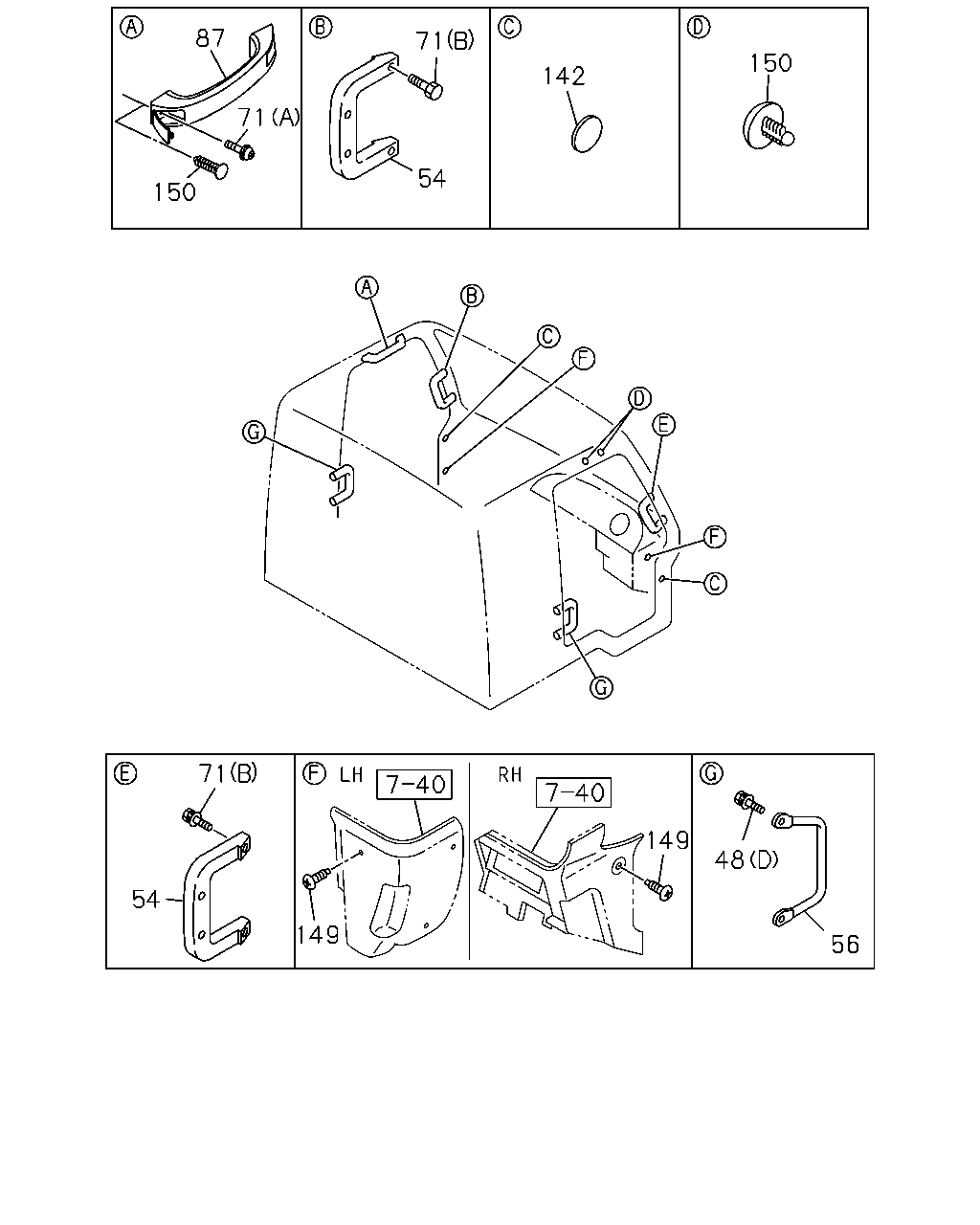

çizim 44200
87 71 150 142 71 54 150 71 149 48 54 149 56
BalonParca AdiParca NoAdetTipApplied Date A B C D
48 BOLT; ASSIST GRIP
(C) M6X16 W/LK&PL WASHER 		1-09980-492-0 04 1 0005- ● ● ● ●
48 BOLT; ASSIST GRIP
(B) M6X12 W/LK&PL WASHER 		1-09980-611-0 04 1 0005- ● ● ● ●
48 BOLT; ASSIST GRIP
(A) M6X33.5 W/LK&PL WASHER 		1-09980-613-1 04 1 0005- ● ● ● ●
48 BOLT; ASSIST GRIP
(D) M8X30 W/LK&PL WASHER 		8-94279-210-0 04 1 0005- ● ● ● ●
54 GRIP; ASSIST,QUARTER SIDE 1-73618-158-2 02 1 0005-0211 ● ● ● ●
54 GRIP; ASSIST,QUARTER SIDE 1-73618-185-1 02 1 0212- ● ● ● ●
56 GRIP; ASSIST,SIDE SILL 1-73617-062-5 02 1 0005-0402 ● ● ● ●
56 GRIP; ASSIST,SIDE SILL 1-73617-570-0 02 1 0403-0804 ● ● ● ●
56 GRIP; ASSIST,SIDE SILL 8-98081-700-0 02 1 0805- ● ● ● ●
71 SCREW
(A) M6X35 W/PL WASHER 		1-09981-422-0 02 1 0005-0212 ● ● ● ●
71 SCREW
ASSIST GRIP<EG5> (A) M6X35 W/PL WASHER 		1-09981-422-0 02 1 0301-0310 ● ● ● ●
71 SCREW
ASSIST GRIP<EG5> (A) M6X30 W/LK WASHER 		5-09981-064-0 02 1 0311- ● ● ● ●
71 SCREW
(B) M6X20 W/LK&PL WASHER 		1-09981-509-0 04 1 0005-0211 ● ● ● ●
71 SCREW
(B) M6X34 W/LK&PL WASHER 		8-94279-411-0 04 1 0212- ● ● ● ●
71 SCREW
(C) M5X14 W/PL WASHER 		5-09981-050-0 06 1 0005- ● ● ● ●
87 GRIP; ASSIST,CANT RAIL SIDE
DARK GRAY 		8-97098-476-2 01 1 0005-0212 ● ● ● ●
87 GRIP; ASSIST,CANT RAIL SIDE
ASSIST GRIP<EG5> DARK GRAY 		8-97098-476-2 01 1 0301- ● ● ● ●
142 SEAL; ASSIST GRIP
OD=25 BLACK 		1-76798-019-0 02 1 0005- ● ● ● ●
149 SCREW; ASSIST GRIP HOLE
M6X16 		8-94479-534-0 02 1 0005-0302 ● ● ● ●
149 SCREW; ASSIST GRIP HOLE
M6X12 		8-97094-854-0 02 1 0303- ● ● ● ●
150 CLIP; ASSIST GRIP HOLE
CUSTOM CAB(SR5) EXC. ASSIST GRIP<EG5> OD=6 L=17 DARK GRAY 		1-73996-364-0 04 1 0301- ●
150 CLIP; ASSIST GRIP HOLE
EXC. ASSIST GRIP<EG5>,CUSTOM CAB(SR5) OD=6 L=17 LIGHT GRAY 		1-73996-301-0 04 1 0301- ●
150 CLIP; ASSIST GRIP HOLE
EXC. ASSIST GRIP<EG5> OD=6 L=17 LIGHT GRAY 		1-73996-301-0 04 1 0301- ● ● ●
150 CLIP; ASSIST GRIP HOLE
CUSTOM CAB(SR5) OD=6 L=17 DARK GRAY 		1-73996-364-0 02 1 0005-0210 ● ●
150 CLIP; ASSIST GRIP HOLE
CUSTOM CAB(SR5) OD=6 L=17 DARK GRAY 		1-73996-364-0 02 1 0211-0212 ●
150 CLIP; ASSIST GRIP HOLE
ASSIST GRIP<EG5> CUSTOM CAB(SR5) OD=6 L=17 DARK GRAY 		1-73996-364-0 02 1 0301- ●
150 CLIP; ASSIST GRIP HOLE
EXC. CUSTOM CAB(SR5) OD=6 L=17 LIGHT GRAY 		1-73996-301-0 02 1 0005-0210 ● ●
150 CLIP; ASSIST GRIP HOLE
OD=6 L=17 LIGHT GRAY 		1-73996-301-0 02 1 0005-0210 ● ●
150 CLIP; ASSIST GRIP HOLE
EXC. CUSTOM CAB(SR5) OD=6 L=17 LIGHT GRAY 		1-73996-301-0 02 1 0211-0212 ●
150 CLIP; ASSIST GRIP HOLE
OD=6 L=17 LIGHT GRAY 		1-73996-301-0 02 1 0211-0212 ● ● ●
150 CLIP; ASSIST GRIP HOLE
ASSIST GRIP<EG5> EXC. CUSTOM CAB(SR5) OD=6 L=17 LIGHT GRAY 		1-73996-301-0 02 1 0301- ●
150 CLIP; ASSIST GRIP HOLE
ASSIST GRIP<EG5> OD=6 L=17 LIGHT GRAY 		1-73996-301-0 02 1 0301- ● ● ●
çizim 45578
64 64 64 62 64 48 48 48 48 62 68 66 103 48 59 68 66 48 48 59 103 48 59 48 59 48
BalonParca AdiParca NoAdetTipApplied Date A B C D
48 BOLT; ASSIST GRIP
(C) M6X16 W/LK&PL WASHER 		1-09980-492-0 04 1 0005- ● ● ● ●
48 BOLT; ASSIST GRIP
(B) M6X12 W/LK&PL WASHER 		1-09980-611-0 04 1 0005- ● ● ● ●
48 BOLT; ASSIST GRIP
(A) M6X33.5 W/LK&PL WASHER 		1-09980-613-1 04 1 0005- ● ● ● ●
48 BOLT; ASSIST GRIP
(D) M8X30 W/LK&PL WASHER 		8-94279-210-0 04 1 0005- ● ● ● ●
59 COVER; ASSIST GRIP
(B) OUTER 		1-71998-789-2 02 1 0005- ● ● ● ●
59 COVER; ASSIST GRIP
(A) INNER 		1-71998-790-2 02 1 0005- ● ● ● ●
62 GRIP; ASSIST,ROOF PANEL 1-71907-492-0 02 1 0005-0907 ● ● ● ●
62 GRIP; ASSIST,ROOF PANEL 8-97630-819-0 02 1 0908- ● ● ● ●
64 SHEET; ASSIST GRIP
25X25 		8-94272-533-0 04 1 0005- ● ● ● ●
66 BOLT; ASSIST GRIP BRKT
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 04 1 0005- ● ● ● ●
68 BRACKET; ASSIST GRIP,FRT PANEL 1-65580-203-0 02 1 0005- ● ● ● ●
103 GRIP; ASSIST,FRT PNL 1-71998-792-2 01 1 0005- ● ● ● ●
103 GRIP; ASSIST,FRT PNL 1-71998-791-2 01 1 0005- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
