◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FV ▶ 10828 - FV/GV(AUSTRAL)L.SUS ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#8760) — 150 parça

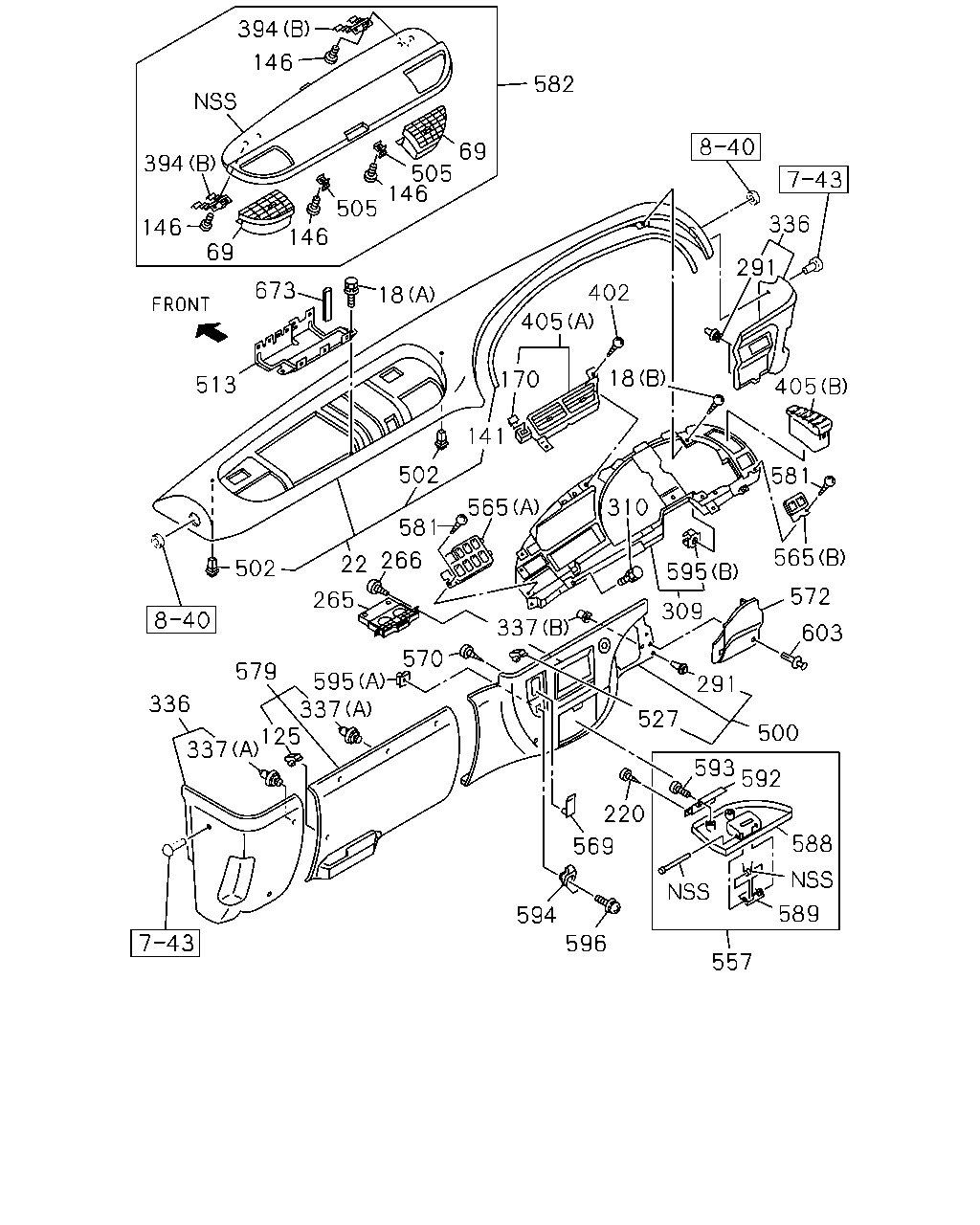

çizim 7847
394 146 582 69 505 146 394 505 336 146 146 69 291 673 402 18 405 18 170 513 405 141 502 581 310 565 581 565 266 22 502 595 572 265 309 337 603 570 579 595 337 125 291 336 527 500 337 593 592 220 588 569 589 594 596 557
BalonParca AdiParca NoAdetTipApplied Date A B C D
18 BOLT; BRKT
(C) M8X40 FLANGE 		0-28680-840-0 03 1 0005-0512 ● ● ● ●
18 BOLT; BRKT
(C) M8X40 FLANGE 		0-28650-840-0 03 1 0601- ● ● ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 07 1 0005- ● ● ● ●
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 0005- ● ● ● ●
22 PAD; INST 1-72318-433-4 01 1 0005- ● ● ● ●
69 GRILLE; SIDE,AIR OUTLET 1-76367-070-0 01 1 0005- ● ● ● ●
69 GRILLE; SIDE,AIR OUTLET 1-76367-069-0 01 1 0005- ● ● ● ●
125 CLIP; INST PANEL 8-97217-066-0 05 1 0211- ● ● ● ●
125 CLIP; INST PANEL 8-97217-066-0 05 1 0005-0111 ● ● ● ●
125 CLIP; INST PANEL 8-97217-066-0 04 1 0112- ● ● ● ●
125 CLIP; INST PANEL 8-97217-066-0 04 1 0005-0111 ● ● ● ●
125 CLIP; INST PANEL 8-97217-066-0 05 1 0112-0210 ● ● ● ●
141 PROTECTOR; EDGE 1-72318-430-0 01 1 0005- ● ● ● ●
146 SCREW; TAP
M5X14 		8-94279-325-0 10 1 0005- ● ● ● ●
170 COVER; HOLE 1-76367-068-0 01 1 0005- ● ● ● ●
220 SCREW; LID TO STOPPER
M5X14 		8-94279-325-0 02 1 0005- ● ● ● ●
265 HOLDER; CUP 8-97853-172-8 01 1 0005- ● ● ● ●
266 SCREW; CUP STAND
M5X14 		8-94279-325-0 02 1 0005- ● ● ● ●
291 FASTENER; INST CLUSTER 1-72438-137-0 06 1 0211- ● ● ● ●
291 FASTENER; INST CLUSTER 1-72438-137-0 06 1 0005-0210 ● ● ● ●
309 PANEL; SW,INST 1-72418-009-6 01 1 0005- ● ● ● ●
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0005- ● ● ● ●
336 COVER; INST PANEL SIDE 1-72437-624-0 01 1 0005- ● ● ● ●
336 COVER; INST PANEL SIDE 1-72437-622-0 01 1 0005- ● ● ● ●
337 FASTENER; COVER
(A) 		1-72438-124-2 10 1 0211- ● ● ● ●
337 FASTENER; COVER
(A) 		1-72438-124-2 08 1 0005-0210 ● ● ● ●
337 FASTENER; COVER
(B) 		1-72438-138-0 06 1 0005- ● ● ● ●
394 HOLDER; PANEL
(A) 		1-72438-066-0 06 1 0005- ● ● ● ●
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 0005- ● ● ● ●
402 SCREW; VENT GRILLE,INST
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 02 1 0005-0604 ● ● ● ●
402 SCREW; VENT GRILLE,INST
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 02 1 0605- ● ● ● ●
405 GRILLE ASM; METER VENT
(A) 		1-76367-062-2 01 1 0005- ● ● ● ●
405 GRILLE ASM; METER VENT
(B) 		1-76367-059-3 01 1 0005- ● ● ● ●
500 CLUSTER; INST CENTER 1-72438-185-1 01 1 0005- ● ● ● ●
502 GROMMET; SCREW,CENTER,CLUSTER
D=7.8X7.8 L 13 M6 NATURAL 		8-94279-084-2 04 1 0005- ● ● ● ●
505 LOCK; LID 1-72558-024-2 02 1 0005- ● ● ● ●
513 BRACKET; RELAY 1-73908-009-9 01 1 0005-0205 ● ● ● ●
513 BRACKET; RELAY 1-73908-425-0 01 1 0206- ● ● ● ●
527 CLIP; INST CLUSTER 8-97217-066-0 04 1 0005- ● ● ● ●
557 LID; BOX,COOL & HOT 1-72548-142-1 01 1 0005- ● ● ● ●
565 BEZEL; SW PANEL
(A) 		1-72418-010-2 01 1 0005- ● ● ● ●
565 BEZEL; SW PANEL
(B) 		1-72418-011-3 01 1 0005- ● ● ● ●
569 HOLDER; CARD 1-72498-015-2 01 1 0005- ● ● ● ●
570 SCREW; HOLDER
M5X14 		8-94279-325-0 01 1 0005- ● ● ● ●
572 COVER; INSPECTION 1-72438-183-0 01 1 0005- ● ● ● ●
579 COVER; INST PNL 1-72438-184-1 01 1 0005- ● ● ● ●
581 SCREW
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 02 1 0005-0604 ● ● ● ●
581 SCREW
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 02 1 0605- ● ● ● ●
582 LID; FUSE & RELAY 1-72548-144-0 01 1 0005- ● ● ● ●
588 LID; BOX 1-72548-135-3 01 1 0005- ● ● ● ●
589 KNOB; LID 1-72548-143-0 01 1 0005- ● ● ● ●
592 HINGE; LID 1-72548-133-3 01 1 0005- ● ● ● ●
593 SCREW; HINGE
M5X14 		8-94279-325-0 02 1 0005- ● ● ● ●
594 HOOK; COAT 1-72498-013-0 01 1 0005- ● ● ● ●
595 NUT; HOOK
(A) W/NUT M5 		1-09984-162-0 01 1 0005-0012 ● ● ● ●
595 NUT; HOOK
(A) WO/NUT 		8-97810-118-0 01 1 0101-0110 ● ● ● ●
595 NUT; HOOK
(A) W/NUT M5 		1-09984-162-0 01 1 0111- ● ● ● ●
595 NUT; HOOK
(B) 		1-72418-013-0 11 1 0005- ● ● ● ●
596 SCREW; HOOK
M5X16 W/LK&PL WASHER 		8-94279-400-0 01 1 0005-0012 ● ● ● ●
596 SCREW; HOOK
M5X14 		8-94279-325-0 01 1 0101-0110 ● ● ● ●
596 SCREW; HOOK
M5X16 W/LK&PL WASHER 		8-94279-400-0 01 1 0111- ● ● ● ●
603 CLIP; COVER
D8X13.5 		1-09987-270-0 01 1 0005- ● ● ● ●
673 FINISHER; BRKT,RELAY
L=30 		8-94273-221-0 01 1 0006-0009 ● ● ● ●
673 FINISHER; BRKT,RELAY
L=50 		8-94270-377-1 01 1 0010- ● ● ● ●

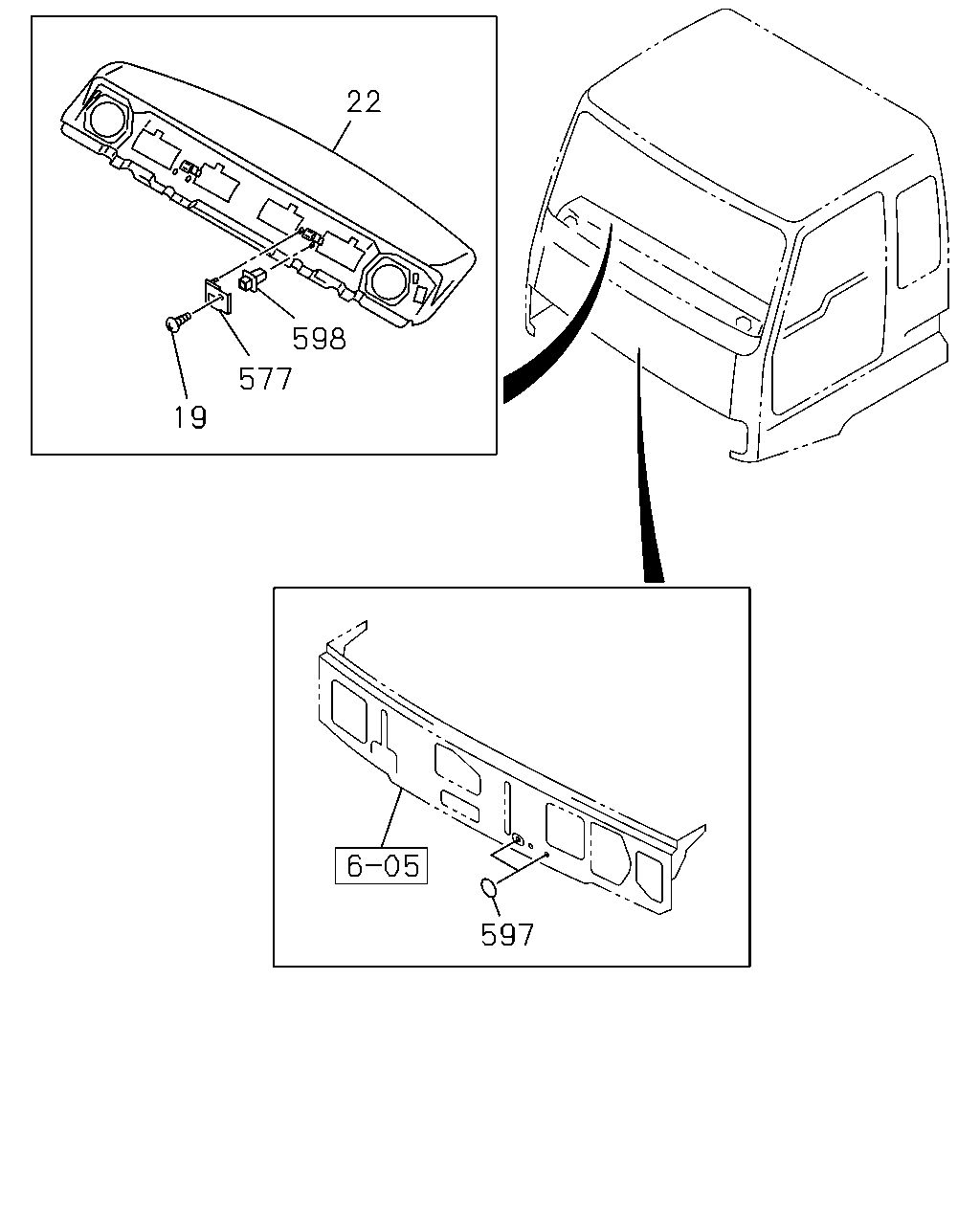

çizim 9594
22 598 577 19 597
BalonParca AdiParca NoAdetTipApplied Date A B C D
19 SCREW; BRKT
AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> M5X14 		8-94279-325-0 01 1 0005-0210 ● ●
19 SCREW; BRKT
AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> M5X14 		8-94279-325-0 01 1 0211- ●
19 SCREW; BRKT
M5X14 		8-94279-325-0 02 1 0005- ● ● ● ●
22 PAD; INST 1-72318-433-4 01 1 0005- ● ● ● ●
577 BRACKET; SENSOR
AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> 		1-72318-414-0 01 1 0005-0210 ● ●
577 BRACKET; SENSOR
AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> 		1-72318-414-0 01 1 0211- ●
597 SEAL; HOLE,DASH
6SD1 TCN ENG(31L) OD=16 BLACK 		1-76798-037-0 02 1 0005-0210 ●
597 SEAL; HOLE,DASH
WHEEL BASE 6300MM(63W) OD=16 BLACK 		1-76798-037-0 02 1 0005-0210 ●
597 SEAL; HOLE,DASH
OD=16 BLACK 		1-76798-037-0 02 1 0005-0210 ●
598 GROMMET; SCREW
AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> D=7.8X7.8 L 13 M6 NATURAL 		8-94279-084-2 01 1 0005-0210 ● ●
598 GROMMET; SCREW
AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> D=7.8X7.8 L 13 M6 NATURAL 		8-94279-084-2 01 1 0211- ●

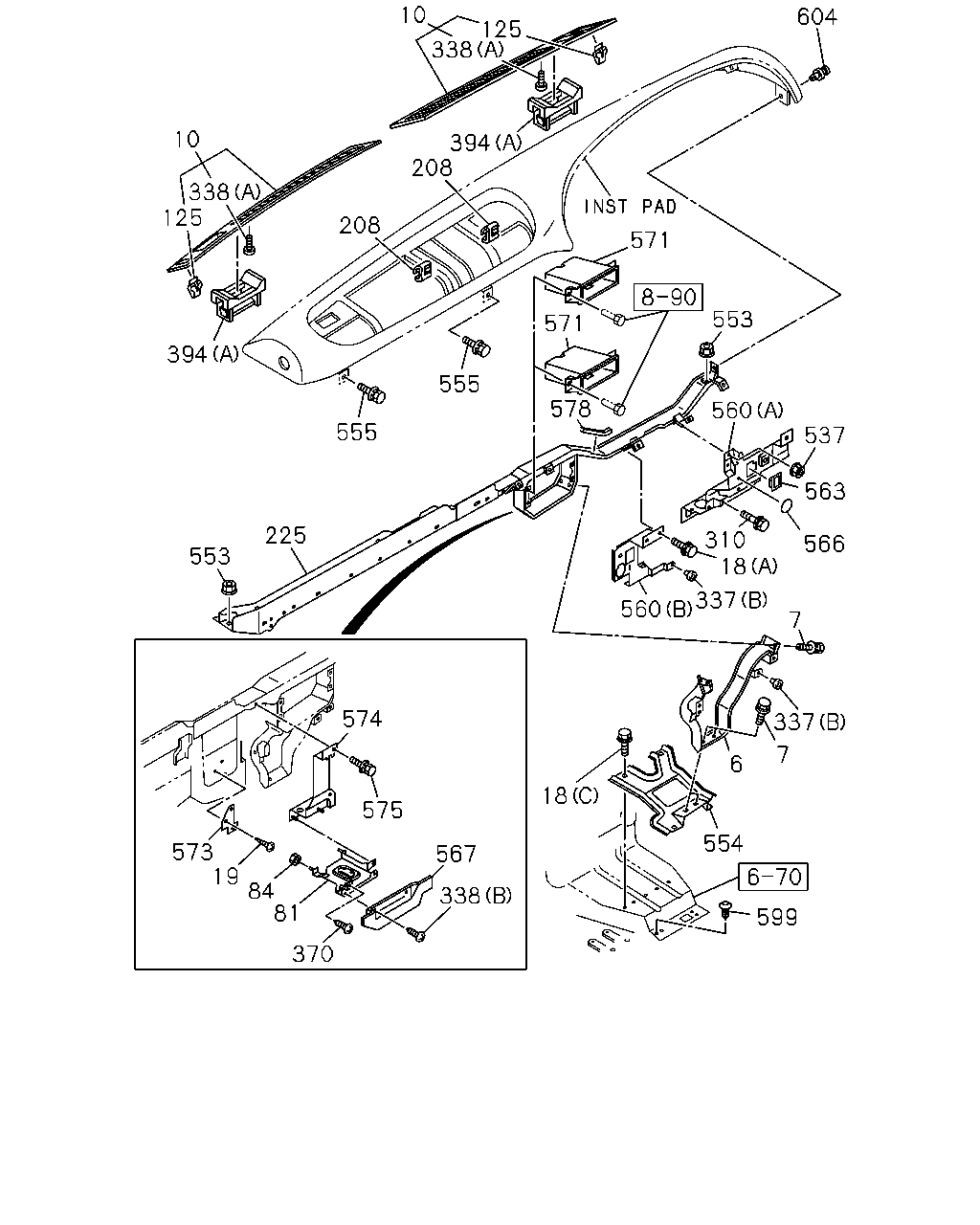

çizim 9829
10 604 125 338 10 394 208 338 125 208 571 553 571 394 555 578 560 555 537 563 225 310 18 566 553 337 560 7 574 337 7 6 18 575 554 573 19 84 81 567 338 599 370
BalonParca AdiParca NoAdetTipApplied Date A B C D
6 SUPPORT; INST PANEL 1-65681-165-2 01 1 0005- ● ● ● ●
7 BOLT; SUPPORT,INST PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 0005- ● ● ● ●
10 PANEL ASM; GARNISH
AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> 		1-72437-603-4 01 1 0005-0210 ● ●
10 PANEL ASM; GARNISH
AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> 		1-72437-603-6 01 1 0211- ●
10 PANEL ASM; GARNISH
EXC. AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> W/SPEAKER NET 		1-72437-601-4 01 1 0005-0210 ● ●
10 PANEL ASM; GARNISH
W/SPEAKER NET 		1-72437-601-4 01 1 0005-0210 ● ●
10 PANEL ASM; GARNISH
EXC. AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> W/SPEAKER NET 		1-72437-601-6 01 1 0211- ●
10 PANEL ASM; GARNISH
W/SPEAKER NET 		1-72437-601-6 01 1 0211- ● ● ●
10 PANEL ASM; GARNISH
W/SPEAKER NET 		1-72437-600-7 01 1 0005- ● ● ● ●
18 BOLT; BRKT
(C) M8X40 FLANGE 		0-28680-840-0 03 1 0005-0512 ● ● ● ●
18 BOLT; BRKT
(C) M8X40 FLANGE 		0-28650-840-0 03 1 0601- ● ● ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 07 1 0005- ● ● ● ●
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 0005- ● ● ● ●
19 SCREW; BRKT
AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> M5X14 		8-94279-325-0 01 1 0005-0210 ● ●
19 SCREW; BRKT
AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> M5X14 		8-94279-325-0 01 1 0211- ●
19 SCREW; BRKT
M5X14 		8-94279-325-0 02 1 0005- ● ● ● ●
81 BRACKET; ELEC CONT UNIT 1-73908-156-4 01 1 0005- ● ● ● ●
84 NUT; CONT UNIT BRKT
M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 0005- ● ● ● ●
125 CLIP; INST PANEL 8-97217-066-0 05 1 0211- ● ● ● ●
125 CLIP; INST PANEL 8-97217-066-0 05 1 0005-0111 ● ● ● ●
125 CLIP; INST PANEL 8-97217-066-0 04 1 0112- ● ● ● ●
125 CLIP; INST PANEL 8-97217-066-0 04 1 0005-0111 ● ● ● ●
125 CLIP; INST PANEL 8-97217-066-0 05 1 0112-0210 ● ● ● ●
208 HOLDER; BOX,DASH SIDE 1-72558-027-2 02 1 0005- ● ● ● ●
225 FRAME; FACIA 1-65681-096-2 01 1 0005-1002 ● ● ● ●
225 FRAME; FACIA 8-98142-102-0 01 1 1003- ● ● ● ●
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0005- ● ● ● ●
337 FASTENER; COVER
(A) 		1-72438-124-2 10 1 0211- ● ● ● ●
337 FASTENER; COVER
(A) 		1-72438-124-2 08 1 0005-0210 ● ● ● ●
337 FASTENER; COVER
(B) 		1-72438-138-0 06 1 0005- ● ● ● ●
338 SCREW; COVER
(A) M5X14 		8-94279-325-0 10 1 0802- ● ● ● ●
338 SCREW; COVER
(A) M5X14 		8-94279-325-0 10 1 0310-0405 ● ● ● ●
338 SCREW; COVER
EXC. AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> (A) M5X14 		8-94279-325-0 10 1 0310-0405 ●
338 SCREW; COVER
(A) M5X14 		8-94279-325-0 10 1 0310-0405 ● ● ●
338 SCREW; COVER
(B) M6X16 		8-94479-534-0 02 1 0005-0302 ● ● ● ●
338 SCREW; COVER
(B) M6X12 		8-97094-854-0 02 1 0303- ● ● ● ●
338 SCREW; COVER
(A) M5X14 		8-94279-325-0 05 1 0005-0208 ● ● ● ●
338 SCREW; COVER
(A) M5X14 		8-94279-325-0 05 1 0005-0208 ● ● ● ●
338 SCREW; COVER
(A) M5X14 		8-94148-576-1 05 1 0209-0210 ● ● ● ●
338 SCREW; COVER
(A) M5X14 		8-94148-576-1 05 1 0209-0210 ● ● ● ●
338 SCREW; COVER
(A) M5X14 		8-94148-576-1 05 1 0211-0309 ● ● ● ●
338 SCREW; COVER
(A) M5X14 		8-94148-576-1 05 1 0211-0309 ● ● ●
338 SCREW; COVER
AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> (A) M5X14 		8-94279-325-0 05 1 0310-0405 ●
338 SCREW; COVER
(A) M5X14 		8-94279-325-0 05 1 0406-0801 ● ● ● ●
338 SCREW; COVER
(A) M5X14 		8-94279-325-0 05 1 0406-0801 ● ● ●
338 SCREW; COVER
(A) M5X14 		8-94279-325-0 05 1 0802- ● ● ● ●
370 SCREW; BRKT,ELEC CONT UNIT
M5X14 		8-94279-325-0 01 1 0005- ● ● ● ●
394 HOLDER; PANEL
(A) 		1-72438-066-0 06 1 0005- ● ● ● ●
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 0005- ● ● ● ●
537 NUT; BRKT
M6 FLANGE 		0-91150-106-0 01 1 0005-0602 ● ● ● ●
537 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 0603- ● ● ● ●
553 NUT; FRAME
M8 FLANGE 		0-91150-108-0 04 1 0005-0602 ● ● ● ●
553 NUT; FRAME
M8 FLANGE 		0-91180-108-0 04 1 0603- ● ● ● ●
554 BRACKET; CENTER BEZEL 1-65680-963-2 01 1 0005- ● ● ● ●
555 BOLT; PAD
M10X25 FLANGE 		0-28281-025-0 07 1 0005-0512 ● ● ● ●
555 BOLT; PAD
M10X25 FLANGE 		0-28251-025-0 07 1 0601-0604 ● ● ● ●
555 BOLT; PAD
M10X25 FLANGE 		8-98041-453-0 07 1 0605- ● ● ● ●
555 BOLT; PAD
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0005- ● ● ● ●
560 BRACKET
(B) 		1-65680-976-3 01 1 0005- ● ● ● ●
560 BRACKET
(A) 		1-65681-078-3 01 1 0005-0210 ● ● ● ●
560 BRACKET
(A) 		1-65671-772-4 01 1 0211- ● ● ● ●
563 BEZEL; BRKT 1-72448-410-3 01 1 0303- ● ● ● ●
566 PLUG; HOLE
OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0005-0210 ● ● ● ●
566 PLUG; HOLE
OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0211- ● ● ●
566 PLUG; HOLE
6SD1 TCN ENG(31L) OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0211- ●
566 PLUG; HOLE
6HK1 TCS ENG(80L) OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 0303- ●
567 COVER; CONT UNIT 1-65681-022-2 01 1 0005- ● ● ● ●
571 BEZEL; POCKET 1-72438-151-1 02 1 0005-0309 ● ● ● ●
571 BEZEL; POCKET 1-72438-151-3 01 1 0310- ● ● ● ●
573 BRACKET; PANEL,RELAY BOX 1-73908-023-2 01 1 0005- ● ● ● ●
574 PANEL; RELAY BOX 1-73908-252-3 01 1 0005- ● ● ● ●
575 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0005- ● ● ● ●
578 SEAL; PROTECTOR,HARNESS
100X40 		1-72498-022-1 01 1 0005- ● ● ● ●
599 PLUG; BRKT
D4.7X11 		1-76378-154-0 01 1 0005- ● ● ● ●
604 CLIP; INST PAD 1-09983-123-0 01 1 0005- ● ● ● ●
