Isuzu WW
▶
TRUCKS
▶
FV
▶
10828 - FV/GV(AUSTRAL)L.SUS
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-84 - BACK TRIM
▶

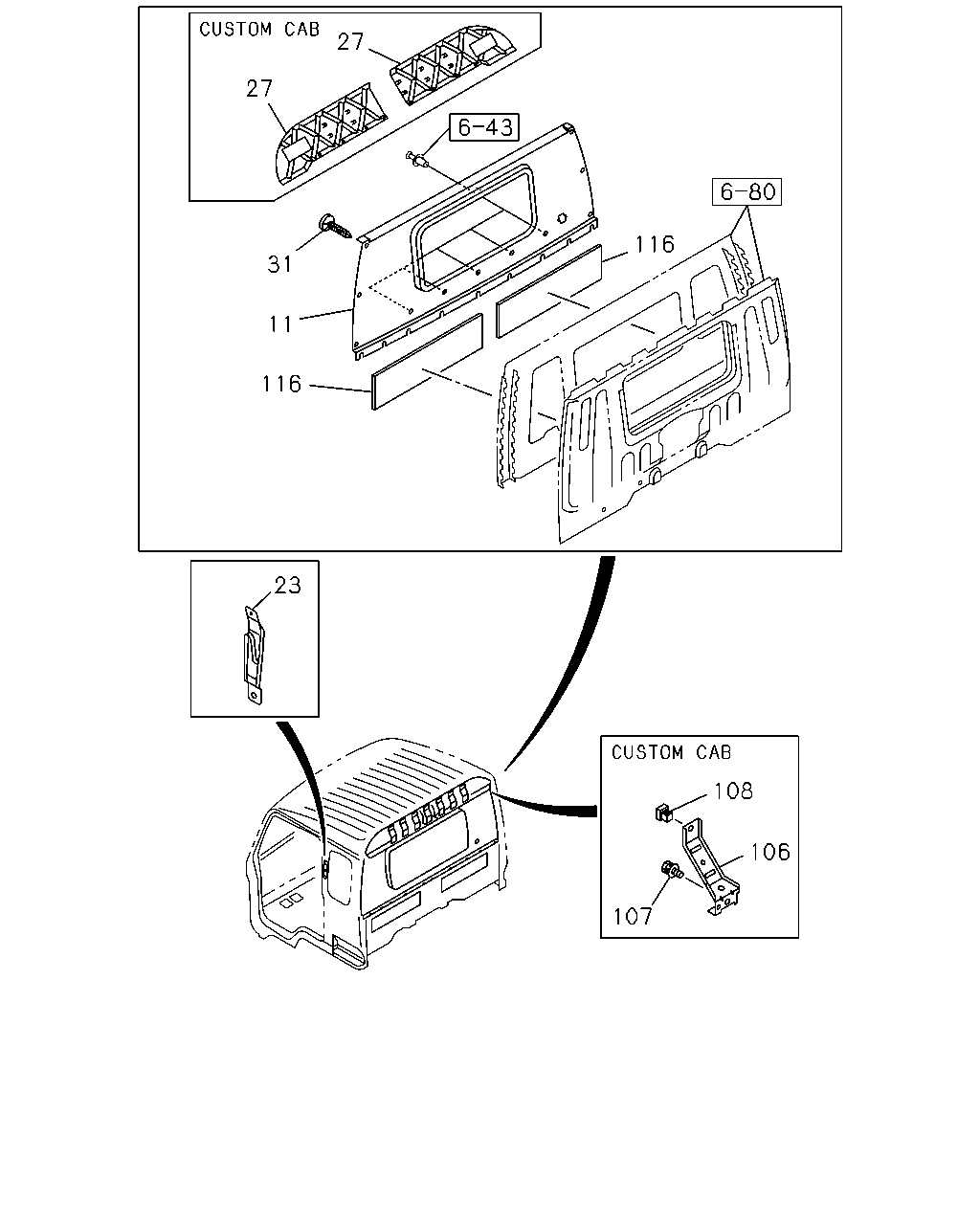

6-84 — BACK TRIM
(#8754) — 18 parça
Tümü
A - FVM5MF
B - FVR5MF
C - FVZ5MF
D - GVR5MC
27
27
116
31
11
116
23
108
106
107
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
11
TRIM; ROOM,BACK INNER
1-73348-942-1
01
1
0005-0212
●
●
●
●
11
TRIM; ROOM,BACK INNER
EXC. PROVISIONAL PACKAGE<NLY>
1-73348-942-1
01
1
0301-0405
●
●
●
●
11
TRIM; ROOM,BACK INNER
1-73348-942-3
01
1
0406-
●
●
●
●
11
TRIM; ROOM,BACK INNER
PROVISIONAL PACKAGE<NLY>
8-97893-967-0
01
1
0301-0405
●
●
●
●
23
FINISHER; BACK INNER PANEL
1-73347-789-1
01
1
0005-
●
●
●
●
23
FINISHER; BACK INNER PANEL
1-73347-788-1
01
1
0005-
●
●
●
●
27
COVER; TRIM,BACK
CUSTOM CAB(SR5)
1-73348-946-0
01
1
0005-0210
●
●
27
COVER; TRIM,BACK
CUSTOM CAB(SR5)
1-73348-946-0
01
1
0211-0305
●
27
COVER; TRIM,BACK
CUSTOM CAB(SR5)
1-73348-945-0
01
1
0005-0210
●
●
27
COVER; TRIM,BACK
CUSTOM CAB(SR5)
1-73348-945-0
01
1
0211-0305
●
31
CLIP; TRIM PAD
D6X23 LIGHT GRAY
1-73318-629-0
27
1
0005-
●
●
●
●
106
BRACKET; BACK TRIM
CUSTOM CAB(SR5)
1-73348-411-4
03
1
0005-0210
●
●
106
BRACKET; BACK TRIM
CUSTOM CAB(SR5)
1-73348-411-4
03
1
0211-0305
●
107
SCREW; BRKT
CUSTOM CAB(SR5) M5X20
5-09981-059-0
06
1
0005-0210
●
●
107
SCREW; BRKT
CUSTOM CAB(SR5) M5X20
5-09981-059-0
06
1
0211-0305
●
108
GROMMET; SCREW
CUSTOM CAB(SR5) D=8.6X7.7 L=7.5
8-94279-078-0
06
1
0005-0210
●
●
108
GROMMET; SCREW
CUSTOM CAB(SR5) D=8.6X7.7 L=7.5
8-94279-078-0
06
1
0211-0305
●
116
INSULATOR; BACK PANEL
1-73368-002-2
02
1
0005-
●
●
●
●
