◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10627 - FTR-LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-51 - OIL PUMP AND OIL STRAINER ▶
0-51 — OIL PUMP AND OIL STRAINER (#875) — 16 parça

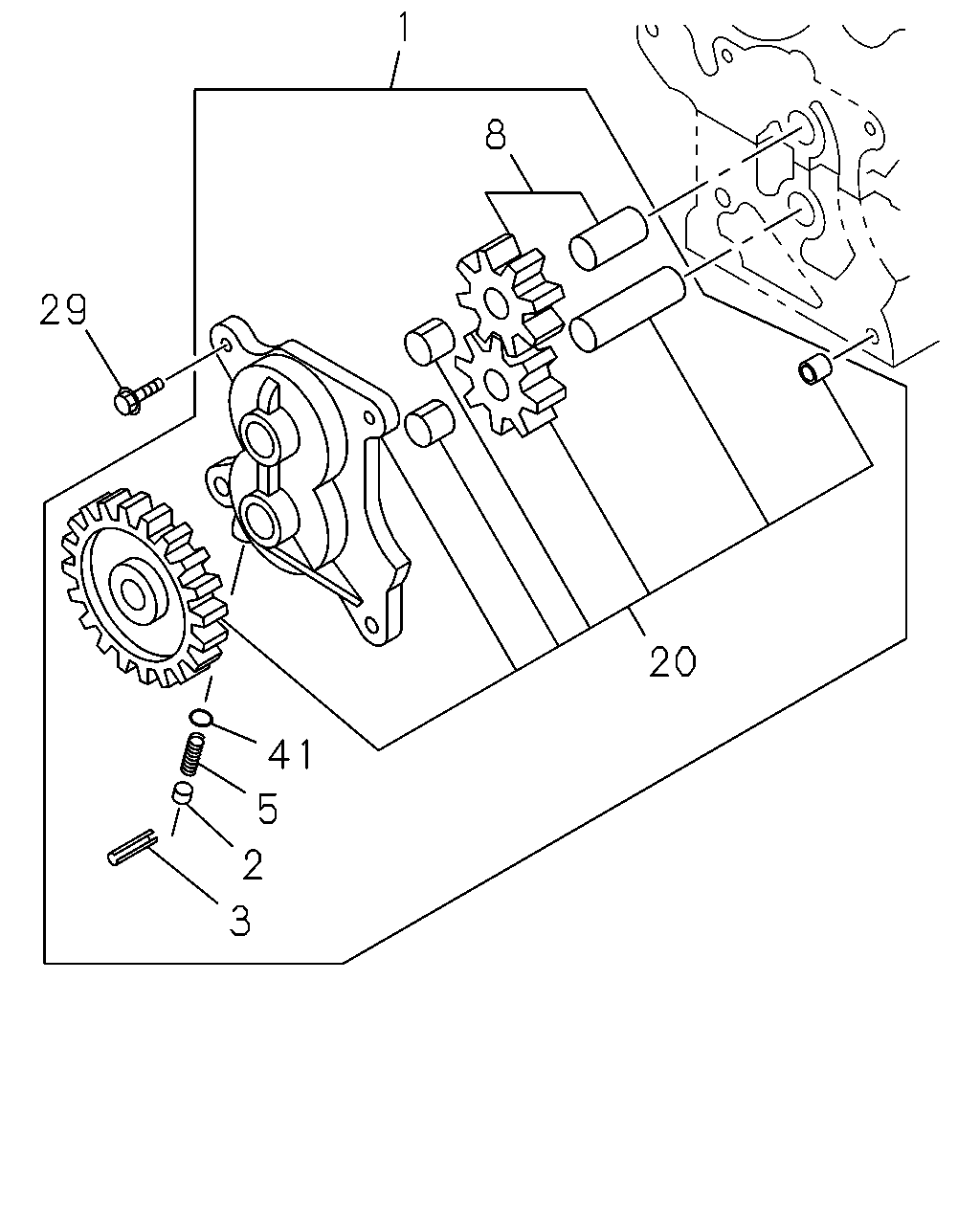

çizim 28223
1 8 29 20 41 5 2 3
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; OIL 8-94393-830-3 01 1 9202- ● ●
2 SEAT; SPR 5-13165-004-0 01 1 9202- ● ●
3 PIN; SPLIT
L=30 		9-08104-030-0 01 1 9202- ● ●
5 SPRING; COIL 5-09580-098-0 01 1 9202- ● ●
8 GEAR; DRIVEN,OIL PUMP 8-94393-834-0 01 1 9202- ● ●
20 GEAR; DRIVE,OIL PUMP 8-94393-831-3 01 1 9202- ● ●
29 BOLT; OIL PUMP
M8X25 FLANGE 		0-28080-825-0 04 1 9202- ● ●
41 BALL; OIL RELIEF VLV 5-09843-003-0 01 1 9202- ● ●

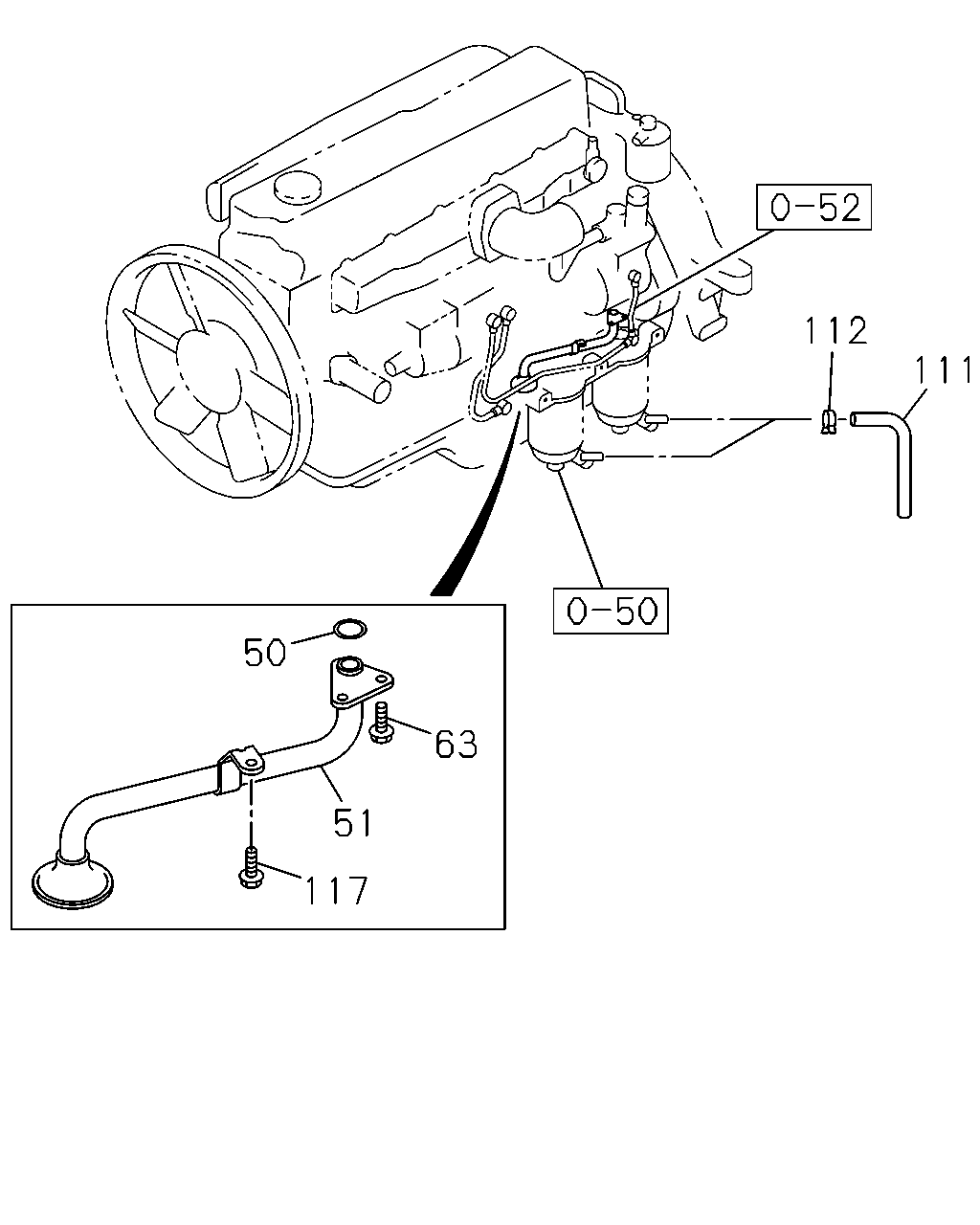

çizim 28402
112 111 50 63 51 117
BalonParca AdiParca NoAdetTipApplied Date A B
50 GASKET; OIL PIPE,STRAINER TO PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4 		1-09623-183-0 01 1 9202- ● ●
51 STRAINER & PIPE ASM; OIL 8-94396-067-0 01 1 9202- ● ●
63 BOLT; OIL PIPE,STRAINER TO PUMP
M8X14 FLANGE 		0-28080-814-0 02 1 9202- ● ●
111 HOSE; OIL DRAIN 8-94396-950-0 02 1 9202-9210 ● ●
111 HOSE; OIL DRAIN
EXC. PARTIAL OIL FILTER CARTRIDGE<KC2> 		8-94396-950-0 02 1 9211- ● ●
112 CLIP; HOSE,OIL DRAIN
ID=14 		5-09707-004-1 02 1 9202-9210 ● ●
112 CLIP; HOSE,OIL DRAIN
EXC. PARTIAL OIL FILTER CARTRIDGE<KC2> ID=14 		5-09707-004-1 02 1 9211- ● ●
117 BOLT; STAY TO CRANKCASE
M10X75 FLANGE 		8-94399-669-1 01 1 9202- ● ●
