◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FV ▶ 10828 - FV/GV(AUSTRAL)L.SUS ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-75 - MAT AND CARPET ▶
6-75 — MAT AND CARPET (#8749) — 62 parça

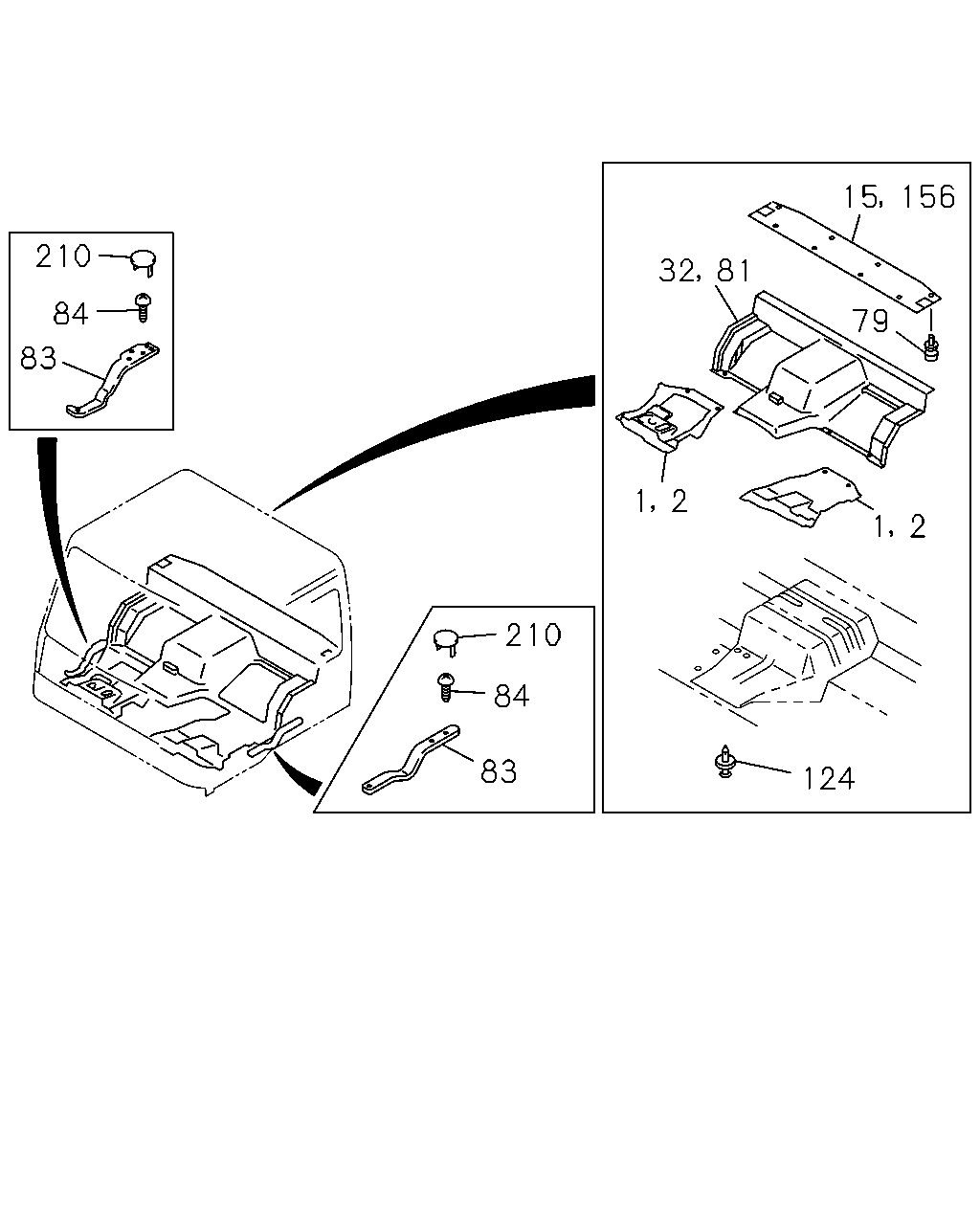

çizim 45277
15 156 210 32 81 79 84 83 2 1 2 1 210 84 83 124
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 CARPET; FLOOR,FRT
DELUXE CARPET<BF2> CUSTOM CAB(SR5) 		1-73236-206-0 01 1 0005-0210 ● ●
1 CARPET; FLOOR,FRT
DELUXE CARPET<BF2> CUSTOM CAB(SR5) 		1-73236-206-0 01 1 0211-0306 ●
1 CARPET; FLOOR,FRT
DELUXE CARPET<BF2> CUSTOM CAB(SR5) 		1-73236-204-1 01 1 0005-0006 ● ●
1 CARPET; FLOOR,FRT
DELUXE CARPET<BF2> CUSTOM CAB(SR5) 		1-73236-339-0 01 1 0007-0210 ● ●
1 CARPET; FLOOR,FRT
DELUXE CARPET<BF2> CUSTOM CAB(SR5) 		1-73236-339-0 01 1 0211-0306 ●
2 MAT; FLOOR
VINYL CARPET<B30> 		1-73236-180-0 01 1 0005-0202 ● ●
2 MAT; FLOOR 1-73236-180-0 01 1 0005-0202 ● ●
2 MAT; FLOOR
A/T<X9D> 		1-73236-180-0 01 1 0203-0203 ●
2 MAT; FLOOR
VINYL CARPET<B30> 		1-73236-178-0 01 1 0005-0006 ● ●
2 MAT; FLOOR 1-73236-178-0 01 1 0005-0006 ● ●
2 MAT; FLOOR
VINYL CARPET<B30> 		1-73236-357-0 01 1 0007-0202 ● ●
2 MAT; FLOOR 1-73236-357-0 01 1 0007-0202 ● ●
2 MAT; FLOOR
A/T<X9D> 		1-73236-357-0 01 1 0203-0203 ●
2 MAT; FLOOR
VINYL CARPET<B30> 		1-73236-470-0 01 1 0203-0203 ● ●
2 MAT; FLOOR
EXC. A/T<X9D> 		1-73236-470-0 01 1 0203-0203 ●
2 MAT; FLOOR 1-73236-470-0 01 1 0203-0203 ●
2 MAT; FLOOR
VINYL CARPET<B30> 		1-73236-470-0 01 1 0204-0210 ● ●
2 MAT; FLOOR 1-73236-470-0 01 1 0204-0210 ● ●
2 MAT; FLOOR
VINYL CARPET<B30> 		1-73236-470-1 01 1 0211-0306 ●
2 MAT; FLOOR 1-73236-470-1 01 1 0211-0306 ● ● ●
2 MAT; FLOOR 1-73236-470-1 01 1 0307- ● ● ● ●
2 MAT; FLOOR
VINYL CARPET<B30> 		1-73236-469-0 01 1 0203-0203 ● ●
2 MAT; FLOOR
EXC. A/T<X9D> 		1-73236-469-0 01 1 0203-0203 ●
2 MAT; FLOOR 1-73236-469-0 01 1 0203-0203 ●
2 MAT; FLOOR
VINYL CARPET<B30> 		1-73236-469-0 01 1 0204-0210 ● ●
2 MAT; FLOOR 1-73236-469-0 01 1 0204-0210 ● ●
2 MAT; FLOOR
VINYL CARPET<B30> 		1-73236-469-1 01 1 0211-0306 ●
2 MAT; FLOOR 1-73236-469-1 01 1 0211-0306 ● ● ●
2 MAT; FLOOR 1-73236-469-1 01 1 0307- ● ● ● ●
2 MAT; FLOOR
EXC. VINYL CARPET<B30>,CUSTOM CAB(SR5) 		1-73236-294-0 01 1 0005-0202 ● ●
2 MAT; FLOOR
EXC. VINYL CARPET<B30>,CUSTOM CAB(SR5) 		1-73236-473-0 01 1 0203-0210 ● ●
2 MAT; FLOOR
EXC. VINYL CARPET<B30>,CUSTOM CAB(SR5) 		1-73236-293-0 01 1 0005-0006 ● ●
2 MAT; FLOOR
EXC. VINYL CARPET<B30>,CUSTOM CAB(SR5) 		1-73236-359-0 01 1 0007-0202 ● ●
2 MAT; FLOOR
EXC. VINYL CARPET<B30>,CUSTOM CAB(SR5) 		1-73236-474-0 01 1 0203-0210 ● ●
15 MAT; FLOOR REAR
VINYL CARPET<B30> 		1-73236-245-0 01 1 0005-0202 ● ●
15 MAT; FLOOR REAR 1-73236-245-0 01 1 0005-0202 ● ●
15 MAT; FLOOR REAR
A/T<X9D> 		1-73236-245-0 01 1 0203-0203 ●
15 MAT; FLOOR REAR
VINYL CARPET<B30> 		1-73236-522-0 01 1 0203-0203 ● ●
15 MAT; FLOOR REAR
EXC. A/T<X9D> 		1-73236-522-0 01 1 0203-0203 ●
15 MAT; FLOOR REAR 1-73236-522-0 01 1 0203-0203 ●
15 MAT; FLOOR REAR
VINYL CARPET<B30> 		1-73236-522-0 01 1 0204-0210 ● ●
15 MAT; FLOOR REAR 1-73236-522-0 01 1 0204-0210 ● ●
15 MAT; FLOOR REAR
VINYL CARPET<B30> 		1-73236-522-1 01 1 0211-0306 ●
15 MAT; FLOOR REAR 1-73236-522-1 01 1 0211-0306 ● ● ●
15 MAT; FLOOR REAR 1-73236-522-1 01 1 0307- ● ● ● ●
32 CARPET; FLOOR
DELUXE CARPET<BF2> CUSTOM CAB(SR5) 		1-73236-299-5 01 1 0005-0210 ● ●
32 CARPET; FLOOR
DELUXE CARPET<BF2> CUSTOM CAB(SR5) 		1-73236-299-6 01 1 0211-0305 ●
79 HOOK; MALE
BLACK 		8-94279-089-0 08 1 0005- ● ● ● ●
81 MAT; FLOOR,CENTER
VINYL CARPET<B30> 		1-73236-303-5 01 1 0005-0202 ● ● ●
81 MAT; FLOOR,CENTER
VINYL CARPET<B30> 		1-73236-491-2 01 1 0203-0210 ● ● ●
81 MAT; FLOOR,CENTER
VINYL CARPET<B30> 		1-73236-547-3 01 1 0211-0306 ●
81 MAT; FLOOR,CENTER 1-73236-547-3 01 1 0211-0306 ● ●
81 MAT; FLOOR,CENTER 1-73236-547-3 01 1 0307- ● ● ●
81 MAT; FLOOR,CENTER 1-73236-304-3 01 1 0005-0202 ●
81 MAT; FLOOR,CENTER 1-73236-492-5 01 1 0203- ●
83 PLATE; KICKING,FLOOR MAT 1-76798-046-0 01 1 0005- ● ● ● ●
83 PLATE; KICKING,FLOOR MAT 1-76798-045-0 01 1 0005- ● ● ● ●
84 SCREW; PLATE TO FLOOR
M5X16 		8-94279-312-0 08 1 0005- ● ● ● ●
124 FASTENER 1-09470-007-0 04 1 0005- ● ● ● ●
156 CARPET; FLOOR,BED
DELUXE CARPET<BF2> CUSTOM CAB(SR5) 		1-73236-301-0 01 1 0005-0210 ● ●
156 CARPET; FLOOR,BED
DELUXE CARPET<BF2> CUSTOM CAB(SR5) 		1-73236-301-0 01 1 0211-0305 ●
210 COVER; KICKING PLATE 1-76337-461-0 09 1 0005- ● ● ● ●
