◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FV ▶ 10828 - FV/GV(AUSTRAL)L.SUS ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-66 - HEAD LINING AND TRIM ▶
6-66 — HEAD LINING AND TRIM (#8747) — 108 parça

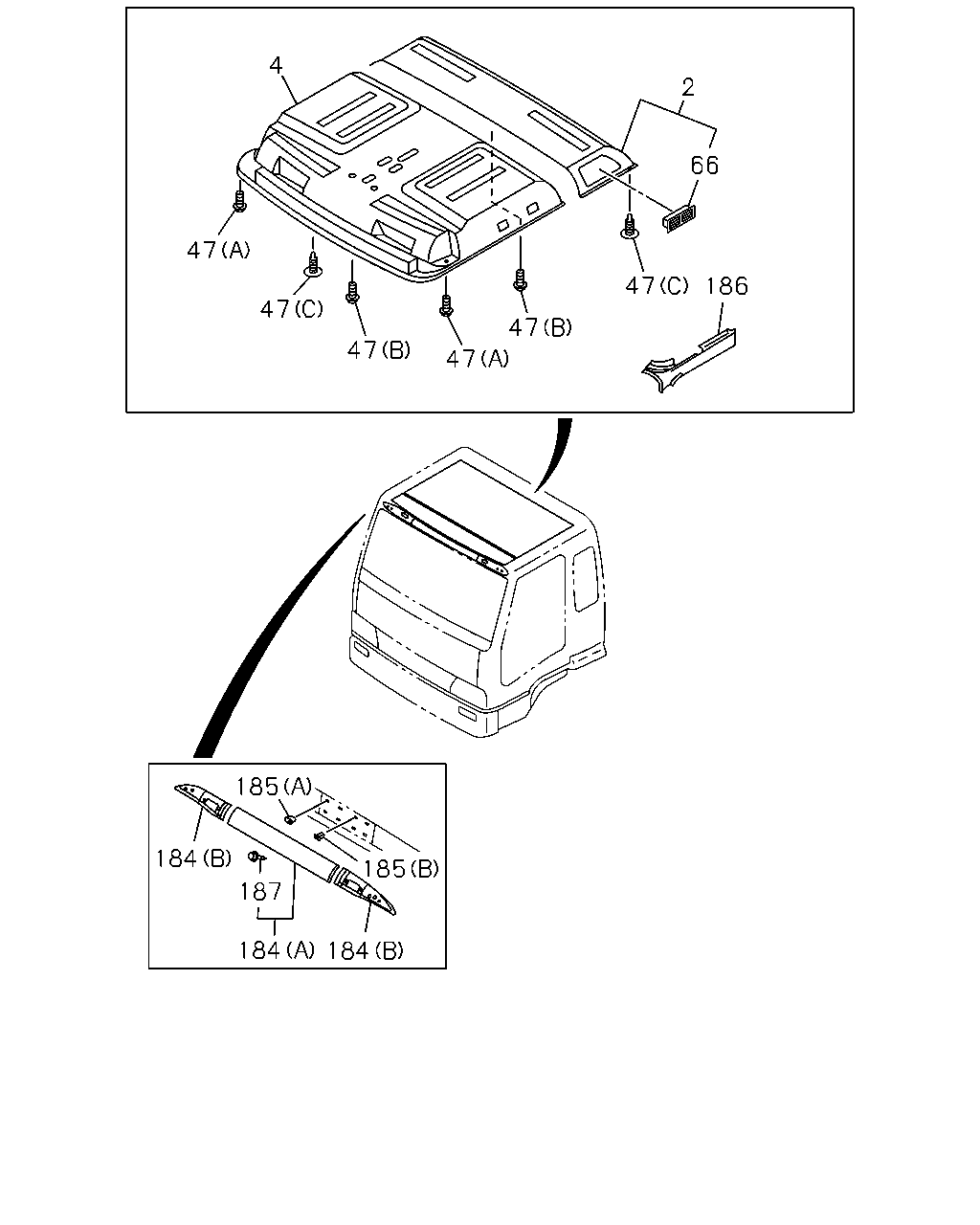

çizim 44939
4 2 66 47 47 186 47 47 47 47 185 184 185 187 184 184
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 LINING; HD,ROOF RR
EXC. CUSTOM CAB(SR5) 		1-73318-646-1 01 1 0005-0210 ● ●
2 LINING; HD,ROOF RR 1-73318-646-1 01 1 0005-0210 ● ●
2 LINING; HD,ROOF RR
EXC. CUSTOM CAB(SR5) 		1-73318-646-1 01 1 0211-0212 ●
2 LINING; HD,ROOF RR 1-73318-646-1 01 1 0211-0212 ● ● ●
2 LINING; HD,ROOF RR
EXC. PROVISIONAL PACKAGE<NLY>,CUSTOM CAB(SR5) 		1-73318-646-1 01 1 0301-0305 ●
2 LINING; HD,ROOF RR
EXC. PROVISIONAL PACKAGE<NLY> 		1-73318-646-1 01 1 0301-0305 ● ● ●
2 LINING; HD,ROOF RR
EXC. PROVISIONAL PACKAGE<NLY> 		1-73318-646-1 01 1 0306-0405 ● ● ● ●
2 LINING; HD,ROOF RR 1-73318-646-3 01 1 0406- ● ● ● ●
2 LINING; HD,ROOF RR
PROVISIONAL PACKAGE<NLY> EXC. CUSTOM CAB(SR5) 		1-73318-709-0 01 1 0301-0305 ●
2 LINING; HD,ROOF RR
PROVISIONAL PACKAGE<NLY> 		1-73318-709-0 01 1 0301-0305 ● ● ●
2 LINING; HD,ROOF RR
PROVISIONAL PACKAGE<NLY> 		1-73318-709-0 01 1 0306-0405 ● ● ● ●
4 LINING; ROOF,FRT
PROVISIONAL PACKAGE<NLY> CUSTOM CAB(SR5) 		1-73318-696-1 01 1 0306-0405 ●
4 LINING; ROOF,FRT
CUSTOM CAB(SR5) EXC. PROVISIONAL PACKAGE<NLY> 		1-73318-597-5 01 1 0306-0405 ●
4 LINING; ROOF,FRT
CUSTOM CAB(SR5) 		1-73318-597-5 01 1 0406-0406 ●
4 LINING; ROOF,FRT
MAP LAMP<C85> 		1-73318-597-7 01 1 0406- ● ● ● ●
4 LINING; ROOF,FRT
EXC. CUSTOM CAB(SR5) 		8-97865-577-1 01 1 0005-0210 ● ●
4 LINING; ROOF,FRT 8-97865-577-1 01 1 0005-0210 ● ●
4 LINING; ROOF,FRT
EXC. CUSTOM CAB(SR5) 		8-97865-577-1 01 1 0211-0212 ●
4 LINING; ROOF,FRT 8-97865-577-1 01 1 0211-0212 ● ● ●
4 LINING; ROOF,FRT
EXC. PROVISIONAL PACKAGE<NLY>,CUSTOM CAB(SR5) 		8-97865-577-2 01 1 0301-0405 ●
4 LINING; ROOF,FRT
EXC. PROVISIONAL PACKAGE<NLY> 		8-97865-577-2 01 1 0301-0405 ● ● ●
4 LINING; ROOF,FRT
EXC. CUSTOM CAB(SR5) 		8-97865-577-2 01 1 0406-0406 ●
4 LINING; ROOF,FRT 8-97865-577-2 01 1 0406-0406 ● ● ●
4 LINING; ROOF,FRT
EXC. MAP LAMP<C85> 		8-97865-577-4 01 1 0406- ● ● ● ●
4 LINING; ROOF,FRT
PROVISIONAL PACKAGE<NLY> EXC. CUSTOM CAB(SR5) 		8-97893-788-1 01 1 0301-0405 ●
4 LINING; ROOF,FRT
PROVISIONAL PACKAGE<NLY> 		8-97893-788-1 01 1 0301-0405 ● ● ●
47 CLIP; HEADLINING
EXC. CUSTOM CAB(SR5) (A) D7.7X25 LIGHT GRAY 		1-73317-371-0 06 1 0005-0210 ● ●
47 CLIP; HEADLINING
(A) D7.7X25 LIGHT GRAY 		1-73317-371-0 06 1 0005-0210 ● ●
47 CLIP; HEADLINING
EXC. CUSTOM CAB(SR5) (A) D7.7X25 LIGHT GRAY 		1-73317-371-0 06 1 0211- ●
47 CLIP; HEADLINING
(A) D7.7X25 LIGHT GRAY 		1-73317-371-0 06 1 0211- ● ● ●
47 CLIP; HEADLINING
EXC. CUSTOM CAB(SR5) (B) OD=6 L=17 LIGHT GRAY 		1-73996-301-0 02 1 0005-0210 ● ●
47 CLIP; HEADLINING
(B) OD=6 L=17 LIGHT GRAY 		1-73996-301-0 02 1 0005-0210 ● ●
47 CLIP; HEADLINING
EXC. CUSTOM CAB(SR5) (B) OD=6 L=17 LIGHT GRAY 		1-73996-301-0 02 1 0211-0305 ●
47 CLIP; HEADLINING
(B) OD=6 L=17 LIGHT GRAY 		1-73996-301-0 02 1 0211-0305 ● ● ●
47 CLIP; HEADLINING
(B) OD=6 L=17 LIGHT GRAY 		1-73996-301-0 02 1 0306-0405 ● ● ● ●
47 CLIP; HEADLINING
EXC. MAP LAMP<C85> (B) OD=6 L=17 LIGHT GRAY 		1-73996-301-0 02 1 0406- ● ● ● ●
47 CLIP; HEADLINING
CUSTOM CAB(SR5) (C) D4.7X15 GRAY 		8-94279-801-0 07 1 0005-0210 ● ●
47 CLIP; HEADLINING
CUSTOM CAB(SR5) (C) D4.7X15 GRAY 		8-94279-801-0 07 1 0211-0305 ●
47 CLIP; HEADLINING
CUSTOM CAB(SR5) (C) D6X23 LIGHT GRAY 		1-73318-629-0 11 1 0306-0405 ●
47 CLIP; HEADLINING
MAP LAMP<C85> (C) D6X23 LIGHT GRAY 		1-73318-629-0 11 1 0406- ● ● ● ●
47 CLIP; HEADLINING
EXC. CUSTOM CAB(SR5) (C) D6X23 LIGHT GRAY 		1-73318-629-0 12 1 0005-0210 ● ●
47 CLIP; HEADLINING
(C) D6X23 LIGHT GRAY 		1-73318-629-0 12 1 0005-0210 ● ●
47 CLIP; HEADLINING
EXC. CUSTOM CAB(SR5) (C) D6X23 LIGHT GRAY 		1-73318-629-0 12 1 0211-0405 ●
47 CLIP; HEADLINING
(C) D6X23 LIGHT GRAY 		1-73318-629-0 12 1 0211-0405 ● ● ●
47 CLIP; HEADLINING
EXC. MAP LAMP<C85> (C) D6X23 LIGHT GRAY 		1-73318-629-0 12 1 0406- ● ● ● ●
66 GRILLE; AIR OUTLET
EXC. CUSTOM CAB(SR5) 		1-73317-366-1 01 1 0005-0305 ●
66 GRILLE; AIR OUTLET 1-73317-366-1 01 1 0005-0305 ● ● ●
66 GRILLE; AIR OUTLET 1-73317-366-1 01 1 0306- ● ● ● ●
66 GRILLE; AIR OUTLET
EXC. CUSTOM CAB(SR5) 		1-73317-367-1 01 1 0005-0305 ●
66 GRILLE; AIR OUTLET 1-73317-367-1 01 1 0005-0305 ● ● ●
66 GRILLE; AIR OUTLET 1-73317-367-1 01 1 0306- ● ● ● ●
184 ORNAMENT; ROOF
(A) 		1-73318-587-0 01 1 0005- ● ● ● ●
184 ORNAMENT; ROOF
(B) 		1-73318-581-0 01 1 0005- ● ● ● ●
184 ORNAMENT; ROOF
(B) 		1-73318-580-0 01 1 0005- ● ● ● ●
185 GROMMET; ORNAMENT
(A) 		1-79198-012-0 06 1 0005- ● ● ● ●
185 GROMMET; ORNAMENT
(B) 		1-79198-013-0 02 1 0005- ● ● ● ●
186 TRIM; ROOM,CANT RAIL SIDE 1-73348-919-0 01 1 0005-0212 ● ● ● ●
186 TRIM; ROOM,CANT RAIL SIDE
EXC. PROVISIONAL PACKAGE<NLY> 		1-73348-919-0 01 1 0301-0405 ● ● ● ●
186 TRIM; ROOM,CANT RAIL SIDE 1-73348-919-2 01 1 0406- ● ● ● ●
186 TRIM; ROOM,CANT RAIL SIDE
PROVISIONAL PACKAGE<NLY> 		1-73348-963-0 01 1 0301-0405 ● ● ● ●
186 TRIM; ROOM,CANT RAIL SIDE 1-73348-918-0 01 1 0005-0212 ● ● ● ●
186 TRIM; ROOM,CANT RAIL SIDE
EXC. PROVISIONAL PACKAGE<NLY> 		1-73348-918-0 01 1 0301-0405 ● ● ● ●
186 TRIM; ROOM,CANT RAIL SIDE 1-73348-918-2 01 1 0406- ● ● ● ●
186 TRIM; ROOM,CANT RAIL SIDE
PROVISIONAL PACKAGE<NLY> 		1-73348-962-0 01 1 0301-0405 ● ● ● ●
187 PIN; ORNAMENT
D4.2X13 		1-09983-161-0 08 1 0211- ● ● ● ●
187 PIN; ORNAMENT
D4.2X13 		1-09983-161-0 08 1 0005-0210 ● ● ● ●

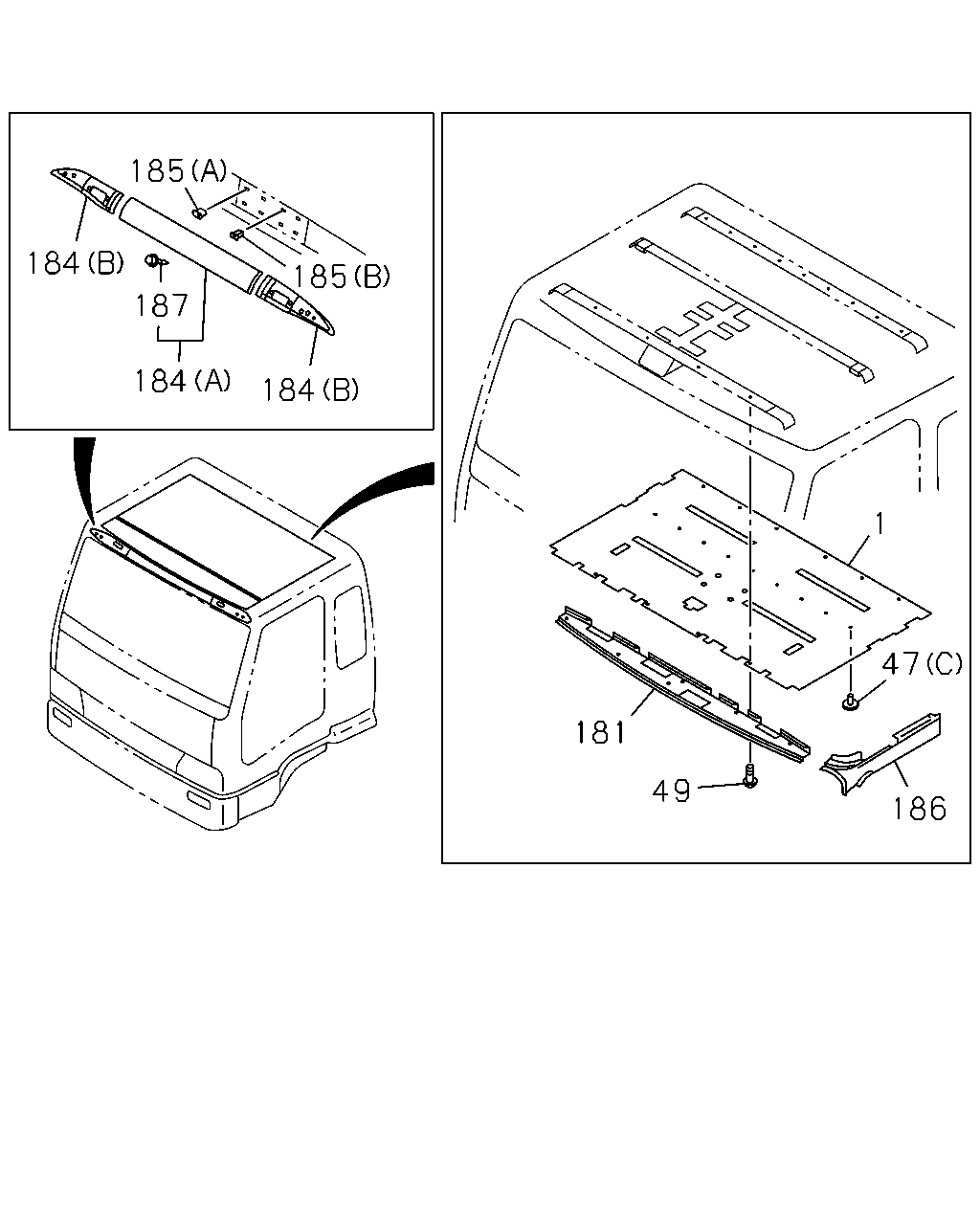

çizim 45344
185 184 185 187 184 184 1 47 181 49 186
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 LINING; HD
CUSTOM CAB(SR5) 		1-73318-686-1 01 1 0005-0210 ● ●
1 LINING; HD
CUSTOM CAB(SR5) 		1-73318-686-1 01 1 0211-0305 ●
47 CLIP; HEADLINING
EXC. CUSTOM CAB(SR5) (A) D7.7X25 LIGHT GRAY 		1-73317-371-0 06 1 0005-0210 ● ●
47 CLIP; HEADLINING
(A) D7.7X25 LIGHT GRAY 		1-73317-371-0 06 1 0005-0210 ● ●
47 CLIP; HEADLINING
EXC. CUSTOM CAB(SR5) (A) D7.7X25 LIGHT GRAY 		1-73317-371-0 06 1 0211- ●
47 CLIP; HEADLINING
(A) D7.7X25 LIGHT GRAY 		1-73317-371-0 06 1 0211- ● ● ●
47 CLIP; HEADLINING
EXC. CUSTOM CAB(SR5) (B) OD=6 L=17 LIGHT GRAY 		1-73996-301-0 02 1 0005-0210 ● ●
47 CLIP; HEADLINING
(B) OD=6 L=17 LIGHT GRAY 		1-73996-301-0 02 1 0005-0210 ● ●
47 CLIP; HEADLINING
EXC. CUSTOM CAB(SR5) (B) OD=6 L=17 LIGHT GRAY 		1-73996-301-0 02 1 0211-0305 ●
47 CLIP; HEADLINING
(B) OD=6 L=17 LIGHT GRAY 		1-73996-301-0 02 1 0211-0305 ● ● ●
47 CLIP; HEADLINING
(B) OD=6 L=17 LIGHT GRAY 		1-73996-301-0 02 1 0306-0405 ● ● ● ●
47 CLIP; HEADLINING
EXC. MAP LAMP<C85> (B) OD=6 L=17 LIGHT GRAY 		1-73996-301-0 02 1 0406- ● ● ● ●
47 CLIP; HEADLINING
CUSTOM CAB(SR5) (C) D4.7X15 GRAY 		8-94279-801-0 07 1 0005-0210 ● ●
47 CLIP; HEADLINING
CUSTOM CAB(SR5) (C) D4.7X15 GRAY 		8-94279-801-0 07 1 0211-0305 ●
47 CLIP; HEADLINING
CUSTOM CAB(SR5) (C) D6X23 LIGHT GRAY 		1-73318-629-0 11 1 0306-0405 ●
47 CLIP; HEADLINING
MAP LAMP<C85> (C) D6X23 LIGHT GRAY 		1-73318-629-0 11 1 0406- ● ● ● ●
47 CLIP; HEADLINING
EXC. CUSTOM CAB(SR5) (C) D6X23 LIGHT GRAY 		1-73318-629-0 12 1 0005-0210 ● ●
47 CLIP; HEADLINING
(C) D6X23 LIGHT GRAY 		1-73318-629-0 12 1 0005-0210 ● ●
47 CLIP; HEADLINING
EXC. CUSTOM CAB(SR5) (C) D6X23 LIGHT GRAY 		1-73318-629-0 12 1 0211-0405 ●
47 CLIP; HEADLINING
(C) D6X23 LIGHT GRAY 		1-73318-629-0 12 1 0211-0405 ● ● ●
47 CLIP; HEADLINING
EXC. MAP LAMP<C85> (C) D6X23 LIGHT GRAY 		1-73318-629-0 12 1 0406- ● ● ● ●
49 CLIP; TRIM COVER
CUSTOM CAB(SR5) D6X23 DARK GRAY 		1-09987-238-0 01 1 0005-0210 ● ●
49 CLIP; TRIM COVER
CUSTOM CAB(SR5) D6X23 DARK GRAY 		1-09987-238-0 01 1 0211-0305 ●
181 TRIM; ROOM,HEADER
CUSTOM CAB(SR5) 		1-73908-375-0 01 1 0005-0210 ● ●
181 TRIM; ROOM,HEADER
CUSTOM CAB(SR5) 		1-73908-375-0 01 1 0211-0212 ●
181 TRIM; ROOM,HEADER
CUSTOM CAB(SR5) EXC. PROVISIONAL PACKAGE<NLY> 		1-73908-375-0 01 1 0301-0305 ●
181 TRIM; ROOM,HEADER
PROVISIONAL PACKAGE<NLY> CUSTOM CAB(SR5) 		1-73908-434-0 01 1 0301-0305 ●
184 ORNAMENT; ROOF
(A) 		1-73318-587-0 01 1 0005- ● ● ● ●
184 ORNAMENT; ROOF
(B) 		1-73318-581-0 01 1 0005- ● ● ● ●
184 ORNAMENT; ROOF
(B) 		1-73318-580-0 01 1 0005- ● ● ● ●
185 GROMMET; ORNAMENT
(A) 		1-79198-012-0 06 1 0005- ● ● ● ●
185 GROMMET; ORNAMENT
(B) 		1-79198-013-0 02 1 0005- ● ● ● ●
186 TRIM; ROOM,CANT RAIL SIDE 1-73348-919-0 01 1 0005-0212 ● ● ● ●
186 TRIM; ROOM,CANT RAIL SIDE
EXC. PROVISIONAL PACKAGE<NLY> 		1-73348-919-0 01 1 0301-0405 ● ● ● ●
186 TRIM; ROOM,CANT RAIL SIDE 1-73348-919-2 01 1 0406- ● ● ● ●
186 TRIM; ROOM,CANT RAIL SIDE
PROVISIONAL PACKAGE<NLY> 		1-73348-963-0 01 1 0301-0405 ● ● ● ●
186 TRIM; ROOM,CANT RAIL SIDE 1-73348-918-0 01 1 0005-0212 ● ● ● ●
186 TRIM; ROOM,CANT RAIL SIDE
EXC. PROVISIONAL PACKAGE<NLY> 		1-73348-918-0 01 1 0301-0405 ● ● ● ●
186 TRIM; ROOM,CANT RAIL SIDE 1-73348-918-2 01 1 0406- ● ● ● ●
186 TRIM; ROOM,CANT RAIL SIDE
PROVISIONAL PACKAGE<NLY> 		1-73348-962-0 01 1 0301-0405 ● ● ● ●
187 PIN; ORNAMENT
D4.2X13 		1-09983-161-0 08 1 0211- ● ● ● ●
187 PIN; ORNAMENT
D4.2X13 		1-09983-161-0 08 1 0005-0210 ● ● ● ●
