◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FV ▶ 10828 - FV/GV(AUSTRAL)L.SUS ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-60 - ROOF PANEL ▶
6-60 — ROOF PANEL (#8746) — 26 parça

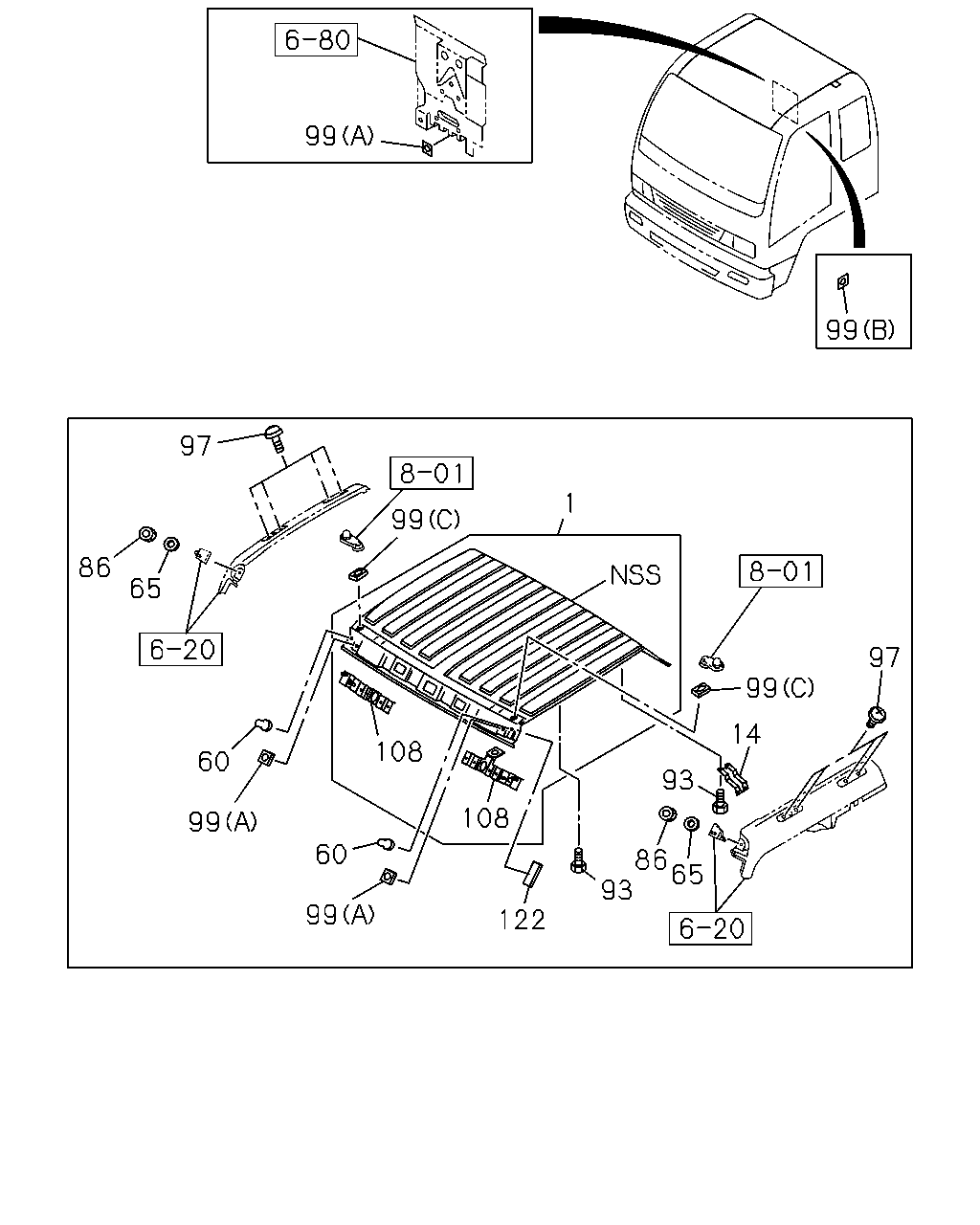

çizim 45419
99 99 97 1 99 86 65 97 99 14 108 60 93 108 99 60 86 65 93 99 122
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 PANEL; ROOF 1-61181-169-0 01 1 0005- ● ● ● ●
14 SUPPORT; ROOF
CUSTOM CAB(SR5) 		1-73318-493-3 02 1 0110-0210 ● ●
14 SUPPORT; ROOF
CUSTOM CAB(SR5) 		1-73318-493-3 02 1 0211-0305 ●
14 SUPPORT; ROOF 1-73318-595-2 02 1 0005-0109 ● ● ● ●
14 SUPPORT; ROOF
EXC. CUSTOM CAB(SR5) 		1-73318-595-2 02 1 0110-0210 ● ●
14 SUPPORT; ROOF 1-73318-595-2 02 1 0110-0210 ● ●
14 SUPPORT; ROOF
EXC. CUSTOM CAB(SR5) 		1-73318-595-2 02 1 0211-0305 ●
14 SUPPORT; ROOF 1-73318-595-2 02 1 0211-0305 ● ● ●
14 SUPPORT; ROOF 1-73318-595-3 02 1 0306- ● ● ● ●
60 COVER; ROOF 1-79998-922-3 05 1 0005- ● ● ● ●
65 WASHER; PL
ID=8 T=2.3 		8-94368-403-1 02 1 0005-0701 ● ● ● ●
65 WASHER; PL
ID=8 T=2.3 		8-98073-399-0 02 1 0702- ● ● ● ●
86 NUT; ROOF
M8 LOCK NUT 		9-09131-408-0 02 1 0005-0103 ● ● ● ●
86 NUT; ROOF
M8 LOCK NUT 		9-09131-508-0 02 1 0104-0603 ● ● ● ●
86 NUT; ROOF
M8 LOCK NUT 		0-91370-008-0 02 1 0604- ● ● ● ●
93 BOLT; SUPPORT
M6X12 W/LK&PL WASHER 		8-94279-200-0 10 1 0005- ● ● ● ●
97 BOLT; AIR DEFLECTOR
M8X15 W/PL WASHER 		1-79198-003-2 08 1 0005- ● ● ● ●
99 SEAL; BODY,METAL
(C) 75X50 ID=36 		1-61281-458-1 02 1 0501- ● ● ● ●
99 SEAL; BODY,METAL
(A) 30X30 ID=20 T=0.7 		1-61281-380-2 25 1 0005- ● ● ● ●
99 SEAL; BODY,METAL
(A) 30X30 ID=9 T=0.7 		1-61281-444-1 02 1 0005- ● ● ● ●
99 SEAL; BODY,METAL
(B) 14X14 ID=10 T=0.7 		1-61281-427-0 16 1 0005-0403 ● ● ● ●
99 SEAL; BODY,METAL
(B) 14X14 ID=10 T=0.7 		1-61281-427-1 12 1 0404- ● ● ● ●
108 PATCH; MIRROR 1-61180-979-4 01 1 0005- ● ● ● ●
108 PATCH; MIRROR 1-61180-956-4 01 1 0005- ● ● ● ●
122 SEAL; FRT UPR 1-61270-919-0 02 1 0005-0809 ● ● ● ●
122 SEAL; FRT UPR 1-61270-973-0 02 1 0810- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
