6-47 — MUD GUARD AND INSULATOR (#8745) — 180 parça

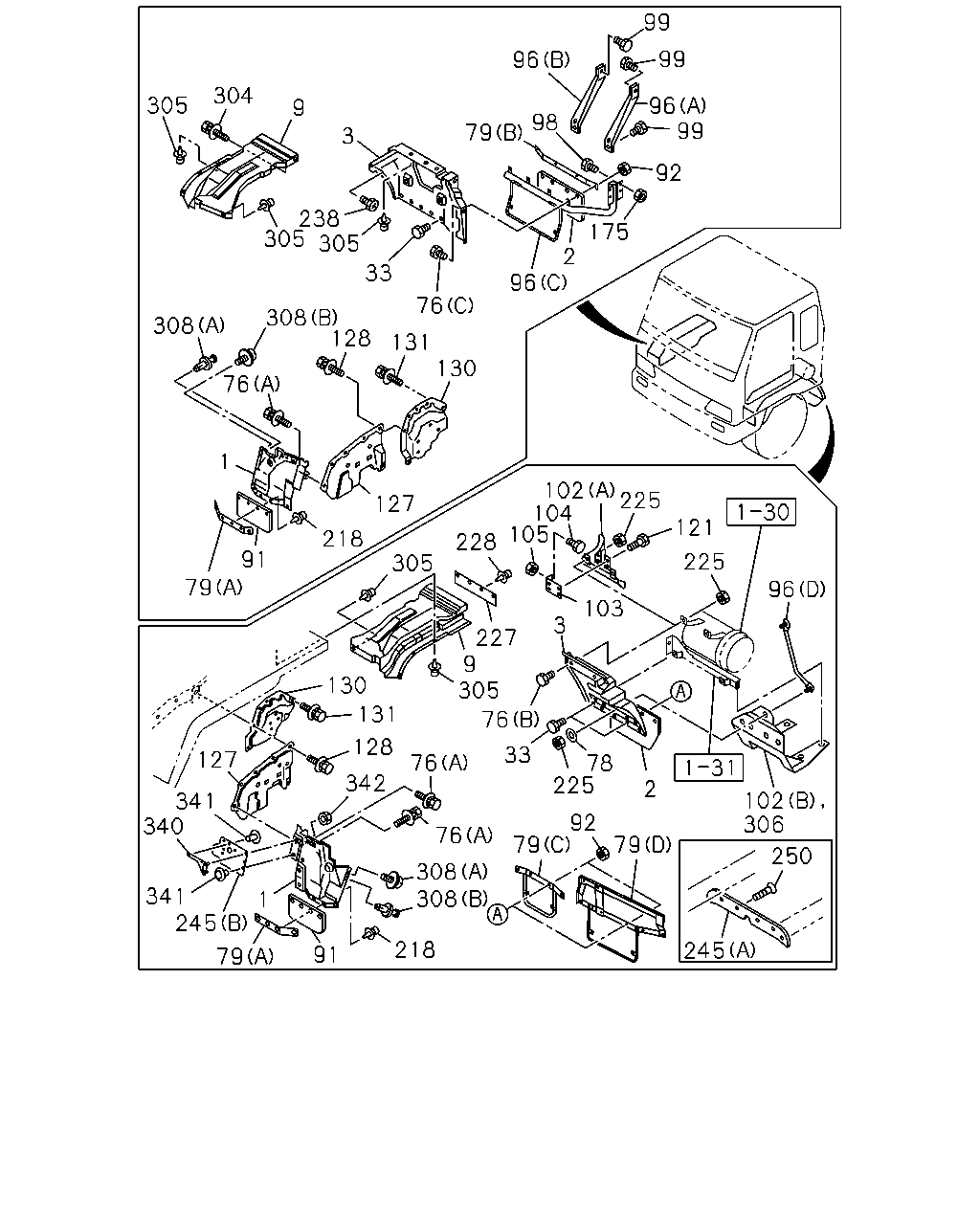

99 99 96 304 305 96 99 9 98 79 3 92 238 305 305 175 2 96 33 76 308 128 308 131 130 76 1 102 104 105 225 127 121 218 228 91 225 305 79 96 103 3 227 9 305 130 131 76 128 127 33 76 78 225 342 2 102 306 341 340 92 79 76 79 250 308 308 341 1 218 245 91 79 245

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	GUARD; MUD,FRT	1-79936-022-0	01	1	0005-0111	●	●	●	●
1	GUARD; MUD,FRT EXC. A/T<X9D>	1-79936-022-0	01	1	0112-0210	●	●	●	●
1	GUARD; MUD,FRT	1-79936-021-0	01	1	0005-	●	●	●	●
1	GUARD; MUD,FRT 6HK1 TCS ENG(80L)	1-79936-022-0	01	1	0303-		●
1	GUARD; MUD,FRT A/T<X9D>	1-79936-028-0	01	1	0112-0210			●
1	GUARD; MUD,FRT	1-79936-028-0	01	1	0211-	●		●	●
1	GUARD; MUD,FRT 6SD1 TCN ENG(31L)	1-79936-028-0	01	1	0211-		●
2	COVER; MUD,TIRE RR	1-79938-972-2	01	1	0005-	●	●	●	●
2	COVER; MUD,TIRE RR	1-79931-371-0	01	1	0005-	●	●	●	●
3	GUARD; MUD,RR	1-79938-971-1	01	1	0005-0210	●	●	●	●
3	GUARD; MUD,RR	1-79938-971-1	01	1	0211-	●		●	●
3	GUARD; MUD,RR 6SD1 TCN ENG(31L)	1-79938-971-1	01	1	0211-		●
3	GUARD; MUD,RR	1-79938-962-2	01	1	0005-0210	●		●	●
3	GUARD; MUD,RR 6SD1 TCN ENG(31L),6HE1 TC ENG(57L)	1-79938-962-2	01	1	0005-0210		●
3	GUARD; MUD,RR 6HH1 STD ENG(65L)	1-79938-999-0	01	1	0005-0210		●
3	GUARD; MUD,RR	1-79936-033-0	01	1	0211-	●		●	●
3	GUARD; MUD,RR 6SD1 TCN ENG(31L)	1-79936-033-0	01	1	0211-		●
3	GUARD; MUD,RR 6HK1 TCS ENG(80L)	1-79938-962-2	01	1	0303-		●
3	GUARD; MUD,RR 6HK1 TCS ENG(80L)	1-79936-012-0	01	1	0303-		●
9	GUARD; SPLASH,WHEEL HOUSE	1-79936-007-2	01	1	0005-	●	●	●	●
9	GUARD; SPLASH,WHEEL HOUSE	1-79938-955-3	01	1	0005-	●	●	●	●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	06	1	0005-0111	●	●	●	●
33	BOLT; MUD COVER EXC. WHEEL BASE 5900MM(59W) M6X20 W/LK&PL WASHER	1-09980-495-0	06	1	0112-0210	●	●	●	●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	13	1	0211-	●	●	●	●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	07	1	0005-0111	●	●	●	●
33	BOLT; MUD COVER EXC. WHEEL BASE 5900MM(59W) M6X20 W/LK&PL WASHER	1-09980-495-0	07	1	0112-0210	●	●	●	●
33	BOLT; MUD COVER WHEEL BASE 5900MM(59W) M6X20 W/LK&PL WASHER	1-09980-495-0	13	1	0112-0210			●
76	BOLT; MUD GUARD (A) M8X25 W/LK&PL WASHER	8-94331-747-1	08	1	0005-	●	●	●	●
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-074-0	02	1	0005-0210	●		●	●
76	BOLT; MUD GUARD 6SD1 TCN ENG(31L),6HE1 TC ENG(57L) (B) M8X25 W/LK&PL WASHER	1-09030-074-0	02	1	0005-0210		●
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-074-0	02	1	0211-0805	●	●	●	●
76	BOLT; MUD GUARD 6SD1 TCN ENG(31L) (B) M8X25 W/LK&PL WASHER	1-09030-074-0	02	1	0211-0805	●	●	●	●
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-093-0	02	1	0806-	●	●	●	●
76	BOLT; MUD GUARD 6SD1 TCN ENG(31L) (B) M8X25 W/LK&PL WASHER	1-09030-093-0	02	1	0806-	●	●	●	●
76	BOLT; MUD GUARD 6HH1 STD ENG(65L) (B) M8X25 W/LK&PL WASHER	1-09030-074-0	04	1	0005-0210		●
76	BOLT; MUD GUARD 6HH1 STD ENG(65L) (B) M6X20 W/LK&PL WASHER	1-09980-495-0	01	1	0005-0210		●
76	BOLT; MUD GUARD (C) M6X20 W/LK&PL WASHER	8-94279-203-0	02	1	0005-	●	●	●	●
78	WASHER; PL,MUD GUARD ID=8.4 OD=26	9-09164-808-0	02	1	0005-0210	●		●	●
78	WASHER; PL,MUD GUARD 6SD1 TCN ENG(31L),6HE1 TC ENG(57L) ID=8.4 OD=26	9-09164-808-0	02	1	0005-0210		●
78	WASHER; PL,MUD GUARD ID=8.4 OD=26	9-09164-808-0	02	1	0211-0605	●	●	●	●
78	WASHER; PL,MUD GUARD ID=8.4 OD=26	0-91614-808-0	02	1	0606-	●	●	●	●
79	RETAINER; MUD COVER (A)	1-79931-349-0	02	1	0005-	●	●	●	●
79	RETAINER; MUD COVER (B)	1-79931-269-0	01	1	0005-	●	●	●	●
79	RETAINER; MUD COVER (C)	1-79931-288-0	01	1	0005-0210	●		●	●
79	RETAINER; MUD COVER 6SD1 TCN ENG(31L),6HE1 TC ENG(57L) (C)	1-79931-288-0	01	1	0005-0210		●
79	RETAINER; MUD COVER (C)	1-79931-288-0	01	1	0211-	●	●	●	●
79	RETAINER; MUD COVER 6HH1 STD ENG(65L) (D)	1-79931-304-0	01	1	0005-0210		●
91	COVER; MUD,FRT	1-79931-348-0	02	1	0005-	●	●	●	●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	04	1	0005-0210	●	●	●	●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	03	1	0005-0210	●		●	●
92	NUT; MUD COVER 6SD1 TCN ENG(31L),6HE1 TC ENG(57L) M6 FLANGE	0-91150-106-0	03	1	0005-0210		●
92	NUT; MUD COVER M6 FLANGE	0-91150-106-0	07	1	0211-0602	●	●	●	●
92	NUT; MUD COVER M6 FLANGE	0-91180-106-0	07	1	0603-	●	●	●	●
92	NUT; MUD COVER 6HH1 STD ENG(65L) M6 FLANGE	0-91150-106-0	05	1	0005-0210		●
96	STAY; MUD GUARD (D)	1-53497-592-1	01	1	0211-	●	●	●	●
96	STAY; MUD GUARD (A)	1-79938-737-0	01	1	0005-	●	●	●	●
96	STAY; MUD GUARD (B)	1-79938-738-1	01	1	0005-	●	●	●	●
96	STAY; MUD GUARD (C)	1-53497-661-0	01	1	0005-	●	●	●	●
96	STAY; MUD GUARD (D)	1-53497-592-1	01	1	0005-0210	●		●	●
96	STAY; MUD GUARD 6SD1 TCN ENG(31L),6HE1 TC ENG(57L) (D)	1-53497-592-1	01	1	0005-0210		●
98	BOLT; STAY TO BRKT M8X30 FLANGE	0-28680-830-0	04	1	0005-0512	●	●	●	●
98	BOLT; STAY TO BRKT M8X30 FLANGE	0-28650-830-0	04	1	0601-	●	●	●	●
99	BOLT; STAY TO MUD GUARD M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	0005-	●	●	●	●
102	STAY; LWR,MUD GUARD (A)	1-53497-535-0	01	1	0005-0210	●		●	●
102	STAY; LWR,MUD GUARD 6SD1 TCN ENG(31L),6HE1 TC ENG(57L) (A)	1-53497-535-0	01	1	0005-0210		●
102	STAY; LWR,MUD GUARD (A)	1-53497-535-0	01	1	0211-	●	●	●	●
102	STAY; LWR,MUD GUARD (B)	1-53497-593-2	01	1	0005-0210	●		●	●
102	STAY; LWR,MUD GUARD 6SD1 TCN ENG(31L),6HE1 TC ENG(57L) (B)	1-53497-593-2	01	1	0005-0210		●
102	STAY; LWR,MUD GUARD (B)	1-53497-593-2	01	1	0211-0302	●	●	●	●
102	STAY; LWR,MUD GUARD (B)	1-53497-618-0	01	1	0303-0303	●	●	●	●
103	BRACKET ASM; RR MUD FLAP	1-53497-486-2	01	1	0005-0210	●		●	●
103	BRACKET ASM; RR MUD FLAP 6SD1 TCN ENG(31L),6HE1 TC ENG(57L)	1-53497-486-2	01	1	0005-0210		●
103	BRACKET ASM; RR MUD FLAP	1-53497-486-2	01	1	0211-	●	●	●	●
104	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	02	1	0005-0210	●		●	●
104	BOLT; BRKT 6SD1 TCN ENG(31L),6HE1 TC ENG(57L) M8X20 FLANGE	0-28680-820-0	02	1	0005-0210		●
104	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	0211-0512	●	●	●	●
104	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●	●	●
105	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0005-0210	●		●	●
105	NUT; BRKT 6SD1 TCN ENG(31L),6HE1 TC ENG(57L) M8 FLANGE	0-91150-108-0	02	1	0005-0210		●
105	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0211-0602	●	●	●	●
105	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●	●
121	BOLT M10X30 FLANGE	0-28681-030-0	04	1	0005-0210	●		●	●
121	BOLT 6SD1 TCN ENG(31L),6HE1 TC ENG(57L) M10X30 FLANGE	0-28681-030-0	04	1	0005-0210		●
121	BOLT M10X30 FLANGE	0-28681-030-0	04	1	0211-0512	●	●	●	●
121	BOLT M10X30 FLANGE	0-28651-030-0	04	1	0601-	●	●	●	●
127	APRON; FRT	1-53192-957-2	01	1	0005-0210	●	●	●	●
127	APRON; FRT	1-53193-222-1	01	1	0211-	●		●	●
127	APRON; FRT 6SD1 TCN ENG(31L)	1-53193-222-1	01	1	0211-		●
127	APRON; FRT	1-53192-956-1	01	1	0005-0210	●	●	●	●
127	APRON; FRT	1-53192-301-3	01	1	0211-	●		●	●
127	APRON; FRT 6SD1 TCN ENG(31L)	1-53192-301-3	01	1	0211-		●
127	APRON; FRT 6HK1 TCS ENG(80L)	1-53192-956-1	01	1	0303-		●
127	APRON; FRT 6HK1 TCS ENG(80L)	1-53192-957-2	01	1	0303-		●
128	BOLT; APRON,FRT M8X25 W/LK&PL WASHER	8-94331-747-1	10	1	0005-	●	●	●	●
130	PANEL; SHUTTER NOISE	1-53192-955-2	01	1	0005-0210	●	●	●	●
130	PANEL; SHUTTER NOISE	1-53194-098-0	01	1	0211-	●		●	●
130	PANEL; SHUTTER NOISE 6SD1 TCN ENG(31L)	1-53194-098-0	01	1	0211-		●
130	PANEL; SHUTTER NOISE	1-53192-954-2	01	1	0005-0210	●	●	●	●
130	PANEL; SHUTTER NOISE	1-53192-954-2	01	1	0211-	●		●	●
130	PANEL; SHUTTER NOISE 6SD1 TCN ENG(31L)	1-53192-954-2	01	1	0211-		●
130	PANEL; SHUTTER NOISE 6HK1 TCS ENG(80L)	1-53192-955-2	01	1	0303-		●
130	PANEL; SHUTTER NOISE 6HK1 TCS ENG(80L)	1-53193-704-1	01	1	0303-		●
131	BOLT; PANEL M6X20 W/LK&PL WASHER	8-94279-203-0	08	1	0005-	●	●	●	●
175	NUT; STAY FIX M8 FLANGE	0-91150-108-0	02	1	0005-0210	●		●	●
175	NUT; STAY FIX 6SD1 TCN ENG(31L),6HE1 TC ENG(57L) M8 FLANGE	0-91150-108-0	02	1	0005-0210		●
175	NUT; STAY FIX M8 FLANGE	0-91150-108-0	02	1	0211-0602	●		●	●
175	NUT; STAY FIX 6SD1 TCN ENG(31L) M8 FLANGE	0-91150-108-0	02	1	0211-0602		●
175	NUT; STAY FIX M8 FLANGE	0-91180-108-0	02	1	0603-	●		●	●
175	NUT; STAY FIX 6SD1 TCN ENG(31L) M8 FLANGE	0-91180-108-0	02	1	0603-		●
175	NUT; STAY FIX 6HH1 STD ENG(65L) M8 FLANGE	0-91150-108-0	04	1	0005-0210		●
175	NUT; STAY FIX 6HK1 TCS ENG(80L) M8 FLANGE	0-91150-108-0	04	1	0303-0602		●
175	NUT; STAY FIX 6HK1 TCS ENG(80L) M8 FLANGE	0-91180-108-0	04	1	0603-		●
218	FASTENER; RUBBER	1-09470-001-0	06	1	0005-	●	●	●	●
225	NUT; MUD GUARD M8 FLANGE	0-91150-108-0	03	1	0005-0210	●		●	●
225	NUT; MUD GUARD 6SD1 TCN ENG(31L),6HE1 TC ENG(57L) M8 FLANGE	0-91150-108-0	03	1	0005-0210		●
225	NUT; MUD GUARD M8 FLANGE	0-91150-108-0	03	1	0211-0602	●	●	●	●
225	NUT; MUD GUARD 6SD1 TCN ENG(31L) M8 FLANGE	0-91150-108-0	03	1	0211-0602	●	●	●	●
225	NUT; MUD GUARD M8 FLANGE	0-91180-108-0	03	1	0603-	●	●	●	●
225	NUT; MUD GUARD 6SD1 TCN ENG(31L) M8 FLANGE	0-91180-108-0	03	1	0603-	●	●	●	●
225	NUT; MUD GUARD 6HH1 STD ENG(65L) M8 FLANGE	0-91150-108-0	02	1	0005-0210		●
227	SEAL; MUD GUARD	1-79938-953-1	01	1	0005-	●	●	●	●
228	FASTENER; MUD GUARD SEAL D8X13.5	1-09987-248-1	04	1	0005-	●	●	●	●
238	SCREW; MUD GUARD M6X20 W/LK&PL WASHER	8-94279-203-0	01	1	0005-	●	●	●	●
245	RUBBER; SHUTTER,RAD 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (A)	1-79938-927-0	01	1	0005-0210		●
245	RUBBER; SHUTTER,RAD A/T<X9D> (B)	1-79936-023-1	01	1	0112-0210			●
245	RUBBER; SHUTTER,RAD (B)	1-79936-027-0	01	1	0211-	●		●	●
245	RUBBER; SHUTTER,RAD 6SD1 TCN ENG(31L) (B)	1-79936-027-0	01	1	0211-		●
250	FASTENER; SHUTTER 6HE1 TC ENG(57L),6HH1 STD ENG(65L)	1-09987-189-0	06	1	0005-0210		●
304	BOLT; SPLASH GUARD M6X20 W/LK&PL WASHER	8-94279-203-0	02	1	0005-	●	●	●	●
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	05	1	0005-0404	●	●	●	●
305	FASTENER; SPLASH GUARD D8X13.5	1-09987-248-1	06	1	0405-	●	●	●	●
306	BRACKET; MUD GUARD	1-53497-618-0	01	1	0304-	●	●	●	●
308	FASTENER; MUD GUARD (A)	1-09470-007-0	02	1	0005-0404	●	●	●	●
308	FASTENER; MUD GUARD (B) M6X22	1-65481-386-0	02	1	0005-0404	●	●	●	●
308	FASTENER; MUD GUARD (B) M6X22	1-65481-386-0	04	1	0405-	●	●	●	●
340	BRACKET; RUBBER,SHUTTER A/T<X9D>	1-79936-024-1	01	1	0112-0210			●
340	BRACKET; RUBBER,SHUTTER	1-79936-024-1	01	1	0211-	●		●	●
340	BRACKET; RUBBER,SHUTTER 6SD1 TCN ENG(31L)	1-79936-024-1	01	1	0211-		●
341	CLIP; RUBBER A/T<X9D> ID=6X6 OD=8	1-09987-194-0	03	1	0112-0210			●
341	CLIP; RUBBER ID=6X6 OD=8	1-09987-194-0	03	1	0211-	●		●	●
341	CLIP; RUBBER 6SD1 TCN ENG(31L) ID=6X6 OD=8	1-09987-194-0	03	1	0211-		●
342	NUT; BRKT,RUBBER A/T<X9D> M8 FLANGE	8-97046-127-0	02	1	0112-0210			●
342	NUT; BRKT,RUBBER M8 FLANGE	8-97046-127-0	02	1	0211-0805	●		●	●
342	NUT; BRKT,RUBBER 6SD1 TCN ENG(31L) M8 FLANGE	8-97046-127-0	02	1	0211-0805		●
342	NUT; BRKT,RUBBER M8 W/DISHED WASHER	8-97329-625-0	02	1	0806-	●		●	●
342	NUT; BRKT,RUBBER 6SD1 TCN ENG(31L) M8 W/DISHED WASHER	8-97329-625-0	02	1	0806-		●

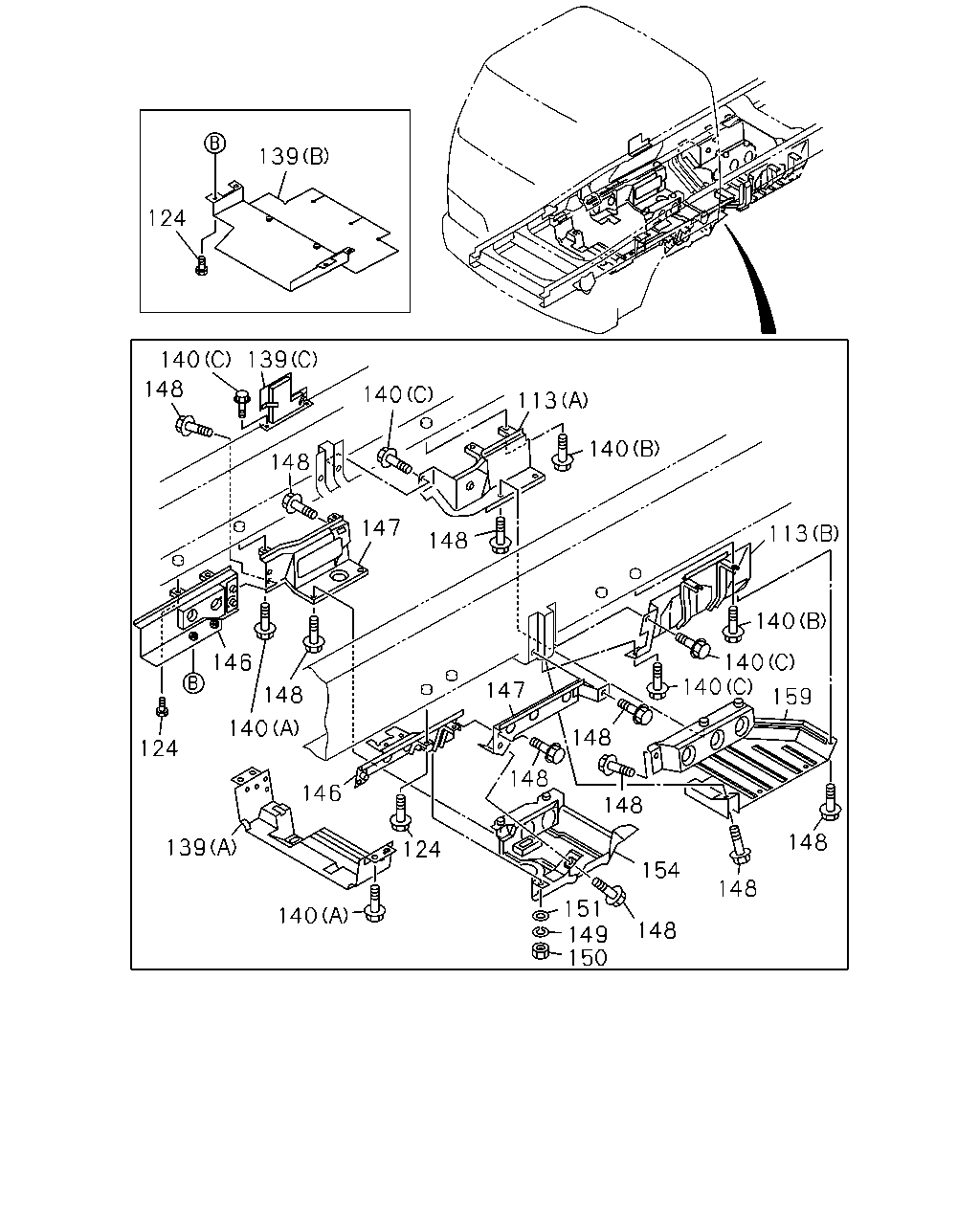

139 124 140 139 148 140 113 140 148 147 113 148 140 140 140 146 147 148 159 140 148 124 148 146 148 148 139 124 154 148 151 149 150 140 148

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B
113	PANEL; SIDE 6HH1 STD ENG(65L) (A)	1-53192-910-1	01	1	0005-0210	●
113	PANEL; SIDE 6HH1 STD ENG(65L) (B)	1-53192-912-2	01	1	0005-0210	●
124	BOLT; BRKT 6HH1 STD ENG(65L) M8X25 FLANGE	0-28680-825-0	08	1	0005-0210	●
139	PANEL; SIDE 6HH1 STD ENG(65L) (A)	1-53192-593-0	01	1	0005-0210	●
139	PANEL; SIDE 6HH1 STD ENG(65L) (B)	1-53192-917-2	01	1	0005-0210	●
139	PANEL; SIDE 6HH1 STD ENG(65L) (C)	1-53193-148-0	01	1	0005-0210	●
140	BOLT; SIDE PANEL 6HH1 STD ENG(65L) (A) M8X25 FLANGE	0-28680-825-0	07	1	0005-0210	●
140	BOLT; SIDE PANEL 6HH1 STD ENG(65L) (B) M8X40 FLANGE	0-28680-840-0	04	1	0005-0210	●
140	BOLT; SIDE PANEL 6HH1 STD ENG(65L) (C) M8X22 W/LK&PL WASHER	1-09030-084-0	04	1	0005-0210	●
146	PANEL; SIDE,UNDER,FRT 6HH1 STD ENG(65L)	1-53192-939-0	01	1	0005-0210	●
146	PANEL; SIDE,UNDER,FRT 6HH1 STD ENG(65L)	1-53192-937-1	01	1	0005-0210	●
147	PANEL; SIDE,UNDER,RR 6HH1 STD ENG(65L)	1-53193-051-1	01	1	0005-0210	●
147	PANEL; SIDE,UNDER,RR 6HH1 STD ENG(65L)	1-53192-923-1	01	1	0005-0210	●
148	BOLT; PANEL TO PANEL 6HH1 STD ENG(65L) M8X22 W/LK&PL WASHER	1-09030-084-0	16	1	0005-0210	●
149	WASHER; LK,SIDE PANEL 6HH1 STD ENG(65L) ID=8.2	9-09150-508-0	01	1	0005-0210	●
150	NUT; SIDE PANEL 6HH1 STD ENG(65L) M8	9-09110-408-0	01	1	0005-0210	●
151	WASHER; PL,SIDE PANEL 6HH1 STD ENG(65L) ID=8.4 OD=22	9-09160-708-0	01	1	0005-0210	●
154	PANEL; SIDE,UNDER ENG CTR 6HH1 STD ENG(65L)	1-53192-920-1	01	1	0005-0210	●
159	PANEL; SIDE,TRANS,CTR 6HH1 STD ENG(65L)	1-53192-913-1	01	1	0005-0210	●

71 114 138

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
71	RUBBER; SEAL 6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A)	1-21593-105-1	01	1	0211-	●	●		●
71	RUBBER; SEAL 6SD1 TCN ENG(31L) FULLER RT7608LL M/T(X8P)	1-21593-105-1	01	1	0211-			●
71	RUBBER; SEAL 6SD1 TCN ENG(31L) ALLISON MD3560P A/T(Y3B)	1-21593-085-2	01	1	0112-			●
71	RUBBER; SEAL 6SD1 TCN ENG(31L) ALLISON MD3560P A/T(Y3B)	1-21593-104-1	01	1	0112-0210			●
71	RUBBER; SEAL	1-21593-104-1	01	1	0211-	●		●	●
71	RUBBER; SEAL 6SD1 TCN ENG(31L)	1-21593-104-1	01	1	0211-		●
114	BOLT 6SD1 TCN ENG(31L) ALLISON MD3560P A/T(Y3B) M8X25 FLANGE	0-28680-825-0	04	1	0112-0210			●
114	BOLT M8X25 FLANGE	0-28680-825-0	04	1	0211-0512	●		●	●
114	BOLT 6SD1 TCN ENG(31L) M8X25 FLANGE	0-28680-825-0	04	1	0211-0512		●
114	BOLT M8X25 FLANGE	0-28650-825-0	04	1	0601-	●		●	●
114	BOLT 6SD1 TCN ENG(31L) M8X25 FLANGE	0-28650-825-0	04	1	0601-		●
138	NUT M8 FLANGE	0-91150-108-0	04	1	0211-0602	●		●	●
138	NUT 6SD1 TCN ENG(31L) M8 FLANGE	0-91150-108-0	04	1	0211-0602		●
138	NUT M8 FLANGE	0-91180-108-0	04	1	0603-	●		●	●
138	NUT 6SD1 TCN ENG(31L) M8 FLANGE	0-91180-108-0	04	1	0603-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
